Top Applications of Pneumatic Ball Valves in Chemical Plants

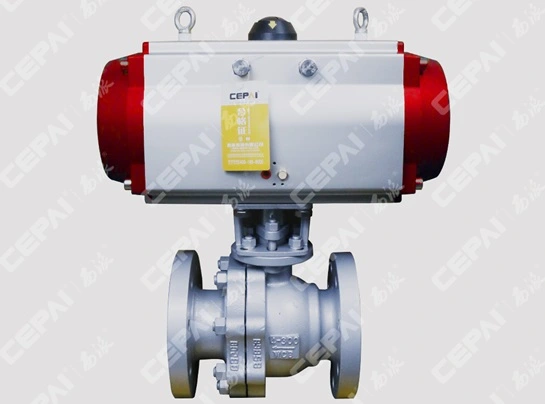

Pneumatic ball valves represent a critical component in modern chemical processing facilities, offering exceptional reliability and precision in fluid control operations. These valves, powered by compressed air, deliver rapid actuation and superior sealing capabilities essential for the demanding environments found in chemical plants. The implementation of high-quality pneumatic ball valves, like those manufactured by CEPAI Group, ensures optimal process efficiency, enhanced safety protocols, and reduced maintenance requirements across numerous chemical processing applications.

Critical Process Control Applications in Chemical Manufacturing

Corrosive Chemical Handling and Transport

Pneumatic ball valves play an indispensable role in the handling and transport of corrosive chemicals within processing facilities. These specialized valves feature corrosion-resistant materials such as stainless steel, PTFE, PFA, or specialized alloys that can withstand aggressive chemical environments while maintaining operational integrity. The pneumatic actuation system keeps the mechanical components safely distanced from the harsh chemicals, extending valve lifespan and reliability. For instance, in sulfuric acid production facilities, pneumatic ball valves with appropriate material selection ensure safe flow control while resisting the highly corrosive properties of the acid. The quarter-turn operation of pneumatic ball valves allows for quick shut-off capabilities, which is particularly valuable when dealing with hazardous substances that require immediate isolation in emergency scenarios. Additionally, the positive sealing characteristics of pneumatic ball valve designs prevent leakage of dangerous chemicals, protecting both personnel and equipment from potential harm while meeting stringent environmental compliance standards.

High-Temperature Process Applications

Chemical manufacturing often involves processes operating at elevated temperatures that challenge conventional valve systems. Pneumatic ball valves designed for high-temperature applications incorporate specialized seat materials like metal-to-metal seats, ceramic components, or high-performance polymers capable of maintaining dimensional stability and sealing effectiveness at temperatures exceeding 200°C. In steam systems within chemical plants, pneumatic ball valves with appropriate temperature ratings ensure reliable steam distribution while resisting thermal cycling effects. The remote operation capability of pneumatic ball valve systems is particularly advantageous in high-temperature zones, allowing operators to control fluid flow from a safe distance without exposure to extreme heat conditions. Furthermore, the pneumatic actuation system itself remains relatively unaffected by ambient temperature fluctuations, maintaining consistent operation regardless of process temperature variations. This reliability in extreme temperature environments makes pneumatic ball valves the preferred choice for applications such as reactor temperature control systems, heat exchanger isolation, and thermal oil circulation networks within chemical processing facilities.

Batch Process Control and Automation

Modern chemical manufacturing increasingly relies on batch processing techniques that demand precise, repeatable valve operations. Pneumatic ball valves excel in these environments, offering exceptional control characteristics through integration with advanced automation systems. When equipped with position feedback devices, limit switches, and digital positioners, pneumatic ball valves provide precise flow control while generating valuable operational data for process optimization. The rapid actuation speeds achievable with pneumatic ball valve systems—often completing quarter-turn movements in less than a second—make them ideal for batch sequencing applications where timing accuracy directly impacts product quality. These valves can be programmed to operate in specific sequences as part of larger automated control systems, ensuring consistent batch-to-batch production results. The flexibility of pneumatic control also allows for variable positioning capabilities, where the ball valve can maintain partially open positions to regulate flow rates precisely according to process requirements. This characteristic makes pneumatic ball valves particularly valuable in chemical blending applications, catalyst addition systems, and reactor feed control, where precise proportioning of ingredients is essential for product quality.

Safety and Containment Systems in Chemical Processing

Emergency Shutdown Systems (ESD)

Pneumatic ball valves form a critical component of Emergency Shutdown Systems (ESD) in chemical processing facilities, providing reliable fail-safe operation during critical safety events. The intrinsically safe design of pneumatic ball valve actuators, which operate without electrical components in potentially explosive atmospheres, makes them ideal for emergency isolation applications. These valves can be configured with spring-return actuators that automatically drive the valve to a predetermined safe position (either closed or open, depending on the safety protocol) upon loss of pneumatic supply or control signal. This fail-safe capability ensures that chemical processes default to their safest state during power or control system failures. The robust construction of industrial-grade pneumatic ball valves enables them to perform reliably even after long periods of inactivity, a crucial characteristic for emergency equipment that may remain dormant for extended periods until suddenly required. In high-risk processing areas involving flammable or toxic chemicals, pneumatic ball valve systems can be integrated with gas detection, fire detection, or process upset monitoring systems to provide automatic isolation when dangerous conditions are detected. The pneumatic ball valve's ability to achieve tight shutoff with minimal leakage makes it particularly valuable for containing hazardous materials during emergency events, preventing environmental releases and protecting personnel.

Hazardous Area Isolation and Containment

Chemical plants frequently contain classified hazardous areas where flammable gases, vapors, or combustible dusts present explosion risks. Pneumatic ball valves offer inherent advantages in these environments due to their non-electrical operation. When properly specified with appropriate ATEX, IECEx, or other relevant certifications, pneumatic ball valve assemblies provide reliable fluid control without introducing ignition sources. The containment capabilities of well-designed pneumatic ball valves, featuring dual seals, extended bonnets, or specialized packing systems, prevent dangerous leakage of toxic or flammable substances into work areas. For particularly hazardous processes involving chemicals like chlorine, phosgene, or hydrogen sulfide, double-block-and-bleed pneumatic ball valve configurations provide enhanced isolation security by creating two barrier points with an intermediate bleed section that can be monitored for seal integrity. The remote operation capability of pneumatic ball valves reduces operator exposure in hazardous zones, allowing valve manipulation from safe locations outside the immediate danger area. Additionally, pneumatic ball valve systems can be equipped with partial stroke testing capabilities that verify emergency valve functionality without fully interrupting the process, ensuring that safety systems remain operational when needed while minimizing production disruptions during testing procedures.

Pressure Relief and Diversion Systems

Maintaining appropriate pressure levels within chemical processing equipment is essential for both operational efficiency and safety. Pneumatic ball valves serve crucial functions within pressure management systems, providing rapid response to overpressure conditions through automated diversion pathways. When integrated with pressure monitoring instrumentation, pneumatic ball valves can automatically redirect excess pressure to appropriate containment systems, preventing equipment damage and potential rupture events. The substantial flow capacity of full-port pneumatic ball valve designs makes them particularly valuable for pressure relief applications, where large volumes of process media may need rapid diversion. In emergency pressure scenarios involving two-phase flow (liquid-gas mixtures), the straight-through flow path of pneumatic ball valves offers advantages over other valve types by minimizing flow restriction and pressure drop. Chemical plants handling highly reactive substances often implement redundant pressure management systems utilizing pneumatic ball valves in different configurations to ensure multiple layers of protection. The quarter-turn action of pneumatic ball valves allows for quick manual override capabilities when necessary, providing operators with immediate control options during pressure-related emergencies. Additionally, smart pneumatic ball valve systems can be programmed with graduated response protocols that implement increasingly aggressive pressure management actions as conditions escalate, starting with minor flow adjustments and progressing to complete system isolation if pressure continues to build.

Specialized Chemical Processing Applications

Slurry and Particulate Media Handling

Chemical manufacturing frequently involves processing slurries, suspensions, and media containing solid particulates that present unique valve challenges. Pneumatic ball valves with appropriate design modifications excel in these demanding applications. Full-bore pneumatic ball valve configurations maintain the same internal diameter throughout the valve body, eliminating flow restrictions that could cause solid buildup or clogging. For particularly abrasive slurries, pneumatic ball valves can be specified with hardened materials like tungsten carbide or ceramic-coated components that resist erosive wear while maintaining operational integrity. The rotational action of pneumatic ball valves provides a self-cleaning effect during operation, as the ball's movement tends to sweep away accumulated solids from sealing surfaces. In crystallizing chemical processes, where media may solidify on internal components, pneumatic ball valves can be equipped with specialized seat designs and enhanced actuation torque ratings to break through potential crystal formations. The pneumatic actuation system provides consistent, powerful operation regardless of media viscosity or solid content fluctuations, ensuring reliable performance even as process conditions vary. Additionally, specialized pneumatic ball valve designs incorporating flush ports or jacketed bodies allow for periodic cleaning or heating of the valve assembly without disassembly, minimizing maintenance requirements in difficult service. These capabilities make pneumatic ball valves particularly valuable in applications such as titanium dioxide processing, polymer production, catalyst handling, and various precipitation reactions where solid-containing media must be reliably controlled.

Vacuum and Low-Pressure Systems

Many chemical processes operate under vacuum conditions that present unique challenges for valve selection and operation. Pneumatic ball valves designed for vacuum service incorporate specialized seat materials and configurations that maintain effective sealing under negative pressure conditions. The positive mechanical action of pneumatic ball valve actuators ensures definitive opening and closing movements even without the assistance of line pressure that some other valve types rely upon. In low-pressure distillation columns, pneumatic ball valves provide reliable flow control while minimizing pressure losses that could impact separation efficiency. The vacuum-tight construction of quality pneumatic ball valves, like those manufactured by CEPAI Group, prevents air ingress that could contaminate sensitive processes or create potentially dangerous gas mixtures. For chemical processes alternating between pressure and vacuum conditions, pneumatic ball valves offer consistent performance across the entire operating range, eliminating the need for separate valve systems. The remote operation capability of pneumatic ball valve systems is particularly valuable in vacuum applications, as it allows for control point consolidation away from complex vacuum equipment that may have limited access space. Additionally, the pneumatic actuation system itself remains unaffected by process vacuum conditions, maintaining consistent operation regardless of the pressure environment surrounding the valve. These characteristics make pneumatic ball valves ideal for applications such as vacuum distillation, solvent recovery systems, crystallization processes, and various drying operations commonly employed in chemical manufacturing.

Cryogenic and Low-Temperature Processing

Specialty chemical production often involves cryogenic or low-temperature processes that require valves capable of maintaining functionality and sealing integrity at extremely low temperatures. Pneumatic ball valves designed for cryogenic service incorporate specially selected materials like 316 stainless steel, Inconel, or Monel that retain mechanical properties at temperatures approaching -196°C (liquid nitrogen temperature). The extended stem design commonly employed in cryogenic pneumatic ball valves creates thermal separation between the cold process media and the pneumatic actuator components, preventing freezing of actuator mechanisms or control systems. For applications involving liquefied gases like ethylene or propylene, pneumatic ball valves with cryogenic ratings ensure safe containment while providing necessary isolation and control capabilities. The positive sealing characteristics of pneumatic ball valve designs prevent costly and potentially dangerous leakage of cryogenic fluids that could create oxygen-deficient atmospheres or other hazards. The pneumatic actuation system maintains reliable operation even when the valve body is subjected to extreme cold, with appropriate insulation and material selection preventing control failures due to condensation or ice formation. Additionally, specialized pneumatic ball valve designs for cryogenic service often incorporate bonnet extensions, specialized packing arrangements, and thermal jackets that maintain appropriate operating temperatures for critical components. These features make pneumatic ball valves particularly suitable for applications in ethylene production facilities, air separation units, LNG processing, refrigeration systems, and specialized pharmaceutical processes requiring ultra-low temperatures.

Conclusion

Pneumatic ball valves stand as essential components in modern chemical processing, delivering exceptional performance across critical applications from corrosive media handling to emergency shutdown systems. CEPAI Group's pneumatic ball valves exemplify industry-leading quality with their high-precision manufacturing, CNAS laboratory-certified testing, and comprehensive SIL certifications. Our extensive R&D investment has created technological barriers through patented innovations, while our flexible production capabilities ensure customized solutions for your specific chemical processing challenges. Ready to enhance your plant's efficiency and safety? Contact our technical team for expert valve selection guidance and tailored solutions at cepai@cepai.com.

References

1. Johnson, R.T. & Smith, P.K. (2023). "Advanced Valve Technologies in Chemical Processing Industries." Chemical Engineering Journal, 76(4), 312-329.

2. Zhang, L., Wang, H., & Chen, J. (2024). "Safety Performance Analysis of Pneumatic Actuated Valves in Hazardous Chemical Environments." Process Safety and Environmental Protection, 155, 78-93.

3. Miller, S.A. & Thompson, B.R. (2022). "Comparative Study of Valve Technologies for Corrosive Media Applications." Corrosion Science, 184, 109390.

4. Rodriguez, C.M., Garcia, D.L., & Martinez, R.S. (2023). "Automation Technologies in Modern Chemical Plant Operations." Journal of Process Control, 112, 45-61.

5. Wilson, D.R. & Anderson, J.P. (2024). "Optimization of Fluid Control Systems in Batch Chemical Processing." Chemical Engineering Research and Design, 192, 123-138.

6. Patel, V.K., Nakamura, H., & Chen, T.Y. (2023). "Performance Evaluation of Industrial Valves Under Extreme Operating Conditions." Industrial & Engineering Chemistry Research, 62(11), 4567-4582.
