How does the electric ball valve work?

Electric Ball Valves represent a cornerstone of modern fluid control systems, combining mechanical precision with automated operation. These innovative devices utilize an electric actuator to rotate a ball with a hole through it, allowing for precise control over fluid flow in various industrial applications. The integration of electrical components with traditional ball valve mechanics enables remote operation, enhanced precision, and improved efficiency across multiple sectors, including petrochemical, power generation, and water treatment systems.

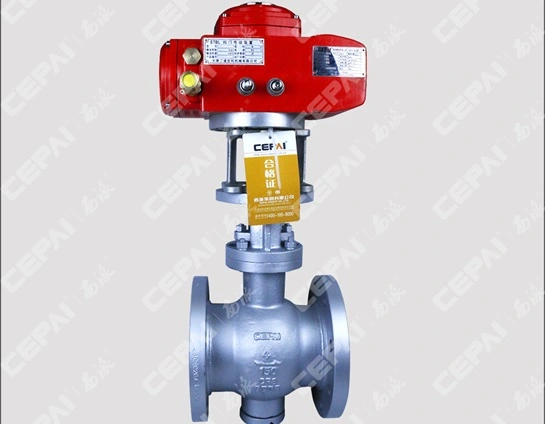

Operating Principles of Electric Ball Valves

​​​​​​​

Core Mechanical Functions

The Electric Ball Valve operates on a straightforward yet sophisticated principle. At its heart lies a spherical ball with a bore through its center, positioned within the valve body. When the valve is in the open position, this bore aligns perfectly with the flow path, creating a straight-through passage for fluids with minimal resistance. When actuated to close, the ball rotates 90 degrees, positioning the solid portion of the sphere across the flow path, effectively blocking all passage. This quarter-turn operation provides several advantages over multi-turn valves, including faster actuation, reduced wear on sealing components, and more definitive sealing capabilities. The Electric Ball Valve's simple mechanical design contributes significantly to its reliability in demanding industrial environments, as the rotational movement minimizes the mechanical stress that often affects linear-motion valves under high-pressure conditions.

Electric Actuation System

The electric actuation system forms the intelligent core of the Electric Ball Valve, transforming electrical signals into precise mechanical movements. This system typically comprises an electric motor, reduction gearing, limit switches, and control circuitry. When a control signal is received, the electric motor engages, transferring rotational force through the reduction gearing to the valve stem. This gearing system serves two crucial purposes: it amplifies the torque necessary to operate valves in high-pressure environments and enables precise control over the rotation speed and position. Modern Electric Ball Valve actuators incorporate advanced features such as variable speed control, which allows for gradual opening or closing to prevent water hammer effects in systems with sudden pressure changes. The incorporation of feedback sensors provides real-time position information, enabling integration with automated control systems for comprehensive fluid management solutions.

Control and Feedback Mechanisms

The sophisticated control and feedback mechanisms of Electric Ball Valves represent perhaps their most significant advancement over traditional manual valves. These systems typically feature multiple components working in harmony to ensure accurate operation. Position indicators provide visual confirmation of valve status, while limit switches automatically halt motor operation when the valve reaches fully open or closed positions. Torque sensing capabilities protect the valve from damage by detecting excessive resistance and stopping operation before mechanical failure occurs. Modern Electric Ball Valve control systems often incorporate digital communication protocols such as HART, Profibus, or Modbus, enabling seamless integration with distributed control systems (DCS) or SCADA networks. This connectivity allows operators to monitor valve performance remotely, adjust settings without physical access, and collect valuable operational data for predictive maintenance programs. The feedback loop created by these mechanisms ensures that valve position always matches control signals, maintaining system integrity even in fluctuating conditions.

Applications and Advantages in Industrial Settings

Petrochemical Industry Implementation

The petrochemical industry presents one of the most demanding environments for valve technology, with extreme temperatures, corrosive media, and critical safety requirements. Electric Ball Valves excel in these challenging conditions, offering reliable performance where failure is not an option. In refinery operations, these valves control the flow of various hydrocarbons throughout processing stages, from crude oil receipt to finished product distribution. Their quick-acting nature makes them ideal for emergency shutdown systems where rapid isolation capabilities are essential for preventing catastrophic incidents. The Electric Ball Valve's tight sealing characteristics help maintain process integrity by preventing cross-contamination between product streams, while its full-bore design minimizes pressure drops in high-throughput applications. Leading petrochemical companies worldwide rely on specialized Electric Ball Valves with fire-safe designs that maintain operational integrity even during fire exposure, incorporating secondary metal-to-metal sealing mechanisms that function when primary soft seals fail due to extreme heat. This redundancy exemplifies the safety-first approach that makes these valves indispensable in facilities processing flammable materials.

Power Generation Efficiency

In power generation facilities, efficiency and reliability directly impact operational economics and grid stability. Electric Ball Valves contribute significantly to both aspects through precise flow control and low maintenance requirements. Within steam systems of thermal power plants, these valves regulate flow rates with exceptional accuracy, allowing generators to respond quickly to fluctuating demand while maintaining optimal steam parameters. The Electric Ball Valve's minimal flow resistance in the fully open position reduces pumping energy requirements, directly enhancing plant efficiency metrics. Their automated operation enables sophisticated load-following algorithms that maximize fuel efficiency across variable demand profiles. In nuclear applications, specialized Electric Ball Valves with radiation-resistant components handle primary and secondary coolant circuits, where their reliable operation is critical to plant safety. The integration of these valves with plant-wide control systems allows for coordinated response to operational changes, preventing pressure transients that could damage sensitive equipment. Additionally, their precision contributes to effective emissions control in fossil fuel plants by accurately metering reagents for pollution control systems, helping facilities meet increasingly stringent environmental regulations.

Water Treatment Applications

Water treatment processes demand valve technologies that combine precision control with resistance to challenging media conditions. Electric Ball Valves meet these requirements excellently, handling everything from raw water intake to finished water distribution. In chemical dosing applications, these valves meter precise amounts of treatment chemicals, ensuring optimal water quality while minimizing chemical consumption. The Electric Ball Valve's excellent throttling capabilities allow operators to maintain specific flow rates regardless of upstream pressure variations, critical for proper filtration and settling processes. Their corrosion-resistant construction options, including specialized alloys and protective coatings, withstand exposure to chlorine, ozone, and other aggressive treatment chemicals that would quickly degrade conventional valves. Municipal water authorities increasingly adopt smart water management systems incorporating networked Electric Ball Valves that automatically adjust distribution patterns based on consumption data, reducing leakage and optimizing pressure zones. In desalination plants, where highly corrosive seawater and brine solutions challenge most valve technologies, specially engineered Electric Ball Valves with super-duplex stainless steel components provide reliable performance while resisting the accelerated corrosion that typically occurs in saline environments.

Technical Considerations for Selection and Installation

Material Selection Criteria

Selecting appropriate materials for Electric Ball Valve components represents one of the most critical decisions affecting performance, longevity, and safety. The fluid characteristics dictate specific material requirements to ensure chemical compatibility and mechanical integrity under operating conditions. For the valve body, options range from carbon steel for standard applications to exotic alloys like Hastelloy or titanium for severely corrosive environments. The ball element, as the primary flow control component, demands particular attention, with options including chrome-plated carbon steel, stainless steel variants (304, 316, 316L), or even ceramic-coated alternatives for abrasive media. The Electric Ball Valve's sealing elements require careful consideration, as these components directly impact leakage performance. PTFE (Teflon) remains the industry standard for most applications due to its excellent chemical resistance, though reinforced variants with fillers like glass or carbon enhance performance in high-pressure scenarios. For extreme temperature applications, specialized materials like PEEK (Polyether Ether Ketone) or graphite provide reliable sealing where PTFE would fail. The actuator housing materials must also withstand environmental conditions, with cast iron or aluminum suitable for standard environments and marine-grade alloys or specialized coatings necessary for offshore or chemical plant installations where corrosive atmospheres prevail.

Power Supply and Control Integration

The electrical infrastructure supporting Electric Ball Valve operation requires thoughtful planning to ensure reliable performance in varying conditions. Power supply considerations include voltage compatibility (typically 24VDC, 110VAC, or 230VAC), phase requirements for larger actuators, and backup power provisions for critical applications. The control signal protocol selection influences overall system architecture, with options ranging from simple on/off relay control to sophisticated proportional signals (4- 20mA, 0- 10V) or digital communication protocols. Modern Electric Ball Valve installations increasingly incorporate intelligent positioners that interpret control signals and manage motor operation to achieve precise positioning regardless of varying mechanical loads. These devices often feature diagnostic capabilities that monitor valve performance parameters, including cycle count, torque profiles, and position accuracy over time. Integration with facility-wide control systems requires careful attention to communication compatibility, with industry standards like HART, Foundation Fieldbus, and Profinet enabling seamless incorporation into existing networks. For critical applications, redundant control pathways ensure operational continuity even during communication failures, with local manual override capabilities serving as the final backup option. Power consumption optimization features, such as sleep modes for static positions and energy recovery during closing operations, enhance the sustainability profile of Electric Ball Valve installations in large industrial facilities.

Maintenance and Troubleshooting Protocols

Establishing comprehensive maintenance and troubleshooting protocols extends Electric Ball Valve service life while minimizing disruptive failures. Preventive maintenance schedules typically include regular visual inspections for external leakage, confirmation of proper indicator operation, and verification of control signal response. More thorough procedures performed annually or biannually involve actuator lubrication, seal inspection, and operational testing across full travel ranges. Modern Electric Ball Valves often incorporate condition monitoring capabilities that enable predictive maintenance approaches, with sensors tracking parameters like motor current draw, stem torque, and cycle times to identify developing issues before failure occurs. When troubleshooting becomes necessary, systematic diagnostic approaches accelerate resolution while minimizing system downtime. Common issues include incomplete valve travel (often caused by foreign material obstruction or actuator power issues), leakage past the ball (typically resulting from seat wear or improper alignment), and control signal interpretation problems (frequently related to calibration drift or electrical interference). Industry best practices emphasize root cause analysis rather than symptom treatment, preventing recurrence through proper corrective actions. The importance of using manufacturer-approved replacement parts cannot be overstated, as seemingly minor components like O-rings or springs have precisely defined material properties essential for proper operation. Training maintenance personnel on valve-specific procedures significantly improves outcomes, with specialized courses offered by manufacturers like CEPAI Group ensuring technicians understand the unique characteristics of their Electric Ball Valve products.

Conclusion

Electric Ball Valves represent the pinnacle of modern fluid control technology, combining mechanical reliability with intelligent automation. Their quarter-turn operation, precise control capabilities, and robust construction make them indispensable across petrochemical, power generation, and water treatment applications. With proper material selection, control integration, and maintenance protocols, these valves deliver exceptional performance and longevity.

At CEPAI Group, we pride ourselves on delivering high-performance Electric Ball Valves backed by our exceptional engineering and manufacturing capabilities. Our products feature unmatched durability, precision control, and are supported by comprehensive technical consultation and customized solutions. Interested in optimizing your fluid control systems? Contact our expert team today for personalized valve selection guidance and discover the CEPAI difference in your operations. Email us at cepai@cepai.com to start the conversation!
