How do you know if a ball valve is open or closed?

In industrial settings and home plumbing systems alike, ball valves serve as critical control components for fluid flow. Determining whether a ball valve is open or closed is essential for system operation, maintenance procedures, and safety protocols. A ball valve operates through a spherical disc with a hole (port) that rotates to control flow. When the valve handle aligns with the pipe, the valve is typically open, allowing fluid to pass through the port in the ball. Conversely, when the handle is perpendicular to the pipeline, the solid part of the ball blocks the flow path, indicating a closed position. Understanding these visual indicators and additional methods to verify valve status ensures proper system functionality and prevents potential hazards in fluid control applications.

Visual Indicators of Ball Valve Status

Identifying the open or closed status of a ball valve is crucial for operational safety and system efficiency. These visual indicators provide immediate feedback without requiring specialized tools or disassembly.

Handle Position as Primary Indicator

The handle position of a ball valve serves as the most immediate and reliable visual indicator of its operational status. In standard quarter-turn ball valve configurations, the handle orientation directly corresponds to the internal ball position. When the handle runs parallel to the pipeline, this indicates that the valve is fully open, as the ball's bore aligns perfectly with the flow path, allowing unrestricted passage of fluid through the system. Conversely, when the handle is positioned perpendicular (at a 90-degree angle) to the pipeline, this definitively shows that the valve is closed, as the solid portion of the ball blocks the flow path entirely. This intuitive design feature makes ball valves particularly user-friendly in industrial applications where quick visual confirmation is essential. For multi-turn ball valves, particularly in high-pressure applications, manufacturers like CEPAI Group incorporate position indicators that display the degree of openness, allowing for precise flow control beyond simple open/closed states. Understanding this fundamental relationship between handle orientation and valve status enables operators to quickly assess system conditions without interrupting operations.

Color-Coded and Tagged Systems

Advanced industrial facilities implement comprehensive color-coded and tagged systems to enhance valve status visibility, particularly in complex piping networks. These standardized visual management systems assign specific colors to indicate valve positions – typically red for closed and green for open positions. In high-stakes environments such as petrochemical plants, where CEPAI's specialized Ball Valves are frequently deployed, these color indicators may be incorporated directly into the valve handles or appear as colored bands on the valve body. Additionally, many facilities utilize standardized valve tags that display critical information including normal operating position, service fluid, and valve identification number. This systematic approach significantly reduces human error during routine operations and emergency response scenarios. For critical service applications, some ball valves feature position indicators with reflective materials or photoluminescent properties that remain visible in low-light conditions or during power outages. These enhanced visual systems prove especially valuable in complex processing facilities where hundreds or even thousands of ball valves require regular monitoring and operation.

Digital Position Indicators and Remote Monitoring

In modern automated industrial environments, advanced ball valves incorporate sophisticated digital position indicators and remote monitoring capabilities. These systems provide real-time feedback on valve status through digital displays mounted directly on actuated ball valves or transmitted to centralized control systems. Automated ball valve assemblies often feature LED indicators that display valve position status using color-coded lights (green for open, red for closed, and amber for intermediate positions). For critical applications in oil and gas production facilities, CEPAI's intelligent ball valve systems integrate with SCADA (Supervisory Control and Data Acquisition) networks, allowing operators to monitor valve positions remotely from control rooms. These systems can also incorporate proximity sensors or limit switches that detect the physical position of the ball valve's internal components, providing verification beyond mere handle position. The integration of IoT (Internet of Things) technology with advanced ball valve assemblies enables predictive maintenance capabilities by monitoring valve cycling frequency, torque requirements, and other operational parameters that indicate potential issues before they cause system failures.

Physical Verification Methods

While visual indicators provide convenient status checks, physical verification methods offer definitive confirmation of ball valve positions, especially in critical systems where absolute certainty is required.

Manual Testing Techniques

Performing manual tests on ball valves provides operators with tactile confirmation of valve status that complements visual indicators. The handle resistance test involves gently attempting to rotate the valve handle to detect its current position – if the handle moves slightly before encountering resistance, the valve is likely at its endpoint (either fully open or closed). For maintenance procedures on non-pressurized systems, the flow verification approach involves safely attempting to pass fluid through the valve to confirm its operational status. In process-critical applications using specialized ball valves from manufacturers like CEPAI Group, technicians might employ torque wrenches calibrated to the valve's specifications to ensure proper positioning without applying excessive force that could damage internal components. For valves in hard-to-reach locations or those requiring precise positioning, extension handles or chain operators enable proper manipulation while maintaining ergonomic working conditions for operators. These physical verification procedures are particularly important during commissioning of new systems and following maintenance activities, when visual indicators might not yet be properly aligned or when system documentation requires independent verification of ball valve positions.

Sound and Temperature Assessment

Experienced operators often utilize auditory and thermal cues to verify ball valve status, especially in high-flow or high-temperature applications. In pressurized systems, partially open ball valves frequently generate distinctive fluid flow sounds as the medium passes through the restricted opening – a completely closed valve should produce no flow noise, while a fully open valve typically generates smooth, consistent sound patterns. Temperature differential assessment provides another verification method, particularly with insulated pipelines carrying hot or cold fluids. Using infrared thermometers or thermal imaging cameras, technicians can detect temperature patterns that indicate fluid flow or stagnation across ball valve boundaries. In cryogenic applications where specialized ball valves with extended bonnets are employed, frost or condensation patterns on the valve body and adjacent piping can reveal operational status. For steam systems using CEPAI's high-performance ball valves, the warmth distribution along the pipeline provides tactile feedback about valve positions without requiring direct system intervention. These non-invasive techniques prove especially valuable when verifying valve status in hazardous environments or in systems that cannot be safely depressurized for direct inspection.

Pressure Testing and Differential Measurements

For critical applications requiring absolute confirmation of ball valve sealing integrity, pressure testing and differential measurements provide quantitative verification of valve status. Pressure gauges installed on either side of critical ball valves enable operators to perform differential pressure readings – a properly closed valve maintains pressure difference between upstream and downstream sections, while an open valve equalizes pressure across the system. In high-integrity applications, formal bubble testing procedures involve pressurizing one side of a closed ball valve with an inert gas while applying leak detection solution to potential leak paths, with the absence of bubbles confirming proper closure. Advanced industrial facilities incorporate pressure transmitters connected to digital monitoring systems that continuously track pressure differentials across strategic ball valves, alerting operators to unexpected changes that might indicate partial opening or incomplete closure. For petrochemical applications using CEPAI's specialized ball valves, maintenance teams conduct periodic valve integrity tests that apply specified test pressures to verify both internal sealing (across the ball) and external sealing (through body joints and stem packing). These rigorous verification methods ensure operational reliability in critical systems where valve failure could result in significant safety hazards or production losses.

Automated Monitoring Solutions

Modern industrial facilities increasingly rely on automated systems to monitor and control ball valve positions, enhancing reliability and operational efficiency.

Electronic Actuators with Position Feedback

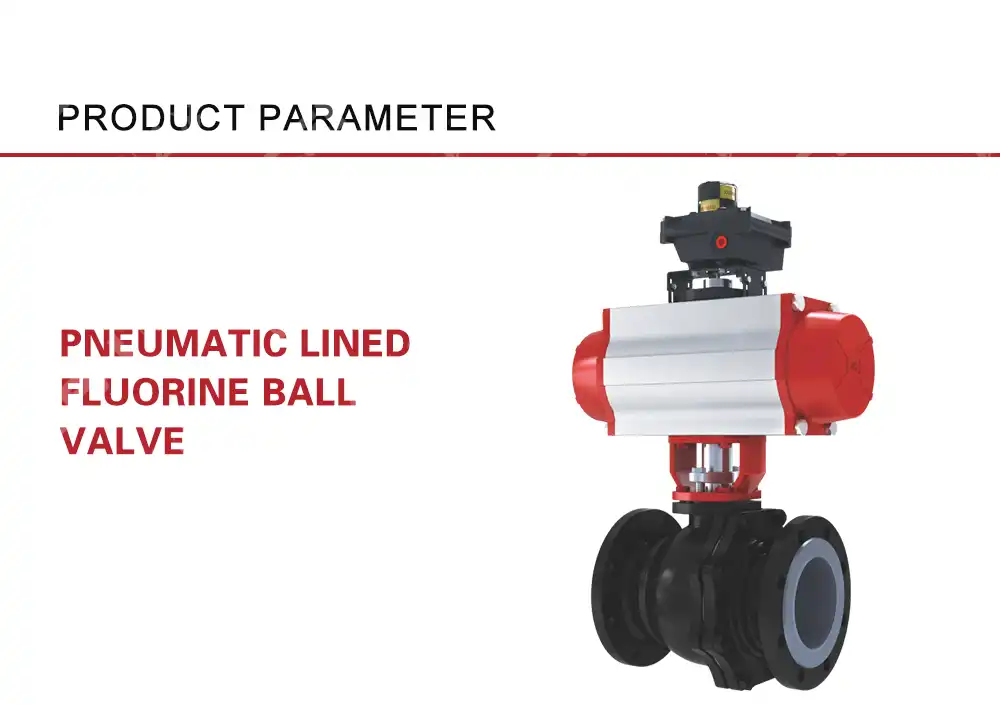

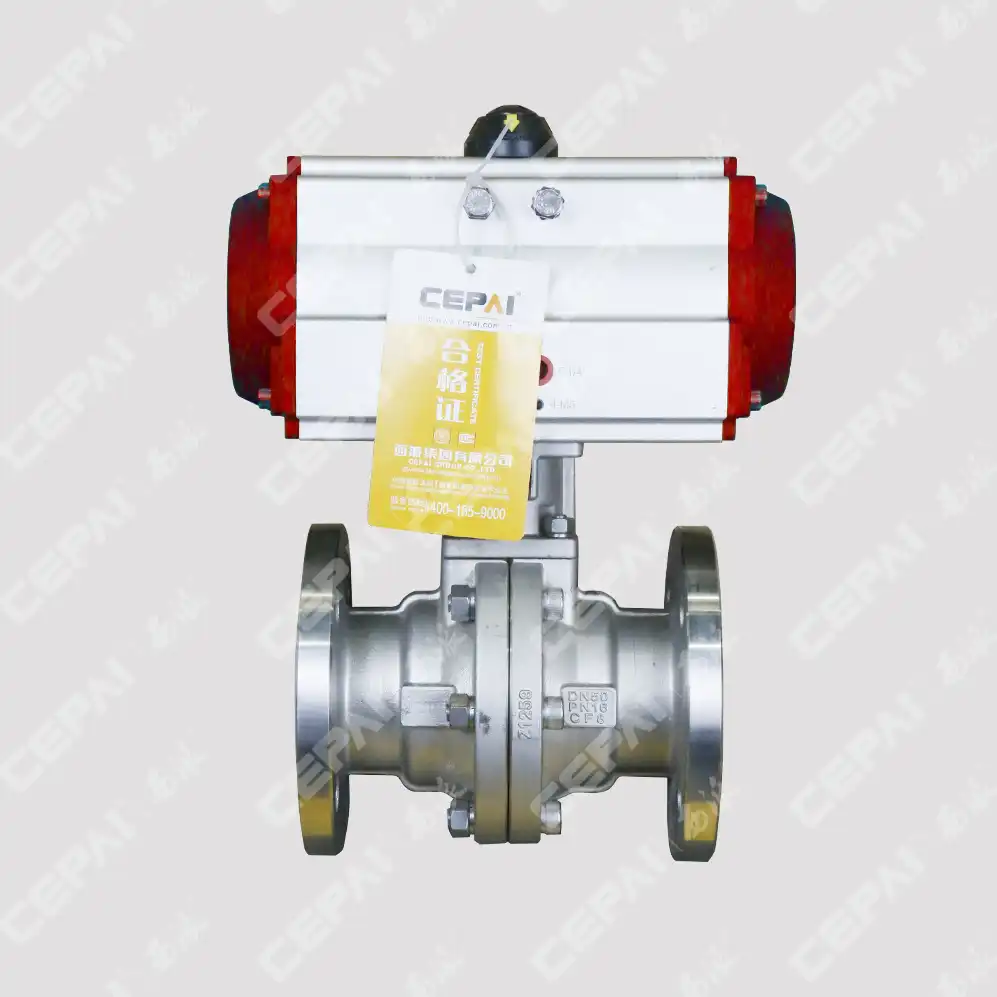

Advanced ball valve assemblies equipped with electronic actuators provide comprehensive position feedback capabilities that transform traditional manual valves into intelligent flow control devices. These sophisticated actuator systems incorporate position sensors that continuously monitor the rotational position of the ball valve, transmitting precise angular measurements to control systems. Modern electronic actuators feature multi-turn capability with high-resolution encoders that can detect valve positions with accuracy within 0.1 degrees, enabling precise throttling control beyond simple open/closed states. CEPAI Group's intelligent actuated ball valve systems integrate brushless DC motors with sophisticated gear trains that provide smooth, controlled operation while minimizing wear on valve components. The position feedback mechanisms typically employ redundant sensing technologies, including Hall effect sensors, potentiometers, or optical encoders, ensuring reliable monitoring even in harsh industrial environments with electromagnetic interference, vibration, or temperature extremes. For safety-critical applications, these electronic actuators incorporate fail-safe position indicators that maintain accurate readings even during power outages through backup power systems or mechanical position indicators that display the last known valve state. The integration of these technologies transforms traditional ball valves into smart components within industrial automation systems, allowing for predictive maintenance scheduling based on operational patterns and performance data.

Integration with Control Systems and HMI

Modern industrial facilities integrate ball valve monitoring into comprehensive control systems with human-machine interfaces (HMI) that provide operators with intuitive visualization of valve status throughout the facility. These integrated systems display real-time graphical representations of piping and instrumentation diagrams (P&IDs) with dynamic color-coding that instantly communicates ball valve positions across the entire process. Advanced SCADA implementations featuring CEPAI's industrial internet solutions enable operators to access detailed information about each ball valve, including historical position data, cycling frequency, and maintenance records, all from centralized control terminals. Critical ball valves are often incorporated into automated sequences with interlock systems that prevent operational errors by ensuring valves open or close in the proper sequence to avoid pressure surges or unsafe process conditions. For remote facilities or unmanned operations, these control systems enable authorized personnel to monitor and operate ball valves from any location with secure network access, significantly reducing operational costs while maintaining system integrity. The most sophisticated implementations incorporate augmented reality interfaces where maintenance technicians can visualize live valve status data overlaid on physical equipment when viewing systems through tablets or smart glasses, dramatically enhancing efficiency during troubleshooting and maintenance activities.

Predictive Maintenance and Intelligent Monitoring

The integration of artificial intelligence and machine learning technologies with ball valve monitoring systems enables predictive maintenance capabilities that significantly enhance operational reliability. These intelligent monitoring systems continuously analyze valve performance metrics including torque patterns, cycle times, and stem displacement to detect subtle changes that may indicate impending valve issues before they cause system failures. CEPAI's advanced valve monitoring solutions incorporate ultrasonic sensors that can detect internal leakage across closed ball valves by identifying characteristic sound signatures associated with fluid passing through minute gaps in sealing surfaces. For critical service applications, vibration analysis sensors mounted on valve assemblies can identify unusual vibration patterns that might indicate loosening components, improper alignment, or wear of internal valve elements. These systems generate comprehensive valve health reports that maintenance teams can use to optimize replacement schedules, reducing both unnecessary maintenance activities and unexpected failures. In continuous process facilities, these intelligent monitoring systems integrate with enterprise asset management software to automatically generate work orders when specific ball valves exhibit early warning signs of performance degradation. The implementation of these technologies dramatically reduces unplanned downtime while extending the operational lifespan of critical ball valves, ultimately delivering significant cost savings and operational benefits across industrial applications.

Conclusion

Understanding how to determine if a ball valve is open or closed is fundamental for maintaining system integrity and operational safety. From basic visual indicators like handle position to advanced electronic monitoring systems, proper identification of valve status prevents potential hazards and ensures efficient fluid control. CEPAI Group's commitment to manufacturing high-performance ball valves incorporates these verification features, enhancing reliability in critical applications across industries. With our exceptional durability, high-precision control performance, and commitment to innovation, we continue to lead in valve technology advancement. Need expert guidance on selecting the right ball valve for your application? Contact our technical team at cepai@cepai.com to discuss your specific requirements and discover how our comprehensive pre-sales consultation and after-sales service can optimize your fluid control systems.
