Picture this: You're on-site for a critical industrial project, and the system pressure testing reveals multiple leakage points around newly installed Pneumatic Ball Valves. Downtime costs are mounting, safety concerns escalate, and project deadlines slip away. This scenario happens more often than industry professionals care to admit, yet it's entirely preventable with proper installation procedures. The Pneumatic Ball Valve Installation Checklist: 7 Steps to Success provides industrial engineers, maintenance technicians, and project managers with a comprehensive roadmap to ensure flawless valve installation every time. Whether you're working in petrochemical facilities, power generation plants, or water treatment systems, following this systematic approach will eliminate costly mistakes, reduce project delays, and guarantee optimal system performance from day one.

Essential Pre-Installation Planning for Pneumatic Ball Valve Systems

Understanding Pneumatic Ball Valve Specifications and Requirements

Before any physical installation work begins, thorough planning forms the foundation of successful Pneumatic Ball Valve deployment. Modern industrial applications demand precision, and understanding your specific valve requirements prevents costly errors during installation. The planning phase involves comprehensive system analysis, including operating pressure ranges, temperature considerations, media compatibility, and flow requirements. Professional engineers must evaluate the existing pipeline infrastructure to ensure compatibility with the selected Pneumatic Ball Valve configuration. This assessment includes verifying pipe schedules, flange ratings, and connection types to guarantee seamless integration. Pneumatic Ball Valve selection requires careful consideration of actuator sizing, control signal requirements, and fail-safe positioning. The actuator must provide sufficient torque to operate the valve under maximum differential pressure conditions while maintaining precise control throughout the operating range. Air supply requirements, including pressure, flow capacity, and quality specifications, must align with the pneumatic system capabilities. Additionally, environmental factors such as ambient temperature ranges, humidity levels, and potential corrosive atmospheres influence material selection and protective coatings for long-term reliability.

System Shutdown and Safety Preparation Procedures

Safe installation practices begin with comprehensive system isolation and preparation protocols that protect both personnel and equipment during the installation process. The first critical step involves complete system depressurization, which requires systematic pressure relief through designated venting points while monitoring pressure gauges to confirm zero pressure conditions. Lockout/tagout procedures must be implemented according to industrial safety standards, ensuring energy sources remain isolated throughout the installation period. Emergency response plans should be reviewed and communicated to all personnel involved in the installation process. Pneumatic Ball Valve installation sites require thorough cleaning and preparation to eliminate contaminants that could compromise valve performance or create safety hazards. Pipeline preparation includes removing debris, scale, and foreign materials from connection points while inspecting internal surfaces for damage or irregularities. Flange faces require careful examination for flatness, surface finish, and bolt hole alignment to ensure proper gasket sealing. The work area must be secured with appropriate barriers, adequate lighting, and proper ventilation to support safe working conditions throughout the installation process.

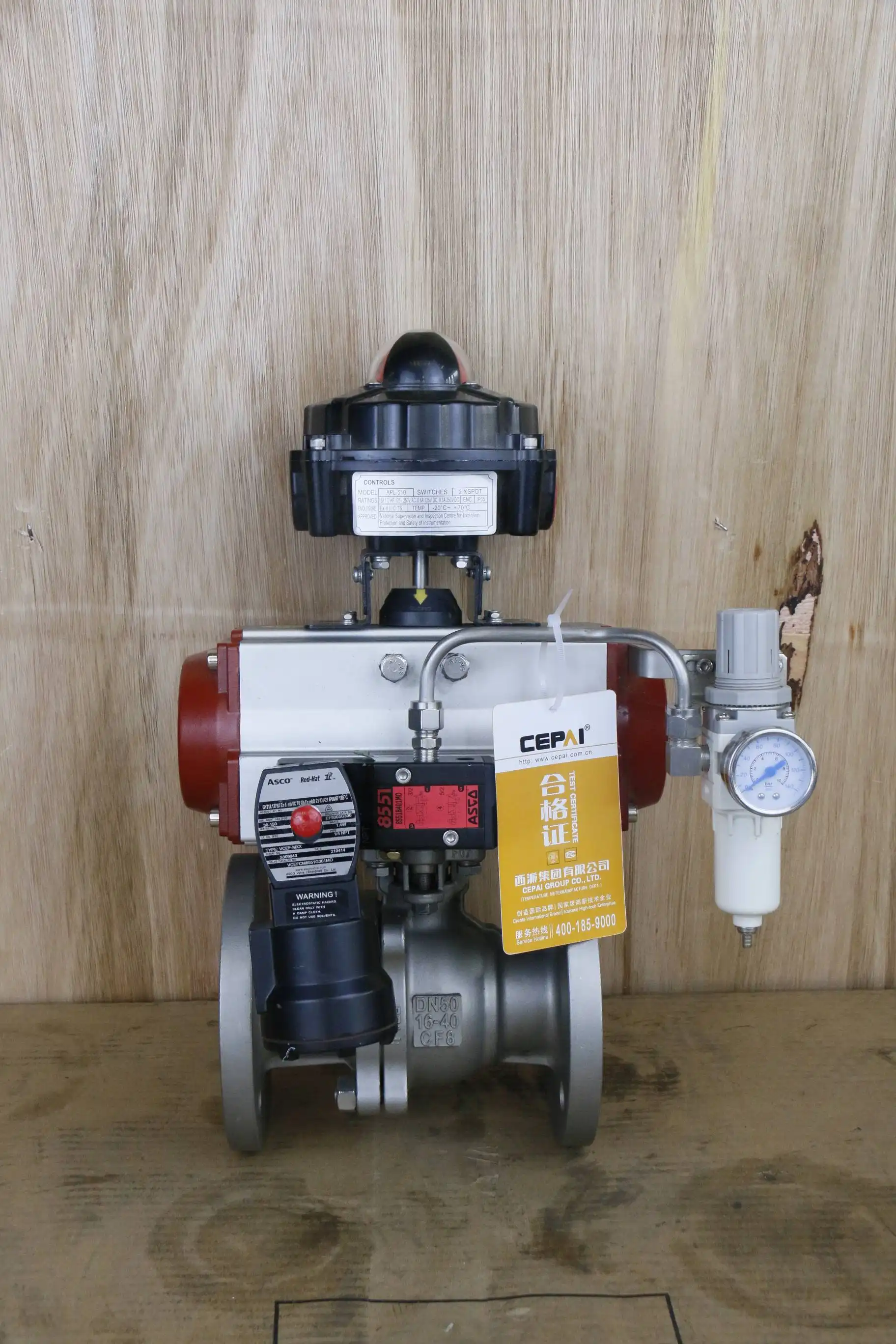

Cepai pneumatic ball valve

Step-by-Step Pneumatic Ball Valve Installation Process

Step 1: Valve Inspection and Component Verification

Professional installation begins with comprehensive Pneumatic Ball Valve inspection to verify component integrity and specification compliance before integration into the system. Visual inspection protocols include examining the valve body for casting defects, surface damage, or shipping-related impacts that could affect performance or safety. The ball and seat components require particular attention, checking for proper surface finish, dimensional accuracy, and freedom from contamination or damage. Actuator inspection involves verifying nameplate data, testing manual override functions, and confirming proper mounting orientation relative to the valve body. Documentation verification ensures the Pneumatic Ball Valve specifications match project requirements, including pressure class, material certifications, and performance standards. Test certificates should be reviewed to confirm factory testing compliance with applicable standards such as API 6D, API 598, or customer-specific requirements. Component inventory verification ensures all necessary installation hardware, including gaskets, bolts, nuts, and specialty tools, are available and meet specification requirements. Any discrepancies discovered during inspection must be resolved before proceeding with installation activities.

Step 2: Precise Positioning and Alignment Procedures

Correct Pneumatic Ball Valve positioning within the pipeline system directly impacts long-term performance, maintenance accessibility, and operational reliability. Valve orientation must consider stem position, actuator accessibility, and drainage requirements based on the specific application and media characteristics. The recommended practice involves positioning the valve stem vertically upward whenever possible to prevent sediment accumulation in the stem packing area and facilitate proper lubrication distribution. Horizontal installations require careful attention to actuator weight distribution and support requirements to prevent stress concentration on valve connections. Pipeline alignment verification ensures proper flange face parallelism and eliminates pipe stress that could cause premature valve failure or operational problems. Alignment tools and procedures help achieve precise positioning while maintaining adequate clearances for maintenance activities and thermal expansion. The Pneumatic Ball Valve must be positioned to allow full actuator travel without interference from adjacent equipment or structural components. Access requirements for routine maintenance, including packing replacement, actuator servicing, and position indication verification, must be considered during the positioning process.

Step 3: Gasket Selection and Flange Preparation

Proper gasket selection and flange preparation create the foundation for leak-free Pneumatic Ball Valve connections that maintain system integrity throughout the operational lifecycle. Gasket material selection depends on operating temperature, pressure, media compatibility, and flange surface finish requirements. Modern industrial applications often require specialized gasket materials such as spiral wound gaskets with graphite facing or PTFE envelope gaskets that provide superior sealing performance under demanding conditions. The gasket dimensions must match flange specifications precisely, with particular attention to inside diameter clearances that prevent flow restriction or turbulence. Flange surface preparation involves thorough cleaning with appropriate solvents to remove oil, grease, and contaminants that could compromise gasket sealing effectiveness. Surface finish inspection verifies compliance with applicable standards, typically requiring 125-250 micro-inch Ra finish for raised face flanges. Any surface damage, including scratches, gouges, or corrosion, must be addressed through proper machining or surface restoration techniques before proceeding with Pneumatic Ball Valve installation. Bolt hole alignment verification ensures proper hardware engagement and uniform stress distribution during assembly.

Step 4: Bolt Installation and Torque Sequence

Systematic bolt installation and torque application ensures uniform stress distribution across the flange connection while achieving the required sealing force for leak-free operation. Initial bolt insertion requires careful attention to thread engagement, ensuring bolts are properly seated without cross-threading or binding. The torque sequence follows a cross-pattern approach, applying initial torque values at approximately 30% of final specification to achieve uniform gasket compression before proceeding to full torque values. Multiple torque passes help ensure consistent stress distribution and account for gasket relaxation during the tightening process. Pneumatic Ball Valve flange connections typically require specific torque values based on bolt size, material grade, and flange pressure class ratings. Calibrated torque wrenches provide accurate torque application, while torque monitoring systems can document the installation process for quality assurance purposes. Final verification involves checking bolt protrusion lengths, ensuring adequate thread engagement while preventing excessive bolt extension that could interfere with adjacent equipment. The completed connection should exhibit uniform bolt torque values and proper gasket compression without evidence of over-stress or under-tightening.

Pneumatic System Integration and Control Configuration

Air Supply Connection and Quality Requirements

Pneumatic Ball Valve performance depends critically on proper air supply connection and maintaining specified air quality standards throughout the system lifecycle. The air supply system must provide clean, dry compressed air at the required pressure and flow capacity to ensure reliable actuator operation under all operating conditions. Filtration systems should remove particulates, oil vapors, and moisture that could cause actuator malfunction or reduced service life. Typical air quality requirements specify maximum particulate size, oil content, and dewpoint temperatures based on operating environment and performance expectations. Pressure regulation systems maintain consistent operating pressure despite variations in plant air supply pressure, ensuring predictable Pneumatic Ball Valve response characteristics and positioning accuracy. The regulator sizing must account for actuator air consumption during operation, including both steady-state requirements and dynamic flow demands during valve stroking. Pressure gauge installation provides visual indication of supply pressure conditions and facilitates troubleshooting activities. Air supply connections require proper pipe sizing to minimize pressure drop and ensure adequate flow capacity during rapid valve operation requirements.

Control Signal Configuration and Testing

Modern Pneumatic Ball Valve installations incorporate sophisticated control systems that require careful configuration and comprehensive testing to ensure proper integration with plant automation systems. Control signal verification involves confirming proper wiring connections, signal polarity, and communication protocol compatibility between field devices and control systems. Pneumatic actuators equipped with positioners require calibration procedures that establish accurate correspondence between control signals and valve position feedback. This process includes setting span and zero adjustments, configuring fail-safe positions, and verifying response time characteristics. Testing procedures validate control system functionality through systematic evaluation of all operating modes, including normal control operation, manual override capabilities, and emergency shutdown sequences. Signal range verification ensures the Pneumatic Ball Valve responds appropriately throughout the entire control signal range, with particular attention to achieving full open and full closed positions reliably. Dynamic response testing evaluates valve stroking times and position accuracy under various operating conditions, confirming compliance with process control requirements and safety system specifications.

Commissioning and Performance Verification

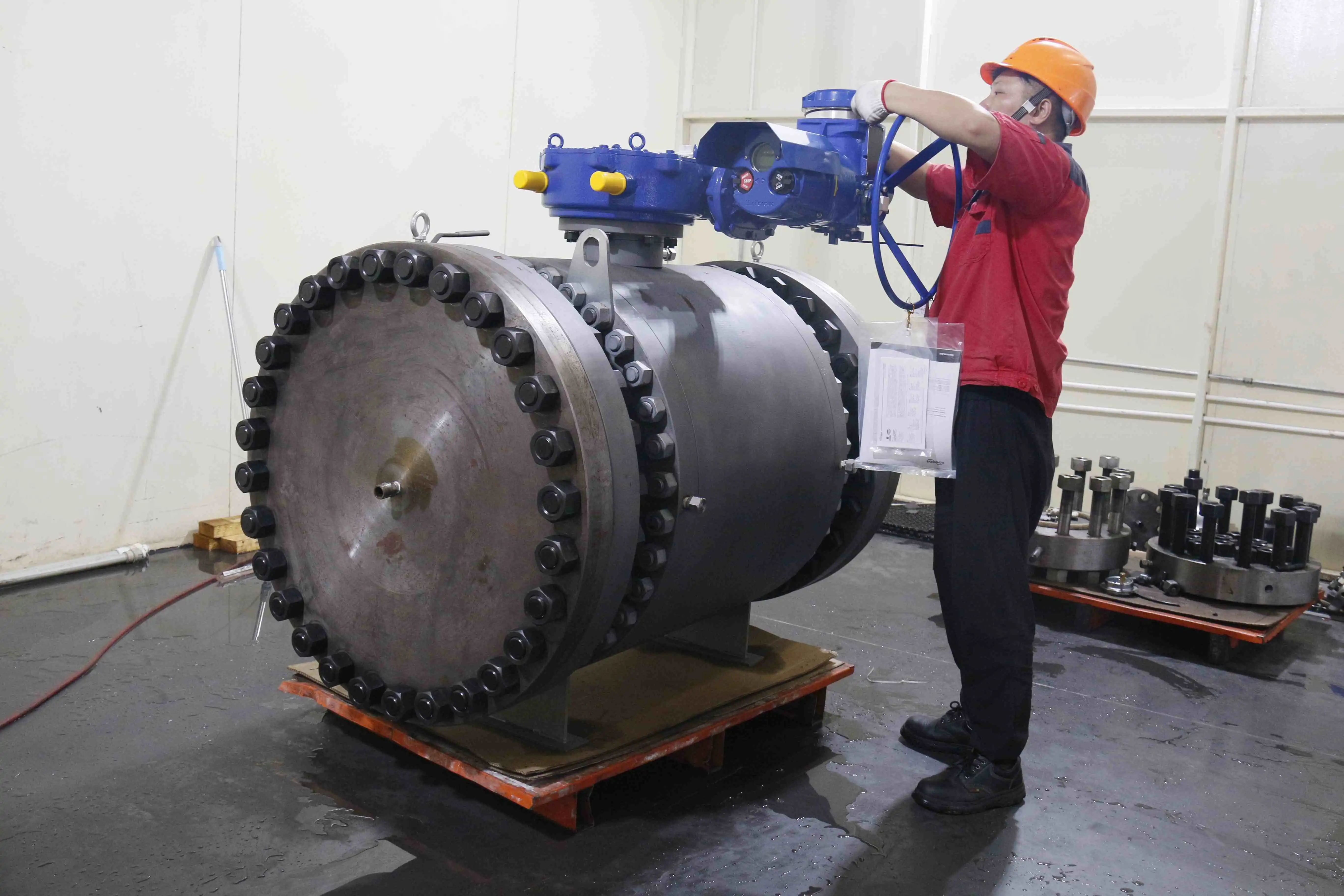

Cepai vlave

Leak Testing and System Integration Validation

Comprehensive leak testing protocols ensure Pneumatic Ball Valve installations meet stringent industrial safety and environmental requirements before system commissioning. Initial testing typically involves pneumatic testing using clean, dry compressed air or nitrogen at pressures specified by applicable standards or customer requirements. Testing procedures must account for temperature effects on test pressure, material thermal expansion, and safety considerations during pressurization and depressurization activities. All connections, including flange joints, stem packing, and actuator connections, require individual attention during leak testing procedures. Advanced leak detection methods, including soap solution testing, ultrasonic detection, or specialized leak detection equipment, provide accurate assessment of seal integrity and identify potential problem areas before system commissioning. The Pneumatic Ball Valve body and seat sealing must demonstrate zero leakage under specified test conditions, typically involving testing in both flow directions with the valve in the closed position. Documentation requirements include recording test pressures, duration, ambient conditions, and any remedial actions required to achieve acceptable leak rates. Final acceptance criteria should align with applicable industry standards and customer specifications.

Performance Validation and Documentation

Final performance validation confirms the Pneumatic Ball Valve installation meets all specified requirements and provides reliable operation throughout the expected service life. Performance testing includes evaluating operating torque requirements, position accuracy, response time characteristics, and fail-safe operation under simulated emergency conditions. These tests validate proper integration between the valve, actuator, and control systems while confirming compliance with process control requirements. Benchmark performance data establishes baseline conditions for future maintenance activities and performance monitoring programs. Documentation completion involves compiling comprehensive installation records, including component certifications, test results, configuration settings, and maintenance recommendations for future reference. Installation documentation should include valve specification sheets, actuator calibration data, control system configuration parameters, and recommended maintenance schedules. Digital documentation systems facilitate information retrieval and support predictive maintenance programs that optimize Pneumatic Ball Valve performance throughout the operational lifecycle. Quality assurance verification ensures all installation activities comply with applicable standards and customer requirements before final system handover.

Conclusion

Successful Pneumatic Ball Valve installation requires systematic attention to detail, adherence to established procedures, and commitment to quality throughout every phase of the process. The seven-step approach outlined in this checklist provides industrial professionals with proven methodologies that eliminate common installation errors and ensure optimal system performance. From initial planning and safety preparation through final performance validation and documentation, each step contributes to reliable, long-term valve operation that meets demanding industrial requirements. Professional installation practices not only prevent costly delays and rework but also establish the foundation for efficient maintenance programs and extended service life.

Cooperate with CEPAI Group Co., LTD.

CEPAI Group Co., LTD. stands as a leading technology multinational company with over 15 years of specialized experience in high-end energy valve manufacturing, offering unparalleled expertise in Pneumatic Ball Valve solutions for demanding industrial applications. Located in Jiangsu Province's advanced manufacturing hub, our state-of-the-art 56,000 square meter facility integrates cutting-edge intelligent manufacturing technologies with traditional precision craftsmanship to deliver superior valve products that meet the most stringent international standards. As a national high-tech enterprise and specialized new giant company, CEPAI has earned recognition as a Jiangsu Smart Factory and Internet benchmarking facility, demonstrating our commitment to innovation and manufacturing excellence.

Our comprehensive certification portfolio, including API Q1, API 6A, API 6D, ISO 9001, ISO 14001, and CE certifications, validates our commitment to quality and regulatory compliance across global markets. CEPAI's advanced Pneumatic Ball Valve products serve major industry leaders including PetroChina, Sinopec, CNOOC, and numerous international engineering companies, reflecting our proven track record in delivering reliable solutions for critical applications. Our intelligent manufacturing capabilities, supported by 156 million yuan in advanced equipment investments, enable us to provide customized solutions that meet specific customer requirements while maintaining exceptional quality standards.

Whether you're seeking a trusted China Pneumatic Ball Valve factory, reliable China Pneumatic Ball Valve supplier, experienced China Pneumatic Ball Valve manufacturer, or competitive China Pneumatic Ball Valve wholesale partner, CEPAI offers comprehensive solutions backed by superior technical support and after-sales service. Our High Quality Pneumatic Ball Valve products combine exceptional durability with precise control performance, while our competitive Pneumatic Ball Valve price structure and Pneumatic Ball Valve for sale programs provide outstanding value for industrial customers worldwide. Contact our expert team at cepai@cepai.com to discuss your specific requirements and discover how CEPAI's innovative solutions can enhance your project success.

FAQ

Q: What is the recommended orientation for Pneumatic Ball Valve installation?

A: Install the valve with the stem facing vertically upward whenever possible to prevent sediment accumulation in the stem packing area and ensure proper lubrication distribution throughout the operating mechanism.

Q: How should I determine the correct torque values for flange bolts during Pneumatic Ball Valve installation?

A: Torque values depend on bolt size, material grade, flange pressure class, and gasket type. Consult the valve manufacturer's installation manual and applicable flange standards such as ASME B16.5 for specific torque specifications.

Q: What air quality requirements are necessary for reliable Pneumatic Ball Valve operation?

A: Compressed air should be clean, dry, and filtered to remove particulates, oil vapors, and moisture. Typical requirements include maximum 40 micron particulate size, -40°F dewpoint, and less than 1 ppm oil content.

Q: How do I verify proper Pneumatic Ball Valve sealing performance after installation?

A: Conduct leak testing using clean compressed air or nitrogen at specified test pressures, checking both body sealing and seat sealing in both flow directions with appropriate leak detection methods.
