Industrial operators frequently face critical challenges when managing fluid flow systems: unpredictable pressure fluctuations, delayed response times, and costly manual interventions that disrupt production schedules. Whether you're managing a petrochemical facility, power plant, or manufacturing operation, understanding how pneumatic ball valve technology can solve these persistent flow control problems becomes essential for maintaining operational efficiency. This comprehensive guide reveals exactly how air pressure transforms your flow control capabilities, covering everything from basic operating principles to advanced automation strategies that industry leaders use to optimize their systems.

How Pneumatic Ball Valve Actuation Systems Work?

The fundamental operation of a pneumatic ball valve centers on the precise relationship between compressed air and mechanical motion within the valve assembly. A pneumatic ball valve is an automated control device that utilizes compressed air or gas to actuate the internal ball mechanism within the valve. The system begins when compressed air enters the pneumatic actuator chamber, creating pressure that drives a piston or diaphragm mechanism connected directly to the valve stem. The actuator transforms pneumatic energy into rotational force, turning the internal ball element through a quarter-turn motion between fully open and fully closed positions. This process occurs through a sophisticated arrangement of springs, pistons, and control chambers that ensure precise positioning and reliable operation under varying pressure conditions. The pneumatic ball valve design incorporates fail-safe mechanisms that automatically position the valve in a predetermined state during air supply interruptions, protecting critical processes from unexpected shutdowns. Modern pneumatic ball valve systems integrate advanced control technologies including positioners, limit switches, and feedback sensors that provide real-time position monitoring and precise flow control capabilities. These components enable operators to achieve exact flow rates through proportional control, where the valve position corresponds directly to the applied air pressure signal. The result is a highly responsive and accurate flow control system that significantly outperforms manual valve operations in terms of speed, consistency, and reliability.

Pressure Control Mechanisms in Pneumatic Ball Valves

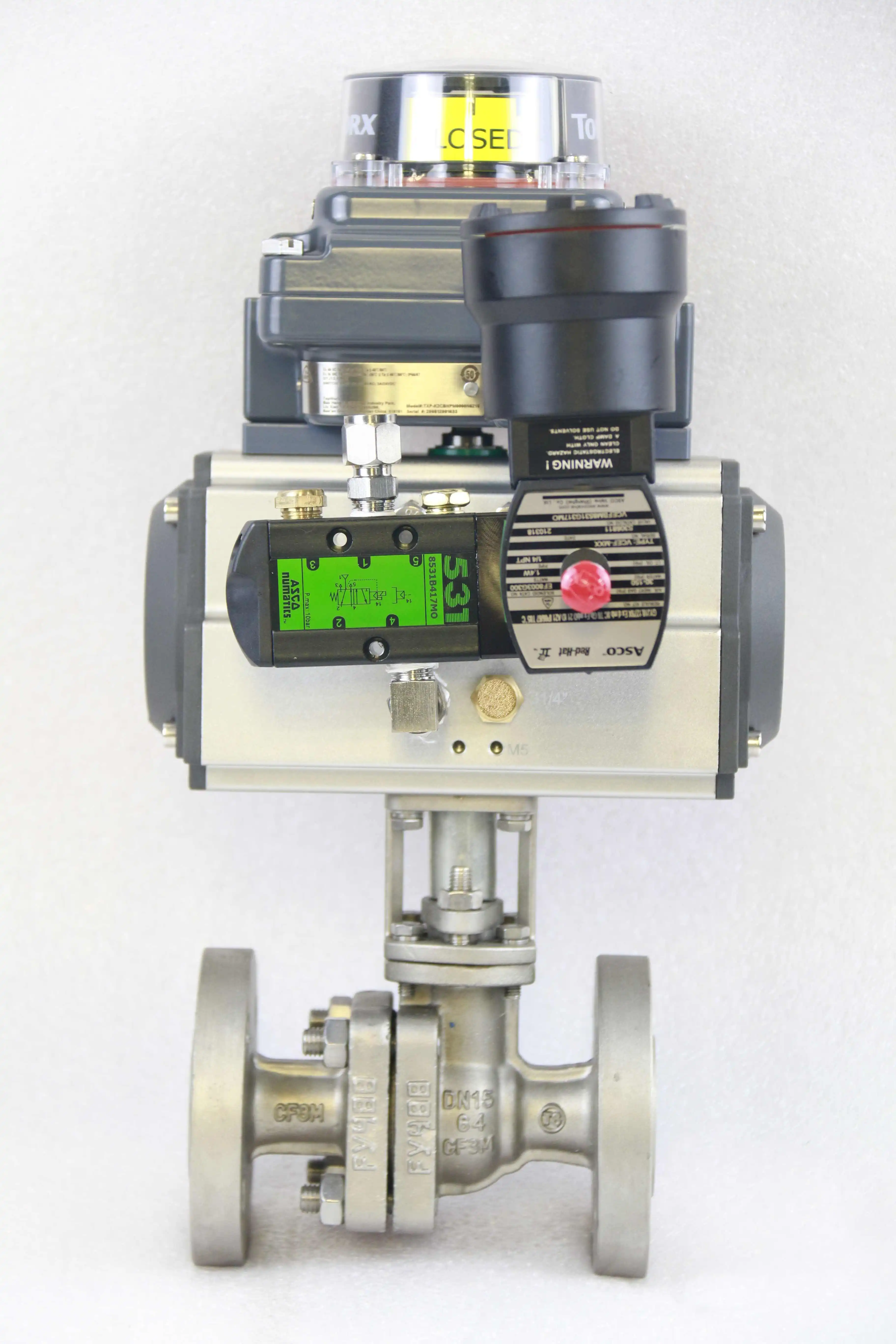

Cepai pneumatic ball valve

Pneumatic ball valve pressure control relies on sophisticated regulator systems that maintain consistent actuator performance across varying supply conditions. The pressure regulation process begins with compressed air entering through a filter-regulator-lubricator assembly that conditions the air supply by removing contaminants, stabilizing pressure, and adding necessary lubrication to moving components. This conditioned air then flows to the actuator where it creates the force necessary to overcome valve stem friction, packing resistance, and differential pressure across the valve body. The control mechanism employs either single-acting or double-acting actuator configurations depending on application requirements. Single-acting pneumatic ball valve actuators utilize spring-return mechanisms that provide fail-safe operation, automatically closing or opening the valve when air pressure is removed. Double-acting systems use air pressure on both sides of the actuator piston, enabling more precise positioning control and higher operating forces for demanding applications involving high-pressure differentials or viscous fluids. Advanced pressure control systems incorporate electronic pressure transducers and pneumatic positioners that continuously monitor and adjust actuator pressure to maintain exact valve positioning. These systems can respond to control signals from distributed control systems, providing seamless integration with plant automation networks and enabling complex control strategies including cascade control, feedforward compensation, and adaptive tuning algorithms that optimize performance for changing process conditions.

Types and Applications of Pneumatic Ball Valve Systems

Industrial Pneumatic Ball Valve Classifications

Pneumatic ball valve systems encompass several distinct categories designed for specific industrial applications and operating conditions. Full-bore pneumatic ball valve designs provide unrestricted flow paths that minimize pressure drop and turbulence, making them ideal for applications requiring maximum flow capacity and minimal energy losses. These valves typically feature oversized ball elements with through-holes matching the pipeline diameter, ensuring optimal hydraulic performance in high-volume transfer applications. Reduced-bore pneumatic ball valve configurations offer cost-effective solutions for applications where moderate pressure drop is acceptable in exchange for smaller actuator requirements and lower installation costs. The reduced ball opening creates higher fluid velocities that can provide beneficial effects including enhanced mixing, improved heat transfer, and self-cleaning action in applications handling fluids with suspended solids or tendency toward fouling. Specialty pneumatic ball valve designs address unique application challenges including high-temperature service, corrosive environments, and sanitary processes. High-temperature pneumatic ball valve systems incorporate specialized sealing materials, thermal barriers, and cooling systems that maintain reliable operation at temperatures exceeding standard material limits. Corrosion-resistant versions utilize exotic alloys, specialized coatings, and advanced seal technologies that provide extended service life in aggressive chemical environments.

Pneumatic Ball Valve Applications Across Industries

The versatility of pneumatic ball valve technology enables widespread adoption across diverse industrial sectors, each with specific performance requirements and operational challenges. In petrochemical processing, pneumatic ball valve systems provide critical isolation and control functions for hydrocarbon streams, where rapid response times and reliable sealing prevent dangerous releases and maintain process safety. These applications often require specialized features including fire-safe designs, antistatic construction, and emergency shutdown capabilities that automatically isolate process sections during abnormal conditions. Power generation facilities utilize pneumatic ball valve systems for cooling water control, steam management, and fuel gas regulation, where precise flow control directly impacts efficiency and emissions performance. The ability to provide rapid response to load changes and maintain stable operating conditions makes pneumatic ball valve technology particularly valuable in combined cycle plants and renewable energy systems with variable output characteristics. Water and wastewater treatment applications leverage pneumatic ball valve systems for chemical dosing control, process stream isolation, and automated switching between treatment stages. The combination of precise flow control and reliable automation reduces operator workload while ensuring consistent treatment performance and regulatory compliance. Municipal water systems particularly benefit from the fail-safe characteristics of pneumatic ball valve systems that protect water quality during power outages or equipment failures.

Advanced Pneumatic Ball Valve Control Technologies

Smart Actuator Integration and Monitoring

Modern pneumatic ball valve systems incorporate intelligent actuator technologies that transform traditional flow control into sophisticated automation platforms capable of predictive maintenance, performance optimization, and seamless integration with Industry 4.0 initiatives. Smart pneumatic ball valve actuators feature embedded microprocessors that continuously monitor operating parameters including position, pressure, temperature, and vibration signatures, providing comprehensive diagnostic information that enables proactive maintenance strategies and prevents unexpected failures. The integration of digital communication protocols including Foundation Fieldbus, HART, and Profibus enables pneumatic ball valve systems to participate in advanced control strategies and plant-wide optimization programs. These communication capabilities allow real-time adjustment of control parameters, automatic calibration procedures, and remote diagnostic access that reduces maintenance costs while improving overall system reliability and performance. Predictive analytics algorithms analyze historical performance data and current operating conditions to identify developing problems before they cause process disruptions or equipment damage. This capability is particularly valuable in critical applications where unplanned downtime results in significant production losses or safety concerns. Smart pneumatic ball valve systems can automatically adjust operating parameters to compensate for wear, changing process conditions, or component aging, maintaining optimal performance throughout the equipment lifecycle.

Precision Control and Automation Features

Advanced pneumatic ball valve control systems achieve exceptional accuracy through sophisticated positioning technologies that provide sub-degree resolution and rapid response to control signals. Digital valve positioners continuously compare actual valve position with commanded position, automatically adjusting actuator pressure to eliminate positioning errors and maintain precise flow control under varying process conditions. These systems typically achieve positioning accuracy within ±0.1% of full scale, enabling tight process control that improves product quality and reduces waste. Adaptive control algorithms automatically tune positioner parameters to optimize response characteristics for specific applications, eliminating the need for manual calibration procedures and ensuring consistent performance across varying operating conditions. The pneumatic ball valve systems learn from process behavior and automatically adjust control parameters to maintain optimal performance, reducing commissioning time and minimizing ongoing maintenance requirements. Emergency shutdown and process safety systems integrate seamlessly with pneumatic ball valve control platforms, providing rapid isolation capabilities that protect personnel, equipment, and the environment during abnormal conditions. These safety systems typically feature redundant control paths, independent power supplies, and fail-safe mechanisms that ensure reliable operation even during multiple component failures or extreme operating conditions.

Benefits and Advantages of Pneumatic Ball Valve Systems

Operational and Economic Benefits

Pneumatic ball valve systems deliver substantial operational advantages that translate directly into improved plant efficiency, reduced maintenance costs, and enhanced safety performance. The rapid response characteristics of pneumatic ball valve actuators enable precise process control that minimizes product variability, reduces energy consumption, and optimizes raw material utilization. Pneumatic shut off valves are used to control the on/off flow of air in a system. Typically a simple ball or gate mechanism that stops completely the flow when closed. This quick-acting capability proves particularly valuable in batch processes, safety systems, and applications requiring frequent operation cycles. The reliability and low maintenance requirements of pneumatic ball valve systems result from the simple mechanical design that eliminates complex electronic components susceptible to environmental conditions, electrical interference, and aging effects. Pneumatic actuators operate reliably in harsh environments including extreme temperatures, high humidity, and corrosive atmospheres where electronic control systems would require extensive protection or frequent replacement. The inherent fail-safe characteristics of spring-return pneumatic ball valve actuators provide automatic positioning during power failures, ensuring process safety without requiring backup power systems. Energy efficiency advantages stem from the high power-to-weight ratio of pneumatic ball valve actuators that require minimal energy input while providing substantial operating forces. The compressed air supply systems typically already exist in industrial facilities, eliminating the need for additional electrical infrastructure and reducing installation costs. Modern pneumatic ball valve systems incorporate energy recovery features that capture and reuse compressed air, further reducing operating costs while supporting sustainability initiatives.

Cepai workshop

Safety and Reliability Advantages

Safety performance represents a critical advantage of pneumatic ball valve systems, particularly in applications involving hazardous materials, high-pressure systems, or critical process control functions. The inherent explosion-proof characteristics of pneumatic ball valve actuators eliminate ignition sources that could trigger fires or explosions in flammable atmospheres, making them the preferred choice for petrochemical, pharmaceutical, and other industries with strict safety requirements. The absence of electrical components in hazardous areas simplifies installation and reduces regulatory compliance burdens. Reliability metrics for pneumatic ball valve systems consistently exceed those of alternative actuation technologies, with mean time between failures often exceeding five years in properly maintained systems. This exceptional reliability results from the robust mechanical design, proven technology base, and extensive field experience that has refined component designs and material selections over decades of industrial application. The predictable failure modes of pneumatic ball valve systems enable effective preventive maintenance programs that maximize equipment availability while minimizing unexpected downtime. Emergency response capabilities of pneumatic ball valve systems provide rapid isolation and process shutdown functions that protect personnel and equipment during abnormal conditions. The fast-acting characteristics enable complete valve closure within seconds of receiving shutdown signals, while the fail-safe operation ensures proper positioning even during utility failures or control system malfunctions. These safety features make pneumatic ball valve systems essential components of process safety management programs and emergency response procedures.

Selection Criteria for Pneumatic Ball Valve Applications

Technical Specification Requirements

Proper selection of pneumatic ball valve systems requires comprehensive evaluation of process conditions, performance requirements, and installation constraints that influence long-term reliability and operational success. Pressure rating considerations must account for both static and dynamic pressure conditions, including pressure surges, thermal expansion effects, and potential overpressure scenarios that could exceed design limits. The pneumatic ball valve must maintain reliable sealing and structural integrity throughout the entire operating pressure range while providing adequate safety margins for unexpected conditions. Temperature specifications encompass both fluid temperature and ambient conditions that affect actuator performance, seal integrity, and material properties. High-temperature pneumatic ball valve applications require specialized actuators with thermal barriers, extended bonnets, or cooling systems that protect sensitive components from thermal damage. Low-temperature applications may require heated enclosures, special lubricants, or materials selected for cryogenic service that maintain proper operating characteristics at extremely low temperatures. Flow characteristics and pressure drop calculations determine the appropriate valve size and configuration for achieving desired control performance while minimizing energy losses. Pneumatic ball valve systems must provide adequate flow capacity during normal operations while maintaining controllability across the entire flow range. Cavitation and flashing potential must be evaluated to prevent damage and ensure reliable operation in applications involving volatile fluids or high pressure differentials.

Environmental and Installation Considerations

Environmental factors significantly influence pneumatic ball valve selection and installation requirements, particularly in outdoor applications, corrosive atmospheres, or extreme climate conditions. Corrosion resistance requirements dictate material selections for valve body, actuator components, and fasteners that will provide adequate service life in specific chemical environments. Stainless steel, duplex alloys, and specialty coatings may be necessary for applications involving acidic conditions, chloride exposure, or other aggressive chemical environments. Seismic and vibration considerations affect both valve design and mounting requirements in applications subject to earthquake loads, machinery vibration, or flow-induced oscillations. Pneumatic ball valve systems must maintain proper alignment and sealing integrity under dynamic loading conditions while providing reliable operation throughout the equipment design life. Special mounting systems, flexible connections, and reinforced actuator designs may be necessary for high-vibration applications. Installation accessibility and maintenance requirements influence valve selection, particularly in confined spaces, elevated locations, or areas with limited access for routine service activities. Pneumatic ball valve systems should be positioned to enable efficient maintenance procedures while maintaining safe access for operating personnel. Consider requirements for actuator removal, valve servicing, and emergency manual operation when evaluating potential installation locations and configurations.

Conclusion

Pneumatic ball valve technology represents a proven and versatile solution for industrial flow control applications requiring reliable automation, rapid response, and fail-safe operation. The fundamental principles of air pressure actuation provide substantial advantages in terms of safety, reliability, and performance that make pneumatic ball valve systems the preferred choice for critical applications across diverse industries.

Cooperate with CEPAI Group Co., LTD.

CEPAI Group Co., LTD. stands as a leading China Pneumatic Ball Valve manufacturer with over 15 years of specialized experience in high-end energy valve manufacturing. As a national high-tech enterprise and Jiangsu Smart Factory, CEPAI operates from a state-of-the-art 56,000 square meter facility featuring the longest high-precision intelligent manufacturing flexible production line in the Asia Pacific region. Our 156 million yuan investment in intelligent transformation has created an industrial Internet benchmark factory with remote operation and maintenance capabilities.

As your trusted China Pneumatic Ball Valve supplier, CEPAI holds comprehensive certifications including API Q1, API 6A, API 6D, ISO 9001, and numerous other quality management systems. Our China Pneumatic Ball Valve factory serves major clients including PetroChina, Sinopec, CNOOC, and leading international energy companies through our proven track record of delivering High Quality Pneumatic Ball Valve solutions. Whether you need standard products or customized designs, our Pneumatic Ball Valve for sale inventory includes various configurations with competitive Pneumatic Ball Valve price options. As a reliable China Pneumatic Ball Valve wholesale partner, we provide comprehensive pre-sales consultation, technical support, and after-sales service backed by our CNAS recognized laboratory and certified engineering centers. Contact us at cepai@cepai.com for immediate technical consultation and competitive quotations.

FAQ

Q: What are the main advantages of pneumatic ball valves over manual ball valves?

A: Pneumatic ball valves provide automated operation, faster response times, remote control capabilities, fail-safe positioning, and consistent torque application that eliminates human error and reduces maintenance requirements.

Q: How do I determine the correct air pressure for my pneumatic ball valve actuator?

A: Required air pressure depends on valve size, operating pressure differential, packing friction, and safety factors. Typically ranges from 80-120 PSI for standard applications, with calculations based on actuator specifications and process conditions.

Q: Can pneumatic ball valves be used for throttling applications?

A: While pneumatic ball valves can provide throttling control with proper positioners, they are primarily designed for on-off service. For precise flow control, consider pneumatic control valves designed specifically for modulating applications.

Q: What maintenance is required for pneumatic ball valve systems?

A: Regular maintenance includes air supply system inspection, actuator lubrication, positioner calibration, limit switch verification, and periodic cycling tests. Typical maintenance intervals range from 6-12 months depending on operating conditions.
