Single vs Double Acting Pneumatic Ball Valves: Key Differences Explained

When it comes to industrial automation and fluid control systems, pneumatic ball valves play a crucial role in regulating flow with precision and reliability. Understanding the differences between single and double acting pneumatic ball valves is essential for selecting the right valve for specific applications. These two types offer distinct operational mechanisms, performance characteristics, and suitability for various environments. This comprehensive guide explores the key differences between single and double acting pneumatic ball valves, helping you make informed decisions for your fluid control requirements.

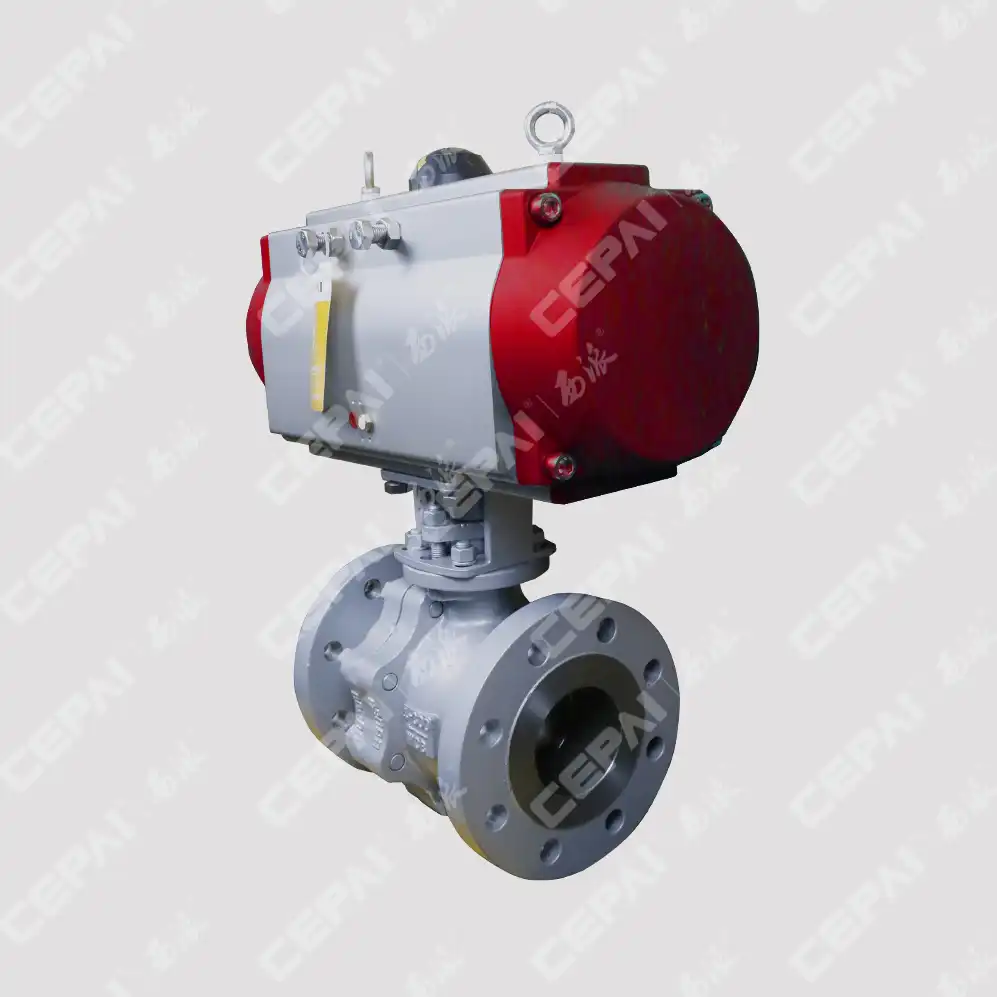

Understanding the Fundamental Mechanisms

The operational principles of single and double acting pneumatic ball valves significantly impact their performance, reliability, and application suitability. Let's explore the core mechanisms that distinguish these two valve types.

Single Acting Operating Principle

Single acting pneumatic ball valves operate using air pressure in a single direction and a spring return mechanism for the opposite action. When compressed air is applied, the actuator moves the valve to either the open or closed position (depending on the fail-safe configuration). When the air pressure is released, an internal spring returns the valve to its original position. This mechanism makes single acting pneumatic ball valves inherently fail-safe, as they will automatically return to a predetermined position (either open or closed) during power or air supply failure. The simplicity of the single acting design results in fewer moving parts, which can lead to increased reliability in certain applications and potentially lower maintenance requirements. However, the spring mechanism limits the torque output compared to double acting alternatives, making them less suitable for high-torque applications requiring significant force to operate.

Double Acting Operating Principle

Double acting pneumatic ball valves utilize air pressure for both opening and closing operations, without relying on a spring return mechanism. These valves have two air ports, with compressed air alternately applied to either side of the actuator piston or diaphragm to drive the valve between open and closed positions. The absence of a spring return mechanism allows for more balanced and powerful operation, as the full force of the pneumatic supply can be applied in both directions. This design provides higher torque output, making double acting pneumatic ball valves ideal for applications requiring greater force or operating in high-pressure environments. The actuator's symmetric design enables precise modulation and control of the valve position, allowing for more complex flow regulation beyond simple on-off operation. However, without the inherent fail-safe functionality of spring return mechanisms, additional components like solenoid valves or backup air supplies may be necessary for emergency situations.

Comparison of Control Systems

The control systems for single and double acting pneumatic ball valves differ significantly in complexity and capability. Single acting valves typically require simpler control setups with one solenoid valve controlling the air supply, making them more straightforward to integrate into basic automation systems. The control logic is often more intuitive—apply air to actuate, release air to return. On the other hand, double acting pneumatic ball valves require more sophisticated control systems with dual solenoid valves or 4/5-way valve arrangements to direct air pressure to the appropriate ports. This complexity enables more nuanced operation but demands more elaborate pneumatic circuits and control logic. The control differences directly impact response time, with double acting valves generally offering faster actuation speeds due to positive force in both directions, while single acting valves may experience slower return action due to spring resistance.

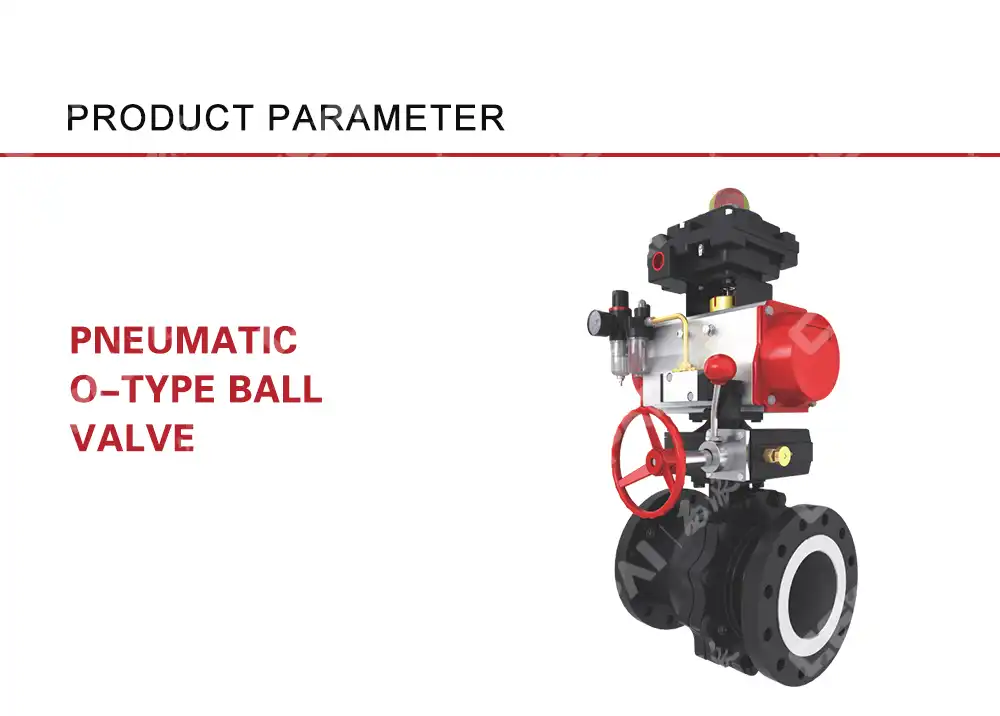

Performance Characteristics and Selection Criteria

Choosing between single and double acting pneumatic ball valves requires careful consideration of their respective performance attributes and how they align with specific application requirements.

Energy Efficiency and Air Consumption

Single acting pneumatic ball valves generally demonstrate greater energy efficiency in intermittent operations due to their air consumption in only one direction. This efficiency stems from the spring-return mechanism handling the reverse action without additional compressed air, resulting in approximately 40-50% lower air consumption compared to double acting alternatives. This reduced air usage translates to lower operational costs, making single acting pneumatic ball valves an economical choice for applications with frequent cycling requirements but moderate torque demands. However, the energy advantage diminishes in applications requiring continuous modulation or precise positioning, as the spring resistance requires continuous air pressure to maintain intermediate positions. The energy efficiency calculation must also consider the pneumatic ball valve's environmental impact, with lower air consumption contributing to reduced carbon footprint for compressed air generation—a significant consideration in today's sustainability-focused industrial environments.

Reliability and Maintenance Considerations

The reliability of pneumatic ball valves varies significantly between single and double acting types. Single acting valves feature fewer moving parts and simpler construction, potentially resulting in higher reliability in certain applications. However, the spring mechanism introduces a wear component that may require periodic replacement, especially in high-cycle applications where spring fatigue becomes a concern. The spring's constant tension may also lead to increased wear on seals and valve components. Double acting pneumatic ball valves eliminate spring-related issues but introduce additional seals and air passages that require maintenance. Their symmetric design distributes wear more evenly across components, potentially extending operational life in continuous use scenarios. Maintenance requirements also differ, with single acting valves needing more frequent spring inspections and replacements, while double acting valves require more comprehensive seal maintenance and air passage cleaning to prevent leakage or obstruction. CEPAI's pneumatic ball valves incorporate advanced materials and precision engineering to minimize maintenance requirements and maximize operational reliability, resulting in reduced total cost of ownership regardless of the chosen actuation method.

Application-Specific Suitability

The suitability of single versus double acting pneumatic ball valves varies significantly across different industrial applications. Single acting valves excel in safety-critical environments where defined fail-safe positions are mandatory, such as emergency shutdown systems in petrochemical plants or natural gas processing facilities. Their inherent fail-safe functionality makes them ideal for processes where a specific valve position (either open or closed) is required during power or air supply failure. Conversely, double acting pneumatic ball valves demonstrate superior performance in high-cycle applications requiring rapid actuation, precise modulation, or operation against high differential pressures. Industries such as power generation, water treatment, and heavy manufacturing benefit from their higher torque output and faster cycling capabilities. Temperature extremes also influence selection—single acting valves may experience performance variations in extreme temperatures due to changes in spring properties, while double acting valves maintain more consistent operation across wider temperature ranges. Space constraints present another consideration, with single acting valves typically requiring more vertical clearance to accommodate the spring housing, while double acting valves often have more compact profiles suitable for installations with limited space.

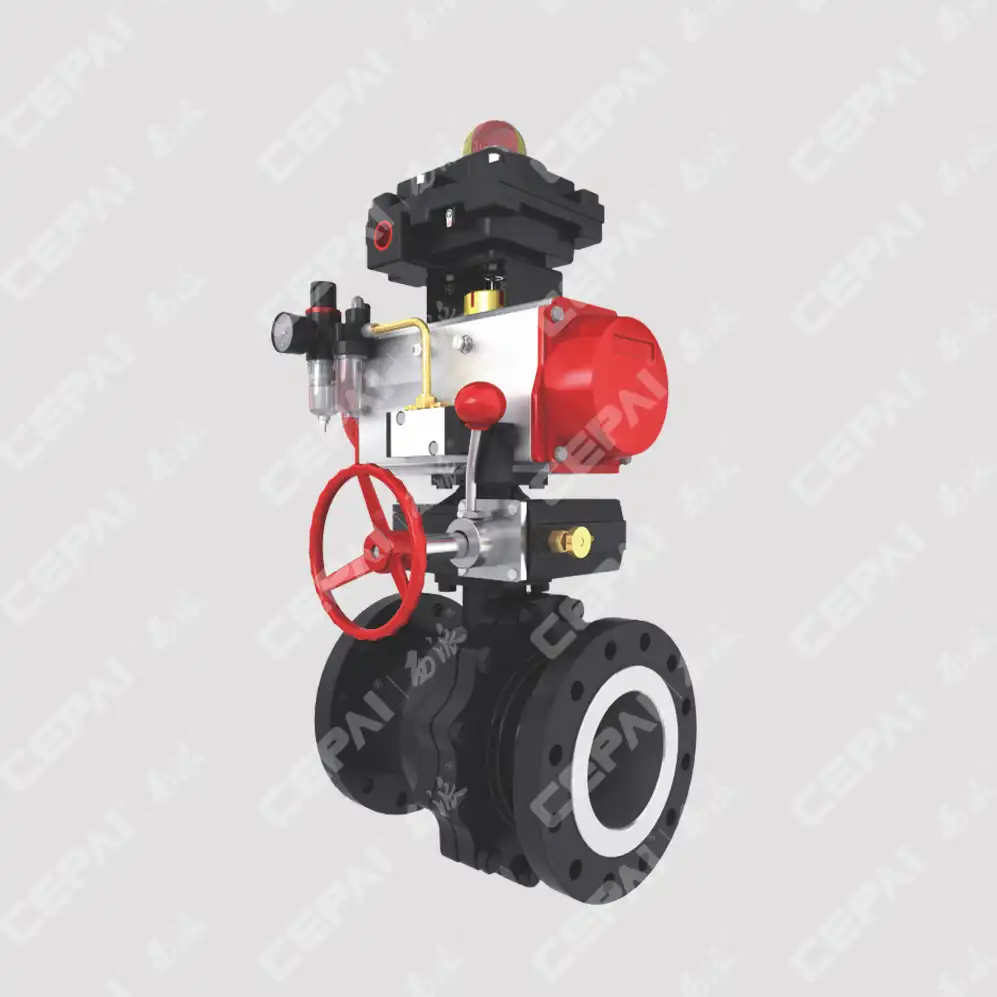

Integration with Modern Automation Systems

The integration capabilities of pneumatic ball valves with contemporary automation systems significantly impact their effectiveness in modern industrial environments.

Digital Control Integration

Modern pneumatic ball valves increasingly interface with digital control systems, with significant differences in integration complexity between single and double acting variants. Single acting pneumatic ball valves typically require simpler digital integration, needing only one control signal to operate. Their straightforward operation makes them compatible with basic programmable logic controllers (PLCs) and distributed control systems (DCS), requiring minimal I/O points. However, this simplicity can limit their functionality in sophisticated automation architectures requiring precise position feedback or complex sequencing. Double acting pneumatic ball valves offer more versatile integration options, supporting proportional control for modulating applications and precise positioning capabilities when equipped with appropriate positioners. Their bidirectional control enables more complex automation sequences and allows for integration with advanced process control strategies like cascade loops or model predictive control. CEPAI's pneumatic ball valves incorporate industry-standard interfaces like HART, PROFIBUS, or FOUNDATION Fieldbus, facilitating seamless integration with existing automation infrastructure regardless of actuation type. The digital diagnostics capabilities also differ, with double acting systems generally supporting more comprehensive condition monitoring and predictive maintenance features due to their more sophisticated control requirements.

Smart Features and IoT Capabilities

The pneumatic ball valve industry has embraced Industrial IoT (IIoT) technologies, with both single and double acting variants incorporating smart features to enhance performance and maintenance. Single acting pneumatic ball valves with smart capabilities typically focus on spring health monitoring, cycle counting, and fail-safe verification testing to ensure reliable emergency operation. Their IIoT implementations tend to emphasize reliability metrics and safety function verification rather than complex operational analytics. Double acting pneumatic ball valves, with their more complex operation, generally support more extensive smart features including real-time position monitoring, actuator pressure analysis, and valve signature diagnostics. These capabilities enable predictive maintenance strategies by identifying patterns indicating potential valve issues before failure occurs. CEPAI's advanced pneumatic ball valves incorporate edge computing capabilities that process valve performance data locally, transmitting only relevant information to central systems to reduce bandwidth requirements and enable operation in areas with limited connectivity. Cloud integration enables remote monitoring and management of valve populations across distributed facilities, with differentiated approaches based on the actuation method's specific monitoring requirements.

Cybersecurity Considerations

As pneumatic ball valves become increasingly connected to digital networks, cybersecurity considerations have become critical selection factors. Single acting pneumatic ball valves often present simplified cybersecurity profiles due to their less complex digital interfaces and inherent mechanical fail-safe mechanisms that operate independently of digital controls. This can provide an additional layer of safety in critical applications, as basic mechanical functions remain operational even during cybersecurity incidents. Double acting pneumatic ball valves typically require more comprehensive cybersecurity measures due to their greater reliance on digital control systems for proper operation. Without inherent mechanical fail-safe mechanisms, they may require additional protection against unauthorized access or control signal manipulation. CEPAI implements defense-in-depth cybersecurity strategies for all its pneumatic ball valve products, including encrypted communications, secure authentication protocols, and regular security patch management to protect against evolving threats. Both valve types benefit from network segmentation and proper implementation of industrial security standards like IEC 62443, with specific security configurations tailored to the risk profile of the application and the particular vulnerability profile of each actuation type.

Conclusion

Selecting between single and double acting pneumatic ball valves requires careful consideration of operational requirements, system integration needs, and specific application demands. Single acting valves offer inherent fail-safe functionality and energy efficiency, while double acting valves provide higher torque and faster response times. CEPAI's extensive range of high-performance pneumatic ball valves delivers exceptional durability and precision control, backed by comprehensive technical support and innovative engineering solutions. Whether your application demands the reliability of single acting or the power of double acting pneumatic ball valves, our expert team is ready to assist with customized solutions that optimize your fluid control systems. Contact us today at cepai@cepai.com to discover how our industry-leading valve technology can enhance your operations.
