What to Consider Before Buying a Ball Valve for Your System?

Selecting the right ball valve for your system is a critical decision that can significantly impact operational efficiency, safety, and long-term costs. Ball valves, characterized by their sphere-shaped closure mechanism, have become essential components in various industries due to their reliable sealing capabilities and versatile applications. Before making a purchase decision, it's imperative to understand key considerations that will ensure you select a ball valve that perfectly matches your system requirements, providing optimal performance and longevity.

Understanding Ball Valve Design Parameters

Material Selection for Maximum Compatibility

When selecting a ball valve for your system, the material compatibility stands as one of the most crucial considerations. The valve materials must withstand the chemical properties of your media while maintaining structural integrity under operational conditions. For corrosive applications, stainless steel ball valves offer excellent resistance to chemical degradation and maintain their performance integrity over time. In high-temperature environments, specialized alloys such as Inconel or Monel might be necessary to prevent material degradation. Each material has specific advantages – carbon steel provides robust mechanical strength at moderate costs, while exotic alloys like Hastelloy deliver superior corrosion resistance in extreme environments. The seal materials also deserve careful consideration, as elastomers like PTFE (polytetrafluoroethylene) provide excellent chemical resistance for a wide range of applications, while RTFE (reinforced PTFE) offers enhanced pressure and extrusion resistance. For high-temperature applications, materials like PEEK (polyether ether ketone) or metal seals might be required. The correct material selection directly impacts valve longevity, maintenance intervals, and ultimately, the total cost of ownership for your ball valve investment.

Pressure and Temperature Ratings Assessment

The pressure-temperature relationship forms a critical parameter in ball valve selection, as these factors directly influence valve performance and safety. Every ball valve has specific pressure and temperature ratings that define its operational limits – exceeding these boundaries can lead to catastrophic failure, system damage, and potentially dangerous situations. When evaluating pressure ratings, consider not just nominal system pressure but also pressure spikes, vacuum conditions, and future system modifications. Temperature considerations must account for both media temperature and ambient conditions, as extreme temperatures can affect seal materials, causing expansion, contraction, or degradation. The pressure class designation (such as ANSI Class 150, 300, 600, etc.) provides standardized guidelines for pressure-temperature relationships, but these must be carefully matched to your specific application requirements. For systems with rapid temperature fluctuations, thermal cycling resistance becomes an important consideration. Ball valves with appropriate trim materials and design accommodations for thermal expansion can prevent issues like thermal binding or seal failure. Properly rated ball valves ensure safe, reliable operation throughout your system's lifecycle, while undersized valves create safety hazards and oversized valves represent unnecessary capital expenditure.

Flow Characteristics and Capacity Requirements

Understanding your system's flow characteristics represents a fundamental step in ball valve selection, as it directly impacts both process control and energy efficiency. Ball valves come in various designs that affect flow profile – standard port (reduced bore) valves create more flow restriction but are more economical, while full-port (full bore) designs allow unrestricted flow with minimal pressure drop, essential for applications where maintaining flow velocity is critical. For precise control applications, characterized ball valves with specifically designed V-port or contoured balls provide more gradual flow adjustment compared to traditional on/off ball valves. When evaluating flow capacity, the valve's Cv value (flow coefficient) indicates the amount of water in gallons per minute that will flow through the valve with a 1 psi pressure drop – higher Cv values indicate greater flow capacity. This specification must align with your system's flow rate requirements to prevent bottlenecks or excessive velocity. Flow direction capabilities must also be considered, as some ball valve designs are unidirectional while others can handle bidirectional flow. For applications with potential solids or particulates, the flow path design becomes particularly important to prevent valve damage or clogging. Properly matched flow characteristics ensure optimal system efficiency, reduce energy costs associated with pumping, and provide appropriate process control capabilities for your specific application.

Operational Considerations for Ball Valves

Actuation Methods and Control Integration

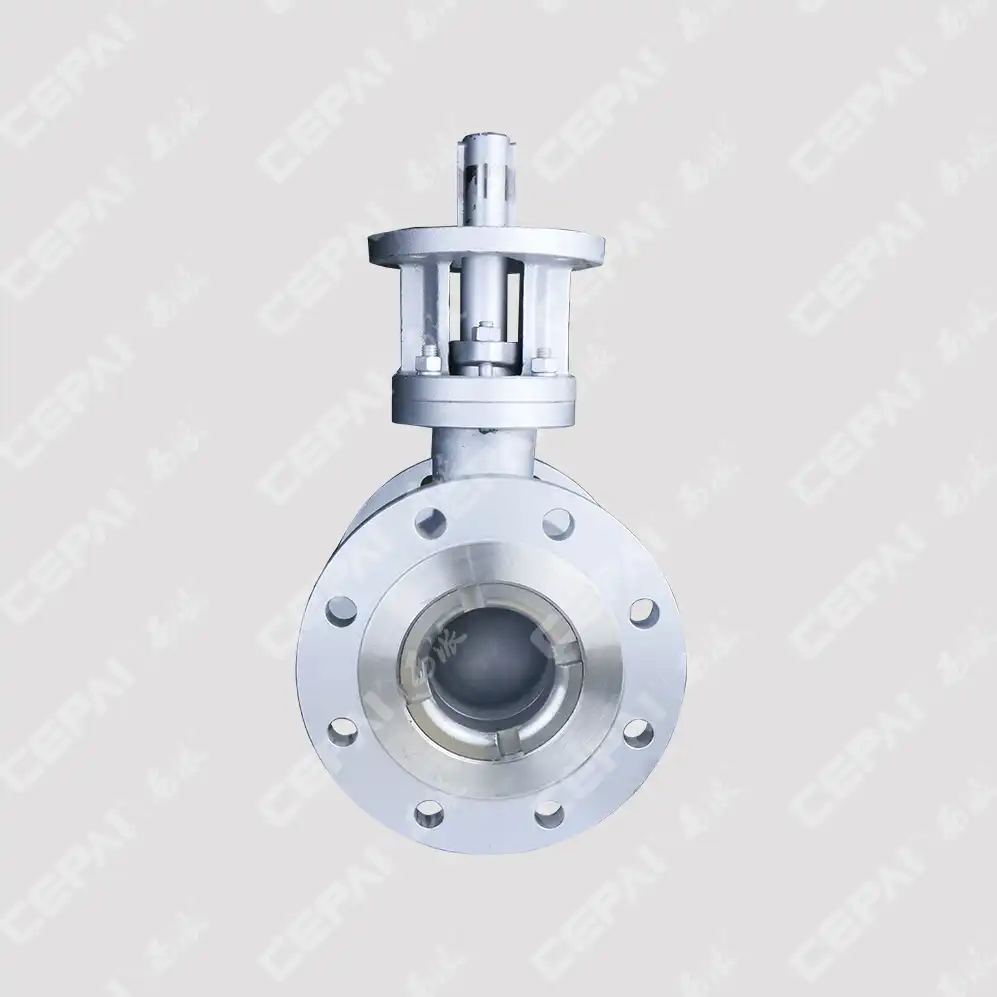

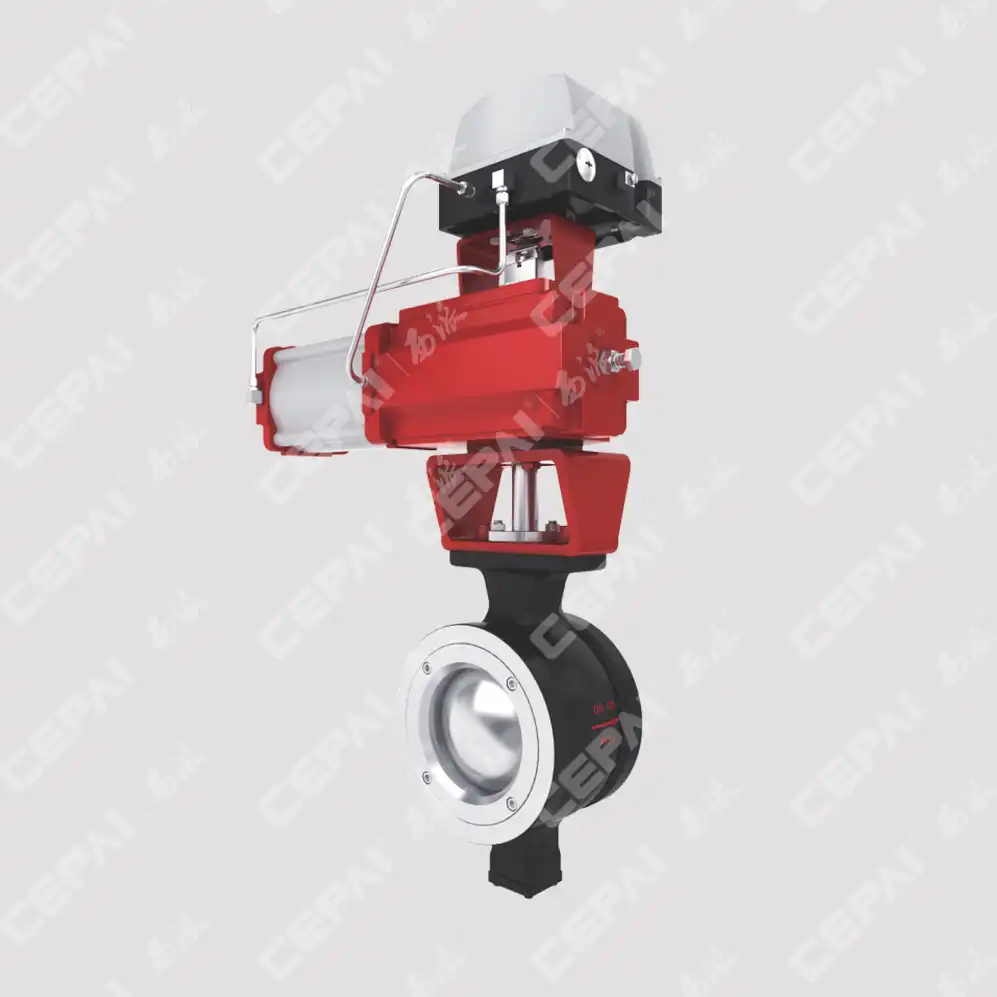

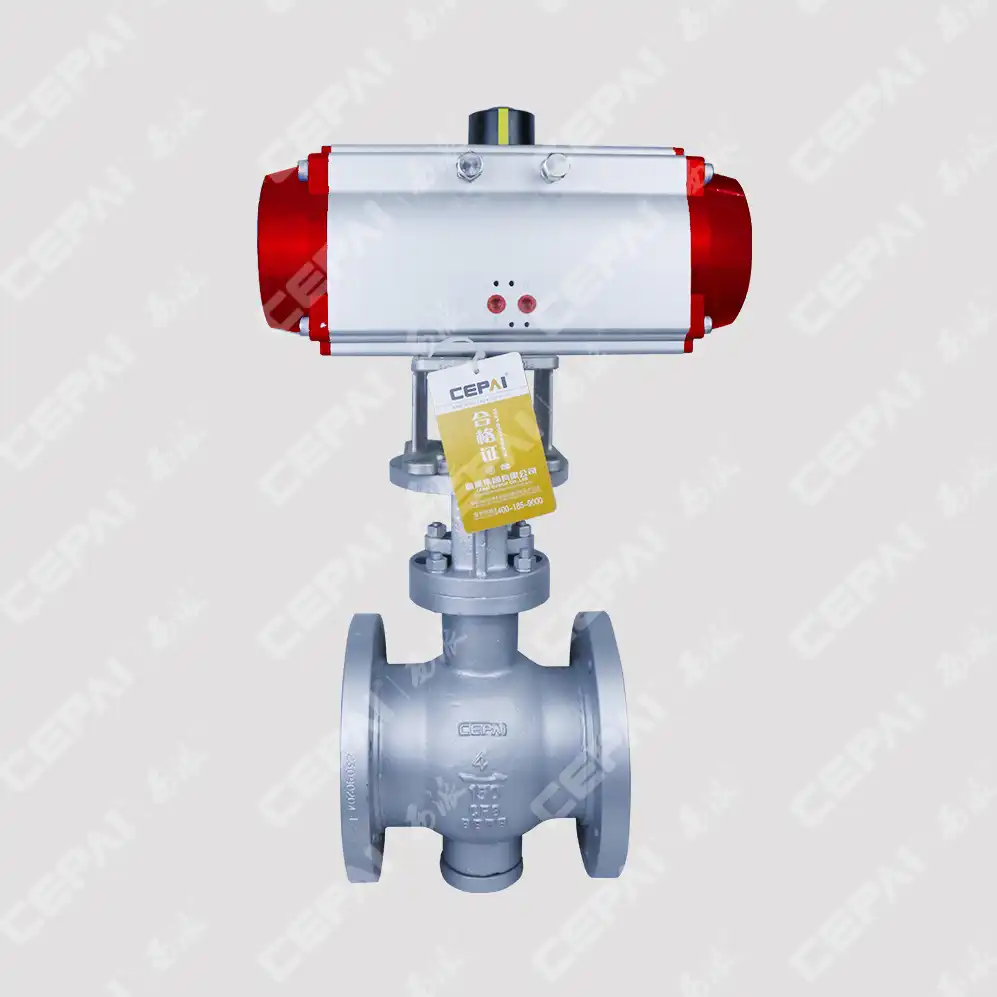

The selection of the proper actuation method is pivotal for efficient ball valve operation within your system architecture. Manual actuation, utilizing levers or handwheels, provides cost-effective solutions for infrequently adjusted valves where precision positioning isn't critical. These manual operators typically require 90-degree rotation to move from fully open to fully closed positions. For applications requiring remote operation, automated actuation becomes necessary. Pneumatic actuators, powered by compressed air, offer rapid operation and intrinsic safety in explosive environments, making them ideal for many industrial applications involving ball valves. Electric actuators provide precise positioning capabilities with feedback options, though they typically have slower operation speeds compared to pneumatic alternatives. Hydraulic actuators deliver high torque capabilities for large ball valves or high-pressure applications where substantial force is required. When integrating ball valves into control systems, consider communication protocol compatibility – whether your system requires analog 4-20mA signals, digital communication protocols like HART, Foundation Fieldbus, or Profibus, or simple discrete on/off control. The control architecture must account for fail-safe requirements – whether the valve should fail open, closed, or in-position during power or signal loss. Advanced ball valve control systems may incorporate partial stroke testing capabilities for critical applications, allowing valve functionality verification without disrupting processes. Proper actuation selection ensures reliable valve operation aligned with system requirements while minimizing energy consumption and maintenance needs.

Installation and Maintenance Requirements

The long-term performance of a ball valve is significantly influenced by proper installation and ongoing maintenance considerations. Before installation, ensuring adequate space for valve operation and maintenance access is essential – ball valves typically require clearance for their full swing arc and potential actuator removal. Proper alignment during installation prevents undue stress on valve components and connected piping. For threaded ball valves, appropriate thread sealants compatible with both the process media and valve materials must be used, while flanged connections require proper gasket selection and bolt torquing procedures. Consideration of thermal expansion effects during installation helps prevent binding or leakage issues during operation. From a maintenance perspective, ball valves with top-entry designs facilitate in-line maintenance without removing the entire valve from service, while side-entry designs may offer cost advantages but require complete valve removal for internal maintenance. The accessibility of wear components like seats and seals significantly impacts lifetime maintenance costs. Proper lubrication requirements vary by ball valve design – some feature self-lubricating components while others may require periodic lubrication of moving parts. For critical service applications, implementing preventive maintenance schedules that include valve cycling, seal inspection, and actuator testing can significantly extend ball valve service life. The availability of spare parts and repair kits should be confirmed before purchase, especially for specialized or custom ball valve designs. By thoroughly evaluating installation and maintenance requirements, you can select ball valves that minimize system downtime and reduce total lifecycle costs.



Environmental and Safety Compliance

Regulatory compliance and safety considerations have become increasingly important factors in ball valve selection across industries. For applications in hazardous locations, explosion-proof certifications such as ATEX or IECEx may be required for actuators and associated components. Fire-safe ball valves, designed to maintain sealing integrity during and after fire exposure, are mandatory in many petrochemical and oil & gas installations, with designs typically certified to standards like API 607 or ISO 10497. Fugitive emissions requirements have driven developments in low-emission ball valve designs with improved stem sealing systems that comply with stringent environmental regulations like EPA Method 21 or ISO 15848. These specialized stem packing designs minimize leakage of volatile organic compounds and other hazardous substances. For cryogenic applications, ball valves require special construction to maintain functionality at extremely low temperatures, often incorporating materials like stainless steel with extended bonnet designs to protect seals from extreme cold. In high-purity applications such as pharmaceutical or semiconductor manufacturing, ball valves with specific surface finishes and specialized cleaning procedures may be required to prevent contamination. Sanitary applications often demand ball valves with certified designs that eliminate crevices where bacteria could accumulate. Proper documentation including material test reports, pressure test certificates, and applicable regulatory compliance certificates should be provided with quality ball valves. By understanding and addressing these environmental and safety requirements, you ensure both regulatory compliance and workplace safety while avoiding potential liabilities from non-compliant installations.

Advanced Selection Criteria for Specialized Applications

Trunnion vs. Floating Ball Design Selection

The fundamental choice between trunnion-mounted and floating ball designs represents a critical decision point that significantly impacts ball valve performance characteristics. Floating ball valves, where the ball is free to move slightly within the valve body, offer excellent sealing capabilities at lower pressures. The design utilizes system pressure to enhance sealing effectiveness – as pressure increases, the ball is pushed more firmly against the downstream seat, creating a tighter seal. This self-adjusting mechanism makes floating ball valves ideal for applications requiring bubble-tight shutoff in low to medium pressure ranges. Conversely, trunnion-mounted ball valves incorporate fixed pivot points that secure the ball at both the top and bottom, preventing movement regardless of pressure conditions. This design excels in high-pressure applications where the mechanical forces exerted on the valve components would otherwise cause excessive friction and wear in floating designs. The trunnion design distributes operational forces more evenly, reducing operating torque requirements and extending seal life in severe service conditions. For larger ball valves (typically 6" and above), trunnion designs become increasingly advantageous due to the significant weight of the ball component. Applications experiencing frequent thermal cycling often benefit from trunnion designs, which accommodate thermal expansion more effectively. When selecting between these two fundamental ball valve architectures, consider not just current operating conditions but also potential future changes in pressure requirements, actuation limitations, and maintenance capabilities. The proper selection between floating and trunnion-mounted ball valves ensures optimal performance balance between sealing effectiveness, operational reliability, and long-term maintenance requirements.

Anti-Static and Anti-Blow-Out Features

Safety-critical features like anti-static and anti-blow-out mechanisms have become standard requirements for ball valves in many industries. Anti-static designs prevent dangerous static electricity buildup that could potentially cause sparks in flammable environments. These features typically incorporate conductive paths between the ball, stem, and valve body, ensuring continuous electrical continuity and preventing static charge accumulation. This becomes particularly crucial in applications handling hydrocarbons, solvents, or other flammable media where static discharge could trigger explosions. Ball valves designed for such applications should comply with relevant standards like API 608 or ISO 17292, which specify anti-static testing requirements. Equally important, anti-blow-out stem designs provide protection against one of the most catastrophic potential failure modes in pressurized systems. These designs incorporate mechanical features that prevent the valve stem from being ejected from the valve body under pressure, even if internal retaining components fail. Typically achieved through a shoulder on the stem that cannot pass through the stem housing, this safety feature is essential for protecting personnel and equipment. For high-cycle applications, the robustness of these safety features becomes even more critical, as repeated operation increases wear on safety-critical components. When selecting ball valves for critical service, verification of these safety features through proper certification documentation is essential. Premium ball valve manufacturers like CEPAI incorporate these safety features even in standard product offerings, reflecting their commitment to operational safety beyond minimum regulatory requirements. Investing in ball valves with properly designed and certified anti-static and anti-blow-out features provides essential protection against preventable safety incidents.

Specialized Sealing Technologies

Advancements in sealing technologies have dramatically expanded the application range of ball valves into increasingly demanding service conditions. Double and triple offset ball valve designs represent significant innovations for high-temperature applications, where traditional soft-seated ball valves would fail. These designs utilize a metal-to-metal sealing concept that maintains functionality even when temperatures exceed the limitations of polymer-based seals. For severe service applications with abrasive media, ball valves with specialized hardened surfaces through techniques like thermal spraying, nitriding, or the application of tungsten carbide coatings can dramatically extend service life. Sealing systems for high-cycling applications often incorporate reinforced PTFE or similar materials that resist wear from repeated operation. Cryogenic applications require specialized seal designs that maintain flexibility and sealing capability at extremely low temperatures, often utilizing materials like PCTFE (Polychlorotrifluoroethylene) or specially formulated elastomers. For vacuum service, seal designs must prevent atmospheric leakage into the system while maintaining proper operation under vacuum conditions. Applications requiring bidirectional sealing performance need specialized seat designs that provide equivalent sealing capability regardless of flow direction. Self-relieving seat designs for ball valves prevent pressure buildup in the valve cavity that could otherwise lead to seal damage or operational issues. Fire-safe sealing systems typically incorporate a primary soft seal for normal operation with a secondary metal backup seal that engages if the primary seal is compromised during fire exposure. The selection of appropriate sealing technology requires careful consideration of all operating parameters, including temperature extremes, pressure conditions, media characteristics, and required sealing performance. By matching specialized sealing technologies to your specific application requirements, you can achieve optimal ball valve performance even in the most challenging service conditions.

Conclusion

Selecting the ideal ball valve requires careful evaluation of multiple factors including material compatibility, pressure-temperature ratings, flow characteristics, actuation needs, maintenance requirements, and specialized features for your unique application. By thoroughly assessing these considerations, you can ensure optimal performance, safety, and cost-effectiveness. CEPAI Group, with its commitment to innovation, quality, and comprehensive service, stands ready to assist with your valve selection process. Our extensive product range, ISO-certified quality management system, and exceptional pre-sales and after-sales support ensure you receive the perfect solution for your specific needs.

Have questions about selecting the right ball valve for your system? Contact our technical experts at cepai@cepai.com for personalized assistance and discover why leading companies worldwide trust CEPAI valves for their most demanding applications.

References

1. American Petroleum Institute. (2023). API Standard 608: Metal Ball Valves—Flanged, Threaded, and Welding Ends. Washington, DC: API Publishing Services.

2. International Organization for Standardization. (2022). ISO 17292: Metal Ball Valves for Petroleum, Petrochemical and Allied Industries. Geneva, Switzerland: ISO.

3. Skousen, P. L. (2021). Valve Handbook, Fourth Edition. New York: McGraw-Hill Education.

4. Zappe, R. W. (2023). Valve Selection Handbook: Engineering Fundamentals for Selecting the Right Valve Design for Every Industrial Flow Application. Amsterdam: Elsevier.

5. Smith, P., & Zappe, R. W. (2022). Valve Selection Criteria for Process Plants. Journal of Process Engineering, 45(3), 227-242.

6. Nesbitt, B. (2021). Handbook of Valves and Actuators: Valves Manual International. Oxford: Butterworth-Heinemann.
