Selecting the appropriate control signal for an Electric Ball Valve requires careful consideration of system compatibility, application environment, and operational requirements. The choice between analog signals like 4–20mA and digital protocols such as Modbus directly impacts valve performance, system integration complexity, and long-term maintenance costs. Understanding the specific characteristics of each signal type enables engineers and procurement professionals to make informed decisions that optimize automated fluid control systems across industrial, HVAC, and process applications.
Understanding Electric Ball Valve Control Signals
The foundation of communication between automated control systems and electric-actuated ball valves is control signals. The accurate and responsive operation of valves in intricate industrial processes is determined by these signals. In addition to complex digital communication protocols like Modbus RTU, Modbus TCP, and BACnet, the landscape of control signals includes analog alternatives like 4–20mA current loops and 0–10V voltage signals. The majority of distributed control systems (DCS) and programmable logic controllers (PLCs) can be easily implemented with analog signals. Considered the industrial standard, the 4–20 mA current loop has superior noise immunity and can send signals over long distances without deteriorating. Current-based transmission, which maintains stability even in the face of voltage decreases across lengthy cable runs, is the source of this dependability. Digital communication protocols revolutionize valve control by enabling bidirectional data exchange. Unlike analog signals that transmit only position commands, digital protocols facilitate comprehensive valve diagnostics, status monitoring, and advanced configuration capabilities. Modbus RTU operates over serial RS-485 networks, supporting multiple devices on a single communication bus, while Modbus TCP leverages Ethernet infrastructure for faster data transmission and easier network integration. The selection between analog and digital control signals significantly affects maintenance strategies and troubleshooting procedures. Digital protocols provide real-time diagnostic information, including actuator torque readings, valve position feedback, and system health status, enabling predictive maintenance approaches that minimize unexpected downtime.
Key Criteria for Selecting the Appropriate Control Signal
Application environment characteristics fundamentally influence control signal selection decisions. Industrial process environments often demand robust communication methods capable of withstanding electromagnetic interference, temperature extremes, and vibration. HVAC applications typically prioritize energy efficiency and integration with building management systems, favoring protocols that support advanced scheduling and optimization features. Signal precision requirements vary considerably across different applications. Water treatment facilities may require precise flow control achievable through high-resolution analog signals or digital protocols with fine position control capabilities. Conversely, simple on-off applications in heating systems might operate effectively with basic digital switching signals. Here are the critical evaluation criteria for control signal selection: When evaluating control signal options, several technical and operational factors require careful consideration.
- System Integration Complexity: Existing control infrastructure compatibility determines implementation effort and cost. Legacy systems often rely on analog signals, while modern automation platforms increasingly favor digital communication protocols that enable advanced features and centralized monitoring capabilities.
- Installation and Wiring Requirements: Analog signals typically require dedicated wiring for each valve, increasing cable costs and installation complexity in large systems. Digital protocols support multiple devices on shared communication networks, reducing wiring requirements but necessitating network configuration expertise.
- Safety and Fail-Safe Considerations: Critical applications demand reliable fail-safe operation during communication failures or power interruptions. Analog signals inherently provide fail-safe positioning through spring-return actuators, while digital systems require explicit fail-safe programming and backup power considerations.
- Future Expansion and Scalability: Digital protocols offer superior scalability for growing systems, enabling easy addition of new devices without extensive rewiring. Analog systems may require significant infrastructure upgrades to accommodate expansion, impacting long-term operational costs.
These considerations directly impact total cost of ownership and operational efficiency throughout the valve system lifecycle. Proper evaluation ensures optimal performance while minimizing unexpected complications during installation and operation.
Comparing Popular Control Signals for Electric Ball Valves
The 4–20mA analog signal dominates industrial valve control applications due to its proven reliability and universal acceptance. This current-loop standard excels in electrically noisy environments where electromagnetic interference might compromise communication integrity. The signal's inherent fail-safe capability allows immediate detection of wiring problems, as broken connections result in zero current readings that trigger alarm conditions. Modbus communication protocols offer significant advantages in modern automation environments. Modbus RTU provides cost-effective digital communication over serial networks, supporting up to 247 devices on a single communication bus. The protocol enables comprehensive valve monitoring, including position feedback, diagnostic information, and configuration parameters accessible through standard industrial software platforms. Ethernet-based Modbus TCP represents the evolution toward network-integrated automation systems. This protocol leverages existing network infrastructure, enabling remote valve monitoring and control through standard web browsers or specialized software applications. The higher communication speeds support real-time control applications requiring rapid response times.Practical implementation experiences demonstrate distinct advantages for different scenarios: Real-world applications reveal how control signal selection impacts operational outcomes across various industries.
- Petrochemical Processing Applications: Large refineries increasingly adopt Modbus TCP for valve control networks, enabling centralized monitoring of thousands of valves through integrated control rooms. The diagnostic capabilities reduce maintenance costs by identifying potential issues before failures occur, while remote configuration capabilities minimize field service requirements.
- Water Treatment Facility Operations: Municipal water systems benefit from 4–20mA signals in primary control loops due to their reliability and simplicity, while implementing Modbus networks for secondary monitoring and optimization functions. This hybrid approach balances operational reliability with advanced monitoring capabilities.
- HVAC System Integration: Building automation systems favor BACnet protocols for seamless integration with facility management platforms, enabling energy optimization through coordinated valve control strategies. The protocol's standardized approach simplifies multi-vendor system integration and reduces configuration complexity.
These implementation patterns demonstrate how different industries prioritize specific control signal characteristics based on operational requirements and risk tolerance levels.
Practical Tips for Integration, Maintenance, and Troubleshooting
Successful valve control system implementation requires attention to proper installation practices and ongoing maintenance procedures. Signal integrity depends heavily on correct wiring techniques, appropriate cable selection, and proper grounding practices. Shielded cables become essential in electrically noisy environments, while proper cable separation from power conductors prevents interference issues. Grounding strategies vary between analog and digital signal types. Analog current loops require single-point grounding to prevent ground loops that introduce measurement errors. Digital communication networks benefit from consistent grounding practices that maintain signal reference levels across all connected devices. Calibration procedures ensure accurate valve positioning throughout the operational lifecycle. Analog signals require periodic calibration to maintain accuracy as components age, while digital systems enable automated calibration routines that reduce maintenance effort and improve consistency. Common troubleshooting scenarios include signal loss, erratic valve operation, and communication timeouts. Systematic diagnostic approaches begin with basic signal verification using appropriate test equipment. Digital systems provide enhanced diagnostic capabilities through built-in status monitoring and error reporting features. Preventive maintenance strategies focus on connection integrity, environmental protection, and firmware updates. Regular inspection schedules identify potential issues before they impact operations, while proactive component replacement extends system reliability and reduces unexpected downtime costs.
CEPAI Electric Ball Valve Solutions and Expert Support

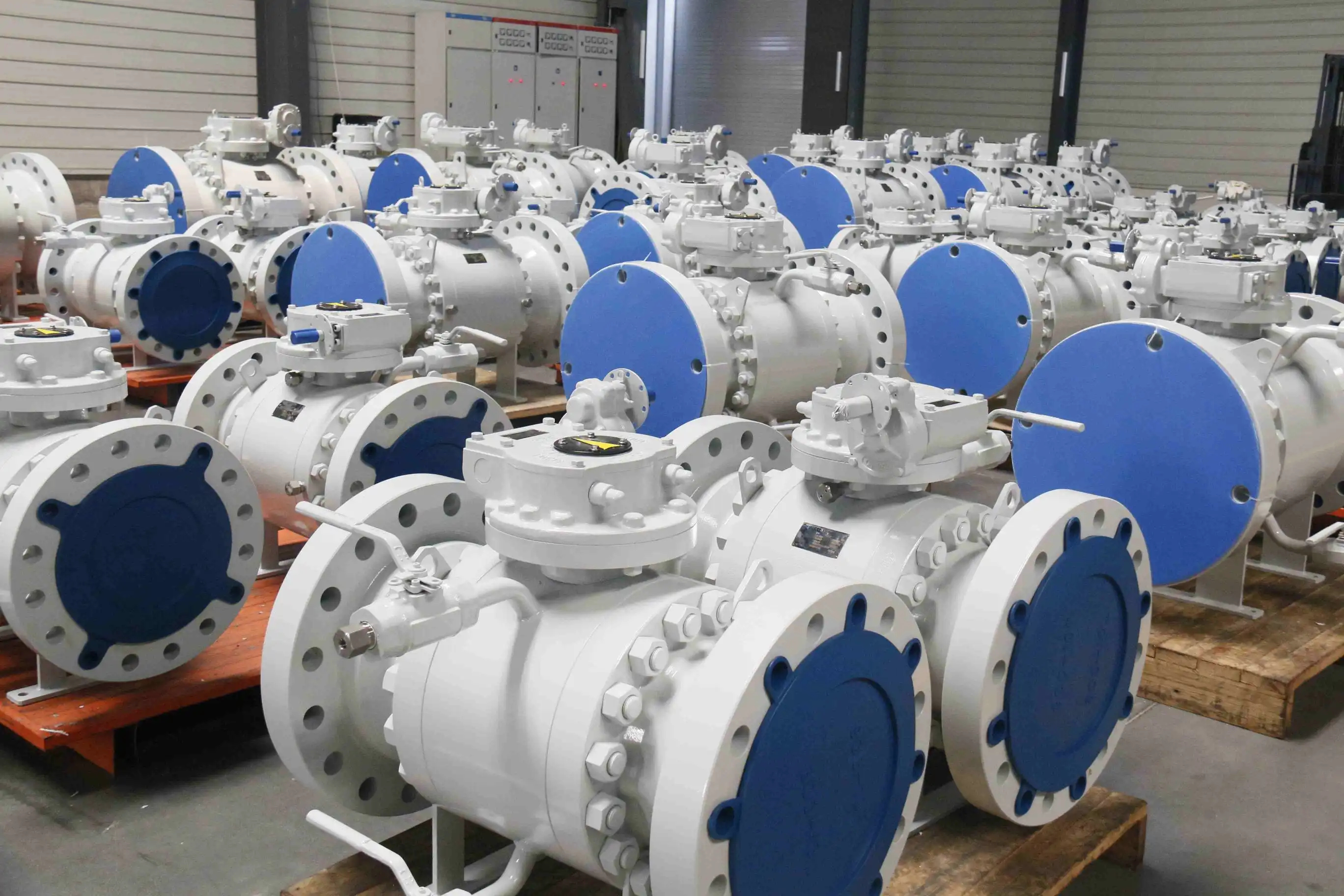

CEPAI Group leads the industry in manufacturing high-precision Electric Ball Valve systems that seamlessly integrate with diverse control signal requirements. Our extensive product portfolio accommodates 4–20mA analog control, Modbus RTU/TCP digital communication, and specialized protocols tailored to specific industrial applications. With over 15 years of engineering excellence and continuous innovation, CEPAI delivers valve solutions that exceed performance expectations while maintaining competitive pricing for bulk procurement needs. Our intelligent manufacturing capabilities, supported by a $25 million facility investment, ensure consistent quality and precision across every Electric Ball Valve produced. The ISO 9001 quality management system, combined with API certifications and SIL safety ratings, demonstrates our commitment to international standards and operational reliability. CEPAI valve systems feature advanced actuator technology that supports multiple control signal options within single product lines, providing flexibility for complex system integration requirements.
CEPAI technical support teams provide comprehensive assistance throughout project lifecycles, from initial specification development through commissioning and ongoing maintenance support. Our engineering expertise encompasses control system integration, helping customers optimize valve selection for specific signal requirements and operational parameters. Custom configuration services ensure seamless compatibility with existing automation infrastructure while maximizing long-term performance and reliability.As a trusted Electric Ball Valve supplier to major energy companies including PetroChina, Sinopec, and international engineering firms, CEPAI maintains rigorous quality standards and delivery schedules that support critical project timelines. Our global service network provides local support for installation, commissioning, and maintenance activities, reducing project risk and ensuring optimal system performance.
Whether your application requires simple analog control or sophisticated digital communication capabilities, CEPAI Electric Ball Valve solutions deliver the precision, reliability, and integration flexibility needed for successful automation projects. Contact us at cepai@cepai.com to discuss your specific requirements and discover how our valve expertise can optimize your control system performance. For additional technical resources and product information, visit valveknowledge.jscepai.com.
Frequently Asked Questions
Q1: Can existing electric ball valves be retrofitted for Modbus communication?
A: Most modern electric ball valves can accommodate Modbus communication through actuator upgrades or interface modules. CEPAI actuators support field-configurable communication options that enable retrofitting without complete valve replacement. The process typically involves replacing the actuator control module and updating configuration parameters, making it cost-effective compared to full system replacement.
Q2: Which control signal performs better in hazardous or explosive environments?
A: The 4–20mA analog signal generally provides superior performance in hazardous environments due to its intrinsic safety characteristics and lower power requirements. Current-loop signals can operate safely in explosive atmospheres with appropriate barriers and certified equipment. Digital protocols require careful consideration of network power requirements and explosion-proof enclosures for safe operation in classified areas.
Q3: How do I determine if digital control signals justify the additional cost for my application?
A: Digital control signal benefits typically justify costs in systems with more than 10-15 valves, complex monitoring requirements, or demanding maintenance schedules. Applications requiring predictive maintenance, remote monitoring, or integration with enterprise software systems benefit significantly from digital protocols. CEPAI engineering teams can perform cost-benefit analyses based on specific application requirements and operational objectives.
Conclusion
Selecting the optimal control signal for Electric Ball Valve applications requires balancing technical requirements, operational constraints, and long-term cost considerations. Analog signals like 4–20mA provide proven reliability and straightforward implementation, while digital protocols offer enhanced capabilities for monitoring, diagnostics, and system integration. Success depends on matching signal characteristics to specific application needs while considering future expansion requirements. CEPAI's comprehensive valve solutions and technical expertise ensure optimal control signal selection and seamless system integration across diverse industrial applications.
References
1. International Society of Automation. "Industrial Automation and Control Systems Security Standards." ISA-99 Committee Report, 2019.
2. Johnson, R.M., and Smith, P.K. "Digital Communication Protocols in Process Control Applications." IEEE Transactions on Industrial Electronics, vol. 67, no. 4, 2020, pp. 3021-3035.
3. American Petroleum Institute. "Specification for Pipeline Valves." API Standard 6D, Fifth Edition, 2018.
4. Zhang, L., and Martinez, C.A. "Reliability Analysis of Analog vs Digital Control Systems in Industrial Applications." Journal of Process Control Engineering, vol. 45, 2021, pp. 156-172.
5. European Committee for Standardization. "Industrial Communication Networks - Fieldbus Specifications." EN 50170 Standard, 2019.
6. Thompson, W.J. "Modern Valve Actuator Technologies and Control Signal Integration." Control Engineering Practice, vol. 98, 2020, pp. 104-118.
