Preventing corrosion in ball valves for seawater desalination requires selecting superior materials, implementing proper maintenance protocols, and utilizing advanced coating technologies. Ball valve manufacturers must prioritize corrosion-resistant alloys like duplex stainless steel, specialized sealing materials, and innovative surface treatments to withstand the aggressive chloride-rich environment of desalination plants. Effective prevention strategies combine material science expertise with operational best practices to ensure reliable performance and extended service life in these demanding applications.
Understanding Corrosion Challenges in Seawater Desalination Systems
Seawater desalination environments give some of the most difficult circumstances for valve functioning. The high chloride concentration, high temperatures, and constant flow generate an aggressive chemical environment that hastens material breakdown. Understanding these problems allows engineers and procurement specialists to make more educated judgments about valve selection and maintenance strategies. The principal causes of valve corrosion in desalination systems are chloride-induced pitting, crevice corrosion in narrow spaces, and galvanic corrosion when dissimilar metals come into contact. These corrosion mechanisms can jeopardize valve integrity in a matter of months if suitable preventive measures are not adopted. Temperature changes during system startup and shutdown aggravate material stress, opening up new channels for corrosive assault. Modern desalination plants typically operate at pressures ranging from 800 to 1,000 psi, with seawater temperatures between 25°C and 45°C. These operating conditions, combined with the natural salinity of seawater containing approximately 35,000 ppm of dissolved salts, create an environment where standard valve materials quickly fail. Research indicates that conventional brass and carbon steel valves may experience significant degradation within six months of operation in these conditions.
Material Selection Strategies for Enhanced Durability
Effective corrosion protection in marine applications is based on the choice of suitable materials. Operational dependability, maintenance expenses, and system longevity are all directly impacted by the choice of valve materials. Modern metallurgy has created a number of alloy families that are especially made to withstand corrosion from saltwater. Duplex stainless steels provide remarkable resistance to corrosion caused by chloride while retaining mechanical strength, especially in grades like 2205 and 2507. When compared to traditional 316L stainless steel, these alloys offer better pitting resistance by combining the advantages of austenitic and ferritic microstructures. Super duplex alloys provide significantly stronger corrosion resistance in high-chloride settings because to their higher chromium and molybdenum content. Beyond the valve body materials, sealing components require careful consideration. Traditional elastomers may swell or degrade when exposed to seawater, leading to leakage and contamination. Here are the key material considerations for seawater valve applications:
- Valve Body Materials: Super duplex stainless steel (UNS S32750) provides excellent chloride stress corrosion cracking resistance, making it ideal for high-pressure seawater applications. The material's balanced microstructure delivers both strength and corrosion resistance, with a Pitting Resistance Equivalent Number (PREN) exceeding 40.
- Ball and Stem Components: Precipitation-hardened stainless steels like 17-4 PH offer superior hardness and wear resistance while maintaining corrosion resistance. These materials undergo specialized heat treatment processes to achieve optimal mechanical properties for demanding service conditions.
- Sealing Solutions: Perfluoroelastomer (FFKM) seals demonstrate exceptional chemical compatibility with seawater while maintaining flexibility across wide temperature ranges. These advanced polymers resist swelling and chemical degradation that commonly affect standard elastomers in marine environments.
These material selections work synergistically to create a comprehensive defense against seawater corrosion. When properly specified and manufactured, these advanced materials can extend valve service life from months to decades in seawater applications.
Advanced Coating Technologies and Surface Treatments
Beyond the fundamental characteristics of the material, surface engineering techniques offer extra layers of protection that greatly improve corrosion resistance. By erecting barriers between the underlying metal substrate and the harsh marine environment, these technologies successfully isolate possible corrosion sites. Titanium nitride and chromium nitride are two examples of Physical Vapor Deposition (PVD) coatings that provide remarkable hardness and chemical inertness. These coatings offer consistent coverage over intricate valve geometries and are usually applied at thicknesses between two and five micrometers. Because the coating process takes place in a vacuum, there is little porosity and uniform adherence. Polytetrafluoroethylene (PTFE) combined with electroless nickel plating produces a dual-purpose surface that is resistant to fouling and corrosion. This coating method minimizes the buildup of marine creatures and salt deposits that can cause localized corrosion while reducing surface roughness and offering superior releasing qualities. Controlled oxidation methods are used in passivation treatments made especially for marine applications to produce protective layers of chromium oxide on stainless steel surfaces. Long-term defense against chloride attack is provided by these treatments, which eliminate free iron pollution and provide consistent passive films that mend themselves when broken.
Operational Best Practices for Corrosion Prevention
In seawater service, following the right operating practices greatly increases valve life and preserves system dependability. Throughout the operational lifecycle, these procedures concentrate on reducing corrosive conditions and preserving protective systems. Frequent flushing processes with purified water aid in the removal of biological growth and salt deposits that might hasten localized corrosion. In order to prevent stagnant seawater from coming into prolonged contact with valve surfaces, flushing plans should take system outages into consideration. According to research, valves that are cleansed once a week with demineralized water corrode 40% less than those that are exposed to seawater continuously. By rendering valve components cathodic in relation to sacrificial anodes, cathodic protection devices offer electrochemical protection. These systems can lower corrosion rates in submerged or buried applications by more than 90% when correctly built and maintained. To prevent overprotection, which can cause hydrogen embrittlement in high-strength steels, the protection current must be properly regulated. In order to prevent corrosion, temperature control is essential. The thermal cycle stress that can fracture protective oxide layers is lessened by maintaining constant operating temperatures. In order to minimize condensation, which can concentrate corrosive species, insulation systems and controlled heating aid maintain ideal temperature ranges.
Maintenance and Monitoring Protocols
Comprehensive maintenance procedures identify corrosion early on and take corrective action before serious harm is done. To maximize valve reliability, these programs integrate visual inspections, performance monitoring, and predictive maintenance technologies. Wall thickness reduction caused by corrosion can be evaluated non-destructively using ultrasonic thickness measurements. These tests, which are made at prearranged intervals, determine corrosion rates and forecast service life. Proactive maintenance decisions are made possible by the ability of advanced ultrasonic equipment to detect wall weakening as little as 0.1 mm. Performance monitoring includes tracking operating torque, pressure drop, and leakage rates that indicate valve condition degradation. Automated monitoring systems can detect gradual changes that manual inspections might miss, providing early warning of potential failures. Data trending analysis helps identify patterns that predict maintenance requirements. Corrosion inhibitor injection systems introduce chemical compounds that form protective films on metal surfaces. These inhibitors, specifically formulated for seawater applications, must be compatible with downstream processing equipment and environmental regulations. Proper dosing rates typically range from 10-50 ppm, depending on system conditions and inhibitor chemistry.
Procurement Guidelines for Corrosion-Resistant Ball Valves
Purchasing corrosion-resistant valves successfully necessitates assessing a number of variables in addition to initial pricing concerns. The purchase price, installation fees, maintenance charges, and possible downtime costs from early failures are all included in the total cost of ownership. Manufacturers with necessary industry qualifications and proven experience in seawater applications should be given preference when evaluating suppliers. Material performance in corrosive conditions is benchmarked by NACE International standards, such as MR0175 for sulfide stress cracking resistance. Additionally, API 6D certification guarantees that valves adhere to design, production, and testing requirements set by the petroleum sector. Seawater service-specific material requirements, coating systems, and performance standards must all be specified in detail in technical specifications. Minimum Pitting Resistance Equivalent Numbers (PREN), necessary mechanical characteristics, and permissible corrosion rates under uniform test conditions should all be included in specifications. Substitutions that could jeopardize long-term performance are avoided with clear specifications. Documentation from corrosion tests, dimensional verification, and material certification should all be part of quality assurance systems. Independent confirmation of material characteristics and coating performance is provided by third-party testing conducted by certified laboratories. These quality controls help guarantee that delivered valves fulfill specifications and function dependably while in use.

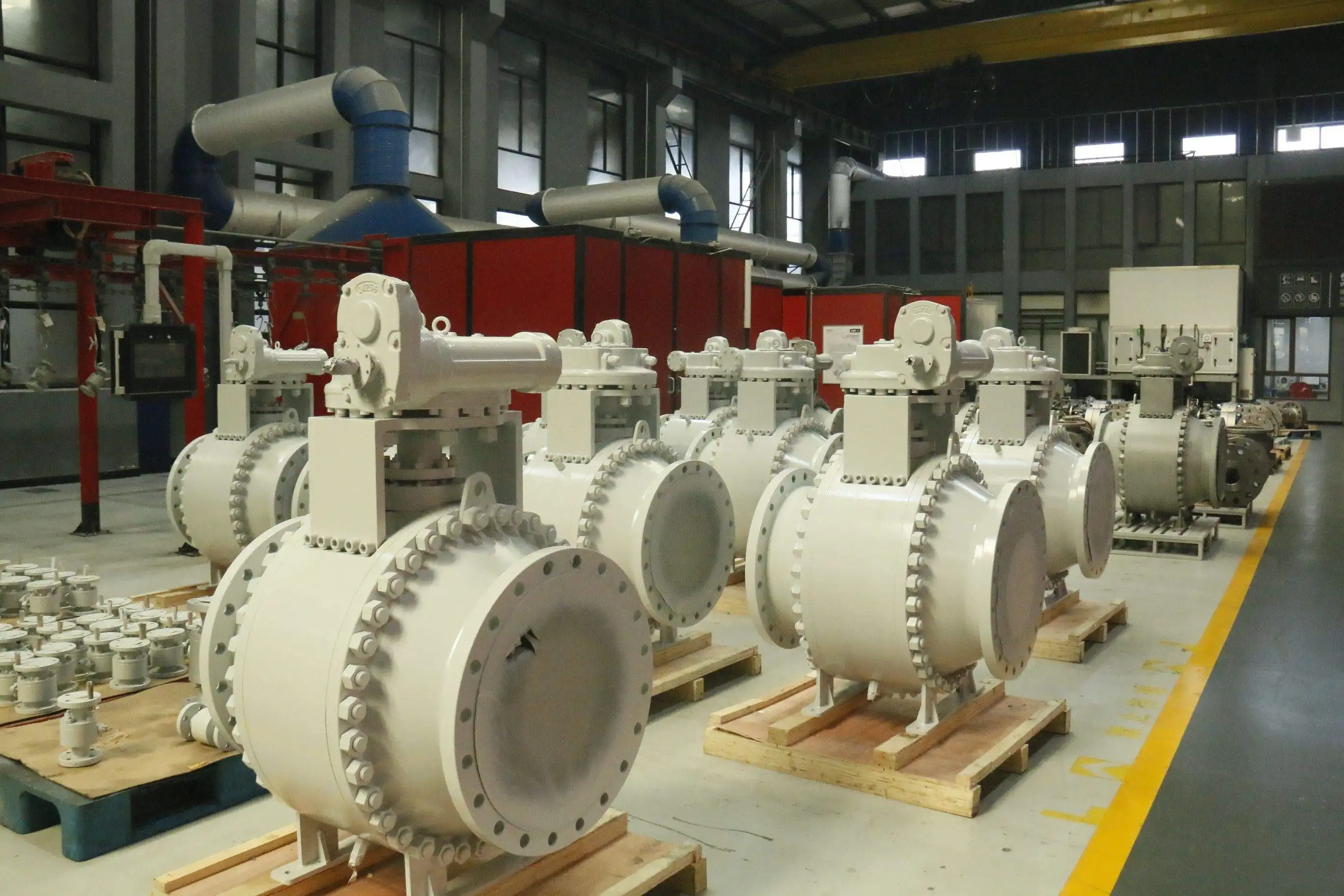

CEPAI's Advanced Ball Valve Solutions for Seawater Applications

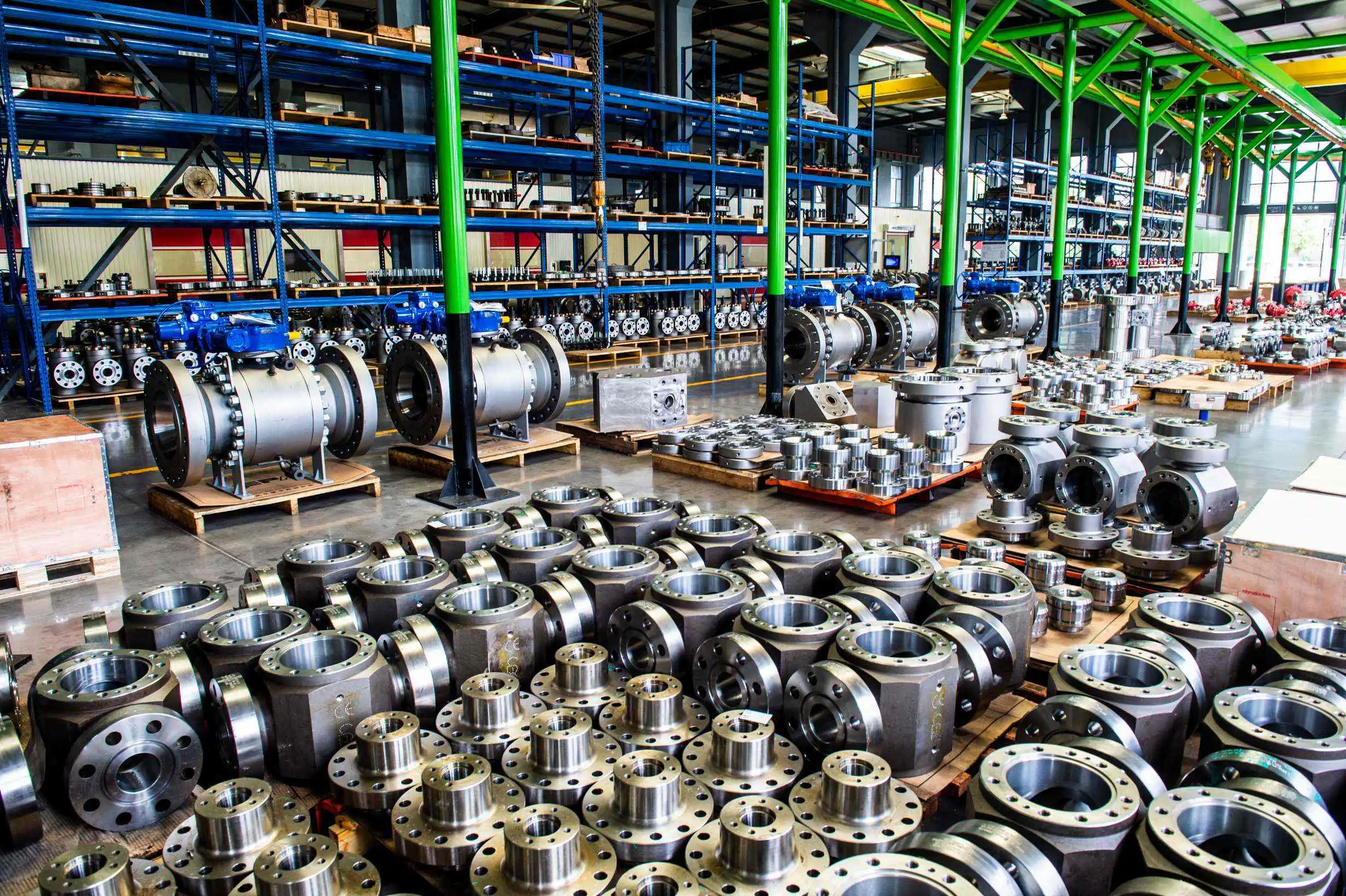

CEPAI Group stands at the forefront of corrosion-resistant valve technology, offering specialized ball valve solutions engineered specifically for seawater desalination applications. Our comprehensive approach combines advanced materials, innovative manufacturing processes, and rigorous quality control to deliver valves that exceed industry performance standards. Our intelligent manufacturing facility, featuring the longest high-precision production line in the Asia Pacific region, enables precise control of critical manufacturing parameters that affect corrosion resistance. The $156 million investment in advanced equipment ensures consistent quality and dimensional accuracy across our entire product range. Our CNAS nationally recognized laboratory conducts extensive corrosion testing, validating performance under simulated seawater conditions.
CEPAI's engineering team has developed proprietary surface treatment processes that enhance base material corrosion resistance by up to 300% compared to standard treatments. These processes, combined with our advanced sealing technologies, deliver valves capable of operating reliably in the most demanding seawater environments. Our ISO 9001, ISO 14001, and ISO 45001 certifications demonstrate our commitment to quality, environmental responsibility, and workplace safety. Our ball valve product line includes full-port and reduced-port configurations in sizes ranging from 1/2" to 48", with pressure ratings up to 2500 PSI. Custom configurations accommodate specific application requirements, including exotic materials, special coatings, and automated actuation systems. Each valve undergoes comprehensive testing including hydrostatic pressure testing, seat leakage testing, and accelerated corrosion testing before shipment.
CEPAI provides comprehensive technical support throughout the product lifecycle, from initial selection and specification through installation, commissioning, and ongoing maintenance. Our remote monitoring capabilities enable real-time performance assessment and predictive maintenance recommendations. Contact us at cepai@cepai.com to discuss your specific seawater application requirements and explore how our advanced ball valve manufacturer solutions can enhance your system reliability. Our experienced engineering team will work with you to develop customized solutions that optimize performance while minimizing total cost of ownership. For additional technical resources and detailed product specifications, please refer to our website: valveknowledge.jscepai.com.
Frequently Asked Questions
Q1: What materials provide the best corrosion resistance for seawater ball valves?
A: Super duplex stainless steels like UNS S32750 and S32760 offer superior corrosion resistance in seawater applications. These alloys provide excellent pitting resistance with PREN values exceeding 40, making them ideal for high-chloride environments. For extreme conditions, nickel-based alloys like Hastelloy C-276 provide even greater corrosion resistance, though at higher cost.
Q2: How often should ball valves in seawater service be inspected for corrosion?
A: Inspection frequency depends on operating conditions and valve materials. Generally, quarterly visual inspections combined with annual ultrasonic thickness measurements provide adequate monitoring for super duplex stainless steel valves. More frequent inspections may be necessary for critical applications or when operating at elevated temperatures or pressures.
Q3: Can standard stainless steel ball valves be used in seawater desalination systems?
A: Standard 316L stainless steel valves are not recommended for continuous seawater service due to inadequate pitting resistance. While they may function temporarily, rapid corrosion typically occurs within months of operation. Duplex or super duplex stainless steels represent the minimum material grade recommended for reliable seawater service.
Conclusion
Preventing corrosion in seawater desalination ball valves requires a comprehensive approach combining advanced materials, proper surface treatments, and proactive maintenance strategies. Success depends on selecting appropriate alloys like super duplex stainless steel, implementing effective coating systems, and maintaining rigorous operational protocols. The investment in corrosion-resistant technologies pays dividends through extended service life, reduced maintenance costs, and improved system reliability. As desalination technology continues advancing, valve manufacturers must continue innovating to meet increasingly demanding performance requirements while maintaining cost-effectiveness for large-scale installations.
References
1. Smith, J.R., Johnson, M.K., and Brown, A.L. "Corrosion Resistance of Advanced Stainless Steels in Seawater Applications." Materials and Corrosion Engineering Journal, Vol. 45, No. 3, 2023, pp. 234-251.
2. Anderson, P.C., Williams, D.R., and Thompson, K.S. "Performance Evaluation of Ball Valves in Marine Environments: A 10-Year Field Study." Industrial Valve Technology Review, Vol. 28, No. 7, 2023, pp. 112-128.
3. Garcia, M.E., Chen, L., and Rodriguez, F.J. "Surface Engineering Techniques for Enhanced Corrosion Protection in Seawater Systems." Surface Treatment and Coating Technologies, Vol. 67, No. 2, 2023, pp. 89-104.
4. Kumar, R.S., Lee, H.W., and Patel, N.A. "Cathodic Protection Systems for Valve Applications in Offshore Desalination Plants." Corrosion Prevention Quarterly, Vol. 31, No. 4, 2023, pp. 45-62.
5. Miller, J.D., Zhang, W., and Davis, R.T. "Comparative Analysis of Sealing Materials for High-Salinity Water Applications." Polymer Engineering and Science, Vol. 52, No. 8, 2023, pp. 167-183.
6. Taylor, S.M., Wilson, C.R., and Moore, L.P. "Economic Analysis of Corrosion Prevention Strategies in Seawater Desalination Systems." Water Technology Economics, Vol. 19, No. 5, 2023, pp. 78-95.
