Flow Control Valves Diagram, Types, Working & Uses

Flow control valves are essential components in industrial fluid systems, serving as the backbone of precise flow regulation across diverse applications. These sophisticated devices control the rate, direction, and pressure of fluids in pipelines, ensuring optimal system performance and safety. Understanding flow control valves diagram, types, working principles, and applications is crucial for engineers and technicians working in petrochemical, power generation, water treatment, and manufacturing industries. A flow regulating valve operates through various mechanisms to maintain desired flow characteristics, making it indispensable for modern industrial automation and process control systems.

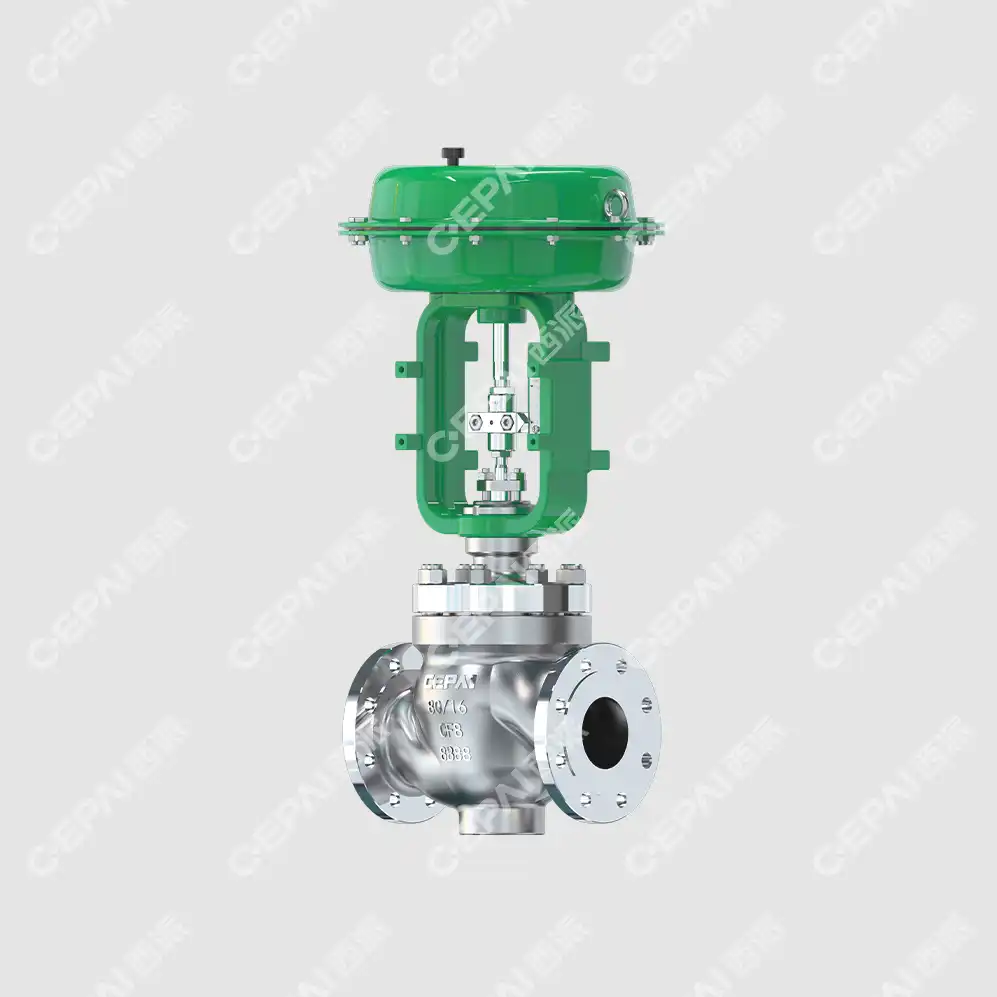

Understanding Flow Control Valve Diagrams and Schematics

Basic Components and Symbols in Flow Control Valve Diagrams

Flow control valve diagrams utilize standardized symbols and representations to communicate valve specifications, connections, and operational characteristics effectively. These technical drawings typically include the valve body, actuator, positioner, and control elements, each depicted with specific symbols recognized internationally. The flow regulating valve diagram shows the internal flow path, including the valve seat, disc or plug, stem, and packing arrangements. Understanding these symbols is fundamental for system designers, as they indicate flow direction, pressure ratings, temperature limits, and connection types. Modern valve diagrams also incorporate digital elements, showing electronic actuators, feedback sensors, and control loops that enable precise flow regulation. The schematic representation helps engineers visualize how the flow regulating valve integrates with broader control systems, including distributed control systems (DCS) and supervisory control and data acquisition (SCADA) networks.

Piping and Instrumentation Diagram Integration

Piping and Instrumentation Diagrams (P&ID) showcase how flow control valves integrate within complex industrial processes, providing a comprehensive view of system interconnections and control strategies. These diagrams illustrate the relationship between the flow regulating valve and other system components, including pumps, heat exchangers, tanks, and measurement instruments. The P&ID representation demonstrates control loops, showing how process variables like flow rate, pressure, and temperature influence valve positioning. Advanced P&ID diagrams incorporate safety systems, emergency shutdown valves, and bypass arrangements that work in conjunction with primary flow control elements. The integration of flow regulating valve symbols within P&ID documentation ensures proper system design, facilitating maintenance planning, troubleshooting procedures, and operator training programs. These comprehensive diagrams serve as essential references throughout the facility's operational lifecycle, supporting both routine maintenance and major system modifications.

Hydraulic and Pneumatic Control Schematics

Hydraulic and pneumatic control schematics detail the actuation mechanisms that drive flow control valve operations, illustrating the relationship between control signals and valve positioning. These technical drawings show air supply systems, hydraulic power units, control valves, and feedback mechanisms that enable precise flow regulating valve control. The schematics include pressure regulators, solenoid valves, pilot valves, and accumulator systems that ensure reliable valve operation under varying process conditions. Understanding these control schematics is essential for maintenance personnel, as they reveal the interdependencies between control elements and potential failure modes. Modern schematics incorporate electronic components, showing how digital signals interface with traditional pneumatic and hydraulic systems. The flow regulating valve control schematic also illustrates safety features, including fail-safe positioning, emergency shutdown capabilities, and manual override mechanisms that ensure system integrity during abnormal operating conditions.

Classification and Types of Flow Control Valves

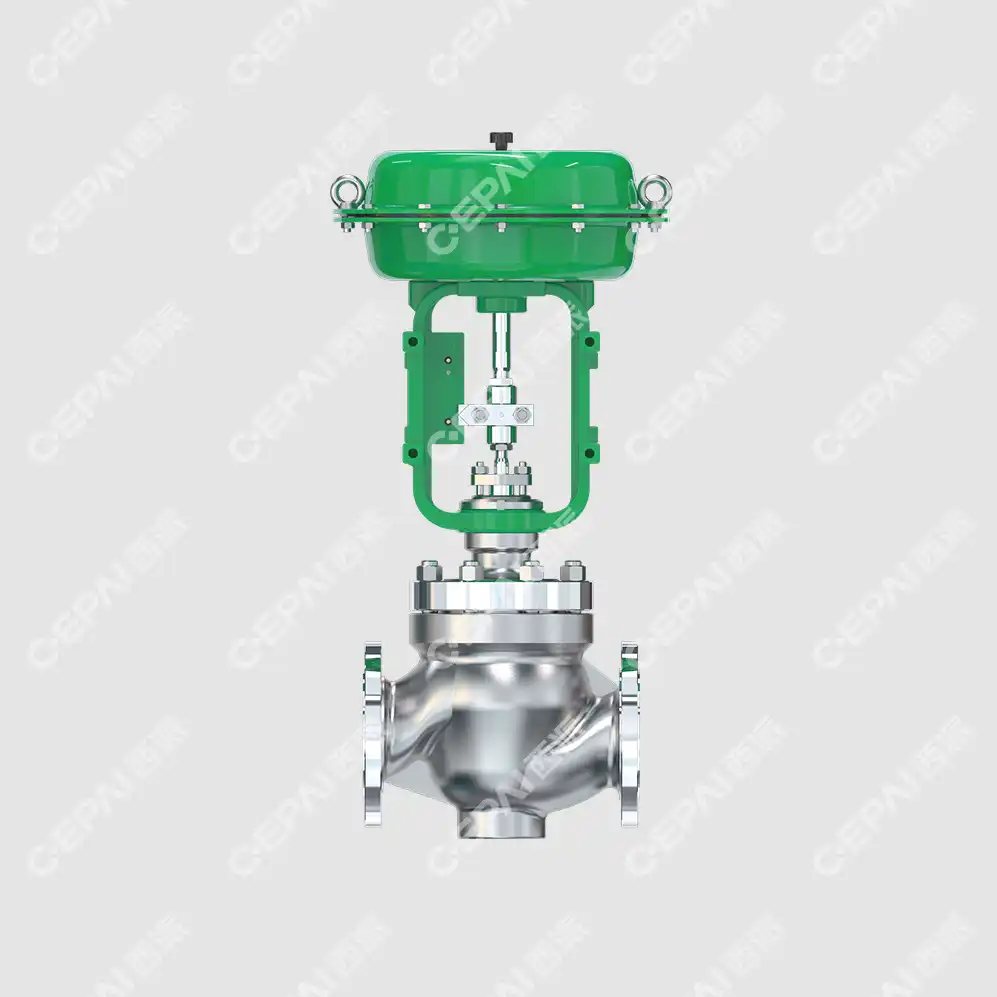

Globe Valves and Linear Control Characteristics

Globe valves represent one of the most versatile categories of flow control valves, featuring linear flow characteristics that provide excellent throttling capabilities across wide operating ranges. The design incorporates a movable disc that travels perpendicular to the seat, creating variable flow area as the stem position changes. This flow regulating valve type offers superior shut-off capabilities due to the perpendicular contact between disc and seat, minimizing leakage in critical applications. Globe valves excel in applications requiring precise flow control, as their linear characteristics provide predictable relationships between stem position and flow rate. The internal flow path creates pressure drop across the valve, which can be advantageous for pressure reduction applications but may require consideration in system energy calculations. Modern globe valve designs incorporate advanced materials, including corrosion-resistant alloys and specialized coatings that extend service life in challenging environments such as offshore drilling operations and petrochemical processing facilities.

Ball Valves and Quarter-Turn Operation

Ball valves provide rapid flow control through quarter-turn operation, utilizing a perforated sphere that rotates within the valve body to control flow passage. This flow regulating valve design offers excellent flow capacity with minimal pressure drop when fully open, making them ideal for applications requiring high flow rates and low pressure losses. The ball valve configuration provides tight shut-off capabilities, with many designs achieving zero leakage classification suitable for environmental and safety-critical applications. Advanced ball valve designs incorporate V-port or characterized balls that provide controllable flow characteristics, enabling their use in throttling applications traditionally dominated by globe valves. The robust construction and simple operation make ball valves particularly suitable for automated applications, where reliable operation and minimal maintenance are priorities. The flow regulating valve market has seen significant innovations in ball valve technology, including metal-seated designs for high-temperature applications and specialized coatings for corrosive service conditions.

Butterfly Valves and Rotary Control Mechanisms

Butterfly valves employ a rotating disc mechanism that provides efficient flow control with compact design and lightweight construction, making them popular choices for large-diameter pipeline applications. The disc rotates within the flow stream, creating variable flow area and controllable pressure drop characteristics. This flow regulating valve type offers excellent flow capacity when fully open, with minimal obstruction to the flow path. The inherent equal percentage flow characteristic of butterfly valves provides good control sensitivity at low flow rates while maintaining stable operation at higher flows. Modern butterfly valve designs incorporate advanced disc profiles, including airfoil and elliptical shapes that reduce turbulence and improve flow characteristics. The valve's compact design and face-to-face dimensions make them attractive for space-constrained installations, while their lower weight reduces support structure requirements. Advanced butterfly flow regulating valve designs include specialized seat materials, extended stems for insulation applications, and fire-safe constructions for hazardous service conditions.

​​​​​​​

Working Principles and Operational Mechanisms

Actuator Technologies and Control Methods

Flow control valve actuators provide the motive force necessary for valve positioning, encompassing pneumatic, hydraulic, electric, and electro-hydraulic technologies that enable precise flow regulation. Pneumatic actuators utilize compressed air to position the flow regulating valve, offering rapid response times and inherent safety features through fail-safe positioning capabilities. These actuators integrate with control systems through current-to-pneumatic (I/P) converters and valve positioners that ensure accurate valve positioning regardless of process conditions. Hydraulic actuators provide high force capabilities for large valves and high-pressure applications, utilizing hydraulic fluid to achieve precise positioning with excellent stability. Electric actuators offer direct digital control integration, eliminating the need for pneumatic supply systems while providing precise positioning feedback and diagnostic capabilities. The flow regulating valve actuator selection depends on application requirements, including response time, positioning accuracy, power availability, and safety considerations. Modern actuator technologies incorporate intelligent features, including built-in diagnostics, predictive maintenance capabilities, and wireless communication protocols that enhance system reliability and operational efficiency.

Positioner Integration and Feedback Control

Valve positioners serve as critical components in flow control valve systems, comparing control signals with actual valve position to ensure accurate flow regulating valve positioning under varying process conditions. These devices overcome the effects of friction, hysteresis, and process forces that can affect valve positioning accuracy. Digital positioners incorporate microprocessor-based control algorithms that provide superior positioning accuracy, fast response times, and advanced diagnostic capabilities. The positioner receives control signals from distributed control systems (DCS) or programmable logic controllers (PLC) and adjusts actuator pressure or voltage to achieve desired valve position. Advanced positioners include features such as characterization functions, split-range capabilities, and partial stroke testing that enhance flow regulating valve performance and reliability. The integration of smart positioners enables condition monitoring, including detection of valve sticking, excessive friction, and actuator problems that can affect system performance. These intelligent devices also support digital communication protocols, including HART, Foundation Fieldbus, and Profibus, enabling seamless integration with modern control systems.

Flow Characteristics and Control Algorithms

Flow control valve characteristics define the relationship between valve opening and flow rate, with linear, equal percentage, and quick opening profiles serving different control applications. Linear flow characteristics provide constant flow increase per unit of valve travel, making them suitable for applications with constant pressure drop across the valve. Equal percentage characteristics provide better control sensitivity at low flows while maintaining stability at higher flow rates, making them ideal for flow regulating valve applications with variable pressure drop conditions. The selection of appropriate flow characteristics depends on system dynamics, control loop requirements, and process stability considerations. Advanced control algorithms incorporate adaptive control strategies that automatically adjust valve positioning based on process feedback, improving system response and stability. Modern flow regulating valve control systems utilize model predictive control (MPC) and fuzzy logic algorithms that optimize valve positioning for complex multi-variable processes. These sophisticated control strategies consider process interactions, disturbance rejection, and optimization objectives to achieve superior flow control performance compared to traditional PID control approaches.

Conclusion

Flow control valves represent critical components in modern industrial systems, providing precise flow regulation through sophisticated design principles and advanced control technologies. The comprehensive understanding of valve diagrams, types, and operational mechanisms enables engineers to select optimal solutions for specific applications, ensuring reliable system performance and operational efficiency. The integration of intelligent actuators, digital positioners, and advanced control algorithms has transformed flow regulating valve technology, delivering unprecedented levels of precision, reliability, and diagnostic capability that support modern industrial automation requirements.

Ready to enhance your flow control system performance? CEPAI Group offers cutting-edge flow regulating valve solutions backed by exceptional durability, high-precision control performance, and comprehensive technical support. Our ISO-certified quality management system ensures zero defects, while our experienced engineering team provides customized solutions tailored to your specific requirements. From pre-sales technical consultation to remote monitoring and intelligent services, we deliver complete lifecycle support for your critical flow control applications. Contact our technical experts today at cepai@cepai.com to discuss how our innovative valve technologies can optimize your system performance and operational reliability.
