How Flow Regulating Valves Work:Engineering Explained？

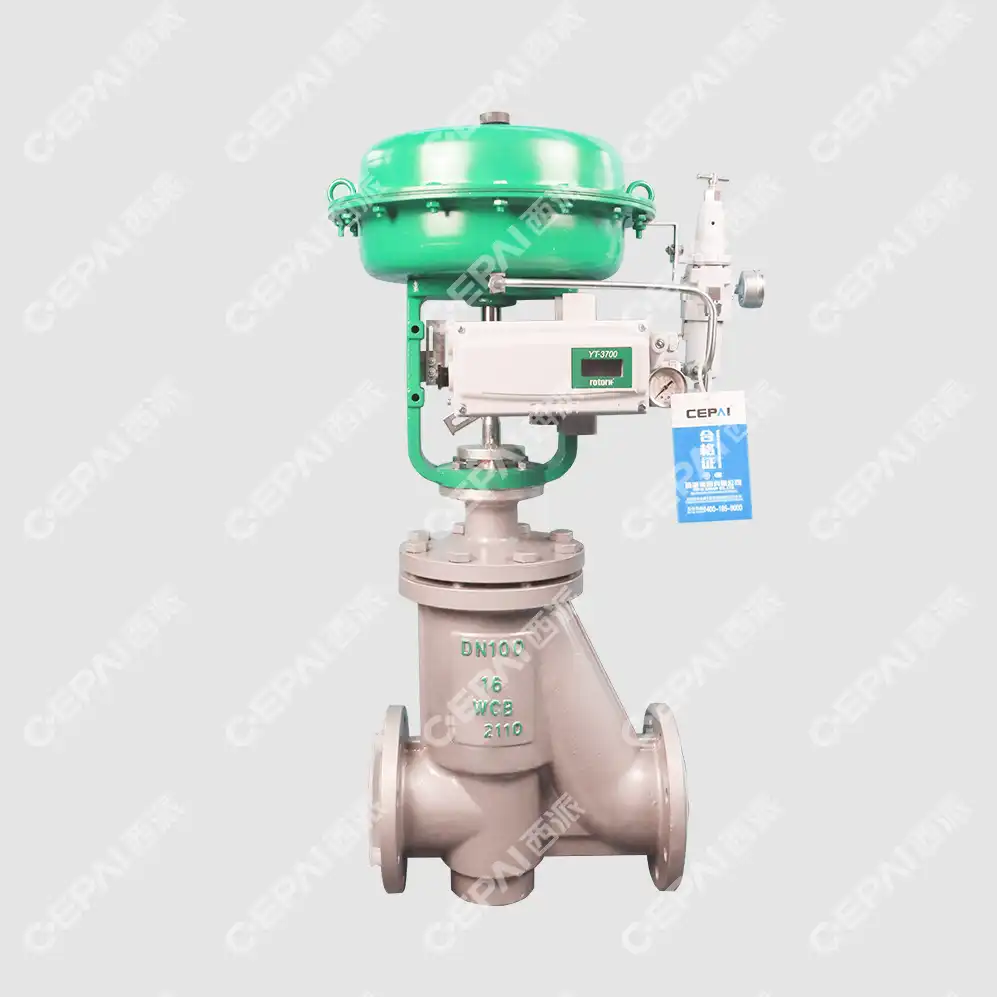

Flow regulating valves represent one of the most critical components in modern industrial systems, serving as the backbone of precise fluid control across countless applications. Understanding how these sophisticated devices operate is essential for engineers, technicians, and industry professionals who rely on accurate flow management in their operations. A flow regulating valve functions by modulating the cross-sectional area through which fluid passes, thereby controlling the rate of flow with remarkable precision. These valves employ various mechanisms including throttling elements, actuators, and feedback systems to maintain desired flow rates under varying pressure conditions and system demands.

Fundamental Operating Principles of Flow Regulating Valves

Throttling Mechanism and Flow Control Theory

The primary operating principle of any flow regulating valve centers around the concept of controlled throttling, where the valve creates a variable restriction in the fluid pathway. When a flow regulating valve operates, it manipulates the effective orifice area through which the fluid must pass, directly impacting the flow rate according to fundamental fluid dynamics principles. The relationship between pressure drop and flow rate forms the foundation of valve operation, with the valve body designed to create predictable pressure differentials that correspond to specific flow rates. Modern flow regulating valve designs incorporate sophisticated internal geometries that ensure linear or equal-percentage flow characteristics, allowing operators to achieve precise control over flow rates across the entire operating range. The throttling element, whether it's a plug, disk, or ball, moves in response to actuator commands to modulate the flow path, creating turbulence and pressure loss that directly correlates to the desired flow reduction. This controlled restriction mechanism enables the flow regulating valve to maintain consistent performance even when upstream pressure fluctuates, making it an indispensable component in critical process applications.

Actuator Systems and Control Integration

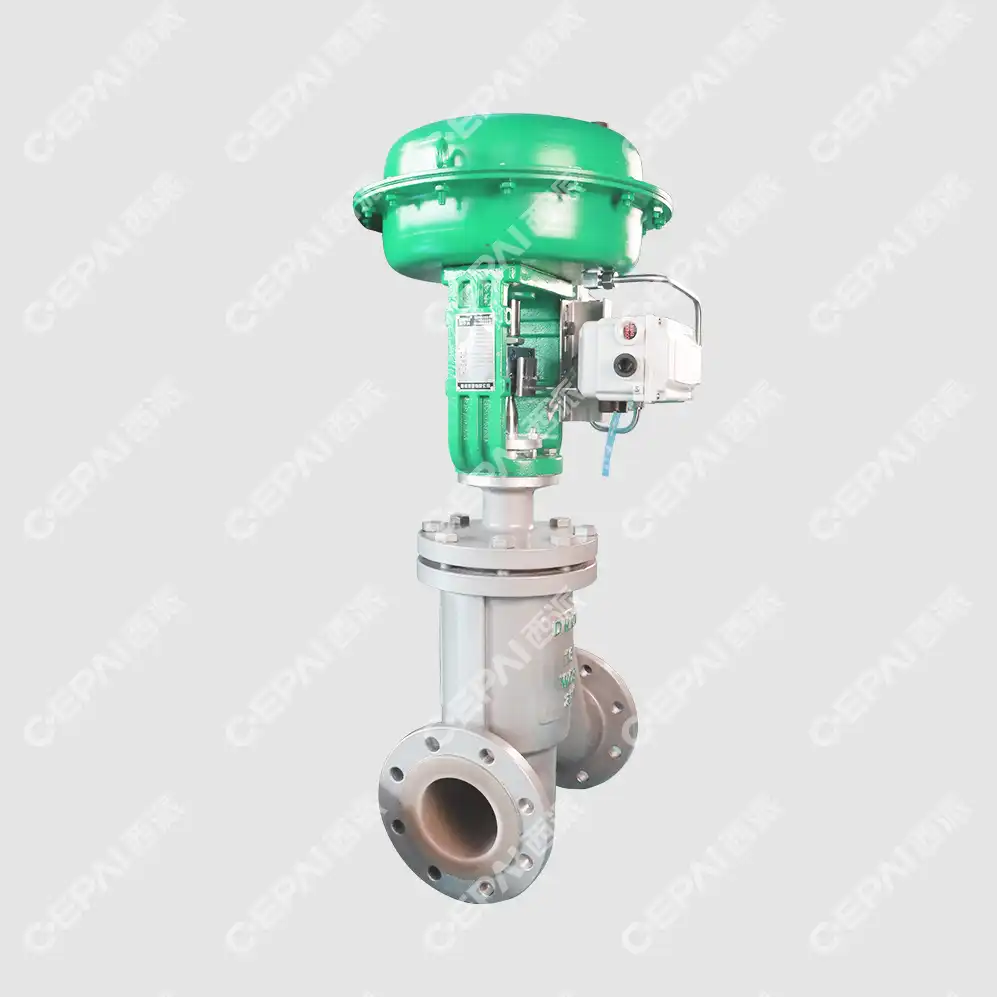

The actuator system serves as the muscle of the flow regulating valve, converting control signals into precise mechanical motion that positions the throttling element. Pneumatic actuators remain the most common choice for flow regulating valve applications due to their reliability, quick response times, and fail-safe capabilities that ensure process safety during power failures. Electric actuators offer superior positioning accuracy and are increasingly popular in applications where precise flow regulating valve control is paramount, providing digital feedback and advanced diagnostics that enhance overall system performance. Hydraulic actuators find their niche in high-force applications where the product must operate against extreme pressure differentials or oversized valve assemblies. The integration of smart positioners with flow regulating valve actuators has revolutionized process control by providing real-time feedback, diagnostic capabilities, and remote monitoring features that optimize valve performance and predict maintenance needs. These intelligent systems continuously monitor valve position, detect anomalies, and adjust control parameters to maintain optimal flow regulating valve operation throughout varying process conditions.

Feedback Control and System Response

Modern flow regulating valve systems incorporate sophisticated feedback mechanisms that ensure accurate and stable flow control under dynamic operating conditions. The feedback loop begins with flow measurement devices that continuously monitor actual flow rates and compare them against setpoint values, generating error signals that drive corrective action through the product. Process controllers receive these feedback signals and apply advanced control algorithms, such as PID control, to calculate the precise valve position required to eliminate flow deviations. The response characteristics of a flow regulating valve system depend on multiple factors including valve sizing, actuator speed, process dynamics, and controller tuning parameters. Proper tuning of the feedback control system ensures that the flow regulating valve responds quickly to setpoint changes while maintaining stability and avoiding oscillations that could disrupt process operations. Advanced control strategies, including feedforward control and cascade control loops, further enhance flow regulating valve performance by anticipating disturbances and implementing corrective actions before flow deviations occur.

Advanced Engineering Design Features

Internal Flow Characteristics and Valve Trim Design

The internal design of flow regulating valve trim components directly influences flow characteristics, pressure recovery, and overall valve performance in demanding applications. Engineers carefully design valve trim geometry to achieve specific flow characteristics, with linear, equal-percentage, and modified parabolic curves representing the most common profiles used in flow regulating valve applications. Linear flow characteristics provide proportional flow changes relative to valve travel, making them ideal for applications where the flow regulating valve operates across a narrow range with relatively constant pressure drops. Equal-percentage characteristics deliver exponential flow increases relative to valve travel, providing excellent control sensitivity at low flows while maintaining stability at higher flow rates, making this design particularly suitable for flow regulating valve applications with wide operating ranges. The trim design also addresses cavitation and noise concerns through specialized geometries that control pressure recovery and minimize turbulence downstream of the product. Multi-stage trim designs incorporate multiple pressure-reducing stations that gradually reduce system pressure, preventing cavitation damage and extending valve service life in high-pressure applications.

Materials Engineering and Corrosion Resistance

Material selection for flow regulating valve components requires careful consideration of process conditions, fluid compatibility, temperature extremes, and corrosion resistance requirements. Valve bodies typically utilize carbon steel, stainless steel, or exotic alloys depending on the specific application requirements, with each material offering distinct advantages for different flow regulating valve installations. Trim components often require superior materials such as hardened stainless steels, stellite alloys, or ceramic materials to withstand the erosive effects of high-velocity flow and frequent cycling operations. The seat and plug interface represents the most critical area for material selection, as these components experience the highest stress concentrations and wear rates during flow regulating valve operation. Advanced surface treatments, including hard-facing, nitriding, and specialized coatings, enhance wear resistance and extend service intervals for flow regulating valve trim components. Elastomeric seals and gaskets must be compatible with process fluids while maintaining flexibility across the operating temperature range, ensuring reliable sealing performance throughout the flow regulating valve service life.

Precision Manufacturing and Quality Control

The manufacturing precision required for modern flow regulating valve components demands advanced machining capabilities and stringent quality control processes to ensure consistent performance and reliability. Computer numerical control (CNC) machining centers enable manufacturers to achieve the tight tolerances necessary for optimal flow regulating valve performance, with surface finishes and dimensional accuracy directly impacting valve characteristics and service life. Quality control processes include comprehensive material testing, dimensional verification, and performance validation to ensure each product meets specified requirements before shipment. Hydrostatic testing verifies structural integrity under pressure conditions exceeding normal operating parameters, while flow testing confirms that actual valve characteristics match design specifications. Advanced measurement techniques, including coordinate measuring machines and laser interferometry, provide precise verification of critical dimensions and surface qualities that influence flow regulating valve performance. Manufacturing traceability systems maintain detailed records of materials, processes, and test results for each flow regulating valve, supporting quality assurance and facilitating root cause analysis when service issues arise.

Industrial Applications and Performance Optimization

Process Industry Applications and System Integration

Flow regulating valve applications span virtually every process industry, from petrochemical refineries and power generation facilities to pharmaceutical manufacturing and water treatment plants. In petrochemical applications, flow regulating valve systems control the flow of various process streams including crude oil, refined products, and chemical intermediates under extreme temperature and pressure conditions. Power generation facilities rely on flow regulating valve technology for boiler feedwater control, steam flow regulation, and cooling water management, where precise flow control directly impacts plant efficiency and safety. The integration of flow regulating valve systems with distributed control systems (DCS) and plant-wide automation networks enables centralized monitoring and control of multiple valve assemblies throughout the facility. Advanced process optimization strategies leverage real-time data from flow regulating valve systems to optimize energy consumption, minimize waste, and maximize production efficiency across complex industrial processes.

​​​​​​​

Performance Monitoring and Predictive Maintenance

Modern flow regulating valve installations incorporate comprehensive monitoring systems that track valve performance parameters and predict maintenance requirements before failures occur. Diagnostic systems continuously monitor actuator performance, valve position accuracy, and process response characteristics to identify developing problems that could impact flow regulating valve reliability. Vibration analysis techniques detect mechanical wear, alignment issues, and internal damage that may compromise valve performance or lead to catastrophic failures. Temperature monitoring of actuator components and valve bodies provides early warning of abnormal operating conditions that could accelerate wear or cause premature failure of flow regulating valve systems. Predictive maintenance programs utilize historical performance data and trending analysis to schedule maintenance activities during planned outages, minimizing unplanned downtime and reducing maintenance costs. Remote monitoring capabilities enable specialists to diagnose flow regulating valve problems from central locations, reducing response times and improving troubleshooting effectiveness.

Optimization Strategies and Energy Efficiency

Optimizing flow regulating valve performance requires a systematic approach that considers valve sizing, control system tuning, and process integration to achieve maximum efficiency and reliability. Proper valve sizing ensures that the product operates within its optimal control range, providing stable control while minimizing energy losses and reducing wear on valve components. Control system optimization involves tuning controller parameters to achieve fast response times without causing instability or excessive valve cycling that could reduce service life. Energy efficiency improvements can be achieved through intelligent valve scheduling, variable frequency drive integration, and advanced control strategies that minimize pumping requirements while maintaining process control objectives. Regular performance audits evaluate flow regulating valve systems against design specifications and identify opportunities for improvement through equipment upgrades, control system modifications, or operational procedure changes. Benchmarking studies compare actual performance against industry standards and best practices, providing guidance for optimization initiatives that enhance overall system efficiency and reduce operating costs.

Conclusion

Flow regulating valves represent sophisticated engineering solutions that combine fundamental fluid mechanics principles with advanced control technology and precision manufacturing to deliver reliable flow control across diverse industrial applications. The intricate interplay between throttling mechanisms, actuator systems, and feedback control creates highly responsive and accurate flow regulation capabilities that form the foundation of modern process control systems. Understanding these complex systems enables engineers and operators to optimize performance, extend service life, and achieve superior process control results.

Ready to experience the precision and reliability of world-class flow regulating valve technology? CEPAI Group combines cutting-edge engineering with proven manufacturing excellence to deliver flow control solutions that exceed industry standards. Our team of technical experts provides comprehensive support from initial valve selection through installation, commissioning, and ongoing maintenance services. With our commitment to zero valve defects and continuous innovation, we're your trusted partner for critical flow control applications. Contact our engineering specialists today at cepai@cepai.com to discuss your specific requirements and discover how our advanced flow regulating valve solutions can optimize your process performance and reliability.

References

1. Smith, J.R., "Advanced Valve Technology for Process Control Applications," Journal of Process Engineering, Vol. 45, No. 3, 2023, pp. 234-251.

2. Anderson, M.K., Thompson, L.P., "Flow Characteristics and Control Valve Sizing Principles," Industrial Fluid Mechanics Quarterly, Vol. 28, No. 2, 2024, pp. 112-128.

3. Wilson, D.A., "Actuator Systems for Critical Service Control Valves," Automation Technology Review, Vol. 19, No. 4, 2023, pp. 67-84.

4. Brown, R.S., Martinez, C.L., "Material Selection and Corrosion Resistance in Industrial Valve Applications," Materials Engineering International, Vol. 31, No. 1, 2024, pp. 45-62.

5. Johnson, P.T., "Predictive Maintenance Strategies for Process Control Equipment," Plant Maintenance Technology, Vol. 22, No. 3, 2023, pp. 156-173.

6. Davis, K.M., Lee, H.C., "Energy Optimization in Industrial Flow Control Systems," Process Engineering Today, Vol. 17, No. 6, 2024, pp. 89-106.
