What is a flow control valve？

Flow control valves represent one of the most critical components in modern industrial fluid systems, serving as the primary mechanism for regulating and controlling the flow rate of liquids, gases, and other fluids through pipelines and process systems. These sophisticated devices enable precise management of fluid dynamics across diverse applications, from petrochemical refineries to water treatment facilities. A flow regulating valve operates by modulating the cross-sectional area through which fluid passes, thereby controlling the volumetric flow rate and maintaining optimal system performance. Understanding the fundamental principles, applications, and selection criteria for flow control valves is essential for engineers, technicians, and procurement professionals working in industries where fluid control precision directly impacts operational efficiency, safety, and economic performance.

Types and Classifications of Flow Control Valves

Globe Valves for Flow Regulation

Globe valves stand as one of the most versatile and widely utilized types of flow regulating valve systems in industrial applications. These valves feature a spherical body design with an internal baffle that divides the valve into two chambers, creating a tortuous flow path that provides excellent throttling characteristics. The disc moves perpendicular to the seat, allowing for precise flow control through linear motion. Globe valves excel in applications requiring frequent operation and fine flow adjustment, making them ideal for steam systems, cooling water circuits, and fuel oil services. Their design inherently provides excellent shut-off capabilities due to the parallel seating arrangement between the disc and seat. The flow regulating valve mechanism in globe valves allows for smooth modulation across the entire operating range, from fully closed to fully open positions. Modern globe valves incorporate advanced materials such as stainless steel, carbon steel, and exotic alloys to withstand high pressures, temperatures, and corrosive environments. The stem design can be either rising or non-rising, with rising stems providing visual indication of valve position, which is particularly valuable in manual operation scenarios.

Ball Valves in Flow Control Applications

Ball valves have evolved from simple on-off devices to sophisticated flow regulating valve solutions capable of providing precise flow control in demanding industrial environments. The fundamental design consists of a spherical closure element with a bore through its center, which aligns with the pipeline when fully open and blocks flow when rotated 90 degrees. For flow control applications, ball valves utilize specially designed balls with V-shaped or characterized ports that create non-linear flow characteristics suitable for specific process requirements. The compact design and minimal pressure drop make ball valves particularly attractive for high-pressure applications and systems where space constraints are critical. Modern flow regulating valve ball designs incorporate advanced seat materials such as PTFE, PEEK, and metal-to-metal sealing arrangements to handle extreme temperatures and aggressive media. The quarter-turn operation provides rapid response times, making ball valves suitable for automated control systems requiring quick adjustments. Three-way and four-way ball valve configurations enable complex flow diversion and mixing applications, expanding their utility beyond simple flow regulation. The self-cleaning action of the ball against the seats helps maintain consistent performance in applications with dirty or particulate-laden fluids.

Butterfly Valves for Large-Scale Flow Control

Butterfly valves represent an economical and space-efficient solution for flow regulating valve applications, particularly in large-diameter pipelines where traditional valve designs become prohibitively expensive and bulky. The design features a circular disc mounted on a shaft that rotates perpendicular to the flow direction, with the disc serving as the flow control element. When fully open, the disc presents minimal obstruction to flow, resulting in low pressure drop and high flow coefficients. The flow regulating valve characteristics of butterfly valves are inherently non-linear, with most flow control occurring within the first 60 degrees of disc rotation. This characteristic makes them suitable for applications requiring quick response and broad flow range control. High-performance butterfly valves incorporate advanced disc designs with offset geometry that eliminates rubbing between the disc and seat during operation, extending service life and improving control precision. The availability of various seat materials, including elastomeric, metal, and composite options, allows butterfly valves to handle diverse process conditions. Electric and pneumatic actuators can be easily integrated with butterfly valves, enabling automated flow control in distributed control systems. The lightweight construction and wafer-style body design facilitate installation and maintenance, reducing overall system costs.

Working Principles and Control Mechanisms

Pressure Drop and Flow Coefficient Relationships

The fundamental operation of any flow regulating valve relies on the principles of fluid dynamics and the relationship between pressure drop and flow rate through the valve. Flow control valves create a variable restriction in the flow path, with the degree of restriction determining the flow rate for a given pressure differential. The flow coefficient (Cv) serves as a standardized measure of valve capacity, representing the number of gallons per minute of water at 60°F that will flow through the valve with a pressure drop of one pound per square inch. Understanding Cv values is crucial for proper valve sizing and selection, as oversized valves may operate in an unstable region near their closed position, while undersized valves cannot provide the required flow capacity. The relationship between valve position and flow rate defines the flow characteristic, which can be linear, equal percentage, or quick opening, depending on the internal geometry of the flow regulating valve. Equal percentage characteristics provide consistent control sensitivity across the operating range, making them suitable for most process control applications. Linear characteristics offer proportional flow response to valve position changes, ideal for applications requiring straightforward flow relationships. The interaction between valve characteristics and system dynamics determines overall control loop performance and stability.

Actuator Integration and Control Systems

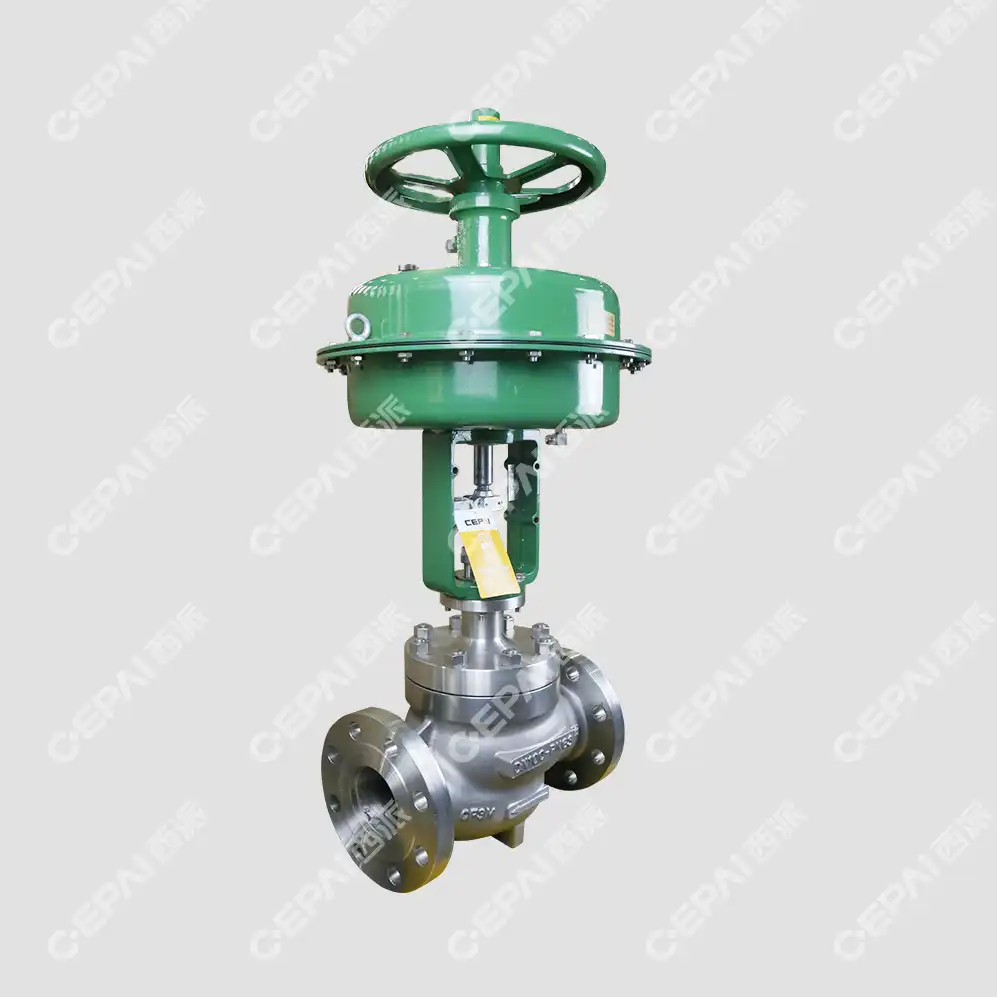

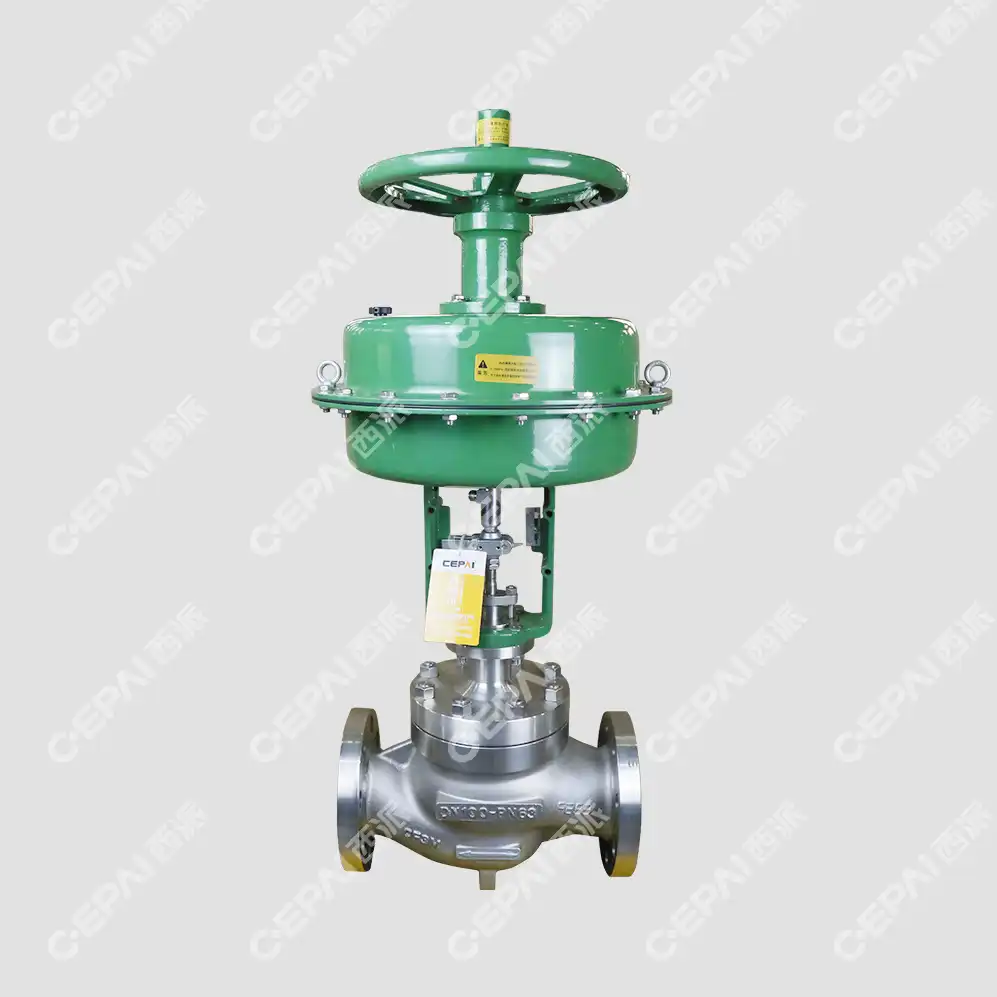

Modern flow regulating valve systems integrate sophisticated actuators and control electronics to achieve precise, automated flow control in complex industrial processes. Pneumatic actuators remain the most common choice due to their reliability, fail-safe capabilities, and ability to generate high forces for valve operation. These actuators convert compressed air pressure into linear or rotary motion, with positioners providing precise valve positioning based on control signals. Electric actuators offer advantages in applications where compressed air is not available or where precise positioning and feedback are critical. The integration of smart positioners with flow regulating valve systems enables advanced diagnostic capabilities, including valve signature analysis, partial stroke testing, and predictive maintenance alerts. Digital communication protocols such as HART, Foundation Fieldbus, and Profibus allow seamless integration with distributed control systems, providing real-time valve status information and remote configuration capabilities. Advanced control algorithms within smart positioners compensate for valve hysteresis, deadband, and non-linear characteristics, improving overall control performance. The combination of flow regulating valve technology with intelligent actuators creates a complete flow control solution capable of meeting demanding process requirements while minimizing maintenance needs and operational costs.

Cavitation and Noise Control Technologies

Cavitation represents one of the most destructive phenomena in flow regulating valve applications, occurring when local pressure drops below the vapor pressure of the fluid, causing vapor bubbles to form and subsequently collapse as pressure recovers downstream. This process generates intense localized forces that can damage valve internals, reduce service life, and create excessive noise levels. Modern flow regulating valve designs incorporate anti-cavitation technologies to mitigate these effects and ensure reliable operation across diverse operating conditions. Staged pressure reduction through multiple restriction points allows for controlled pressure drops that minimize cavitation potential. Specially designed valve trims with tortuous flow paths dissipate energy gradually, reducing the likelihood of cavitation while maintaining acceptable flow characteristics. The use of hardened materials such as tungsten carbide, stellite, and ceramic coatings in critical wear areas extends valve life in cavitating service. Noise attenuation becomes particularly important in flow regulating valve applications where acoustic emissions must comply with environmental regulations and workplace safety standards. Multi-stage trim designs not only reduce cavitation but also break down turbulent flow patterns that generate noise, resulting in quieter operation. The implementation of computational fluid dynamics (CFD) modeling in valve design optimization allows engineers to predict and minimize cavitation and noise issues before manufacturing, improving overall valve performance and reliability.

Applications and Industry-Specific Requirements

Petrochemical and Oil & Gas Applications

The petrochemical and oil & gas industries represent the most demanding applications for flow regulating valve technology, requiring equipment capable of handling extreme pressures, temperatures, and corrosive media while maintaining precise control over extended periods. Upstream applications in oil and gas production involve flow control of crude oil, natural gas, and produced water under harsh conditions that can include hydrogen sulfide, carbon dioxide, and sand-laden fluids. Flow regulating valve systems in these applications must comply with stringent safety standards such as API 6A for wellhead equipment and API 6D for pipeline valves. The ability to provide reliable shut-off capabilities during emergency conditions is paramount, requiring valves with tight sealing performance and fail-safe operation. Downstream refining applications demand flow regulating valve solutions capable of handling diverse process streams, from light hydrocarbons to heavy crude derivatives, each with unique flow characteristics and material compatibility requirements. The integration of safety instrumented systems (SIS) with flow control valves enables automated emergency response capabilities, including rapid shutdown and isolation of process units. Subsea applications present additional challenges, requiring flow regulating valve designs that can operate reliably in deepwater environments with limited accessibility for maintenance. The development of intelligent valve technologies with comprehensive diagnostic capabilities supports predictive maintenance strategies essential for minimizing unplanned shutdowns in critical production facilities.

Power Generation and Steam Systems

Power generation facilities rely heavily on flow regulating valve technology for steam turbine control, feedwater regulation, and cooling system management, where precise flow control directly impacts plant efficiency and safety. Steam turbine control valves must respond rapidly to load changes while maintaining stable operation across varying steam conditions. The flow regulating valve systems in these applications incorporate advanced materials capable of withstanding superheated steam temperatures exceeding 1000°F while providing long-term reliability. Feedwater control valves regulate the flow of treated water to steam generators, requiring precise control to maintain optimal steam quality and prevent thermal stress in pressure vessels. The erosive nature of high-velocity steam and water mixtures necessitates the use of erosion-resistant materials and specialized trim designs in flow regulating valve applications. Combined cycle power plants present unique challenges, with flow control valves required to handle both gas turbine exhaust and steam system applications within the same facility. The implementation of distributed control systems enables coordinated operation of multiple flow regulating valve stations, optimizing overall plant performance and emissions control. Nuclear power applications demand the highest levels of safety and reliability, with flow control valves required to meet nuclear quality assurance standards and seismic qualifications. The integration of diverse energy sources, including renewable systems, requires flexible flow regulating valve solutions capable of accommodating variable load conditions and rapid cycling operation.

Water Treatment and Municipal Systems

Municipal water treatment facilities utilize flow regulating valve technology for process control, chemical dosing, and distribution system management, where reliable operation is essential for public health and safety. Potable water applications require flow control valves manufactured from materials approved for contact with drinking water, including NSF-certified plastics, stainless steel, and bronze alloys. The flow regulating valve systems in water treatment plants must handle diverse process streams, from raw water intake to finished water distribution, each requiring specific flow characteristics and contamination control measures. Wastewater treatment applications present additional challenges, including the handling of corrosive chemicals, abrasive solids, and biological contaminants that can affect valve performance. The integration of flow regulating valve technology with supervisory control and data acquisition (SCADA) systems enables remote monitoring and control of distributed water treatment facilities. Membrane filtration systems require precise flow control to maintain optimal transmembrane pressure and prevent membrane fouling, making flow regulating valve performance critical to system efficiency. The implementation of smart water technologies, including advanced metering infrastructure and leak detection systems, relies on sophisticated flow control valve solutions capable of providing accurate flow measurement and control. Emergency response capabilities built into flow regulating valve systems enable rapid isolation and rerouting of water supplies during contamination events or infrastructure failures, protecting public health and maintaining service continuity.

Conclusion

Flow control valves serve as the cornerstone of modern industrial fluid systems, providing essential regulation capabilities across diverse applications from petrochemical processing to municipal water treatment. The evolution of flow regulating valve technology continues to address increasingly complex operational requirements through advanced materials, intelligent control systems, and innovative design approaches. Understanding the fundamental principles, selection criteria, and application-specific requirements enables engineers and procurement professionals to specify optimal flow control solutions that enhance system performance, safety, and reliability while minimizing total cost of ownership.
