A Complete Guide to Ball Valve Parts and Specifications for 2025

The industrial valve market continues to evolve rapidly, with ball valves remaining one of the most critical components in fluid control systems across petrochemical, power generation, and manufacturing industries. As we advance into 2025, understanding the intricate details of ball valve construction, specifications, and performance characteristics becomes essential for engineers, procurement specialists, and facility managers. This comprehensive guide explores the fundamental components that make ball valves indispensable in modern industrial applications, from basic housing structures to advanced sealing technologies. Whether you're designing new piping systems, upgrading existing infrastructure, or troubleshooting operational challenges, mastering ball valve specifications ensures optimal performance, safety, and cost-effectiveness in your fluid control operations.

Essential Ball Valve Components and Their Functions

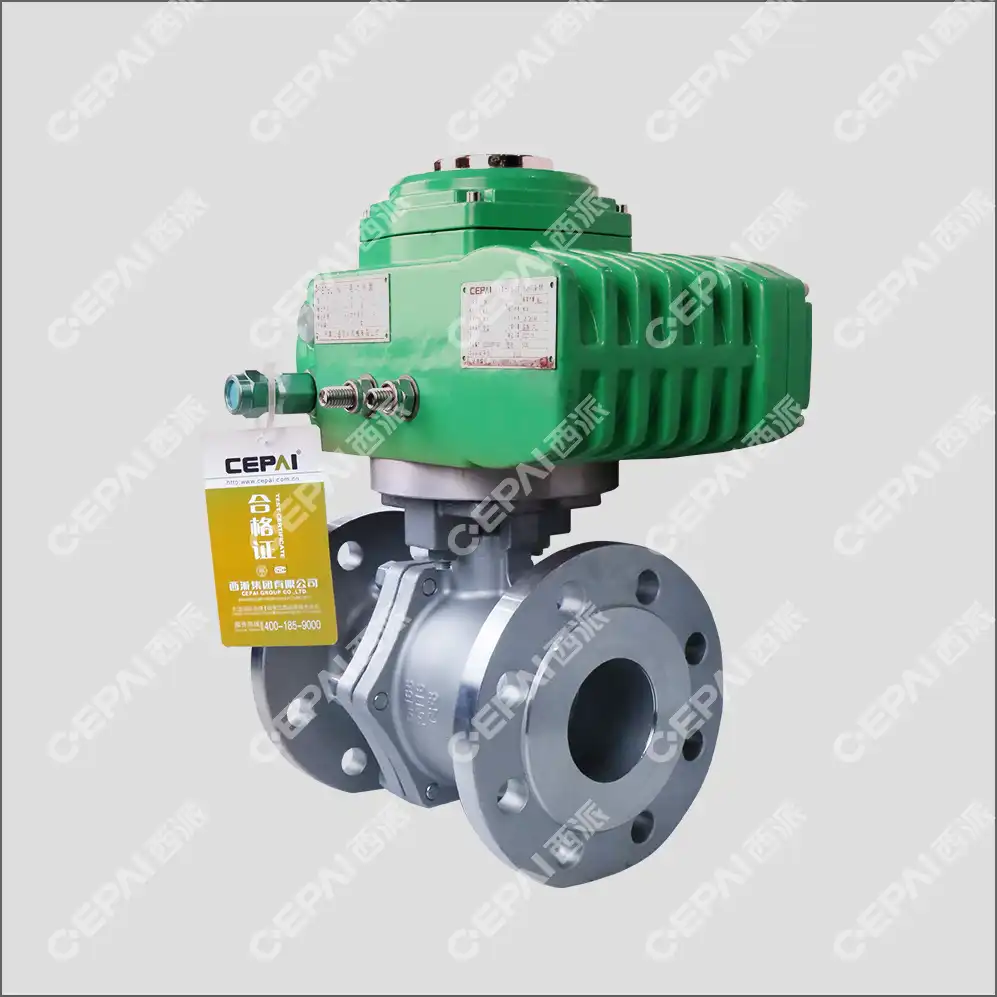

Body and Housing Design Fundamentals

The ball valve body serves as the primary structural foundation, housing all internal components while withstanding extreme pressures and temperatures. Modern ball valve bodies are typically manufactured from forged or cast materials including carbon steel, stainless steel, duplex stainless steel, and exotic alloys depending on application requirements. The body design directly influences the valve's pressure rating, temperature capabilities, and overall reliability. Three-piece ball valve bodies offer superior maintenance accessibility, allowing for in-line repair without complete system shutdown, while two-piece designs provide cost-effective solutions for standard applications. The body cavity must be precisely machined to accommodate the ball, seats, and stem assembly while maintaining proper sealing surfaces. Wall thickness calculations follow ASME B16.34 standards, ensuring adequate strength margins for rated working pressures. Body-to-bonnet connections utilize bolted flanges, threaded joints, or welded configurations based on pressure class and service conditions. Understanding these fundamental design elements helps engineers select appropriate ball valve configurations for specific applications while ensuring long-term operational reliability.

Ball and Seat Interface Technology

The ball and seat interface represents the heart of ball valve sealing technology, where precise engineering determines flow characteristics and leak-tight performance. Modern ball valve balls are manufactured from solid bar stock or investment casting, with surface finishes typically ranging from 32 to 16 microinches Ra to ensure optimal sealing contact. The spherical geometry must maintain perfect roundness within tight tolerances, typically ±0.0005 inches, to achieve reliable sealing across the entire seat contact area. Ball valve seats are engineered from various materials including PTFE, PEEK, metal-backed composites, and all-metal designs for high-temperature applications. The seat-to-ball contact pressure must be carefully calculated to provide adequate sealing force without excessive operating torque. Spring-loaded seat designs compensate for thermal expansion and seat wear, maintaining consistent sealing performance throughout the valve's operational life. Advanced seat designs incorporate backup rings, anti-extrusion features, and pressure-energized sealing elements to handle extreme pressure differentials. The ball-to-seat interface must accommodate both upstream and downstream sealing requirements while minimizing friction during operation.

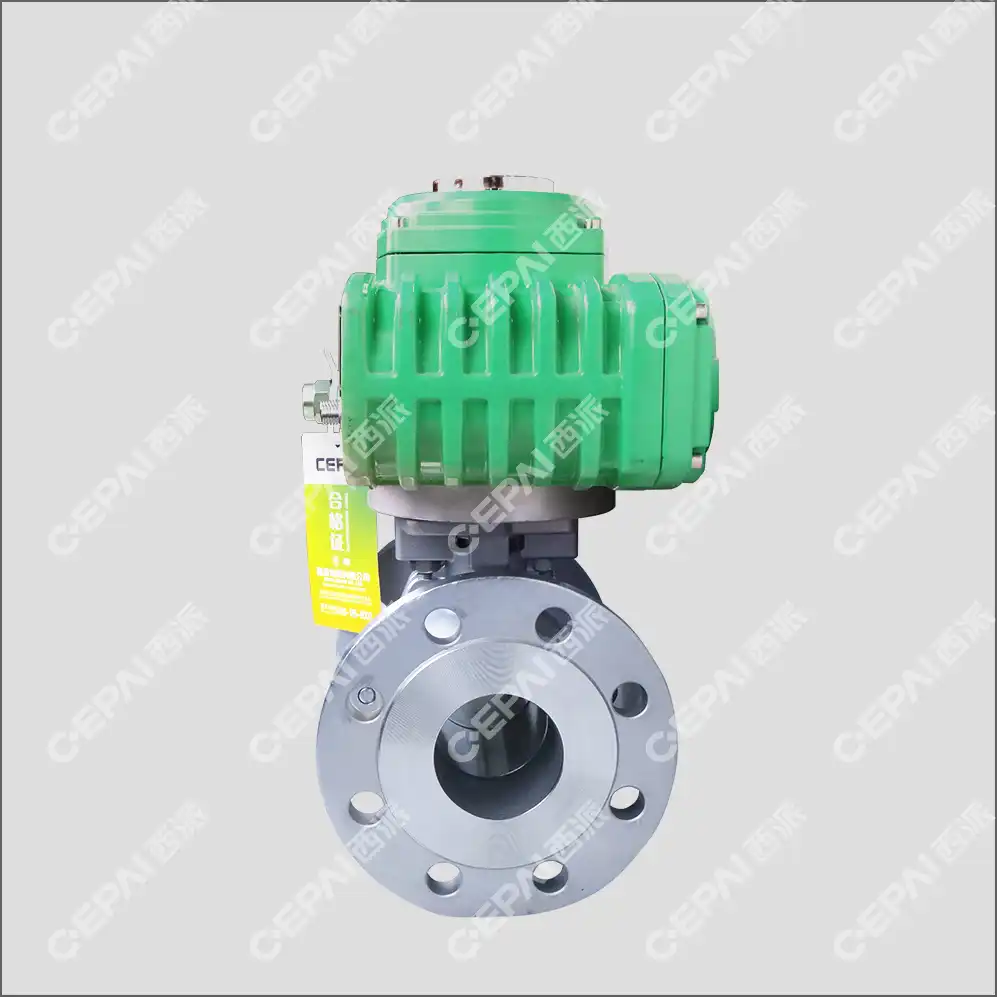

Stem and Actuator Connection Systems

The stem assembly transmits rotational force from external actuators to the internal ball, requiring robust design to handle operational torques while maintaining leak-tight shaft sealing. Ball valve stems are typically manufactured from precipitation-hardened stainless steel or other high-strength alloys to resist galling and provide long-term durability. The stem-to-ball connection utilizes various methods including integral machining, pinned assemblies, or keyed connections, each offering specific advantages for different applications. Stem sealing systems employ multiple barriers including O-rings, packing rings, and live-loaded gland arrangements to prevent fugitive emissions. The stem design must accommodate thermal expansion while maintaining proper ball positioning throughout temperature cycles. Anti-static devices prevent static electricity buildup during fluid flow, particularly important in flammable service applications. Stem torque calculations consider ball weight, seat contact forces, fluid pressure effects, and friction coefficients to ensure proper actuator sizing. Modern ball valve stems incorporate features such as blow-out proof construction, position indicators, and standardized actuator mounting patterns to facilitate automation integration.

Advanced Ball Valve Specifications and Standards

Pressure and Temperature Rating Classifications

Ball valve pressure and temperature ratings follow established industry standards including ASME B16.34, API 6D, and ISO 17292, providing standardized guidelines for safe operating limits. Pressure class designations such as Class 150, 300, 600, 900, 1500, and 2500 correspond to specific pressure-temperature relationships that vary with materials and temperature ranges. The pressure-temperature rating curve defines maximum allowable working pressure at various temperatures, accounting for material strength degradation at elevated temperatures. Ball valve bodies must withstand not only internal pressure but also external loads from piping systems, thermal stresses, and dynamic forces. Temperature considerations include both the fluid temperature and ambient conditions, with special attention to thermal shock resistance and expansion compensation. Cryogenic ball valve applications require materials with proven low-temperature toughness and specialized design features to prevent brittle failure. High-temperature ball valves incorporate features such as extended bonnets, cooling fins, and refractory linings to protect sealing elements. Understanding these rating systems enables proper valve selection while ensuring compliance with applicable codes and standards for safe operation.

Material Selection and Compatibility Requirements

Material selection for ball valve components requires comprehensive analysis of fluid compatibility, environmental conditions, and mechanical requirements to ensure long-term reliability. The valve body material must resist corrosion, erosion, and stress corrosion cracking while maintaining mechanical properties throughout the service life. Common body materials include ASTM A216 WCB carbon steel for general service, ASTM A351 CF8M stainless steel for corrosive applications, and duplex stainless steels for chloride-containing environments. Ball valve trim materials including balls, seats, and stems require careful matching to prevent galvanic corrosion and ensure compatible thermal expansion rates. Seat materials must resist chemical attack from process fluids while maintaining elasticity and sealing capability across the operating temperature range. PTFE seats provide excellent chemical resistance but are limited to moderate temperatures, while metal seats handle high temperatures but require precise machining for leak-tight sealing. Gasket and O-ring materials must be compatible with both the process fluid and cleaning agents used during maintenance. Material selection also considers factors such as fire safety requirements, fugitive emission standards, and compliance with environmental regulations governing material composition and disposal.

​​​​​​​

Flow Characteristics and Cv Calculations

Ball valve flow characteristics depend on port geometry, ball design, and internal flow paths, directly impacting system performance and energy efficiency. Full-port ball valves provide unrestricted flow with pressure drop equivalent to the connecting piping, while reduced-port designs offer cost savings at the expense of increased pressure loss. The flow coefficient (Cv) quantifies the valve's flow capacity, defined as the gallons per minute of water at 60°F that flows through the valve with a 1 psi pressure drop. Ball valve Cv values vary significantly with opening angle, creating non-linear flow characteristics that must be considered in control applications. Standard port ball valves typically achieve Cv values of 80-90% of the pipe cross-sectional area, while full-port designs can exceed 95% of theoretical maximum flow. Cavitation and flashing considerations become critical in high-pressure drop applications, requiring careful analysis of downstream pressure recovery and vapor pressure relationships. Ball valve designs incorporate features such as characterized balls, flow conditioners, and anti-cavitation trim to optimize flow performance in specific applications. Understanding these flow characteristics enables proper valve sizing and selection to minimize energy losses while achieving required flow control performance.

Installation, Maintenance, and Troubleshooting Guidelines

Proper Installation Procedures and Best Practices

Ball valve installation requires careful attention to piping alignment, support systems, and operational clearances to ensure optimal performance and longevity. Pre-installation inspection should verify valve specifications against system requirements, checking pressure ratings, materials, connections, and optional features. Piping must be properly aligned to prevent binding forces on the valve body, with adequate support upstream and downstream to minimize thermal expansion stresses. Ball valve orientation affects drainage, venting, and actuator accessibility, requiring consideration of maintenance requirements and operational procedures. Welding operations near ball valves must follow specific procedures to prevent damage to internal sealing elements, often requiring temporary removal of trim components or heat management techniques. Installation torque specifications for bolted connections must be followed precisely to ensure proper gasket compression without damaging flange faces or bolt threads. System flushing and cleaning procedures should be compatible with valve materials and design, avoiding damage to seats and seals during commissioning. Proper installation includes verification of actuator operation, position indication accuracy, and emergency shutdown functionality where applicable.

Preventive Maintenance Strategies and Schedules

Effective ball valve maintenance programs combine scheduled inspections, predictive monitoring techniques, and proactive component replacement to maximize reliability while minimizing operational disruptions. Visual inspections should monitor external leakage, corrosion signs, actuator condition, and proper position indication functionality on a regular basis. Operational testing includes cycling the valve through full travel, checking torque requirements, and verifying proper seating in both directions under system pressure. Packing adjustment and replacement schedules depend on service conditions, with more frequent attention required in high-temperature or aggressive chemical applications. Seat and seal replacement intervals are established based on cycle count, operating conditions, and observed leakage rates, with consideration for planned maintenance windows. Lubrication requirements vary by design and application, with some ball valves requiring periodic grease injection while others operate maintenance-free for extended periods. Predictive maintenance techniques include vibration analysis, thermal imaging, and acoustic monitoring to detect developing problems before failure occurs. Documentation of maintenance activities, parts usage, and performance trends enables optimization of maintenance intervals and identification of recurring issues.

Common Problems and Diagnostic Solutions

Ball valve troubleshooting requires systematic analysis of symptoms, operating conditions, and maintenance history to identify root causes and implement effective solutions. External leakage through stem packing typically indicates worn sealing elements, improper adjustment, or excessive system pressure cycling that requires packing replacement or gland adjustment. Internal leakage past the ball and seats may result from damaged sealing surfaces, improper seat adjustment, foreign material contamination, or thermal distortion requiring disassembly and inspection. High operating torque can indicate worn bearings, misaligned piping, damaged ball surfaces, or excessive seat compression requiring detailed analysis and corrective action. Actuator problems including position indication errors, slow operation, or failure to achieve full travel often relate to mounting issues, calibration problems, or inadequate power supply requiring electrical and mechanical inspection. Ball valve chattering or vibration during operation may indicate cavitation, improper sizing, or resonance with system components requiring flow analysis and possible design modifications. Premature component wear often results from improper material selection, inadequate maintenance, or operation outside design parameters requiring comprehensive review of application requirements and operating procedures. Systematic troubleshooting approaches combined with proper diagnostic tools enable rapid problem identification and resolution while minimizing system downtime.

Conclusion

Ball valves remain fundamental components in modern industrial fluid control systems, with 2025 bringing continued evolution in materials, design sophistication, and performance capabilities. Understanding the intricate relationships between ball valve components, specifications, and operational requirements enables engineers and procurement professionals to make informed decisions that optimize system performance while ensuring long-term reliability. From body design fundamentals to advanced sealing technologies, each component plays a critical role in achieving leak-tight operation under demanding service conditions.
