Ball Valve Parts and Specifications Explained for Beginners

Understanding ball valve components and specifications is fundamental for anyone entering the industrial valve sector. A ball valve represents one of the most versatile and widely-used control devices in fluid handling systems, featuring a spherical closure element that rotates to control flow. These valves excel in applications requiring reliable shut-off capabilities, minimal pressure drop, and quick operation. From petrochemical plants to water treatment facilities, ball valves serve critical functions across numerous industries. This comprehensive guide demystifies ball valve construction, explores essential specifications, and provides practical insights for selecting the right valve for your application. Whether you're a maintenance technician, engineer, or procurement professional, mastering ball valve fundamentals will enhance your ability to specify, install, and maintain these crucial industrial components effectively.

Essential Components of Ball Valve Construction

Ball Valve Body and Housing Design

The ball valve body serves as the primary structural foundation, housing all internal components while providing connection points to the pipeline system. Modern ball valve bodies are typically manufactured from materials such as carbon steel, stainless steel, or specialized alloys depending on the application requirements. The body design incorporates precise machining to ensure proper sealing surfaces and accommodate the spherical closure element. Industrial-grade ball valve bodies feature robust wall thickness to withstand high-pressure applications, with pressure ratings often exceeding 6000 PSI in specialized configurations. The body geometry directly influences flow characteristics, with full-bore designs maintaining consistent pipe diameter throughout the valve, while reduced-bore configurations sacrifice some flow capacity for cost optimization. Manufacturing processes for ball valve bodies include casting, forging, or machining from solid bar stock, each method offering distinct advantages in terms of material integrity and dimensional accuracy.

Ball Element and Rotation Mechanism

The spherical ball element represents the heart of every ball valve, featuring a precisely machined sphere with a cylindrical bore that aligns with the pipeline when fully open. Ball valve spheres are manufactured from various materials including stainless steel, chrome-plated carbon steel, or exotic alloys for corrosive service applications. The bore configuration significantly impacts valve performance, with full-port balls maintaining pipeline diameter for minimal pressure drop, while standard-port designs reduce bore size for economic considerations. Surface treatments on ball valve spheres include hard chrome plating, nitriding, or specialized coatings to enhance wear resistance and extend service life. The rotation mechanism typically operates through a 90-degree quarter-turn action, providing rapid opening and closing capabilities essential for emergency shutdown applications. Advanced ball valve designs incorporate trunnion-mounted spheres for high-pressure applications, distributing operational forces more effectively than floating ball configurations.

Sealing Systems and Seat Technology

Ball valve sealing systems comprise multiple components working together to prevent internal and external leakage throughout the valve's operational life. Primary sealing occurs at the ball-to-seat interface, utilizing resilient materials such as PTFE (polytetrafluoroethylene), PEEK (polyetheretherketone), or elastomeric compounds depending on temperature and chemical compatibility requirements. Modern ball valve seat designs incorporate spring-loading mechanisms to maintain consistent sealing pressure as components experience thermal expansion and normal wear. Secondary sealing elements include stem packing systems, typically utilizing braided PTFE or graphite-based materials for high-temperature applications. Advanced ball valve designs feature fire-safe construction with metal-to-metal backup sealing capability, ensuring containment even when soft sealing materials are compromised. The sealing system design directly impacts emission performance, with low-emission ball valves incorporating multiple barrier systems to meet stringent environmental regulations.

Critical Specifications and Performance Parameters

Pressure and Temperature Ratings

Ball valve pressure ratings define the maximum allowable working pressure at specific temperatures, following established standards such as ANSI/API or DIN specifications. Class ratings for ball valve applications typically range from 150 to 2500, with each class corresponding to specific pressure capabilities at standard temperatures. Temperature considerations significantly impact ball valve performance, as material properties change with thermal exposure, affecting both pressure ratings and sealing effectiveness. High-temperature ball valve applications may require specialized materials such as Inconel or Hastelloy for the ball element, while cryogenic services demand materials maintaining ductility at extremely low temperatures. Pressure-temperature curves provide essential guidance for safe ball valve operation, indicating derated pressure capabilities as operating temperatures increase. Industrial ball valve specifications must account for both steady-state operating conditions and potential pressure surges or thermal transients that may occur during normal system operation.

Flow Characteristics and Cv Values

Flow coefficient (Cv) values quantify ball valve flow capacity, representing the gallons per minute of water that will flow through the valve at a one-pound-per-square-inch pressure drop. Full-port ball valve designs typically offer Cv values approaching those of equivalent pipe sizes, while reduced-port configurations exhibit proportionally lower flow coefficients. The relationship between valve opening position and flow rate varies significantly among different ball valve designs, with characterized balls providing modified flow curves for specific control applications. Ball valve flow characteristics include inherent flow patterns such as linear, equal percentage, or quick-opening, depending on the ball geometry and seat configuration. Cavitation considerations become critical in high-pressure drop applications, where rapid pressure reduction can cause vapor bubble formation and subsequent collapse, potentially damaging valve components. Advanced computational fluid dynamics modeling helps optimize ball valve internal geometry to minimize turbulence and maximize flow efficiency.

Material Selection and Compatibility

Material compatibility represents a crucial specification for ball valve applications, as improper material selection can result in rapid degradation, leakage, or catastrophic failure. Ball valve wetted components must resist corrosion, erosion, and chemical attack from process fluids while maintaining mechanical properties throughout the operating temperature range. Common ball valve materials include carbon steel for general hydrocarbon service, stainless steel grades for corrosive applications, and exotic alloys such as Monel or Duplex stainless for severe service conditions. Compatibility matrices provide guidance for material selection based on specific chemical exposure, temperature ranges, and pressure requirements. Galvanic corrosion considerations require careful attention when dissimilar metals contact process fluids or each other within the ball valve assembly. Material certification documentation ensures traceability and compliance with applicable codes and standards, particularly important for critical service applications in petrochemical or nuclear industries.

Selection Guidelines and Application Considerations

Sizing and Application Matching

Proper ball valve sizing requires comprehensive analysis of system requirements, including flow rates, pressure drops, installation constraints, and operational preferences. Oversized ball valve installations may result in poor control characteristics and increased costs, while undersized valves create excessive pressure drops and potential cavitation issues. Sizing calculations must consider fluid properties such as viscosity, density, and vapor pressure, particularly for applications involving non-Newtonian fluids or multiphase flow conditions. Ball valve applications span numerous industries, from simple on-off service in water systems to critical emergency shutdown functions in petrochemical facilities. Installation orientation affects ball valve performance, with horizontal installations typically preferred for liquid service while vertical mounting may be acceptable for gas applications. System integration considerations include actuator compatibility, position indication requirements, and maintenance accessibility throughout the valve's operational life.

Actuator Integration and Control Options

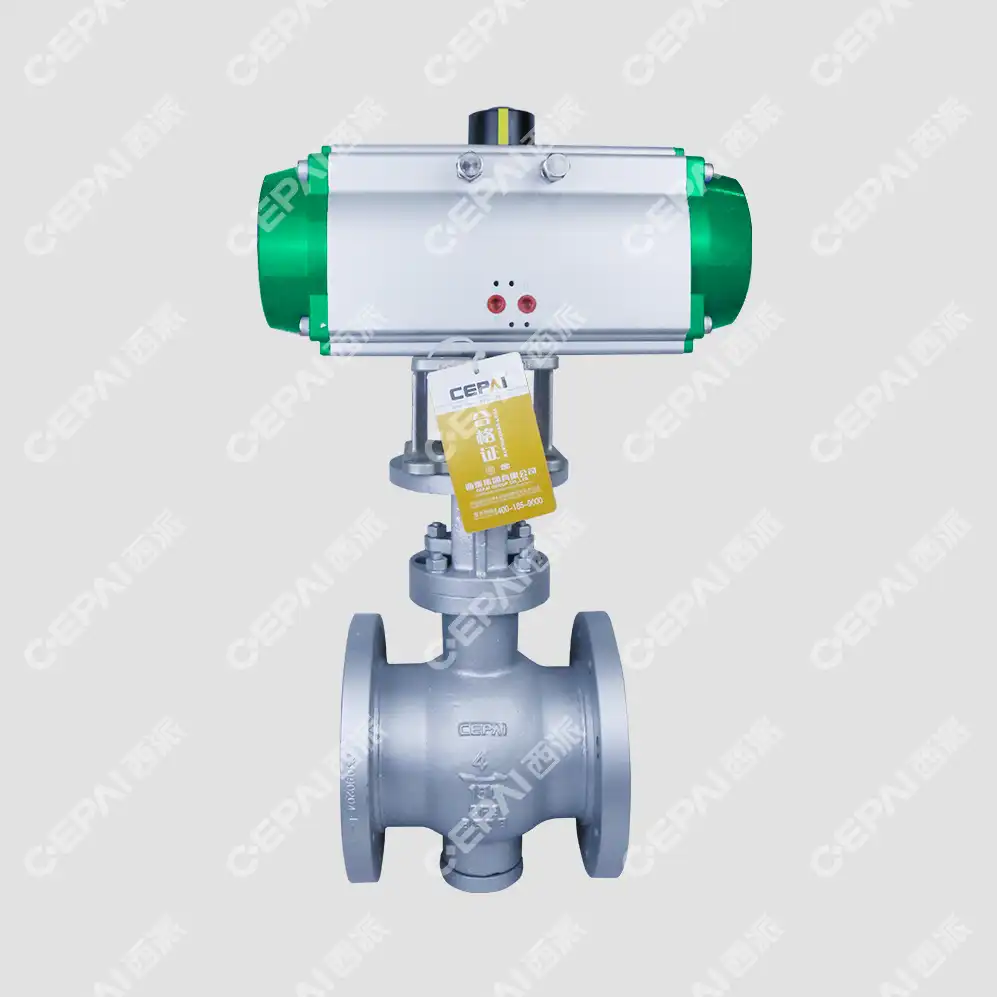

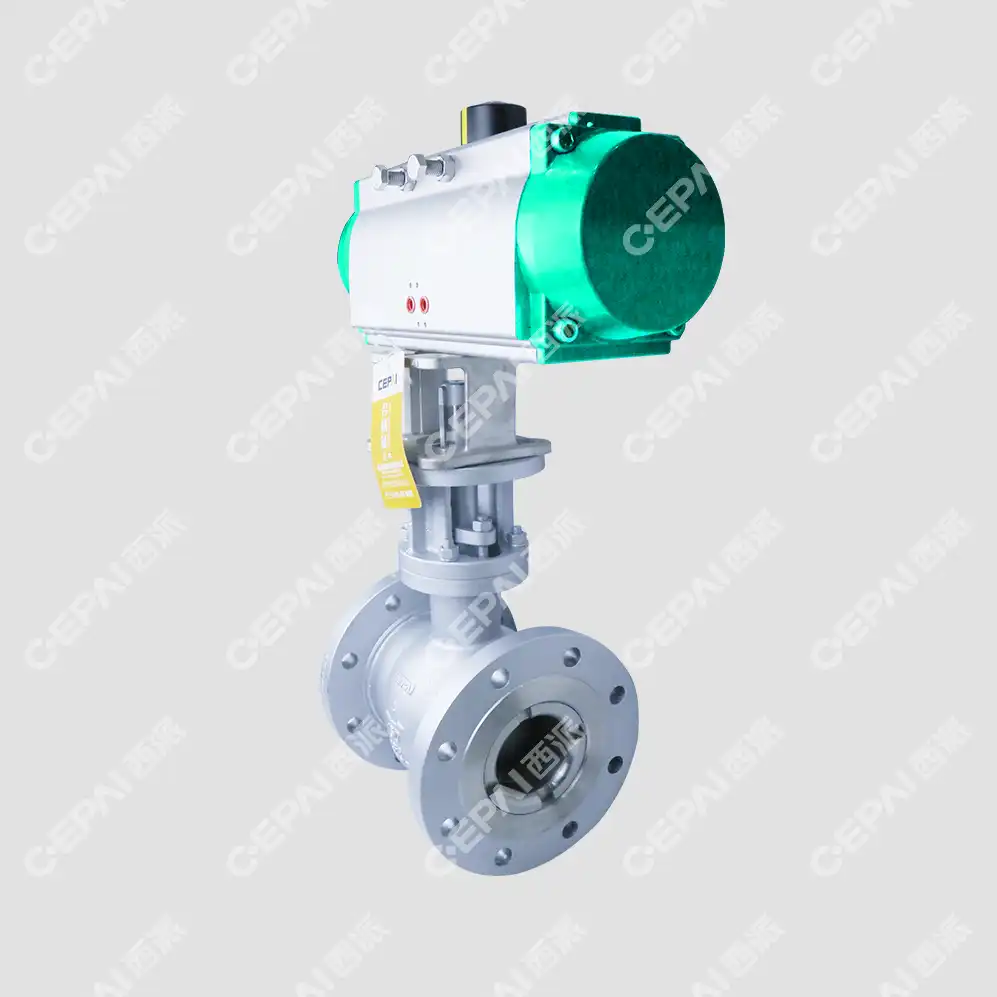

Ball valve actuators provide the motive force for valve operation, ranging from simple manual hand wheels to sophisticated electric or pneumatic operators. Manual ball valve operation suits applications requiring infrequent cycling or emergency override capability, with gear operators available for larger valves requiring higher torque inputs. Pneumatic actuators offer rapid operation speeds and fail-safe capabilities essential for emergency shutdown applications, with spring-return designs providing automatic valve positioning upon air supply failure. Electric actuators provide precise positioning control and remote operation capabilities, making them ideal for automated process control applications requiring frequent cycling or variable positioning. Actuator sizing requires careful consideration of valve torque requirements, including breakaway torque for initial operation and running torque for continuous positioning. Advanced control systems integrate ball valve position feedback, diagnostic capabilities, and predictive maintenance features to optimize system performance and reliability.

Maintenance and Lifecycle Considerations

Ball valve maintenance requirements vary significantly based on application severity, operating frequency, and environmental conditions, making lifecycle planning essential for optimal performance and cost management. Preventive maintenance programs for ball valve installations typically include periodic operation, lubrication, packing adjustment, and visual inspection for external leakage or damage. Predictive maintenance techniques such as vibration analysis, thermal imaging, and acoustic monitoring can identify developing problems before they result in system failures or safety incidents. Ball valve component replacement strategies should consider lead times for critical parts, standardization opportunities across multiple installations, and upgrade possibilities during maintenance outages. Lifecycle cost analysis helps optimize ball valve selection by considering initial purchase price, installation costs, maintenance requirements, and expected service life under specific operating conditions. Documentation systems tracking ball valve performance, maintenance history, and modification records provide valuable data for future procurement decisions and system optimization efforts.

​​​​​​​

Conclusion

Ball valve technology continues evolving to meet increasingly demanding industrial applications, with modern designs offering enhanced performance, reliability, and environmental compliance. Understanding fundamental ball valve components, specifications, and selection criteria enables informed decision-making for optimal system performance and cost-effectiveness throughout the valve lifecycle.
