Ball Valve Operation and Maintenance

Ball valves represent one of the most critical components in industrial fluid control systems, serving as essential flow control devices across petrochemical, power generation, and manufacturing sectors. Understanding proper ball valve operation and maintenance procedures is fundamental to ensuring system reliability, preventing costly downtime, and maintaining optimal performance throughout the valve's operational lifecycle. This comprehensive guide explores the essential aspects of ball valve management, from fundamental operating principles to advanced maintenance strategies that maximize equipment longevity and system efficiency in demanding industrial environments.

Essential Ball Valve Operating Principles

Understanding Ball Valve Functionality and Design

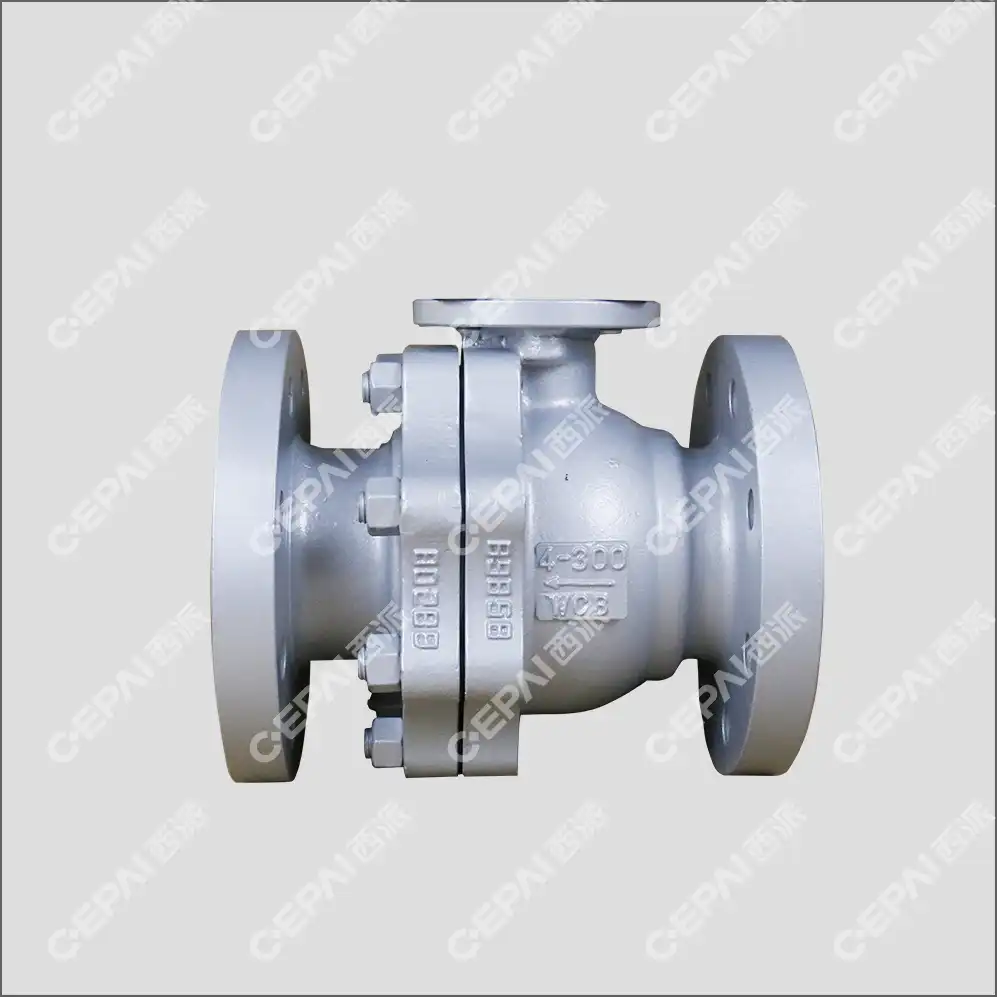

Ball valve operation centers on a spherical closure element that rotates within the valve body to control fluid flow. The ball valve design incorporates a hollow sphere with a port that aligns with the pipeline when in the open position, allowing unrestricted flow passage. When rotated 90 degrees, the solid portion of the sphere blocks the flow path, creating a tight seal that prevents fluid passage. This quarter-turn operation makes ball valve systems highly efficient for rapid shut-off applications, particularly in high-pressure environments where quick isolation is critical. The ball valve mechanism relies on precise machining tolerances and specialized sealing materials to maintain leak-tight performance under varying pressure and temperature conditions. Modern ball valve designs incorporate advanced materials and manufacturing techniques that enhance operational reliability. The ball component typically features chrome-plated or hardened stainless steel construction to resist wear and corrosion, while the seat materials range from soft polymers for standard applications to metal-seated configurations for high-temperature service. Ball valve operation depends heavily on proper stem design, which transmits rotational force from the actuator to the ball element while maintaining pressure boundary integrity through specialized packing arrangements.

Ball Valve Actuation Methods and Control Systems

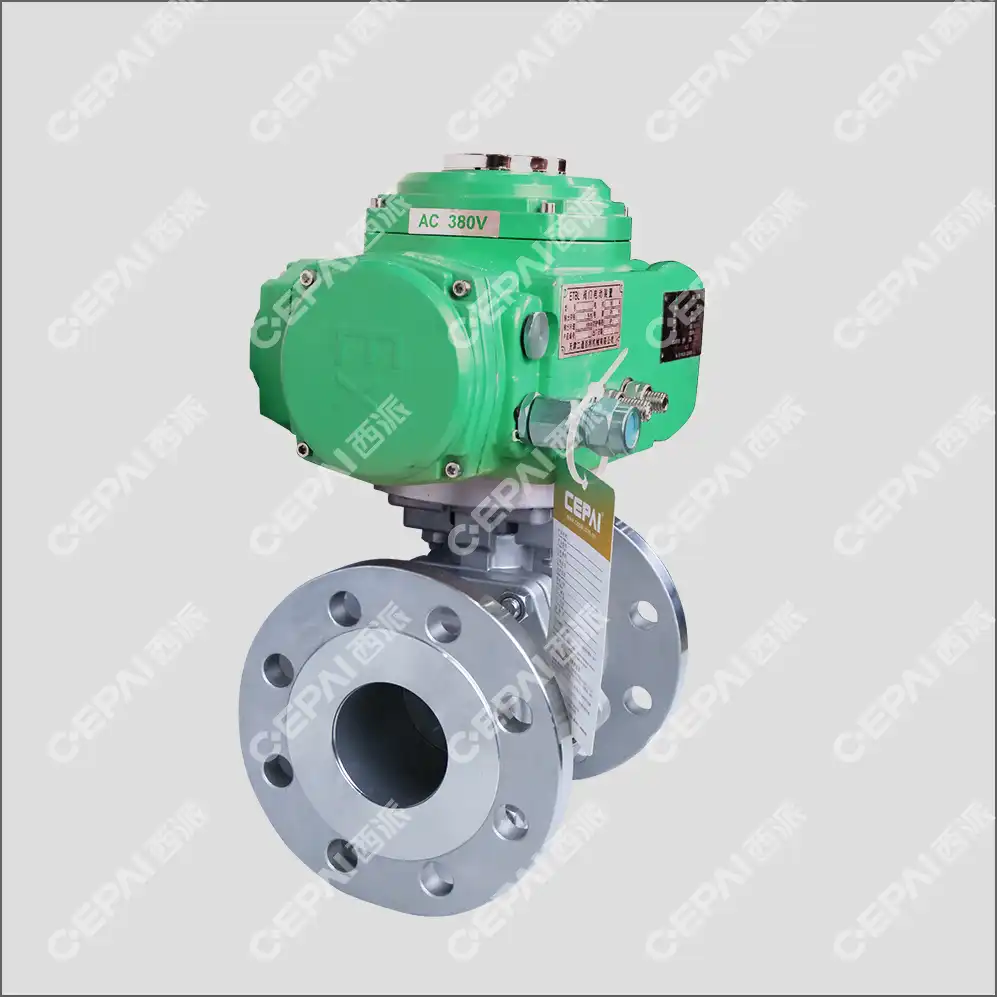

Ball valve operation can be accomplished through various actuation methods, each offering distinct advantages for specific applications. Manual ball valve operation utilizes lever handles or gear operators for smaller sizes, providing direct mechanical control that requires no external power source. The lever design offers excellent tactile feedback, allowing operators to sense valve position and detect potential issues through changes in operating torque. For larger ball valve installations, gear operators reduce the manual effort required while maintaining precise control over valve positioning. Automated ball valve systems employ pneumatic, hydraulic, or electric actuators to enable remote operation and integration with process control systems. Pneumatic actuators offer rapid response times and fail-safe operation through spring-return mechanisms, making them ideal for emergency shutdown applications. Electric actuators provide precise positioning control and excellent torque characteristics, particularly beneficial for ball valve applications requiring throttling service or accurate flow control. The selection of actuation method significantly impacts ball valve operation reliability and maintenance requirements.

Operational Safety Considerations and Best Practices

Safe ball valve operation requires adherence to established procedures and recognition of potential hazards associated with pressurized systems. Operators must understand the system pressure and temperature conditions before attempting ball valve manipulation, as rapid closure can create water hammer effects that damage downstream equipment or piping. Proper ball valve operation includes gradual opening and closing movements when system conditions permit, reducing stress on valve components and connected piping systems. Ball valve operation in emergency situations demands clear understanding of fail-safe positions and backup isolation methods. Many ball valve installations incorporate position indicators that provide visual confirmation of valve status, crucial for maintaining operational safety. Regular verification of these indicators ensures accurate system status information during both normal and emergency operations. Understanding the relationship between ball valve position and system flow characteristics enables operators to make informed decisions that protect equipment and personnel safety.

Comprehensive Ball Valve Maintenance Strategies

Preventive Maintenance Programs and Inspection Protocols

Effective ball valve maintenance begins with comprehensive preventive maintenance programs that address all critical components and potential failure modes. Regular inspection schedules should encompass visual examination of external components, including actuator mounting, stem packing, and body joints for signs of leakage or corrosion. Ball valve maintenance protocols must include torque verification for actuator mounting bolts, body bolting, and packing gland adjustments to ensure proper sealing and structural integrity throughout the operational envelope. Lubrication represents a critical aspect of ball valve maintenance, particularly for manually operated valves subjected to frequent cycling. The stem and ball assembly require appropriate lubrication to prevent galling and ensure smooth operation under varying load conditions. Ball valve maintenance schedules should specify lubricant types and application intervals based on operating conditions, environmental factors, and manufacturer recommendations. Proper lubrication not only extends component life but also maintains consistent operating torque characteristics essential for reliable performance. Internal inspection procedures form an integral component of comprehensive ball valve maintenance programs. Periodic disassembly allows examination of ball surface condition, seat wear patterns, and stem seal integrity. Ball valve maintenance records should document findings from internal inspections, including photographic documentation of wear patterns and dimensional measurements where applicable. This information guides replacement scheduling and helps identify recurring issues that may indicate system design deficiencies or operational problems requiring correction.

Troubleshooting Common Ball Valve Issues

Ball valve maintenance expertise includes the ability to diagnose and resolve common operational problems that affect system performance. External leakage represents one of the most frequent ball valve issues, typically originating from packing gland degradation, body gasket failure, or actuator seal problems. Systematic troubleshooting approaches help identify the specific source of leakage and determine appropriate corrective actions. Ball valve maintenance procedures must address both immediate leak repair and root cause analysis to prevent recurrence. Internal leakage through ball valve assemblies can result from various factors including seat damage, ball surface wear, or debris accumulation that prevents proper sealing. Diagnostic techniques for internal leakage include pressure testing, acoustic monitoring, and temperature measurement across the valve assembly. Ball valve maintenance protocols should establish leak rate acceptance criteria and specify repair procedures when leakage exceeds acceptable limits. Understanding the relationship between seat material properties and service conditions helps predict maintenance intervals and select appropriate replacement components. Operational difficulties such as high operating torque or erratic movement often indicate developing maintenance issues requiring immediate attention. Ball valve maintenance investigations should consider factors including actuator sizing, lubrication adequacy, and system pressure effects on valve operation. Torque trending analysis provides valuable insights into component condition and helps predict maintenance requirements before operational problems develop. Systematic documentation of operational parameters supports effective ball valve maintenance decision-making.

Advanced Maintenance Technologies and Techniques

Modern ball valve maintenance incorporates advanced diagnostic technologies that enhance reliability while reducing maintenance costs. Non-destructive testing methods including ultrasonic thickness measurement, magnetic particle inspection, and dye penetrant testing provide detailed information about component condition without requiring complete disassembly. Ball valve maintenance programs benefit from these technologies through improved fault detection and more accurate assessment of remaining component life. Condition monitoring systems represent significant advances in ball valve maintenance capabilities, particularly for critical service applications. Vibration analysis, temperature monitoring, and acoustic emission testing provide continuous assessment of valve condition and early warning of developing problems. Ball valve maintenance strategies incorporating condition monitoring enable transition from time-based to condition-based maintenance approaches, optimizing resource utilization while maintaining high reliability standards. Predictive maintenance techniques utilize operational data and trending analysis to forecast ball valve maintenance requirements. Parameters such as operating torque, cycle counting, and position feedback provide insights into component loading and wear patterns. Ball valve maintenance programs incorporating predictive techniques achieve improved equipment availability while reducing unnecessary maintenance interventions. Integration with plant maintenance management systems enables automated scheduling and resource allocation based on predicted maintenance needs.

Ball Valve Performance Optimization and Lifecycle Management

Performance Monitoring and Efficiency Enhancement

Ball valve performance optimization requires systematic monitoring of key operational parameters and implementation of improvement strategies based on data analysis. Flow coefficient verification ensures that ball valve installations provide expected flow capacity and pressure drop characteristics. Performance monitoring programs should include periodic flow testing to verify that ball valve assemblies continue to meet design specifications throughout their service life. Changes in flow characteristics may indicate seat wear, internal debris accumulation, or other issues requiring maintenance attention. Cycle counting and operational pattern analysis provide valuable insights into ball valve loading and help optimize maintenance intervals. High-frequency cycling applications may require more frequent inspection and lubrication compared to valves that operate primarily in on-off service. Ball valve performance data collection should encompass both normal operations and emergency activations, as emergency conditions often impose severe loading that accelerates component wear. Understanding operational patterns enables customization of maintenance programs to match actual service conditions. Energy efficiency considerations increasingly influence ball valve selection and maintenance practices. Properly maintained ball valve assemblies minimize pressure drop and reduce pumping energy requirements compared to degraded valves with internal restrictions or leakage. Performance optimization programs should evaluate the energy impact of ball valve condition and prioritize maintenance activities that provide the greatest efficiency improvements. Regular performance monitoring enables quantification of energy savings achieved through effective maintenance practices.

Upgrade and Modernization Strategies

Ball valve modernization projects offer opportunities to improve performance, reliability, and maintainability compared to original installations. Actuator upgrades may provide enhanced control capabilities, improved fail-safe operation, or reduced maintenance requirements. Ball valve modernization considerations should evaluate the benefits of advanced actuator technologies including smart positioners, diagnostic capabilities, and communication interfaces that enable integration with modern control systems. Cost-benefit analysis helps justify modernization investments based on expected improvements in reliability and operational efficiency. Material upgrades represent another avenue for ball valve performance improvement, particularly in corrosive or high-temperature service conditions. Advanced seat materials, improved ball coatings, and enhanced stem sealing technologies may significantly extend service life compared to original components. Ball valve upgrade projects should consider the compatibility of new materials with existing system components and operating procedures. Material improvements often enable operation in more severe service conditions or extend maintenance intervals. Automation upgrades provide opportunities to improve ball valve operational safety and consistency while reducing manual intervention requirements. Remote operation capabilities enable faster response to emergency conditions and reduce personnel exposure to hazardous environments. Ball valve automation projects should consider integration requirements with existing control systems and the need for operator training on new technologies. Properly implemented automation upgrades enhance both safety and operational efficiency.

Conclusion

Effective ball valve operation and maintenance practices are essential for achieving optimal system performance, safety, and reliability in industrial applications. The comprehensive approach outlined in this guide emphasizes the importance of understanding fundamental operating principles, implementing systematic maintenance strategies, and utilizing advanced technologies for performance optimization. Through proper attention to preventive maintenance, troubleshooting procedures, and lifecycle management, organizations can maximize ball valve service life while minimizing operational disruptions and maintenance costs.

At CEPAI Group, we understand that exceptional ball valve performance depends on more than just quality manufacturing – it requires comprehensive support throughout the entire product lifecycle. Our commitment to excellence encompasses pre-sales technical consultation, customized solutions, installation support, and ongoing maintenance services backed by our industry-leading certifications and quality management systems. Whether you need expert guidance on ball valve selection, operational optimization, or maintenance planning, our team of specialists is ready to help you achieve superior results. Ready to optimize your ball valve operations? Contact our technical experts today at cepai@cepai.com to discuss your specific requirements and discover how CEPAI's advanced ball valve solutions and comprehensive support services can enhance your system performance and reliability. Let us help you transform your maintenance challenges into competitive advantages through proven expertise and innovative technologies.
