Picture this scenario: You're managing a critical pipeline system where a valve failure could result in catastrophic downtime, safety hazards, and massive financial losses. The choice between threaded and flanged Ball Valve connections isn't just a technical decision—it's a business-critical choice that directly impacts your system's reliability, maintenance costs, and operational efficiency. Understanding which connection type delivers optimal performance for your specific application requirements can mean the difference between seamless operations and costly failures that could have been prevented with the right Ball Valve selection from the outset.

Understanding Ball Valve Connection Types

Threaded Ball Valve Connections Fundamentals

Threaded Ball Valve connections represent one of the most cost-effective and straightforward installation methods in industrial piping systems. Threaded connections are typically preferred in applications that feature ball valves with a diameter less than 4 inches, making them particularly suitable for smaller-scale operations and residential applications. The threading mechanism creates a secure seal through the tapered design, where tapered threads will actually pull the valve tighter to the pipe during installation, creating an extremely fluid-tight seal. The manufacturing process for threaded Ball Valve connections requires precise threading to ensure proper sealing capabilities. CEPAI Group's advanced manufacturing facilities, equipped with high-precision intelligent manufacturing flexible production lines, ensure that every threaded Ball Valve meets exact specifications. The company's investment of 156 million yuan in intelligent transformation has resulted in the longest high-precision production line in the Asia Pacific region, guaranteeing consistent quality for threaded Ball Valve products. This precision manufacturing approach eliminates the risk of cross-threading issues that can compromise seal integrity and system performance.

Flanged Ball Valve Connection Systems

Cepai paint adhesion test

Flanged Ball Valve connections offer superior strength and reliability for high-pressure, high-temperature applications. A flange end ball valve utilizes a flanged end connection instead of threaded piping. The valve body has protruding hub collars with an integral flange on each end, providing robust connection points that can withstand extreme operating conditions. Flanged ball valves use bolted flanges for secure, high-pressure connections, making them the preferred choice for critical industrial applications. The engineering design of flanged Ball Valve systems incorporates multiple bolting points that distribute stress evenly across the connection interface. CEPAI Group's flanged Ball Valve products undergo rigorous testing protocols, including material analysis and dimensional inspections according to international standards such as API 6A, API 6D, and API 16C certifications. The company's CNAS nationally recognized laboratory ensures that every flanged Ball Valve meets or exceeds industry performance benchmarks, providing customers with reliable solutions for demanding applications in petrochemical, power generation, and oil and gas sectors.

Installation and Maintenance Considerations

Threaded Ball Valve Installation Process

The installation of threaded Ball Valve systems requires careful attention to threading techniques and sealing compounds. Threaded valves provide a quicker and more space-efficient solution, particularly beneficial in retrofit applications where space constraints limit access for larger flanged connections. The installation process typically involves applying appropriate thread sealants and ensuring proper torque specifications to achieve optimal sealing performance without over-tightening that could damage the threads. CEPAI Group provides comprehensive installation guidance and technical support for threaded Ball Valve applications. The company's certified technicians offer on-site training services, ensuring that installation personnel understand proper procedures for achieving reliable sealing performance. The pre-sales technical consultation services include detailed valve selection guidance, helping customers choose the appropriate threaded Ball Valve specifications for their specific operating parameters including pressure ratings, temperature ranges, and media compatibility requirements.

Flanged Ball Valve Maintenance Advantages

Flanged Ball Valve connections offer significant advantages in maintenance accessibility and long-term serviceability. Flanged valves are easy to install and disassemble, allowing for efficient maintenance procedures without requiring complete piping system modifications. The bolted flange design enables quick valve replacement or repair operations, minimizing system downtime and reducing maintenance costs over the valve's operational lifetime. The maintenance protocols for flanged Ball Valve systems benefit from CEPAI Group's comprehensive after-sales service network. The company's remote monitoring and intelligent service capabilities provide predictive maintenance insights, identifying potential issues before they result in system failures. CEPAI's quality management system, certified under ISO 9001, ensures that maintenance procedures and replacement parts meet consistent quality standards throughout the valve's service life.

Performance Analysis: Pressure and Size Considerations

Pressure Rating Comparisons

The pressure handling capabilities between threaded and flanged Ball Valve connections vary significantly based on design parameters and application requirements. Despite the cost-savings associated with threaded connections, their pressure limitations make them unsuitable for high-pressure applications where system integrity is paramount. Flanged Ball Valve connections excel in high-pressure environments due to their distributed load characteristics and robust sealing mechanisms. CEPAI Group's Ball Valve products are engineered to meet diverse pressure requirements across industrial applications. The company's high-pressure double disc check valve technology, combined with advanced sealing systems, delivers superior performance in demanding environments. The API Q1 certification demonstrates CEPAI's commitment to quality management systems that ensure consistent pressure rating performance across their Ball Valve product lines, providing customers with reliable solutions for applications ranging from standard industrial processes to critical high-pressure operations.

Size Limitations and Applications

Size considerations play a crucial role in determining the optimal connection type for Ball Valve applications. Connections with larger diameters are more difficult to seal and thus prone to leaks through the threads, making flanged connections the preferred choice for larger pipeline systems. Large size pipeline usually use the flanged connection due to their superior sealing capabilities and structural integrity in high-flow applications. CEPAI Group's manufacturing capabilities encompass a comprehensive range of Ball Valve sizes, from compact threaded configurations for small-diameter applications to large-scale flanged systems for major pipeline installations. The company's specialized manufacturing processes, supported by advanced CNC machining centers and automated assembly systems, ensure precise dimensional control across all Ball Valve sizes. This manufacturing precision is critical for achieving proper sealing performance, particularly in larger flanged Ball Valve applications where even minor dimensional variations can compromise system integrity.

Cost Analysis and Economic Factors

Initial Investment Considerations

The economic analysis of threaded versus flanged Ball Valve connections reveals significant differences in initial investment requirements. Threaded valve connections generally cost substantially less than flanged valve connections. The difference in cost between the two connection types is due to the multiple parts and various structures of flanges. This cost differential makes threaded Ball Valve solutions attractive for budget-conscious projects and applications where high-pressure performance is not required. However, the total cost of ownership extends beyond initial purchase price to include installation costs, maintenance requirements, and potential system downtime. CEPAI Group's value proposition encompasses not only competitive pricing but also superior product reliability that reduces long-term operational costs. The company's efficient manufacturing processes, supported by intelligent production systems, enable cost-effective production while maintaining quality standards that minimize maintenance requirements and extend service life.

Long-term Operational Economics

The long-term economic performance of Ball Valve systems depends on factors including maintenance frequency, replacement costs, and system reliability. Flanged Ball Valve connections, while requiring higher initial investment, often provide superior long-term value through reduced maintenance requirements and extended service intervals. The ease of maintenance and component replacement in flanged systems can result in lower total cost of ownership over the valve's operational lifetime. CEPAI Group's comprehensive service model supports optimal economic performance throughout the Ball Valve lifecycle. The company's preventive maintenance programs, technical support services, and quality assurance protocols help customers maximize return on investment while minimizing unplanned maintenance costs. The integration of intelligent monitoring capabilities in CEPAI's Ball Valve solutions provides predictive maintenance insights that optimize maintenance scheduling and reduce operational disruptions.

Application-Specific Selection Criteria

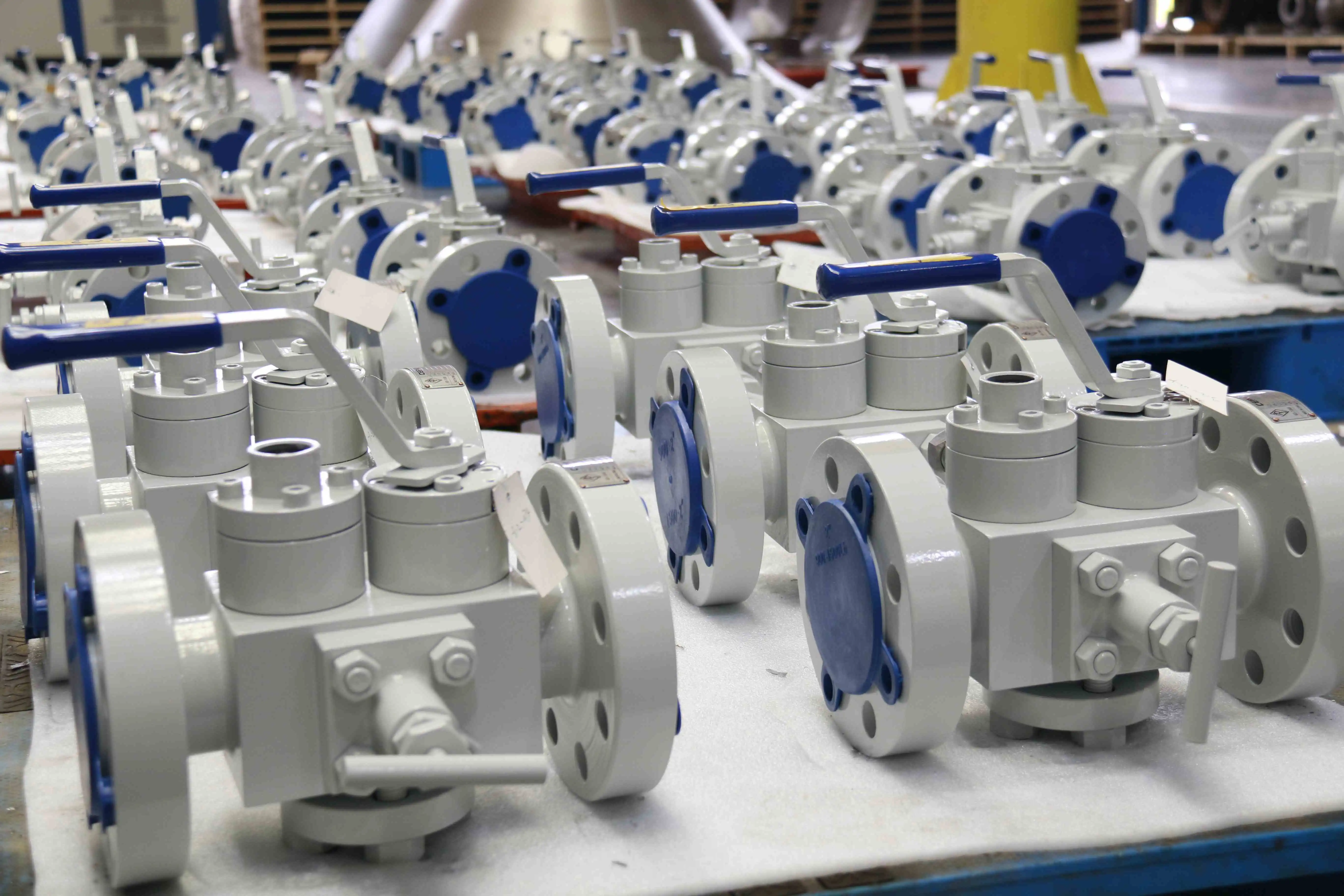

Cepai valves

Industrial Process Applications

Industrial process applications require careful consideration of operating parameters when selecting between threaded and flanged Ball Valve connections. The petrochemical, power generation, and oil and gas industries typically favor flanged connections due to their superior performance in high-pressure, high-temperature environments. CEPAI Group has established supplier relationships with major industry players including PetroChina, Sinopec, and CNOOC, demonstrating the company's expertise in providing Ball Valve solutions for demanding industrial applications. The selection process for industrial Ball Valve applications involves comprehensive analysis of process conditions including fluid characteristics, pressure fluctuations, temperature cycling, and maintenance accessibility requirements. CEPAI's technical consultation services provide detailed application analysis, ensuring that Ball Valve specifications align with specific process requirements. The company's certifications including API 6A, API 6D, and API 16C validate their expertise in meeting stringent industrial performance standards.

Commercial and Residential Applications

Commercial and residential applications often benefit from the simplicity and cost-effectiveness of threaded Ball Valve connections. These applications typically involve lower pressure requirements and more frequent valve operation, making the ease of installation and replacement important selection criteria. Threaded ball valves screw onto pipes for easier installation, typically in lower-pressure settings, making them suitable for building services, HVAC systems, and residential plumbing applications. CEPAI Group's Ball Valve product range includes specialized solutions for commercial and residential markets, featuring corrosion-resistant materials and reliable sealing performance. The company's quality management system ensures consistent performance across all application segments, from high-end industrial installations to cost-sensitive commercial projects. The comprehensive testing protocols, including final inspection before shipment, guarantee that every Ball Valve meets specified performance criteria regardless of application type.

Conclusion

The choice between threaded and flanged Ball Valve connections depends on specific application requirements, with each type offering distinct advantages. Threaded connections provide cost-effective solutions for smaller diameter, lower pressure applications, while flanged connections excel in high-pressure, large-diameter systems requiring superior reliability and maintenance accessibility.

Cooperate with CEPAI Group Co., LTD.

CEPAI Group Co., LTD. stands as a leading China Ball Valve manufacturer with over 15 years of industry excellence. Established in 2009 with 200 million yuan registered capital, our 56,000 square meter facility represents the pinnacle of intelligent manufacturing innovation. As a national high-tech enterprise and specialized "little giant" company, we've earned recognition as a Jiangsu Smart Factory and Internet benchmarking facility, winning the Mayor Quality Award in 2022.

Our comprehensive Ball Valve product portfolio serves major clients including PetroChina, Sinopec, CNOOC, China Datang Group, and Baowu Group. With certifications including API Q1, API 6A, API 6D, API 16C, ISO 9001, and CE marking, we guarantee superior quality and performance. Our intelligent manufacturing capabilities, featuring the Asia Pacific region's longest high-precision production line, ensure exceptional product consistency and reliability.

As your trusted China Ball Valve supplier, we offer complete solutions from pre-sales technical consultation to comprehensive after-sales support. Our remote monitoring and intelligent service capabilities provide predictive maintenance insights, while our CNAS-certified laboratory ensures rigorous quality control throughout production. Whether you need High Quality Ball Valve solutions for oil and gas, petrochemical, or industrial applications, our China Ball Valve wholesale pricing and factory-direct availability make us your ideal partner.

Contact our technical experts today at cepai@cepai.com to discuss your Ball Valve requirements. As a leading China Ball Valve factory, we provide competitive Ball Valve price quotations and comprehensive technical support for all Ball Valve for sale inquiries. Save this page and contact us whenever you need reliable Ball Valve solutions.

FAQ

Q: What is the main difference between threaded and flanged ball valves?

A: Threaded ball valves screw directly onto pipes using threads, while flanged ball valves use bolted flange connections for more secure, high-pressure applications.

Q: Which connection type is better for high-pressure applications?

A: Flanged ball valves are superior for high-pressure applications due to their distributed load design and robust sealing capabilities that can handle extreme pressures safely.

Q: Are threaded ball valves suitable for large diameter pipes?

A: Threaded connections are typically limited to pipes under 4 inches diameter, as larger threaded connections become difficult to seal properly and prone to leakage.

Q: What factors should I consider when choosing between connection types?

A: Consider operating pressure, pipe diameter, installation space, maintenance requirements, initial cost, and long-term operational needs when selecting ball valve connection types.
