How to Achieve Precise Control with a Pneumatic Ball Valve?

In today's industrial automation landscape, achieving precise fluid control remains one of the most critical challenges facing engineers and plant operators. Whether you're managing complex petrochemical processes or maintaining critical water treatment systems, the inability to maintain exact flow rates and pressures can lead to production inefficiencies, equipment damage, and safety hazards. The Pneumatic Ball Valve emerges as the definitive solution to these control challenges, offering unparalleled precision through advanced actuator technology and sophisticated positioning systems. This comprehensive guide reveals the proven strategies and technical insights that industry professionals use to maximize control accuracy with pneumatic ball valve systems, ensuring optimal performance in even the most demanding industrial applications.

Understanding Pneumatic Ball Valve Control Mechanisms

The foundation of precise control with any Pneumatic Ball Valve lies in understanding its fundamental operating principles and the sophisticated mechanisms that enable accurate positioning. A pneumatic ball valve operates by using compressed air to rotate a spherical ball with a hole through its center, controlling the flow of fluids. This rotation system provides the basis for all control operations, but achieving true precision requires a deeper understanding of the interaction between the actuator, positioner, and control system. The core control mechanism centers around the pneumatic actuator, which converts compressed air pressure into rotational motion. Unlike manual ball valves that rely on human operation, pneumatic systems can achieve repeatable positioning with tolerances measured in fractions of degrees. The actuator receives control signals, typically 4-20mA or 3-15 PSI pneumatic signals, and translates these inputs into precise rotational movements of the internal ball element. Modern Pneumatic Ball Valve systems incorporate advanced feedback mechanisms that continuously monitor valve position and compare it against the desired setpoint. This closed-loop control ensures that the valve maintains its commanded position even when facing varying process conditions such as pressure fluctuations or temperature changes. The integration of intelligent positioners further enhances this capability by providing real-time diagnostics and automatic calibration functions that maintain optimal performance throughout the valve's operational life.

• Advanced Actuator Technologies for Enhanced Precision

The selection and configuration of the pneumatic actuator represents the most critical factor in achieving precise control with any Pneumatic Ball Valve system. Modern actuators utilize sophisticated engineering principles to convert compressed air energy into highly controlled rotational movement, with precision levels that were previously unattainable in industrial valve applications. Quarter-turn pneumatic actuators designed specifically for ball valve applications typically feature rack-and-pinion or vane-type mechanisms. The valve closes when the solid portion of the ball is in line with the flow, which is done with a 90-degree rotation (hence the name quarter-turn valve) of the ball. However, achieving precise positioning within this 90-degree range requires careful attention to actuator sizing, air supply quality, and control system integration. Premium actuator designs incorporate multiple chambers or variable geometry mechanisms that allow for fine-tuned control over the entire operating range. These systems can achieve positioning accuracy of ±0.1 degrees or better, enabling precise flow modulation that meets the demanding requirements of critical process applications. The incorporation of high-quality sealing systems and precision-machined components ensures that this accuracy is maintained over millions of operating cycles.

Implementing Advanced Positioning Systems

The implementation of sophisticated positioning systems represents the next evolutionary step in Pneumatic Ball Valve control technology. These systems go beyond simple on-off operation to provide true modulating control that can maintain precise flow rates regardless of changing process conditions. The valve core of the adjustable pneumatic ball valve is a V-shaped ball core, which adopts a fixed structure, with a V-shaped cut on the ball core. Adding a positioner to the actuator can realize the proportion adjustment of various media types. Electronic positioners have revolutionized the precision capabilities of Pneumatic Ball Valve systems by providing intelligent feedback control that continuously monitors and adjusts valve position. These devices compare the actual valve position against the commanded position and make real-time corrections to eliminate positioning errors. Advanced positioners incorporate multiple feedback sensors, including position sensors, pressure sensors, and temperature compensation mechanisms that ensure accurate operation across varying environmental conditions. The integration of smart positioner technology enables Pneumatic Ball Valve systems to achieve linearized flow characteristics, where small changes in control signal produce proportional changes in flow rate. This linearity is particularly important in process control applications where precise flow modulation is essential for maintaining product quality and process efficiency. Modern positioners can also store multiple valve characterization curves, allowing operators to select the optimal flow characteristic for different operating modes or process requirements.

• Digital Control Integration and Smart Diagnostics

The latest generation of Pneumatic Ball Valve control systems incorporates digital communication protocols that enable seamless integration with modern distributed control systems (DCS) and supervisory control and data acquisition (SCADA) systems. These digital interfaces provide unprecedented visibility into valve performance and enable predictive maintenance strategies that minimize unplanned downtime. Smart diagnostic capabilities built into modern positioners continuously monitor critical parameters such as actuator air consumption, positioning response time, and internal friction levels. This data provides early warning of potential issues before they impact process performance, allowing maintenance teams to schedule interventions during planned outages rather than responding to emergency failures. The diagnostic information also helps optimize control system tuning parameters to maintain peak performance as valve components experience normal wear over time. Digital control systems also enable advanced control strategies such as cascade control, feedforward control, and adaptive control algorithms that can significantly improve overall process performance. These sophisticated control methods leverage the precise positioning capabilities of modern Pneumatic Ball Valve systems to achieve tighter process control than was previously possible with conventional control technologies.

Optimization Strategies for Maximum Control Accuracy

Achieving maximum control accuracy with Pneumatic Ball Valve systems requires a systematic approach to system design, installation, and commissioning that addresses every factor affecting valve performance. The optimization process begins with proper valve sizing, which must account not only for maximum flow requirements but also for the need to maintain controllability across the entire operating range. Proper sizing ensures that the valve operates within its optimal control range, typically between 20% and 80% of full travel, where positioning accuracy and flow characteristics are most predictable. Operating outside this range can result in reduced control accuracy due to nonlinear flow characteristics or increased sensitivity to positioning errors. Advanced sizing calculations should consider factors such as cavitation potential, noise generation, and the installed flow characteristic that results from the interaction between the valve and the piping system. Air supply quality represents another critical factor in achieving precise control with Pneumatic Ball Valve systems. The compressed air supply must be properly conditioned to remove moisture, oil contamination, and particulate matter that could interfere with actuator operation. Air supply pressure should be regulated to maintain consistent pressure levels that are optimized for the specific actuator design, typically 6 bar (87 PSI) for most industrial applications.

• Calibration and Commissioning Best Practices

The calibration and commissioning process for Pneumatic Ball Valve systems requires meticulous attention to detail to ensure optimal performance from the initial startup. This process begins with verification that all mechanical connections are properly aligned and that the actuator is correctly mounted to the valve body. Any misalignment can result in binding or uneven wear that will degrade control performance over time. Initial calibration involves setting the relationship between the control signal and valve position, ensuring that the full signal range (typically 4-20mA or 3-15 PSI) corresponds to the full valve travel range (0-90 degrees). This calibration must be performed under actual operating conditions, including system pressure and temperature, to account for any installation effects that might influence valve behavior. Advanced commissioning procedures include the development of custom valve characterization curves that linearize the relationship between control signal and flow rate. This characterization process involves measuring actual flow rates at multiple valve positions and creating a mathematical model that the positioner uses to convert linear control signals into the non-linear valve positions required to achieve linear flow response.

​​​​​​​

Maintenance and Performance Monitoring

Maintaining optimal control performance with Pneumatic Ball Valve systems requires a proactive maintenance approach that combines routine preventive maintenance with continuous performance monitoring. Regular maintenance activities should include inspection of air supply systems, verification of positioner calibration, and assessment of mechanical components for signs of wear or damage. Performance monitoring systems should track key indicators such as positioning accuracy, response time, and air consumption patterns. Trends in these parameters can provide early warning of developing issues that might impact control performance. For example, increasing air consumption might indicate internal leakage in the actuator, while slower response times could suggest mechanical binding or contamination in the actuator mechanism. The implementation of predictive maintenance strategies, enabled by smart diagnostic capabilities in modern positioners, allows maintenance teams to optimize maintenance intervals based on actual equipment condition rather than arbitrary time-based schedules. This approach not only reduces maintenance costs but also improves overall system reliability by addressing potential issues before they result in control performance degradation.

• Troubleshooting Common Control Issues

Even well-designed and properly maintained Pneumatic Ball Valve systems can experience control issues that require systematic troubleshooting to identify and resolve. Common issues include positioning errors, oscillation, and slow response, each of which has characteristic symptoms and typical root causes that can guide the troubleshooting process. Positioning errors, where the valve fails to achieve the commanded position, often result from calibration drift, mechanical binding, or air supply problems. Systematic diagnosis involves checking the control signal, verifying air supply pressure and quality, and confirming mechanical freedom of the actuator and valve assembly. Calibration verification should be performed using precision test equipment to ensure accurate measurements. Oscillation problems, where the valve position continuously fluctuates around the setpoint, typically indicate tuning issues with the positioner or control system. The resolution involves adjusting positioner parameters such as gain, reset time, and deadband to achieve stable control without excessive sluggishness. In some cases, oscillation may result from oversized valves that operate in a region of high gain, requiring process modifications to achieve stable control.

Conclusion

Achieving precise control with Pneumatic Ball Valve systems requires a comprehensive understanding of actuator mechanisms, positioning technologies, and optimization strategies. Success depends on proper system design, quality installation practices, and ongoing maintenance that preserves optimal performance throughout the operational life of the equipment. The integration of smart diagnostic capabilities and digital control systems provides unprecedented opportunities to maximize control accuracy while minimizing maintenance requirements.

Cooperate with CEPAI Group Co., LTD.

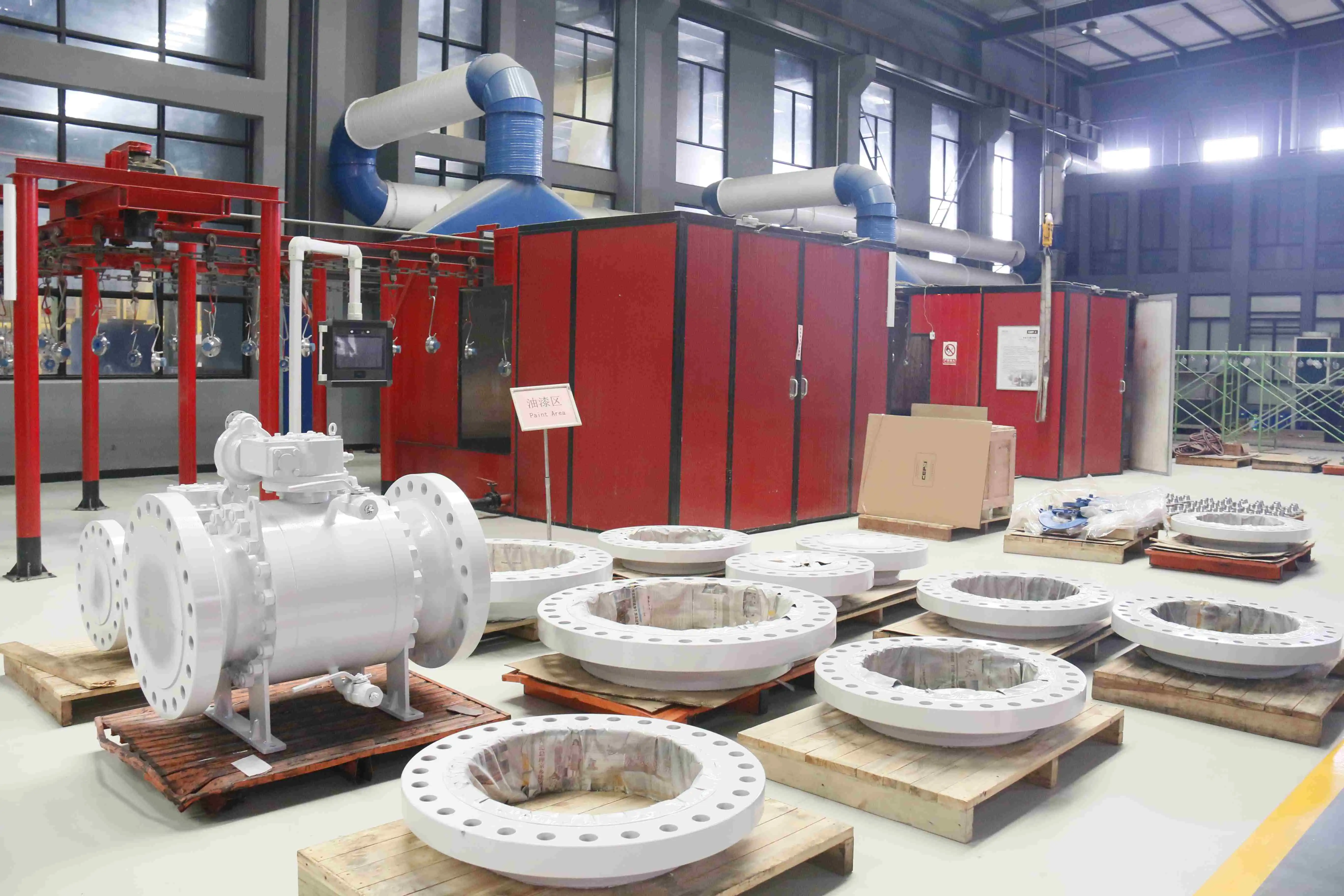

CEPAI Group Co., LTD. stands as a leading China Pneumatic Ball Valve manufacturer with over 15 years of specialized experience in fluid control technology. Established in January 2009 with a registered capital of 200 million yuan, our 56,000 square meter facility represents the pinnacle of intelligent manufacturing excellence. As a national high-tech enterprise and specialized "little giant" company, CEPAI has earned recognition as a Jiangsu Smart Factory and Internet benchmarking facility.

Our commitment to precision engineering is demonstrated through our investment of 156 million yuan in intelligent transformation, creating the longest high-precision manufacturing line in the Asia Pacific region. This advanced production capability, combined with our Jiangsu Province certified enterprise Technology Center and Fluid Control Engineering Technology Research Center, ensures that every High Quality Pneumatic Ball Valve meets the most demanding international standards including API6A, API6D, CE, and ISO certifications.

As your trusted China Pneumatic Ball Valve supplier, CEPAI serves major industry leaders including PetroChina, Sinopec, CNOOC, and international engineering companies worldwide. Our comprehensive product range includes sleeve-type regulating valves, throttle valves, high-pressure double disc check valves, and emergency cut-off valves, all manufactured with exceptional durability and high-precision control performance.

Whether you need standard Pneumatic Ball Valve for sale or customized solutions, our expert technical team provides comprehensive pre-sales consultation, installation support, and after-sales service. Our remote monitoring and intelligent service capabilities ensure optimal performance throughout your equipment's lifecycle. For competitive Pneumatic Ball Valve price quotes and technical specifications from a reliable China Pneumatic Ball Valve wholesale partner, contact our experienced sales team at cepai@cepai.com. Bookmark this page for easy reference when you need trusted industrial valve solutions.

FAQ

Q: What factors affect the positioning accuracy of a Pneumatic Ball Valve?

A: Positioning accuracy depends on actuator design quality, air supply pressure consistency, positioner calibration, mechanical alignment, and control system tuning parameters.

Q: How often should Pneumatic Ball Valve systems be calibrated?

A: Calibration intervals typically range from 6-12 months for critical applications, though smart positioners with diagnostic capabilities can extend intervals based on actual drift measurements.

Q: What air supply pressure is optimal for pneumatic actuators?

A: Most industrial pneumatic actuators operate optimally at 6 bar (87 PSI) supply pressure, though specific requirements vary by actuator size and application demands.

Q: Can Pneumatic Ball Valves achieve modulating control like control valves?

A: Yes, with proper positioners and V-port ball designs, pneumatic ball valves can provide precise modulating control with positioning accuracy of ±0.1 degrees or better.
