Pneumatic Bellows vs Diaphragm Valves:Which Is Better

When selecting the optimal pneumatic control valve for industrial applications, engineers and procurement professionals face a critical decision between bellows and diaphragm configurations. Both valve types serve essential roles in fluid control systems, yet their distinct design characteristics, performance capabilities, and application suitability make this choice pivotal for operational success. Understanding the fundamental differences between these valve technologies is crucial for making informed decisions that impact system reliability, maintenance costs, and overall process efficiency.

The choice between pneumatic bellows and diaphragm valves ultimately depends on specific application requirements, operating conditions, and performance expectations. While bellows valves excel in high-temperature, high-pressure environments requiring zero leakage, diaphragm valves offer superior performance in corrosive media handling and applications demanding exceptional cleanliness. Modern innovations like the Pneumatic Sleeve Control Valve have revolutionized both technologies, incorporating advanced materials and precision engineering to deliver enhanced performance across diverse industrial sectors.

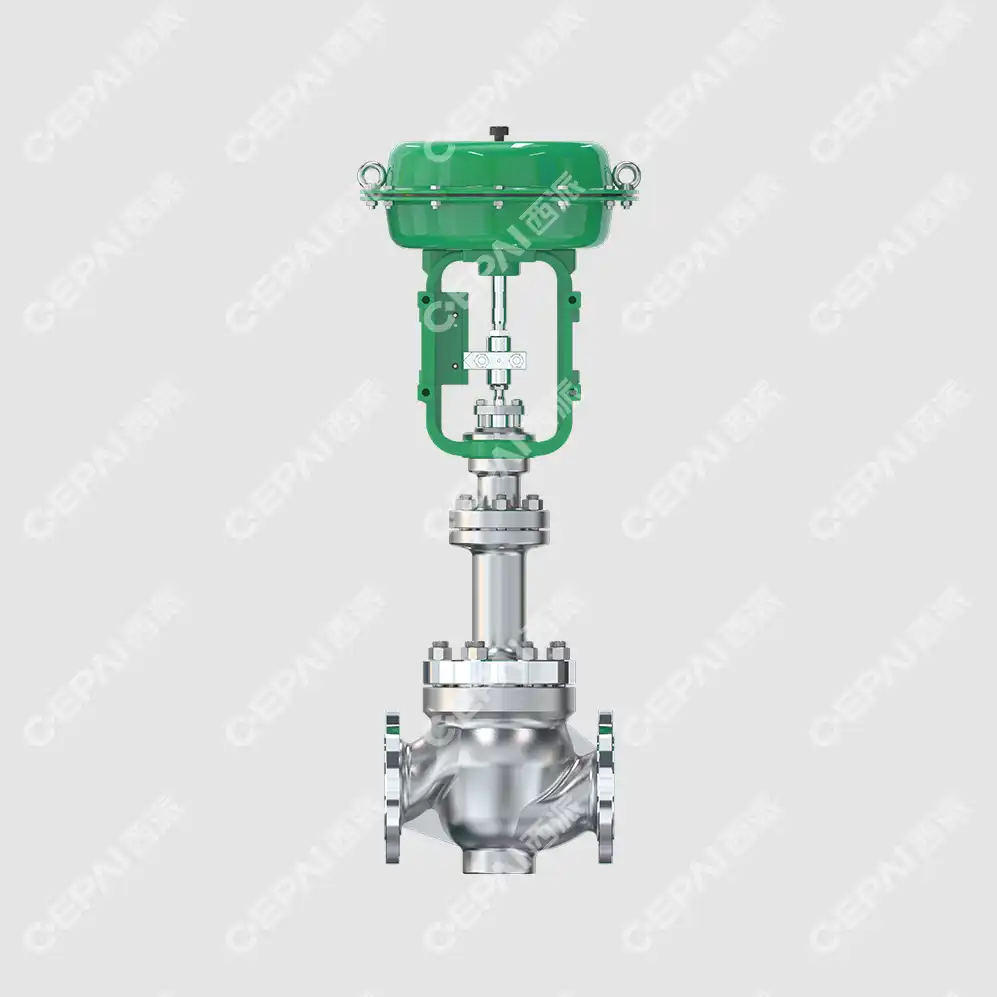

Understanding Pneumatic Bellows Technology

Design Principles and Construction Features

Pneumatic bellows valves represent a sophisticated approach to industrial fluid control, utilizing flexible metallic bellows as the primary sealing mechanism between the valve stem and process media. The bellows component consists of multiple convoluted metal sheets, typically manufactured from high-grade stainless steel alloys such as 304L, 316L, or specialized Hastelloy materials, depending on application requirements. This construction creates a hermetic seal that prevents any process fluid from escaping along the valve stem, making bellows valves ideal for handling hazardous, toxic, or environmentally sensitive media.The Pneumatic Sleeve Control Valve incorporating bellows technology offers exceptional sealing capabilities through its unique design architecture. The bellows assembly acts as both a dynamic seal and a spring element, accommodating stem movement while maintaining complete isolation between the process fluid and atmosphere. This design eliminates the need for traditional packing materials, which can deteriorate over time and require frequent maintenance. The valve body construction typically features straight-through cage configurations with nominal diameters ranging from DN15 to DN400mm, accommodating pressure ratings from PN16 to PN64, with ANSI equivalents of 150, 300, and 600 class ratings.The actuator integration in bellows-type Pneumatic Sleeve Control Valve systems utilizes advanced pneumatic mechanisms with diaphragm-based positioning. These actuators employ ethylene-propylene rubber diaphragms reinforced with nylon substrates, providing reliable operation across temperature ranges from -30°C to +70°C. The spring ranges typically span 20-100KPa, 40-200KPa, and 80-240KPa configurations, with air supply pressures ranging from 140KPa to 400KPa depending on valve size and application requirements.

Operational Advantages and Performance Characteristics

The operational superiority of pneumatic bellows valves stems from their unique ability to provide zero-leakage performance under extreme operating conditions. Unlike traditional packed valves, bellows designs eliminate fugitive emissions entirely, making them particularly valuable in applications requiring strict environmental compliance or handling of toxic substances. The metallic bellows construction provides exceptional durability, with properly designed units capable of withstanding millions of operating cycles without degradation in sealing performance.Temperature resistance represents another significant advantage of bellows-based Pneumatic Sleeve Control Valve systems. The all-metal construction allows operation in temperature ranges from -196°C to +538°C, far exceeding the capabilities of elastomeric sealing systems. This temperature tolerance, combined with excellent pressure handling capabilities, makes bellows valves suitable for steam service, cryogenic applications, and high-temperature chemical processes. The absence of organic sealing materials also eliminates concerns about material compatibility with aggressive process fluids.Precision control characteristics define the operational excellence of modern bellows valve designs. The Pneumatic Sleeve Control Valve with bellows technology provides exceptional flow control accuracy through its balanced valve core design and precise actuator positioning. The equal percentage, linear, and quick-opening flow characteristics can be tailored to specific process requirements, ensuring optimal control performance across the entire operating range. The internal materials selection, including 304, 316, and specialized cladding options, ensures compatibility with diverse process media while maintaining long-term reliability.

Maintenance Requirements and Lifecycle Considerations

Maintenance considerations for bellows-type Pneumatic Sleeve Control Valve systems focus primarily on actuator servicing and periodic bellows inspection rather than traditional packing replacement. The elimination of packing materials significantly reduces routine maintenance requirements, as there are no sealing elements to adjust or replace during normal operation. However, bellows components require careful handling during installation and maintenance to prevent damage from over-extension or mechanical stress.The lifecycle performance of bellows valves depends heavily on proper application selection and operating parameter adherence. Bellows fatigue represents the primary failure mechanism, typically resulting from excessive stroke length, over-pressurization, or operating temperature extremes beyond design specifications. Proper sizing calculations must account for the bellows spring rate, which affects actuator sizing and control response characteristics. The Pneumatic Sleeve Control Valve with bellows technology requires specialized expertise for repair and refurbishment, as bellows replacement typically involves factory-level capabilities.Predictive maintenance strategies for bellows valve systems focus on monitoring actuator performance, bellows position indicators, and process parameter trending. Advanced diagnostic capabilities can identify potential bellows degradation before catastrophic failure, allowing for planned maintenance interventions. The robust construction of properly specified bellows valves often results in service lives exceeding 15-20 years with minimal intervention, providing excellent total cost of ownership compared to alternative sealing technologies.

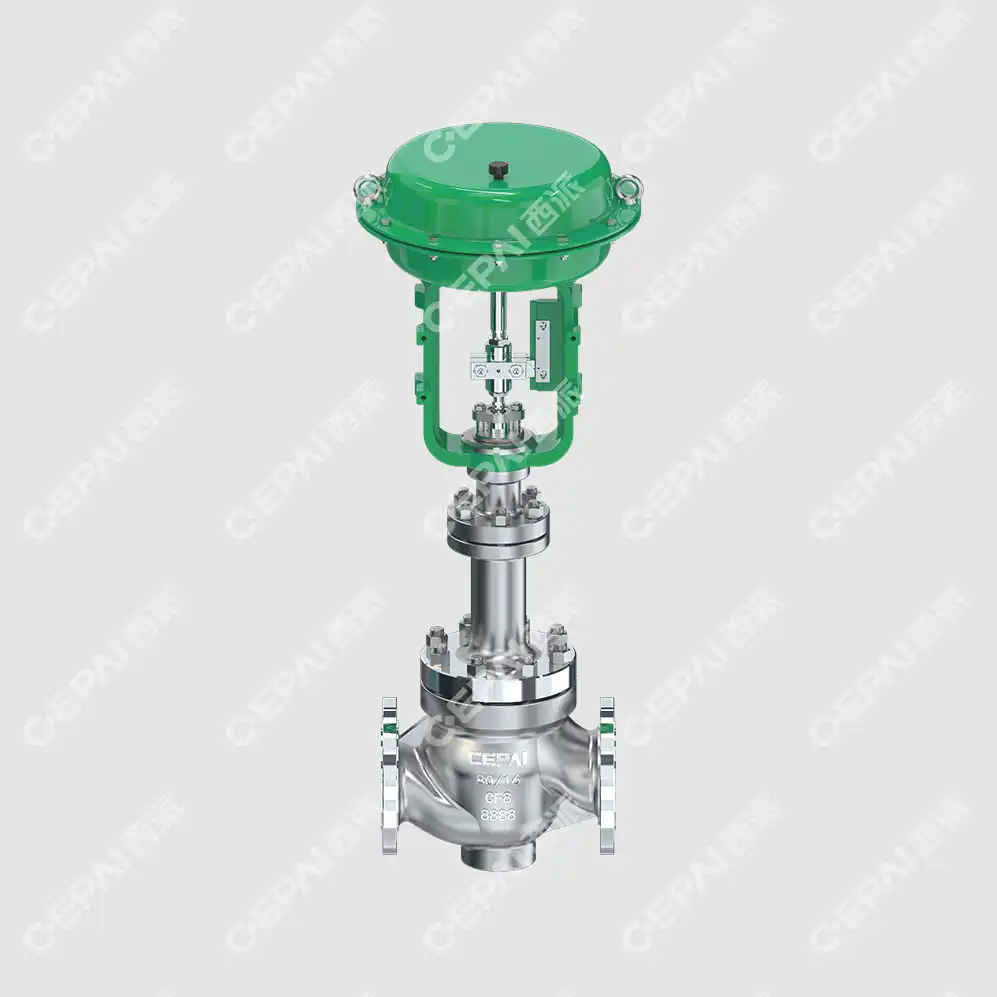

Exploring Diaphragm Valve Technology

Structural Design and Component Analysis

Diaphragm valves utilize a flexible membrane barrier to separate the actuating mechanism from process fluid, creating a unique valve configuration that offers distinct advantages in specific applications. The diaphragm component, typically manufactured from elastomeric materials such as EPDM, fluorocarbon, or specialized polymer compounds, provides both the sealing function and flow control mechanism. This design creates a smooth, crevice-free flow path that prevents media entrapment and facilitates easy cleaning, making diaphragm valves particularly suitable for sanitary applications and processes requiring high cleanliness standards.The Pneumatic Sleeve Control Valve incorporating diaphragm technology features a weir-type or straight-through body configuration that accommodates the flexible diaphragm assembly. The valve body construction typically utilizes corrosion-resistant materials such as stainless steel, exotic alloys, or polymer-lined configurations to handle aggressive process media. The diaphragm mounting system employs precision-machined surfaces and specialized clamping mechanisms to ensure proper sealing while allowing for diaphragm flexing during operation.Actuator integration in diaphragm-based Pneumatic Sleeve Control Valve systems requires careful consideration of diaphragm characteristics and operating requirements. The pneumatic actuator must provide sufficient force to overcome diaphragm resistance while maintaining precise positioning control. Modern actuator designs incorporate advanced positioning systems with digital feedback capabilities, enabling accurate flow control and remote monitoring functionality. The actuator sizing calculations must account for diaphragm spring characteristics, which vary with deflection and can affect control stability.

Performance Benefits and Application Suitability

The performance characteristics of diaphragm valves make them particularly well-suited for applications involving corrosive media, abrasive particles, or processes requiring exceptional cleanliness. The diaphragm barrier completely isolates the actuating mechanism from process fluid, preventing contamination and eliminating the risk of lubricant or foreign material introduction into the process stream. This isolation capability makes diaphragm-type Pneumatic Sleeve Control Valve systems ideal for pharmaceutical, food processing, and semiconductor manufacturing applications.Flow control precision in diaphragm valves depends on the diaphragm material properties and valve body geometry. Modern diaphragm designs incorporate optimized flow characteristics that provide excellent control accuracy across a wide range of flow conditions. The Pneumatic Sleeve Control Valve with diaphragm technology offers variable flow characteristics through different diaphragm profiles and valve body configurations, allowing customization for specific process requirements. The smooth flow passage design minimizes pressure drop and eliminates dead spaces that could harbor contaminants.Corrosion resistance represents a significant advantage of diaphragm valve technology, particularly when handling aggressive chemicals or processes requiring long-term reliability. The diaphragm material selection can be optimized for specific chemical compatibility, with fluoropolymer diaphragms providing exceptional resistance to most industrial chemicals. The valve body can be manufactured from exotic alloys or incorporate protective linings to ensure complete system compatibility with process media. This flexibility makes diaphragm-based Pneumatic Sleeve Control Valve systems suitable for the most challenging chemical processing applications.

​​​​​​​

Operational Limitations and Design Considerations

Temperature limitations represent the primary constraint in diaphragm valve applications, as elastomeric diaphragm materials have restricted operating temperature ranges compared to metallic alternatives. Most standard diaphragm materials operate effectively between -10°C to +150°C, with specialized compounds extending this range to approximately +200°C. The Pneumatic Sleeve Control Valve with diaphragm technology requires careful material selection to ensure compatibility with process temperature requirements while maintaining adequate service life.Pressure limitations in diaphragm valves stem from the mechanical properties of the diaphragm material and the valve body design. Standard diaphragm configurations typically handle pressures up to 10-16 bar, with reinforced designs extending capabilities to 25-40 bar in specific applications. The diaphragm thickness and material selection must balance flexibility requirements for proper valve operation against strength requirements for pressure containment. Higher pressure applications may require specialized diaphragm designs or alternative valve technologies.Maintenance requirements for diaphragm-based Pneumatic Sleeve Control Valve systems focus primarily on diaphragm replacement and actuator servicing. Diaphragm service life depends on operating conditions, including temperature, pressure, chemical exposure, and cycling frequency. Typical diaphragm replacement intervals range from 1-5 years depending on application severity, with some installations achieving longer service life through proper material selection and operating parameter optimization. The maintenance procedures require specialized tools and techniques to ensure proper diaphragm installation and sealing.

Comparative Analysis and Selection Criteria

Performance Comparison Across Key Parameters

The performance comparison between pneumatic bellows and diaphragm valves reveals distinct advantages for each technology across different operational parameters. Sealing performance represents a critical differentiator, with bellows valves providing absolute zero-leakage capability under extreme conditions, while diaphragm valves offer excellent sealing for moderate temperature and pressure applications. The Pneumatic Sleeve Control Valve technology in both configurations has evolved to provide superior performance compared to traditional valve designs, incorporating advanced materials and precision manufacturing techniques.Temperature handling capabilities clearly favor bellows valve technology, with metallic bellows accommodating temperature ranges from cryogenic to high-temperature steam service. Diaphragm valves, while limited by elastomeric material properties, excel in moderate temperature applications requiring exceptional cleanliness and corrosion resistance. The Pneumatic Sleeve Control Valve selection must consider the specific temperature profile of the application, including normal operating conditions, temperature excursions, and thermal cycling requirements.Pressure handling capabilities vary significantly between the two technologies, with bellows valves accommodating high-pressure applications up to ANSI Class 2500 in specialized configurations, while diaphragm valves typically limit to moderate pressure ranges. The Pneumatic Sleeve Control Valve pressure rating selection must account for both steady-state operating pressure and potential pressure surges or transients. Control accuracy and response characteristics show comparable performance between properly designed bellows and diaphragm systems, with both technologies capable of providing precise flow control when properly engineered and maintained.

Application-Specific Selection Guidelines

Chemical processing applications requiring zero-leakage performance for toxic, hazardous, or environmentally sensitive media strongly favor bellows valve technology. The metallic construction and hermetic sealing capability of bellows-type Pneumatic Sleeve Control Valve systems ensure complete containment of process fluids, meeting the most stringent environmental and safety requirements. Applications involving hydrogen service, chlorine handling, or radioactive materials typically specify bellows valves due to their proven zero-leakage performance.Pharmaceutical and food processing applications often prefer diaphragm valve technology due to the smooth, crevice-free flow path and ease of cleaning. The Pneumatic Sleeve Control Valve with diaphragm configuration provides excellent cleanability for CIP (Clean-in-Place) applications and eliminates contamination risks associated with traditional packing systems. The FDA-compliant materials and sanitary design features make diaphragm valves the preferred choice for sterile process applications.High-temperature steam service applications require bellows valve technology due to temperature limitations of elastomeric diaphragm materials. The Pneumatic Sleeve Control Valve with bellows construction can handle superheated steam conditions while maintaining zero-leakage performance. Conversely, applications involving aggressive acids, caustics, or corrosive media may favor diaphragm valves with specialized material selections that provide superior chemical compatibility compared to metallic bellows materials.

Economic and Lifecycle Considerations

Initial cost analysis reveals significant differences between bellows and diaphragm valve technologies, with bellows valves typically commanding higher initial investment due to complex manufacturing requirements and specialized materials. However, the Pneumatic Sleeve Control Valve with bellows technology often provides superior total cost of ownership through reduced maintenance requirements and extended service life. The elimination of packing replacement and adjustment reduces ongoing maintenance costs, while the robust construction provides reliable service over extended periods.Maintenance cost comparison favors bellows valves for long-term applications due to reduced routine maintenance requirements. Diaphragm valves require periodic diaphragm replacement, with associated labor costs and production downtime. The Pneumatic Sleeve Control Valve maintenance requirements must be evaluated based on specific application conditions, including operating severity, environmental factors, and maintenance access limitations. Spare parts availability and technical support capabilities also influence total lifecycle costs.Energy efficiency considerations may favor diaphragm valves in some applications due to lower pressure drop characteristics and reduced actuator force requirements. The smooth flow path of diaphragm valves minimizes pressure losses, while the flexible diaphragm operation requires less actuator force compared to bellows systems. The Pneumatic Sleeve Control Valve energy consumption analysis must consider both valve pressure drop and actuator air consumption to determine overall system efficiency and operating costs.

Conclusion

The selection between pneumatic bellows and diaphragm valves depends on specific application requirements, operating conditions, and performance priorities. Bellows valves excel in high-temperature, high-pressure environments requiring zero-leakage performance, while diaphragm valves offer superior capabilities for corrosive media handling and sanitary applications. Both technologies have evolved significantly, with modern Pneumatic Sleeve Control Valve designs incorporating advanced materials and precision engineering to deliver enhanced performance across diverse industrial sectors.
