How Control Valves Work:A Practical Engineering Guide?

Control valves represent the final control elements in process automation systems, serving as the critical interface between control systems and physical processes. Understanding how these essential components operate is fundamental for engineers working in petrochemical, power generation, water treatment, and manufacturing industries. A Control Valve functions by modulating flow rate, pressure, temperature, or liquid level by fully or partially opening or closing in response to signals from controllers. This comprehensive guide explores the intricate mechanisms, operational principles, and practical applications that make control valves indispensable in modern industrial automation, providing engineers with the technical knowledge necessary to select, install, and maintain these sophisticated devices effectively.

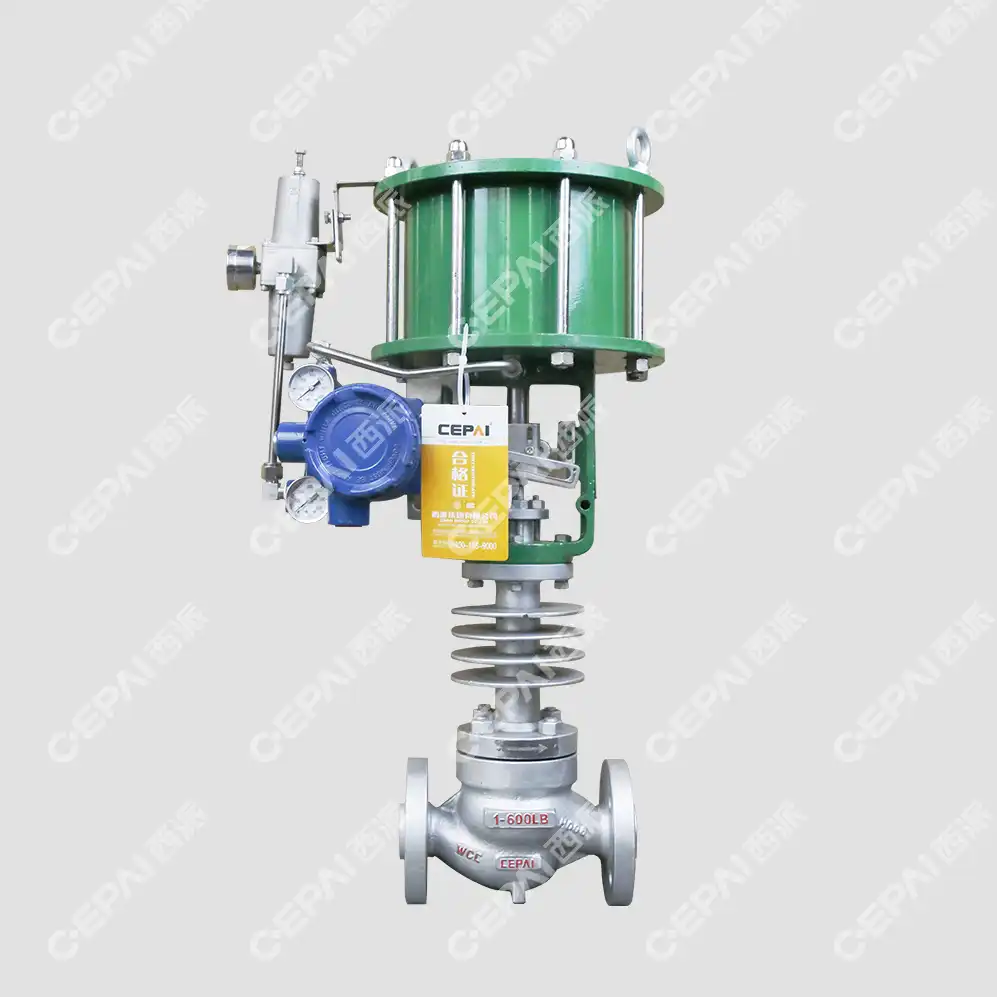

Fundamental Operating Principles of Control Valves

Actuator Mechanisms and Signal Processing

The actuator serves as the muscle of any Control Valve system, converting control signals into mechanical motion that positions the valve stem and ultimately controls the flow path. Pneumatic actuators remain the most prevalent choice in industrial applications due to their inherent safety characteristics and reliable performance under harsh conditions. These devices utilize compressed air to create linear or rotary motion, with spring-return mechanisms providing fail-safe positioning during power failures. The actuator receives signals from distributed control systems through current-to-pressure transducers, which convert 4-20 mA electronic signals into proportional pneumatic pressure typically ranging from 3 to 15 PSI. Electric actuators offer precise positioning capabilities and are particularly suitable for applications requiring high torque output or remote locations where compressed air is unavailable. Hydraulic actuators provide exceptional force output for large valve applications but require careful consideration of fluid compatibility and system complexity. The selection of actuator type significantly impacts the overall Control Valve performance, response time, and maintenance requirements.

Valve Body Design and Flow Characteristics

The valve body houses the flow control mechanism and determines the fundamental flow characteristics of the Control Valve assembly. Globe valve bodies provide excellent throttling capabilities with their linear flow path design, making them ideal for precise flow control applications. The valve plug and seat configuration creates a variable orifice that modulates flow area in response to stem position changes. Ball valve bodies offer superior shut-off capabilities and lower pressure drop characteristics, with their spherical closure element providing quarter-turn operation for rapid response applications. Butterfly valve bodies combine compact design with large flow capacity, utilizing a rotating disc to control flow area with minimal pressure loss. The inherent flow characteristic of a Control Valve describes the relationship between valve opening and flow rate under constant pressure drop conditions. Linear characteristic valves provide proportional flow changes relative to stem travel, while equal percentage valves deliver exponential flow increases that compensate for system pressure variations. Understanding these flow characteristics is crucial for proper valve sizing and selection to achieve desired control performance.

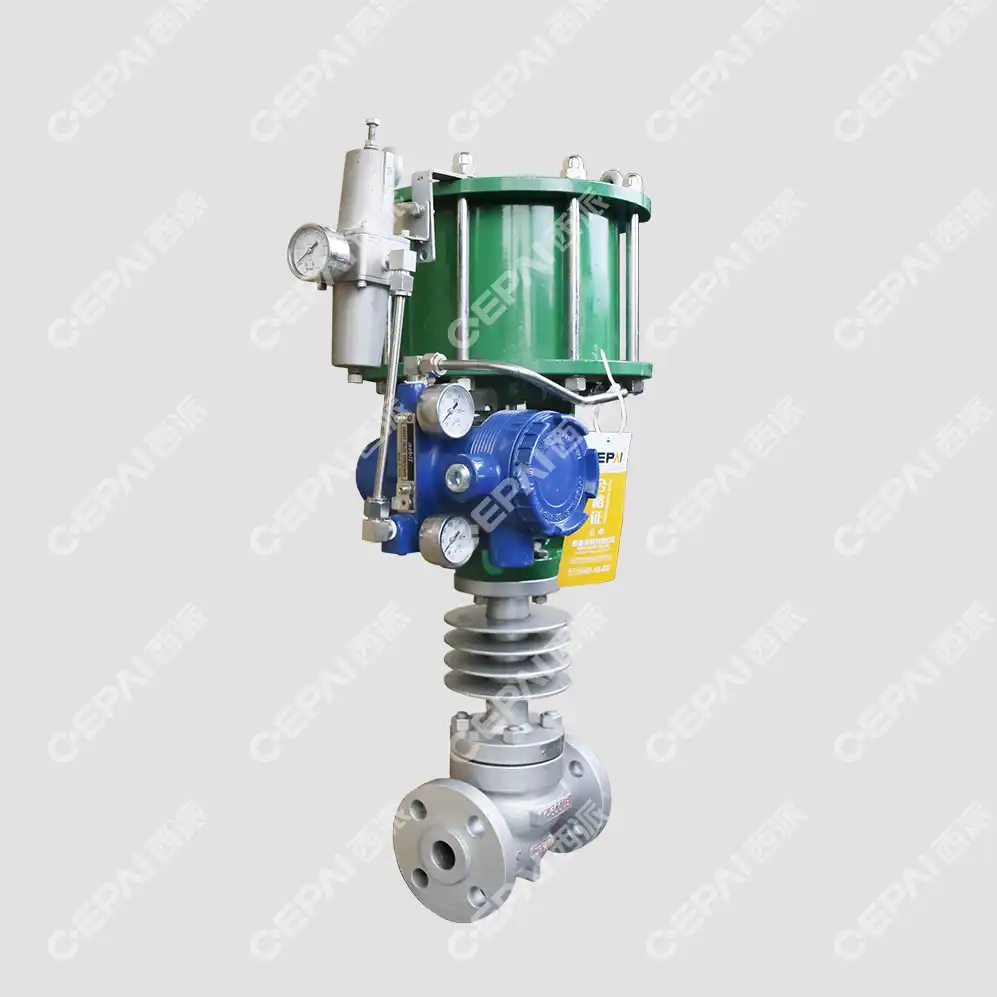

Positioner Technology and Feedback Systems

Modern Control Valve systems incorporate sophisticated positioner technology to ensure accurate valve positioning and maintain control loop stability. Pneumatic positioners utilize mechanical linkages and pneumatic relay systems to compare actual valve position with the desired setpoint signal, automatically adjusting actuator pressure to eliminate positioning errors. Digital positioners employ microprocessor-based control algorithms and precise position feedback sensors to achieve superior accuracy and repeatability compared to analog systems. These intelligent devices provide diagnostic capabilities, allowing operators to monitor valve performance, detect potential problems, and optimize maintenance schedules. Smart positioners incorporate digital communication protocols such as HART, Foundation Fieldbus, or Profibus, enabling bidirectional data exchange with control systems for advanced asset management. The feedback mechanism typically utilizes potentiometric sensors, magnetic sensors, or optical encoders to provide continuous position information. Proper positioner selection and calibration are essential for achieving optimal Control Valve performance, particularly in applications requiring tight control tolerances or frequent setpoint changes.

Critical Design Considerations and Selection Criteria

Pressure Rating and Temperature Limitations

Pressure and temperature ratings represent fundamental design parameters that determine the safe operating envelope of any Control Valve application. ANSI pressure class ratings such as 150, 300, 600, 900, 1500, and 2500 define the maximum allowable working pressure at specific temperatures, with derating factors applied as operating temperature increases. Material selection plays a crucial role in establishing these limits, with carbon steel bodies suitable for moderate temperature applications up to 850°F, while stainless steel and special alloys extend service capability to 1500°F and beyond. The valve trim, consisting of the plug, seat, and cage components, must be selected to withstand the most severe operating conditions while maintaining sealing integrity and flow control precision. Pressure drop calculations become critical when sizing Control Valve assemblies, as excessive pressure loss can cause cavitation, noise, and premature component wear. The pressure recovery factor and liquid pressure recovery factor help predict the onset of cavitation and establish safe operating limits. Temperature cycling effects must be considered in applications with frequent thermal transients, as differential expansion between valve components can affect sealing performance and control accuracy.

Flow Coefficient and Sizing Methodology

The flow coefficient (Cv) represents the fundamental sizing parameter for Control Valve selection, defined as the flow rate of water in gallons per minute that passes through the valve with a one PSI pressure drop at 60°F. Proper valve sizing requires careful analysis of maximum and minimum flow requirements, available pressure drop, and fluid properties including specific gravity, viscosity, and vapor pressure. The relationship between flow rate, pressure drop, and valve opening must be evaluated to ensure the valve operates within its effective control range, typically between 20% and 80% of full travel. Oversized valves result in poor control performance due to excessive sensitivity near the closed position, while undersized valves cannot accommodate maximum flow requirements. Reynolds number effects become significant in viscous fluid applications, requiring correction factors to account for reduced flow capacity. Gas and steam applications require different sizing equations that consider compressible flow effects and critical pressure ratios. Modern Control Valve sizing software incorporates these complex calculations and provides guidance for optimal valve selection based on process requirements and operating conditions.

Material Compatibility and Corrosion Resistance

Material selection for Control Valve components requires comprehensive analysis of process fluid compatibility, corrosion resistance requirements, and mechanical properties under operating conditions. The valve body material must resist both internal corrosion from process fluids and external environmental effects while maintaining structural integrity under pressure and temperature cycling. Stainless steel grades such as 316L provide excellent corrosion resistance for most chemical applications, while specialized alloys like Hastelloy, Inconel, or Monel may be required for severe corrosive environments. Trim materials experience the highest velocity and pressure differential conditions, requiring careful selection to prevent erosion, galling, and corrosion damage. Hard-facing materials such as Stellite or tungsten carbide coatings provide superior wear resistance in abrasive or high-velocity applications. Elastomeric components including O-rings, gaskets, and packing materials must maintain flexibility and sealing integrity while resisting chemical attack and temperature degradation. The compatibility of different materials in contact must be evaluated to prevent galvanic corrosion, particularly in marine or chemical processing environments. Proper material selection ensures reliable Control Valve operation and extends service life while minimizing maintenance requirements.

Advanced Applications and Performance Optimization

Noise Control and Vibration Mitigation

Noise generation in Control Valve applications results from turbulent flow, cavitation, and pressure reduction effects that create acoustic energy transmitted through both the fluid and piping system. Aerodynamic noise occurs when high-velocity gas flows create turbulence and pressure fluctuations, with sound levels potentially exceeding 100 dB in severe applications. Multiple orifice designs, such as cage-style trim configurations, help reduce noise by creating multiple pressure drops and distributing turbulent energy over a larger area. Cavitation noise results from the formation and collapse of vapor bubbles in liquid applications, creating both noise and potential damage to valve components. Anti-cavitation trim designs incorporate staged pressure reduction to maintain downstream pressure above the vapor pressure of the fluid, preventing bubble formation and associated noise. Vibration isolation and proper piping support design help prevent transmission of valve-generated vibrations to adjacent equipment and structures. The Control Valve installation must consider acoustic requirements and implement appropriate noise control measures to meet environmental regulations and protect personnel. Sound-absorbing materials, silencers, and acoustic enclosures may be required for applications in populated areas or noise-sensitive environments.

​​​​​​​

Smart Diagnostics and Predictive Maintenance

Modern Control Valve systems incorporate intelligent diagnostic capabilities that monitor valve performance, detect developing problems, and provide predictive maintenance recommendations. Digital positioners continuously monitor valve position, actuator pressure, and response time to identify performance degradation before failure occurs. Signature analysis compares current valve behavior with baseline performance data to detect changes in friction, leakage, or actuator problems. Partial stroke testing capability allows safety valves to be tested without process interruption, verifying functionality while maintaining system operation. Valve travel analysis identifies problems such as packing friction, actuator diaphragm degradation, or positioner calibration drift that affect control performance. Integration with asset management systems enables centralized monitoring of multiple Control Valve installations and optimization of maintenance schedules based on actual condition rather than arbitrary time intervals. Advanced diagnostic algorithms can predict remaining useful life and recommend proactive maintenance actions to prevent unexpected failures. These intelligent systems reduce maintenance costs, improve plant availability, and enhance safety by identifying potential problems before they cause process disruptions or equipment damage.

Energy Efficiency and Environmental Considerations

Energy efficiency in Control Valve applications encompasses both the energy consumed by the valve system itself and the impact on overall process efficiency. Proper valve sizing minimizes pressure drop and reduces pumping energy requirements while maintaining adequate control performance. Low-friction valve designs and advanced actuator technologies reduce operating energy consumption and improve response characteristics. Variable frequency drives on pump systems can work in conjunction with Control Valve systems to optimize energy usage across varying process conditions. Fugitive emission control represents a critical environmental consideration, with regulations requiring tight shut-off capabilities and minimal leakage rates. Live-loaded packing systems maintain consistent sealing force as packing materials compress and temperature changes occur. Bellows-sealed valves provide zero-emission solutions for critical applications handling toxic or environmentally sensitive fluids. The selection of environmentally friendly materials and manufacturing processes contributes to sustainability goals while meeting performance requirements. Lifecycle analysis considers the environmental impact of valve production, operation, and disposal to support sustainable engineering practices. Proper Control Valve selection and maintenance practices contribute to overall plant efficiency and environmental stewardship.

Conclusion

Control valves serve as the critical final control elements that transform digital control signals into precise flow modulation, making them indispensable components in modern industrial automation systems. The sophisticated integration of actuator technology, valve body design, and intelligent positioner systems enables these devices to maintain precise process control while adapting to changing operating conditions. Understanding fundamental operating principles, design considerations, and advanced applications empowers engineers to select, install, and maintain Control Valve systems that deliver optimal performance throughout their service life.
