When production lines suddenly halt due to valve failures, or when critical processes demand split-second response times, the difference between rapid response and precise control becomes a matter of operational success or costly downtime. The Pneumatic Ball Valve represents a critical solution that bridges this gap, offering both lightning-fast actuation and meticulous flow regulation. This comprehensive guide explores how modern pneumatic ball valve technology delivers both rapid response capabilities and precise control mechanisms, enabling engineers and plant operators to optimize their fluid control systems for maximum efficiency, safety, and reliability in demanding industrial applications.

Understanding Pneumatic Ball Valve Fundamentals

Core Operating Principles

The pneumatic ball valve operates through a sophisticated mechanism that converts compressed air energy into mechanical motion, enabling quick and efficient control of fluid flow. At its heart, the system features a spherical valve element with a bore through its center, which rotates 90 degrees to transition between fully open and fully closed positions. The pneumatic actuator, powered by compressed air typically ranging from 80 to 120 PSI, provides the driving force that rotates this ball element with remarkable precision and speed. The fundamental advantage of pneumatic actuation lies in its inherent characteristics of compressed air as a working medium. Unlike hydraulic systems that rely on incompressible fluids, or electric actuators that depend on motor-driven mechanisms, pneumatic systems harness the natural properties of compressed air to deliver instantaneous force transmission. This results in actuation times often measured in milliseconds rather than seconds, making pneumatic ball valves particularly valuable in applications where response time directly impacts process efficiency, product quality, or safety outcomes.

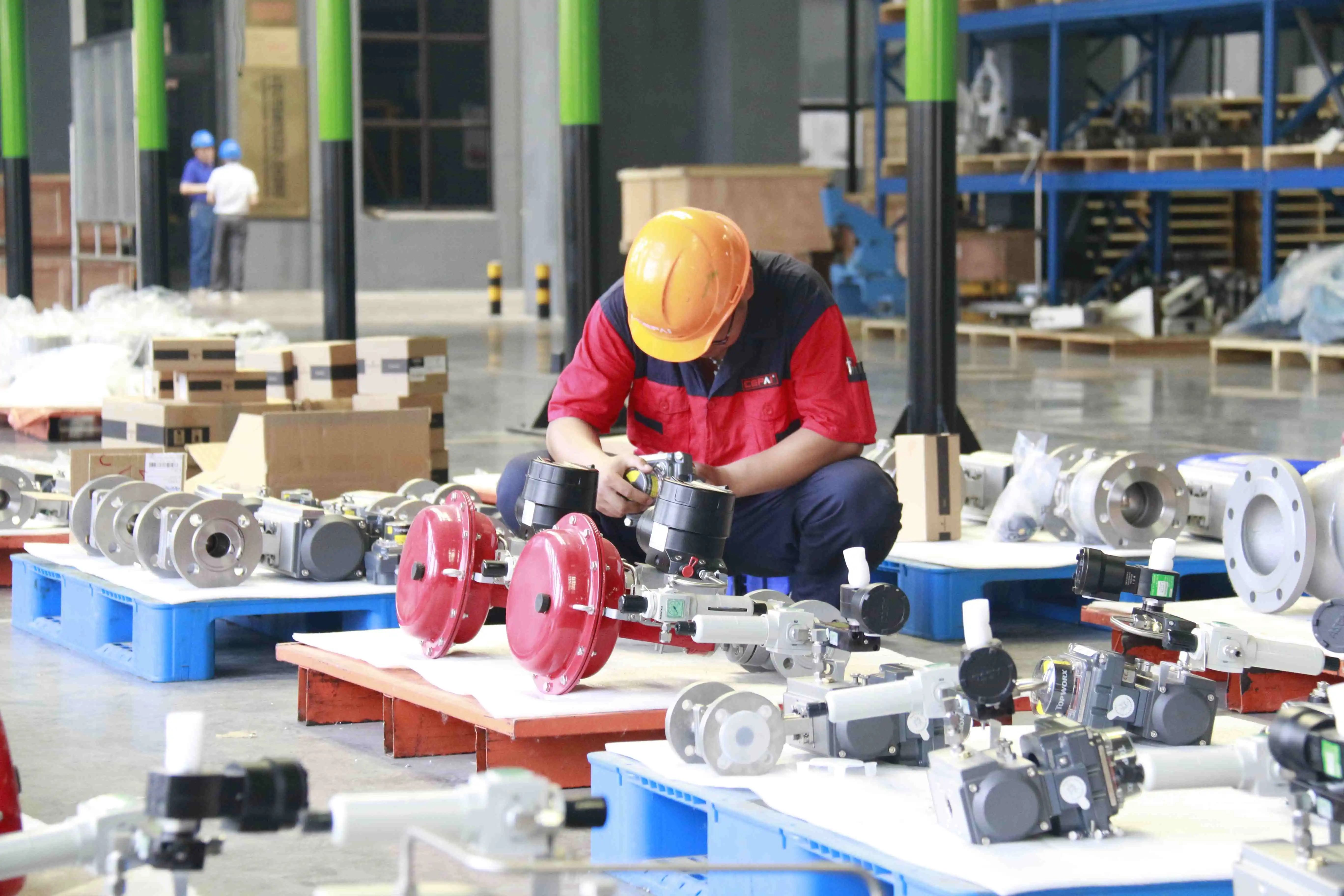

Cepai valves

Actuator Design and Construction

Modern pneumatic actuators for ball valves incorporate advanced engineering principles to optimize both speed and precision. The actuator housing typically contains a spring-return mechanism that ensures fail-safe operation, automatically returning the valve to a predetermined safe position upon air supply failure. Double-acting actuators provide enhanced control by using compressed air for both opening and closing operations, eliminating reliance on spring return mechanisms and enabling more precise positioning control throughout the valve's operating range. The torque output characteristics of pneumatic actuators are specifically designed to overcome the operational torques required by ball valves, including break-away torque needed to initiate rotation from a static position, running torque required to maintain rotation through the operating cycle, and seating torque necessary to achieve proper seal compression. Advanced actuator designs incorporate torque multiplication mechanisms that ensure adequate force delivery even under varying line pressures and temperature conditions, maintaining consistent performance across the valve's operational envelope.

Rapid Response Characteristics in Pneumatic Ball Valves

Speed of Operation Analysis

Pneumatic valves provide rapid response and high-speed actuation, with fast actuation times typically under 0.05 seconds, ensuring quick control for automated systems. The rapid response capability of pneumatic ball valves stems from several interconnected factors that work together to minimize actuation delay. The low mass of compressed air compared to hydraulic fluids allows for near-instantaneous pressure transmission through the actuator's air supply lines, while the rotary motion required for ball valve operation inherently requires less time than the linear motion needed for gate or globe valves. The response time of a pneumatic ball valve system encompasses several distinct phases: signal processing time, air supply delivery time, actuator response time, and mechanical completion time. Modern electronic pneumatic positioners can reduce signal processing delays to microseconds, while optimized air supply systems with properly sized supply lines and quick-exhaust valves minimize pneumatic delays. The mechanical response of the actuator and valve assembly, when properly designed and maintained, typically represents the smallest component of total response time, often completing full stroke operations in fractions of a second.

Applications Requiring Rapid Response

Emergency shutdown systems represent one of the most critical applications where rapid response pneumatic ball valves prove invaluable. In petrochemical plants, refineries, and power generation facilities, the ability to quickly isolate sections of piping or equipment can prevent catastrophic failures, protect personnel, and minimize environmental impact. These safety instrumented systems often specify maximum allowable response times measured in seconds or even milliseconds, making pneumatic ball valves the preferred choice over slower-responding alternatives. Process control applications in continuous manufacturing operations also benefit significantly from rapid response capabilities. In pharmaceutical manufacturing, food processing, and chemical production, the ability to quickly adjust flow rates or isolate process streams enables tighter control over product quality parameters, reduces waste generation, and improves overall process efficiency. The rapid cycling capability of pneumatic ball valves makes them particularly suitable for batch processing operations where frequent valve operations are required within compressed time schedules.

Precise Control Mechanisms and Performance

Modulating Control Capabilities

The spherical shape of the valve core in pneumatic ball valves, combined with the precise positioning of the pneumatic actuator, enables accurate flow control by rotating the ball to precisely adjust the flow passage area. While ball valves are traditionally associated with on-off service, modern pneumatic ball valve designs incorporating advanced actuator technology and sophisticated control systems can provide excellent modulating control performance. The key lies in the precise positioning capabilities of modern pneumatic positioners and the engineered flow characteristics of specially designed ball valve internals. Modulating pneumatic ball valves utilize characterized ball designs that provide specific flow versus position relationships. Linear, equal percentage, and quick-opening flow characteristics can be achieved through careful design of the ball port geometry, enabling the valve to deliver predictable and repeatable flow control performance. The pneumatic actuator, when equipped with precision positioners and feedback devices, can maintain valve position accuracy within fractions of a degree, translating to highly precise flow control even under varying process conditions.

Positioning Accuracy and Repeatability

The precision control performance of pneumatic ball valves is fundamentally dependent on the accuracy and repeatability of the actuator positioning system. Modern digital pneumatic positioners utilize advanced feedback control algorithms, high-resolution position sensors, and sophisticated air supply management to achieve positioning accuracies better than ±0.25% of full scale. This level of precision enables pneumatic ball valves to compete effectively with electric actuators in applications requiring tight control tolerances while maintaining the inherent speed advantages of pneumatic operation. Temperature compensation, pressure correction, and hysteresis elimination are critical factors in maintaining positioning precision over extended operating periods. Quality pneumatic positioners incorporate these compensations automatically, ensuring that control performance remains consistent despite changes in ambient conditions, supply air pressure variations, or normal wear in mechanical components. The repeatability of positioning, often specified as better than ±0.1% of full scale, enables process control systems to achieve stable operation with minimal process variability.

Comparative Analysis: Speed vs. Precision Trade-offs

Engineering Considerations

The relationship between rapid response and precise control in pneumatic ball valve applications involves complex engineering trade-offs that must be carefully evaluated for each specific application. High-speed operation typically requires higher actuator air flow rates, larger supply line sizes, and quick-exhaust valves that may introduce positioning overshoot or oscillation. Conversely, precise positioning control often benefits from dampened actuator response, smaller air flow rates, and sophisticated feedback control systems that may inherently slow the overall response time. The selection of appropriate pneumatic ball valve specifications requires careful analysis of the specific process requirements, including the relative importance of response time versus positioning accuracy, the frequency of valve operations, the required service life, and the consequences of positioning errors or slow response. In many applications, the optimal solution involves configurable actuator and positioner combinations that can be tuned to provide the best balance of speed and precision for the specific operating conditions.

Application-Specific Optimization

Different industrial applications place varying emphasis on the speed versus precision characteristics of pneumatic ball valve systems. Power generation applications, particularly in turbine bypass and emergency systems, prioritize rapid response over fine positioning control, accepting wider positioning tolerances in exchange for faster protection system response. Chemical processing applications, especially those involving precise batching or blending operations, may prioritize positioning accuracy and repeatability over maximum speed, requiring the valve system to maintain precise flow rates over extended periods. The optimization process typically involves detailed analysis of process dynamics, control system response requirements, and safety system specifications. Advanced pneumatic ball valve systems can incorporate dual-mode operation capabilities, providing rapid response for emergency or startup operations and precise positioning for normal control service. This flexibility enables a single valve system to meet the diverse requirements of complex industrial processes while minimizing the total number of valves required in the system.

Technical Specifications and Performance Parameters

Pressure and Temperature Capabilities

Modern pneumatic ball valves are engineered to operate across extensive pressure and temperature ranges while maintaining both rapid response and precise control capabilities. Standard designs typically handle pressures from vacuum service to 2000 PSI or higher, with specialized designs available for ultra-high pressure applications exceeding 10,000 PSI. The temperature range capabilities extend from cryogenic service at -320°F to high-temperature applications reaching 1000°F or higher, depending on material selection and actuator design. The interaction between operating pressure, temperature, and pneumatic actuator performance requires careful consideration in system design. Higher line pressures increase the torque requirements for valve operation, potentially affecting response time unless the actuator is appropriately sized with adequate torque margins. Temperature variations affect both the valve body materials and the pneumatic actuator components, with thermal expansion considerations impacting positioning accuracy and mechanical clearances affecting operational smoothness.

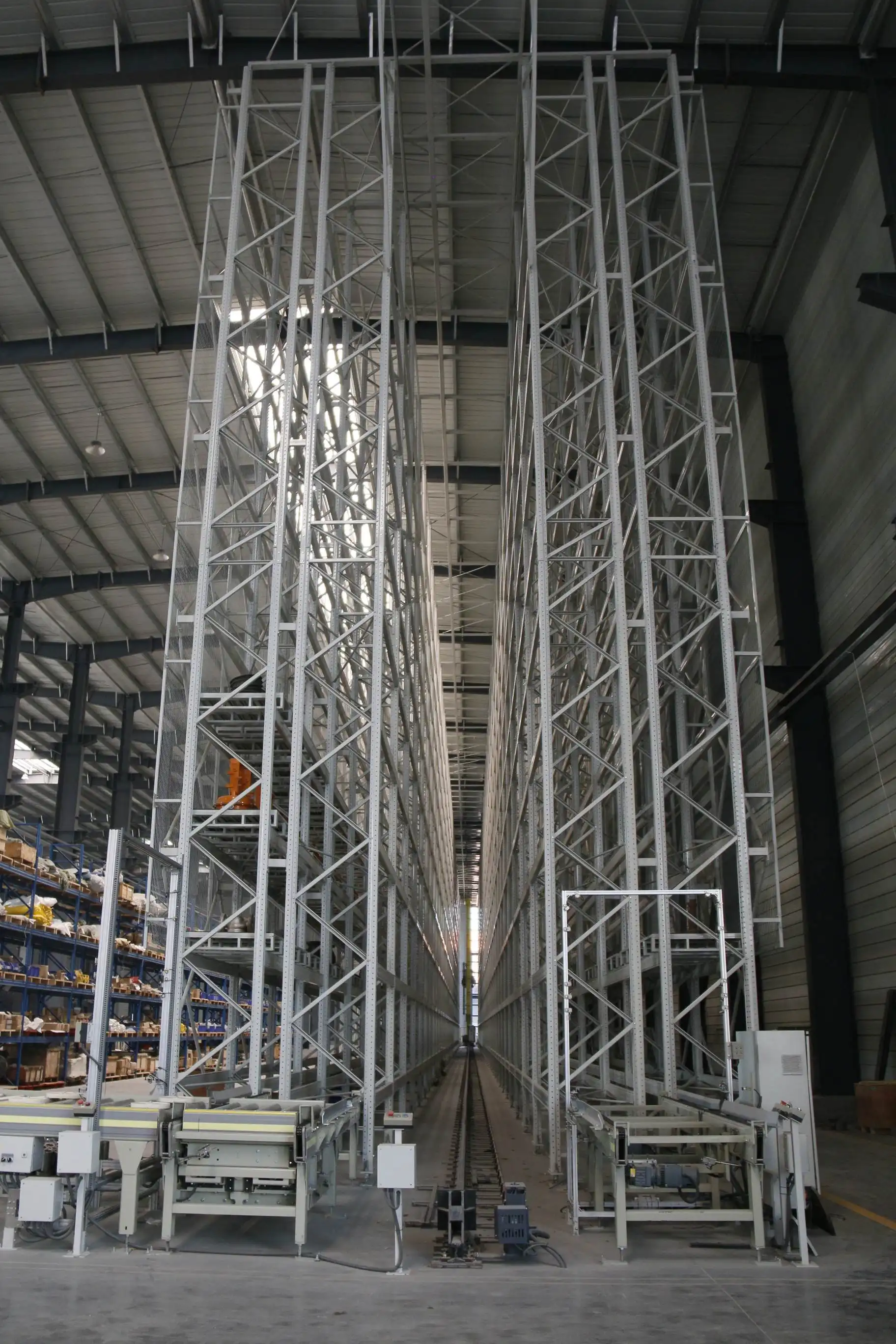

Cepai warehouse

Flow Characteristics and Cv Values

The flow capacity of pneumatic ball valves, expressed as Cv values, represents a critical performance parameter that directly impacts both control precision and system efficiency. Full-bore ball valves provide maximum flow capacity with Cv values approaching the theoretical maximum for a given pipe size, minimizing pressure drop and energy consumption in the system. Reduced-bore designs offer improved control characteristics at the expense of some flow capacity, providing better rangeability and more linear flow versus position relationships for precise control applications. The relationship between valve size, flow capacity, and control performance involves complex fluid dynamics considerations. Larger valve sizes provide higher maximum flow rates but may sacrifice control precision at low flow rates due to reduced rangeability. Smaller valves offer better control resolution but may introduce excessive pressure drop or require higher operating frequencies in applications with large flow variations. The optimal valve sizing requires careful analysis of the full range of operating conditions, including minimum and maximum flow requirements, available pressure differentials, and required control accuracy throughout the operating range.

Industry Applications and Case Studies

Oil and Gas Sector Implementation

The oil and gas industry represents one of the largest application areas for pneumatic ball valves, where both rapid response and precise control capabilities are essential for safe and efficient operations. Upstream drilling operations utilize pneumatic ball valves in choke and kill systems, where rapid response is critical for well pressure control and blowout prevention. The ability to quickly isolate well pressure or adjust flow rates can prevent catastrophic failures and protect personnel and equipment. Midstream pipeline operations benefit from the rapid response characteristics of pneumatic ball valves in emergency shutdown systems and pipeline isolation applications. The ability to quickly isolate pipeline sections during leak detection or maintenance operations minimizes product loss and environmental impact. Downstream refinery operations utilize the precise control capabilities of pneumatic ball valves in process control applications, where accurate flow regulation is essential for product quality and process efficiency.

Power Generation Applications

Power generation facilities, including coal-fired, gas-fired, and nuclear plants, rely extensively on pneumatic ball valves for both safety and control functions. Steam turbine bypass systems require extremely rapid response to prevent overspeed conditions during load rejection events, with response times measured in milliseconds being critical for equipment protection. The high-temperature and high-pressure conditions typical of power plant applications demand robust valve designs that maintain performance reliability over extended operating periods. Combined cycle power plants utilize pneumatic ball valves in gas turbine fuel systems, where precise control of fuel flow rates is essential for emissions compliance and operational efficiency. The ability to accurately modulate fuel flow in response to load changes while maintaining rapid response capability for emergency shutdown ensures both operational flexibility and safety system compliance. Nuclear power applications require pneumatic ball valves that meet stringent quality standards and provide reliable operation in radiation environments while maintaining both rapid response and precise control capabilities.

Advanced Control Integration and Automation

SCADA and DCS Integration

Modern pneumatic ball valve systems integrate seamlessly with distributed control systems and supervisory control and data acquisition networks, providing comprehensive monitoring and control capabilities while maintaining the inherent advantages of pneumatic operation. Digital pneumatic positioners equipped with communication protocols such as HART, Foundation Fieldbus, or Profibus enable real-time monitoring of valve position, actuator air pressure, control signal status, and diagnostic parameters. The integration capabilities extend beyond basic position feedback to include advanced diagnostic features that monitor valve performance trends, predict maintenance requirements, and provide early warning of potential failures. Smart positioners can detect issues such as actuator air leakage, positioner calibration drift, valve packing friction increases, and control signal anomalies, enabling proactive maintenance strategies that minimize unplanned downtime and maintain optimal performance throughout the valve's service life.

Predictive Maintenance and Diagnostics

Advanced pneumatic ball valve systems incorporate sophisticated diagnostic capabilities that enable predictive maintenance strategies and performance optimization. Continuous monitoring of key performance parameters, including positioning accuracy, response time, air consumption, and control stability, provides comprehensive insight into valve system health and performance trends. Statistical analysis of performance data enables prediction of maintenance requirements before failures occur, reducing maintenance costs and improving system reliability. The diagnostic capabilities extend to detailed analysis of control loop performance, enabling optimization of tuning parameters for both rapid response and precise control applications. Advanced systems can automatically adjust positioner parameters to compensate for changes in process conditions, valve wear, or actuator performance, maintaining optimal control performance throughout the valve's service life without manual intervention.

Conclusion

Pneumatic ball valves successfully bridge the critical gap between rapid response and precise control, offering industrial applications the flexibility to optimize performance for specific operational requirements. The inherent advantages of pneumatic actuation, including fast response times, high reliability, and excellent positioning accuracy, make these valve systems indispensable across diverse industries from oil and gas to power generation and chemical processing, where both speed and precision are essential for safe, efficient, and profitable operations.

Cooperate with CEPAI Group Co., LTD.

CEPAI Group Co., LTD., established in 2009 with 200 million yuan registered capital, stands as a leading China Pneumatic Ball Valve manufacturer and China Pneumatic Ball Valve supplier, specializing in high-end energy valve manufacturing with advanced intelligent production capabilities. Located in Jiangsu Province's Jinhu Economic Development Zone, our 56,000-square-meter facility operates as a national high-tech enterprise, featuring the longest high-precision intelligent manufacturing flexible production line in the Asia Pacific region, built with 156 million yuan investment in intelligent transformation and upgrading.

As a premier China Pneumatic Ball Valve factory and China Pneumatic Ball Valve wholesale provider, CEPAI Group offers Pneumatic Ball Valve for sale with exceptional durability and High Quality Pneumatic Ball Valve performance at competitive Pneumatic Ball Valve price points. Our comprehensive qualifications include API Q1, API 6A, API 6D, ISO 9001, and CE certifications, ensuring international standard compliance. With supplier qualifications from PetroChina, Sinopec, and CNOOC, plus partnerships with China Datang Group and China Huaneng, we deliver proven reliability across critical applications.

Experience our exceptional pre-sales technical consultation, customized solutions, installation support, and comprehensive after-sales service. Contact us at cepai@cepai.com for your pneumatic ball valve requirements and discover why leading companies trust CEPAI Group for their critical flow control applications.

FAQ

Q: What is the typical response time for pneumatic ball valves in emergency shutdown applications?

A: Pneumatic ball valves typically achieve full stroke operation in under 1 second for emergency shutdown, with many designs capable of response times under 0.5 seconds.

Q: Can pneumatic ball valves provide accurate modulating control like control valves?

A: Yes, modern pneumatic ball valves with digital positioners can achieve positioning accuracy within ±0.25% of full scale, suitable for precise modulating control applications.

Q: What pressure ranges can pneumatic ball valves handle effectively?

A: Pneumatic ball valves operate effectively from vacuum service to over 2000 PSI, with specialized designs available for ultra-high pressure applications exceeding 10,000 PSI.

Q: How do pneumatic ball valves compare to electric actuated valves in terms of speed?

A: Pneumatic ball valves typically provide 3-5 times faster response than electric actuated valves due to the immediate force transmission characteristics of compressed air.
