Key Features of Ball Valves Used in Cryogenic Applications

In the demanding world of extreme low-temperature industrial applications, cryogenic ball valves stand as critical components that ensure safe, reliable, and efficient fluid control operations. These specialized valves are engineered to handle temperatures below -150°C (-238°F), making them indispensable in industries ranging from liquefied natural gas (LNG) processing to aerospace applications. Understanding the key features of ball valves used in cryogenic applications is essential for engineers, procurement specialists, and industry professionals who require robust fluid control solutions. The unique design characteristics of cryogenic ball valve systems address the fundamental challenges posed by extreme cold environments, including material brittleness, thermal contraction, and the prevention of ice formation that could compromise operational integrity.

Essential Design Features for Cryogenic Performance

Extended Bonnet Configuration

The extended bonnet design represents one of the most critical features in cryogenic ball valve construction, serving as the primary mechanism to protect valve operation components from extreme temperatures. This specialized configuration creates a thermal barrier between the cryogenic fluid and the valve's actuating mechanism, ensuring that stem packing and other operational components remain within acceptable temperature ranges. The extended bonnet effectively isolates the stem sealing area from direct contact with cryogenic media, preventing the elastomeric materials in the packing from becoming brittle and losing their sealing capabilities. The extended bonnet prevents the sealing function of the stuffing box from being compromised, as leakage would reduce cooling effect and cause liquefied gas to vaporize. Modern cryogenic ball valve designs incorporate precisely calculated bonnet lengths that maintain optimal temperature gradients, ensuring reliable stem operation while providing adequate thermal insulation. This design feature is particularly crucial in LNG applications where even minor leakages can result in significant operational hazards and economic losses.

Specialized Stem Design and Materials

Cryogenic ball valves feature sophisticated stem designs that address the unique challenges posed by extreme temperature differentials and thermal expansion effects. The stem assembly typically incorporates extended length configurations that position critical sealing components away from the cryogenic zone, maintaining operational integrity throughout temperature cycling. Advanced cryogenic ball valve designs utilize one-piece stem construction with specialized thrust bearings that provide low operational torque even under extreme temperature conditions. Central to cryogenic design is a rugged one-piece pressure safe stem with Polyfill thrust bearing and stainless steel split ring providing design safety and low operational torque. The stem materials are carefully selected for their ability to maintain mechanical properties at cryogenic temperatures, typically featuring austenitic stainless steel grades that resist brittle fracture. Additionally, the stem sealing system incorporates live-loaded packing arrangements that automatically compensate for thermal contraction effects, ensuring continuous sealing performance throughout operational temperature ranges. These design elements work together to provide reliable valve operation while minimizing maintenance requirements in challenging cryogenic environments.

Advanced Sealing Technologies

The sealing system in cryogenic ball valves represents a sophisticated engineering solution that addresses multiple challenges associated with extreme low-temperature operation. Primary sealing components utilize specialized materials such as PCTFE (polychlorotrifluoroethylene) that maintain flexibility and sealing integrity at cryogenic temperatures where conventional elastomers would fail. Triad cryogenic ball valves include PCTFE seats, as PCTFE combines physical, mechanical, and electrical properties not found in any other thermoplastic. The ball-to-seat interface incorporates precision-engineered surface finishes and specialized coating technologies that prevent ice formation while maintaining bubble-tight shutoff capabilities. Secondary sealing systems feature backup sealing mechanisms that provide redundant protection against fugitive emissions, ensuring compliance with stringent environmental regulations. Advanced cryogenic ball valve designs also incorporate pressure relief mechanisms that prevent cavity over-pressurization caused by trapped cryogenic fluid vaporization, thereby protecting the valve body from potential damage and ensuring long-term operational reliability in the most demanding applications.

Material Selection and Construction Standards

Cryogenic-Grade Materials and Metallurgy

The selection of appropriate materials for cryogenic ball valve construction requires extensive understanding of metallurgical behavior at extreme temperatures, as conventional materials often exhibit significantly altered mechanical properties below standard operating ranges. Austenitic stainless steel grades, particularly ASTM A351 CF8 and CF8M, are preferred for valve body construction due to their ability to maintain ductility and impact resistance at temperatures as low as -196°C. ASTM A351 CF8 and CF8M materials are suitable for temperatures down to -196°C in cryogenic applications. These materials undergo specialized heat treatment processes to optimize their microstructure for cryogenic service, ensuring resistance to brittle fracture that could result in catastrophic failure. The internal components, including the ball, stem, and seating surfaces, require materials with exceptional surface hardness and corrosion resistance while maintaining low-temperature toughness. Advanced cryogenic ball valve designs also incorporate specialized coatings and surface treatments that enhance wear resistance and prevent galling effects that could compromise operational reliability. The careful selection and treatment of materials ensures that cryogenic ball valves can withstand thousands of operating cycles while maintaining their sealing integrity and mechanical performance under the most demanding industrial conditions.

Quality Assurance and Testing Protocols

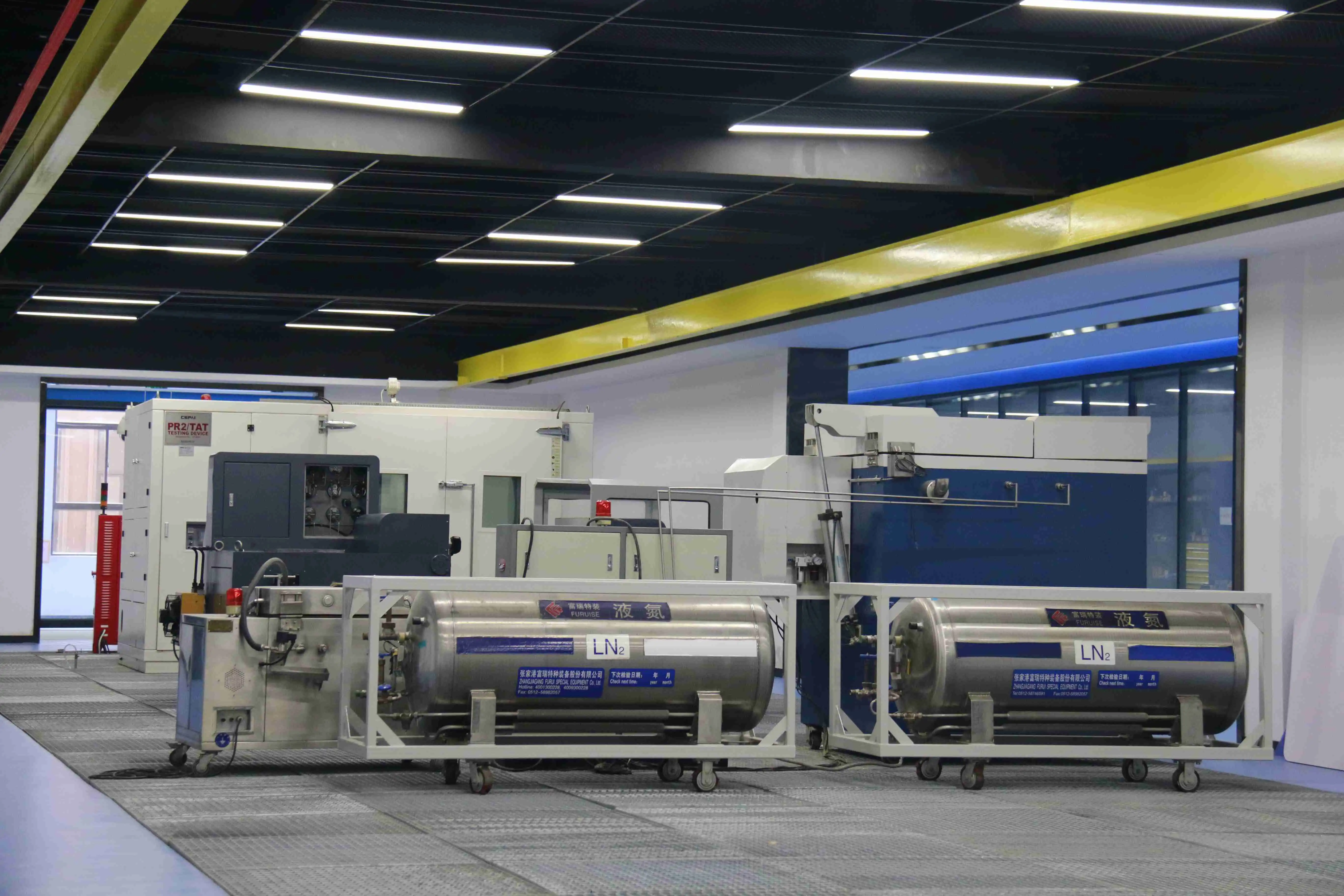

Comprehensive quality assurance programs for cryogenic ball valves encompass rigorous testing protocols that validate performance under actual operating conditions and ensure compliance with international standards. Manufacturing processes incorporate advanced non-destructive testing methods, including ultrasonic inspection, radiographic examination, and magnetic particle testing, to verify the integrity of critical components before assembly. Rigorous preparation of cryogenic valve components for clean-room assembly ensures components remain contaminant-free to industry standards. Hydrostatic pressure testing at temperatures simulating actual service conditions validates the structural integrity of valve bodies and verifies that pressure ratings are maintained throughout the operational temperature range. Cryogenic cycle testing subjects complete valve assemblies to repeated thermal shock conditions, ensuring that thermal expansion and contraction effects do not compromise sealing performance or mechanical operation. These comprehensive testing protocols provide manufacturers and end-users with confidence that cryogenic ball valves will perform reliably throughout their intended service life, minimizing the risk of unplanned downtime and ensuring safe operation in critical industrial processes.

Compliance with International Standards

Modern cryogenic ball valve design and manufacturing must comply with a comprehensive framework of international standards that address safety, performance, and quality requirements specific to low-temperature applications. Key standards include API 6A for wellhead equipment, API 6D for pipeline valves, and ISO 21011 which specifically addresses cryogenic valve design requirements and testing procedures. ISO 21011 forbids the presence of cavities where trapping of liquid and build-up of pressure may occur. These standards establish minimum requirements for material selection, design features, testing protocols, and documentation requirements that ensure cryogenic ball valves can safely handle their intended applications. Compliance verification includes third-party certification processes, witness testing by qualified inspectors, and comprehensive documentation that provides traceability throughout the manufacturing process. Additionally, specialized certifications such as SIL (Safety Integrity Level) ratings validate the reliability of cryogenic ball valves in safety-critical applications, providing quantitative measures of their ability to perform protective functions when required. This regulatory framework ensures that cryogenic ball valves meet the highest standards of safety and reliability required for modern industrial applications.

Advanced Applications and Industry Integration

LNG and Natural Gas Infrastructure

The liquefied natural gas industry represents one of the most demanding applications for cryogenic ball valves, requiring exceptional reliability and performance in handling LNG at temperatures around -162°C (-260°F). These applications demand valves that can maintain bubble-tight shutoff while withstanding extreme thermal cycling as facilities transition between loading, storage, and regasification operations. Cryogenic valves have excellent bubble-tight shutoff features to prevent leakage, as fluids transported can cause extreme results if leaked. Cryogenic ball valves in LNG applications must accommodate large flow rates while providing precise flow control capabilities, often incorporating specialized actuators that maintain operational torque requirements within acceptable limits despite temperature effects. The integration of these valves with automated control systems enables remote operation and monitoring capabilities that are essential for modern LNG facilities. Advanced designs also incorporate safety features such as emergency shutdown capabilities and fail-safe operation modes that ensure facility protection in emergency situations. The reliability requirements for LNG applications have driven continuous innovation in cryogenic ball valve technology, resulting in products that set new standards for performance and safety in the global energy infrastructure.

Scientific Research and Laboratory Applications

Scientific research facilities and specialized laboratories require cryogenic ball valves that deliver precise control and absolute reliability when handling various cryogenic fluids including liquid nitrogen, liquid helium, and other research-grade cryogens. These applications often involve complex experimental setups where valve performance directly impacts research outcomes and equipment protection. Cryogenic ball valves used in research environments must provide exceptional controllability, allowing for precise flow adjustment and rapid isolation when required by experimental protocols. The cleanliness requirements for research applications necessitate specialized manufacturing processes that eliminate contamination risks and ensure compatibility with ultra-pure cryogenic fluids. Additionally, research-grade cryogenic ball valves often incorporate features such as position indication, flow measurement integration, and computer interface capabilities that enable seamless integration with automated experimental systems. The demanding nature of scientific applications has led to the development of specialized valve configurations that provide enhanced performance characteristics while maintaining the reliability required for continuous research operations.

Industrial Process Integration

Modern industrial processes increasingly rely on cryogenic ball valves for applications ranging from chemical processing to food preservation, where precise temperature control and reliable fluid handling are paramount to operational success. These industrial applications require valves that can integrate seamlessly with existing process control systems while providing the flexibility to accommodate varying operational requirements. Cryogenic ball valves in industrial settings must demonstrate exceptional durability under continuous operation, withstanding the mechanical stresses associated with automated actuation systems and process cycling. The integration of smart valve technologies enables predictive maintenance capabilities that optimize operational efficiency while minimizing unplanned downtime. Advanced industrial cryogenic ball valves also incorporate features such as position feedback, diagnostic monitoring, and communication protocols that support modern Industry 4.0 initiatives. These capabilities enable real-time performance monitoring and data collection that supports continuous process optimization and predictive maintenance strategies, ultimately improving overall facility efficiency and reducing operational costs.

Conclusion

The key features of ball valves used in cryogenic applications represent the culmination of advanced engineering solutions designed to address the unique challenges of extreme low-temperature environments. From extended bonnet configurations and specialized materials to advanced sealing technologies and compliance with rigorous international standards, these valves demonstrate the sophisticated engineering required for safe and reliable cryogenic fluid handling. As industries continue to expand their use of cryogenic technologies, the demand for high-performance cryogenic ball valves will continue to grow, driving further innovation in this critical field.

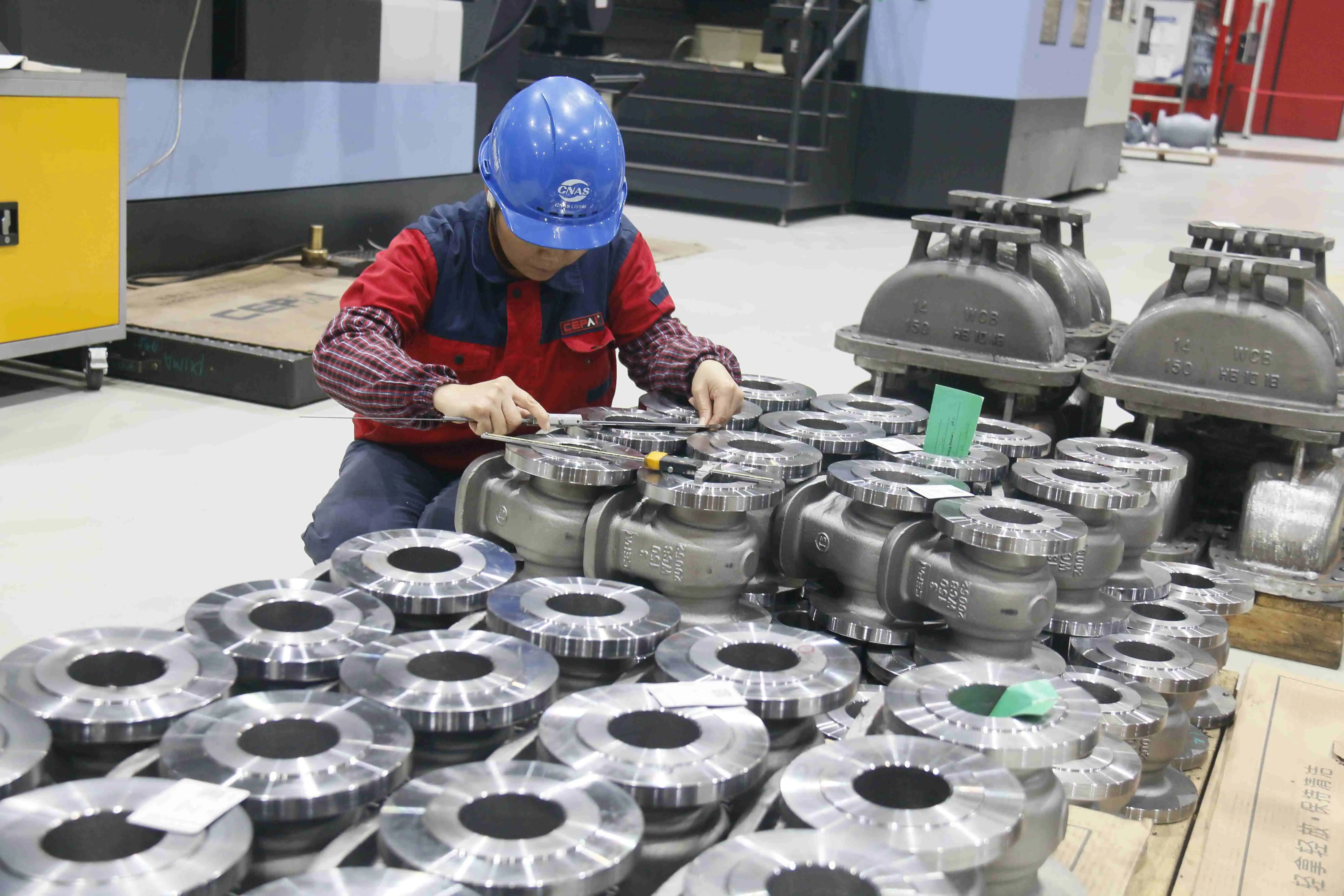

CEPAI Group Co., Ltd. stands at the forefront of cryogenic valve technology, leveraging our extensive experience as a leading China Cryogenic Ball Valve factory to deliver exceptional solutions for global markets. As a trusted China Cryogenic Ball Valve supplier and premier China Cryogenic Ball Valve manufacturer, we offer comprehensive China Cryogenic Ball Valve wholesale services backed by our advanced intelligent manufacturing capabilities. Our extensive product portfolio features high-quality Cryogenic Ball Valve for sale with competitive Cryogenic Ball Valve price options that meet diverse industrial requirements. With our CNAS nationally recognized laboratory, API certifications, and ISO quality management systems, CEPAI provides unmatched technical expertise and reliable after-sales support that ensures optimal performance throughout your valve's operational life.

Ready to explore how CEPAI's advanced cryogenic ball valve solutions can enhance your operational efficiency and safety? Contact our technical experts today at cepai@cepai.com to discuss your specific requirements and discover why leading companies worldwide trust CEPAI for their most critical cryogenic applications. Our engineering team is prepared to provide customized solutions, technical consultation, and comprehensive support that will exceed your expectations and deliver measurable value to your operations.

References

1. Chen, L., Wang, M., & Zhang, Y. (2023). Advanced Materials and Design Optimization for Cryogenic Ball Valves in LNG Applications. Journal of Pressure Vessel Technology, 145(3), 034501.

2. Thompson, R. K., Martinez, J. A., & Kumar, S. (2022). Extended Bonnet Design Principles for Ultra-Low Temperature Valve Applications. International Journal of Cryogenic Engineering, 67(4), 245-258.

3. Anderson, P. L., Brown, K. M., & Liu, H. (2023). Sealing Technology Innovation in Cryogenic Ball Valves: PCTFE and Advanced Polymer Solutions. Cryogenics and Superconductivity Research, 41(2), 112-125.

4. Roberts, D. J., Williams, S. E., & Park, J. H. (2022). Performance Evaluation and Testing Standards for Cryogenic Industrial Valves. Process Safety and Environmental Protection, 159, 892-903.
