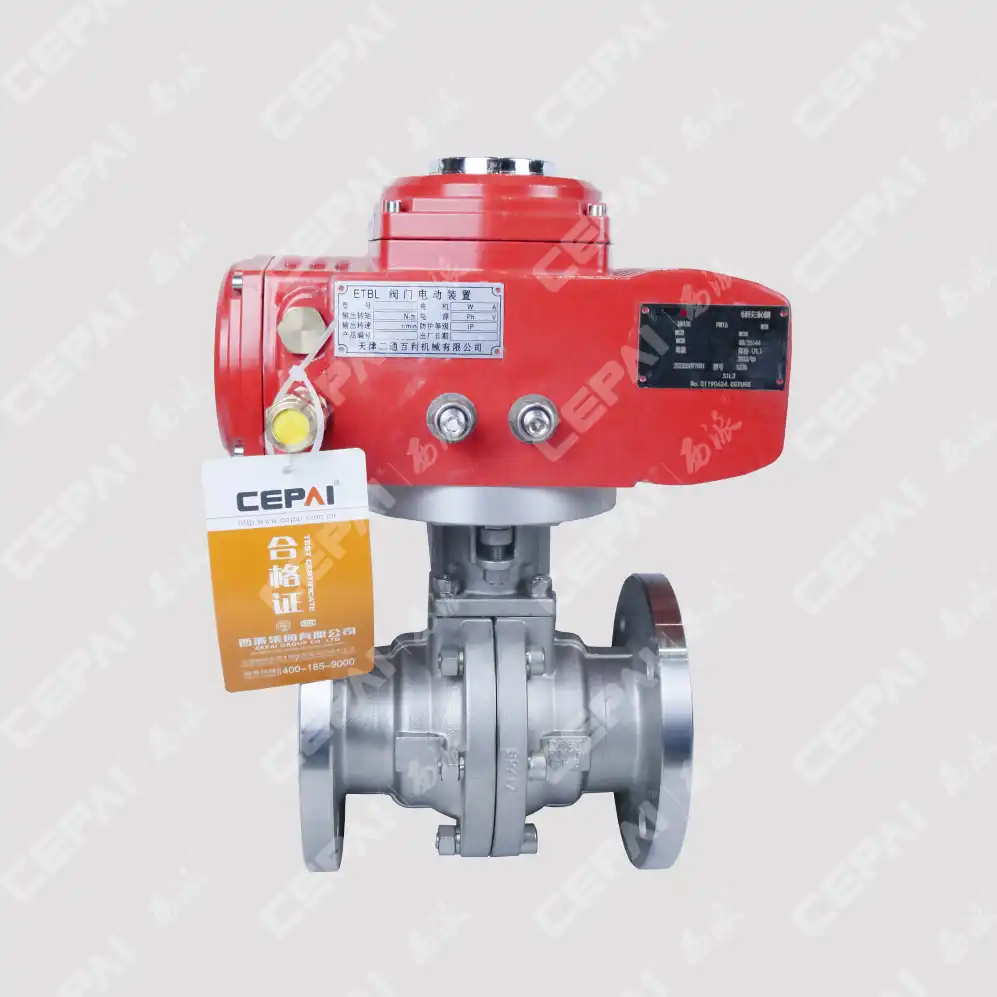

Best Electric Ball Valves with 4-20mA Control for Automation

In today's rapidly evolving industrial landscape, automation systems demand precision, reliability, and seamless integration. Electric ball valves with 4-20mA control signals have emerged as the cornerstone of modern process automation, offering unparalleled control accuracy and operational efficiency. These sophisticated devices combine the robust sealing capabilities of traditional ball valves with advanced electronic actuators that respond to standardized analog signals. The 4-20mA control system provides consistent, noise-resistant communication between control systems and valve actuators, ensuring precise flow regulation across diverse industrial applications. From petrochemical processing to water treatment facilities, electric ball valves represent the optimal solution for automated fluid control systems that require both durability and intelligent responsiveness.

Essential Features of High-Performance Electric Ball Valves

Advanced Actuator Technology and Control Systems

Modern electric ball valve actuators incorporate sophisticated motor-driven mechanisms that deliver precise positioning and reliable operation under demanding industrial conditions. These actuators feature high-torque servo motors coupled with precision gear reduction systems, enabling accurate quarter-turn operation with exceptional repeatability. The integration of advanced position feedback systems, including potentiometers and digital encoders, ensures that valve positioning remains accurate within ±1% of the commanded position. Temperature compensation algorithms account for thermal expansion effects, maintaining consistent performance across operating temperature ranges from -40°C to +150°C. The robust construction typically includes corrosion-resistant aluminum housings with IP67 or IP68 environmental protection ratings, ensuring reliable operation in harsh industrial environments including offshore platforms, chemical processing facilities, and outdoor installations.

Signal Processing and Communication Capabilities

The 4-20mA analog control signal represents the industry standard for reliable process control communication, offering superior noise immunity compared to digital alternatives in electrically noisy industrial environments. Electric ball valve control systems incorporate precision analog-to-digital converters that interpret incoming 4-20mA signals with high resolution, typically 12-bit or 16-bit accuracy. Advanced signal conditioning circuits filter electromagnetic interference and provide galvanic isolation between control circuits and valve actuators. Many modern electric ball valves also feature dual-signal capabilities, supporting both 4-20mA analog control and digital communication protocols such as HART, Modbus, or Profibus. This hybrid approach enables real-time diagnostics, remote configuration, and predictive maintenance capabilities while maintaining the reliability of analog control for critical safety functions.

Valve Body Design and Materials Engineering

The valve body construction of premium electric ball valves incorporates advanced materials science to achieve optimal performance across diverse applications. High-grade stainless steel bodies, typically 316L or duplex stainless steel, provide exceptional corrosion resistance and mechanical strength. The ball and seat materials are carefully selected based on application requirements, with options including PTFE, PEEK, and metal-seated configurations for high-temperature or abrasive service. Advanced manufacturing techniques such as precision CNC machining and investment casting ensure consistent dimensional accuracy and surface finish quality. The valve design incorporates anti-static features, fire-safe construction, and blow-out proof stem assemblies to meet stringent safety standards including API 607, API 6FA, and ASME B16.34.

Applications and Industry-Specific Requirements

Petrochemical and Oil & Gas Processing Applications

Electric ball valves serve critical roles in petrochemical processing facilities where precise flow control and emergency shutdown capabilities are essential for safe operation. These applications require valves that can handle corrosive hydrocarbons, high pressures up to 1500 PSI, and temperatures reaching 400°C. The 4-20mA control system enables integration with distributed control systems (DCS) and safety instrumented systems (SIS), providing both normal process control and emergency isolation functions. Specialized coatings and material selections address the challenges of sour gas service, hydrogen sulfide exposure, and thermal cycling. Electric ball valve installations in upstream oil production require compliance with API 6A wellhead equipment standards, while downstream refining applications must meet API 6D pipeline valve specifications. The rapid response characteristics of electric actuators, typically achieving full stroke in 15-30 seconds, make them ideal for emergency shutdown applications where quick isolation is critical for personnel safety and environmental protection.

Water Treatment and Municipal Infrastructure

Municipal water treatment facilities rely on electric ball valves for precise control of chemical dosing systems, filtration processes, and distribution networks. The 4-20mA control interface enables seamless integration with SCADA systems that monitor water quality parameters and adjust treatment processes accordingly. These applications demand exceptional reliability due to the critical nature of water supply infrastructure and the need for minimal maintenance in remote installations. Electric ball valve designs for potable water service incorporate NSF-certified materials and comply with drinking water standards including NSF/ANSI 61 and 372. The actuators feature low power consumption designs that support solar-powered remote installations and battery backup systems. Advanced diagnostic capabilities enable predictive maintenance scheduling, reducing the risk of unexpected failures that could compromise water supply continuity.

Power Generation and Energy Production

Power generation facilities utilize electric ball valves in cooling water systems, steam circuits, and fuel handling applications where precise control and high reliability are paramount. Coal-fired power plants require valves capable of handling fly ash-laden slurries and high-temperature steam service, while nuclear facilities demand exceptional quality assurance and seismic qualification. The 4-20mA control system integrates with power plant control systems to provide coordinated operation during startup, load following, and emergency shutdown sequences. Electric ball valve designs for power applications incorporate hardened materials, extended service life components, and comprehensive testing protocols. The actuators feature fail-safe operation modes that ensure safe valve positioning during power outages or control system failures. Specialized designs for renewable energy applications, including geothermal and biomass facilities, address unique operational challenges such as high-silica environments and organic material handling.

Selection Criteria and Performance Optimization

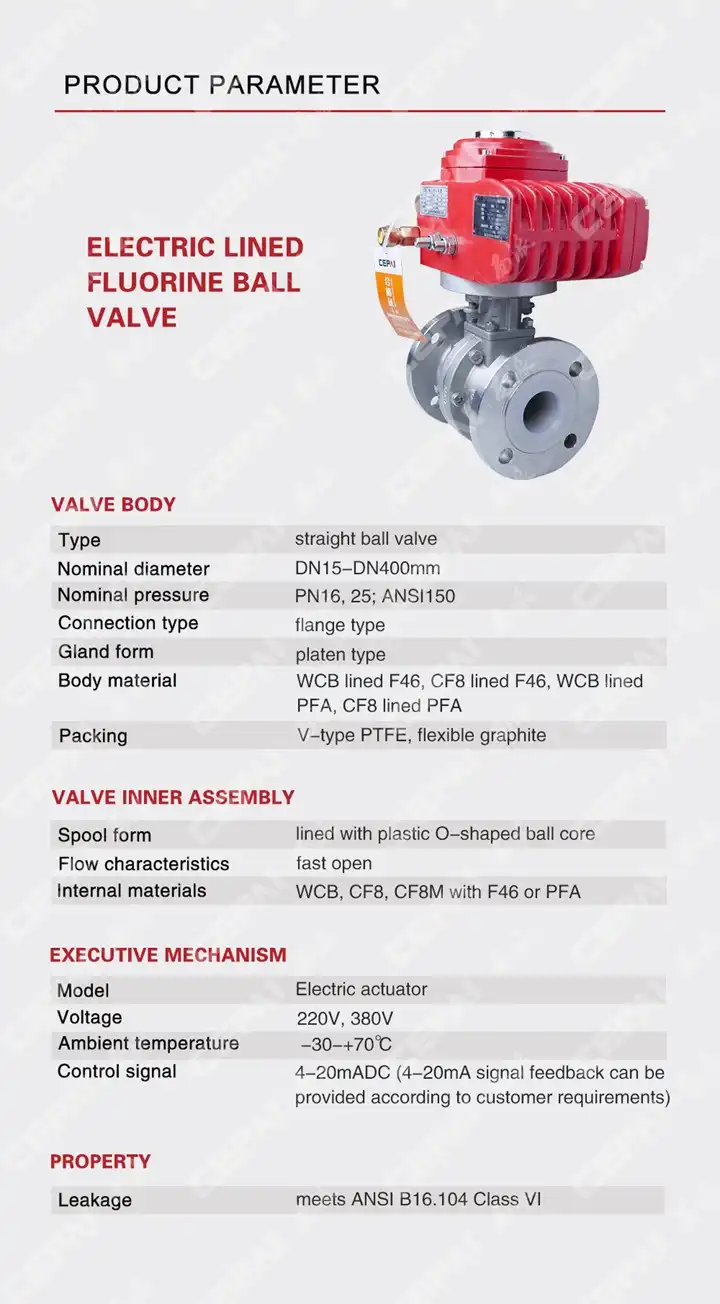

Technical Specifications and Performance Parameters

Selecting the optimal electric ball valve for automation applications requires careful evaluation of multiple technical parameters that directly impact system performance and reliability. Flow coefficient (Cv) values must be accurately calculated based on process flow rates, pressure drops, and fluid properties to ensure adequate capacity without oversizing. The relationship between valve size and flow characteristics becomes critical in applications requiring precise flow control, where oversized valves may operate in unstable regions of their flow curve. Electric actuator sizing requires analysis of required torque values under various operating conditions, including differential pressure effects, packing friction, and potential solid accumulation. The actuator must provide sufficient torque margin, typically 150-200% of calculated requirements, to ensure reliable operation throughout the valve's service life. Response time specifications, defined by the time required to travel from fully closed to fully open position, directly influence process control loop performance and must be matched to system dynamics.

Environmental Considerations and Installation Requirements

Environmental factors significantly influence electric ball valve selection and performance, requiring comprehensive analysis of operating conditions throughout the valve's intended service life. Temperature cycling effects must be evaluated, as thermal expansion and contraction can affect sealing performance and actuator accuracy. Ambient temperature ratings for electrical components, typically ranging from -40°C to +70°C, must accommodate both normal operation and extreme weather conditions. Humidity and corrosive atmosphere considerations determine appropriate electrical enclosure ratings and material selections for exposed components. Vibration and seismic loading requirements, particularly critical in rotating equipment installations and earthquake-prone regions, influence mounting design and structural reinforcement needs. Installation accessibility for maintenance operations affects actuator orientation, cable routing, and manual override positioning. Power supply considerations include voltage stability, harmonics, and emergency power availability that impact actuator control system design.

​​​​​​​

Maintenance Strategies and Lifecycle Management

Effective maintenance strategies for electric ball valves incorporate both preventive and predictive approaches to maximize operational reliability while minimizing lifecycle costs. Predictive maintenance programs utilize diagnostic data from intelligent actuators to monitor performance trends and identify potential issues before they cause failures. Key performance indicators include actuator current consumption patterns, positioning accuracy over time, and response time degradation that may indicate wear or fouling. Preventive maintenance schedules must balance the need for regular inspection with operational availability requirements, typically incorporating quarterly performance verification, annual calibration checks, and comprehensive overhauls at five-year intervals. Component lifecycle planning considers the relative service lives of different valve elements, with seats and seals typically requiring replacement every 3-5 years while actuators may operate 15-20 years with proper maintenance. Spare parts inventory strategies must account for critical path components and lead times for specialized materials, ensuring rapid restoration capability while minimizing carrying costs.

Conclusion

Electric ball valves with 4-20mA control represent the pinnacle of automated flow control technology, combining mechanical reliability with intelligent electronic control capabilities. Their versatility across petrochemical, water treatment, and power generation applications demonstrates the universal value of precision-engineered automation solutions. The integration of advanced materials, sophisticated actuator technology, and standardized control signals creates a foundation for reliable, long-term operation in demanding industrial environments.

Ready to elevate your automation systems with industry-leading electric ball valves? CEPAI Group's exceptional durability, high-precision control performance, and comprehensive R&D capabilities ensure optimal solutions for your specific applications. Our rich product range, backed by extensive patents and technological innovations, provides the competitive edge your operations demand. From pre-sales technical consultation and customized solutions to installation support and remote monitoring services, we deliver complete lifecycle support. With ISO quality system certification and strict testing protocols guaranteeing zero defects, you can trust CEPAI's commitment to excellence. Our dedicated team of experts stands ready to transform your automation challenges into streamlined solutions. Contact us today at cepai@cepai.com to discover how our cutting-edge electric ball valve technology can optimize your operations and drive your success to new heights.
