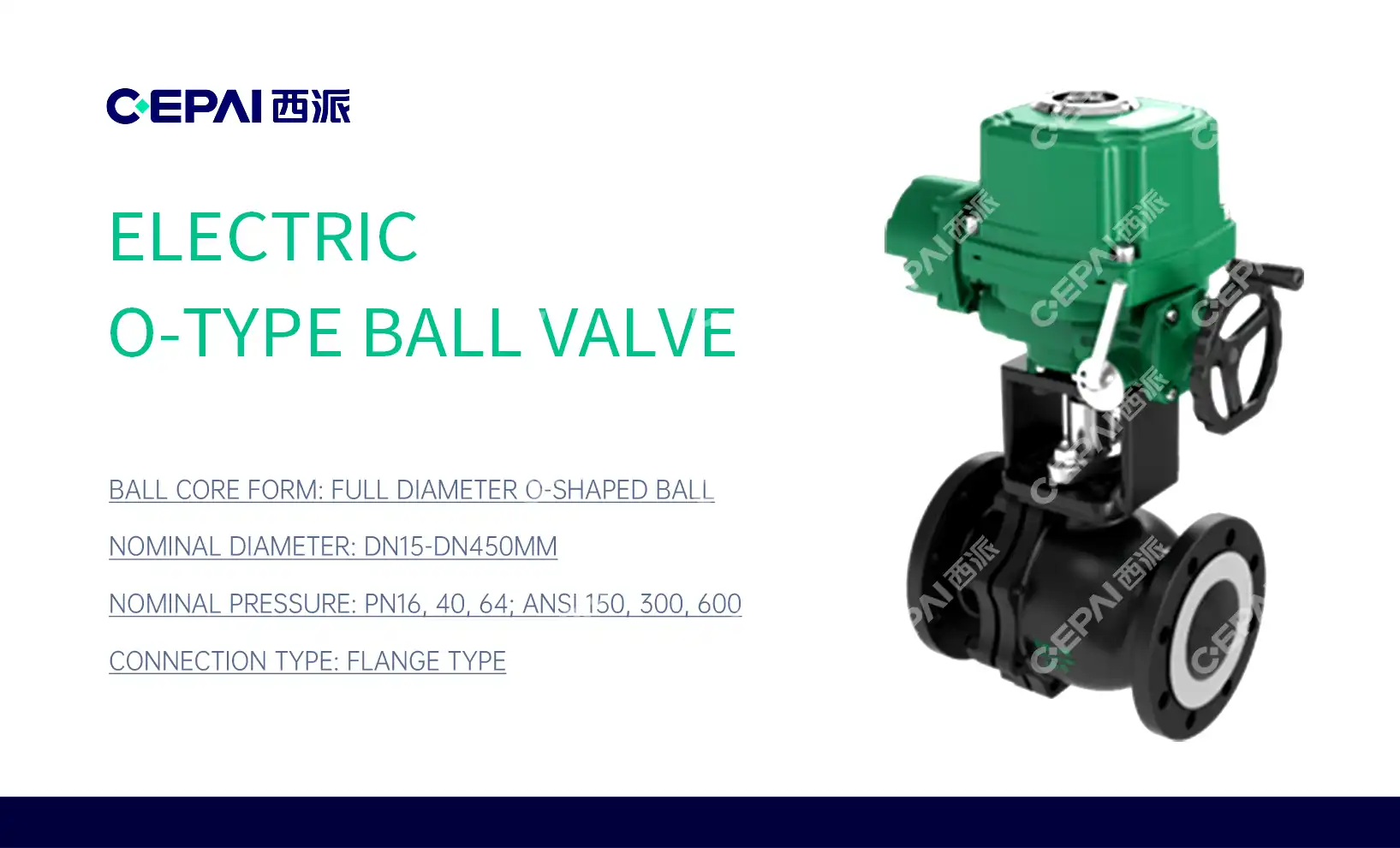

Why Electric O-Type Ball Valves Are Perfect for Compact Systems?

In today's rapidly evolving industrial landscape, space optimization and operational efficiency have become paramount concerns for engineers and system designers. Electric O-Type Ball Valves represent a revolutionary solution that addresses these challenges by combining compact design with superior performance characteristics. These innovative valve systems eliminate the need for external pneumatic or hydraulic power sources while delivering precise control capabilities essential for modern automation applications. The Electric Ball Valve technology has transformed how industries approach fluid control in space-constrained environments, offering unmatched reliability and operational flexibility.

Compact Design Advantages of Electric O-Type Ball Valves

Space-Efficient Construction and Installation Benefits

Electric O-Type Ball Valves excel in compact systems primarily due their streamlined design philosophy that maximizes functionality while minimizing spatial requirements. Unlike traditional pneumatic or hydraulic actuated valves that require extensive auxiliary equipment including compressors, air treatment units, and complex piping networks, the Electric Ball Valve integrates all control components within a single, self-contained unit. This consolidated approach reduces the overall system footprint by up to 60% compared to conventional valve assemblies, making them ideal for offshore platforms, modular process units, and urban facilities where space commands premium pricing. The elimination of external power sources also reduces installation complexity, as technicians only need to connect electrical power and control signals rather than managing multiple utility connections. Furthermore, the reduced component count inherent in Electric Ball Valve designs translates to fewer potential failure points, enhanced system reliability, and simplified maintenance protocols that benefit compact system operators seeking maximum uptime with minimal intervention requirements.

Weight Reduction and Structural Impact

The lightweight characteristics of Electric O-Type Ball Valves provide significant structural advantages in compact system applications where weight considerations directly impact design feasibility and operational costs. Traditional valve assemblies with pneumatic actuators and associated equipment can weigh 300-500% more than equivalent Electric Ball Valve configurations, creating substantial loading requirements that necessitate reinforced mounting structures and foundations. In compact systems, particularly those designed for portable or mobile applications, this weight differential becomes critically important for transportation, installation, and operational flexibility. The reduced mass of Electric Ball Valve assemblies enables designers to utilize lighter structural materials and simplified support systems, resulting in overall project cost reductions and enhanced portability. Additionally, the lower center of gravity achieved through Electric Ball Valve implementation improves system stability and reduces vibration transmission, contributing to enhanced performance reliability and extended component service life in dynamic operating environments where space constraints demand optimal weight distribution.

Integration Capabilities with Modern Control Systems

Electric O-Type Ball Valves demonstrate superior integration capabilities with contemporary digital control architectures, providing compact systems with advanced automation features that were previously impossible to achieve within space-constrained environments. The Electric Ball Valve technology incorporates sophisticated position feedback mechanisms, diagnostic capabilities, and communication protocols that seamlessly interface with distributed control systems (DCS), programmable logic controllers (PLC), and industrial internet of things (IIoT) platforms. This integration enables real-time performance monitoring, predictive maintenance scheduling, and remote operational control that maximizes compact system efficiency while minimizing manual intervention requirements. The standardized communication protocols supported by modern Electric Ball Valve designs facilitate plug-and-play installation procedures that reduce commissioning time and eliminate custom interface development costs. Furthermore, the ability to configure multiple valve parameters through digital interfaces allows system operators to optimize performance characteristics for specific applications without physical modifications, providing operational flexibility that proves invaluable in compact systems where access limitations make manual adjustments challenging and time-consuming.

Performance Superiority in Limited Space Applications

Precision Control and Response Characteristics

Electric O-Type Ball Valves deliver exceptional precision control capabilities that prove essential for compact systems operating under demanding performance requirements where space limitations cannot compromise operational accuracy. The Electric Ball Valve technology utilizes advanced servo motor control systems that provide positioning accuracy within ±0.1% of full scale, enabling precise flow modulation essential for process optimization in space-constrained applications. This level of control precision surpasses traditional pneumatic actuators by significant margins, particularly in applications requiring frequent positioning adjustments or complex control sequences. The rapid response characteristics of Electric Ball Valve designs, with typical stroke times ranging from 5-30 seconds depending on valve size and torque requirements, enable compact systems to respond quickly to process variations without compromising stability or efficiency. The inherent position holding capability of electric actuators eliminates the gradual drift common in pneumatic systems, ensuring consistent performance over extended periods without continuous adjustment or recalibration. These performance characteristics prove particularly valuable in compact chemical processing units, pharmaceutical manufacturing systems, and precision instrumentation applications where space limitations demand maximum control authority from minimal equipment footprints.

Operational Reliability and Maintenance Requirements

The operational reliability of Electric O-Type Ball Valves significantly exceeds conventional valve technologies in compact system applications where accessibility limitations make frequent maintenance interventions costly and operationally disruptive. Electric Ball Valve designs eliminate numerous components prone to failure in pneumatic systems, including air compressors, filters, regulators, and pneumatic lines that collectively represent potential failure points requiring regular maintenance attention. The sealed electric actuator assemblies protect critical components from environmental contamination, moisture ingress, and temperature variations that commonly affect pneumatic systems in compact installations with limited environmental protection. Advanced diagnostic capabilities integrated within Electric Ball Valve control systems provide early warning of potential issues through continuous monitoring of operating parameters including motor current, position feedback accuracy, and operational cycle counts. This predictive maintenance capability enables scheduled interventions during planned maintenance windows rather than emergency repairs that could disrupt compact system operations. The typical service intervals for Electric Ball Valve assemblies extend 2-3 times longer than pneumatic equivalents, reducing lifecycle maintenance costs and improving overall system availability in applications where space constraints make routine maintenance access challenging and expensive.

Environmental Adaptability and Performance Consistency

Electric O-Type Ball Valves demonstrate superior environmental adaptability characteristics that prove essential for compact systems operating in diverse conditions where space limitations prevent comprehensive environmental protection measures. The Electric Ball Valve technology maintains consistent performance across wide temperature ranges, typically from -40°C to +120°C, without requiring auxiliary heating or cooling systems that consume valuable space in compact installations. The sealed actuator designs provide excellent protection against moisture, dust, and corrosive atmospheres common in industrial environments, eliminating the need for protective enclosures that would increase space requirements. Altitude variations, pressure changes, and electromagnetic interference have minimal impact on Electric Ball Valve performance compared to pneumatic systems that rely on compressed air quality and pressure stability for proper operation. The consistent torque output characteristics of electric actuators ensure reliable valve operation regardless of process conditions, eliminating the performance variations common in pneumatic systems due to supply pressure fluctuations or temperature-induced viscosity changes in hydraulic fluids. This environmental robustness enables compact system designers to specify Electric Ball Valve technology with confidence across diverse applications without requiring extensive environmental protection measures that would compromise space utilization efficiency.

Cost-Effectiveness and Energy Efficiency Benefits

Lifecycle Cost Analysis and Economic Advantages

Electric O-Type Ball Valves provide compelling economic advantages in compact system applications through reduced lifecycle costs that encompass initial procurement, installation, operation, and maintenance expenses over the equipment service life. The Electric Ball Valve technology eliminates significant infrastructure investments required for pneumatic systems, including air compressors, treatment equipment, distribution piping, and electrical supply systems that collectively represent 40-60% of total valve system costs in compact installations. Installation cost reductions stem from simplified connection requirements, reduced labor hours, and elimination of specialized trades required for pneumatic system commissioning and testing. The energy efficiency characteristics of Electric Ball Valve designs consume power only during positioning operations, contrasting sharply with pneumatic systems that require continuous compressor operation to maintain supply pressure. This operational efficiency translates to energy cost savings of 70-80% compared to equivalent pneumatic valve systems, providing significant economic benefits over the equipment service life. Additionally, the enhanced reliability and extended maintenance intervals of Electric Ball Valve assemblies reduce operational costs through decreased spare parts inventory requirements, reduced maintenance labor expenses, and improved system availability that maximizes productive operating time in compact installations where downtime directly impacts profitability.

​​​​​​​

Energy Consumption Optimization and Sustainability

The energy efficiency characteristics of Electric O-Type Ball Valves align perfectly with sustainability objectives increasingly important in compact system design where energy consumption directly impacts operational costs and environmental compliance requirements. Electric Ball Valve technology consumes power only during actuation cycles, with typical power requirements ranging from 50-200 watts during movement and zero consumption in holding positions, contrasting dramatically with pneumatic systems requiring continuous compressor operation consuming 3-15 kilowatts regardless of valve activity. This demand-based energy consumption pattern reduces electrical infrastructure requirements in compact systems, enabling smaller power supplies, reduced cable sizing, and simplified electrical distribution designs that save both space and installation costs. The regenerative braking capabilities available in advanced Electric Ball Valve designs can return energy to the electrical system during closing operations, further improving overall energy efficiency. The elimination of compressed air systems also eliminates energy losses associated with air compression, treatment, distribution, and leakage that typically account for 20-30% of total energy consumption in pneumatic valve systems. These energy efficiency advantages prove particularly valuable in remote compact installations where power generation costs are high or in applications pursuing sustainability certifications requiring demonstrated energy consumption reductions.

Return on Investment and Financial Justification

The financial justification for Electric O-Type Ball Valve implementation in compact systems typically demonstrates positive return on investment within 18-36 months through combined savings in installation costs, energy consumption, and maintenance expenses. Electric Ball Valve systems eliminate the capital expenditure required for compressed air generation and treatment equipment, which can represent $15,000-$50,000 per installation depending on system size and complexity requirements. The reduced installation labor requirements, stemming from simplified connection procedures and elimination of pneumatic system commissioning, typically reduce project timelines by 20-30% while decreasing installation costs proportionally. Operational cost savings accumulate through reduced energy consumption, with typical annual savings of $2,000-$8,000 per valve installation depending on local energy costs and system utilization patterns. Maintenance cost reductions result from extended service intervals, reduced spare parts requirements, and elimination of compressed air system maintenance that collectively reduce annual maintenance expenses by 40-60% compared to pneumatic valve systems. The improved system reliability and reduced downtime risk associated with Electric Ball Valve technology provide additional financial benefits through increased productive operating time and reduced emergency repair costs that prove particularly valuable in compact systems where space constraints make emergency access challenging and expensive.

Conclusion

Electric O-Type Ball Valves represent the optimal solution for compact systems seeking to maximize performance while minimizing space requirements and operational costs. Their integrated design eliminates external infrastructure needs, while superior control precision and environmental adaptability ensure reliable operation across diverse applications. The compelling economic advantages, including reduced lifecycle costs and exceptional energy efficiency, make Electric Ball Valve technology an intelligent investment for forward-thinking engineers.

Ready to optimize your compact system with cutting-edge Electric Ball Valve technology? CEPAI Group combines over 15 years of specialized expertise with state-of-the-art manufacturing capabilities to deliver exceptional durability and high-precision control performance. Our comprehensive services include pre-sales technical consultation, customized solutions, installation support, and reliable after-sales maintenance backed by ISO quality certifications and industry recognition. Transform your compact system today – contact our expert team at cepai@cepai.com for personalized technical guidance and discover how our innovative Electric Ball Valve solutions can revolutionize your operational efficiency while maximizing space utilization and cost-effectiveness.
