What’s the Difference Between V-type and O-type Electric Ball Valves?

In the world of industrial fluid control systems, selecting the right valve technology is crucial for optimizing operational efficiency and ensuring precise flow management. Electric Ball Valves have emerged as essential components in modern automation systems, offering reliable performance across various industrial applications. Understanding the fundamental differences between V-type and O-type Electric Ball Valves is paramount for engineers, procurement specialists, and system designers who seek to maximize process control effectiveness while minimizing operational costs and maintenance requirements. The primary distinction lies in their internal structure and control capabilities. V-type ball valves feature a V-shaped opening that provides exceptional adjustability with high adjustable ratios reaching 100:1 or higher, making them ideal for precise flow regulation. Conversely, O-type ball valves utilize a spherical core with circular openings, excelling in applications requiring complete shut-off capabilities and simple on-off control functions. Both valve types incorporate electric actuators to enable automated operation, remote control capabilities, and seamless integration into modern industrial control systems, making them indispensable for contemporary manufacturing and process industries.

Structural Design and Engineering Differences

Ball Core Configuration and Flow Path Design

The fundamental architectural difference between V-type and O-type Electric Ball Valves lies in their ball core geometry and flow path engineering. V-type ball valves feature a specialized ball core with a V-shaped notch structure, utilizing a quarter-ball shell design that creates a distinctive flow pattern. This innovative configuration allows for superior flow capacity management and enhanced shear force capabilities, making these valves particularly effective in applications involving viscous fluids or slurries that require cutting action during operation. The V-shaped notch design creates a progressive flow area change as the valve opens, enabling precise throttling control throughout the entire stroke range. This geometric advantage provides operators with exceptional control granularity, allowing for minute adjustments in flow rates that are essential in critical process applications. The sharp edges of the V-notch also provide a self-cleaning action, preventing buildup of debris or sediment that could compromise valve performance over time. In contrast, O-type Electric Ball Valves incorporate a traditional spherical ball with a circular through-hole that aligns with the pipeline when fully open. This design philosophy prioritizes simplicity and reliability, offering a straight-through flow path that minimizes pressure drop and turbulence when the valve is fully opened. The circular opening provides uniform flow distribution and reduces the risk of cavitation in high-velocity applications, making O-type valves ideal for systems where maintaining laminar flow characteristics is critical.

Sealing Mechanisms and Pressure Retention Systems

The sealing technology employed in V-type and O-type Electric Ball Valves represents another significant engineering distinction that affects their operational characteristics and application suitability. V-type valves typically utilize advanced elastomeric sealing systems designed to accommodate the irregular geometry of the V-notch while maintaining consistent sealing performance across varying pressure conditions. These specialized seals must contour to the V-shaped profile while providing reliable shut-off capabilities, requiring sophisticated material engineering and precision manufacturing techniques. The sealing arrangement in V-type Electric Ball Valves often incorporates multiple sealing points to ensure complete isolation when closed, despite the complex geometry of the flow control element. This multi-point sealing approach enhances reliability but may require more frequent maintenance and inspection to ensure optimal performance. The material selection for these seals becomes critical, as they must withstand the mechanical stress imposed by the V-notch geometry while maintaining chemical compatibility with the process media. O-type Electric Ball Valves benefit from a more straightforward sealing approach, utilizing circular elastomeric seals positioned on both sides of the spherical ball. This symmetrical sealing configuration distributes stress evenly around the circumference, reducing wear patterns and extending seal life. The uniform contact pressure achieved with circular seals provides excellent bubble-tight shut-off capabilities, making O-type valves particularly suitable for applications requiring zero-leakage performance in critical safety systems or environmental protection applications.

Actuation Requirements and Torque Considerations

The operational torque requirements for V-type and O-type Electric Ball Valves differ significantly due to their structural characteristics, with V-ball valves typically requiring higher opening and closing torque, especially at large opening degrees. This increased torque demand stems from the irregular geometry of the V-notch, which creates uneven pressure distribution on the ball surface during operation. Consequently, V-type Electric Ball Valves often require more powerful electric actuators to ensure reliable operation across their full stroke range. The torque profile of V-type valves exhibits non-linear characteristics, with peak torque requirements occurring at specific positions during the stroke cycle. This variability necessitates careful actuator sizing to ensure adequate torque margins throughout the operating range. Electric actuators for V-type valves must be capable of delivering consistent performance despite these fluctuating torque demands, often requiring advanced control algorithms to optimize motor performance and extend equipment life. O-type Electric Ball Valves generally exhibit more predictable torque characteristics due to their symmetrical geometry and uniform pressure distribution. The torque requirements remain relatively consistent throughout the stroke, allowing for more straightforward actuator selection and sizing. This predictability also contributes to improved energy efficiency and reduced wear on actuator components, resulting in lower maintenance costs and extended service intervals.

Flow Control Performance and Application Characteristics

Precision Control and Rangeability Capabilities

V-type Electric Ball Valves excel in applications requiring precise flow regulation, offering exceptional adjustability with high adjustable ratios of 100:1 or higher. This superior rangeability makes them indispensable in processes where maintaining tight control over flow rates is critical for product quality, safety, or environmental compliance. The V-notch geometry provides an inherently equal percentage flow characteristic, delivering consistent control sensitivity across the entire operating range. The progressive opening area change in V-type valves enables fine-tuned flow adjustments that are particularly valuable in batch processing, chemical dosing, and blending applications. Operators can achieve precise flow rates with minimal valve movement, reducing the likelihood of overshooting setpoints and improving overall process stability. This precision capability is especially beneficial in automated systems where consistent repeatability is essential for maintaining product specifications and quality standards. O-type Electric Ball Valves, while not offering the same level of flow control precision, provide reliable on-off functionality with excellent shut-off characteristics. Their primary strength lies in applications requiring rapid switching between full open and fully closed positions, making them ideal for emergency shutdown systems, isolation duties, and simple flow control applications where intermediate positioning is not required. The quick-acting nature of O-type valves makes them suitable for safety instrumented systems where response time is critical.

Flow Capacity and Hydraulic Performance

The hydraulic performance characteristics of V-type and O-type Electric Ball Valves differ substantially due to their contrasting internal geometries and flow path configurations. V-type valves generate higher pressure drops at partial opening positions due to the restricted flow area created by the V-notch configuration. However, this pressure drop provides beneficial flow conditioning effects, reducing turbulence downstream and improving mixing characteristics in certain applications. V-type ball valves demonstrate large flow capacity capabilities and significant shear force generation, making them particularly effective for handling challenging process media such as slurries, crystallizing solutions, and viscous fluids. The shearing action created by the V-notch helps prevent clogging and maintains flow continuity even with difficult-to-handle materials. This characteristic makes V-type Electric Ball Valves valuable in mining, pulp and paper, and chemical processing applications where conventional valves might experience frequent blockages. O-type Electric Ball Valves offer superior hydraulic efficiency when fully opened, providing minimal pressure drop and maintaining high flow coefficients. The straight-through design eliminates flow restrictions and reduces energy consumption in pumping systems, making them economically attractive for high-volume transfer applications. The smooth flow path also minimizes erosion potential in high-velocity systems and reduces the risk of cavitation damage in liquid handling applications.

Application-Specific Performance Advantages

The selection between V-type and O-type Electric Ball Valves often depends on specific application requirements and performance priorities. V-type valves demonstrate superior performance in throttling services where precise flow control is paramount. Their ability to provide stable control at low flow rates makes them ideal for reactor feed systems, catalyst injection applications, and other processes requiring accurate flow metering. The self-cleaning action of the V-notch also provides advantages in fouling services where deposit buildup could compromise performance. V-notch ball valves are particularly suitable for precise flow regulation and quick opening/closing applications, while O-type valves excel in complete opening or sealing applications and processes demanding tight shut-off capabilities. This functional differentiation guides application selection, with V-type valves being preferred for complex control schemes and O-type valves being selected for simpler, more robust service requirements. O-type Electric Ball Valves shine in applications where reliability and simplicity take precedence over control precision. Their robust construction and straightforward operating principle make them suitable for harsh industrial environments where maintenance accessibility is limited. The excellent shut-off characteristics of O-type valves make them invaluable in safety systems, pipeline isolation, and emergency response applications where leak-tight closure is non-negotiable.

Manufacturing Excellence and Quality Standards

CEPAI Group's Advanced Manufacturing Capabilities

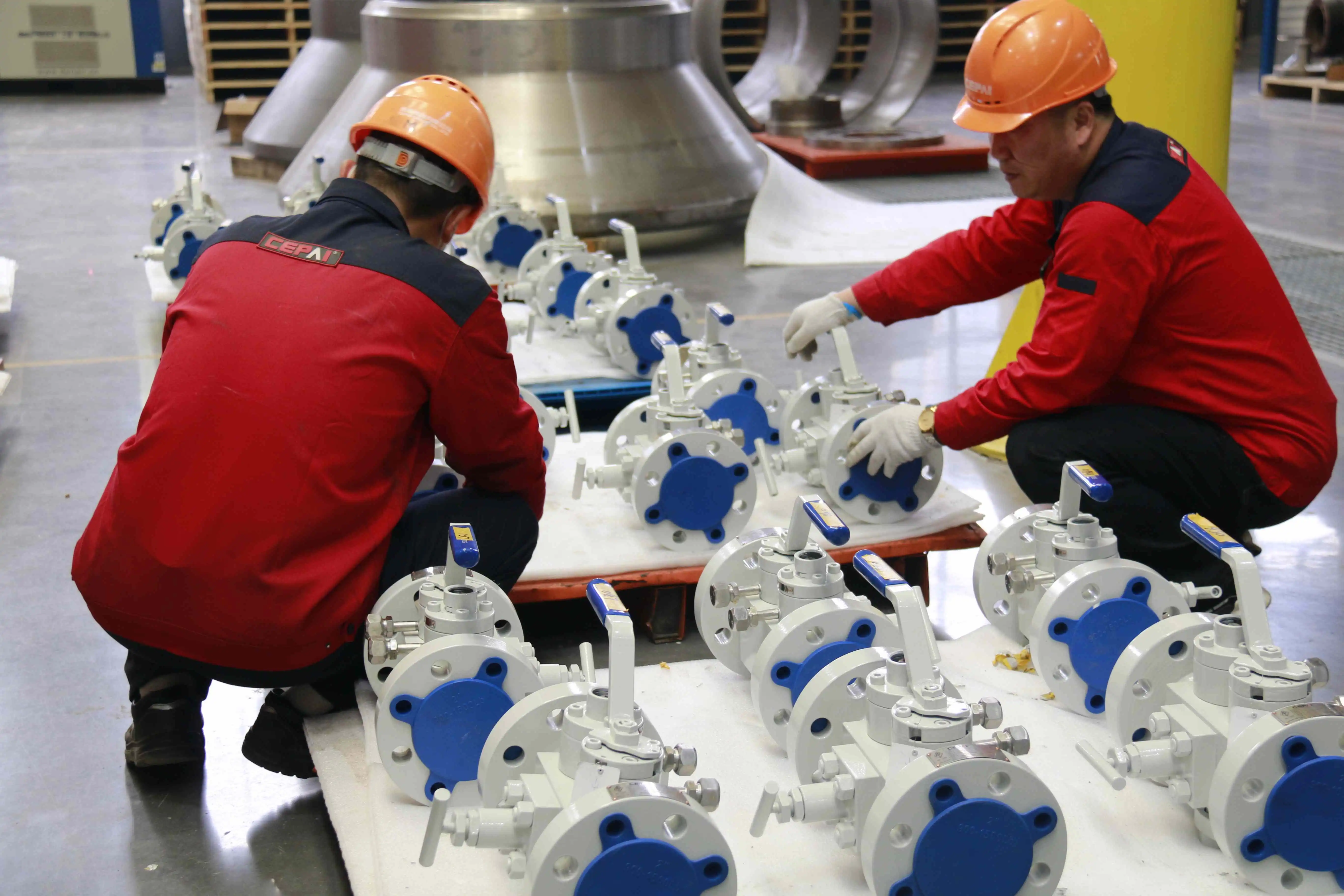

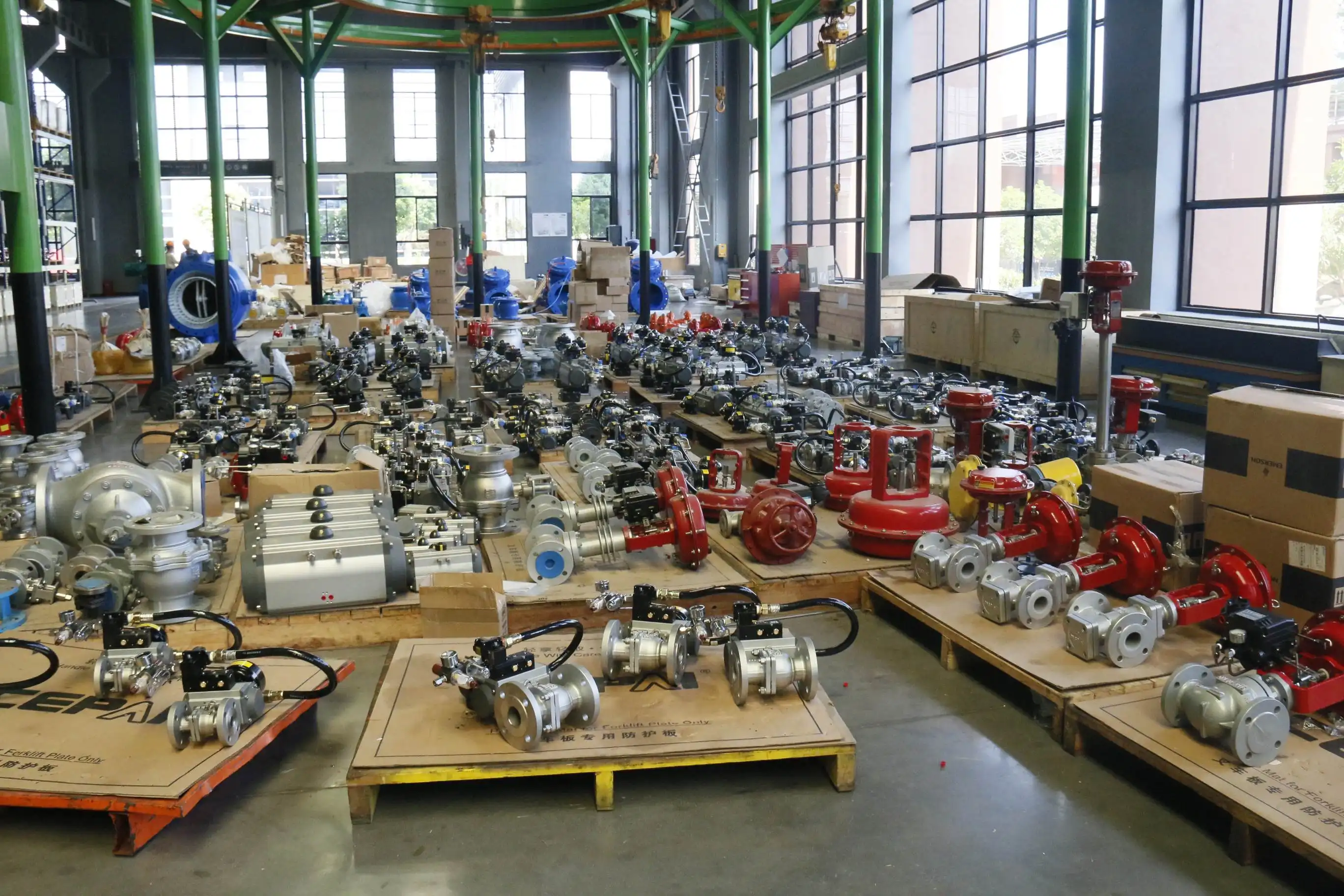

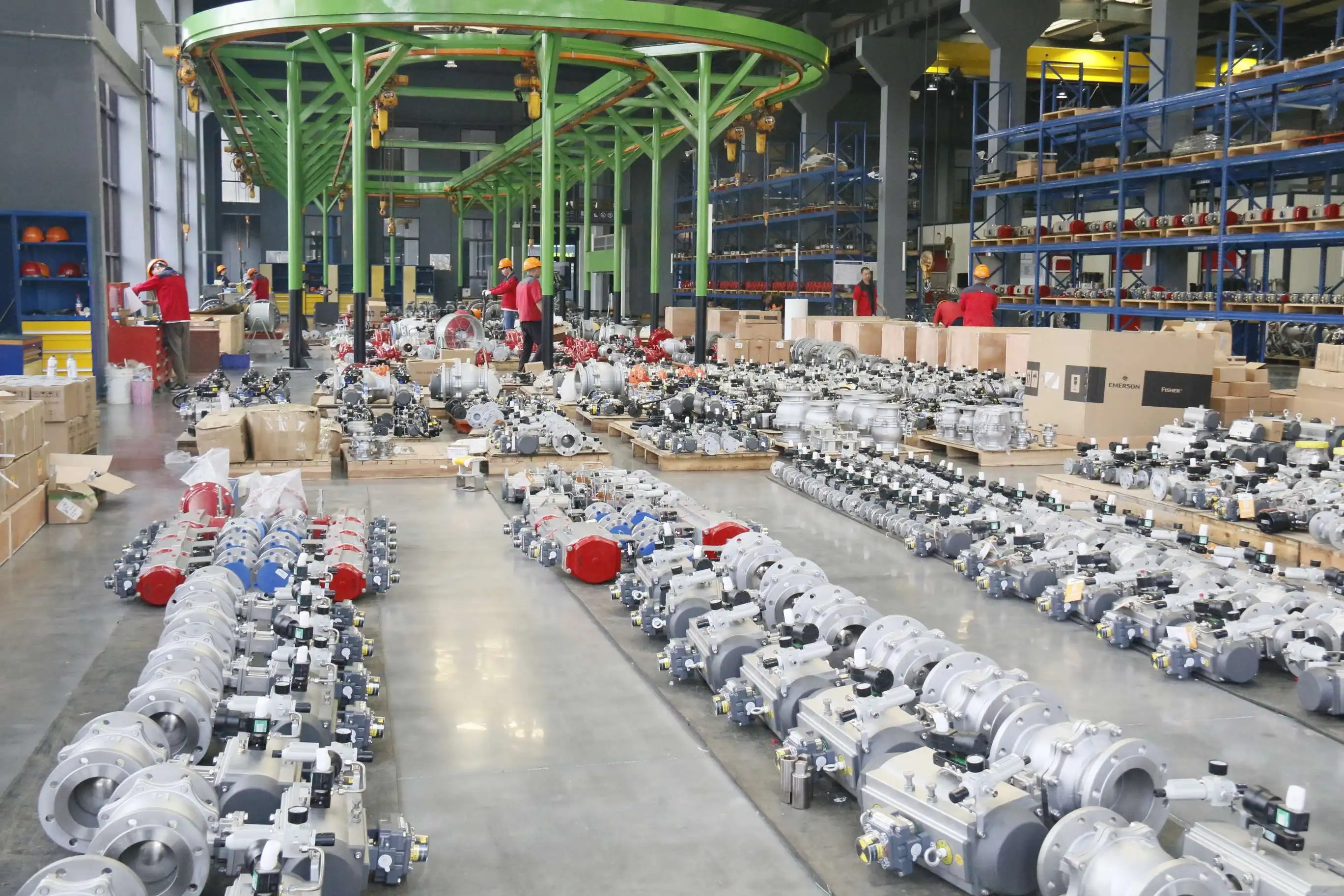

CEPAI Group Co., Ltd. has established itself as a leading manufacturer of high-quality Electric Ball Valves through significant investments in advanced manufacturing technology and quality control systems. The company has invested 156 million yuan in intelligent transformation and upgrading initiatives, constructing the longest high-precision intelligent manufacturing flexible production line in the Asia Pacific region. This state-of-the-art facility represents the pinnacle of modern valve manufacturing technology, combining automation, precision machining, and quality assurance to deliver superior products that meet the most demanding industrial applications. The intelligent manufacturing approach employed by CEPAI ensures consistent product quality while optimizing production efficiency and reducing manufacturing costs. Advanced CNC machining centers, automated assembly systems, and robotic quality inspection equipment work in harmony to produce Electric Ball Valves that exceed international standards. The company's commitment to technological innovation is evidenced by its establishment of multiple research and development centers, including the Jiangsu Province Fluid Control Engineering Technology Research Center and the High-Performance Fluid Control Device Engineering Research Center. CEPAI's manufacturing excellence extends beyond equipment investment to encompass comprehensive quality management systems that ensure every Electric Ball Valve meets or exceeds customer expectations. The integration of Industry 4.0 principles throughout the production process enables real-time monitoring, predictive maintenance, and continuous improvement initiatives that maintain manufacturing excellence while adapting to evolving market demands.

Quality Assurance and Certification Standards

The commitment to quality at CEPAI Group is demonstrated through comprehensive certification achievements that validate the company's adherence to international standards and best practices. The company maintains ISO 9001 Quality Management System certification, ensuring systematic quality control throughout all manufacturing processes. Additionally, CEPAI has obtained ISO 14001 Environmental Management System and ISO 45001 Occupational Health and Safety System certifications, demonstrating a holistic approach to responsible manufacturing that considers environmental impact and worker safety alongside product quality. CEPAI's Electric Ball Valves undergo rigorous testing protocols that encompass material analysis, dimensional inspection, process verification, and final performance validation. The company operates a CNAS nationally recognized laboratory equipped with advanced testing equipment capable of verifying compliance with international standards including API, ANSI, and CE requirements. This comprehensive testing approach ensures that every valve delivered meets specified performance criteria and provides reliable service in demanding industrial applications. The company's quality management philosophy emphasizes zero-defect manufacturing through strict implementation of quality control procedures at every production stage. From incoming material inspection through final product testing, CEPAI maintains comprehensive documentation and traceability systems that enable rapid identification and resolution of any quality issues. This systematic approach to quality assurance has earned CEPAI recognition as a trusted supplier to major international oil and gas companies, chemical processors, and power generation facilities.

Innovation and Research Development Initiatives

CEPAI Group's commitment to technological advancement is exemplified through substantial investments in research and development capabilities that drive continuous product improvement and innovation. The company operates multiple technology centers and research facilities, including a Postdoctoral Innovation Practice Base that attracts leading researchers and engineers to advance valve technology. These facilities focus on developing next-generation Electric Ball Valve designs that incorporate smart sensors, advanced materials, and IoT connectivity for enhanced performance monitoring and predictive maintenance capabilities. The company's research initiatives encompass material science advancements, computational fluid dynamics analysis, and mechanical design optimization to improve valve performance characteristics while reducing manufacturing costs. Advanced simulation capabilities enable virtual testing and validation of new designs before physical prototyping, accelerating the development cycle and ensuring optimal performance characteristics. This technological approach has resulted in numerous patents and proprietary technologies that differentiate CEPAI's Electric Ball Valves from competitive offerings. CEPAI's innovation strategy also encompasses sustainable manufacturing practices and environmental responsibility initiatives that align with global sustainability goals. The company actively develops energy-efficient production processes, recyclable materials, and extended-life designs that reduce environmental impact while maintaining superior performance standards. This forward-thinking approach positions CEPAI as a technology leader in the global valve industry while supporting customer sustainability objectives.

Conclusion

The selection between V-type and O-type Electric Ball Valves ultimately depends on specific application requirements, performance priorities, and operational considerations. V-type valves excel in applications requiring precise flow control, superior rangeability, and handling of challenging process media, while O-type valves provide reliable on-off functionality with excellent shut-off characteristics and hydraulic efficiency. Understanding these fundamental differences enables engineers and system designers to make informed decisions that optimize process performance, minimize operating costs, and ensure long-term reliability. Both valve types represent mature technologies that continue to evolve through ongoing research and development efforts by leading manufacturers. As a leading China Electric Ball Valves factory, CEPAI Group stands ready to support your valve selection and application needs with our comprehensive range of high-quality products and technical expertise. Our position as a premier China Electric Ball Valves supplier is built upon decades of manufacturing excellence, continuous innovation, and unwavering commitment to customer satisfaction. Whether you require standard configurations or customized solutions, CEPAI Group serves as your trusted China Electric Ball Valves manufacturer, offering competitive pricing as a China Electric Ball Valves wholesale provider while maintaining the highest quality standards.

​​​​​​​

Our extensive inventory of Electric Ball Valves for sale encompasses both V-type and O-type configurations, ensuring optimal solutions for diverse industrial applications. We understand that Electric Ball Valves price considerations must be balanced against performance requirements, which is why CEPAI offers transparent pricing structures that reflect true value proposition. When you choose CEPAI, you're selecting High Quality Electric Ball Valves that deliver exceptional performance, reliability, and longevity in the most demanding industrial environments. For detailed technical specifications, application guidance, or quotation requests, please contact our experienced engineering team at cepai@cepai.com. Our specialists are ready to provide personalized recommendations that ensure optimal valve selection for your specific requirements.

References

1. "Control Valve Handbook" - Fisher Controls International, Fourth Edition, authored by the Fisher Controls Engineering Staff

2. "Valve Selection and Service Guide" - Crane Technical Paper No. 410, authored by the Crane Engineering Department

3. "Industrial Ball Valves: Design, Application, and Maintenance" - American Society of Mechanical Engineers (ASME), authored by Robert W. Zappe

4. "Flow Control: Practices and Standards for Sizing Control Valves" - Instrument Society of America (ISA), authored by the ISA-75 Committee
