Understanding Pneumatic Ball Valve Air Signal Control

Pneumatic ball valve air signal control represents a sophisticated automation technology that enables precise fluid flow management through compressed air-operated mechanisms. This advanced control system utilizes pneumatic actuators to manipulate ball valve positioning based on external signal inputs, providing reliable and efficient flow regulation across diverse industrial applications. The Pneumatic Ball Valve technology integrates seamlessly with modern process control systems, offering enhanced safety features, rapid response times, and consistent performance under varying operational conditions. Understanding the intricacies of air signal control mechanisms is essential for engineers and technicians working in oil and gas, petrochemical, power generation, and manufacturing industries where precise flow control directly impacts operational efficiency and safety standards.

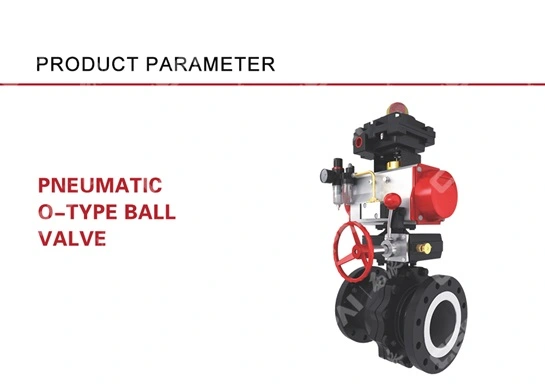

Core Components and Working Principles of Pneumatic Ball Valve Systems

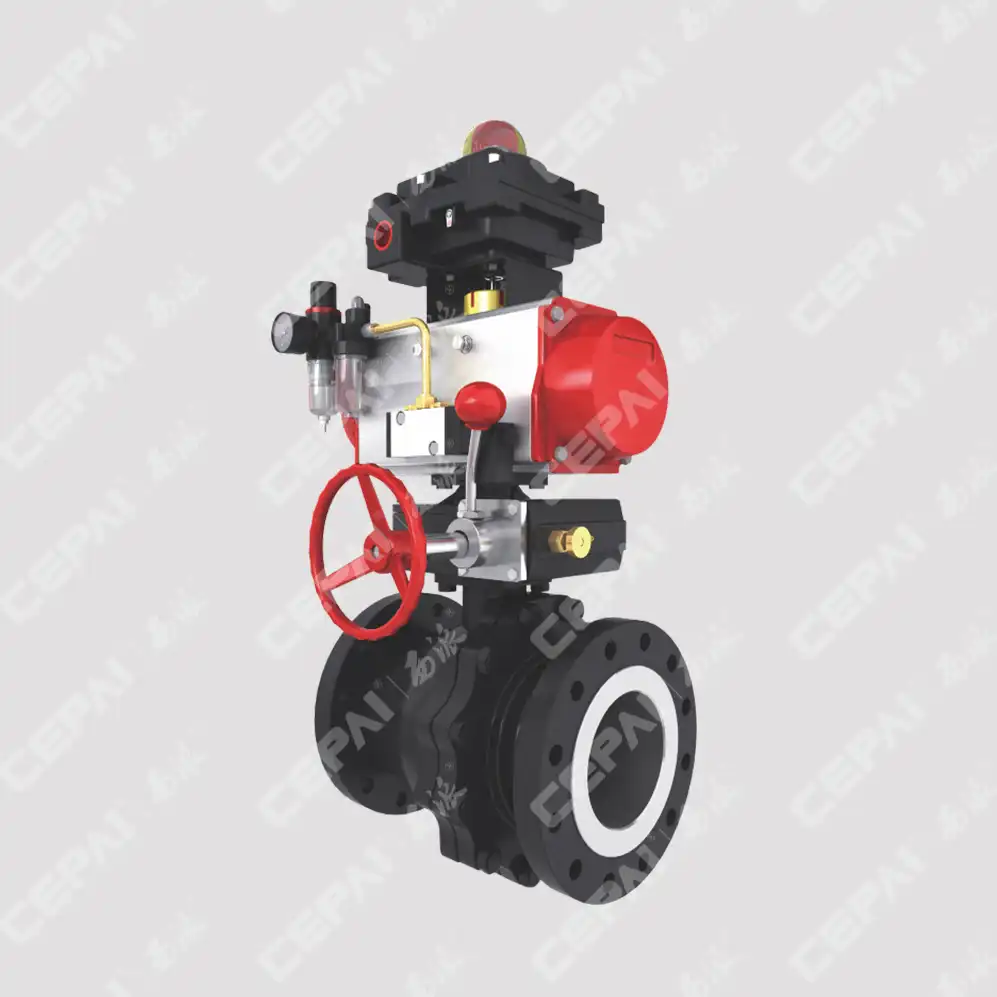

Actuator Design and Functionality

The pneumatic actuator serves as the heart of any Pneumatic Ball Valve control system, converting compressed air energy into mechanical rotational motion. Modern actuators feature sophisticated diaphragm or piston-based designs that respond to varying air pressure signals with exceptional precision. The actuator housing typically incorporates high-grade materials such as aluminum alloy or stainless steel to withstand harsh industrial environments while maintaining dimensional stability. Internal components include spring return mechanisms that ensure fail-safe operation during power loss scenarios, positioning the valve in a predetermined safe position. Advanced actuator designs integrate position feedback sensors that continuously monitor valve stem rotation, providing real-time status information to control systems. The air supply requirements typically range from 40 to 120 PSI, with consumption rates varying based on actuator size and cycling frequency. Spring return actuators utilize stored mechanical energy to close or open valves during emergency situations, while double-acting actuators require continuous air supply for both opening and closing operations.

Signal Processing and Control Integration

Signal processing capabilities in Pneumatic Ball Valve systems encompass various input types including analog voltage signals, current loops, and digital communication protocols. The positioner unit acts as an intelligent interface between the control system and pneumatic actuator, interpreting electrical signals and converting them into proportional pneumatic outputs. Modern positioners incorporate microprocessor-based technology that enables advanced features such as signal characterization, valve signature diagnostics, and predictive maintenance capabilities. These devices typically accept standard industrial signals including 4-20mA current loops, 0-10V voltage signals, and digital fieldbus communications such as HART, Foundation Fieldbus, or Profibus protocols. The signal conditioning circuitry ensures stable operation despite electrical noise and interference commonly encountered in industrial environments. Calibration procedures allow fine-tuning of signal response characteristics to match specific application requirements, optimizing valve performance for particular flow conditions and media properties.

Valve Body Construction and Sealing Technologies

The valve body construction in Pneumatic Ball Valve assemblies demands precise engineering to ensure reliable sealing performance and extended service life. High-quality valve bodies utilize materials such as carbon steel, stainless steel, or specialized alloys selected based on media compatibility and pressure ratings. The ball element features precision-machined spherical geometry with ports sized to optimize flow characteristics while minimizing pressure drop across the valve. Seat sealing technologies employ various materials including PTFE, reinforced PTFE, metal-to-metal configurations, or specialized elastomers depending on temperature and chemical compatibility requirements. Advanced seat designs incorporate energized sealing principles that maintain consistent sealing force throughout the valve's operational life. Stem sealing arrangements typically feature multiple barrier systems including O-rings, packing glands, and sometimes bellows assemblies for critical applications requiring zero fugitive emissions. The integration of these sealing technologies ensures that Pneumatic Ball Valve systems maintain their performance integrity even under extreme temperature cycling and corrosive media exposure.

Operational Characteristics and Performance Parameters

Response Time and Control Accuracy

Response time characteristics represent critical performance parameters for Pneumatic Ball Valve applications requiring rapid process adjustments. Typical response times range from milliseconds for small bore valves to several seconds for large diameter installations, depending on actuator size, air supply pressure, and piping volume. The dynamic response is influenced by factors including actuator air capacity, exhaust restrictions, and valve torque requirements throughout the travel range. Control accuracy depends on positioner resolution, actuator backlash, and mechanical linkage precision, with modern systems achieving positioning accuracy within ±0.25% of full scale. Dead band characteristics affect the valve's ability to respond to small signal changes, with high-quality positioners maintaining dead bands below 0.1% of span. Repeatability measurements demonstrate the valve's consistency in returning to identical positions for repeated signal inputs, typically specified as better than ±0.05% of full scale for precision applications. The relationship between signal input and valve position can be linear or characterized to match specific flow requirements, with smart positioners offering user-configurable response curves.

Pressure and Temperature Operating Ranges

Operating pressure capabilities of Pneumatic Ball Valve systems span from vacuum service to ultra-high pressure applications exceeding 10,000 PSI, with specific ratings determined by valve body design and material selection. Pressure drop characteristics across the valve vary with flow coefficient (Cv) values and valve position, requiring careful sizing calculations to prevent cavitation or choked flow conditions. Temperature operating ranges typically extend from cryogenic applications at -320°F to high-temperature service up to 1000°F, with specialized designs capable of even more extreme conditions. Thermal expansion considerations become critical in high-temperature applications, requiring careful attention to actuator mounting arrangements and signal transmission components. The combination of pressure and temperature creates unique challenges for sealing systems, with some applications requiring fire-safe certified designs that maintain sealing integrity even after exposure to extreme heat. Pressure balancing features in some Pneumatic Ball Valve designs reduce actuator torque requirements by equalizing forces across the ball element, enabling the use of smaller actuators and reducing air consumption.

Flow Characteristics and Sizing Considerations

Flow characteristics through Pneumatic Ball Valve assemblies depend on ball port geometry, valve size, and installation configuration. Standard port designs provide flow coefficients approximately 15-20% less than full port configurations, while reduced port designs further restrict flow capacity. The flow characteristic curve describes the relationship between valve position and flow rate, with options including linear, equal percentage, or quick opening profiles. Proper valve sizing requires consideration of fluid properties, pressure drop requirements, and required rangeability to ensure stable control throughout the operating range. Cavitation potential must be evaluated for liquid service applications, particularly when high pressure drops occur across the valve. Noise generation in gas service applications requires attention to exit velocity calculations and potential installation of noise attenuation devices. The inherent flow characteristic of the valve combines with system characteristics to produce the installed flow characteristic, which determines actual control performance in the specific application. Pneumatic Ball Valve installations benefit from proper upstream and downstream piping configurations that minimize turbulence and ensure accurate flow measurement.

Installation, Maintenance, and Troubleshooting Guidelines

Installation Best Practices and System Integration

Proper installation procedures for Pneumatic Ball Valve systems begin with careful evaluation of mounting orientation and accessibility requirements for maintenance operations. The actuator should be positioned to prevent accumulation of debris or moisture while ensuring adequate clearance for removal and service activities. Air supply lines require proper sizing to deliver adequate flow rates during rapid cycling operations, with typical recommendations calling for supply line diameters at least equal to actuator port sizes. Installation of air filters, pressure regulators, and lubricators ensures clean, properly conditioned air supply that extends component life and maintains performance reliability. Electrical connections for positioner and auxiliary devices must comply with area classification requirements, utilizing appropriate conduit systems and sealing methods for hazardous environments. Signal wiring should follow industrial standards for separation from power cables and proper shielding techniques to minimize electromagnetic interference. The valve should be installed with proper support for actuator weight and consideration for thermal expansion movements in the connected piping systems.

Preventive Maintenance Strategies and Schedules

Preventive maintenance programs for Pneumatic Ball Valve systems should establish regular inspection schedules based on service severity and operating conditions. Air supply system maintenance includes regular replacement of filter elements, checking regulator settings, and verifying adequate air quality standards. Actuator maintenance involves periodic inspection of diaphragm or piston assemblies, spring mechanisms, and mounting hardware for signs of wear or corrosion. Positioner calibration verification should occur at intervals determined by process criticality and regulatory requirements, typically ranging from quarterly to annually. Valve internals require periodic inspection to assess seat wear, ball condition, and stem packing integrity, with replacement schedules based on cycle counts and media characteristics. Lubrication requirements vary by manufacturer and application, with some designs featuring permanently lubricated components while others require periodic greasing. Documentation of maintenance activities enables trending analysis to optimize maintenance intervals and predict component replacement needs. Emergency response procedures should address rapid isolation capabilities and backup control methods during maintenance activities.

Common Issues and Diagnostic Techniques

Diagnostic techniques for Pneumatic Ball Valve troubleshooting encompass both pneumatic and electronic system elements to identify root causes of performance issues. Signal-related problems often manifest as erratic positioning, oscillation, or failure to respond to command changes, requiring systematic verification of signal integrity from the control system through the positioner. Pneumatic system issues include insufficient air supply pressure, contaminated air quality, or restrictions in supply and exhaust lines that affect actuator response characteristics. Mechanical problems may involve stem binding, seat damage, or actuator linkage wear that creates positioning errors or increased operating torques. Advanced diagnostic tools include signature analysis techniques that compare current valve performance with baseline measurements to identify developing problems before they cause operational failures. Partial stroke testing capabilities in modern positioners enable verification of valve operability without full stroke movement, supporting predictive maintenance strategies. Temperature monitoring of critical components can indicate abnormal friction or binding conditions that require attention. Pneumatic Ball Valve systems benefit from regular performance trending that tracks response times, positioning accuracy, and air consumption patterns to optimize maintenance scheduling and prevent unexpected failures.

Conclusion

The comprehensive understanding of Pneumatic Ball Valve air signal control systems reveals the sophisticated integration of pneumatic, mechanical, and electronic technologies that enable precise flow control across diverse industrial applications. These systems provide reliable automation solutions that enhance operational safety, process efficiency, and maintenance effectiveness when properly designed, installed, and maintained according to industry best practices and manufacturer specifications.
