Understanding Ball Valve Pressure Ratings

Picture this scenario: Your critical industrial system suddenly fails because the ball valve couldn't handle the pressure spike during peak operations. The costly downtime, emergency repairs, and potential safety hazards could have been prevented with proper understanding of ball valve pressure ratings. In today's demanding industrial environments, where systems operate under extreme conditions ranging from high-pressure oil drilling to steam applications, selecting the correct ball valve pressure rating isn't just about specifications—it's about ensuring operational reliability, safety, and cost-effectiveness. This comprehensive guide demystifies ball valve pressure ratings, empowering engineers, procurement professionals, and facility managers to make informed decisions that protect their operations and investments.

What Are Ball Valve Pressure Ratings and Why They Matter?

Ball valve pressure ratings represent the maximum allowable working pressure that a valve can safely handle under specific operating conditions. Pressure ratings indicate the maximum pressure a valve can safely handle at specific temperatures. These ratings are not arbitrary numbers but are scientifically calculated values that consider multiple factors including material properties, temperature conditions, safety margins, and manufacturing standards. Understanding ball valve pressure ratings is crucial because they directly impact system safety, operational efficiency, and equipment longevity. When a ball valve operates within its rated pressure parameters, it ensures reliable sealing, prevents catastrophic failures, and maintains optimal flow control. The pressure rating serves as a safety benchmark that engineers use to design systems with appropriate margins, preventing over-pressurization that could lead to valve failure, system damage, or safety incidents. The significance of proper pressure rating selection becomes evident in critical applications such as oil and gas drilling, petrochemical processing, and power generation. In these industries, ball valve failures due to inadequate pressure ratings can result in environmental hazards, production shutdowns, and substantial financial losses. Modern ball valve manufacturers like CEPAI Group have developed sophisticated manufacturing processes and quality control systems to ensure their products meet or exceed specified pressure ratings consistently.

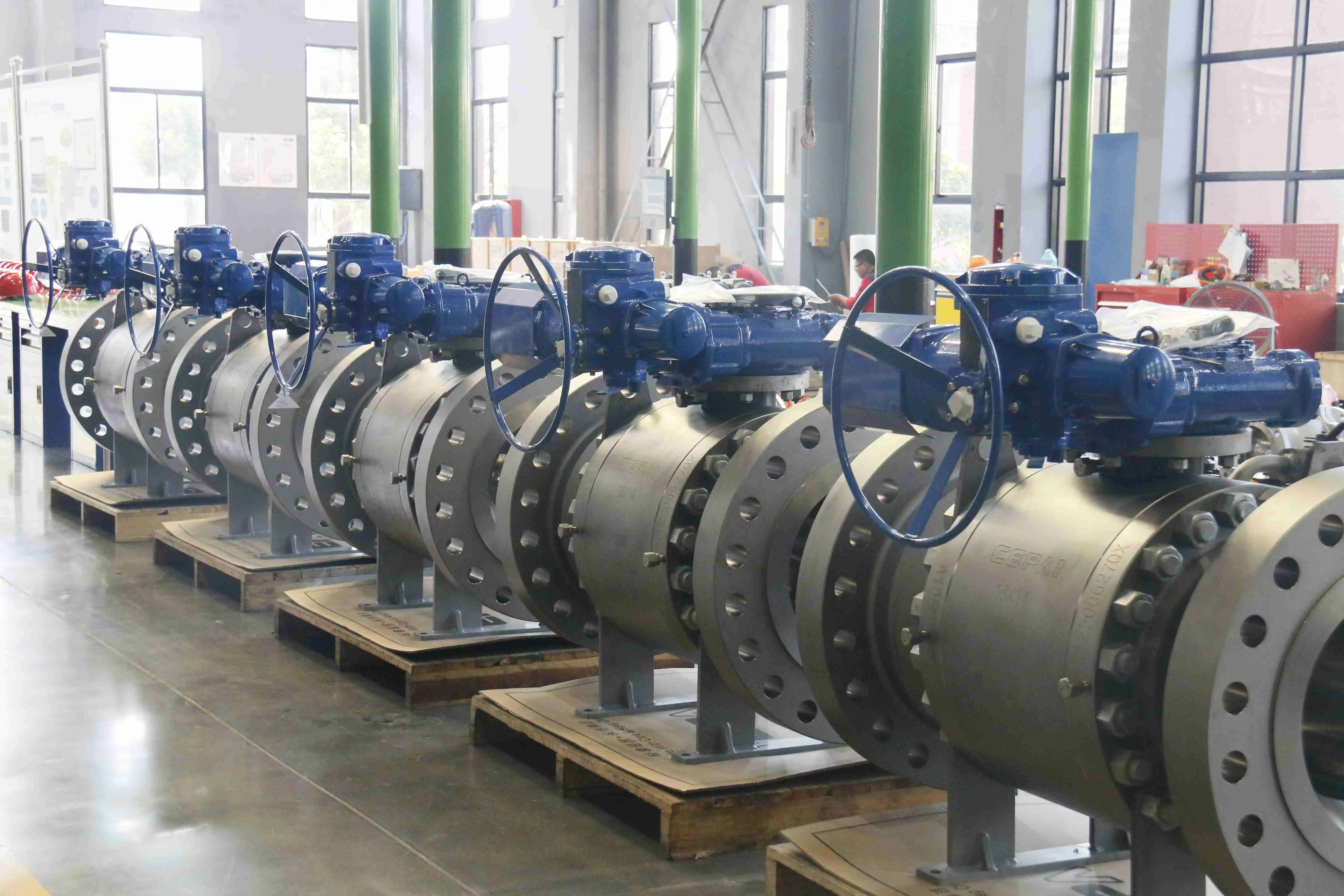

• Key Components That Influence Ball Valve Pressure Ratings

The pressure rating of a ball valve depends on several interconnected components and factors. The valve body material is perhaps the most critical element, as different materials exhibit varying strength characteristics under pressure and temperature conditions. Stainless steel ball valves typically offer higher pressure ratings compared to brass or bronze counterparts, while exotic alloys can withstand even more extreme conditions. The seat and seal materials also play a vital role in determining pressure ratings. Elastomeric seals may limit the pressure rating at elevated temperatures, while metal seats can maintain higher pressure capabilities across broader temperature ranges. The ball itself must be manufactured to precise tolerances and from appropriate materials to withstand the specified pressures without deformation or failure. Manufacturing quality and precision significantly influence the actual pressure performance of ball valves. Advanced manufacturing facilities, such as CEPAI Group's intelligent manufacturing system with its 156 million yuan investment in high-precision production lines, ensure consistent quality and reliable pressure ratings across all manufactured units.

​​​​​​​

Types of Ball Valve Pressure Rating Systems

• ANSI/ASME Pressure Class System

The ANSI/ASME pressure class system is widely used in North American markets and follows standardized classifications. ASME B16.34, the pressure class values found are 150, 300, 600, 900, 1500 and 2500 for temperatures between -29°C and 270°C in class 150 and up to 454°C in classes 300 and above. These class ratings represent the maximum allowable working pressure at specific temperatures, with higher class numbers indicating greater pressure capabilities. Class 150 ball valves are commonly used in low to moderate pressure applications, typically handling pressures up to 285 psi at room temperature. Class 300 valves can handle approximately 740 psi, while Class 600 systems operate at around 1480 psi. The highest standard classifications, Class 1500 and 2500, are designed for extreme high-pressure applications often found in oil drilling and specialized industrial processes. The ANSI/ASME system also accounts for temperature derating, where pressure ratings decrease as operating temperatures increase. This temperature-pressure relationship is critical for applications involving steam, hot oils, or other elevated temperature fluids. Ball valve manufacturers must provide detailed pressure-temperature charts to ensure proper selection for specific operating conditions.

• PN (Pressure Nominal) Rating System

The number after PN indicates the pressure class of the valve in bars, where 1 bar equals 14.5038 PSI. The PN rating system, commonly used in European and international markets, provides a straightforward indication of maximum allowable working pressure at 20°C (68°F) for water applications. Common PN ratings include PN10 (approximately 145 psi), PN16 (232 psi), PN25 (363 psi), PN40 (580 psi), and PN64 (928 psi). Higher PN ratings such as PN100 and PN160 are available for specialized high-pressure applications. The PN system simplifies selection for many applications but requires careful consideration when dealing with elevated temperatures or non-water fluids. Ball valve manufacturers must ensure their products meet both ANSI/ASME and PN rating requirements when serving global markets. This dual compliance ensures broader market acceptance and provides customers with familiar rating systems regardless of their geographic location or industry standards preference.

Critical Factors Affecting Ball Valve Pressure Performance

• Material Selection and Metallurgy

Material selection forms the foundation of ball valve pressure rating capabilities. Carbon steel ball valves offer excellent pressure handling for general industrial applications, while stainless steel grades like 316 and 316L provide superior corrosion resistance and maintained strength at elevated temperatures. Advanced alloys such as Inconel, Hastelloy, and duplex stainless steels enable ball valves to operate at extreme pressures and temperatures in harsh chemical environments. The manufacturing process significantly impacts material performance under pressure. CEPAI Group's advanced metallurgical processes and quality control systems ensure that material properties meet design specifications consistently. Heat treatment, forging techniques, and precision machining all contribute to the final pressure rating capabilities of ball valve components. Welding and joining methods also influence pressure performance, particularly in multi-piece ball valve constructions. Advanced welding techniques and post-weld heat treatment ensure that joints maintain strength equivalent to base materials, preventing weak points that could compromise pressure ratings.

• Temperature Effects on Pressure Ratings

Temperature has a profound impact on ball valve pressure ratings, as materials exhibit different strength characteristics across temperature ranges. At elevated temperatures, most materials experience reduced tensile strength and yield strength, necessitating lower allowable working pressures. Conversely, at extremely low temperatures, materials may become brittle and require special considerations for pressure rating calculations. The relationship between temperature and pressure is not linear, and ball valve manufacturers must provide detailed pressure-temperature charts for their products. These charts show the maximum allowable working pressure at various temperatures, enabling proper selection for specific operating conditions. CEPAI Group's engineering team develops comprehensive pressure-temperature data for all their ball valve products, ensuring safe operation across the specified temperature ranges. Thermal expansion and contraction also affect pressure ratings, particularly in applications with significant temperature cycling. Ball valve designs must accommodate thermal stresses while maintaining pressure integrity throughout the operating cycle.

• Design Configuration Impact

Ball valve design configuration significantly influences pressure rating capabilities. Full port ball valves, which provide unrestricted flow through the valve, may have slightly lower pressure ratings compared to reduced port designs due to the larger ball bore weakening the ball structure. However, modern manufacturing techniques and advanced materials often minimize this difference. Two-piece and three-piece ball valve constructions offer different pressure rating characteristics. Three-piece designs typically provide higher pressure ratings due to their robust construction and the ability to use heavier wall thicknesses. The body joint design and sealing method also impact overall pressure performance. End connection types affect pressure ratings, with flanged connections typically providing the highest pressure capabilities, followed by threaded and socket weld connections. The connection design must be compatible with the system piping pressure rating to ensure overall system integrity.

Industry Standards and Compliance Requirements

• API Standards for Ball Valves

API (American Petroleum Institute) standards play a crucial role in defining pressure rating requirements for ball valves used in oil and gas applications. API 6D standard specifically addresses pipeline ball valves, establishing pressure rating requirements, testing procedures, and quality assurance protocols. CEPAI Group maintains API 6D certification, demonstrating compliance with these stringent industry standards. API 6A standard governs wellhead and Christmas tree equipment, including ball valves used in oil and gas drilling and production operations. These standards require higher pressure ratings and more rigorous testing protocols due to the critical nature of wellhead applications. Ball valves meeting API 6A requirements undergo extensive pressure testing, including hydrostatic tests at 1.5 times the rated working pressure. The API certification process involves comprehensive documentation, manufacturing process audits, and ongoing quality surveillance. This ensures that ball valves consistently meet pressure rating specifications throughout their service life, providing reliability in critical applications.

• ISO and European Standards

ISO 5211 and ISO 17292 standards provide international frameworks for ball valve pressure ratings and testing requirements. These standards ensure global compatibility and provide consistent pressure rating methodologies across different manufacturers and regions. Ball valve manufacturers serving international markets must demonstrate compliance with relevant ISO standards. European pressure equipment directive (PED) compliance is mandatory for ball valves used in pressure systems within the European Union. This directive establishes safety requirements for pressure equipment and requires CE marking for compliant products. CEPAI Group maintains CE certification, enabling their ball valve products to be used in European markets. The harmonization of international standards helps ensure that ball valve pressure ratings are consistent and reliable across different markets and applications, facilitating global trade and technology transfer.

Application-Specific Pressure Rating Considerations

• Oil and Gas Industry Requirements

The oil and gas industry demands ball valves with exceptional pressure rating capabilities due to high-pressure drilling, production, and transportation operations. Wellhead ball valves must withstand pressures exceeding 10,000 psi in some applications, requiring specialized materials and manufacturing techniques. CEPAI Group's expertise in oil and gas applications ensures their ball valves meet these demanding pressure requirements. Pipeline ball valves face unique challenges including pressure surges, temperature variations, and long-term reliability requirements. These valves must maintain pressure integrity over decades of service while accommodating operational demands such as pigging operations and emergency shutdowns. The pressure rating selection must consider not only normal operating pressures but also potential surge conditions. Subsea ball valves represent the ultimate pressure rating challenge, operating at depths where ambient pressure alone can exceed 2,000 psi. These applications require specialized pressure rating calculations that account for both internal system pressure and external hydrostatic pressure. Advanced materials and manufacturing techniques enable ball valves to meet these extreme requirements.

• Power Generation Applications

Power generation facilities utilize ball valves in various high-pressure steam and water systems. Steam applications require careful consideration of pressure-temperature relationships, as steam properties change significantly with temperature and pressure variations. Ball valves in steam service must maintain pressure integrity while accommodating thermal cycling and potential water hammer conditions. Feedwater systems in power plants operate at high pressures and temperatures, requiring ball valves with appropriate pressure ratings and materials resistant to flow-accelerated corrosion. The pressure rating selection must consider not only steady-state conditions but also startup, shutdown, and transient operating modes. Combined cycle power plants present unique challenges with rapid temperature and pressure changes during startup and load following operations. Ball valves must maintain pressure ratings throughout these cycling conditions while providing reliable isolation and control functions.

• Chemical Processing Industry Demands

Chemical processing applications often require ball valves that can handle both high pressures and aggressive chemicals simultaneously. The pressure rating selection must consider potential chemical attack on valve materials, which could compromise pressure integrity over time. CEPAI Group's material expertise ensures appropriate selection for chemical service applications. Reactor systems frequently operate at elevated pressures and temperatures with corrosive chemicals present. Ball valves serving these systems must maintain pressure ratings while resisting chemical degradation and thermal stress. Advanced materials such as Hastelloy and specialized coatings enable ball valves to meet these challenging requirements. Batch processing operations subject ball valves to repeated pressure cycling and chemical exposure. The pressure rating must account for fatigue effects and potential chemical degradation over the service life. Proper material selection and design considerations ensure long-term pressure rating reliability in these demanding applications.

Pressure Testing and Verification Methods

• Hydrostatic Testing Procedures

Hydrostatic testing represents the primary method for verifying ball valve pressure ratings during manufacturing and commissioning. This testing involves filling the valve with water and pressurizing it to 1.5 times the rated working pressure for a specified duration. The test verifies both body integrity and seat sealing performance under pressure. CEPAI Group's manufacturing facility includes comprehensive hydrostatic testing capabilities with automated test equipment ensuring consistent and accurate pressure verification. Each ball valve undergoes individual testing with documented results, providing traceability and quality assurance for pressure rating compliance. Advanced hydrostatic testing procedures may include multiple pressure levels, extended duration tests, and specialized test media for specific applications. These enhanced testing protocols ensure that ball valves meet or exceed pressure rating requirements under actual service conditions.

• Pneumatic Testing Applications

Pneumatic testing using compressed air or nitrogen provides an alternative verification method for ball valve pressure ratings. This testing method offers advantages in certain applications, including faster testing cycles and the ability to detect small leaks that might not be apparent with liquid test media. However, pneumatic testing requires special safety precautions due to the stored energy in compressed gas systems. Seat leakage testing typically employs pneumatic methods to verify sealing performance at rated pressures. This testing ensures that ball valves maintain tight shutoff capabilities throughout their pressure rating range. CEPAI Group incorporates both pneumatic and hydrostatic testing in their quality assurance protocols. Combination testing procedures may employ both hydrostatic and pneumatic methods to comprehensively verify ball valve pressure ratings and performance characteristics. This dual approach provides confidence in pressure rating compliance and overall valve performance.

• In-Service Pressure Monitoring

Modern ball valve applications increasingly incorporate pressure monitoring systems to verify ongoing pressure rating compliance during service. These systems can detect pressure excursions that might compromise valve integrity and provide early warning of potential issues. Remote monitoring capabilities enable predictive maintenance strategies that ensure continued pressure rating reliability. Digital pressure monitoring integrated with SCADA systems provides comprehensive data on ball valve pressure exposure throughout service life. This information enables optimized maintenance scheduling and pressure rating verification without system shutdown. CEPAI Group's remote monitoring capabilities support these advanced maintenance strategies. Condition monitoring technologies including vibration analysis and thermal imaging can complement pressure monitoring to provide comprehensive assessment of ball valve pressure rating integrity during service. These technologies enable early detection of issues that could compromise pressure performance.

Conclusion

Understanding ball valve pressure ratings is fundamental to ensuring safe, reliable, and efficient industrial operations across diverse applications. Proper pressure rating selection prevents costly failures, enhances system safety, and optimizes operational performance throughout the service life of industrial systems.

Cooperate with CEPAI Group Co., LTD.

As a leading China Ball Valve manufacturer and China Ball Valve supplier, CEPAI Group Co., LTD. combines advanced intelligent manufacturing with rigorous quality control to deliver High Quality Ball Valves for demanding industrial applications. Established in 2009 with 200 million yuan registered capital, our company operates a 56,000 square meter manufacturing facility featuring the longest high-precision intelligent production line in the Asia Pacific region, representing a 156 million yuan investment in cutting-edge technology.

Our comprehensive certifications including API 6A, API 6D, ISO 9001, and Ball Valve SIL Certification ensure that our products meet the most stringent international pressure rating standards. As a trusted China Ball Valve wholesale partner, we serve major clients including PetroChina, Sinopec, CNOOC, and numerous international engineering companies with Ball Valve for sale solutions that deliver exceptional durability and precision control performance.

CEPAI's commitment to zero defects through strict quality control and advanced testing equipment guarantees reliable Ball Valve price value for our global customers. Whether you need standard or customized ball valve solutions, our technical expertise and manufacturing excellence make us your ideal China Ball Valve factory partner. Contact us at cepai@cepai.com to discuss your ball valve pressure rating requirements and experience our superior pre-sales technical consultation and after-sales service guarantee.

FAQ

Q: How do I determine the correct pressure rating for my ball valve application?

A: Consider maximum system pressure, operating temperature, fluid properties, and safety factors. Consult pressure-temperature charts and apply appropriate derating for elevated temperatures.

Q: What's the difference between WOG and CWP pressure ratings?

A: CWP stands for Cold Working Pressure and defines the pressure of cold water that a ball valve can handle, while WSP stands for Working Steam Pressure. WOG (Water, Oil, Gas) indicates suitability for these media types.

Q: Can I use a higher pressure rated ball valve in a lower pressure system?

A: Yes, using higher pressure rated valves provides additional safety margin, though it may increase initial cost. Ensure proper sizing and compatibility with system requirements.

Q: How does temperature affect ball valve pressure ratings?

A: Higher temperatures reduce material strength, requiring lower allowable working pressures. Always consult manufacturer pressure-temperature charts for safe operating limits.

References

1. ASME B16.34 - Valves - Flanged, Threaded, and Welding End - American Society of Mechanical Engineers - Comprehensive standard defining pressure-temperature ratings for industrial valves including ball valves.

2. API 6D - Pipeline Valves - American Petroleum Institute - Industry standard specifying requirements, testing procedures, and pressure ratings for pipeline ball valves in oil and gas applications.

3. ISO 17292 - Industrial Valves - Ball Valves - International Organization for Standardization - Global standard establishing design, testing, and pressure rating requirements for industrial ball valves.

4. Valve Handbook Third Edition - Philip L. Skousen - McGraw-Hill Professional - Comprehensive reference covering valve selection, pressure ratings, and application considerations for industrial valve systems.
