Top 5 Ball Valve Types and Their Ideal Applications

Are you struggling with frequent valve failures in your industrial processes, causing costly downtime and safety concerns? The wrong ball valve selection can lead to catastrophic system failures, especially in high-pressure oil and gas operations where reliability is paramount. Understanding the specific characteristics and ideal applications of different ball valve types is crucial for engineers, procurement specialists, and facility managers who need to ensure optimal system performance while minimizing operational risks. This comprehensive guide explores the top 5 ball valve types and their ideal applications, providing you with the essential knowledge to make informed decisions that protect your investments and ensure operational excellence in critical industrial environments.

Understanding Ball Valve Fundamentals and Classifications

Ball valves represent one of the most versatile and reliable flow control solutions in industrial applications, offering exceptional durability and precise shut-off capabilities. The fundamental principle behind ball valve operation involves a spherical disc with a bore through its center that rotates to control flow. When the bore aligns with the pipeline, fluid flows freely; when rotated 90 degrees, the solid portion of the ball blocks flow completely. This simple yet effective mechanism makes ball valves ideal for both on-off and throttling applications across various industries including petrochemical, power generation, and water treatment systems. The classification of ball valves extends beyond their basic operation, encompassing various design configurations that address specific operational requirements. Modern ball valve designs incorporate advanced materials and engineering principles to handle extreme pressures up to 1000 bar and temperatures reaching 750°F, making them suitable for the most demanding industrial environments. The selection of the appropriate ball valve type depends on factors such as pressure requirements, temperature conditions, media characteristics, and maintenance accessibility, all of which influence long-term performance and operational costs.

• Key Performance Characteristics of Modern Ball Valves

Contemporary ball valve technology has evolved significantly, incorporating advanced metallurgy and precision manufacturing techniques that enhance their reliability and performance. High-quality ball valves feature chrome-plated or specialty-coated spheres that provide superior resistance to corrosion and wear, extending their operational lifespan significantly. The seat materials, ranging from soft polymers to metal-seated designs, are carefully selected to match specific application requirements, ensuring optimal sealing performance under varying pressure and temperature conditions. Ball valve performance characteristics include excellent flow coefficients, minimal pressure drop across the valve, and rapid operation times that make them ideal for emergency shut-off applications. The inherent design of ball valves provides a straight-through flow path when fully open, minimizing turbulence and pressure losses, which is particularly beneficial in high-flow applications where energy efficiency is critical. These performance advantages make ball valves the preferred choice for applications requiring reliable, long-term operation with minimal maintenance requirements.

Floating Ball Valves: Versatile Solutions for Standard Applications

Floating ball valves represent the most common and cost-effective ball valve design, where the ball is held in position by the valve seats and moves slightly downstream under system pressure. This movement allows the ball to press firmly against the downstream seat, creating an effective seal that prevents leakage. The floating ball design is particularly well-suited for applications with moderate pressures, typically up to 600 psi, making it an excellent choice for standard industrial processes, water treatment systems, and general-purpose fluid control applications. The construction of floating ball valves typically features a two-piece or three-piece body design that facilitates maintenance and repair operations. In two-piece designs, the body is split along the centerline, allowing access to internal components for inspection and replacement. Three-piece designs offer even greater maintenance flexibility, with removable end caps that enable in-line servicing without complete valve removal from the system. This modularity makes floating ball valves particularly attractive for applications where maintenance accessibility is important and operational downtime must be minimized.

​​​​​​​

• Applications and Industry Usage of Floating Ball Valves

Floating ball valves find extensive application in industries where reliable shut-off and moderate pressure handling are primary requirements. In the water treatment industry, these valves are commonly used for main line isolation, pump station control, and distribution system management. Their ability to provide tight shut-off with minimal torque requirements makes them ideal for automated systems where electric or pneumatic actuators are employed. The relatively simple construction and proven reliability of floating ball valves make them the go-to choice for municipal water systems and industrial cooling water applications. Chemical processing facilities utilize floating ball valves for non-critical service applications where the media is compatible with standard seat materials. These applications include cooling water systems, utility services, and low-pressure process streams where the ball valve's quick-acting nature provides operational advantages. The floating design's self-aligning characteristics help maintain sealing effectiveness even when minor system vibrations or thermal expansion occurs, ensuring consistent performance throughout the service life of the valve.

Trunnion Mounted Ball Valves: Heavy-Duty Performance Champions

Trunnion mounted ball valves feature additional mechanical anchoring at the top and bottom of the ball, preventing movement and providing superior support for high-pressure applications. This design configuration eliminates the need for the ball to float within the body cavity, instead relying on spring-loaded seats that maintain contact with the ball surface to ensure effective sealing. The trunnion mounting system enables these valves to handle significantly higher pressures, often exceeding 2000 psi, making them indispensable for demanding applications in the oil and gas industry, petrochemical plants, and high-pressure pipeline systems. The mechanical advantage provided by trunnion mounting results in lower operating torques compared to equivalent floating ball valves, particularly in larger sizes and high-pressure applications. This characteristic makes trunnion mounted ball valves ideal for automated operations where actuator sizing and power consumption are critical considerations. The robust construction and precise manufacturing tolerances required for trunnion mounted ball valves reflect their premium positioning in the valve hierarchy, offering exceptional performance and reliability for mission-critical applications.

• Critical Applications for Trunnion Mounted Ball Valves

Oil and gas transmission pipelines rely heavily on trunnion mounted ball valves for main line isolation and emergency shutdown systems. These applications demand absolute reliability and the ability to operate effectively after extended periods of inactivity, characteristics that trunnion mounted ball valves deliver consistently. The fire-safe design capabilities often incorporated into these valves ensure continued operation even under extreme emergency conditions, providing crucial safety protection for personnel and facilities. High-pressure process applications in petrochemical and refining operations utilize trunnion mounted ball valves for critical service duties where failure could result in significant economic losses or safety hazards. These applications include reactor isolation, distillation column control, and high-pressure utility systems where the combination of pressure capability, reliability, and rapid response time makes trunnion mounted ball valves the optimal choice. The enhanced sealing performance and reduced maintenance requirements of these valves contribute to improved plant availability and operational efficiency.

Top Entry Ball Valves: Maintenance-Friendly Design Excellence

Top entry ball valves incorporate a unique design configuration that allows complete access to internal components from the top of the valve body, eliminating the need for pipeline disconnection during maintenance operations. This innovative design features a removable bonnet assembly that provides direct access to the ball, seats, and sealing components, enabling in-line servicing that significantly reduces maintenance time and associated costs. The top entry design is particularly valuable in applications where the valve is welded into the pipeline or where space constraints make traditional maintenance approaches impractical. The engineering excellence of top entry ball valves extends to their pressure-containing capabilities and sealing performance, often matching or exceeding the specifications of equivalent trunnion mounted designs. The top entry configuration requires precise manufacturing tolerances and advanced sealing technologies to maintain body integrity while providing reliable access for maintenance operations. This combination of performance and serviceability makes top entry ball valves an attractive option for applications where long-term reliability and maintenance efficiency are equally important considerations.

• Strategic Applications for Top Entry Ball Valves

Natural gas transmission and distribution systems extensively utilize top entry ball valves for main line applications where in-line maintenance capability is essential. The ability to service these valves without system shutdown or pipeline modifications provides significant operational advantages, particularly in continuous-process industries where unplanned downtime can result in substantial economic losses. The welded-end connections commonly used with top entry ball valves provide permanent installation security while maintaining full serviceability through the top entry design. Critical process applications in refineries and petrochemical plants benefit from the maintenance advantages of top entry ball valves, particularly in locations where access is limited or where the valve serves as a critical isolation point. These applications include emergency shutdown systems, process unit isolation, and safety critical services where the combination of reliability and maintenance accessibility is essential. The ability to verify and restore valve performance through top entry maintenance procedures ensures continued operational integrity without compromising system availability.

V-Port Ball Valves: Precision Control and Throttling Excellence

V-port ball valves feature a specially designed ball with a V-shaped notch that provides precise flow control and throttling capabilities far superior to standard ball valve designs. The V-notch configuration creates a characterized flow pattern that enables accurate flow modulation throughout the valve's travel range, making these valves ideal for applications requiring precise flow control rather than simple on-off operation. The engineered flow characteristics of V-port ball valves provide linear or equal-percentage flow curves depending on the specific V-notch design, enabling superior process control performance. The throttling capability of V-port ball valves extends their application range into areas traditionally served by globe valves and control valves, offering the durability and reliability advantages of ball valve construction with enhanced controllability. The V-notch design also provides improved rangeability compared to standard ball valves, typically achieving control ratios of 100:1 or greater, making them suitable for applications with widely varying flow requirements. This combination of control precision and ball valve robustness makes V-port designs particularly attractive for demanding process control applications.

• Specialized Applications for V-Port Ball Valves

Process control applications in chemical manufacturing utilize V-port ball valves for precise flow regulation of corrosive and abrasive media where traditional control valves may experience accelerated wear or failure. The robust ball valve construction provides superior resistance to process media while the V-port configuration enables precise control that maintains process stability and product quality. These applications include catalyst flow control, reaction rate modulation, and precise blending operations where flow accuracy directly impacts product specifications and manufacturing efficiency. Power generation facilities employ V-port ball valves for boiler feedwater control, steam conditioning, and fuel gas regulation applications where precise flow control is essential for efficient operation and emissions compliance. The ability to handle high temperatures and pressures while providing accurate flow modulation makes V-port ball valves ideal for these demanding applications. The reduced maintenance requirements compared to traditional control valves result in improved plant availability and lower operating costs, making V-port ball valves an economically attractive solution for power generation applications.

Multi-Port Ball Valves: Complex Flow Management Solutions

Multi-port ball valves incorporate specially designed balls with multiple flow passages that enable complex flow routing through a single valve assembly. These sophisticated designs can provide three-way, four-way, or even more complex flow patterns depending on the specific ball configuration and port arrangement. Multi-port ball valves offer significant advantages in applications requiring flow diversion, mixing, or distribution, eliminating the need for multiple individual valves and associated piping complexity while reducing potential leak points and maintenance requirements. The engineering complexity of multi-port ball valves requires advanced manufacturing capabilities and precise quality control to ensure reliable operation across all flow paths. The ball designs must maintain sealing integrity for each port combination while providing smooth operation and consistent flow characteristics. This technical sophistication makes multi-port ball valves premium products that deliver exceptional value in applications where their unique capabilities can eliminate system complexity and reduce total installed costs.

• Strategic Implementation of Multi-Port Ball Valves

Process switching applications in chemical and pharmaceutical manufacturing utilize multi-port ball valves for efficient product changeover and line selection operations. These applications benefit from the ability to redirect flow between different process streams or storage tanks using a single valve operation, reducing changeover time and minimizing product cross-contamination risks. The quick-acting nature of ball valve operation enables rapid process transitions that improve manufacturing flexibility and efficiency. Pipeline applications employ multi-port ball valves for pig launching and receiving systems, bypass operations, and emergency diversion scenarios where rapid response and reliable operation are critical. The ability to configure complex flow patterns through a single valve assembly simplifies system design and reduces installation complexity while maintaining the reliability and performance characteristics expected from ball valve technology. These applications demonstrate the versatility and value of multi-port ball valves in sophisticated pipeline management systems.

Selection Criteria and Performance Considerations

Selecting the optimal ball valve type requires comprehensive evaluation of application-specific parameters including pressure requirements, temperature conditions, media characteristics, and operational expectations. The pressure rating represents a fundamental selection criterion, with floating ball valves suitable for moderate pressures, while trunnion mounted and top entry designs handle higher pressure applications effectively. Temperature considerations influence both valve body materials and seat selection, with metal-seated options required for extreme temperature applications where soft seats would fail. Media compatibility analysis must consider both chemical compatibility and physical properties such as abrasiveness, viscosity, and particle content. Corrosive applications may require specialty alloys or protective coatings, while abrasive services benefit from hardened surfaces and robust construction. The operational requirements including cycle frequency, response time, and control accuracy further refine the selection process, ensuring optimal performance throughout the valve's service life.

• Quality and Certification Requirements

Industrial ball valve applications demand compliance with rigorous quality standards and certification requirements that ensure reliable performance and safety compliance. API specifications including API 6D for pipeline valves and API 6A for wellhead equipment establish minimum performance requirements for critical applications. ISO 9001 quality management systems ensure consistent manufacturing processes and product quality, while specialized certifications such as SIL ratings verify functional safety performance for critical applications. Fire safety certifications become essential for hydrocarbon service applications where emergency performance under extreme conditions is required. These certifications verify that valves maintain their sealing and structural integrity when exposed to fire conditions, providing crucial safety protection. Environmental certifications such as ISO 14001 demonstrate manufacturer commitment to sustainable practices and environmental responsibility, increasingly important considerations in contemporary procurement decisions.

Conclusion

The selection of appropriate ball valve types significantly impacts industrial system performance, safety, and operational efficiency. Understanding the distinct characteristics and ideal applications of floating, trunnion mounted, top entry, V-port, and multi-port ball valves enables informed decisions that optimize long-term value and reliability.

Cooperate with CEPAI Group Co., LTD.

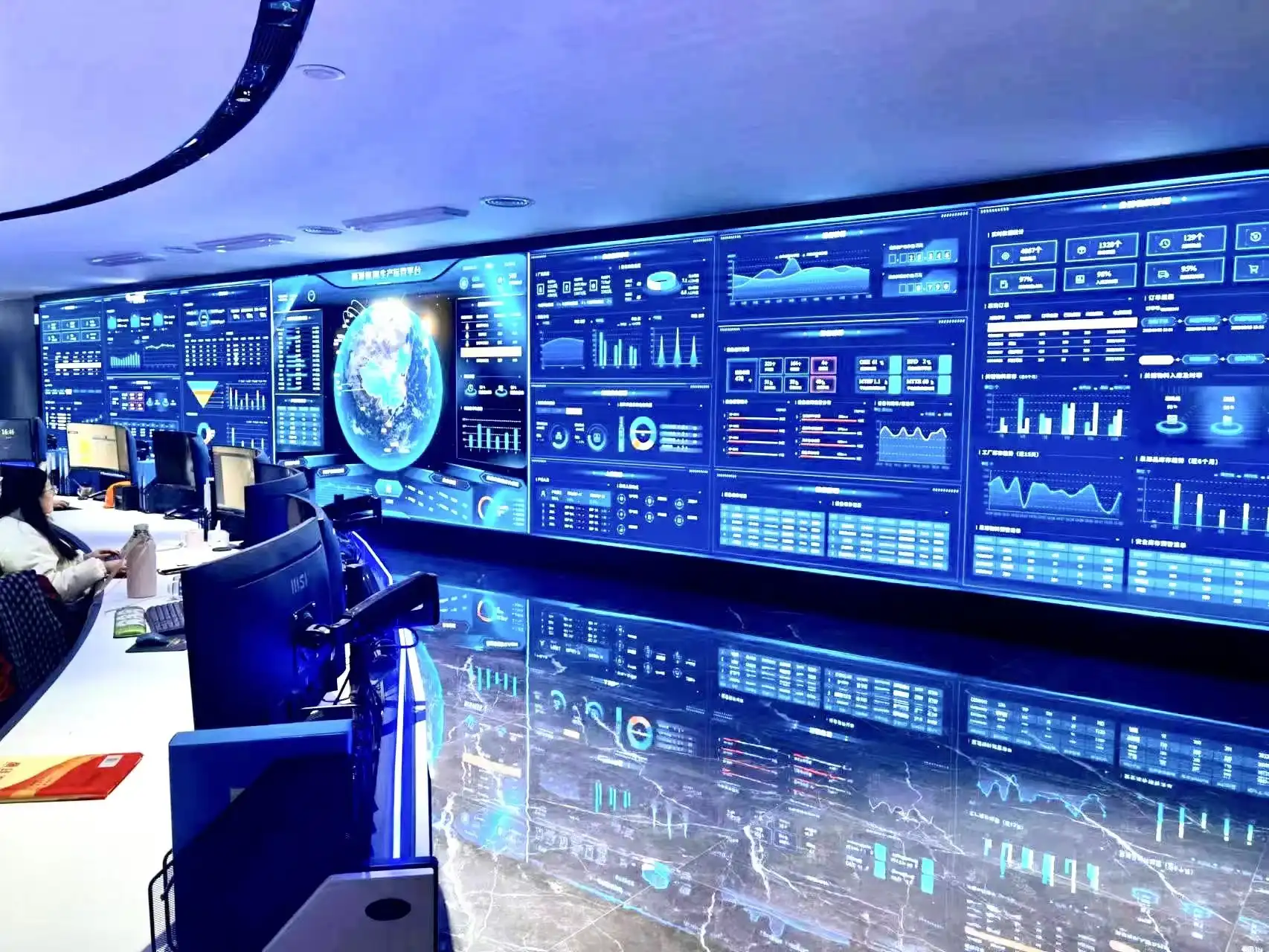

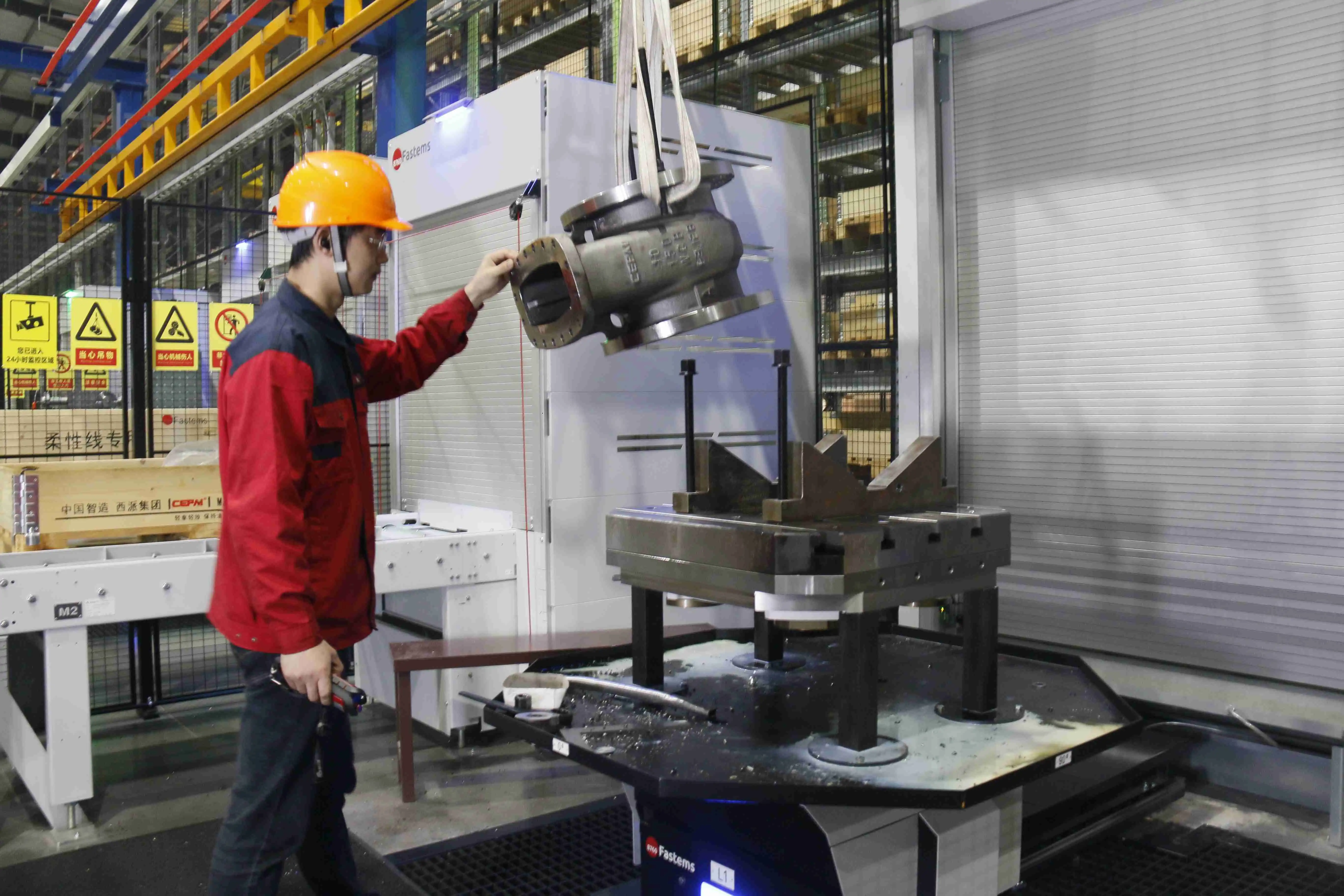

CEPAI Group Co., LTD. stands as a premier China Ball Valve manufacturer and China Ball Valve supplier, offering comprehensive solutions for demanding industrial applications. Established in 2009 with over 200 million yuan registered capital, our state-of-the-art 56,000 square meter facility incorporates intelligent manufacturing technologies that ensure exceptional product quality and precision. Our High Quality Ball Valve products meet the most stringent international standards including API 6A, API 6D, and comprehensive ISO certifications, making us the preferred China Ball Valve factory for global energy companies.

As a trusted China Ball Valve wholesale partner, CEPAI provides competitive Ball Valve pricing without compromising quality standards. Our extensive product range encompasses all major ball valve types with Ball Valve for sale configurations tailored to specific application requirements. With certifications from PetroChina, Sinopec, and CNOOC, plus international recognition from major oilfield service companies, CEPAI delivers reliable solutions that exceed industry expectations. Contact us at cepai@cepai.com for expert consultation and competitive quotations that address your specific valve requirements.

FAQ

Q: What is the main difference between floating and trunnion mounted ball valves?

A: Floating ball valves have the ball held by seats and move under pressure, suitable for moderate pressures up to 600 psi, while trunnion mounted ball valves have mechanically anchored balls with spring-loaded seats, handling pressures exceeding 2000 psi with lower operating torques.

Q: When should I choose a top entry ball valve over standard designs?

A: Top entry ball valves are ideal when in-line maintenance is required without pipeline disconnection, particularly for welded installations or space-constrained applications where traditional maintenance approaches are impractical.

Q: What applications benefit most from V-port ball valve designs?

A: V-port ball valves excel in precise flow control and throttling applications requiring rangeability of 100:1 or greater, such as process control, chemical manufacturing, and power generation where accurate flow modulation is essential.

Q: How do multi-port ball valves reduce system complexity?

A: Multi-port ball valves enable complex flow routing through a single valve assembly, eliminating multiple individual valves and associated piping while reducing potential leak points and maintenance requirements in flow diversion and distribution applications.
