Should You Choose a V-type or O-type Valve for High Flow Rates?

When selecting valves for high flow rate applications, the choice between V-type vs O-type Electric Valve configurations can significantly impact your system's performance and efficiency. This critical decision affects everything from flow control precision to operational costs in industrial applications. Understanding the fundamental differences between these valve types is essential for engineers and procurement professionals working in petrochemical, oil and gas, power generation, and water treatment industries. The answer lies in analyzing flow characteristics, control requirements, and application-specific demands to determine which valve design best serves your high-throughput operations.

Understanding the Fundamental Differences Between V-type and O-type Valves

Flow Characteristics and Performance Metrics

The primary distinction between V-type vs O-type Electric Valve designs lies in their internal flow geometry and resulting performance characteristics. V-shaped ball valves are generally used in conjunction with valve actuators and locators to achieve proportional adjustment. The cores of the V-shaped valve are most suitable for various adjustment occasions, with a high-rated flow coefficient, large adjustable ratio, good sealing effect. O-type valves feature a circular opening that provides excellent shut-off capabilities with minimal pressure drop when fully open, making them ideal for isolation applications where flow control precision is less critical. The flow coefficient (Cv) represents a crucial performance indicator that determines a valve's capacity to handle fluid flow under specific pressure conditions. V-type electric valves typically demonstrate superior flow coefficient values due to their V-shaped port design, which creates a more gradual flow path that reduces turbulence and cavitation. This enhanced flow characteristic makes V-type configurations particularly suitable for applications requiring high throughput rates combined with precise flow modulation. The graduated opening of the V-port allows for better flow control throughout the valve's operating range, providing more linear flow characteristics compared to traditional O-type designs. In high flow rate scenarios, the pressure recovery characteristics of V-type vs O-type Electric Valve systems become increasingly important. V-type valves demonstrate better pressure recovery downstream of the valve due to their streamlined flow path, which minimizes energy losses and reduces the risk of cavitation damage. This improved pressure recovery translates to enhanced system efficiency and reduced operating costs over the valve's service life, particularly in applications involving high-pressure differentials or volatile fluids.

Structural Design and Manufacturing Considerations

The manufacturing complexity and structural integrity of V-type vs O-type Electric Valve designs present distinct advantages and challenges for high flow applications. O-type ball valves feature a simpler manufacturing process with a spherical ball containing a circular bore, resulting in lower production costs and widespread availability. However, this simplicity comes with limitations in flow control precision, as the circular opening provides an on-off function with limited throttling capability. V-type electric valves require more sophisticated manufacturing techniques to achieve the precise V-shaped geometry necessary for optimal flow control. This complexity translates to higher initial costs but provides significant operational advantages in applications requiring flow modulation. The V-shaped port geometry allows for better flow turndown ratios, typically ranging from 100:1 to 300:1, compared to standard O-type valves which generally offer 50:1 turndown ratios. Advanced manufacturing facilities like CEPAI Group's intelligent production lines incorporate high-precision machining capabilities to ensure consistent V-port geometry, critical for maintaining flow control accuracy across large valve sizes. The structural design also impacts maintenance requirements and service life expectations. V-type configurations may require more specialized maintenance procedures due to their complex internal geometry, but this complexity often results in better wear resistance and longer service intervals when properly maintained. The graduated opening mechanism distributes wear more evenly across the valve internals, reducing localized erosion that commonly affects O-type valves in high-velocity applications. CEPAI Group's implementation of advanced materials and precision manufacturing techniques ensures both V-type and O-type electric valves meet demanding industrial requirements while maintaining cost-effectiveness.

Application-Specific Performance Requirements

Different industrial applications place varying demands on V-type vs O-type Electric Valve performance characteristics, making proper selection critical for operational success. In petrochemical processing, where precise flow control directly impacts product quality and safety, V-type electric valves offer superior regulation capabilities essential for maintaining process stability. It is suitable for media containing fibers, fine particles, and slurry. The designation for V-type ball valves is VQ, and its design complies with the JB/T 13517 standard. It possesses high reliability and stability, making it an indispensable component in the field of fluid control. Power generation facilities typically require valves capable of handling extreme temperatures and pressures while maintaining precise flow control for optimal efficiency. V-type electric valves excel in these demanding environments due to their superior flow characteristics and robust construction. The ability to maintain consistent flow control across wide operating ranges makes V-type configurations particularly valuable in steam applications, where precise flow modulation directly impacts turbine efficiency and overall plant performance. Water treatment and distribution systems often prioritize reliability and low maintenance requirements over precise flow control, making O-type electric valves an attractive option for many applications. However, as treatment processes become more sophisticated and energy efficiency becomes increasingly important, the superior flow characteristics of V-type valves are gaining recognition. The reduced energy consumption achieved through improved flow efficiency can offset higher initial costs in large-scale water treatment facilities, making V-type vs O-type Electric Valve selection increasingly dependent on lifecycle cost analysis rather than initial purchase price alone.

Optimizing Flow Rate Performance in Industrial Applications

High-Throughput System Design Considerations

Designing systems for optimal high flow rate performance requires careful consideration of how V-type vs O-type Electric Valve characteristics interact with overall system hydraulics. The inherent flow coefficient advantages of V-type designs become particularly pronounced in large-diameter applications where minor efficiency improvements translate to significant energy savings. System designers must evaluate not only the valve's flow capacity but also its impact on upstream and downstream components, including pumps, compressors, and heat exchangers. Pipeline velocity considerations play a crucial role in valve selection for high flow applications. V-type electric valves' superior flow characteristics help maintain optimal pipeline velocities by minimizing pressure drops and reducing the energy required for fluid transport. This becomes especially important in long-distance pipeline systems where cumulative pressure losses can significantly impact overall system efficiency. The streamlined flow path of V-type configurations reduces turbulence and associated energy losses, making them preferred choices for trunk line applications and major process streams. Integration with modern control systems requires valves capable of responding accurately to automated commands while maintaining stable operation across varying flow conditions. V-type vs O-type Electric Valve designs offer different control response characteristics, with V-type configurations generally providing more linear control response and better repeatability. This improved control performance is essential in automated systems where precise flow regulation directly impacts process quality and safety. CEPAI Group's intelligent manufacturing capabilities ensure that electric actuators and control systems are properly matched to valve characteristics, providing optimal system performance.

Energy Efficiency and Operational Cost Analysis

The long-term operational costs associated with V-type vs O-type Electric Valve selection extend far beyond initial purchase price considerations. Energy consumption represents a significant portion of total lifecycle costs in high flow applications, making valve efficiency a critical selection factor. V-type electric valves typically demonstrate 10-15% lower energy consumption compared to equivalent O-type designs due to their superior flow characteristics and reduced pressure drop. Maintenance cost considerations must account for both scheduled maintenance requirements and potential unscheduled repairs. While V-type valves may require more specialized maintenance procedures, their improved wear characteristics often result in longer service intervals and reduced total maintenance costs. The superior flow control capabilities of V-type configurations also reduce system stress by minimizing pressure fluctuations and flow-induced vibrations that can damage downstream equipment. Return on investment calculations for V-type vs O-type Electric Valve selection must consider the cumulative effects of improved efficiency over the valve's expected service life. In high-utilization applications, the energy savings achieved through improved flow efficiency can recover higher initial costs within 2-3 years, making V-type configurations economically attractive despite higher purchase prices. CEPAI Group's comprehensive cost-benefit analysis services help customers evaluate these lifecycle considerations to make informed valve selection decisions.

Process Control Integration and Automation

Modern industrial processes increasingly rely on sophisticated control systems that require valves capable of precise, repeatable operation under varying conditions. V-type vs O-type Electric Valve selection significantly impacts control system performance, with V-type configurations generally offering superior controllability and response characteristics. The linear flow relationship provided by V-type designs simplifies control algorithm development and improves overall system stability. Integration with distributed control systems (DCS) and supervisory control and data acquisition (SCADA) systems requires valves with consistent performance characteristics and reliable position feedback. V-type electric valves' improved control response and repeatability make them preferred choices for critical control loops where process stability directly impacts product quality or safety. The enhanced turndown ratio capabilities of V-type designs provide greater operational flexibility, allowing single valves to handle wider flow range variations without compromising control accuracy. Smart valve technologies and predictive maintenance capabilities are becoming increasingly important in high-flow applications where unexpected failures can result in significant production losses. Both V-type and O-type electric valves can incorporate intelligent monitoring systems, but the superior wear characteristics of V-type designs often provide more reliable performance data for predictive maintenance algorithms. CEPAI Group's remote monitoring and intelligent service capabilities leverage these advanced technologies to optimize valve performance and minimize unplanned downtime.

Selection Criteria for Specific Industrial Applications

Petrochemical and Oil & Gas Applications

The petrochemical industry presents some of the most demanding valve application requirements, where V-type vs O-type Electric Valve selection can significantly impact process safety, efficiency, and profitability. Examples of ideal applications for the valve include hydraulic, injection, and fire suppression systems in the oil and gas industry; isolation for compressed natural gas (CNG) vehicle infrastructure; and isolation in highly corrosive alkylation operations in the chemical and petrochemical industry. These applications require valves capable of handling aggressive chemicals, extreme temperatures, and high pressures while maintaining precise flow control. Upstream oil and gas operations typically require valves that can handle crude oil, natural gas, and produced water under high-pressure conditions. V-type electric valves offer advantages in wellhead applications where precise flow control is essential for optimizing production rates while preventing equipment damage from pressure surges. The superior flow characteristics of V-type designs help minimize pressure drops across the valve, reducing the energy required for fluid transport and improving overall field economics. CEPAI Group's wellhead device expertise and API certifications ensure that both V-type and O-type electric valves meet stringent oil and gas industry requirements. Refining and petrochemical processing applications demand valves capable of handling a wide range of process fluids, from light hydrocarbons to heavy crude oil derivatives. V-type electric valves excel in applications requiring precise flow control for reaction optimization, heat exchanger bypass control, and product blending operations. The improved flow characteristics and better turndown ratios of V-type configurations enable more efficient process control, resulting in improved product yields and reduced energy consumption. The ability to handle varying fluid viscosities and temperatures makes V-type vs O-type Electric Valve selection critical for maintaining process flexibility and optimization.

Power Generation and Utility Applications

Power generation facilities require valves capable of handling steam, condensate, and cooling water systems under extreme operating conditions. The selection between V-type vs O-type Electric Valve configurations significantly impacts plant efficiency and reliability, particularly in critical applications such as turbine bypass systems and feedwater control. V-type electric valves' superior flow control capabilities make them preferred choices for applications where precise flow modulation directly impacts turbine efficiency and overall plant performance. Steam applications present unique challenges due to the extreme temperatures and pressures involved, combined with the need for precise flow control to optimize turbine performance. V-type electric valves offer advantages in steam control applications due to their ability to provide smooth, gradual flow changes that minimize thermal stress on downstream equipment. The linear flow characteristics of V-type designs simplify control system implementation and improve overall system stability, critical factors in maintaining consistent power output and preventing equipment damage from thermal cycling. Cooling water systems in power plants typically handle large volumes of water that require efficient flow control while minimizing energy consumption. V-type vs O-type Electric Valve selection impacts both pumping costs and heat transfer efficiency, making proper valve selection essential for optimizing overall plant economics. The reduced pressure drop characteristics of V-type designs can significantly reduce pumping energy requirements in large cooling water systems, while their improved flow control capabilities enable better optimization of heat exchanger performance. CEPAI Group's experience with utility applications ensures proper valve sizing and selection for optimal system performance.

Water Treatment and Municipal Applications

Municipal water treatment and distribution systems present unique valve selection challenges where reliability, energy efficiency, and cost-effectiveness must be balanced against performance requirements. V-type vs O-type Electric Valve selection in these applications often depends on specific process requirements, with V-type configurations offering advantages in applications requiring precise flow control while O-type valves may be preferred for simple isolation applications where cost is the primary consideration. Advanced water treatment processes increasingly require precise chemical dosing and flow control to meet stringent water quality standards while minimizing chemical consumption. V-type electric valves excel in these applications due to their superior flow control capabilities and ability to maintain stable operation across varying flow conditions. The improved turndown ratios of V-type designs enable better process optimization, resulting in improved treatment efficiency and reduced chemical costs. The O-type valve excels in simplicity and tight shut-off capabilities, while the V-type valve shines in processes demanding precise flow control. Understanding these differences is essential for making informed decisions in various industrial settings. Distribution system applications typically prioritize reliability and low maintenance requirements, making valve selection dependent on specific system requirements and lifecycle cost considerations. While O-type electric valves may offer lower initial costs, the energy efficiency advantages of V-type configurations can provide significant savings in high-utilization applications. The improved flow characteristics of V-type designs reduce pumping energy requirements and minimize pressure fluctuations that can stress distribution system components. CEPAI Group's comprehensive application analysis helps municipal customers evaluate these tradeoffs to select optimal valve configurations for their specific requirements.

Conclusion

Selecting between V-type vs O-type Electric Valve configurations for high flow rate applications requires careful evaluation of flow characteristics, control requirements, and lifecycle costs. V-type electric valves offer superior flow control capabilities, higher flow coefficients, and better energy efficiency, making them ideal for applications requiring precise flow modulation. O-type valves provide excellent shut-off capabilities and lower initial costs, suitable for applications where simple isolation is the primary requirement.

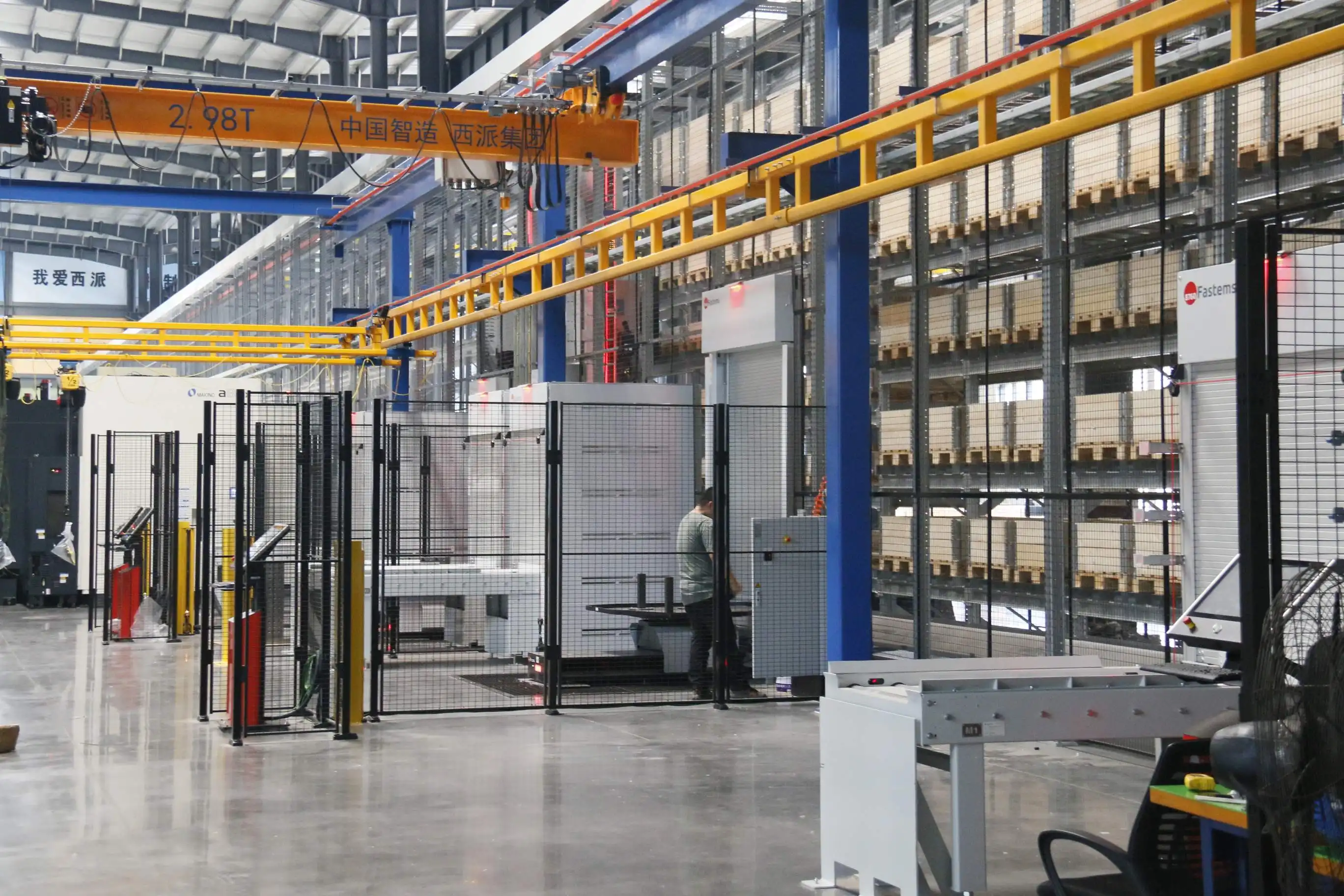

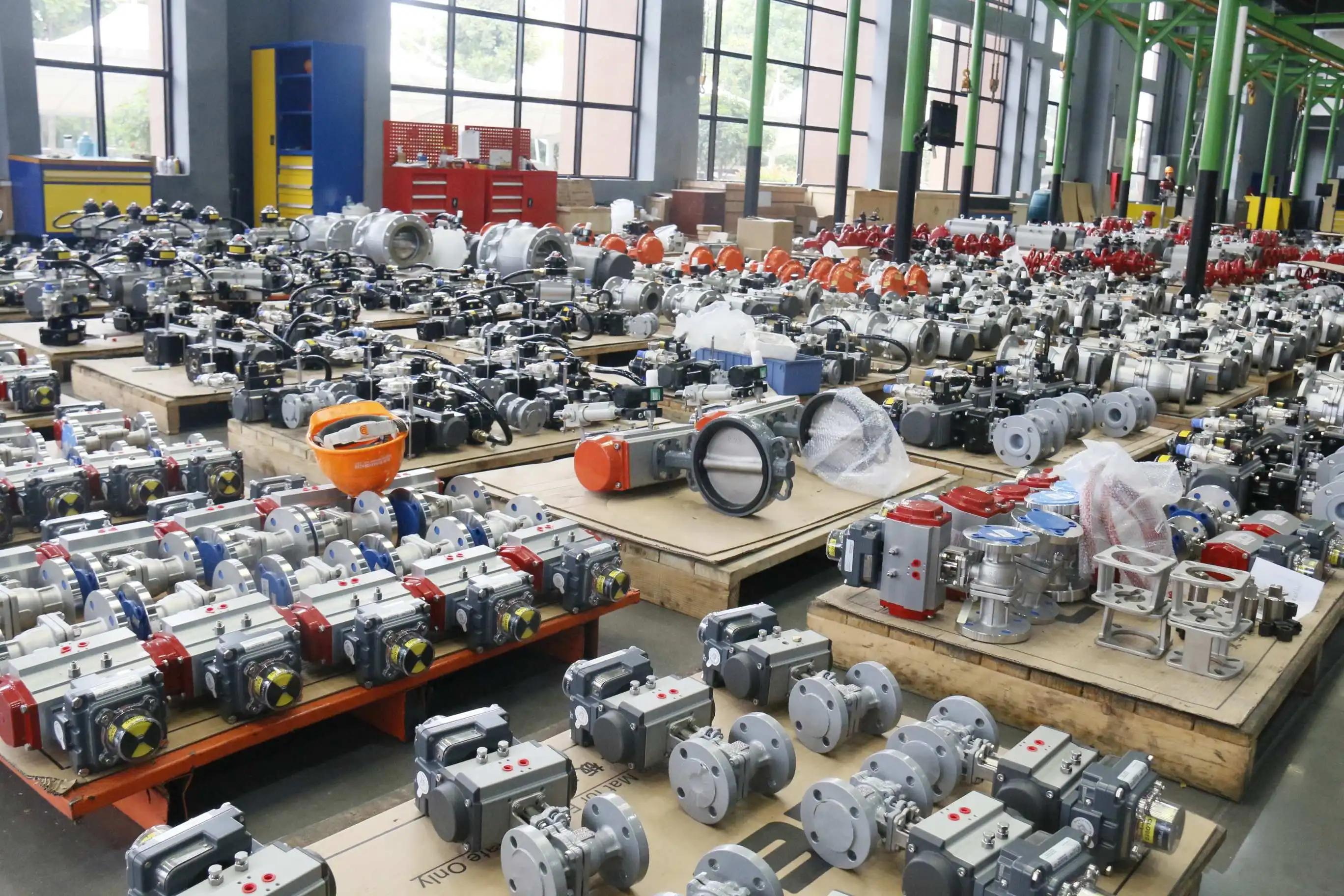

CEPAI Group Co., Ltd., as a leading technology multinational company established in 2009, leverages over 156 million yuan in intelligent manufacturing investments to produce both V-type and O-type electric valves that meet the highest international standards. Our national high-tech enterprise status, comprehensive certifications including API, ISO, and CE, and recognition as a Jiangsu Smart Factory ensure exceptional product quality and reliability. With qualified supplier status for major companies including PetroChina, Sinopec, and CNOOC, CEPAI Group provides expert valve solutions backed by advanced manufacturing capabilities and comprehensive quality assurance.

​​​​​​​

Ready to optimize your high flow rate applications with the right valve solution? Whether you need a China V-type vs O-type Electric Valve factory, China V-type vs O-type Electric Valve supplier, or China V-type vs O-type Electric Valve manufacturer for your next project, CEPAI Group offers comprehensive solutions. As a trusted China V-type vs O-type Electric Valve wholesale provider, we offer competitive V-type vs O-type Electric Valve prices without compromising on quality. Our High Quality V-type vs O-type Electric Valve products are available V-type vs O-type Electric Valve for sale with full technical support and after-sales service. Contact our expert team at cepai@cepai.com to discuss your specific requirements and discover how our advanced valve technologies can enhance your system performance and operational efficiency.
