Pneumatic vs Electric Ball Valves:Which Should You Choose

When selecting the right ball valve actuator for your industrial application, the choice between pneumatic and electric systems can significantly impact your operational efficiency, maintenance costs, and overall system performance. The decision between a pneumatic ball valve and an electric ball valve depends on various factors including response time requirements, power availability, environmental conditions, and specific application demands. Understanding the fundamental differences, advantages, and limitations of each technology is crucial for making an informed decision that aligns with your operational needs and long-term strategic goals.

Key Differences Between Pneumatic and Electric Ball Valve Systems

Power Source and Energy Efficiency Considerations

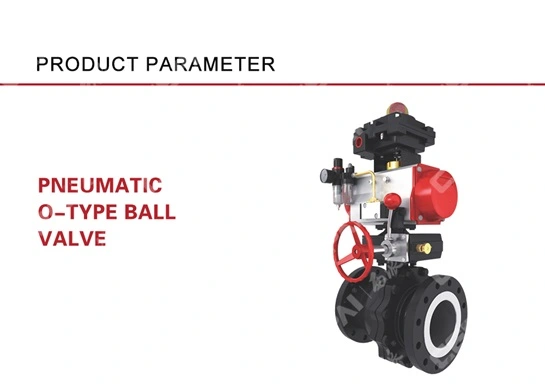

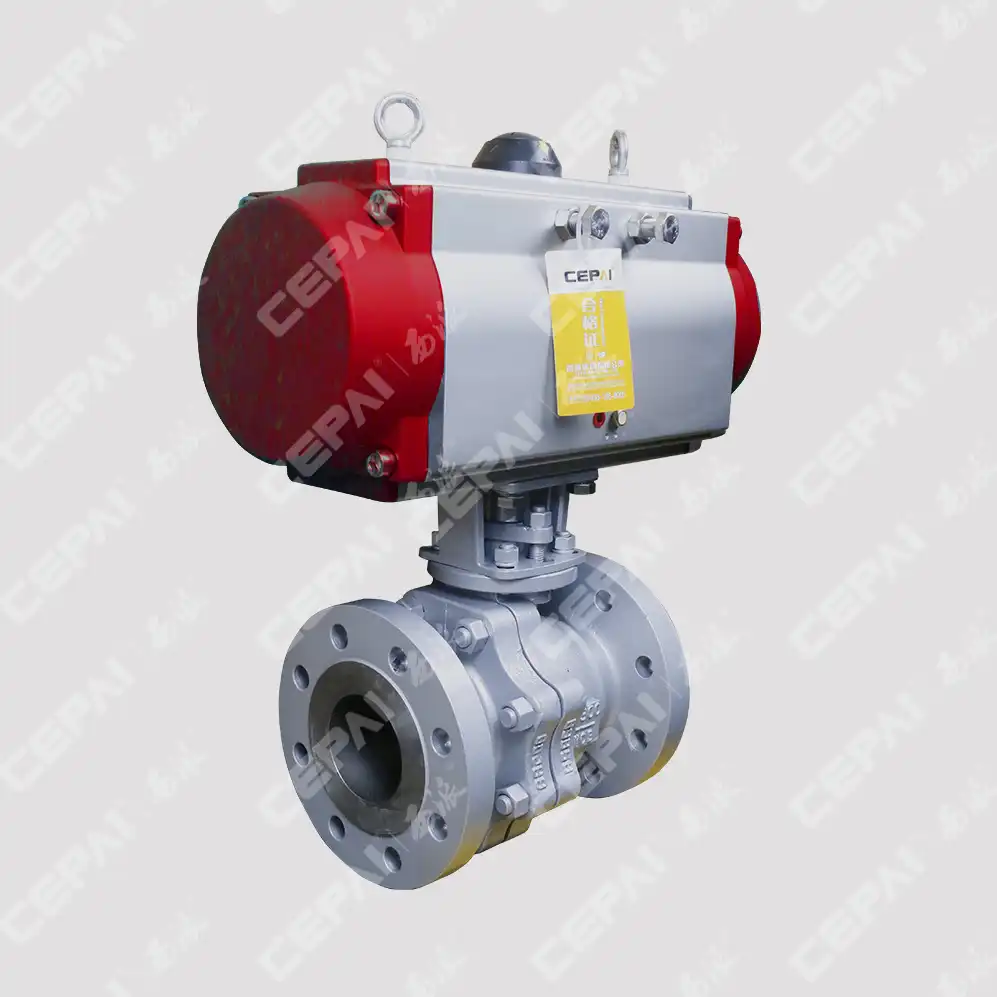

Pneumatic ball valve systems operate using compressed air as their primary power source, making them inherently different from their electric counterparts in terms of energy consumption and availability. The pneumatic ball valve requires a constant supply of compressed air, which is typically generated by air compressors within industrial facilities. This compressed air system provides instantaneous power delivery, enabling rapid valve operation and exceptional response times that are often critical in emergency shutdown scenarios and high-speed process control applications. The energy efficiency of pneumatic ball valve systems depends largely on the existing compressed air infrastructure within the facility. In plants where compressed air systems are already established for other pneumatic equipment, integrating pneumatic ball valves becomes highly cost-effective and energy-efficient. However, facilities without existing compressed air systems may find the initial setup costly, as it requires investment in air compressors, air treatment equipment, and distribution networks. Electric ball valve systems, conversely, utilize electrical power to drive actuator mechanisms, offering precise control and positioning capabilities. These systems typically consume less energy during standby conditions compared to pneumatic systems, which may experience air leakage losses. Electric actuators can maintain their position without continuous power consumption, making them more energy-efficient for applications requiring frequent valve positioning or extended holding periods.

Response Time and Control Precision Analysis

The response characteristics of pneumatic ball valve systems are among their most significant advantages, particularly in applications requiring rapid emergency shutdown or quick process adjustments. Pneumatic actuators can achieve full stroke operation in milliseconds, making them ideal for safety-critical applications in oil and gas, petrochemical, and power generation industries. This rapid response capability is essential for preventing equipment damage, protecting personnel safety, and maintaining process integrity during emergency conditions. Pneumatic ball valve systems also excel in applications requiring simple on-off control functions, where precise positioning is less critical than rapid, reliable operation. The inherent characteristics of compressed air provide consistent force output across the entire stroke range, ensuring reliable valve operation regardless of process conditions such as temperature variations or pressure fluctuations. Electric ball valve actuators offer superior control precision and positioning accuracy, making them ideal for applications requiring modulating control or precise flow regulation. These systems can achieve positioning accuracies within fractions of a degree, enabling sophisticated process control strategies and optimization techniques. The ability to program complex control algorithms and integrate with advanced process control systems makes electric ball valves particularly valuable in applications requiring high precision and repeatability.

Environmental Adaptability and Durability Factors

Pneumatic ball valve systems demonstrate exceptional performance in harsh industrial environments, particularly in applications involving extreme temperatures, corrosive atmospheres, or explosive conditions. The absence of electrical components in hazardous areas eliminates the risk of electrical sparks, making pneumatic ball valves inherently safer for use in explosive atmospheres where electrical equipment would require expensive explosion-proof enclosures and certifications. The mechanical simplicity of pneumatic ball valve actuators contributes to their robust performance in challenging environmental conditions. These systems can operate reliably in temperature ranges from -40°C to +80°C without requiring heating or cooling systems, making them suitable for outdoor installations and extreme climate conditions. The absence of electronic components also eliminates concerns about electromagnetic interference, electrical surges, or lightning strikes that could affect system operation. Electric ball valve systems require additional protection measures in harsh environments, including weatherproof enclosures, heating systems for cold climates, and specialized electrical installations for hazardous areas. However, modern electric actuators incorporate advanced materials and protective technologies that enable reliable operation in challenging conditions when properly specified and installed.

Performance Comparison and Application Suitability

Speed and Torque Characteristics

The operational speed characteristics of pneumatic ball valve systems make them particularly suitable for applications requiring rapid valve operation or emergency shutdown functions. Pneumatic actuators can generate high torque output at high speeds, enabling them to overcome seat friction and process forces that might otherwise slow valve operation. This capability is especially important in applications involving viscous fluids, high-pressure systems, or valves that have been idle for extended periods. Pneumatic ball valve torque output remains relatively constant throughout the operating stroke, providing consistent performance regardless of valve position or process conditions. This characteristic ensures reliable valve operation even when dealing with challenging process conditions such as temperature cycling, pressure variations, or fluid property changes that might affect valve performance. The torque multiplication capabilities of pneumatic ball valve actuators enable them to handle large valve sizes and high-pressure applications effectively. Through the use of rack and pinion mechanisms or scotch yoke designs, pneumatic actuators can generate significant torque output while maintaining compact dimensions and reasonable weight characteristics. Electric ball valve systems offer variable speed control capabilities that enable optimization of valve operation for specific applications. The ability to control acceleration and deceleration profiles allows electric actuators to minimize water hammer effects, reduce wear on valve components, and optimize process control performance. This variable speed capability is particularly valuable in applications where gentle valve operation is required to prevent process disruption or equipment damage.

Maintenance Requirements and Lifecycle Considerations

Pneumatic ball valve maintenance requirements are generally straightforward and can be performed by plant maintenance personnel with basic pneumatic knowledge. The mechanical simplicity of pneumatic actuators results in fewer components requiring regular maintenance, with most maintenance activities focused on air filter replacement, lubrication of moving parts, and periodic inspection of seals and gaskets. The maintenance philosophy for pneumatic ball valve systems emphasizes preventive maintenance practices that help ensure reliable operation and extend component life. Regular air filter replacement prevents contamination from reaching internal actuator components, while proper lubrication of moving parts reduces wear and ensures smooth operation. The availability of maintenance personnel with pneumatic expertise in most industrial facilities makes maintenance planning and execution more straightforward. Pneumatic ball valve systems benefit from the inherent self-cleaning action of compressed air flow, which helps remove contaminants and moisture from internal actuator components during normal operation. This self-cleaning characteristic reduces the accumulation of debris that could otherwise interfere with actuator operation or cause premature component wear. Electric ball valve systems require maintenance personnel with electrical and electronic expertise, which may not be readily available in all facilities. However, the reduced number of moving parts in electric actuators can result in longer maintenance intervals and reduced routine maintenance requirements. Modern electric actuators incorporate diagnostic capabilities that provide advance warning of potential maintenance issues, enabling proactive maintenance planning and scheduling.

Cost Analysis and Economic Considerations

The initial cost comparison between pneumatic ball valve and electric ball valve systems involves multiple factors beyond the actuator purchase price. Pneumatic ball valve systems require compressed air infrastructure, including compressors, air treatment equipment, distribution piping, and ongoing compressed air generation costs. Facilities with existing compressed air systems can realize significant cost advantages by utilizing pneumatic actuators, while facilities without compressed air infrastructure may face substantial initial investment requirements. Pneumatic ball valve operational costs include compressed air generation, which typically represents one of the most expensive forms of industrial energy. However, these costs must be evaluated in the context of the compressed air system's utilization across multiple applications within the facility. The efficiency of compressed air generation and distribution systems significantly impacts the operational cost-effectiveness of pneumatic ball valve installations. Electric ball valve systems typically require higher initial actuator costs but eliminate the need for compressed air infrastructure in facilities where it doesn't already exist. The operational costs of electric actuators are generally lower during standby conditions, as they don't require continuous energy input to maintain position. However, electric systems may require additional investments in electrical infrastructure, control systems, and specialized maintenance capabilities. The total cost of ownership analysis for pneumatic ball valve versus electric ball valve systems should consider factors such as energy costs, maintenance requirements, reliability, and expected service life. In many applications, the superior reliability and rapid response characteristics of pneumatic ball valve systems justify their operational costs through improved process safety, reduced downtime, and enhanced operational efficiency.

Selection Criteria and Best Practices for Industrial Applications

Safety and Regulatory Compliance Requirements

Safety considerations play a crucial role in determining whether pneumatic ball valve or electric ball valve systems are most appropriate for specific applications. Pneumatic ball valve systems offer inherent safety advantages in hazardous environments due to their fail-safe characteristics and absence of electrical components in potentially explosive atmospheres. The ability of pneumatic actuators to fail to a predetermined safe position upon loss of air supply provides an important safety feature that is difficult to replicate with electric systems without additional backup power systems. Regulatory compliance requirements in industries such as oil and gas, petrochemicals, and power generation often favor pneumatic ball valve systems for safety-critical applications. The simplicity and reliability of pneumatic systems align well with regulatory expectations for emergency shutdown systems, fire suppression systems, and other safety-critical applications where failure is not acceptable. Pneumatic ball valve systems comply with various international standards and certifications including API, ANSI, and IEC requirements for safety instrumented systems. The ability to achieve high Safety Integrity Level (SIL) ratings makes pneumatic ball valves particularly suitable for applications requiring compliance with functional safety standards such as IEC 61508 and IEC 61511. Electric ball valve systems can achieve equivalent safety performance through the implementation of redundant systems, backup power supplies, and sophisticated diagnostic capabilities. However, these additional safety measures typically increase system complexity and cost, making pneumatic solutions more attractive for applications where simplicity and reliability are paramount.

Integration with Control Systems and Automation

The integration capabilities of pneumatic ball valve systems with modern control and automation systems have evolved significantly with the development of smart pneumatic positioners and digital communication protocols. Modern pneumatic ball valve installations can incorporate HART, Foundation Fieldbus, or Profibus communication capabilities, enabling integration with distributed control systems and providing diagnostic information for predictive maintenance programs. Pneumatic ball valve systems offer excellent compatibility with existing pneumatic control infrastructure, making them ideal for facilities with established pneumatic control systems. The ability to utilize existing compressed air supplies and control air distribution systems simplifies installation and reduces overall project costs. Additionally, the inherent linear relationship between control signal and actuator position makes pneumatic ball valves easy to integrate with conventional control systems. Electric ball valve systems provide superior integration capabilities with modern digital control systems, offering advanced features such as precise positioning feedback, diagnostic capabilities, and programmable control algorithms. These systems can interface directly with Ethernet-based control networks and provide real-time operational data for process optimization and maintenance planning. The choice between pneumatic ball valve and electric ball valve systems for control integration depends on the existing control infrastructure, required control precision, and long-term automation strategy. Facilities with established pneumatic control systems often find pneumatic ball valves more cost-effective and easier to integrate, while facilities implementing new automation systems may benefit from the advanced capabilities of electric actuators.

Environmental and Operational Conditions Assessment

Environmental conditions significantly influence the selection between pneumatic ball valve and electric ball valve systems. Pneumatic actuators excel in extreme temperature environments where electric components might require additional heating or cooling systems. The mechanical operation of pneumatic ball valve systems remains reliable across wide temperature ranges without the need for environmental control systems. Pneumatic ball valve systems demonstrate superior performance in corrosive environments where electrical components might suffer degradation or require expensive protective measures. The use of corrosion-resistant materials in pneumatic actuator construction, combined with the absence of electrical components, makes these systems ideal for chemical processing, marine applications, and other corrosive environments. Vibration and shock resistance characteristics favor pneumatic ball valve systems in applications involving heavy machinery, mobile equipment, or seismic activity. The mechanical robustness of pneumatic actuators enables them to withstand operational stresses that might damage sensitive electronic components in electric actuators. Electric ball valve systems require careful consideration of environmental protection requirements, including ingress protection ratings, temperature compensation, and electromagnetic compatibility. While modern electric actuators incorporate advanced protective features, the additional complexity and cost of environmental protection measures must be considered in the selection process.

Conclusion

The choice between pneumatic ball valve and electric ball valve systems requires careful evaluation of multiple factors including application requirements, environmental conditions, safety considerations, and total cost of ownership. Pneumatic ball valves excel in applications requiring rapid response, operation in hazardous environments, and integration with existing pneumatic infrastructure, while electric ball valves offer superior precision, control capabilities, and energy efficiency in standby conditions.
