Pneumatic vs. Electric Ball Valve: Which One Offers Faster Response

When your industrial process suddenly demands emergency shutdown within seconds, every millisecond counts. The choice between pneumatic and electric ball valves can literally make the difference between safe operations and catastrophic failure. With Pneumatic Ball Valve systems offering response times as fast as 6 seconds compared to electric alternatives requiring 15-20 seconds, understanding the speed differential becomes crucial for engineers managing critical flow control applications in oil and gas, petrochemical, and power generation industries.

Understanding Response Time Fundamentals in Pneumatic Ball Valve Systems

Response time in valve actuators represents the critical period between receiving a control signal and achieving complete valve position change. This parameter directly impacts system safety, operational efficiency, and process control accuracy across industrial applications.

• The Physics Behind Pneumatic Ball Valve Speed Advantage

Pneumatic Ball Valve systems achieve superior response times through compressed air mechanics. When a solenoid pilot valve receives an electrical signal, compressed air at 60-125 PSI instantly flows to the actuator chamber. This immediate pressure application creates rapid piston movement, translating to faster ball rotation within the valve body. The inherent properties of compressed air allow for near-instantaneous force transmission, eliminating the mechanical delays associated with electric motor systems. The pneumatic advantage becomes particularly evident in emergency situations where fail-safe operation is paramount. Double-acting pneumatic actuators can reverse direction within milliseconds, providing bidirectional control that electric systems struggle to match. This speed differential makes Pneumatic Ball Valve technology indispensable for applications requiring rapid isolation, such as wellhead safety systems in offshore drilling operations.

• Electric Ball Valve Response Characteristics and Limitations

Electric ball valves operate through motor-driven mechanisms that convert electrical energy into rotational torque. While offering precise positioning control, these systems inherently face electrical and mechanical resistance that slows response times. The motor must overcome static friction, accelerate the drive train, and position the valve ball through a controlled sequence that typically requires 15-20 seconds for complete operation. However, electric actuators provide advantages in applications requiring precise modulation and position feedback. Their ability to stop at any intermediate position makes them valuable for throttling applications where Pneumatic Ball Valve systems traditionally operate in fully open or closed positions. The trade-off between speed and precision defines the fundamental difference between these technologies.

Pneumatic Ball Valve Performance Analysis in Critical Applications

Industrial processes demand reliability and speed, particularly in safety-critical applications where valve response time directly impacts personnel safety and equipment protection. Understanding how Pneumatic Ball Valve systems perform under various operating conditions helps engineers make informed decisions for specific applications.

• High-Pressure Operations and Emergency Shutdown Systems

In high-pressure environments exceeding 1000 PSI, Pneumatic Ball Valve systems demonstrate exceptional performance advantages. The air supply pressure creates sufficient force to overcome high differential pressures across the valve seat, ensuring reliable operation even under extreme conditions. Emergency shutdown systems (ESD) in oil and gas facilities rely on this rapid response capability to isolate dangerous sections within seconds of detecting hazardous conditions. The fail-safe design of pneumatic systems provides additional security through spring-return mechanisms. When air supply is lost, the actuator automatically returns the valve to its predetermined safe position, typically fully closed. This inherent safety feature makes Pneumatic Ball Valve technology the preferred choice for critical isolation applications where system failure must result in safe valve positioning.

• Temperature Extremes and Environmental Challenges

Pneumatic Ball Valve systems maintain consistent performance across wide temperature ranges, from arctic conditions below -40°F to high-temperature applications exceeding 500°F. The compressed air medium remains stable across these extremes, unlike electric systems where motor performance can degrade significantly at temperature limits. Hazardous area applications benefit from pneumatic technology's intrinsic safety characteristics. Since the actuator contains no electrical components at the valve location, explosion-proof housing requirements are eliminated. The remote solenoid pilot valve can be located in safe areas, reducing certification costs and simplifying installation in Class I, Division 1 environments common in petrochemical facilities.

Electric Ball Valve Advantages in Precision Control Applications

While Pneumatic Ball Valve systems excel in speed and safety applications, electric ball valves offer distinct advantages in scenarios requiring precise positioning, feedback control, and integration with digital control systems. Understanding these strengths helps identify applications where electric actuators provide superior performance despite longer response times.

• Modulation and Positioning Accuracy

Electric actuators excel in applications requiring precise throttling control and intermediate positioning. Variable frequency drives (VFDs) enable smooth speed control and exact positioning to fractions of a degree, capabilities that exceed pneumatic system precision. Process control applications benefit from this accuracy, particularly in automated systems requiring consistent flow regulation without the pressure variations inherent in compressed air supplies. The positioning feedback available in electric systems enables closed-loop control strategies impossible with standard Pneumatic Ball Valve configurations. Integrated encoders and limit switches provide real-time position data to control systems, enabling advanced algorithms for process optimization and predictive maintenance scheduling.

• Energy Efficiency and Operating Cost Considerations

Electric ball valves operate without requiring compressed air systems, eliminating the energy costs associated with air compression, distribution, and maintenance. In facilities without existing pneumatic infrastructure, electric actuators avoid the capital investment in compressors, air treatment equipment, and distribution piping required for Pneumatic Ball Valve installations. Long-term operating costs favor electric systems in applications with frequent cycling requirements. While Pneumatic Ball Valve systems consume air with each operation, electric actuators only consume power during position changes, making them cost-effective for high-frequency applications despite longer response times.

Comparative Analysis: Speed vs. Control Trade-offs

The fundamental trade-off between pneumatic and electric ball valve technologies centers on the balance between response speed and control precision. This analysis examines how different industrial applications prioritize these characteristics and guides selection decisions based on operational requirements.

• Response Time Benchmarking Across Industries

Manufacturing facilities processing hazardous chemicals prioritize rapid emergency isolation over precise control, making Pneumatic Ball Valve systems the preferred choice. Typical response times of 6 seconds or less enable effective containment of dangerous releases, while electric systems requiring 15-20 seconds may allow excessive material discharge during emergency conditions. Conversely, water treatment facilities often prioritize precise flow control over speed, making electric ball valves suitable for applications requiring gradual flow adjustments to maintain optimal treatment parameters. The ability to position valves at specific intermediate positions enables fine-tuning of process conditions impossible with traditional on-off Pneumatic Ball Valve operation.

​​​​​​​

• Integration with Modern Control Systems

Digital transformation in industrial facilities increasingly demands intelligent valve actuation with diagnostic capabilities and predictive maintenance features. Electric ball valves readily integrate with industrial IoT platforms, providing continuous monitoring of position, torque, temperature, and vibration parameters that enable condition-based maintenance strategies. Pneumatic Ball Valve systems traditionally offered limited diagnostic feedback, though modern smart positioners now provide similar capabilities through digital communication protocols. However, the additional complexity and cost of these systems can reduce the economic advantages typically associated with pneumatic technology.

Application-Specific Selection Guidelines for Pneumatic Ball Valve Systems

Selecting the optimal valve actuation technology requires careful consideration of application-specific requirements, operational environment, and performance priorities. This section provides practical guidelines for choosing between pneumatic and electric ball valve technologies based on real-world application characteristics.

• Safety-Critical Applications Requiring Rapid Response

Oil and gas production facilities, chemical processing plants, and power generation stations rely on Pneumatic Ball Valve systems for emergency shutdown applications where response time directly impacts safety outcomes. The combination of rapid response, fail-safe operation, and reliable performance under extreme conditions makes pneumatic technology indispensable for critical isolation applications. Fire suppression systems exemplify applications where Pneumatic Ball Valve speed advantages prove essential. Deluge systems must activate within seconds of fire detection to prevent escalation, making the 6-second response time of pneumatic actuators significantly superior to electric alternatives requiring 15-20 seconds for full operation.

• Process Industries Prioritizing Speed and Reliability

Batch processing operations benefit from Pneumatic Ball Valve technology's rapid cycling capability and simplified maintenance requirements. The robust construction and fewer mechanical components reduce maintenance intervals and improve overall system reliability in demanding industrial environments. Mining and mineral processing facilities often operate in harsh conditions where Pneumatic Ball Valve systems demonstrate superior durability compared to electric alternatives. The absence of sensitive electronic components at the actuator location eliminates concerns about dust, moisture, and vibration that can compromise electric actuator reliability in these challenging environments.

Conclusion

The choice between pneumatic and electric ball valves ultimately depends on application priorities, with Pneumatic Ball Valve systems offering superior response times of 6 seconds compared to 15-20 seconds for electric alternatives. This speed advantage makes pneumatic technology essential for safety-critical applications requiring rapid emergency isolation, while electric systems excel in precision control applications where positioning accuracy outweighs response time considerations.

Cooperate with CEPAI Group Co., LTD.

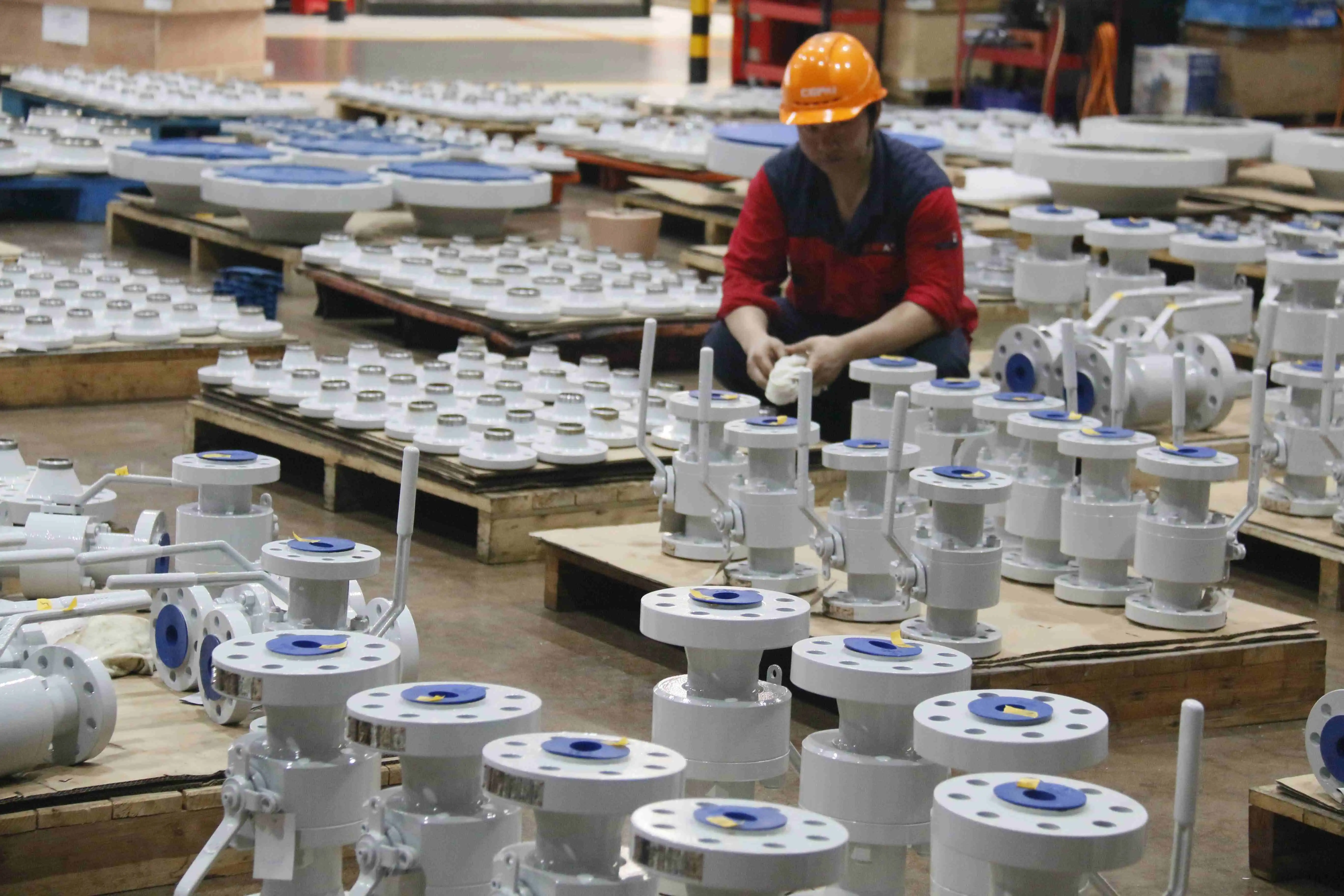

CEPAI Group Co., Ltd. stands as China's leading Pneumatic Ball Valve manufacturer, established in 2009 with 200 million yuan registered capital and 56,000 square meters of advanced manufacturing facilities in Jiangsu Province. As a national high-tech enterprise and specialized "little giant" company, CEPAI has earned recognition as a Jiangsu Smart Factory and Internet benchmarking facility, winning the prestigious Mayor Quality Award in 2022.

Our company specializes in high-end energy valve manufacturing for oil and gas drilling and production applications, with comprehensive certifications including API Q1, API 6A, API 6D, API 16C, and API 602. These qualifications, combined with ISO 9001, ISO 14001, and ISO 45001 certifications, ensure the highest quality standards for our Pneumatic Ball Valve products. CEPAI has achieved supplier qualification status with major Chinese energy companies including PetroChina, Sinopec, and CNOOC, demonstrating our commitment to excellence in critical applications.

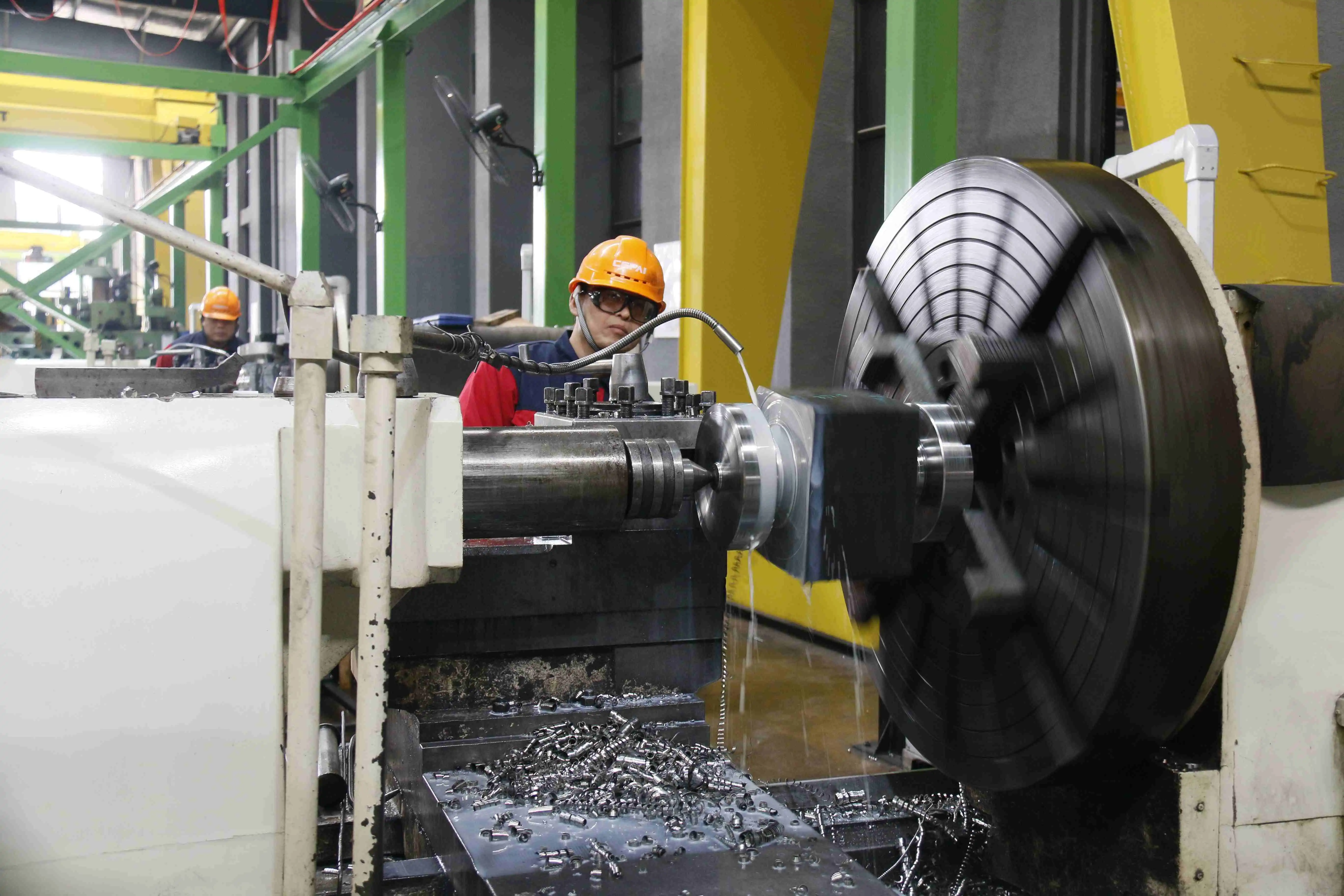

With 156 million yuan invested in intelligent manufacturing transformation, CEPAI operates the longest high-precision intelligent production line in the Asia Pacific region. Our advanced testing capabilities include CNAS nationally recognized laboratories and comprehensive quality control systems ensuring zero-defect manufacturing standards. From raw material analysis to final product testing, every Pneumatic Ball Valve undergoes rigorous inspection according to international standards.

As a trusted China Pneumatic Ball Valve factory, China Pneumatic Ball Valve supplier, and China Pneumatic Ball Valve manufacturer offering competitive China Pneumatic Ball Valve wholesale pricing, we provide Pneumatic Ball Valve for sale with exceptional Pneumatic Ball Valve price value. Our High Quality Pneumatic Ball Valve products backed by comprehensive technical support and after-sales service guarantee customer satisfaction. Contact us at cepai@cepai.com for customized solutions and competitive quotations.

FAQ

Q: What is the typical response time difference between pneumatic and electric ball valves?

A: Pneumatic ball valves typically respond in 6 seconds or less, while electric ball valves require 15-20 seconds for complete operation cycles.

Q: Which valve type is better for emergency shutdown applications?

A: Pneumatic ball valves are superior for emergency applications due to their faster response time and fail-safe design capabilities.

Q: Can electric ball valves provide better positioning accuracy than pneumatic valves?

A: Yes, electric ball valves offer precise intermediate positioning control, while pneumatic valves traditionally operate in fully open or closed positions.

Q: What are the main advantages of pneumatic ball valves in hazardous environments?

A: Pneumatic ball valves are intrinsically safer in explosive atmospheres since they contain no electrical components at the valve location.
