Pneumatic Ball Valve Operation with Compressed Air

Pneumatic ball valves represent a cornerstone technology in modern industrial automation, utilizing compressed air to achieve precise flow control across diverse applications. These sophisticated devices combine the reliability of traditional ball valve design with the automation capabilities of pneumatic actuation, creating systems that deliver exceptional performance in demanding industrial environments. Understanding how pneumatic ball valve operation works with compressed air is essential for engineers, plant operators, and maintenance professionals who seek to optimize their fluid control systems for maximum efficiency and reliability.

Understanding Pneumatic Ball Valve Fundamentals

Basic Design Principles and Components

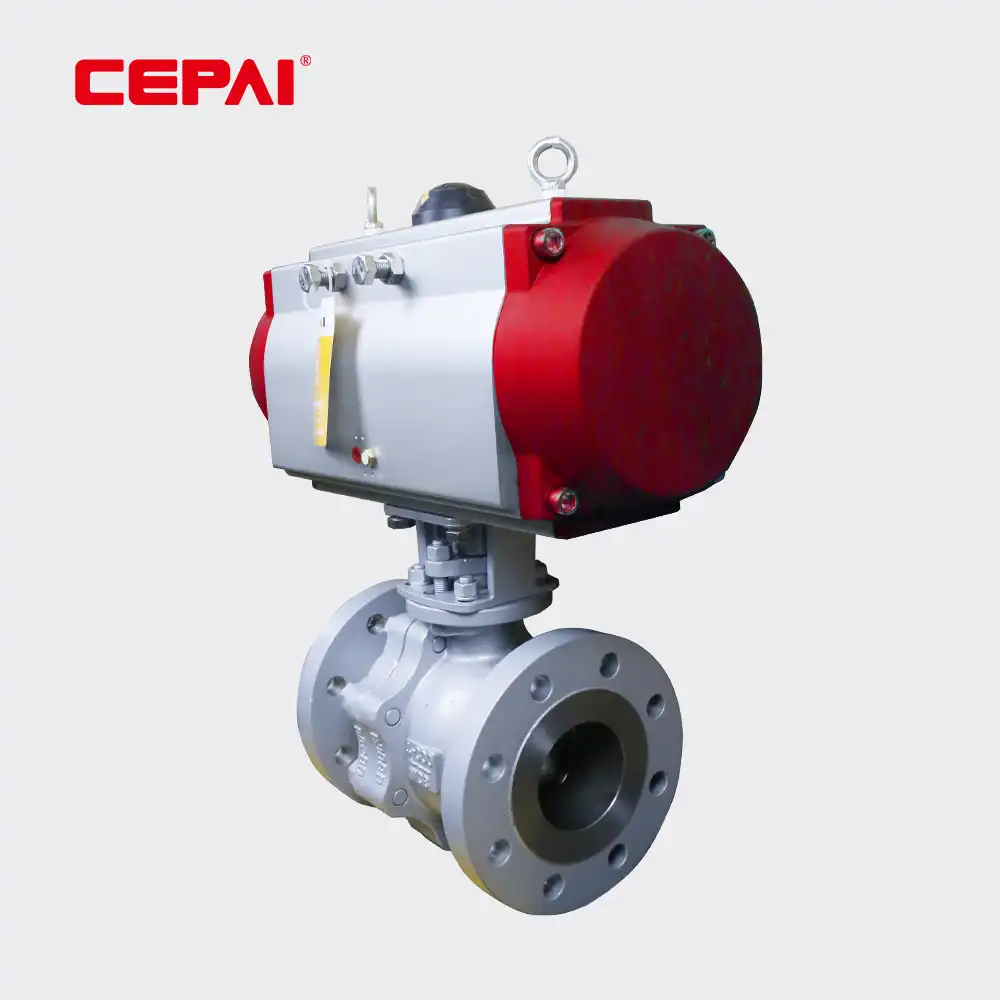

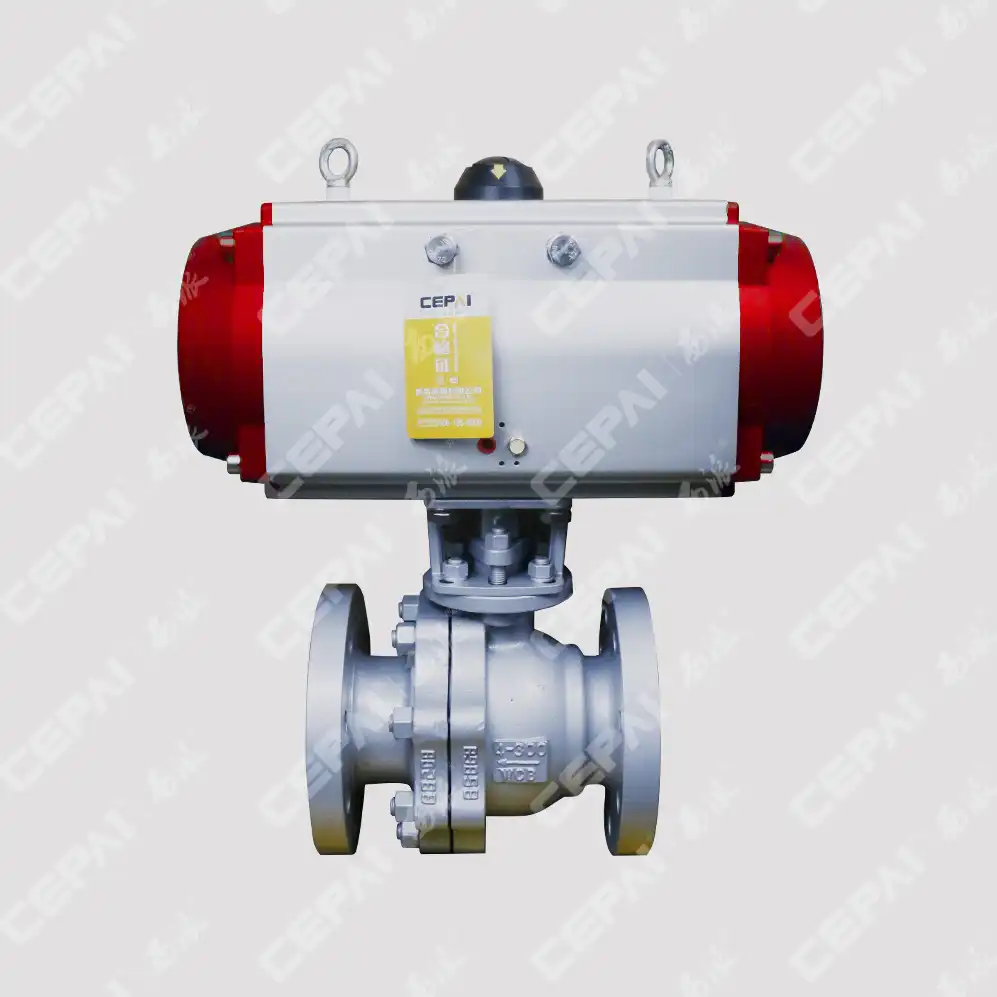

The pneumatic ball valve operates through a sophisticated integration of mechanical and pneumatic components that work together to provide reliable flow control. At its core, the pneumatic ball valve consists of a spherical closure element with a through-hole that aligns with the pipeline when open and blocks flow when rotated 90 degrees. The pneumatic actuator, mounted on top of the valve body, receives compressed air signals to rotate the ball through precise angular movements. This design ensures that the pneumatic ball valve can achieve rapid opening and closing cycles while maintaining tight shutoff capabilities. The actuator housing contains a piston or diaphragm mechanism that converts compressed air pressure into rotational torque, enabling the valve to handle high-pressure applications with minimal operator intervention. Advanced pneumatic ball valve designs incorporate position feedback systems, allowing for precise control and monitoring of valve positions in real-time industrial applications.

Compressed Air System Integration

The integration of compressed air systems with pneumatic ball valve operation requires careful consideration of pressure ratings, flow characteristics, and response times. Compressed air supplied to the pneumatic ball valve actuator typically operates within pressure ranges of 80-120 PSI, providing sufficient force to overcome process pressures and ensure reliable valve operation. The pneumatic ball valve system includes air preparation equipment such as filters, regulators, and lubricators that condition the compressed air to prevent contamination and ensure consistent performance. Solenoid valves serve as pilot controls, directing compressed air to the appropriate actuator chambers based on control signals from automation systems. The pneumatic ball valve response time depends on actuator volume, air line sizing, and exhaust flow characteristics, with typical quarter-turn operations completing within 2-15 seconds depending on valve size and application requirements.

Control Signal Processing and Automation

Modern pneumatic ball valve systems incorporate sophisticated control signal processing capabilities that enable seamless integration with distributed control systems and programmable logic controllers. The pneumatic ball valve can respond to various input signals including 4-20mA analog signals, digital on/off commands, and fieldbus communications protocols. Positioners mounted on the pneumatic ball valve actuator provide precise position control by comparing desired versus actual valve positions and adjusting compressed air flow accordingly. These intelligent devices enable the pneumatic ball valve to achieve positioning accuracies of ±1% or better, making them suitable for critical process control applications. Emergency shutdown systems can rapidly exhaust compressed air from the pneumatic ball valve actuator, ensuring fail-safe operation during emergency conditions or loss of instrument air supply.

Operational Mechanisms and Performance Characteristics

Actuator Design and Force Generation

The pneumatic ball valve actuator design plays a crucial role in determining overall system performance and reliability. Rack and pinion actuators are commonly used in pneumatic ball valve applications, converting linear piston motion into rotational movement through precision-machined gear systems. The actuator generates torque output proportional to compressed air pressure and effective piston area, enabling the pneumatic ball valve to operate against significant process pressures and temperatures. Double-acting actuators provide bidirectional control, using compressed air for both opening and closing operations, while spring-return designs use compressed air for one direction and spring force for the opposite movement. The pneumatic ball valve actuator must generate sufficient torque to overcome stem friction, packing loads, and differential pressure forces while maintaining adequate safety margins for reliable operation throughout the valve's service life.

Sealing Technology and Pressure Containment

Advanced sealing technology in pneumatic ball valve designs ensures reliable pressure containment and environmental isolation across demanding operating conditions. The ball and seat interface utilizes engineered polymer or metal-to-metal sealing configurations that maintain tight shutoff even under high differential pressures. Pneumatic ball valve stem sealing systems employ multiple sealing elements including O-rings, V-packing, or live-loaded gland arrangements that prevent process leakage while accommodating thermal expansion and mechanical wear. The actuator housing incorporates weatherproof seals and drainage systems that protect internal components from environmental contamination while maintaining compressed air system integrity. Fire-safe designs in critical pneumatic ball valve applications include metal-to-metal backup sealing that maintains pressure containment even if soft sealing materials are damaged by extreme temperatures or fire exposure.

​​​​​​​

Flow Characteristics and Performance Optimization

The flow characteristics of pneumatic ball valve systems significantly impact process control quality and energy efficiency in industrial applications. Full-bore pneumatic ball valve designs provide unrestricted flow paths when fully open, minimizing pressure drop and reducing pumping energy requirements. The ball geometry and port configuration determine flow coefficient (Cv) values and pressure recovery characteristics that affect overall system performance. Pneumatic ball valve installations require proper sizing considerations that account for process fluid properties, operating pressures, and required flow rates to ensure optimal performance. Cavitation and flashing phenomena in liquid service applications must be evaluated to prevent erosion damage and maintain long-term reliability of the pneumatic ball valve system. Advanced computational fluid dynamics modeling helps optimize pneumatic ball valve internal geometries for specific applications, ensuring maximum efficiency and component longevity.

Installation, Maintenance, and Troubleshooting Guidelines

Installation Best Practices and System Configuration

Proper installation of pneumatic ball valve systems requires adherence to industry standards and manufacturer specifications to ensure optimal performance and safety. The pneumatic ball valve installation process begins with verification of process conditions including temperature, pressure, and fluid compatibility with valve materials. Piping alignment and support systems must accommodate thermal expansion while preventing excessive loads on the pneumatic ball valve body and connections. Compressed air supply lines require proper sizing and routing to minimize pressure drops and ensure adequate flow capacity for reliable actuator operation. The pneumatic ball valve control system installation includes proper grounding, signal shielding, and environmental protection to prevent electromagnetic interference and ensure reliable communication with control systems. Commissioning procedures for pneumatic ball valve systems include stroke testing, leak testing, and calibration of position feedback devices to verify proper operation before placing the system in service.

Preventive Maintenance Strategies and Schedules

Comprehensive preventive maintenance programs for pneumatic ball valve systems help maximize equipment reliability and minimize unplanned downtime. Regular inspection of the pneumatic ball valve actuator includes checking compressed air connections, lubricant levels, and mounting hardware for proper tightness and condition. The valve body and trim components require periodic inspection for wear, corrosion, or damage that could affect sealing performance or flow characteristics. Pneumatic ball valve packing adjustments and replacement schedules depend on operating conditions, cycle frequency, and environmental factors that affect sealing system longevity. Compressed air quality monitoring ensures that contamination levels remain within acceptable limits to prevent premature wear of pneumatic ball valve internal components. Predictive maintenance techniques including vibration analysis, thermography, and partial stroke testing help identify potential issues before they result in equipment failure or safety incidents.

Troubleshooting Common Operational Issues

Effective troubleshooting of pneumatic ball valve systems requires systematic diagnostic approaches that identify root causes of performance problems. Slow or erratic valve operation often indicates compressed air supply issues, actuator seal leakage, or contamination in the pneumatic system. The pneumatic ball valve may exhibit excessive torque requirements due to process buildup, packing adjustment issues, or misalignment between actuator and valve components. Position control problems in pneumatic ball valve systems frequently result from positioner calibration drift, signal interference, or mechanical wear in feedback linkages. Leakage through the pneumatic ball valve seat typically indicates wear, damage, or foreign material interference that prevents proper sealing contact between ball and seat surfaces. External leakage from pneumatic ball valve stem sealing systems requires evaluation of packing condition, gland adjustment, and potential stem damage or corrosion that affects sealing effectiveness.

Conclusion

Pneumatic ball valve operation with compressed air represents a mature and reliable technology that continues to evolve with advancing automation requirements and performance demands. The sophisticated integration of mechanical valve design with pneumatic actuation provides industrial facilities with precise flow control capabilities that enhance process efficiency, safety, and environmental protection. Understanding the fundamental principles, operational characteristics, and maintenance requirements of pneumatic ball valve systems enables engineers and operators to optimize their installations for maximum reliability and performance throughout extended service lives.

CEPAI Group's commitment to excellence in pneumatic ball valve technology demonstrates our dedication to providing customers with superior products that meet the most demanding industrial applications. Our comprehensive quality management system, advanced manufacturing capabilities, and extensive product certifications ensure that every pneumatic ball valve meets international standards for safety, performance, and reliability. From initial design consultation through installation support and ongoing maintenance services, CEPAI Group provides the expertise and resources necessary for successful pneumatic ball valve system implementation.

Experience the difference that professional engineering and manufacturing excellence can make in your next pneumatic ball valve project. Our technical specialists are ready to assist with system design, product selection, and application-specific solutions that optimize performance while reducing total cost of ownership. Contact CEPAI Group today to discuss your pneumatic ball valve requirements and discover how our innovative solutions can enhance your industrial automation systems. Reach us at cepai@cepai.com for comprehensive technical consultation and competitive pricing on our complete range of pneumatic ball valve products and services.
