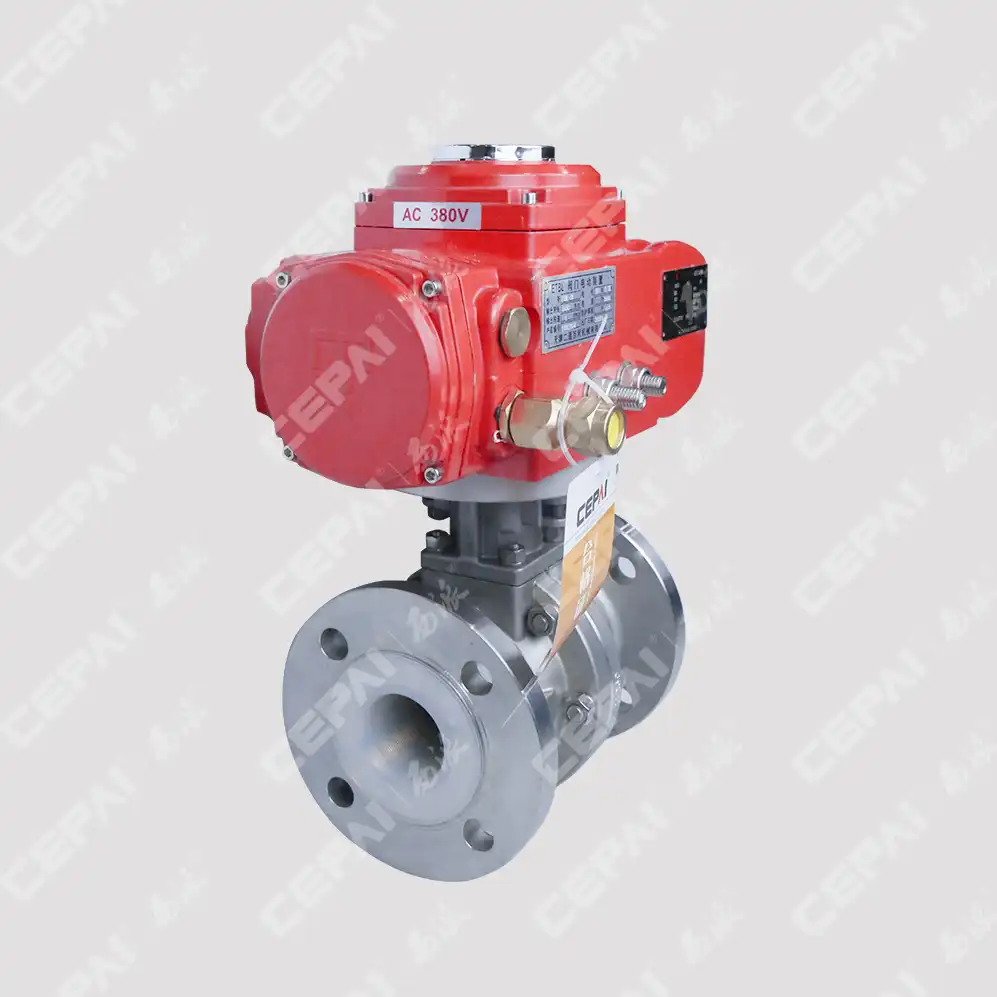

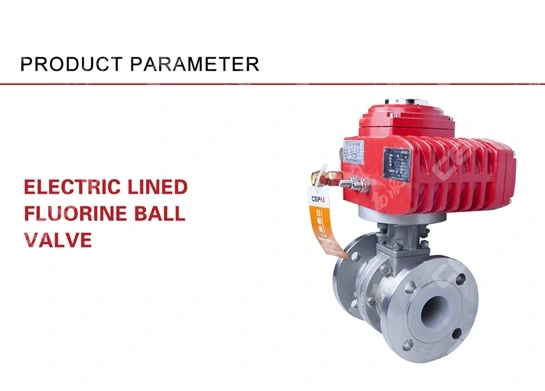

Lightweight Electric Ball Valves with Strong Sealing and Smooth Flow

In today's rapidly evolving industrial landscape, the demand for efficient and reliable fluid control solutions has never been greater. Electric Ball Valve technology represents a significant advancement in automation systems, offering superior performance characteristics that traditional manual valves simply cannot match. These innovative valves combine the precision of electric actuation with the robust sealing capabilities of ball valve design, delivering exceptional flow control in applications ranging from petrochemical processing to power generation. The integration of lightweight materials and advanced engineering has transformed these valves into versatile solutions that provide strong sealing performance while maintaining smooth flow characteristics, making them indispensable components in modern industrial operations.

Advanced Engineering Features of Modern Electric Ball Valves

Precision Control Mechanisms

The heart of any Electric Ball Valve lies in its sophisticated control mechanism, which integrates seamlessly with automated systems to deliver precise flow regulation. Modern electric actuators employ advanced servo motor technology that provides exceptional positioning accuracy, typically within ±1% of the full stroke range. This precision is crucial in applications where exact flow rates must be maintained, such as in chemical dosing systems or critical process control loops. The electronic control systems feature multiple feedback mechanisms, including position sensors and torque monitoring, ensuring that the valve responds accurately to control signals while providing real-time operational data to supervisory systems. Additionally, these valves incorporate fail-safe mechanisms that automatically position the valve to a predetermined safe state in the event of power failure, protecting both equipment and personnel from potentially hazardous conditions.

Lightweight Construction Materials

The development of lightweight Electric Ball Valve designs has revolutionized installation and maintenance procedures across various industries. Advanced materials such as duplex stainless steel, specialized aluminum alloys, and engineered composites have significantly reduced valve weight without compromising structural integrity or performance characteristics. These materials undergo rigorous testing to ensure they meet stringent industry standards for corrosion resistance, temperature tolerance, and mechanical strength. The weight reduction achieved through material optimization not only simplifies handling during installation but also reduces stress on piping systems and support structures. Furthermore, the use of lightweight materials contributes to energy efficiency in actuator operation, as less power is required to operate the valve mechanism, resulting in reduced operational costs and extended component life.

Intelligent Monitoring Systems

Contemporary Electric Ball Valve designs incorporate sophisticated monitoring and diagnostic capabilities that provide unprecedented insight into valve performance and condition. These intelligent systems continuously monitor parameters such as actuator torque, valve position, temperature, and vibration levels, utilizing advanced algorithms to detect potential issues before they result in operational failures. The integration of wireless communication protocols enables remote monitoring and control, allowing operators to manage valve networks from centralized control rooms or even mobile devices. Predictive maintenance algorithms analyze historical performance data to forecast maintenance requirements, optimizing maintenance schedules and reducing unplanned downtime. These smart features transform traditional valves into integral components of Industry 4.0 manufacturing environments, contributing to overall system efficiency and reliability.

Superior Sealing Technology and Performance

Multi-Stage Sealing Systems

The exceptional sealing performance of modern Electric Ball Valve designs stems from innovative multi-stage sealing architectures that provide reliable isolation across a wide range of operating conditions. Primary sealing is achieved through precision-machined ball spheres that mate perfectly with specially designed valve seats, creating a metal-to-metal seal that maintains integrity even under extreme pressure and temperature conditions. Secondary sealing systems incorporate advanced elastomeric materials and spring-energized seals that accommodate thermal expansion and contraction while maintaining consistent sealing pressure. The design of these sealing systems considers factors such as fluid compatibility, operating temperature ranges, and pressure cycling to ensure long-term reliability. Advanced surface treatments and coatings further enhance sealing performance by reducing friction and wear, extending the operational life of sealing components significantly beyond conventional valve designs.

Pressure and Temperature Capabilities

Electric Ball Valve technology has evolved to handle increasingly demanding pressure and temperature requirements across diverse industrial applications. Modern designs routinely operate at pressures exceeding 1500 PSI while maintaining perfect sealing integrity, with specialized high-pressure variants capable of handling pressures up to 5000 PSI or higher. Temperature capabilities have similarly expanded, with standard designs operating effectively from -40°F to 400°F, while specialized versions can function at temperatures approaching 800°F. These enhanced capabilities result from advanced materials science, including the development of specialized alloys and ceramic components that maintain their properties under extreme conditions. The thermal design of these valves incorporates features such as extended bonnets and thermal barriers that protect actuator components from high-temperature process fluids, ensuring reliable operation throughout the valve's service life.

Leak-Tight Performance Standards

The pursuit of zero-leakage performance has driven continuous innovation in Electric Ball Valve sealing technology, resulting in designs that consistently exceed industry standards for leak-tight operation. Modern valves routinely achieve Class VI shut-off performance as defined by ANSI/FCI 70-2 standards, with leak rates below 1 ml/min for nominal valve sizes up to 6 inches. This exceptional performance is achieved through precision manufacturing techniques that maintain extremely tight tolerances on critical sealing surfaces, combined with advanced quality control procedures that verify sealing performance on every valve before shipment. The implementation of helium leak testing and other sensitive detection methods ensures that even microscopic leak paths are identified and eliminated. This level of sealing performance is particularly critical in applications involving hazardous or valuable fluids, where any leakage could result in safety hazards, environmental concerns, or economic losses.

Optimized Flow Characteristics and Hydraulic Performance

Streamlined Flow Path Design

The hydraulic design of modern Electric Ball Valve configurations prioritizes minimal pressure drop and optimal flow characteristics through careful attention to internal geometry and flow path optimization. The full-bore design of ball valves provides unrestricted flow when fully open, resulting in pressure drops that are typically 50-70% lower than equivalent globe or gate valves. Advanced computational fluid dynamics (CFD) modeling is employed during the design phase to analyze flow patterns and identify potential areas of turbulence or cavitation that could impact performance or cause component wear. The spherical geometry of the ball element, combined with precision-machined port configurations, creates smooth flow transitions that minimize energy losses and reduce the potential for erosion or cavitation damage. These design optimizations result in improved process efficiency and reduced pumping costs over the valve's operational lifetime.

​​​​​​​

Variable Flow Control Capabilities

Electric Ball Valve technology excels in applications requiring precise variable flow control, offering superior rangeability and control characteristics compared to traditional control valve designs. The rotational motion of the ball element provides excellent control resolution throughout the flow range, with particularly fine control possible in the lower flow regions where other valve types may exhibit poor performance. Advanced actuator designs incorporate high-resolution feedback systems and sophisticated control algorithms that enable precise positioning to within fractions of a degree, translating to exceptional flow control accuracy. The inherent equal percentage flow characteristics of ball valves provide stable control across the full operating range, reducing the tendency for control loop instability that can occur with linear flow characteristics. This superior control performance makes Electric Ball Valve systems ideal for applications such as blending operations, reactor feed control, and other processes requiring precise flow regulation.

Cavitation and Erosion Resistance

The robust construction and optimized flow geometry of Electric Ball Valve designs provide exceptional resistance to cavitation and erosion effects that can quickly degrade the performance of other valve types. The smooth, unrestricted flow path through the valve minimizes the velocity changes and pressure recovery that can lead to cavitation formation downstream of the valve. When cavitation conditions cannot be avoided, specialized trim designs and materials are employed to minimize damage and extend service life. Hardened surfaces, stellite overlays, and advanced ceramic coatings provide superior resistance to the erosive effects of high-velocity fluids and particulate matter. The ball and seat geometry is optimized to minimize impingement effects and distribute wear patterns evenly, ensuring consistent performance throughout the valve's service life. These design features make Electric Ball Valve systems particularly suitable for challenging applications involving abrasive media, high differential pressures, or fluids prone to cavitation.

Conclusion

The evolution of Electric Ball Valve technology represents a significant advancement in industrial fluid control systems, combining the reliability of traditional ball valve designs with the precision and convenience of electric actuation. These innovative solutions deliver exceptional sealing performance, optimized flow characteristics, and intelligent monitoring capabilities that meet the demanding requirements of modern industrial processes. The integration of lightweight materials, advanced control systems, and superior hydraulic design creates valves that not only perform better but also contribute to overall system efficiency and operational cost reduction.

CEPAI Group stands at the forefront of this technological revolution, leveraging decades of engineering expertise and continuous innovation to deliver world-class Electric Ball Valve solutions. Our commitment to excellence is reflected in our ISO quality management systems, comprehensive testing procedures, and rigorous quality control processes that ensure every valve meets the highest performance standards. From initial design through final testing, our products undergo strict inspection protocols that guarantee reliable operation in the most demanding applications.

With our advanced manufacturing capabilities, including the longest high-precision intelligent manufacturing flexible production line in the Asia Pacific region, we combine cutting-edge technology with proven engineering principles to create valves that exceed industry expectations. Our comprehensive service portfolio encompasses pre-sales technical consultation, customized solution development, installation support, and ongoing maintenance services, ensuring that our customers receive complete support throughout the valve lifecycle.

Whether you're designing a new process system or upgrading existing equipment, our expert team is ready to provide the technical expertise and innovative solutions you need. Contact us today at cepai@cepai.com to discover how our lightweight Electric Ball Valve technology can enhance your operations with strong sealing performance and smooth flow characteristics that deliver measurable results.
