Selecting the wrong Pneumatic Ball Valve for your industrial operation can result in catastrophic system failures, costly downtime, and safety hazards that jeopardize both personnel and production targets. With hundreds of specifications, pressure ratings, and material combinations available in today's market, making the right choice requires understanding critical performance factors that directly impact your facility's operational efficiency. This comprehensive guide provides essential insights into key considerations when buying a Pneumatic Ball Valve for industrial use, helping you navigate complex technical requirements while ensuring optimal system performance, reliability, and cost-effectiveness for your specific application needs.

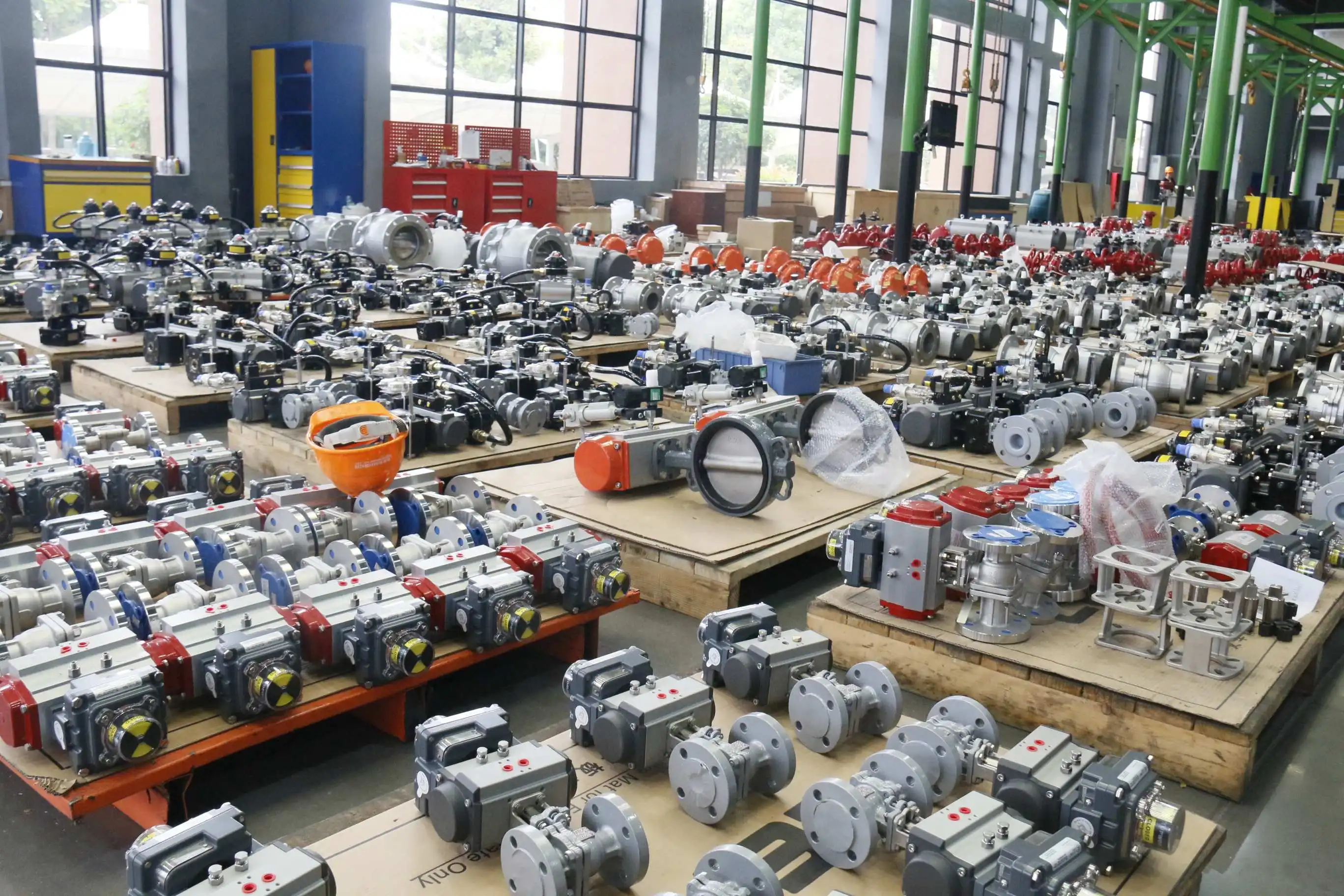

pneumatic ball valve

Understanding Pneumatic Ball Valve Fundamentals for Industrial Applications

Core Operating Principles and Mechanisms

Industrial Pneumatic Ball Valves represent sophisticated fluid control systems that combine the reliable shut-off characteristics of traditional ball valves with the automation capabilities of pneumatic actuation. These valves utilize compressed air to rotate a spherical closure element within the valve body, providing precise on-off or modulating control of various media including gases, liquids, and slurries. The pneumatic actuator converts air pressure into mechanical torque, enabling remote operation and integration with automated control systems that are essential in modern industrial processes. The fundamental design consists of a ball with a cylindrical bore that rotates 90 degrees between fully open and fully closed positions. When aligned with the pipe, the bore allows maximum flow with minimal pressure drop. When rotated perpendicular to the flow path, the solid portion of the ball creates a positive seal against the valve seats, preventing leakage. This quarter-turn operation, combined with pneumatic automation, makes Pneumatic Ball Valves particularly suitable for applications requiring rapid response times and reliable isolation capabilities. Modern Pneumatic Ball Valve designs incorporate advanced sealing technologies, corrosion-resistant materials, and intelligent positioning systems that enhance performance across diverse industrial environments. The pneumatic actuator can be configured as single-acting with spring return for fail-safe operation, or double-acting for positive positioning in both directions. This flexibility allows engineers to specify valves that meet specific safety and operational requirements while maintaining consistent performance under varying process conditions.

Critical Performance Parameters and Specifications

Understanding key performance specifications is essential when evaluating Pneumatic Ball Valve options for industrial applications. Pressure ratings determine the maximum system pressure the valve can safely handle, with common industrial ratings ranging from 150 to 2500 PSI depending on valve size and construction materials. Temperature ratings specify the operational limits for both the valve body and sealing components, with standard ranges from -40°F to 450°F for most industrial applications, though specialized high-temperature designs can operate at temperatures exceeding 1000°F. Flow characteristics represent another crucial consideration, as Pneumatic Ball Valves can be designed with different port configurations including full port, reduced port, and V-port designs. Full port valves provide unrestricted flow with minimal pressure drop, making them ideal for applications where flow efficiency is critical. Reduced port designs offer cost advantages while maintaining adequate flow capacity for many applications. V-port configurations enable precise flow control and are particularly suitable for modulating service applications. Actuator sizing and response time specifications directly impact system performance and safety. The actuator must provide sufficient torque to operate the valve under maximum differential pressure conditions while meeting response time requirements for the specific process. Typical pneumatic actuators can cycle from fully open to fully closed in 1-5 seconds depending on valve size and air supply pressure, making them suitable for emergency shutdown and rapid process control applications.

Material Selection and Compatibility Assessment

Body and Internal Component Materials

Material selection for Pneumatic Ball Valve components requires careful evaluation of process media characteristics, operating conditions, and long-term reliability requirements. Valve bodies are typically constructed from carbon steel, stainless steel, or specialized alloys depending on the application. Carbon steel provides cost-effective performance for non-corrosive applications with moderate temperature and pressure requirements. Stainless steel grades such as 316 and 316L offer superior corrosion resistance and are suitable for chemical processing, food and beverage, and pharmaceutical applications where media purity is critical. For severe service conditions involving highly corrosive media or extreme temperatures, exotic alloys such as Hastelloy, Inconel, or duplex stainless steels may be required. These materials provide exceptional resistance to stress corrosion cracking, chloride attack, and high-temperature oxidation, though they require higher initial investment costs. The ball and stem components must be compatible with both the process media and the valve body material to prevent galvanic corrosion and ensure long-term reliability. Sealing systems represent critical components that directly affect Pneumatic Ball Valve performance and longevity. Standard elastomeric seals including PTFE, Viton, and EPDM provide excellent sealing characteristics for most industrial applications. PTFE seats offer broad chemical compatibility and low friction operation, making them suitable for frequent cycling applications. Viton seals provide superior high-temperature performance and hydrocarbon resistance. For extreme conditions, metal-seated designs or fire-safe configurations may be required to meet industry safety standards and regulatory requirements.

Chemical Compatibility and Environmental Factors

Comprehensive chemical compatibility analysis ensures that all Pneumatic Ball Valve components remain stable when exposed to process media over the intended service life. This evaluation must consider not only the primary process fluid but also cleaning agents, maintenance chemicals, and potential contaminants that may be present in the system. Many industrial processes involve multiple phases or chemical reactions that can create unexpected compatibility challenges, requiring detailed material testing and validation. Environmental factors including ambient temperature, humidity, and atmospheric contamination can significantly impact valve performance and reliability. Coastal installations face salt spray corrosion challenges that require specialized coatings or material upgrades. Installations in extreme cold environments must consider thermal expansion effects and potential freezing of condensate in pneumatic supply lines. High-temperature environments may require heat shields or thermal barriers to protect pneumatic actuator components from excessive heat exposure. Regulatory compliance requirements often dictate specific material certifications and traceability documentation. Industries such as nuclear power, aerospace, and pharmaceutical manufacturing require materials with certified chemical compositions, mechanical properties, and quality assurance documentation. NACE compliance may be required for sour service applications in oil and gas operations. Food-grade certifications ensure that valve materials meet FDA or similar regulatory standards for direct food contact applications.

Pressure and Temperature Rating Considerations

Operating Pressure Requirements and Safety Factors

Accurate determination of operating pressure requirements forms the foundation for safe and reliable Pneumatic Ball Valve selection. System pressure calculations must account for normal operating conditions, pressure surges, water hammer effects, and potential overpressure scenarios. The valve pressure rating must exceed maximum system pressure by appropriate safety margins, typically 1.5 to 2.0 times normal operating pressure depending on industry standards and application criticality. Static pressure ratings represent the maximum pressure the valve can withstand when closed, while dynamic pressure ratings apply during operation with flowing media. These ratings can differ significantly, particularly for larger valve sizes where flowing media creates additional stress on internal components. Differential pressure across the valve affects actuator sizing requirements, as higher pressure drops require greater closing torque to achieve reliable shutoff against system pressure. Pressure testing requirements vary by industry and application, with hydrostatic testing typically performed at 1.5 times the rated working pressure. Pneumatic Ball Valves in critical applications may require additional testing including seat leakage tests, actuator performance verification, and endurance cycling to demonstrate long-term reliability. Testing documentation and certification requirements must be clearly specified during valve procurement to ensure compliance with applicable codes and standards.

Temperature Effects on Valve Performance

Temperature variations significantly impact Pneumatic Ball Valve performance, affecting material properties, sealing effectiveness, and actuator operation. High-temperature applications require careful consideration of thermal expansion effects on valve body dimensions, seat materials, and stem packing systems. Thermal stress calculations ensure that differential expansion between dissimilar materials does not cause binding or premature failure of critical components. Cryogenic applications present unique challenges for Pneumatic Ball Valve design, requiring materials that maintain ductility at extremely low temperatures and sealing systems that remain flexible and effective. Special lubricants and actuator heating systems may be required to ensure reliable operation in sub-zero environments. Thermal insulation and heat tracing systems protect pneumatic supply lines from freezing and ensure consistent actuator performance. Temperature cycling effects must be evaluated for applications with frequent temperature variations, as repeated thermal stress can accelerate fatigue failure of valve components. Extended stem designs protect actuator components from high process temperatures, while thermal barriers and heat shields provide additional protection for sensitive pneumatic components. Temperature monitoring and control systems ensure that valve components remain within specified operating limits throughout all process conditions.

Actuator Sizing and Performance Requirements

Torque Calculations and Safety Margins

Proper actuator sizing for Pneumatic Ball Valves requires accurate calculation of operating torque requirements under all anticipated service conditions. Break-away torque represents the maximum torque required to initiate valve movement from a static position and typically exceeds running torque by 25-50% depending on valve design and service conditions. Seating torque requirements ensure adequate compression of valve seats to achieve specified leakage rates while avoiding excessive stress that could damage sealing surfaces. Differential pressure effects significantly influence actuator torque requirements, with higher pressure drops across the valve requiring proportionally greater actuator output. Safety factors of 1.25 to 1.5 times calculated maximum torque ensure reliable operation under worst-case conditions and account for component aging, friction variations, and unexpected process upsets. Actuator selection must consider both normal operating conditions and emergency shutdown scenarios where maximum differential pressure may occur. Environmental factors including temperature, altitude, and air supply quality affect actuator performance and must be incorporated into sizing calculations. High-temperature environments reduce actuator output due to decreased air density and potential seal degradation. Contaminated air supplies can cause actuator wear and reduced efficiency, requiring filtration systems and regular maintenance. Backup air supply systems ensure continued operation during compressor outages or supply line failures in critical applications.

Response Time and Control Characteristics

Response time requirements for Pneumatic Ball Valve applications depend on process dynamics, safety considerations, and control system integration needs. Emergency shutdown applications typically require valve closure times of 1-10 seconds to prevent process upsets or safety hazards. Modulating control applications may require precise positioning capabilities with response times measured in milliseconds to maintain stable process conditions. Actuator air consumption calculations determine pneumatic supply system requirements and operating costs. Large actuators operating frequently can consume significant volumes of compressed air, requiring careful evaluation of supply capacity and energy costs. Air tanks and accumulators provide energy storage for peak demand periods and ensure consistent actuator performance during supply pressure variations. Control signal compatibility ensures proper integration with existing control systems and instrumentation. Standard pneumatic signals include 3-15 PSI and 6-30 PSI ranges, while electric signals may utilize 4-20 mA, 0-10 VDC, or digital communication protocols. Valve positioners and feedback systems provide precise position control and status indication for automated systems, enhancing process control capabilities and diagnostic information for maintenance planning.

Flow Characteristics and Sizing Methodology

Flow Coefficient Calculations and Pressure Drop Analysis

Accurate flow coefficient (Cv) calculations ensure that selected Pneumatic Ball Valve designs provide adequate flow capacity while maintaining acceptable pressure drops across the valve. The flow coefficient represents the volume of water in gallons per minute that flows through the valve with a pressure drop of 1 PSI. Different ball valve designs exhibit varying flow characteristics, with full-port configurations providing the highest Cv values and minimal pressure drop compared to reduced-port designs. Valve sizing methodology must consider both normal operating conditions and maximum flow scenarios to ensure adequate capacity margin. Undersized valves create excessive pressure drops that reduce system efficiency and may cause cavitation or flashing in liquid applications. Oversized valves result in poor control characteristics and increased costs, while potentially causing hunting or instability in modulating applications. Pressure recovery factors and liquid pressure drop calculations become critical in applications approaching vapor pressure conditions. Cavitation can cause severe damage to valve internals and downstream piping, requiring careful analysis of pressure profiles throughout the valve. Anti-cavitation trim designs or pressure-reducing configurations may be necessary for severe service applications with high differential pressures.

Special Design Features for Enhanced Performance

V-port ball designs provide enhanced control characteristics for Pneumatic Ball Valve applications requiring precise flow modulation. The V-shaped notch in the ball creates a variable flow area that provides more linear flow characteristics compared to standard port designs. This configuration enables accurate flow control across a wider operating range and reduces the tendency for control hunting or instability commonly associated with standard ball valves in modulating service. Noise reduction features become important considerations for Pneumatic Ball Valve installations in noise-sensitive environments or applications with high velocity flows. Special trim designs, including multiple orifice configurations and tortuous path geometries, reduce noise generation by controlling fluid acceleration and turbulence. Noise prediction calculations help determine if special quiet trim designs are required to meet environmental or occupational health standards. Fire-safe design features provide additional safety margins for Pneumatic Ball Valve installations in hazardous environments or applications involving flammable media. These designs incorporate backup sealing systems that maintain valve integrity even if primary elastomeric seals are damaged by fire exposure. Metal-to-metal backup seals and graphite packing systems ensure continued valve function during emergency conditions, meeting stringent safety standards required in petrochemical and refining applications.

Quality Standards and Certification Requirements

Industry Standards and Compliance Verification

Pneumatic Ball Valve selection must consider applicable industry standards and certification requirements that govern design, manufacturing, testing, and documentation. API 6D standard specifies requirements for pipeline ball valves used in petroleum and natural gas industries, while API 608 covers ball valves for refinery service applications. These standards define minimum material requirements, pressure-temperature ratings, testing procedures, and quality assurance protocols that ensure consistent performance and reliability. ASME B16.34 provides general requirements for valve pressure-temperature ratings and material specifications across multiple valve types including Pneumatic Ball Valves. This standard establishes the foundation for safe operation by defining allowable stresses, safety factors, and testing requirements for various operating conditions. Compliance verification through third-party inspection and testing ensures that valves meet specified requirements and provides documentation for regulatory approval and insurance purposes. International standards including ISO 14313 and IEC 60534 provide additional guidance for valve selection and application, particularly for installations outside North America. These standards may specify different testing requirements, documentation formats, or performance criteria that must be considered during valve specification and procurement. Harmonization between different standard requirements ensures global acceptability and reduces potential compliance issues for multinational projects.

Manufacturing Quality Control and Traceability

Manufacturing quality control systems directly impact Pneumatic Ball Valve reliability and long-term performance. ISO 9001 quality management systems provide structured approaches to design control, material procurement, manufacturing processes, and final inspection that ensure consistent product quality. Statistical process control techniques monitor key manufacturing parameters and identify potential quality issues before they affect product performance. Material traceability documentation connects each valve component to certified material test reports, heat treatment records, and quality inspection data. This traceability enables rapid investigation of field performance issues and provides confidence in material properties and manufacturing integrity. Complete material traceability becomes particularly important for applications involving hazardous media or critical safety functions where component failure could have serious consequences. Non-destructive testing requirements may include radiographic examination of welds, ultrasonic thickness measurements, dye penetrant inspection of critical surfaces, and magnetic particle inspection for crack detection. These testing methods verify manufacturing integrity without damaging valve components, providing additional assurance of product quality and reliability. Testing documentation and certification provide permanent records of valve condition at the time of manufacture for future reference and maintenance planning.

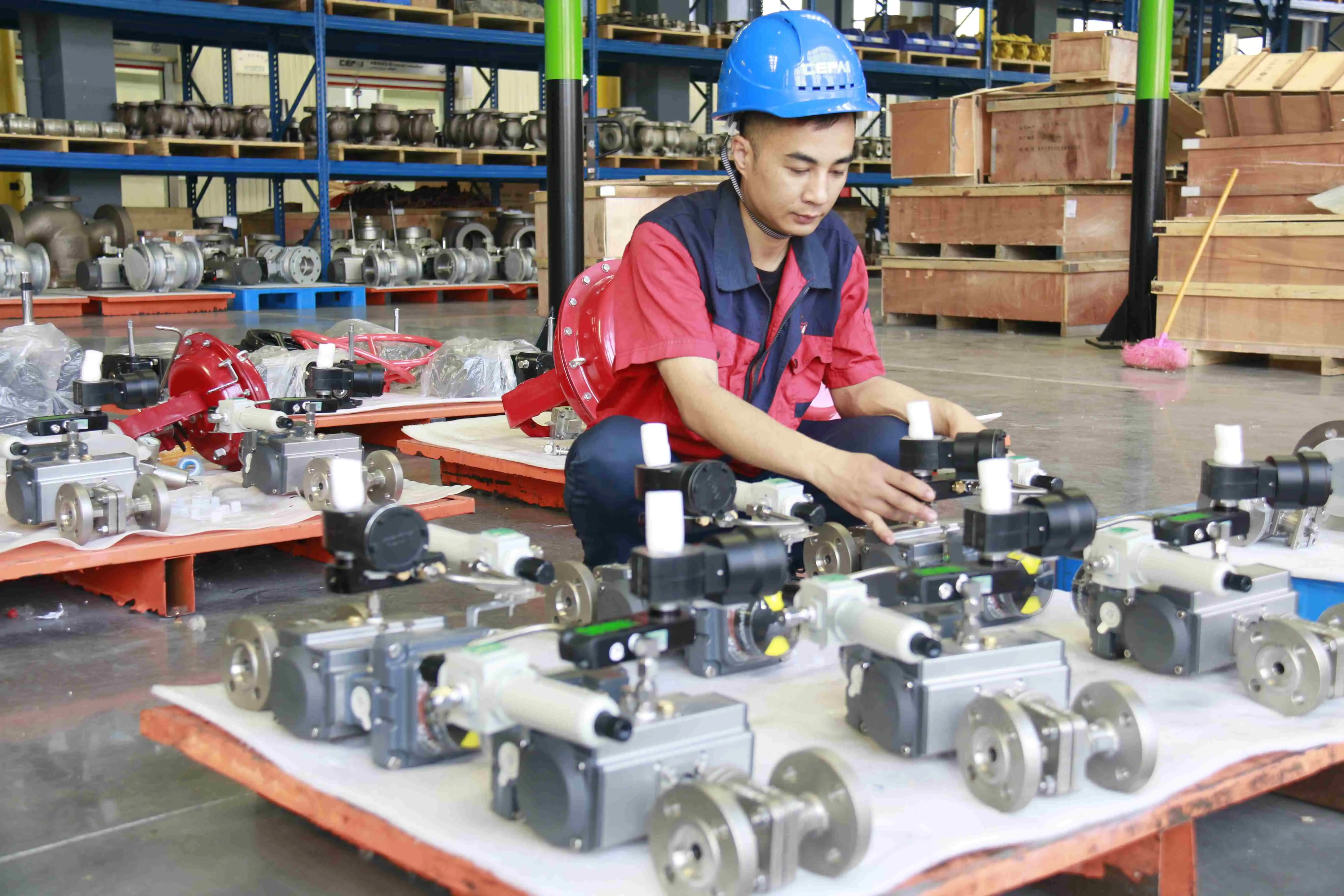

ball valve

Conclusion

Selecting the optimal Pneumatic Ball Valve for industrial applications requires comprehensive evaluation of multiple technical factors including material compatibility, pressure-temperature ratings, actuator performance, and regulatory compliance requirements. Success depends on understanding specific process conditions, safety requirements, and long-term reliability expectations while balancing performance needs with cost considerations. Proper valve selection ensures safe, efficient operation throughout the intended service life while minimizing maintenance requirements and operational disruptions.

Cooperate with CEPAI Group Co., LTD.

As a leading China Pneumatic Ball Valve manufacturer and China Pneumatic Ball Valve supplier, CEPAI Group Co., LTD. offers exceptional High Quality Pneumatic Ball Valve solutions backed by comprehensive technical expertise and proven industry experience. Established in 2009 with 156 million yuan investment in intelligent manufacturing capabilities, our state-of-the-art facility features the longest high-precision production line in the Asia Pacific region, ensuring superior quality and competitive Pneumatic Ball Valve price options. Our extensive certifications including API, CE, and ISO standards, combined with supplier qualifications from PetroChina, Sinopec, and CNOOC, demonstrate our commitment to excellence. Whether you need standard or customized Pneumatic Ball Valve for sale, our experienced team provides comprehensive pre-sales consultation, technical support, and after-sales service to ensure optimal performance for your specific application. Contact us today as your trusted China Pneumatic Ball Valve wholesale partner at cepai@cepai.com to discuss your requirements and discover how our innovative solutions can enhance your operational efficiency.

FAQ

Q: What is the typical lifespan of a Pneumatic Ball Valve in industrial applications?

A: Industrial Pneumatic Ball Valves typically last 10-15 years with proper maintenance, though lifespan varies based on operating conditions, media compatibility, and cycling frequency.

Q: How do I determine the correct actuator size for my Pneumatic Ball Valve?

A: Actuator sizing requires calculating maximum operating torque, including breakaway torque, seating torque, and differential pressure effects, then applying appropriate safety factors.

Q: What are the main advantages of Pneumatic Ball Valves over electric actuated valves?

A: Pneumatic Ball Valves offer faster response times, intrinsic explosion-proof operation, lower initial cost, and fail-safe spring return capabilities compared to electric actuators.

Q: Can Pneumatic Ball Valves be used for throttling applications?

A: While possible, standard ball valves are not ideal for throttling service. V-port or characterized ball designs provide better flow control characteristics for modulating applications.
