How to Read a Ball Valve Specification Sheet: A Professional's Guide?

Picture this scenario: You're standing in your facility's control room at 2 AM, facing a critical Ball Valve failure that could shut down operations. The replacement valve specification sheet in your hands looks like hieroglyphics, filled with cryptic codes, pressure ratings, and technical jargon that could make or break your multi-million-dollar project. Every minute of downtime costs thousands, and selecting the wrong Ball Valve could lead to catastrophic system failure, safety hazards, or regulatory violations. This comprehensive guide demystifies Ball Valve specification sheets, empowering you to make informed decisions quickly and confidently, ensuring optimal performance and safety in your industrial applications.

Understanding Ball Valve Specification Fundamentals

Reading a Ball Valve specification sheet effectively requires understanding the fundamental parameters that define valve performance and compatibility. The specification sheet serves as your roadmap to selecting the appropriate Ball Valve for specific applications, containing critical information about pressure ratings, temperature limits, materials, dimensions, and operational characteristics. Every Ball Valve specification begins with basic identification information, including the manufacturer's model number, valve size designation, and applicable industry standards. The most crucial starting point is the valve size, typically expressed in both NPS (Nominal Pipe Size) for North American standards and DN (Diameter Nominal) for international standards. For instance, a 2-inch Ball Valve corresponds to DN50, while a 4-inch valve equals DN100. Understanding this dual sizing system prevents costly ordering mistakes and ensures proper integration into existing piping systems. The specification sheet also includes the valve's flow coefficient (Cv), which indicates the valve's flow capacity under specific conditions, directly impacting system performance and energy efficiency.

• Pressure Rating Classifications

Pressure ratings represent one of the most critical aspects of Ball Valve specifications, determining the maximum allowable pressure the valve can safely handle at specific temperatures. The pressure class system uses designations like PN (Pressure Nominal), where the number after PN indicates the pressure class in bars, with 1 bar equaling 14.5038 PSI. Common pressure classes include Class 150, 300, 600, 900, 1500, and 2500, each corresponding to specific pressure limitations at standard temperatures. Understanding these pressure classifications is essential because exceeding the rated pressure can result in catastrophic valve failure, potential injuries, and significant property damage. The Ball Valve specification sheet typically provides a pressure-temperature chart showing how the maximum allowable pressure decreases as operating temperature increases. This relationship occurs because materials lose strength at elevated temperatures, requiring reduced pressure limits to maintain safety margins.

• Material Specifications and Codes

Ball Valve material specifications use standardized codes that indicate the exact alloy composition and properties of each component. For example, CFM8 is the code for cast 316 stainless steel, while other common codes include WCB for carbon steel, CF8M for 316 stainless steel, and various exotic alloys for specialized applications. The specification sheet details materials for the body, ball, stem, seats, seals, and other critical components, each selected for compatibility with the intended service conditions. Material selection directly impacts the Ball Valve's resistance to corrosion, erosion, temperature extremes, and chemical attack. Stainless steel Ball Valves offer excellent corrosion resistance for most applications, while exotic alloys like Hastelloy or Inconel are specified for highly aggressive chemical environments. The specification sheet also includes hardness values, yield strength, and other mechanical properties that determine the valve's durability and performance under stress.

Decoding Technical Parameters and Performance Data

Ball Valve specification sheets contain numerous technical parameters that define operational capabilities and limitations. Flow characteristics represent a fundamental consideration, with most Ball Valves providing full-port or reduced-port configurations. Full-port Ball Valves maintain the same internal diameter as the connecting pipe, minimizing pressure drop and maximizing flow capacity. Reduced-port designs sacrifice some flow capacity for cost savings and may be acceptable in applications where pressure drop is not critical. The Cv value quantifies flow capacity, representing the gallons per minute of water that flows through the valve with a one-PSI pressure drop at 60°F. Higher Cv values indicate greater flow capacity, directly impacting pumping costs and system efficiency. The specification sheet may also include flow curves showing pressure drop versus flow rate, enabling precise system calculations and performance predictions.

• Actuation and Control Specifications

Modern Ball Valve applications often require automated operation, making actuation specifications critically important. The specification sheet details mounting patterns, torque requirements, and interface dimensions for pneumatic, hydraulic, or electric actuators. Quarter-turn operation is standard for Ball Valves, requiring 90 degrees of rotation to move from fully open to fully closed position. Torque specifications indicate the force required to operate the valve, influencing actuator sizing and selection. Break-away torque represents the initial force needed to begin valve movement, while running torque indicates the force required during normal operation. These values vary significantly based on valve size, pressure, and seat design, with higher pressures generally requiring greater operating torque.

• Temperature Limitations and Thermal Considerations

Temperature ratings define the operational envelope for safe Ball Valve operation, with maximum and minimum temperature limits specified for different pressure conditions. Standard materials typically handle temperatures from -29°F to 400°F (-34°C to 204°C), while high-temperature applications may require special alloys capable of operating at 1000°F (538°C) or higher. Thermal expansion and contraction effects become significant considerations in high-temperature applications, potentially causing binding, leakage, or premature wear. The specification sheet may include thermal expansion coefficients and recommended installation practices to accommodate temperature variations. Fire-safe certification is another critical consideration for hydrocarbon applications, ensuring the Ball Valve maintains sealing integrity even when exposed to extreme heat.

Industry Standards and Certification Requirements

Ball Valve specification sheets reference numerous industry standards that govern design, manufacturing, testing, and performance requirements. API (American Petroleum Institute) standards like API 6D and API 608 define requirements for pipeline and process valves respectively, ensuring consistency and reliability across the petroleum industry. ASME (American Society of Mechanical Engineers) standards cover pressure vessel and piping applications, while ANSI (American National Standards Institute) provides dimensional and rating standards. Understanding these standards is crucial for ensuring regulatory compliance and system compatibility. The specification sheet indicates which standards the Ball Valve meets, providing assurance of quality and performance. Third-party certifications from organizations like DNV GL, Lloyd's Register, or Bureau Veritas add additional credibility and may be required for specific applications.

• Quality Assurance and Testing Protocols

Comprehensive testing protocols ensure Ball Valve reliability and performance, with specification sheets detailing the tests performed during manufacturing. Hydrostatic testing verifies pressure integrity by subjecting the valve to 1.5 times the rated pressure, while pneumatic testing checks for seat leakage using compressed air or nitrogen. Fire testing simulates emergency conditions, ensuring the valve maintains functionality even when exposed to flames. Material certifications provide traceability and quality assurance, documenting the chemical composition and mechanical properties of all valve components. Heat treatment records, dimensional inspections, and surface finish measurements provide additional quality verification. These documented processes ensure consistency and reliability, particularly critical in safety-critical applications.

Application-Specific Considerations and Selection Criteria

Selecting the appropriate Ball Valve requires careful consideration of application-specific factors beyond basic pressure and temperature requirements. Fluid characteristics play a crucial role, including viscosity, corrosivity, abrasiveness, and potential for solidification or crystallization. Clean services allow standard Ball Valves, while dirty or abrasive fluids may require special trim materials or cavity filler designs to prevent solids accumulation. Cycle life expectations influence valve selection, with frequent operation requiring heavy-duty designs and premium materials. Standard Ball Valves may provide 50,000 to 100,000 operating cycles, while specialized designs can achieve millions of cycles with proper maintenance. The specification sheet includes endurance testing results and recommended maintenance intervals based on application severity.

​​​​​​​

• Environmental and Safety Considerations

Environmental factors significantly impact Ball Valve performance and longevity, requiring careful evaluation during selection. Outdoor installations face temperature extremes, UV radiation, and weather exposure, potentially requiring special coatings or materials. Subsea applications demand exotic materials and specialized sealing systems capable of withstanding extreme pressures and corrosive saltwater environments. Safety considerations include failure mode analysis, ensuring the Ball Valve fails in a safe position during power loss or system malfunction. Fail-safe designs incorporate spring return mechanisms or backup power systems to maintain safe operation. Emission control requirements may mandate low-emission packing systems or special sealing arrangements to prevent fugitive emissions.

Maintenance and Lifecycle Management

Ball Valve specification sheets provide essential maintenance information for ensuring long-term reliability and performance. Recommended maintenance intervals depend on application severity, with clean services requiring minimal maintenance while abrasive or corrosive applications demand frequent inspections. The specification sheet includes torque specifications for bolted connections, ensuring proper assembly and preventing leakage. Spare parts availability and interchangeability represent critical considerations for lifecycle management, particularly in remote locations where rapid replacement is essential. Standardized designs enable parts commonality across multiple valve sizes and manufacturers, reducing inventory requirements and simplifying maintenance procedures. The specification sheet identifies critical wear components and recommended replacement schedules based on operating experience. Regular performance monitoring helps optimize maintenance scheduling and prevent unexpected failures. Torque monitoring during operation can identify increasing friction from wear or contamination, while acoustic monitoring can detect internal damage or cavitation. These predictive maintenance techniques extend valve life and reduce unplanned downtime.

Conclusion

Understanding Ball Valve specification sheets is essential for making informed decisions that ensure safety, reliability, and optimal performance in industrial applications. This comprehensive knowledge empowers professionals to decode technical parameters, interpret standards compliance, and select appropriate valves for specific operating conditions, ultimately preventing costly failures and maximizing system efficiency.

Cooperate with CEPAI Group Co., LTD.

As a leading China Ball Valve manufacturer with over 15 years of experience, CEPAI Group Co., LTD. stands as your trusted partner for high-quality Ball Valve solutions. Located in Jiangsu Province with state-of-the-art manufacturing facilities spanning 56,000 square meters, CEPAI has established itself as a national high-tech enterprise and specialized small giant company. Our comprehensive certifications including API 6A, API 6D, ISO 9001, CE, and Ball Valve SIL certification demonstrate our commitment to international quality standards.

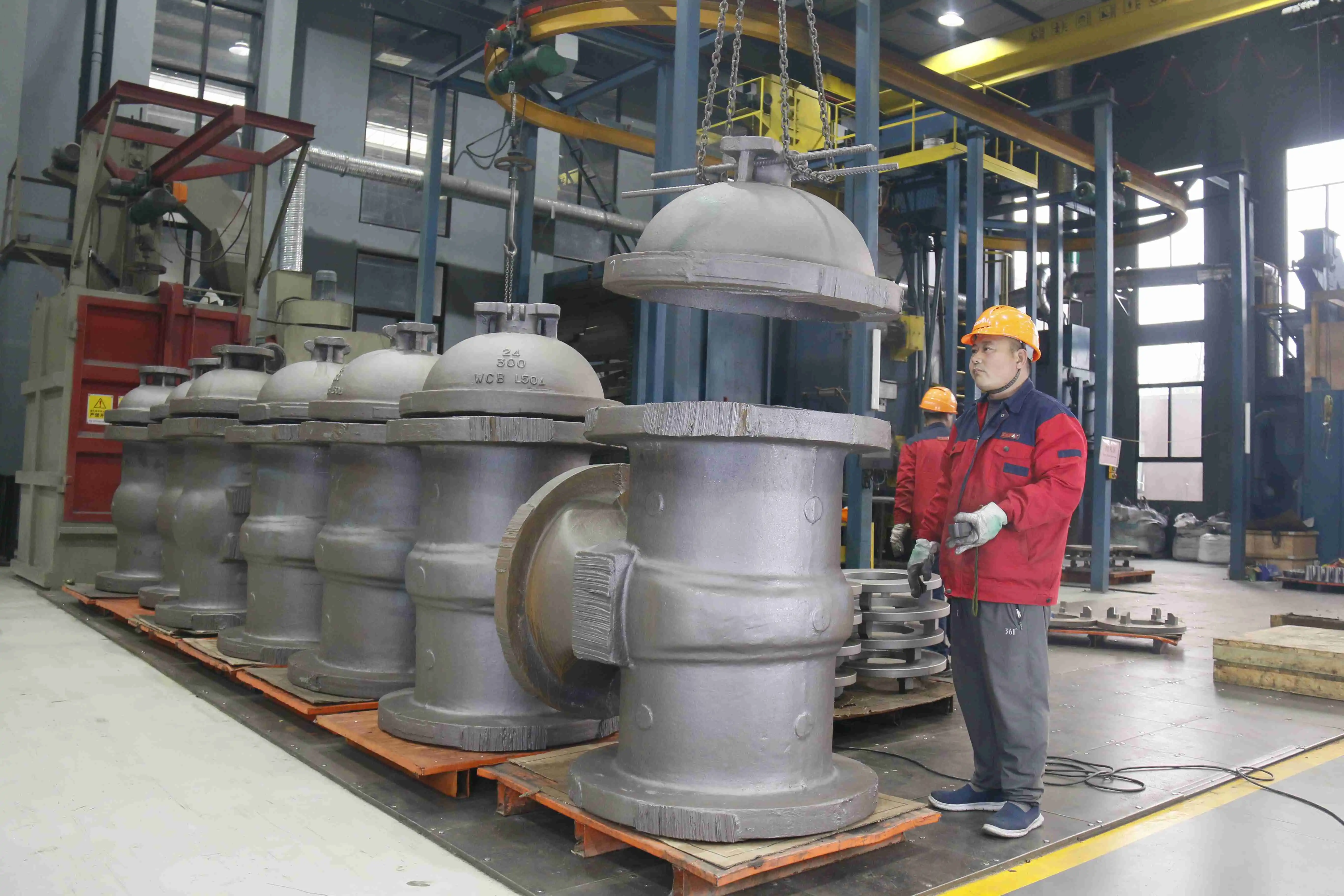

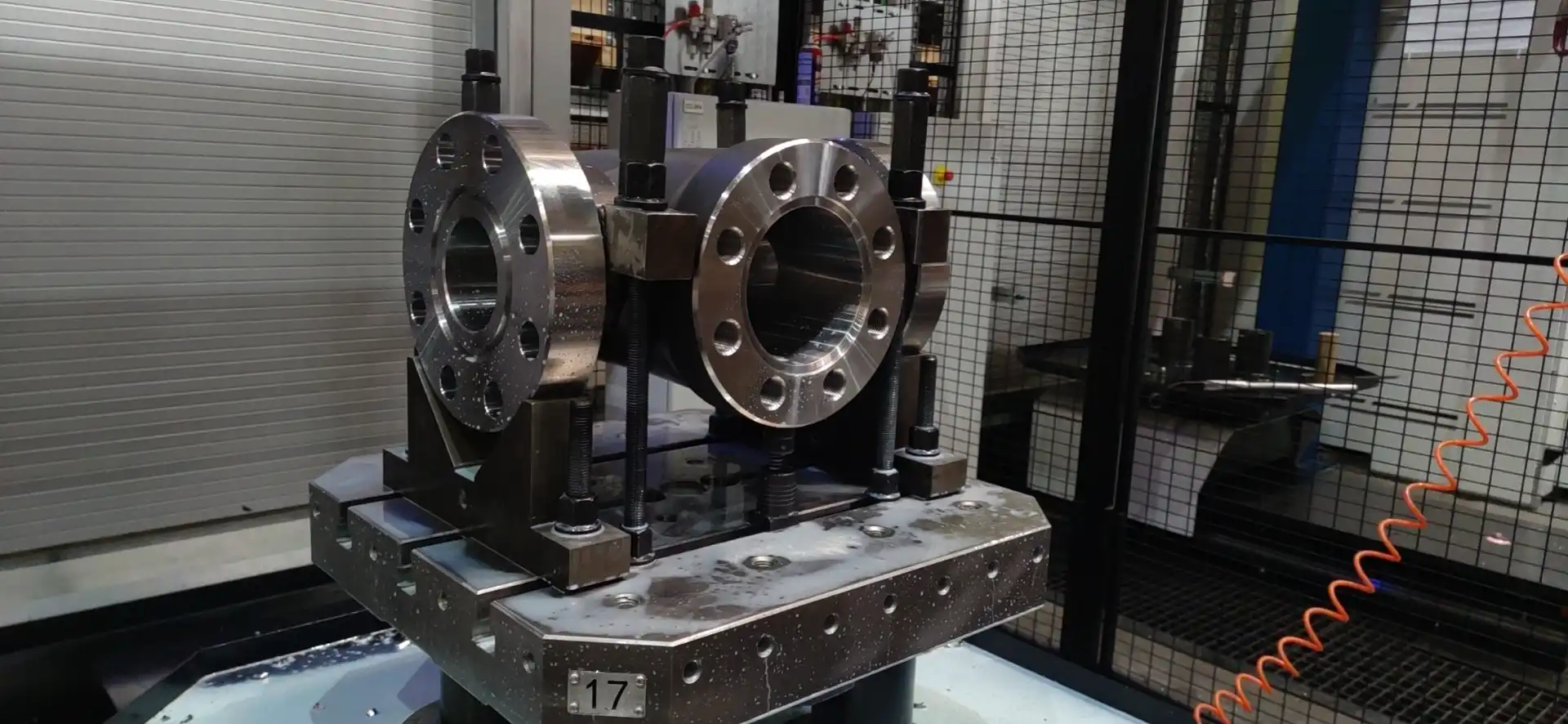

CEPAI's intelligent manufacturing capabilities feature the longest high-precision flexible production line in the Asia-Pacific region, backed by 156 million yuan investment in advanced equipment and Industry 4.0 technologies. As a qualified China Ball Valve supplier for major corporations including PetroChina, Sinopec, CNOOC, and China Datang Group, we provide exceptional durability and high-precision control performance through continuous R&D investment and technological innovation.

Our comprehensive service portfolio includes pre-sales technical consultation, customized solutions, installation support, and comprehensive after-sales service with remote monitoring capabilities. Whether you need standard Ball Valves or custom-engineered solutions, CEPAI delivers superior quality products backed by extensive industry recognition and qualification certifications. Partner with us as your reliable China Ball Valve wholesale provider, offering competitive Ball Valve prices without compromising on quality.

Ready to source High Quality Ball Valves from a trusted China Ball Valve factory? Contact CEPAI today for Ball Valves for sale that meet your exact specifications. Save this guide for future reference when evaluating Ball Valve specifications, and reach out to our technical experts at cepai@cepai.com for personalized consultation on your next project requirements.

FAQ

Q: What does the pressure class rating mean on a Ball Valve specification sheet?

A: Pressure class ratings indicate the maximum allowable pressure the Ball Valve can safely handle at specific temperatures, with common classes including 150, 300, 600, and higher ratings for specialized applications.

Q: How do I interpret the Cv value in Ball Valve specifications?

A: The Cv value represents flow capacity, indicating gallons per minute of water that flows through the valve with a 1-PSI pressure drop at 60°F. Higher Cv values mean greater flow capacity.

Q: What's the difference between NPS and DN sizing on Ball Valve spec sheets?

A: NPS (Nominal Pipe Size) is the North American standard, while DN (Diameter Nominal) is the international standard. For example, 2-inch NPS equals DN50.

Q: Why are material codes important in Ball Valve specifications?

A: Material codes like CFM8 for 316 stainless steel specify exact alloy compositions, ensuring compatibility with service conditions and determining corrosion resistance, temperature limits, and mechanical properties.

References

1. American Petroleum Institute, "Specification for Pipeline Valves," API Standard 6D, American Petroleum Institute.

2. American Society of Mechanical Engineers, "Ball Valves for General Service," ASME B16.34, American Society of Mechanical Engineers.

3. International Organization for Standardization, "Industrial Valves - Ball Valves," ISO 17292, International Organization for Standardization.

4. Valve Manufacturers Association, "Ball Valve Selection and Application Guide," VMA Technical Publication, Valve Manufacturers Association.
