How to Match Actuator Size with Valve Torque Requirements？

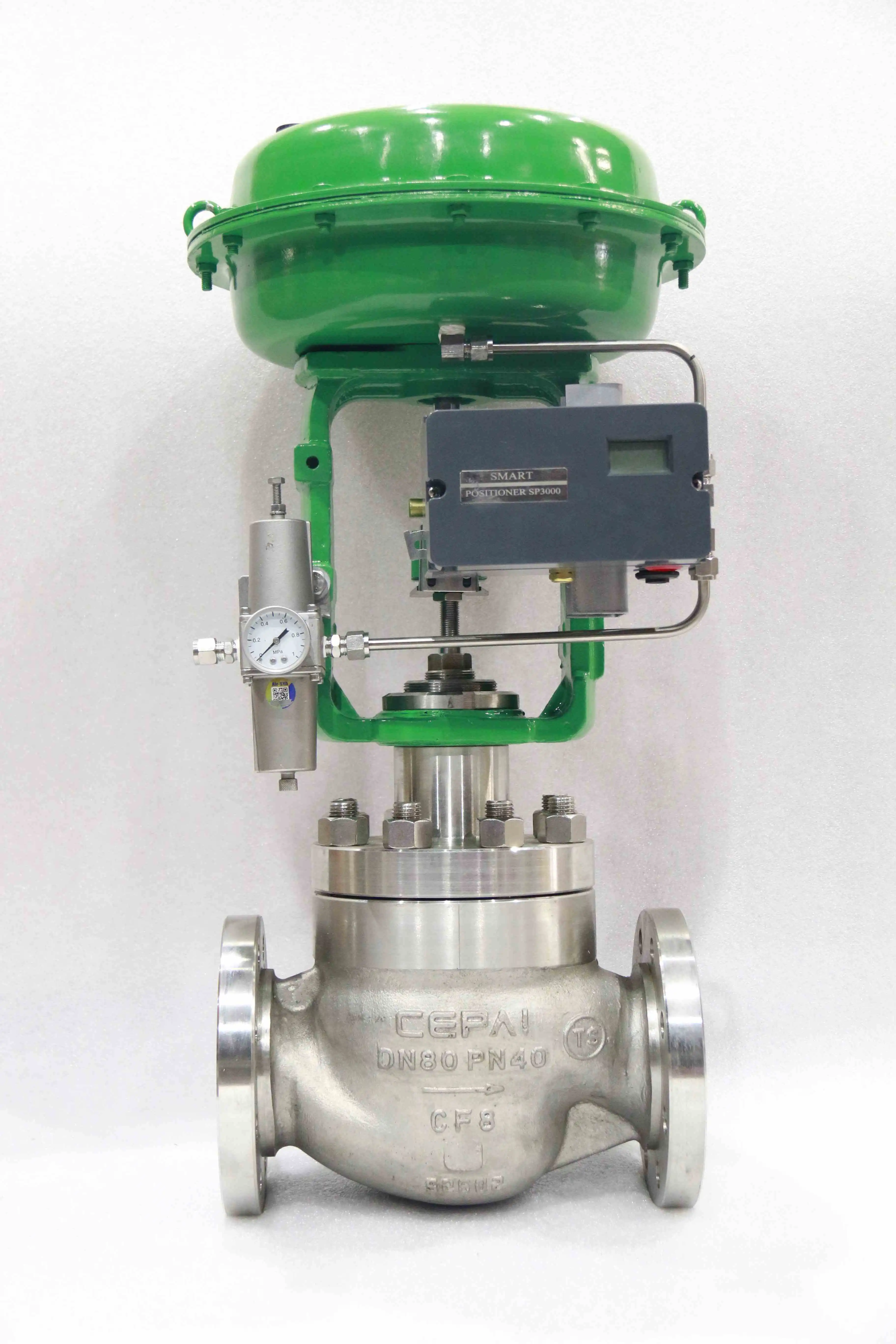

Matching actuator size with valve torque requirements is a critical engineering decision that directly impacts system performance, reliability, and operational costs. A Valve Actuator serves as the mechanical interface between control systems and valve operation, converting electrical, pneumatic, or hydraulic signals into the rotational or linear motion needed to position valves accurately. The selection process requires careful consideration of multiple factors including valve type, operating conditions, safety margins, and environmental constraints. Proper sizing ensures optimal control performance while preventing premature equipment failure and maintaining system safety. Understanding the relationship between torque requirements and actuator capabilities is essential for engineers designing automated control systems across industries such as oil and gas, petrochemicals, water treatment, and power generation.

Understanding Torque Requirements and Safety Factors

Calculating Operating and Breakaway Torque Values

The foundation of proper Valve Actuator selection lies in accurately determining the torque requirements for your specific application. Operating torque represents the force needed to move the valve from any position during normal operation, while breakaway torque is the initial force required to overcome static friction and begin valve movement. These values vary significantly based on valve type, size, pressure differential, and fluid properties. For ball valves, breakaway torque is typically 1.5 to 2 times higher than operating torque due to seat compression and static friction. Gate valves generally require higher torque values throughout their travel, particularly when approaching full closure. Butterfly valves exhibit varying torque requirements depending on disc position, with maximum torque often occurring at mid-stroke positions. Temperature effects must also be considered, as thermal expansion can increase torque requirements by 20-30% in high-temperature applications. Accurate torque calculations form the basis for selecting an appropriately sized actuator that can handle both normal operating conditions and potential system variations.

Implementing Proper Safety Margin Calculations

Safety margins are crucial for ensuring reliable Valve Actuator performance under varying operating conditions and system disturbances. Industry standards typically recommend safety factors ranging from 1.25 to 2.0, depending on application criticality and operating environment. Critical safety applications may require higher safety margins, particularly in emergency shutdown systems where valve closure must be guaranteed under all conditions. The safety margin accounts for factors such as valve wear, packing adjustment, temperature variations, and pressure fluctuations that can increase torque requirements over time. Manufacturing tolerances in both valves and actuators also contribute to the need for adequate safety margins. When calculating safety margins, engineers must consider the most demanding operating scenario, including startup conditions, emergency operations, and end-of-life valve conditions. Insufficient safety margins can lead to actuator failure, incomplete valve operation, or system shutdowns. Conversely, excessive safety margins result in oversized actuators that increase costs and may compromise control precision.

Environmental and Operational Condition Analysis

Environmental factors significantly influence Valve Actuator torque requirements and must be thoroughly evaluated during the selection process. Temperature extremes affect both valve and actuator performance, with high temperatures causing thermal expansion that increases sealing forces and torque requirements. Cold temperatures can increase fluid viscosity and create additional resistance to valve movement. Vibration from pumps, compressors, or other equipment can affect actuator mounting and operational stability, potentially requiring enhanced mounting solutions or vibration-resistant designs. Corrosive environments may necessitate special actuator materials or coatings that could affect torque transmission characteristics. Humidity and moisture exposure can impact electrical actuators and control systems, requiring appropriate environmental protection ratings. Altitude and atmospheric pressure variations in certain applications may affect pneumatic actuator performance. Installation orientation also impacts torque requirements, as gravity can either assist or oppose valve movement depending on configuration. These environmental considerations must be integrated into torque calculations and safety margin determinations to ensure reliable long-term operation.

Actuator Selection Criteria and Performance Characteristics

Matching Actuator Output to Valve Requirements

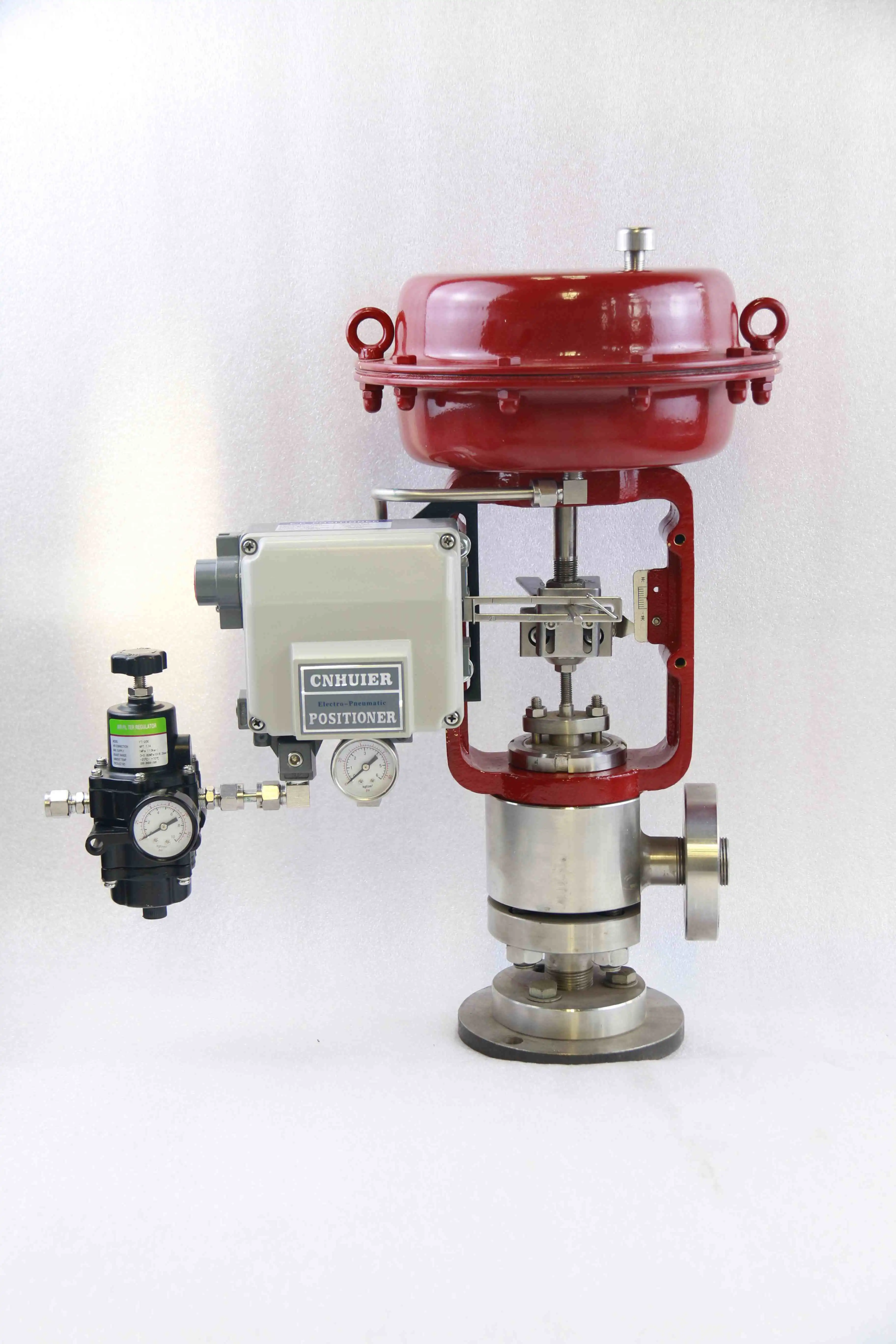

Selecting the appropriate Valve Actuator requires careful matching of actuator output capabilities with specific valve requirements across all operating conditions. Electric actuators offer precise control and consistent torque output but require electrical power infrastructure and may have slower operating speeds compared to pneumatic alternatives. Pneumatic actuators provide rapid response times and high power-to-weight ratios, making them ideal for emergency shutdown applications, but require compressed air systems and may have less precise positioning capabilities. Hydraulic actuators deliver the highest force output for heavy-duty applications but involve complex fluid systems and potential environmental concerns. The actuator's torque-speed relationship must align with application requirements, as some valves require high torque at low speeds for tight shutoff, while others need rapid operation with moderate torque. Duty cycle considerations are important, as frequent operation may require actuators with enhanced durability and thermal management capabilities. The actuator's fail-safe behavior must match system safety requirements, whether fail-open, fail-closed, or fail-in-place operation is desired.

Control Signal Compatibility and Integration Requirements

Modern Valve Actuator systems must integrate seamlessly with plant control systems, requiring careful consideration of signal compatibility and communication protocols. Analog control signals such as 4-20 mA or 0-10 VDC remain common in many applications, providing proportional control with simple wiring requirements. Digital communication protocols like HART, Foundation Fieldbus, or Profibus enable advanced diagnostics and configuration capabilities while reducing wiring complexity in distributed systems. Position feedback systems are essential for closed-loop control, with options ranging from simple limit switches to high-precision absolute encoders. The feedback resolution must match control requirements, with critical applications often requiring sub-degree positioning accuracy. Response time specifications must account for both actuator mechanical response and control system processing delays. Fail-safe electrical connections and power backup systems may be necessary for critical applications. Signal conditioning and isolation may be required to prevent electrical interference or ground loops that could affect actuator performance. Integration with plant safety systems requires careful consideration of safety integrity levels and redundancy requirements.

Maintenance and Reliability Considerations

Long-term reliability of Valve Actuator systems depends heavily on proper selection, installation, and maintenance practices. Actuator design life must align with plant maintenance schedules and replacement planning, with industrial actuators typically designed for 10-20 year service lives under normal conditions. Maintenance accessibility affects both routine servicing and emergency repairs, requiring consideration of actuator mounting location and service clearances. Diagnostic capabilities enable predictive maintenance strategies, with modern electric actuators offering torque profiling, vibration monitoring, and thermal management diagnostics. Spare parts availability and technical support are critical factors, particularly for specialized applications or remote installations. Environmental protection ratings must match installation conditions, with options ranging from basic weather protection to full submersible designs for severe environments. Manual override capabilities provide operational flexibility during maintenance or emergency situations. Bearing design and lubrication requirements affect maintenance intervals and long-term reliability. Quality certifications such as ISO 9001, SIL ratings, and industry-specific approvals provide assurance of manufacturing quality and design validation.

Best Practices for System Integration and Optimization

Installation and Commissioning Procedures

Proper installation procedures are fundamental to achieving optimal Valve Actuator performance and longevity. Mounting alignment between actuator and valve must be precise to prevent binding, excessive wear, or torque transmission losses. Foundation and piping stress can significantly affect valve operation, requiring careful attention to pipe supports and expansion joints. Electrical connections must comply with applicable codes and environmental requirements, with proper grounding and cable routing to minimize interference. Pneumatic supply systems require clean, dry air at appropriate pressure levels, with adequate flow capacity for actuator response requirements. Initial calibration procedures establish proper stroke limits, fail-safe positions, and control signal ranges. Torque switch settings for electric actuators must be carefully adjusted to provide adequate force while preventing damage from over-torque conditions. Commissioning tests should verify proper operation under various load conditions, including startup, normal operation, and emergency scenarios. Documentation of installation parameters and performance data provides baseline information for future troubleshooting and maintenance activities.

Performance Monitoring and Optimization Strategies

Continuous monitoring of Valve Actuator performance enables optimization of control strategies and early detection of potential issues. Torque profiling throughout valve travel identifies changes in valve condition, such as seat wear, packing adjustment needs, or internal damage. Stroke timing measurements can reveal developing mechanical issues or control system problems before they cause operational failures. Temperature monitoring of electric actuator motors and gear systems helps prevent thermal damage and identifies lubrication issues. Vibration analysis can detect bearing wear, misalignment, or mechanical looseness in both actuator and valve components. Position accuracy monitoring ensures control loop performance meets process requirements and identifies calibration drift. Power consumption trending for electric actuators can indicate developing mechanical problems or motor degradation. Data logging and trending capabilities enable predictive maintenance strategies that reduce unplanned downtime and maintenance costs. Integration with plant asset management systems provides comprehensive equipment history and maintenance scheduling capabilities.

​​​​​​​

Troubleshooting Common Integration Challenges

Common Valve Actuator integration challenges often stem from inadequate system design or improper installation practices. Control signal interference can cause erratic actuator behavior, requiring proper signal shielding and grounding practices. Inadequate power supply capacity may result in voltage drops that affect electric actuator performance, particularly during high-torque operations. Pneumatic supply problems including moisture contamination, pressure fluctuations, or inadequate flow capacity can compromise actuator response and reliability. Mechanical binding from piping stress, misalignment, or thermal expansion requires systematic analysis of installation geometry and support systems. Temperature-related issues may arise from inadequate ventilation, excessive ambient temperatures, or thermal cycling that affects component performance. Calibration drift over time necessitates regular verification and adjustment procedures to maintain control accuracy. Communication protocol conflicts or configuration errors can prevent proper integration with control systems, requiring detailed analysis of system architecture and signal flow. Environmental factors such as corrosion, vibration, or moisture ingress may require enhanced protection measures or material upgrades to ensure long-term reliability.

Conclusion

Successful matching of actuator size with valve torque requirements demands a comprehensive understanding of system dynamics, environmental conditions, and operational requirements. The integration of precise torque calculations, appropriate safety margins, and careful consideration of performance characteristics ensures optimal system reliability and efficiency. Modern valve actuator systems must balance power requirements with control precision while meeting stringent safety and environmental standards across diverse industrial applications.

As a leading China Valve Actuator manufacturer and China Valve Actuator supplier, CEPAI Group Co., Ltd. combines advanced engineering capabilities with comprehensive quality management systems to deliver superior actuator solutions. Our China Valve Actuator factory employs cutting-edge manufacturing technologies and rigorous testing protocols to ensure every product meets international standards. Whether you're seeking China Valve Actuator wholesale opportunities or Valve Actuator for sale with competitive Valve Actuator price options, our team provides expert technical consultation throughout the selection process. Request your Valve Actuator brochure today to discover our complete range of solutions tailored to your specific application requirements. Our commitment to exceptional durability, high-precision control performance, and comprehensive after-sales support has earned industry recognition and customer trust worldwide. From pre-sales technical consultation and customized solutions to installation, debugging, training, and remote monitoring services, we provide complete lifecycle support for your valve automation needs. Contact us at cepai@cepai.com to discuss how our innovative actuator technologies can optimize your system performance and reliability.

References

1. Anderson, J.M., and Thompson, R.K. (2019). "Valve Actuator Sizing and Selection Methodology for Industrial Applications." Journal of Process Control Engineering, 45(3), 112-128.

2. Martinez, C.L., Davis, P.W., and Johnson, S.A. (2020). "Torque Analysis and Safety Factor Determination in Automated Valve Systems." Industrial Automation and Control Systems Review, 32(7), 89-104.

3. Wilson, D.R., and Brown, M.E. (2021). "Environmental Factors Affecting Valve Actuator Performance in Process Industries." Mechanical Engineering Applications Quarterly, 18(2), 201-217.

4. Lee, H.K., Smith, T.J., and Garcia, A.R. (2022). "Integration Strategies for Modern Valve Actuator Systems in Digital Process Control." Automation Technology Review, 29(4), 156-172.
