How to Install an Electric V-type Ball Valve Properly?

Installing an Electric V-type Ball Valve requires precise attention to detail and adherence to industry standards to ensure optimal performance and safety. The V-shaped ball design offers superior flow control capabilities compared to traditional ball valves, making them essential components in petrochemical, power generation, and industrial automation systems. Proper installation involves careful positioning of the electric actuator, correct pipeline alignment, secure electrical connections, and comprehensive testing procedures. Understanding the installation process is crucial for maximizing the valve's service life, maintaining system efficiency, and preventing costly downtime in industrial operations.

Essential Pre-Installation Requirements for Electric V-type Ball Valves

System Compatibility Assessment and Specifications

Before beginning any installation procedure, conducting a thorough system compatibility assessment ensures the Electric V-type Ball Valve meets the specific operational requirements of your application. The valve specifications must align with system parameters including nominal diameter (DN15-450mm), nominal pressure ratings (PN16, 40, 64; ANSI150, 300, 600), and temperature ranges suitable for the operating environment. CEPAI's Electric V-type Ball Valve features advanced materials including WCB, WC6, WC9, LCB, CF8, and CF8M valve body materials, providing exceptional corrosion resistance and durability. The valve core options include both metal seal and soft seal configurations, with flow characteristics designed for equal percentage control. Understanding these specifications helps determine whether the valve configuration matches your system's pressure, temperature, and flow requirements, preventing installation complications and ensuring long-term reliability.

Pipeline Preparation and Infrastructure Requirements

Proper pipeline preparation forms the foundation for successful Electric V-type Ball Valve installation. The pipeline must be thoroughly cleaned to remove any debris, welding slag, or foreign materials that could damage the valve's sealing surfaces or internal components. Pipeline alignment verification ensures that front and rear pipelines are coaxial, with flange sealing faces maintained in parallel configuration to prevent stress concentration during operation. The pipeline infrastructure must be capable of supporting the valve's weight without creating additional stress on the valve body or actuator assembly. Installing appropriate pipeline supports prevents mechanical stress that could affect valve performance or cause premature failure. Additionally, verifying the pipeline's ability to accommodate thermal expansion and contraction prevents binding or stress-related issues during temperature fluctuations in industrial operations.

Safety Protocols and Environmental Considerations

Implementing comprehensive safety protocols protects personnel and equipment during Electric V-type Ball Valve installation procedures. The work area must be properly ventilated, especially when working with chemical process lines or hazardous materials. All relevant safety data sheets should be reviewed, and appropriate personal protective equipment must be worn throughout the installation process. Environmental considerations include ambient temperature limitations (-30 to +70℃) for the electric actuator, ensuring the installation environment remains within operational parameters. Electrical safety measures require proper lockout/tagout procedures, verification of power supply specifications (220V or 380V), and ensuring all electrical connections meet local electrical codes and standards. These safety measures not only protect installation personnel but also establish the foundation for safe long-term operation of the Electric V-type Ball Valve system.

Step-by-Step Installation Process and Best Practices

Mechanical Installation and Positioning Procedures

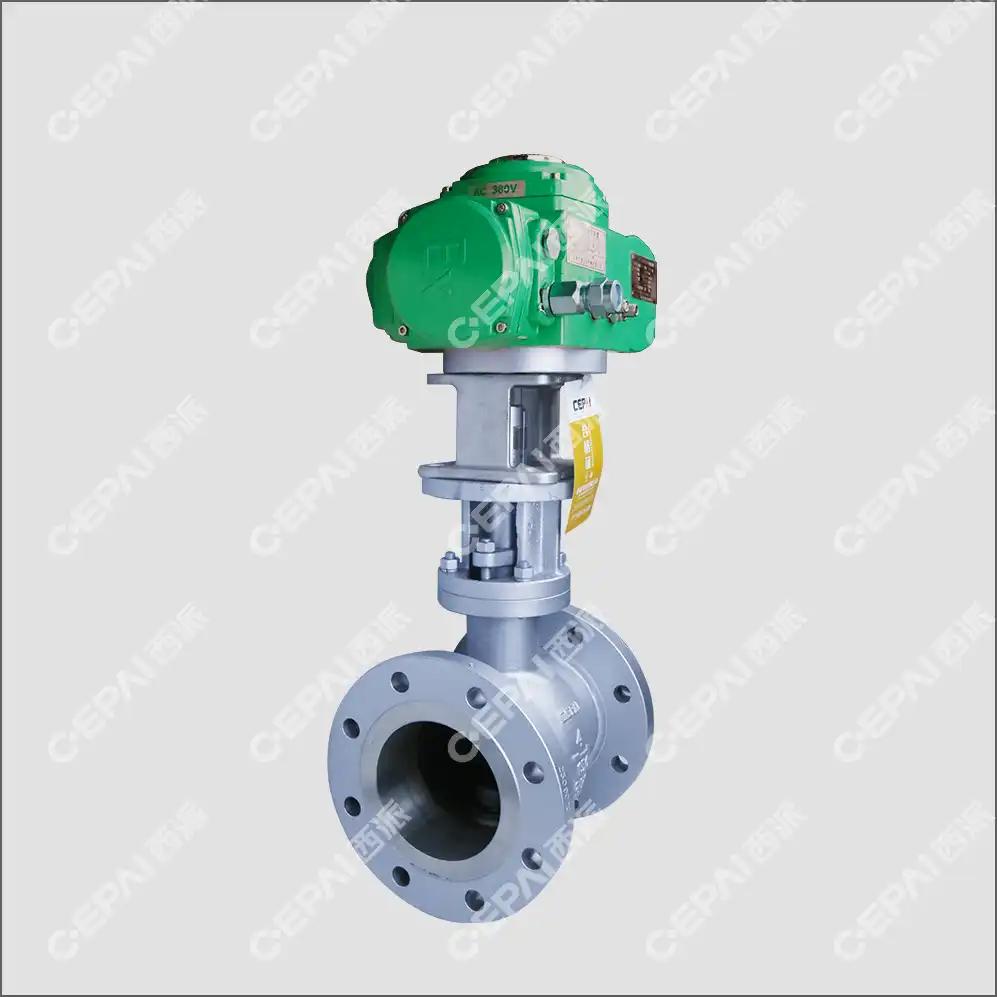

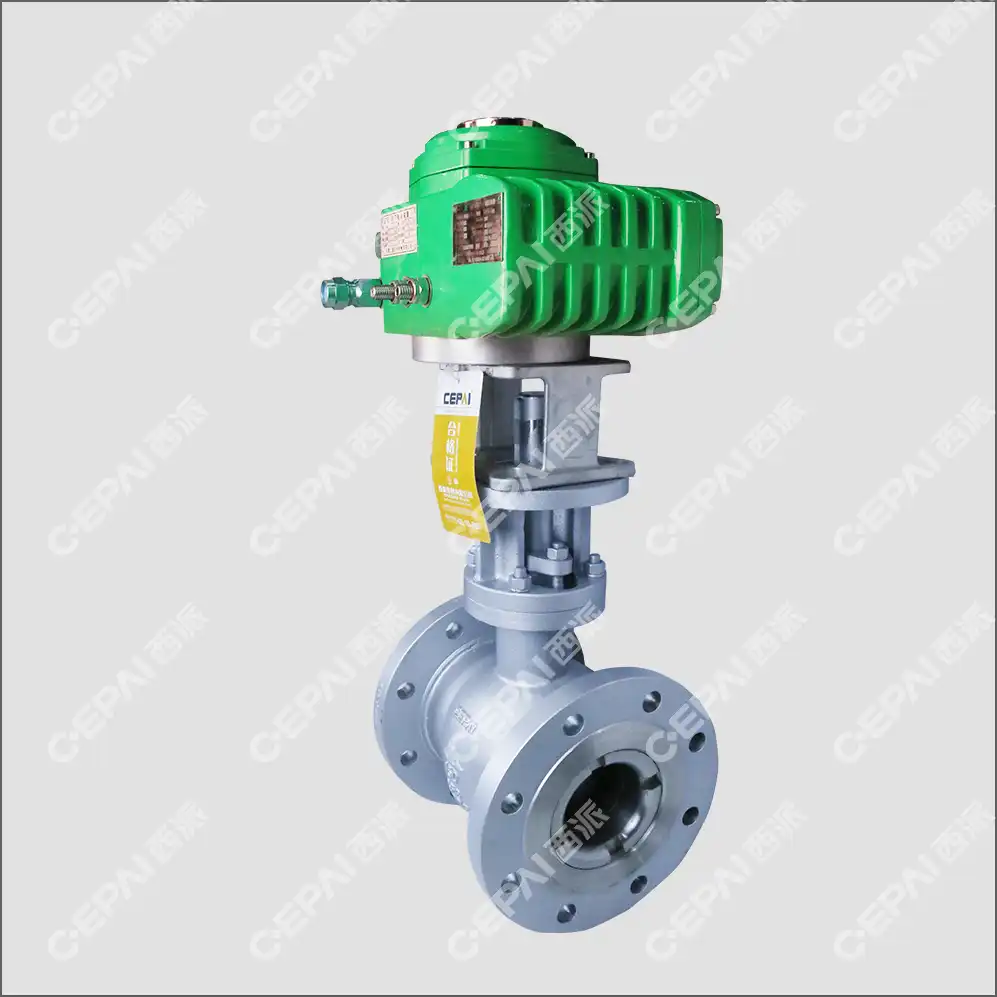

The mechanical installation phase requires methodical attention to valve positioning and secure mounting procedures. Position the valve so the actuator faces upward, reducing the risk of moisture collecting in the actuator. This orientation prevents environmental contamination while ensuring optimal actuator performance throughout the valve's service life. The Electric V-type Ball Valve should be installed with the flow direction arrow aligned with the intended media flow, although these valves typically offer bi-directional flow capabilities. Flange connections require proper gasket selection and bolt torque specifications according to ANSI standards, ensuring leak-tight seals without over-stressing the valve body. The V-shaped ball design provides precise throttling capabilities, making proper alignment critical for achieving the desired flow characteristics and pressure drop calculations across the valve.

Actuator Mounting and Coupling Alignment

Electric actuator mounting demands precise alignment between the actuator output shaft and the valve stem to prevent binding or premature wear. The installation process for an electric actuated ball valve is relatively straightforward. But there are certain precautions to take and steps to follow. To get started, determine the location of the actuator. Then, check that its size is compatible with the valve you want to install. The coupling mechanism must be properly engaged without forcing components together, as misalignment can cause excessive torque requirements or actuator failure. CEPAI's electric actuators feature robust construction designed for 4-20mADC control signals, providing precise positioning feedback for accurate flow control applications. The actuator housing should be securely fastened to the valve mounting pad using appropriate grade bolts, with proper thread engagement to prevent loosening during operation.

Pipeline Integration and Support Systems

Integrating the Electric V-type Ball Valve into existing pipeline systems requires careful attention to stress relief and thermal expansion considerations. The valve installation must not create undue stress on adjacent pipeline components, requiring proper support structures and expansion joints where necessary. Pipeline connections should be completed using appropriate welding procedures or flange assembly techniques, maintaining proper gap distances and alignment tolerances. The full-bore V-shaped design of CEPAI's valves ensures minimal pressure loss while providing excellent throttling characteristics for process control applications. Support systems must accommodate the combined weight of the valve and electric actuator assembly, preventing sagging or misalignment that could affect sealing performance or operational reliability over time.

Electrical Connections and Control System Integration

Wiring Configuration and Signal Integration

Electrical wiring for Electric V-type Ball Valve systems requires careful attention to control signal specifications and power supply requirements. Connect the wires to the corresponding terminals on the electric ball valve according to the wiring diagram. Ensure that the connections are secure and tight to prevent any loose connections. The standard 4-20mADC control signal provides precise positioning control, with optional position feedback capability available for closed-loop control applications. Power supply connections must match the actuator voltage requirements (220V or 380V), with proper grounding and electrical protection systems installed according to local electrical codes. Control signal wiring should be routed separately from power cables to prevent electromagnetic interference, using shielded cables where necessary to maintain signal integrity in industrial environments.

Control System Programming and Calibration

Control system integration involves programming the Electric V-type Ball Valve parameters into the distributed control system (DCS) or programmable logic controller (PLC) infrastructure. The valve's equal percentage flow characteristics must be properly configured in the control algorithm to achieve accurate flow control throughout the operating range. Calibration procedures involve setting the actuator travel limits, verifying position feedback accuracy, and establishing fail-safe positions for emergency shutdown scenarios. CEPAI's intelligent manufacturing approach ensures consistent actuator performance, but proper calibration remains essential for optimal system integration. Advanced control features may include position feedback transmission, limit switch configuration, and integration with plant-wide asset management systems for predictive maintenance capabilities.

Testing and Commissioning Procedures

Comprehensive testing validates the Electric V-type Ball Valve installation before placing the system into service. Initial testing includes verifying proper actuator operation through full stroke cycling, confirming position feedback accuracy, and testing emergency shutdown functions. Leak testing procedures should be conducted at operating pressure to verify sealing performance of both the valve body and actuator housing. Control signal verification ensures proper response to remote commands and accurate position feedback transmission to the control system. Performance testing should include flow coefficient verification, pressure drop measurements across various opening positions, and response time measurement for control applications. These testing procedures ensure the Electric V-type Ball Valve meets design specifications and operational requirements before system startup.

Troubleshooting and Maintenance Considerations

Common Installation Issues and Solutions

Installation challenges often arise from improper preparation or inadequate attention to system requirements. Actuator binding typically results from misalignment between the actuator output shaft and valve stem, requiring careful re-alignment and coupling adjustment. Leakage issues may stem from improper gasket installation, insufficient bolt torque, or damaged sealing surfaces requiring inspection and potential replacement. Electrical control problems often trace to improper wiring connections, incorrect signal ranges, or inadequate grounding systems. CEPAI's comprehensive quality management system ensures product reliability, but proper installation techniques remain critical for optimal performance. The company's ISO 9001 quality management system and extensive testing protocols provide confidence in product quality, while proper installation practices ensure these quality attributes translate into reliable field performance.

Preventive Maintenance and Optimization Strategies

Establishing preventive maintenance protocols maximizes Electric V-type Ball Valve service life and maintains optimal performance characteristics. Regular inspection schedules should include visual examination of actuator housing, electrical connections, and valve body for signs of wear or environmental damage. Lubrication requirements for the actuator drive mechanism must be followed according to manufacturer specifications, using appropriate lubricants for the operating temperature range. The V-shaped ball design provides excellent wear resistance, but periodic inspection of sealing surfaces ensures continued leak-tight performance. CEPAI's remote monitoring capabilities enable predictive maintenance strategies, allowing operators to identify potential issues before they affect system performance. This proactive approach reduces unplanned downtime and maintenance costs while ensuring consistent system reliability.

Performance Optimization and System Enhancement

Optimizing Electric V-type Ball Valve performance involves ongoing monitoring of operational parameters and system efficiency metrics. Flow coefficient verification ensures the valve continues to meet design specifications, while response time monitoring identifies potential issues with actuator performance or control system integration. The equal percentage flow characteristics of CEPAI's V-type design provide superior control accuracy compared to linear flow valves, particularly in applications requiring precise throttling control. System enhancement opportunities may include upgrading to more advanced positioners, implementing smart valve technology for enhanced diagnostics, or integrating with plant-wide digital asset management systems. CEPAI's commitment to technological innovation and continuous improvement ensures their Electric V-type Ball Valve products remain at the forefront of industry advancement, providing customers with cutting-edge solutions for demanding industrial applications.

​​​​​​​

Conclusion

Proper installation of Electric V-type Ball Valves requires systematic attention to mechanical positioning, electrical integration, and comprehensive testing procedures. Following established installation protocols ensures optimal performance, safety, and longevity of these critical control components. The combination of precision engineering, advanced materials, and intelligent manufacturing processes makes modern Electric V-type Ball Valves essential components for industrial automation systems requiring reliable flow control capabilities.
