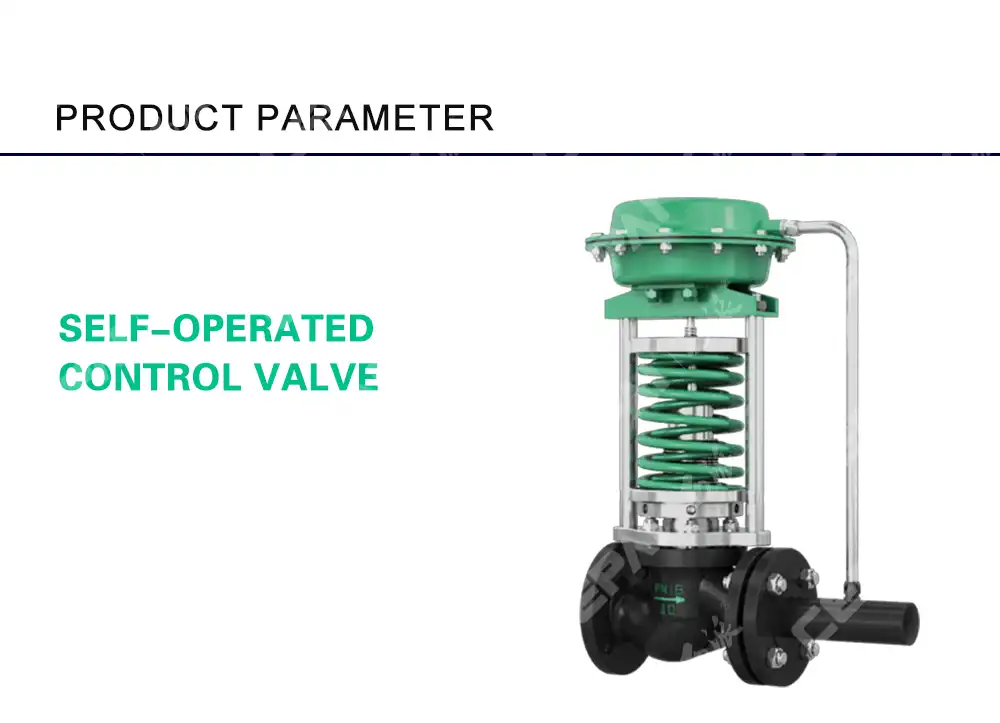

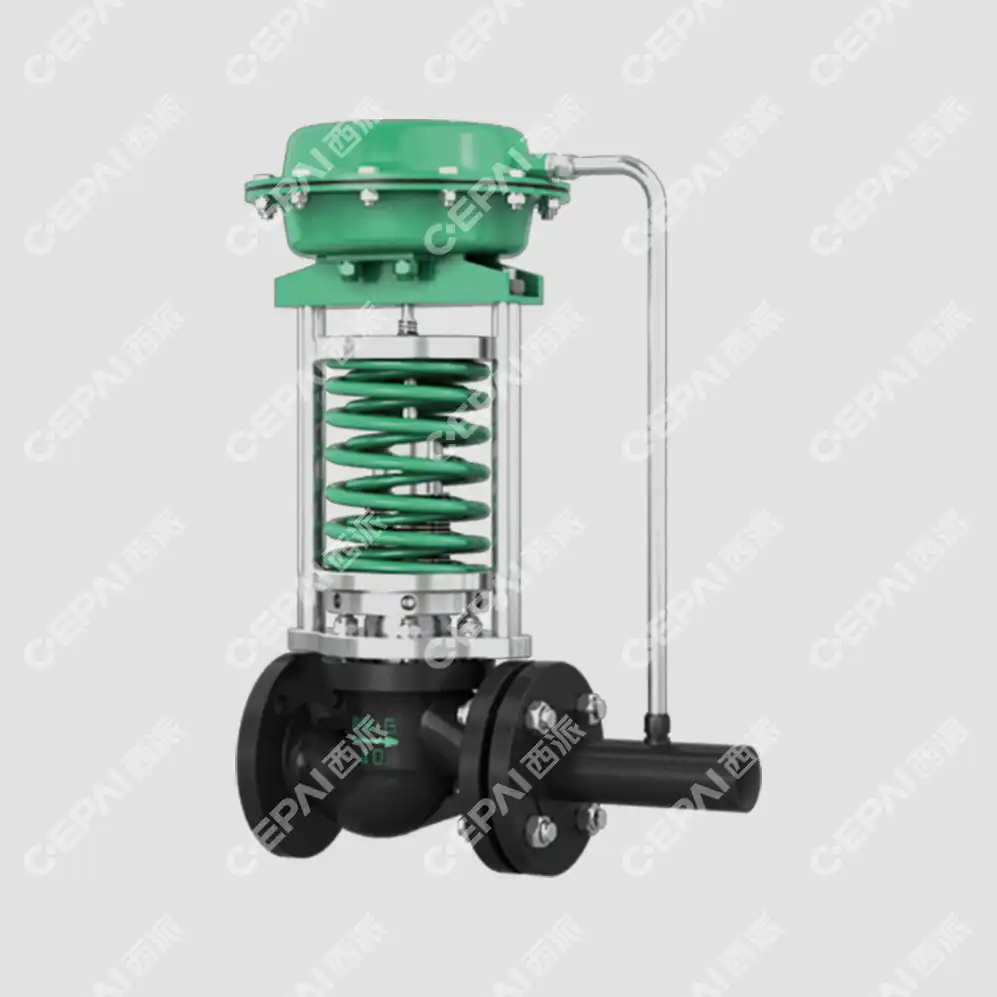

How Self-Operated Control Valves Work: Simply Explained?

Self-operated control valves represent a remarkable engineering achievement in industrial automation, offering autonomous fluid control without external power sources. These sophisticated devices utilize the inherent energy within flowing fluids to regulate pressure, temperature, and flow rates across various industrial applications. Understanding how Self-operated Control Valves function is crucial for engineers, plant operators, and procurement specialists seeking reliable, energy-efficient solutions for process control systems. This comprehensive guide demystifies the operational principles, design variations, and practical applications of these intelligent valves, providing insights into why they have become indispensable components in modern industrial infrastructure worldwide.

Core Operating Principles of Self-Operated Control Valves

Fluid Dynamics Foundation

Self-operated Control Valves operate based on fundamental fluid dynamics principles, primarily utilizing pressure differentials and fluid momentum to achieve automatic regulation. The valve's internal mechanism consists of a sensing element that directly responds to process variables such as pressure, temperature, or flow rate. When fluid enters the valve body, typically constructed from robust materials like WCB, CF8, or CF8M, the sensing diaphragm or piston detects changes in the controlled parameter. This detection triggers mechanical movement within the valve assembly, causing the valve plug or disc to adjust its position relative to the seat, thereby modifying the flow area and achieving the desired control response.The advanced fluid dynamics design ensures minimal pressure loss while maintaining precise control characteristics. The straight-through ball valve configuration commonly employed in these systems allows for smooth fluid passage, reducing turbulence and energy dissipation. The valve's quick-opening adjustment characteristics enable rapid response to process variations, making Self-operated Control Valves particularly suitable for applications requiring immediate flow corrections. The internal flow path geometry is carefully engineered to maintain stable fluid behavior across various operating conditions, ensuring consistent performance throughout the valve's operational range.

Mechanical Response Mechanisms

The mechanical response system within Self-operated Control Valves represents sophisticated engineering that translates fluid property changes into precise valve positioning. The single-seat plunger type valve core or sleeve valve core design provides different response characteristics depending on application requirements. When process conditions change, the sensing element generates mechanical force that acts against a pre-loaded spring or counter-pressure system. This force balance determines the valve's equilibrium position, automatically adjusting to maintain the desired setpoint.The diaphragm or piston actuator systems offer distinct advantages for different operating environments. Diaphragm actuators provide excellent sensitivity for low-pressure applications and offer inherent fail-safe characteristics. Piston actuators deliver higher force output for demanding applications with significant pressure drops or larger valve sizes. The executive agency design, whether configured for before control valve or after control valve operation, ensures optimal performance in specific system configurations. The filling materials, including PTFE filler and flexible graphite filler, provide reliable sealing while maintaining responsive operation across temperature ranges from -5°C to +250°C in extended configurations.

Energy Conservation Principles

Self-operated Control Valves exemplify energy conservation in industrial process control by eliminating the need for external power sources while maintaining precise control performance. The valve harnesses energy already present in the process fluid, converting pressure, temperature, or flow variations into mechanical work for valve operation. This self-powered operation significantly reduces overall system energy consumption compared to electrically or pneumatically actuated alternatives. The inherent energy efficiency makes these valves particularly attractive for remote installations, hazardous environments, or applications where power availability is limited.The energy conservation extends beyond elimination of external power requirements. The streamlined internal flow geometry minimizes pressure drop across the valve body, preserving system energy while achieving control objectives. The rapid response characteristics reduce process upsets and minimize energy waste associated with system instability. Additionally, the robust construction and minimal maintenance requirements contribute to long-term energy savings by reducing downtime and replacement needs. The Level IV and Level VI leakage ratings ensure minimal product loss, further enhancing overall system efficiency and environmental performance.

Design Variations and Technical Specifications

Valve Body Construction and Materials

The valve body represents the foundation of Self-operated Control Valve performance, with design variations addressing diverse industrial requirements. Standard straight-through ball valve configurations accommodate nominal diameters from DN15 to DN400mm, providing flexibility for various flow rate requirements. The nominal pressure ratings of PN16, PN40, PN64, and ANSI 150, 300, 600 classes ensure compatibility with different system pressure requirements. Flange-type connections provide secure, leak-proof installation while facilitating maintenance access when required.Material selection for valve bodies reflects the demanding operational environments these valves encounter. WCB (cast carbon steel) provides excellent strength and durability for general industrial applications, while CF8 and CF8M (stainless steel variants) offer superior corrosion resistance for chemical processing and marine environments. The material choice directly impacts valve longevity, maintenance requirements, and overall life-cycle costs. Advanced metallurgy ensures these Self-operated Control Valves maintain structural integrity under extreme temperature and pressure conditions while resisting corrosion from aggressive process fluids.The valve cover configuration offers additional customization options to match specific application requirements. Standard type covers operate effectively in temperature ranges from -5°C to +70°C, suitable for most industrial applications. Extended type condensers accommodate temperatures up to +250°C, making these valves appropriate for high-temperature processes including steam systems, thermal oil circuits, and chemical reactors. The extended configuration incorporates thermal isolation features that protect sensitive internal components while maintaining reliable operation in extreme thermal environments.

Internal Component Engineering

The internal components of Self-operated Control Valves demonstrate precision engineering designed to deliver consistent, reliable performance across extended service life. The valve core selection between single-seat plunger type and sleeve valve core configurations allows optimization for specific flow characteristics and rangeability requirements. Single-seat designs provide tight shutoff and precise control at lower flow rates, while sleeve configurations offer superior rangeability and reduced noise generation in high-flow applications.Internal material construction utilizing 304 and 316 stainless steel grades ensures compatibility with corrosive process fluids while maintaining mechanical strength under operational stresses. These materials resist pitting, crevice corrosion, and stress corrosion cracking, common failure modes in industrial valve applications. The quick-opening adjustment characteristics enable rapid response to process disturbances, minimizing process upsets and improving overall system stability. The internal flow path geometry incorporates computational fluid dynamics optimization to minimize pressure loss while maintaining predictable flow characteristics.The sealing system represents a critical aspect of Self-operated Control Valve performance, with multiple sealing technologies available to match application requirements. Metal sealing systems achieve Level IV leakage performance, suitable for high-temperature applications or services involving aggressive chemicals that might degrade polymer seals. Soft sealing systems utilizing specialized elastomers achieve Level VI leakage performance, providing virtually zero emission for environmental compliance and product conservation. The sealing system selection considers factors including temperature range, chemical compatibility, and allowable leakage rates.

Actuator Technology and Configuration

The actuator system within Self-operated Control Valves converts process variable changes into mechanical valve positioning with remarkable precision and reliability. Diaphragm-type actuators utilize flexible membrane technology to translate pressure or temperature variations into linear motion. The diaphragm design provides excellent sensitivity to small process changes while offering inherent fail-safe characteristics through spring-return mechanisms. This configuration proves particularly effective in applications requiring precise control with moderate force requirements.Piston actuators deliver higher force output for demanding applications involving large valve sizes or significant differential pressures. The piston design provides positive mechanical coupling between the sensing element and valve stem, ensuring reliable operation even under adverse conditions. Both actuator types accommodate forward and reverse acting configurations, allowing optimization for specific control loop requirements and fail-safe positioning. The Self-operated Control Valve actuator selection considers factors including required force output, response speed, environmental conditions, and maintenance accessibility.The functional form options, including before control valve and after control valve configurations, address different system integration requirements. Before control valve configurations position the sensing element upstream of the valve body, providing anticipatory control response to incoming disturbances. After control valve configurations place the sensing element downstream, providing feedback control based on actual delivered conditions. The configuration choice impacts control stability, response characteristics, and overall system performance.

Industrial Applications and Performance Benefits

Process Industry Applications

Self-operated Control Valves find extensive application across diverse process industries, delivering reliable control performance in challenging operational environments. In petrochemical facilities, these valves regulate pressure and flow in distillation columns, reactor systems, and pipeline networks where external power sources may be limited or hazardous. The inherent safety of self-operated systems eliminates ignition sources associated with electrical actuators, making them ideal for explosive atmosphere applications. The robust construction withstands the corrosive environments common in chemical processing while maintaining precise control performance.Power generation facilities utilize Self-operated Control Valves for steam pressure regulation, condensate control, and cooling water management. The high-temperature capabilities and reliable operation make these valves particularly suitable for steam systems where rapid response to pressure variations is critical for safe operation. The energy conservation characteristics align with power plant efficiency objectives while reducing auxiliary power consumption. In combined heat and power applications, these valves provide autonomous control for heat exchangers and thermal management systems.Water treatment and distribution systems benefit from the autonomous operation of Self-operated Control Valves in pressure reducing stations, flow control applications, and backpressure regulation. The elimination of external power requirements makes these valves ideal for remote installations and emergency backup systems. The precise pressure control capabilities ensure optimal system performance while protecting downstream equipment from overpressure conditions. Municipal water systems particularly value the reliability and low maintenance requirements of these control solutions.

Performance Advantages and Reliability

The performance benefits of Self-operated Control Valves extend beyond basic flow control to encompass reliability, safety, and economic advantages. The rapid response characteristics enable immediate correction of process disturbances, minimizing process upsets and improving product quality consistency. The autonomous operation eliminates dependency on external power sources, control systems, and communication networks, providing inherent system reliability even during utility failures or equipment malfunctions.The mechanical simplicity of Self-operated Control Valves translates to reduced maintenance requirements and extended service life compared to complex electronic control systems. The absence of electronic components eliminates failure modes associated with temperature extremes, electrical interference, and component aging. The robust mechanical construction withstands vibration, shock loads, and environmental extremes common in industrial applications. This reliability reduces unplanned downtime and maintenance costs while improving overall system availability.Safety benefits include fail-safe operation through spring-return mechanisms and elimination of electrical ignition sources in hazardous environments. The Self-operated Control Valve design inherently provides predictable failure modes, typically failing to a predetermined safe position. This characteristic proves invaluable in critical safety systems where reliable failure response is essential for personnel and equipment protection. The mechanical nature of the control response provides visual indication of valve position, facilitating troubleshooting and system monitoring.

Economic and Environmental Impact

The economic benefits of Self-operated Control Valves encompass both initial installation costs and long-term operational expenses. The elimination of external power requirements reduces installation complexity and ongoing energy costs. The absence of control cables, power supplies, and signal conditioning equipment simplifies system design while reducing installation time and costs. The standalone operation eliminates requirements for control system integration, reducing commissioning time and complexity.Long-term economic benefits include reduced maintenance costs due to mechanical simplicity and proven reliability. The Self-operated Control Valve design minimizes spare parts inventory requirements while extending maintenance intervals. The energy conservation characteristics contribute to reduced operating costs while supporting sustainability objectives. The extended service life and proven reliability minimize replacement costs and reduce total cost of ownership over the valve's operational life.Environmental benefits include reduced energy consumption through elimination of external power requirements and efficient internal flow design. The zero-emission sealing capabilities support environmental compliance objectives while minimizing product loss. The long service life reduces waste generation associated with frequent component replacement. The autonomous operation supports sustainability objectives by minimizing resource consumption while maintaining effective process control performance.

Conclusion

Self-operated Control Valves represent an intelligent fusion of mechanical engineering and fluid dynamics principles, delivering autonomous process control without external power requirements. Their sophisticated design translates process variable changes into precise valve positioning through proven mechanical principles, offering reliable performance across diverse industrial applications. The combination of energy efficiency, operational reliability, and maintenance simplicity makes these valves indispensable components in modern industrial infrastructure.

Ready to optimize your process control systems with cutting-edge Self-operated Control Valve technology? CEPAI Group combines decades of engineering expertise with state-of-the-art manufacturing capabilities to deliver customized solutions that meet your specific operational requirements. Our comprehensive quality management system, backed by ISO certifications and rigorous testing protocols, ensures every valve meets the highest performance standards. From initial technical consultation through installation, commissioning, and ongoing support, our team provides complete lifecycle services that maximize your investment value.

Don't let control system complexity compromise your operational efficiency. Contact our technical specialists today at cepai@cepai.com to discuss how our Self-operated Control Valve solutions can enhance your process performance while reducing energy consumption and maintenance requirements. Experience the reliability and precision that has made CEPAI Group a trusted partner for leading industrial organizations worldwide.
