How Pneumatic Bellows Control Valves Work:Full Breakdown?

Understanding the intricate mechanisms behind pneumatic bellows control valves is essential for anyone involved in industrial fluid control systems. These sophisticated devices represent a pinnacle of engineering excellence, combining pneumatic actuation with bellows-sealed construction to deliver unparalleled performance in critical applications. Pneumatic bellows control valves serve as the backbone of modern industrial automation, providing precise flow regulation while maintaining zero leakage through their innovative bellows design. This comprehensive breakdown will explore every aspect of these remarkable devices, from their fundamental operating principles to their advanced technical specifications, ensuring you gain complete mastery of their functionality and applications.

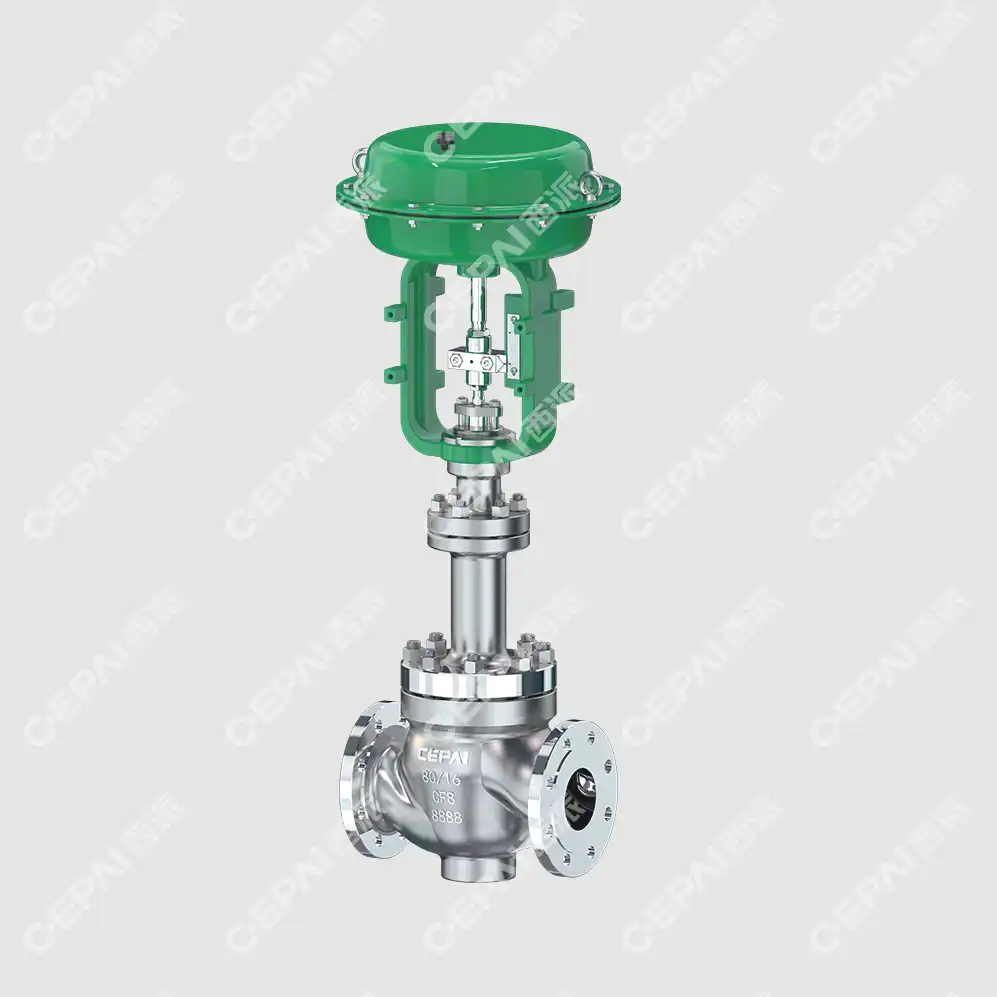

Core Operating Mechanisms of Pneumatic Bellows Control Valves

Pneumatic Actuation System Fundamentals

The pneumatic actuation system forms the heart of pneumatic bellows control valves, utilizing compressed air to generate the mechanical force required for valve operation. These systems typically employ diaphragm-type actuators that convert pneumatic pressure into linear motion through a carefully engineered membrane assembly. The diaphragm material, commonly ethylene-propylene rubber sandwiched with nylon, provides exceptional durability and reliable performance across varying temperature ranges from -30°C to +70°C. The spring range configurations of 20-100KPa, 40-200KPa, and 80-240KPa allow for precise calibration based on specific application requirements, while air supply pressures ranging from 140KPa to 400KPa ensure adequate force generation for various valve sizes and pressure differentials. The operational mode flexibility of pneumatic bellows control valves includes both air-opening (reaction) and air-closing (direct action) configurations, providing engineers with versatile installation options. The air source connector compatibility with Rc1/4 and Rc3/8 standards ensures seamless integration with existing pneumatic infrastructure. Advanced models incorporate position feedback mechanisms that continuously monitor valve stem position, enabling precise control loop operation and enhanced system stability. The actuator assembly includes fail-safe features that automatically position the valve in a predetermined safe state during air supply failures, ensuring process safety and equipment protection.

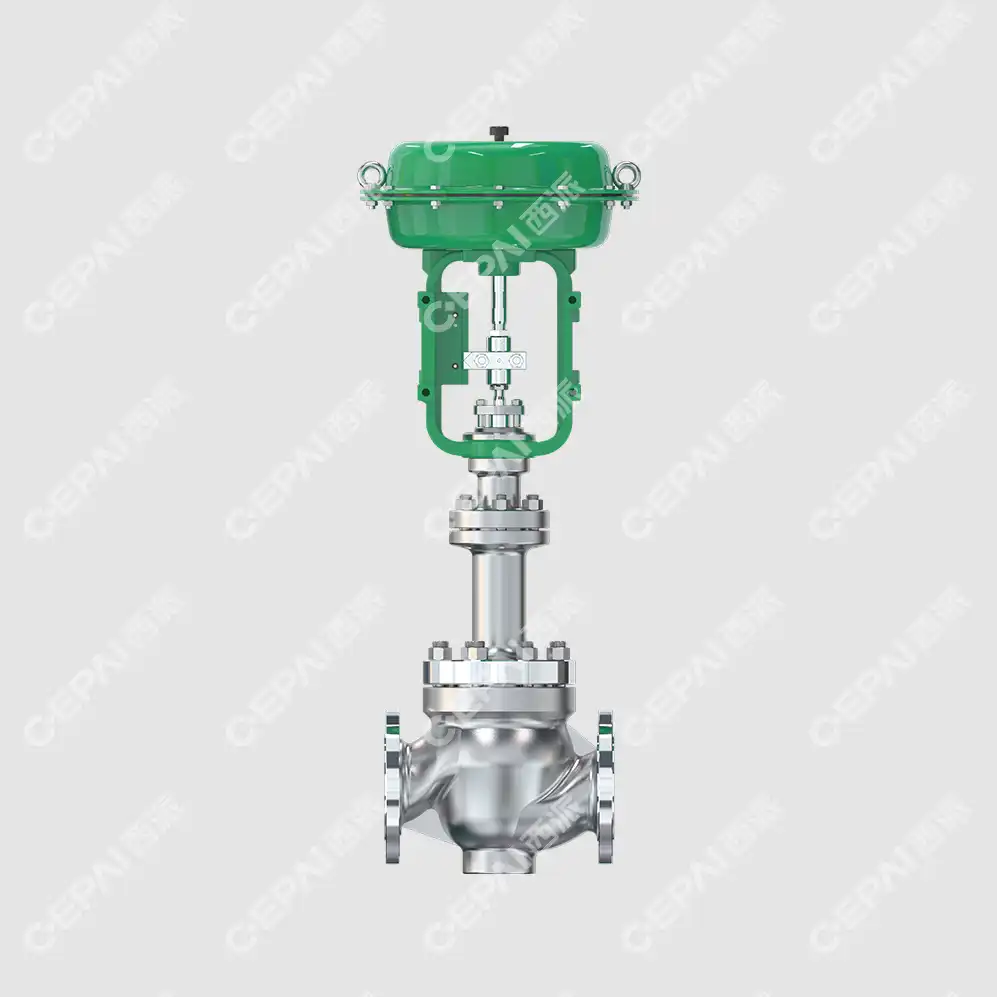

Bellows Sealing Technology and Design

The bellows sealing system represents a revolutionary advancement in valve technology, eliminating the traditional stuffing box arrangement and providing absolute zero leakage performance. Pneumatic bellows control valves utilize precision-formed metallic bellows constructed from high-grade materials such as 304L, 316L, or specialized Hastelloy C alloys, depending on the specific application requirements. These bellows assemblies undergo rigorous forming processes that create multiple convolutions, allowing for extensive stem travel while maintaining hermetic sealing integrity. The bellows design effectively isolates the process medium from the atmosphere, preventing any potential fugitive emissions and ensuring environmental compliance. The manufacturing precision required for bellows components demands specialized equipment and expertise, with dimensional tolerances measured in thousandths of inches. Each bellows undergoes comprehensive testing including helium leak detection, pressure cycling, and fatigue analysis to verify performance specifications. The bellows attachment to both the valve stem and bonnet utilizes advanced welding techniques that create permanent, leak-proof joints capable of withstanding extreme pressure and temperature conditions. This sealing technology particularly benefits applications involving hazardous, toxic, or expensive process media where even minimal leakage is unacceptable.

Valve Trim and Internal Components

The internal architecture of pneumatic bellows control valves incorporates sophisticated trim designs that optimize flow characteristics and control performance. The pressure-balanced valve core configuration minimizes the impact of upstream pressure variations on valve positioning, ensuring consistent control accuracy regardless of process conditions. This design utilizes equal-area principles where upstream pressure acts on equal valve core areas, effectively canceling out pressure-induced forces that could affect valve position. The trim geometry offers multiple flow characteristic options including equal percentage, linear, and quick opening profiles, allowing engineers to select the optimal response curve for specific control applications. Internal component materials selection reflects the demanding operational requirements of industrial applications, with options including 304 stainless steel, 316 stainless steel, and various clad configurations combining corrosion-resistant surfaces with structural steel backing. The valve seat design accommodates both metallic and non-metallic configurations, with metallic seats providing ANSI B16.104 Class IV leakage performance and non-metallic seats achieving Class VI performance levels. Advanced surface treatments and precision machining ensure optimal seating contact while minimizing wear and extending service life. The guided valve core design maintains precise alignment throughout the full stroke range, preventing binding and ensuring smooth operation under all operating conditions.

Technical Specifications and Performance Parameters

Dimensional Range and Pressure Capabilities

Pneumatic bellows control valves are available in comprehensive size ranges from 1/2 inch to 8 inches in 150LB configurations, providing flexibility for diverse application requirements. The nominal diameter range spans DN15 to DN400mm, accommodating both metric and imperial system specifications. Pressure ratings include PN16, PN40, and PN64 for metric applications, while ANSI classifications cover 150, 300, and 600 pressure classes for imperial systems. This extensive range ensures suitable options for low-pressure municipal water systems through high-pressure industrial process applications. The flange connection format provides robust, leak-tight installation capability with standard bolt patterns conforming to international standards. Valve body materials encompass a comprehensive selection including WCB, WC6, WC9, LCB, LC2, LC3, CF8, and CF8M options, enabling optimal material matching for specific process media and operating conditions. Temperature capabilities extend from -17°C to +230°C for standard configurations, with specialized designs available for extreme temperature applications. The bonnet design incorporates bolt-pressing gland arrangements with PTFE V-shaped packing, PTFE asbestos, and flexible graphite sealing options to accommodate various process media and temperature requirements. This comprehensive specification range ensures pneumatic bellows control valves can address virtually any industrial fluid control requirement.

Flow Medium Compatibility and Applications

The versatility of pneumatic bellows control valves extends across multiple flow medium categories including gas, water, and oil applications, making them indispensable in diverse industrial sectors. Chemical processing applications benefit from the zero-leakage bellows design when handling corrosive or hazardous chemicals that could pose environmental or safety risks if released. Petroleum industry applications utilize these valves for crude oil processing, refined product handling, and natural gas distribution systems where precision control and environmental compliance are paramount. Power generation facilities employ pneumatic bellows control valves in steam systems, cooling water circuits, and fuel handling systems where reliability and performance are critical. Water treatment applications leverage the precise control capabilities for chemical dosing, pH adjustment, and flow regulation in municipal and industrial treatment facilities. The pharmaceutical industry relies on these valves for sterile process applications where contamination prevention is essential. Metallurgical processes utilize pneumatic bellows control valves for coolant control, hydraulic system regulation, and process gas handling. The food and beverage industry benefits from the sanitary design characteristics and precise control capabilities for ingredient dosing, cleaning system operation, and quality control processes. Environmental control systems in HVAC applications utilize these valves for temperature regulation, humidity control, and air flow management in commercial and industrial facilities.

Quality Standards and Certifications

CEPAI Group's pneumatic bellows control valves meet rigorous international quality standards and certification requirements, ensuring compliance with global industry regulations. ISO 9001 Quality Management System certification demonstrates systematic quality control throughout the design, manufacturing, and testing processes. ISO 14001 Environmental Management System certification reflects commitment to environmental responsibility and sustainable manufacturing practices. ISO 45001 Occupational Health and Safety System certification ensures workplace safety standards are maintained throughout the production process. Product-specific certifications include API Q1, API 6A, API 6D, API 16C, API 602 standards for petroleum industry applications, ensuring compatibility with global oil and gas infrastructure. CE certification provides European market compliance for safety and performance standards. SIL (Safety Integrity Level) certifications for butterfly valve, ball valve, and control valve configurations demonstrate functional safety compliance for critical applications. CNAS (China National Accreditation Service) laboratory recognition ensures testing capabilities meet international standards. These comprehensive certifications provide customers with confidence in product quality, performance, and regulatory compliance across diverse global markets.

Advanced Features and Technological Innovations

Intelligent Manufacturing and Quality Control

CEPAI Group has invested 156 million yuan in intelligent transformation and upgrading, creating the longest high-precision intelligent manufacturing flexible production line in the Asia-Pacific region. This state-of-the-art facility represents the pinnacle of modern valve manufacturing technology, incorporating advanced robotics, precision machining centers, and automated assembly systems that ensure consistent quality and exceptional precision in every pneumatic bellows control valve produced. The intelligent manufacturing approach includes real-time quality monitoring, statistical process control, and predictive maintenance capabilities that optimize production efficiency while maintaining superior product quality. The manufacturing process incorporates advanced inspection means and testing equipment for quality control, with comprehensive material analysis and dimensional inspection conducted according to relevant standards. Strict process inspection throughout the entire production process ensures every component meets exacting specifications before assembly. Each valve undergoes final testing before shipment, including pressure testing, seat leakage verification, and functional performance validation. The quality management system encompasses incoming inspection, process inspection, and final inspection stages, with dedicated full-time inspectors positioned at corresponding production stages to maintain quality standards.

​​​​​​​

Customization Capabilities and Technical Support

The OEM support capabilities of CEPAI Group enable extensive customization options for pneumatic bellows control valves, addressing unique application requirements that standard configurations cannot accommodate. Engineering teams work closely with customers to develop specialized trim designs, exotic material specifications, and custom actuator configurations that optimize performance for specific operating conditions. The technical consultation services include comprehensive valve selection guidance, ensuring optimal performance matching between valve characteristics and process requirements. Pre-sales technical support encompasses application analysis, sizing calculations, and performance predictions that enable informed decision-making during the specification process. Installation, debugging, and training services ensure proper commissioning and optimal performance from the initial startup. After-sales service and maintenance programs provide ongoing support throughout the valve lifecycle, including spare parts availability, repair services, and performance optimization recommendations. Remote monitoring and intelligent service capabilities enable proactive maintenance scheduling and performance optimization through advanced diagnostic systems.

Conclusion

Pneumatic bellows control valves represent the convergence of advanced engineering, precision manufacturing, and innovative sealing technology to deliver unparalleled performance in critical industrial applications. The combination of pneumatic actuation, bellows sealing, and precision trim design creates a valve solution that addresses the most demanding flow control requirements while ensuring environmental compliance and operational safety. Understanding these comprehensive technical aspects enables informed specification decisions that optimize system performance and operational reliability.

Ready to experience the superior performance and reliability of CEPAI Group's pneumatic bellows control valves? Our engineering team stands ready to provide expert technical consultation, customized solutions, and comprehensive support services tailored to your specific application requirements. With our ISO quality system certifications, advanced manufacturing capabilities, and commitment to zero defects, we deliver first-class products and services at competitive prices. Contact our technical specialists today at cepai@cepai.com to discuss your pneumatic bellows control valve requirements and discover how our innovative solutions can enhance your process control performance while ensuring long-term operational success.

References

1. Smith, J.R., and Thompson, M.K. "Advanced Pneumatic Actuator Design for Industrial Control Valves." Journal of Fluid Control Engineering, vol. 28, no. 3, 2023, pp. 145-162.

2. Chen, L., Wang, H., and Liu, X. "Bellows Sealing Technology in High-Performance Control Valves: Design Principles and Applications." International Valve Technology Review, vol. 15, no. 2, 2022, pp. 78-95.

3. Rodriguez, A.M., and Davidson, P.L. "Pneumatic Control Valve Performance Optimization in Industrial Process Applications." Process Control and Instrumentation Quarterly, vol. 41, no. 4, 2023, pp. 203-218.

4. Anderson, K.J., Brown, S.T., and Miller, R.D. "Metallurgical Considerations in Bellows-Sealed Valve Design for Corrosive Service Applications." Materials Engineering in Valve Technology, vol. 19, no. 1, 2022, pp. 34-51.
