When your industrial system faces unexpected pressure surges, flow irregularities, or contamination risks, the consequences can be catastrophic. Whether it's a petrochemical plant experiencing uncontrolled flow rates that threaten equipment integrity or an oil drilling operation where precise flow control means the difference between success and disaster, understanding how Ball Valve technology manages fluid dynamics becomes critical. The answer lies in the sophisticated rotational mechanism that allows precise control through a simple quarter-turn operation, providing immediate response to system demands while maintaining exceptional sealing integrity across diverse applications.

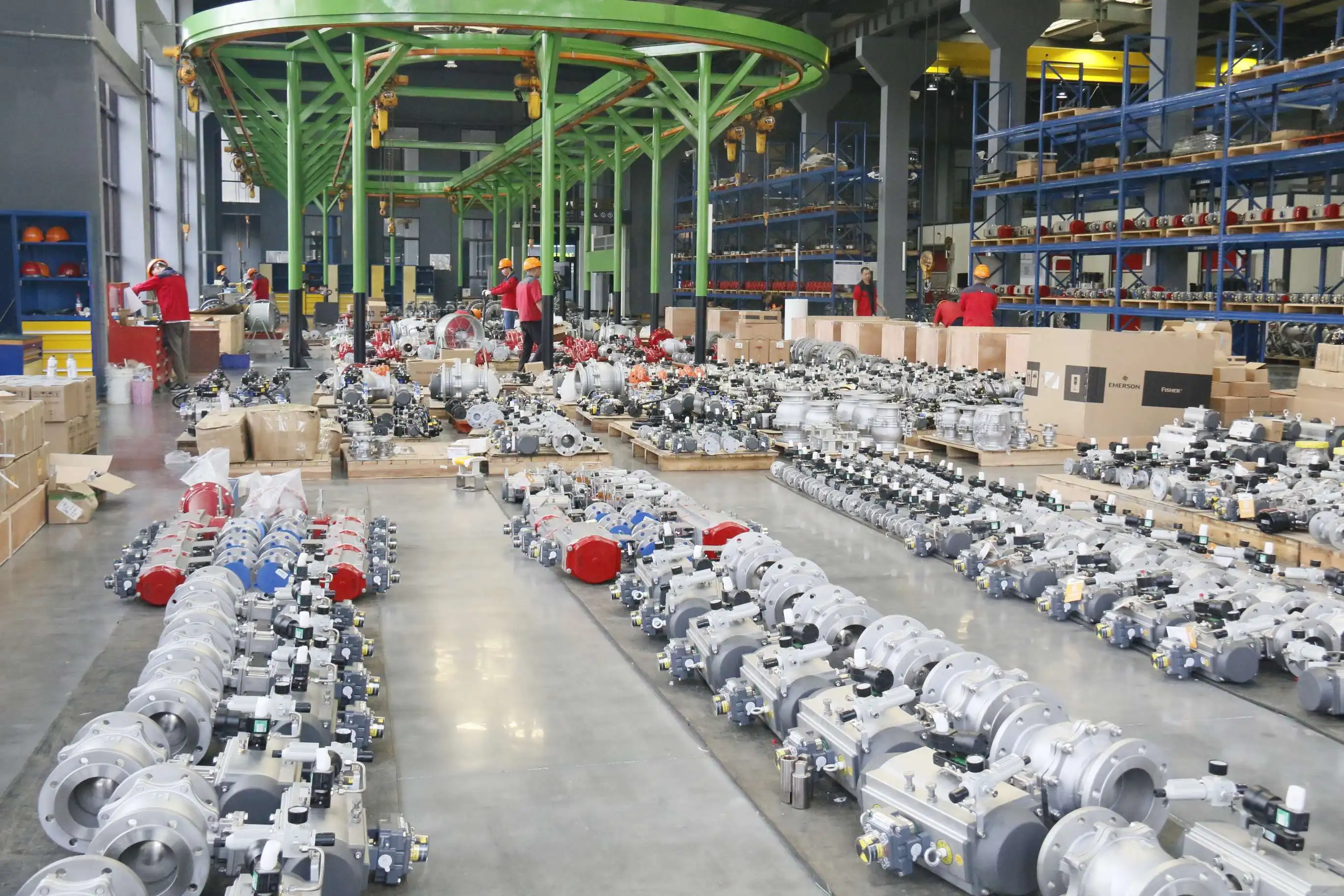

ball valve

Understanding Ball Valve Flow Control Mechanisms

The Fundamental Operation Principle

Ball valves operate through a rotating ball mechanism with a quarter-turn (90-degree) operation that controls flow through a bore hole. The Ball Valve design centers around a spherical closure element that contains a cylindrical port through its center. When the valve operates in the open position, this port aligns perfectly with the pipeline direction, creating an unrestricted flow path for both liquid and gas media. The precision-engineered ball sits between two seats, typically made from resilient materials like PTFE or metal, depending on the application requirements. The rotational movement is controlled through a stem that extends from the ball to the actuator or manual handle, providing direct mechanical connection for precise positioning. The flow control effectiveness of a Ball Valve depends significantly on the port configuration and ball geometry. Full-port ball valves feature bore diameters that match the pipeline internal diameter, minimizing pressure drop and turbulence. Standard-port designs utilize smaller bore openings, which can create some flow restriction but offer advantages in terms of torque requirements and overall valve size. The spherical shape of the closure element ensures that when rotated to the closed position, the solid portion of the ball creates a complete barrier against the flow direction, establishing excellent shutoff capabilities that exceed many alternative valve types.

Sealing Technology and Pressure Management

Ball valves feature specialized sealing mechanisms around the ball to prevent leakage when closed, making them highly reliable for on/off control. The sealing system in a Ball Valve consists of multiple components working in coordination to achieve leak-tight performance. Primary seals, typically O-rings or gaskets, create the interface between the ball and valve seats. These seals must accommodate the rotational movement while maintaining constant contact pressure against the ball surface. Advanced Ball Valve designs incorporate spring-loaded seats that automatically adjust to wear and thermal expansion, ensuring consistent sealing performance throughout the valve's operational life. The pressure management capabilities of ball valves stem from their balanced design and robust construction. The spherical closure element distributes pressure forces evenly across the seating surfaces, reducing localized stress concentrations that could compromise sealing integrity. In high-pressure applications, Ball Valve manufacturers often employ trunnion-mounted designs where the ball is supported by additional bearings at the top and bottom. This configuration reduces the load on the seats and stem, enabling reliable operation at pressures exceeding 10,000 PSI while maintaining the characteristic low-torque operation that makes ball valves attractive for both manual and automated applications.

Ball Valve Applications in Liquid Flow Systems

Liquid Flow Characteristics and Control Precision

Liquid flow control through Ball Valve systems presents unique challenges related to the incompressible nature of fluid media. Unlike gases, liquids cannot be compressed, meaning that any flow restriction creates immediate pressure response throughout the system. The Ball Valve design accommodates this characteristic through its rapid-acting quarter-turn operation, which allows operators to quickly respond to changing system conditions without the gradual adjustment periods required by other valve types. The smooth bore design of full-port ball valves minimizes turbulence and pressure loss, particularly important in applications where maintaining flow efficiency is critical for process economics. The precision of liquid flow control depends heavily on the Ball Valve's port configuration and actuator selection. For applications requiring flow modulation rather than simple on/off service, specialized ball valve designs incorporate characterized balls or segmented balls that provide predictable flow coefficients at various opening positions. These advanced Ball Valve configurations enable precise flow control across a wide range of operating conditions, making them suitable for process applications where flow rates must be carefully regulated. The inherent quick-acting nature of ball valves also makes them ideal for emergency shutdown applications where rapid flow isolation is essential for system safety.

Material Compatibility and Chemical Resistance

The selection of appropriate materials for Ball Valve construction in liquid service requires careful consideration of the fluid's chemical properties, temperature range, and pressure conditions. Wetted components including the ball, seats, and seals must demonstrate compatibility with the process fluid to prevent corrosion, swelling, or degradation that could compromise valve performance. Stainless steel ball valves offer excellent corrosion resistance for many liquid applications, while exotic alloys like Hastelloy or Inconel may be required for highly corrosive or high-temperature services. The Ball Valve seat materials must also be selected based on chemical compatibility, with options ranging from soft polymers like PTFE for general chemical service to metal seats for high-temperature or abrasive applications. Advanced Ball Valve designs for liquid service often incorporate specialized coatings or surface treatments to enhance chemical resistance and extend service life. Ceramic coatings can provide exceptional hardness and chemical inertness for abrasive slurries, while specialized polymer linings offer broad chemical compatibility for aggressive acids and bases. The selection of proper materials and coatings for Ball Valve construction directly impacts long-term reliability and maintenance requirements, making material selection a critical factor in valve specification and procurement decisions for liquid flow control applications.

Gas Flow Control with Ball Valves

Compressible Flow Dynamics and Pressure Management

Gas flow through control valves differs fundamentally from liquid flow because gases are compressible while liquids are incompressible. This characteristic creates unique challenges and opportunities for Ball Valve applications in gas service. When gas flows through a Ball Valve, changes in pressure result in corresponding changes in gas density and volume, affecting flow rates and system behavior. The rapid-acting nature of ball valves becomes particularly advantageous in gas applications where quick response to pressure changes is essential for process control and safety. The quarter-turn operation allows operators to quickly isolate gas systems or adjust flow rates in response to changing downstream conditions. Ball valves are commonly used for flow control, pressure control in gas distribution systems, and pressure reduction in connection with gas storage. The design characteristics that make Ball Valve technology effective for gas service include the ability to handle high pressure differentials, excellent shutoff capabilities, and resistance to pressure-induced deformation. Gas applications often involve significant pressure drops across the valve, creating high-velocity flow conditions that can cause erosion or vibration in poorly designed valves. The streamlined flow path through a ball valve's bore minimizes turbulence and reduces the potential for acoustic problems or cavitation-like effects that can occur with compressible flow.

Safety Considerations and Emergency Shutdown Applications

Gas service applications place particular emphasis on safety considerations due to the potential for rapid pressure escalation and the flammable or toxic nature of many gas media. Ball Valve technology addresses these safety requirements through multiple design features including fire-safe construction, antistatic stems, and fail-safe actuator systems. Fire-safe ball valves incorporate metal-to-metal sealing capabilities that maintain shutoff integrity even when polymer seals are destroyed by fire exposure. This critical safety feature makes Ball Valve designs essential for hydrocarbon processing facilities where fire exposure is a recognized hazard. Emergency shutdown systems in gas processing facilities rely heavily on Ball Valve technology due to the rapid closure capabilities and reliable sealing performance. The quarter-turn operation enables quick isolation of gas systems, while the positive shutoff characteristics prevent dangerous gas leakage during emergency conditions. Advanced Ball Valve designs for gas emergency service often incorporate spring-return actuators that automatically close the valve upon loss of instrument air or electrical power, providing fail-safe operation that enhances overall process safety. The combination of rapid response, reliable sealing, and fail-safe operation makes ball valves the preferred choice for critical gas isolation applications across the energy industry.

Advanced Ball Valve Technologies and Innovations

Smart Valve Technologies and Remote Monitoring

Modern Ball Valve systems increasingly incorporate advanced technologies that enhance performance monitoring, predictive maintenance, and remote operation capabilities. Smart actuator systems provide real-time feedback on valve position, torque requirements, and operational status, enabling operators to monitor valve performance and identify potential issues before they result in system failures. These intelligent Ball Valve systems integrate with plant control systems through various communication protocols, providing seamless integration with existing automation infrastructure while enabling advanced diagnostic capabilities. Remote monitoring capabilities in advanced Ball Valve systems extend beyond basic position indication to include comprehensive performance analytics. Sensors integrated into the valve assembly can monitor parameters such as stem torque, seat leakage, temperature, and vibration, providing early warning of potential maintenance needs. This predictive maintenance approach reduces unplanned downtime while optimizing maintenance schedules based on actual valve condition rather than arbitrary time intervals. The data collected from smart Ball Valve systems also provides valuable insights into process conditions and system performance, enabling continuous optimization of plant operations.

Manufacturing Excellence and Quality Assurance

The production of high-quality Ball Valve systems requires sophisticated manufacturing processes and comprehensive quality control programs. Modern valve manufacturing facilities employ advanced machining technologies, precision measurement systems, and automated assembly processes to ensure consistent product quality and performance. Computer-controlled machining centers enable the production of complex ball geometries and precise seating surfaces that are critical for optimal sealing performance. Advanced coordinate measuring machines verify dimensional accuracy throughout the manufacturing process, while automated testing systems validate performance characteristics before shipment. Quality assurance in Ball Valve manufacturing extends beyond dimensional verification to include comprehensive material testing, pressure testing, and performance validation. Spectroscopic analysis ensures that materials meet specified chemical compositions, while mechanical testing verifies strength and ductility properties. Each Ball Valve undergoes hydrostatic testing to verify pressure containment capabilities, seat testing to validate shutoff performance, and operational testing to confirm smooth operation and proper torque characteristics. This comprehensive quality program ensures that ball valves meet or exceed specified performance requirements while providing the reliability demanded by critical industrial applications.

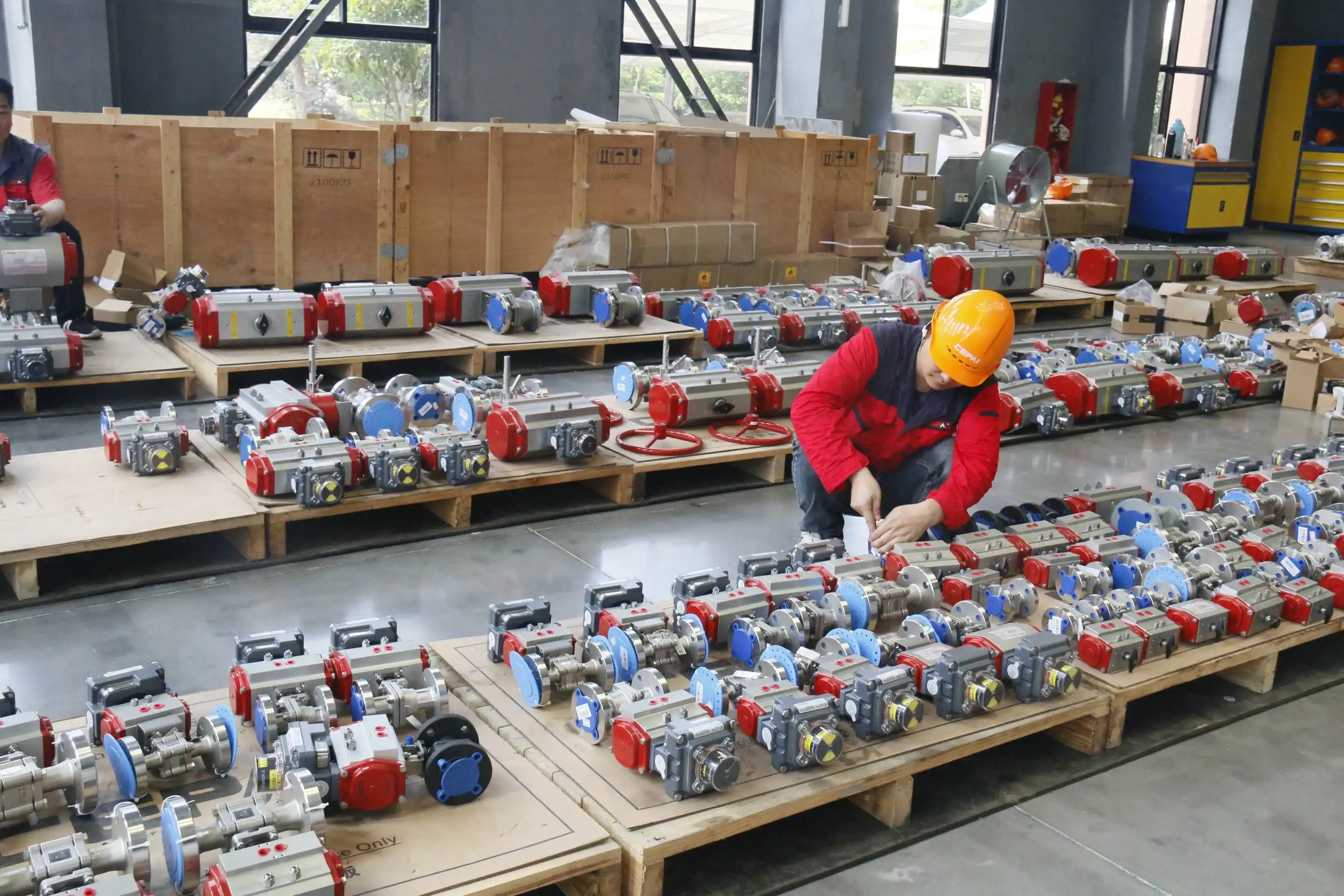

pneumatic ball valve

Conclusion

Ball valves represent a critical technology for controlling liquid and gas flow across diverse industrial applications through their innovative rotational mechanism and superior sealing capabilities. The quarter-turn operation, combined with robust construction and versatile design options, makes Ball Valve systems the preferred choice for applications demanding reliable flow control, rapid response, and long-term performance. Understanding the fundamental principles of ball valve operation, material selection considerations, and advanced technology integration enables engineers and operators to optimize system performance while ensuring safe and efficient operations.

Cooperate with CEPAI Group Co., LTD.

CEPAI Group Co., LTD. stands as a leading technology multinational company, established in 2009 with a registered capital of 200 million yuan and occupying 56,000 square meters of advanced manufacturing facilities in Jiangsu Province. As a national high-tech enterprise specializing in Ball Valve manufacturing, CEPAI has earned recognition as a specialized and innovative "little giant" enterprise, operating state-of-the-art smart factories that represent the pinnacle of intelligent manufacturing in the valve industry.

Our commitment to excellence in Ball Valve production is demonstrated through comprehensive certifications including API Q1, API 6A, API 6D, ISO 9001, and Ball Valve SIL certification, ensuring that our products meet the most stringent international standards. CEPAI's advanced manufacturing capabilities include the longest high-precision intelligent manufacturing flexible production line in the Asia Pacific region, representing a 156 million yuan investment in cutting-edge production technology that delivers exceptional quality and precision for every Ball Valve we manufacture.

As a trusted China Ball Valve factory and China Ball Valve supplier, CEPAI maintains supplier qualifications with major industry leaders including PetroChina, Sinopec, and CNOOC, demonstrating our commitment to quality and reliability. Our role as a premier China Ball Valve manufacturer extends globally, serving diverse industries from petrochemical and power generation to metallurgy and water treatment. With our extensive range of High Quality Ball Valve products available for sale at competitive Ball Valve prices, CEPAI offers comprehensive solutions backed by exceptional pre-sales technical support and after-sales service guarantees. For inquiries about our Ball Valve wholesale offerings and customized solutions, contact us at cepai@cepai.com to experience the CEPAI difference in valve technology excellence.

FAQ

Q: How does a ball valve achieve tight shutoff compared to other valve types?

A: Ball valves create tight shutoff through a spherical closure element that rotates 90 degrees to position the solid portion of the ball perpendicular to the flow path, providing metal-to-metal or soft-seat sealing that eliminates leakage.

Q: What are the main advantages of using ball valves for gas flow control applications?

A: Ball valves offer rapid quarter-turn operation, excellent pressure handling capabilities, fire-safe construction options, and reliable shutoff performance that makes them ideal for gas emergency shutdown and pressure control systems.

Q: Can ball valves be used for flow regulation or only on/off control?

A: While primarily designed for on/off service, specialized ball valves with characterized balls or segmented designs can provide effective flow regulation and modulation across various opening positions.

Q: What factors should be considered when selecting ball valve materials for liquid service?

A: Material selection must consider chemical compatibility with the process fluid, operating temperature and pressure ranges, potential for corrosion or erosion, and required service life to ensure optimal performance and safety.
