How an Electric O-shaped Valve Controls Flow More Accurately?

In the demanding world of industrial fluid control systems, precision and reliability are paramount. Electric O-shaped valves represent a cutting-edge advancement in flow control technology, delivering unmatched accuracy through sophisticated electronic automation and precision-engineered design. These innovative valves combine the geometric advantages of O-shaped flow passages with advanced electric actuators, enabling superior control over fluid dynamics compared to traditional manual or pneumatic alternatives. The O-shaped Electric Valve achieves exceptional flow accuracy through its optimized internal geometry, which minimizes turbulence while maximizing controllability, making it an essential component for industries requiring precise fluid management.

Electronic Control Systems for Enhanced Precision

Advanced Actuator Technology

The foundation of superior flow control in an O-shaped Electric Valve lies in its sophisticated actuator technology. Electronic valves use advanced control systems for precise opening and closing, with automated systems monitoring and adjusting positions thousands of times per second. This real-time feedback mechanism enables the O-shaped Electric Valve to maintain optimal flow parameters with exceptional precision. The electric actuators integrate seamlessly with the valve body, utilizing high-torque motors and precision gear reduction systems to achieve minute positional adjustments. Unlike pneumatic or hydraulic actuators, electric systems eliminate the variability introduced by compressed air pressure fluctuations or hydraulic fluid temperature changes. The O-shaped Electric Valve's actuator incorporates advanced position sensors, typically utilizing Hall effect or optical encoders, which provide continuous feedback to the control system. This constant monitoring ensures that even the smallest deviations from the desired flow rate are immediately detected and corrected. The integration of microprocessor-based controllers allows for sophisticated algorithms that can compensate for system variables such as upstream pressure fluctuations, temperature variations, and fluid viscosity changes. Furthermore, the electric actuator's ability to operate across a wide range of environmental conditions makes the O-shaped Electric Valve suitable for diverse industrial applications, from cryogenic processes to high-temperature steam systems.

Digital Signal Processing and Control Algorithms

Modern O-shaped Electric Valves incorporate advanced digital signal processing capabilities that enhance their flow control accuracy significantly. The control algorithms employed in these systems utilize proportional-integral-derivative (PID) control loops, which analyze the difference between desired and actual flow rates to make precise adjustments. Control valves achieve flow modulation by adjusting the flow passage size in response to signals from a controller, which is typically part of a larger automated control system. The O-shaped Electric Valve's control system processes multiple input parameters simultaneously, including flow rate, pressure differential, temperature, and valve position feedback. This multi-parameter analysis enables the system to predict and compensate for potential flow disturbances before they impact the process. The digital control platform also supports advanced features such as adaptive control, where the system learns from operational patterns and optimizes its response characteristics over time. Machine learning algorithms can be integrated to improve the O-shaped Electric Valve's performance based on historical data and operational patterns. The control system's ability to communicate via industrial protocols such as HART, Foundation Fieldbus, or Profibus enables seamless integration with distributed control systems (DCS) and supervisory control and data acquisition (SCADA) networks. This connectivity allows for remote monitoring, diagnostics, and optimization of the O-shaped Electric Valve's performance across entire process plants.

Real-time Monitoring and Feedback Systems

The accuracy of an O-shaped Electric Valve is significantly enhanced by its comprehensive real-time monitoring capabilities. Advanced sensor technology integrated within the valve assembly provides continuous feedback on critical operating parameters. Flow measurement sensors, often utilizing ultrasonic or magnetic principles, provide instantaneous flow rate data with exceptional accuracy. Pressure sensors positioned upstream and downstream of the O-shaped Electric Valve enable precise monitoring of pressure differentials, allowing the control system to maintain optimal flow conditions regardless of system variations. Temperature sensors ensure that thermal expansion effects are compensated for, maintaining accuracy across varying operating temperatures. The O-shaped Electric Valve's monitoring system also includes vibration sensors that can detect early signs of wear or cavitation, enabling predictive maintenance strategies. Diagnostic capabilities built into the control system continuously analyze valve performance, comparing operational data against baseline parameters to identify potential issues before they affect system performance. The real-time data generated by these monitoring systems is invaluable for process optimization, allowing operators to fine-tune system parameters for maximum efficiency. Additionally, the O-shaped Electric Valve's monitoring capabilities support compliance with industry regulations and quality standards by providing detailed operational logs and performance documentation.

Geometric Design Optimization for Flow Control

O-shaped Port Configuration Benefits

The distinctive O-shaped port design of these electric valves represents a significant advancement in flow control geometry. Unlike traditional valve designs with linear or angled flow paths, the O-shaped Electric Valve features a carefully engineered circular cross-section that optimizes fluid dynamics. This geometric configuration minimizes pressure losses while maintaining excellent controllability across the entire flow range. The O-shaped port eliminates sharp edges and sudden directional changes that typically cause turbulence and energy losses in conventional valve designs. The smooth, continuous curvature of the O-shaped flow passage reduces the formation of vortices and dead zones, which can lead to erosion, cavitation, and reduced control accuracy. Precision valves are specialized valves designed for highly accurate and controlled fluid flow, differing from standard valves in their high accuracy. The O-shaped Electric Valve's port geometry also provides superior rangeability, allowing for precise control from very low flow rates to maximum capacity without compromising accuracy. The circular cross-section distributes stress more evenly across the valve body, enhancing durability and extending service life. This design characteristic is particularly important in high-pressure applications where structural integrity is crucial. The O-shaped port configuration also facilitates easier cleaning and maintenance, as the smooth internal surfaces resist fouling and scaling, making the O-shaped Electric Valve ideal for applications involving viscous fluids or particulate-laden media.

Flow Path Engineering and Velocity Profile Management

The engineering excellence of an O-shaped Electric Valve extends beyond the port geometry to encompass the entire flow path design. The valve's internal architecture is optimized to maintain laminar flow conditions across a wide range of operating parameters. Computational fluid dynamics (CFD) analysis is extensively used during the design phase to optimize the transition regions between the inlet, control element, and outlet sections of the O-shaped Electric Valve. The flow path is carefully contoured to minimize velocity gradients and eliminate recirculation zones that could cause control instability or erosion. The valve's internal components are positioned to ensure that the flow stream remains attached to the valve surfaces, preventing flow separation and the associated pressure losses. Advanced manufacturing techniques, including precision casting and CNC machining, ensure that the theoretical flow path design is accurately reproduced in the physical valve. The O-shaped Electric Valve's flow path design also incorporates features to minimize noise generation, an important consideration in industrial environments where acoustic emissions must be controlled. The optimized velocity profile achieved by the O-shaped port design results in more predictable and stable control characteristics, enabling the valve to maintain accuracy even under varying upstream conditions. This consistent flow behavior is crucial for process industries where product quality depends on precise flow control.

Pressure Drop Optimization and Energy Efficiency

Energy efficiency is a critical consideration in modern industrial valve design, and the O-shaped Electric Valve excels in this aspect through its optimized pressure drop characteristics. The valve's geometric design minimizes unnecessary pressure losses while maintaining excellent control authority. Accurate control is achieved as very small changes in the controlling differential pressure produce immediate corrective action of the main valve. The O-shaped Electric Valve's pressure drop profile is carefully engineered to provide linear control characteristics, ensuring that small changes in valve position result in proportional changes in flow rate. This linear relationship simplifies control system tuning and improves overall system stability. The reduced pressure drop across the O-shaped Electric Valve also translates to lower pumping costs and reduced system energy consumption, providing significant operational savings over the valve's lifetime. The valve's design incorporates features to minimize the formation of high-velocity jets, which can cause cavitation damage and control instability. The gradual acceleration and deceleration of the fluid as it passes through the O-shaped port ensures that the velocity profile remains manageable throughout the control range. Advanced computational modeling is used to optimize the relationship between pressure drop and flow coefficient, ensuring that the O-shaped Electric Valve provides maximum rangeability with minimum energy consumption. This optimization is particularly important in large-scale industrial processes where even small improvements in efficiency can result in substantial cost savings.

Advanced Manufacturing and Quality Control Technologies

Precision Machining and Material Engineering

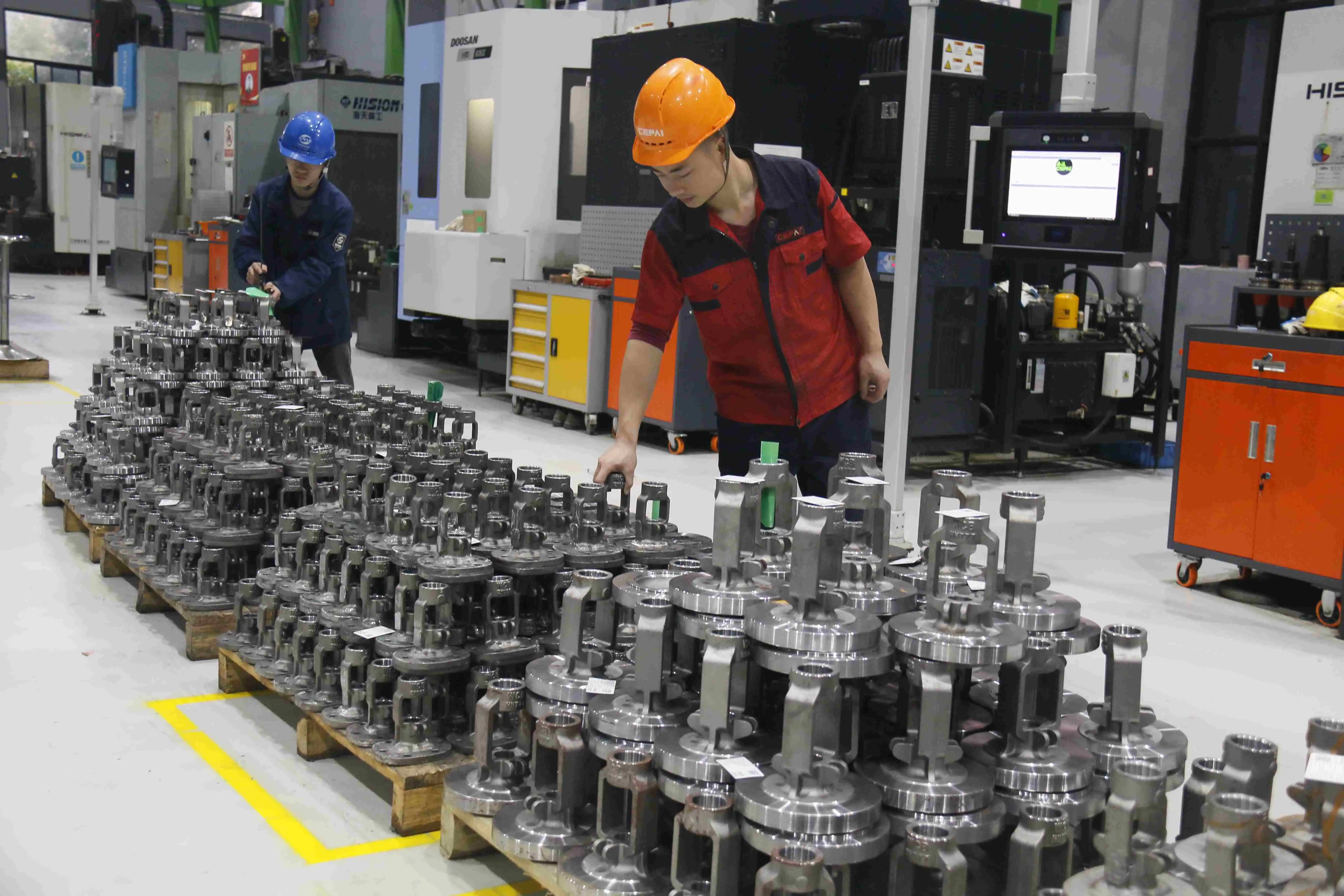

The manufacturing excellence behind an O-shaped Electric Valve begins with advanced precision machining techniques that ensure dimensional accuracy and surface finish quality. State-of-the-art CNC machining centers equipped with multi-axis capabilities enable the production of complex internal geometries with tolerances measured in micrometers. The O-shaped port profile requires specialized tooling and machining strategies to achieve the precise curvatures and surface finishes necessary for optimal flow control. Advanced materials engineering plays a crucial role in the valve's performance, with careful selection of alloys and treatments that provide corrosion resistance, wear resistance, and dimensional stability over extended service life. The O-shaped Electric Valve incorporates materials that maintain their properties across wide temperature ranges, ensuring consistent performance in demanding industrial environments. Specialized coatings and surface treatments, such as plasma nitriding or ceramic coatings, further enhance the valve's durability and performance characteristics. The manufacturing process includes comprehensive quality control measures at every stage, from raw material inspection to final assembly testing. Advanced metrology equipment, including coordinate measuring machines (CMM) and optical inspection systems, verify that each O-shaped Electric Valve meets stringent dimensional and surface finish requirements. Heat treatment processes are carefully controlled to optimize material properties while minimizing distortion that could affect flow characteristics. The integration of automated manufacturing systems ensures consistent quality and reduces human error in the production of these precision components.

Advanced Testing and Validation Protocols

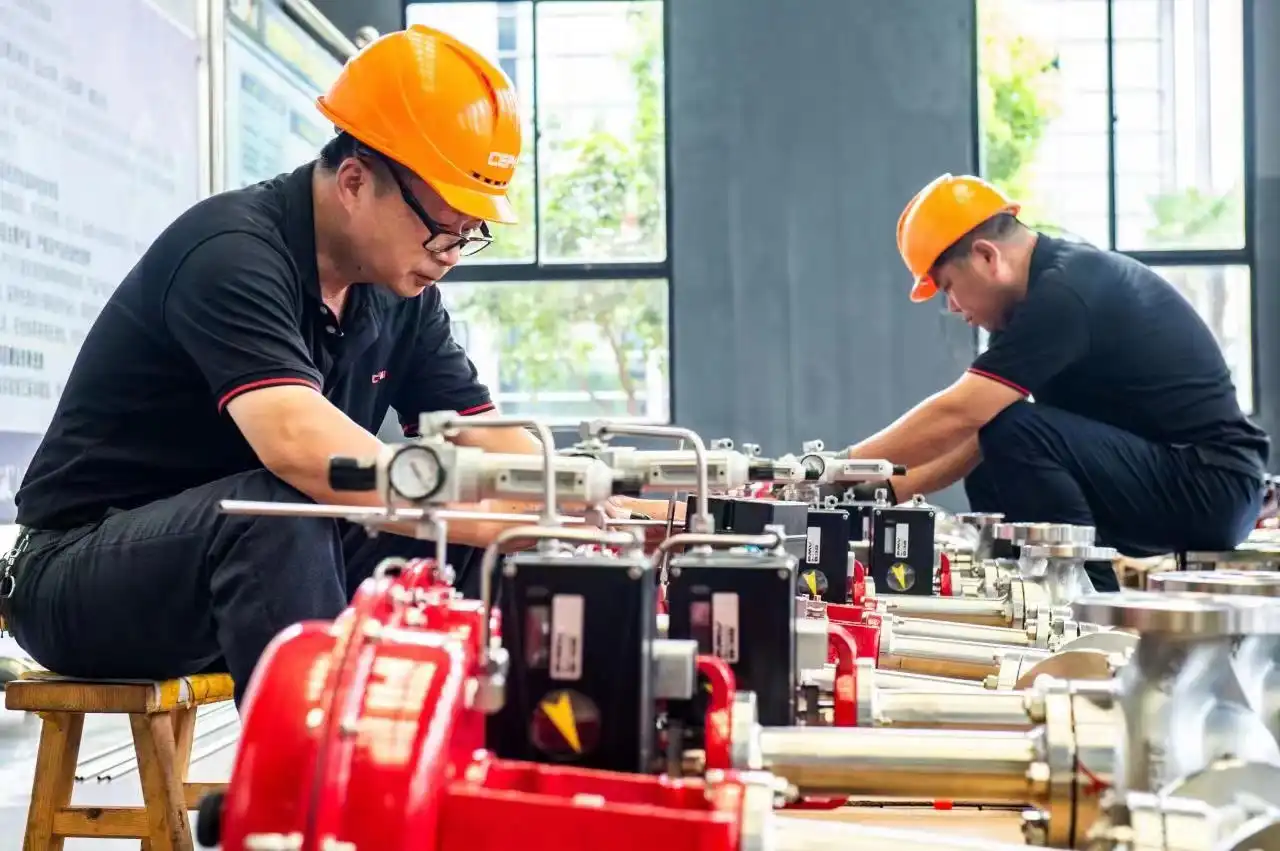

Quality assurance in O-shaped Electric Valve manufacturing involves comprehensive testing protocols that validate both individual component performance and complete system functionality. Flow testing laboratories equipped with precision flow measurement systems verify that each valve meets its specified flow characteristics across the entire operating range. When sizing a control valve for a particular application, it is important to know parameters such as the Flow Coefficient (CV) or Pressure Recovery factor (FL) to determine if the valve will meet its intended duty. The O-shaped Electric Valve undergoes rigorous pressure testing to verify structural integrity and leak-tight performance under maximum operating conditions. Cyclic testing simulates years of operational service by subjecting the valve to repeated open-close cycles while monitoring performance degradation. Environmental testing ensures that the O-shaped Electric Valve maintains its accuracy and reliability across specified temperature, humidity, and vibration ranges. Electromagnetic compatibility (EMC) testing verifies that the electric control systems operate correctly in industrial electromagnetic environments without interference. Calibration procedures using traceable reference standards ensure that the O-shaped Electric Valve's control accuracy meets specified tolerances. Long-term endurance testing subjects prototype valves to extended operation under accelerated conditions to validate design life predictions. Material compatibility testing verifies that the valve components are suitable for use with specified process fluids without degradation or contamination. These comprehensive testing protocols ensure that every O-shaped Electric Valve delivered to customers meets the highest standards of performance and reliability.

Industry Certifications and Compliance Standards

The O-shaped Electric Valve's design and manufacturing processes comply with rigorous international standards and certification requirements. API standards, including API 6A, API 6D, and API 602, ensure that the valves meet industry requirements for pressure-temperature ratings, materials, and testing procedures. ISO 9001 quality management certification guarantees that manufacturing processes consistently deliver products that meet customer requirements and applicable regulations. Environmental management certifications such as ISO 14001 demonstrate commitment to sustainable manufacturing practices and environmental responsibility. Occupational health and safety compliance through ISO 45001 ensures that manufacturing facilities maintain safe working conditions. The O-shaped Electric Valve also carries CE marking for European markets, indicating compliance with essential health and safety requirements. Safety Integrity Level (SIL) certifications validate the valve's suitability for use in safety-critical applications where failure could result in hazardous conditions. National and international pressure vessel codes, such as ASME Section VIII, govern the design and construction of valve pressure-containing components. Welding qualifications ensure that fabricated components meet structural integrity requirements. CNAS accreditation of testing laboratories provides confidence in the validity of test results and calibrations. These certifications and compliance standards provide customers with assurance that the O-shaped Electric Valve meets the highest industry standards for safety, performance, and reliability. The ongoing maintenance of these certifications requires continuous monitoring and improvement of manufacturing processes and quality systems.

Conclusion

The superior flow control accuracy achieved by electric O-shaped valves represents a culmination of advanced engineering principles, precision manufacturing, and sophisticated control technologies. Through the integration of electronic control systems, optimized geometric design, and rigorous quality assurance protocols, these valves deliver unmatched precision and reliability for critical industrial applications. The O-shaped Electric Valve's ability to provide accurate, repeatable flow control while minimizing energy consumption makes it an essential component for modern industrial processes demanding the highest levels of performance and efficiency.

​​​​​​​

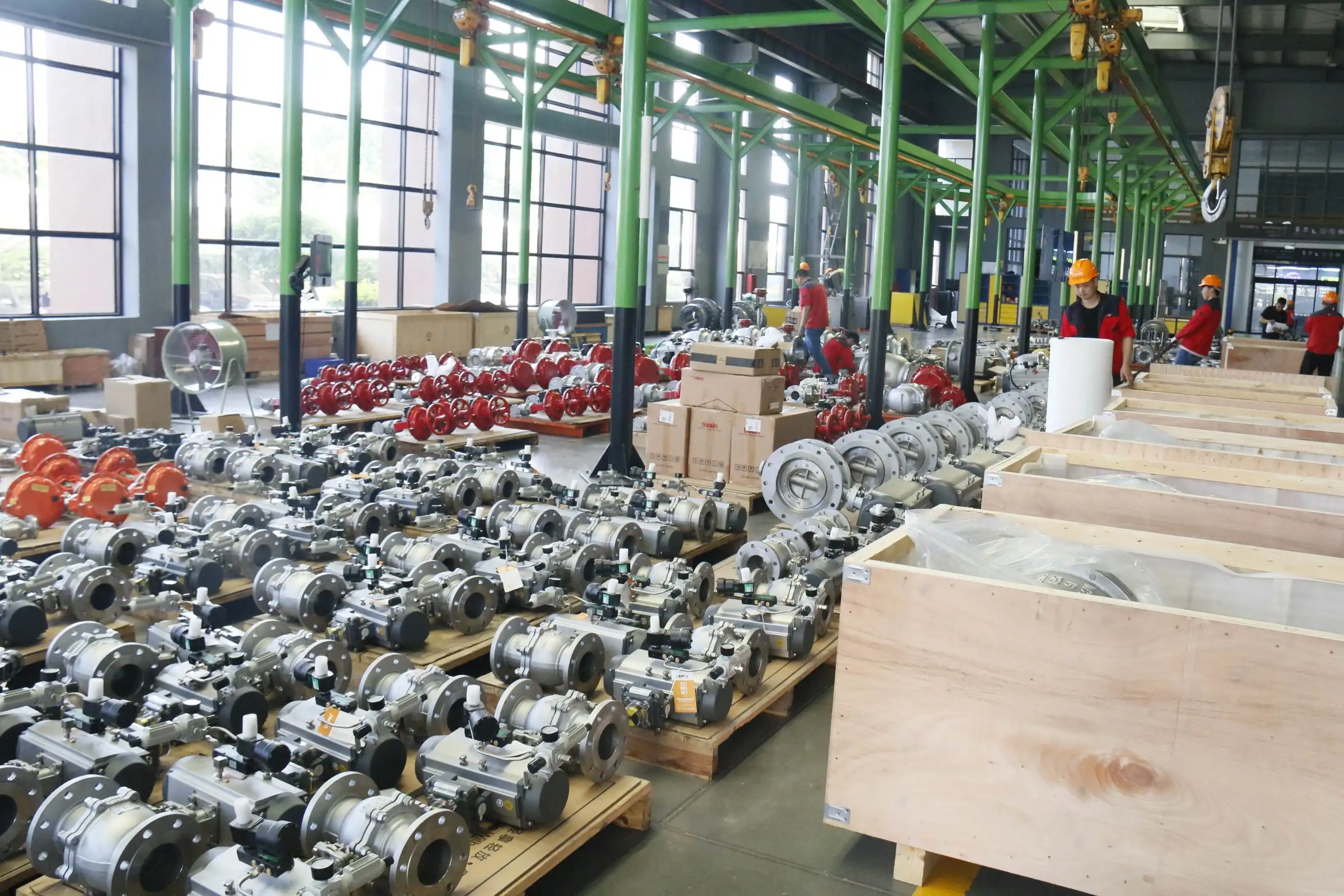

CEPAI Group Co., Ltd., established as a leading technology multinational company since 2009, stands at the forefront of O-shaped Electric Valve innovation with over 156 million yuan invested in intelligent manufacturing transformation. As a national high-tech enterprise with comprehensive certifications including API, ISO, and CE standards, CEPAI operates the longest high-precision intelligent manufacturing flexible production line in the Asia-Pacific region. Our commitment to zero defects and exceptional durability, combined with comprehensive pre-sales technical support and after-sales service guarantee, positions us as your trusted partner for high-performance valve solutions.

Whether you're seeking a reliable China O-shaped Electric Valve factory, an experienced China O-shaped Electric Valve supplier, a certified China O-shaped Electric Valve manufacturer, or competitive China O-shaped Electric Valve wholesale options, CEPAI delivers uncompromising quality. Our O-shaped Electric Valve for sale offerings feature competitive O-shaped Electric Valve price points without compromising our commitment to High Quality O-shaped Electric Valve standards. Contact us today at cepai@cepai.com to discover how our advanced O-shaped Electric Valve solutions can optimize your flow control applications and enhance your operational efficiency.
