Floating vs Trunnion Ball Valve: Which One Fits Your Needs

When selecting a ball valve for your industrial application, understanding the fundamental differences between floating and trunnion-mounted designs can significantly impact your system's performance, reliability, and operational costs. Ball valves represent critical control points in fluid systems across petrochemical, power generation, and general industrial applications. The decision between floating and trunnion ball valves isn't merely technical—it's strategic. Each design offers distinctive advantages suited to specific operational parameters, pressure ratings, and installation requirements. This comprehensive guide explores the key differences, application suitability, and selection criteria to help you determine which ball valve technology best addresses your specific industrial needs.

Understanding Ball Valve Design Principles

The fundamental design differences between floating and trunnion ball valves directly impact their performance characteristics, maintenance requirements, and suitable applications. Understanding these core distinctions enables engineers and procurement specialists to make informed decisions that align with both immediate operational needs and long-term reliability considerations.

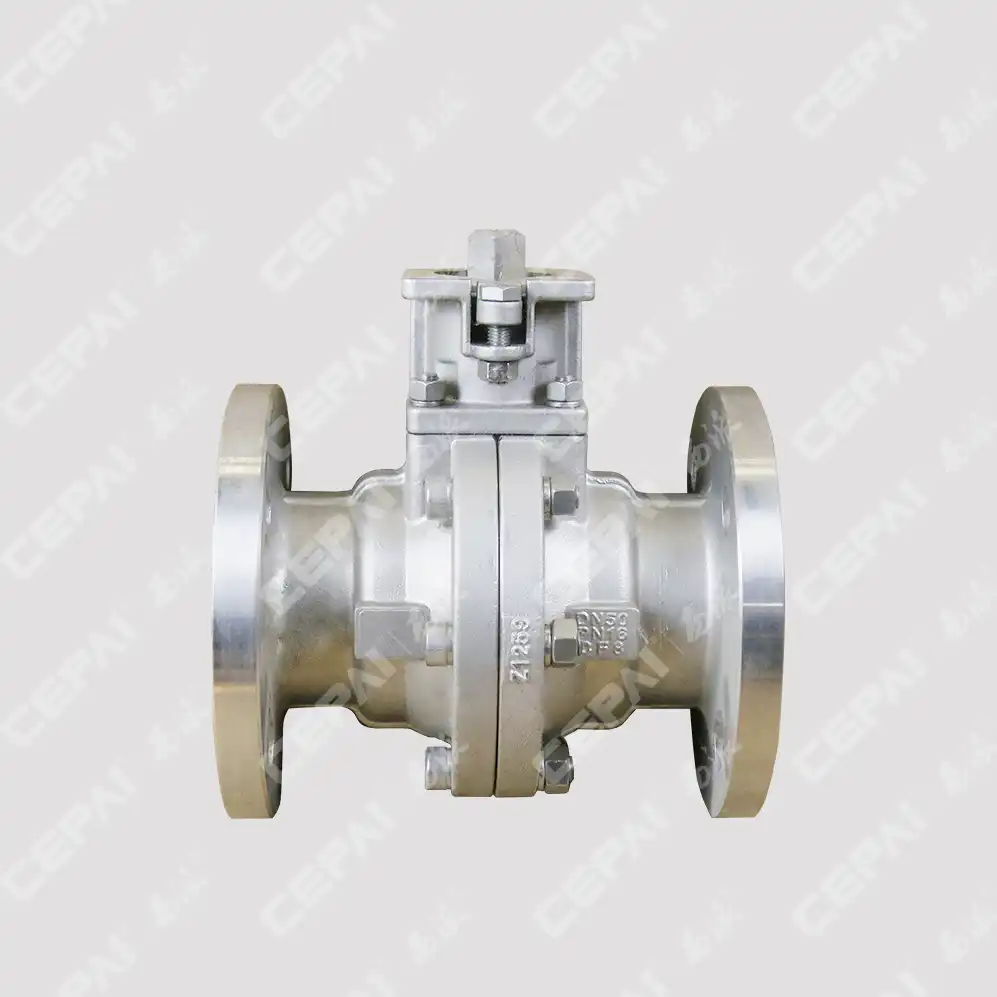

Floating Ball Valve Technology

Floating ball valves operate on a remarkably elegant principle: the ball itself "floats" within the valve body, using system pressure to create its seal. When the valve closes, downstream pressure pushes the ball against the seat on the upstream side, creating a tight, pressure-enhanced seal. This design brilliance offers several advantages for specific applications. The floating ball design utilizes fewer components than trunnion alternatives, resulting in a more streamlined construction that typically reduces manufacturing costs while maintaining excellent sealing capability. The simplicity of the floating ball valve makes it particularly well-suited for applications where space constraints exist but reliable sealing performance remains essential. Additionally, the floating design's self-adjusting sealing mechanism often provides exceptional leakage protection in clean service applications where contamination would otherwise compromise valve performance. However, this design does impose certain operational limitations—floating ball valves typically support smaller sizes (generally up to 10 inches) and lower pressure ratings compared to their trunnion counterparts. The ball's movement within the valve body also means floating designs may require higher operating torque, particularly in larger sizes or higher-pressure applications, which necessitates more powerful actuation systems.

Trunnion Ball Valve Configuration

Trunnion ball valves represent a sophisticated engineering solution specifically developed for challenging high-pressure and large-diameter applications. Unlike floating designs, the trunnion ball valve mechanically anchors the ball at both top and bottom using dedicated trunnion pins or shafts, creating a fixed pivot point that significantly reduces operating torque requirements even under substantial pressure differentials. This anchoring system distributes mechanical loads away from the seats and onto the trunnion supports, allowing these valves to handle much higher pressures—often exceeding 10,000 PSI in specialized designs. The trunnion configuration includes additional features like spring-loaded seats that maintain consistent sealing forces regardless of system pressure fluctuations, enhancing reliability in critical applications where absolute shutoff capability is mandatory. These design elements make trunnion ball valves the preferred choice for large-bore applications (commonly available in sizes up to 60 inches and beyond) where the ball's weight alone would make a floating design impractical. The engineered load distribution also makes trunnion valves better suited for frequent cycling operations, as the reduced friction between components minimizes wear and extends operational lifespan. This enhanced durability comes with increased design complexity, component count, and corresponding manufacturing costs compared to simpler floating alternatives.

Seat Sealing Mechanisms

The seat sealing mechanisms in ball valves represent critical engineering considerations that significantly impact performance across varying operational conditions. Floating ball valves typically employ a simpler sealing approach where the ball physically moves against fixed seats, utilizing line pressure to enhance sealing force. This creates an inherently pressure-strengthened seal that performs exceptionally well in unidirectional flow applications where consistent downstream pressure exists. However, this same mechanism can be problematic in bidirectional applications or scenarios with pressure fluctuations. Trunnion ball valves address these limitations through their implementation of spring-loaded or pressure-energized seat designs, where dedicated mechanical components maintain sealing contact regardless of pressure conditions. These engineered sealing systems provide true bidirectional sealing capability—a critical requirement in many industrial applications where flow direction may change or where isolation must function regardless of pressure orientation. The seat materials themselves also differ between designs, with trunnion valves often incorporating more sophisticated composite sealing materials capable of withstanding higher temperatures, greater pressure ranges, and more aggressive media. These advanced sealing technologies contribute to the trunnion valve's superior performance in severe service applications where conventional elastomeric or polymer seats might degrade or fail. Furthermore, many trunnion designs include emergency sealing injection ports that enable temporary repairs by introducing sealant directly into seat areas—a feature rarely found in floating designs but invaluable in remote installations where immediate maintenance access may be limited.

Performance Factors and Application Considerations

Selecting between floating and trunnion ball valves requires careful evaluation of specific performance requirements, operational conditions, and long-term maintenance considerations. Each design offers distinct advantages that must be matched to application demands.

Pressure and Size Limitations

The operational pressure capabilities and available size ranges of ball valves fundamentally influence their application suitability across different industrial contexts. Floating ball valve designs typically operate effectively in pressure ranges from vacuum service up to approximately 1,500 PSI (103 bar) in standard configurations, with specialty designs potentially reaching 2,500 PSI (172 bar). This pressure limitation stems directly from the floating mechanism itself—as pressure increases, so does the force required to operate the valve, eventually reaching practical limitations of manual or standard automated actuation systems. Size constraints similarly affect floating designs, with most manufacturers offering floating ball valves in sizes ranging from fractional inches up to 12 inches (DN300), though most applications utilize them in sizes 6 inches and smaller for optimal performance. In contrast, trunnion-mounted ball valves routinely handle pressures exceeding 5,000 PSI (345 bar) in standard industrial applications, with specialized high-pressure designs certified for pressures up to 15,000 PSI (1,034 bar) or higher in critical service. This dramatic pressure capability expansion results directly from the trunnion's mechanical load distribution system, which transfers operational forces away from the seats and stem and into the dedicated trunnion supports. Size availability similarly expands with trunnion designs, with standard offerings frequently available up to 48 inches (DN1200) and custom engineered solutions reaching 60 inches (DN1500) or larger for major pipeline applications. The pressure-size relationship becomes particularly important when selecting valves for specific applications—as size increases, the pressure capability of floating designs decreases more rapidly than with trunnion alternatives, creating a distinct advantage for trunnion valves in large diameter, high-pressure applications common in transmission pipelines, refinery operations, and other critical infrastructure projects.

Operating Torque Requirements

Operating torque represents a critical performance consideration when selecting ball valves, directly impacting actuation requirements, energy consumption, and long-term mechanical reliability. Floating ball valves generate operating torque through multiple mechanisms: friction between the ball and seats, stem packing resistance, and pressure-induced forces that push the ball against downstream components. As valve size increases, these forces multiply exponentially, causing torque requirements to increase dramatically—particularly problematic in larger sizes or higher-pressure applications where manual operation becomes physically impossible and automated actuation systems must be substantially oversized. This torque profile creates practical limitations for floating ball valve applications, often restricting their use to smaller sizes or moderate pressure ranges where the required operating forces remain manageable. Trunnion ball valves, by contrast, maintain significantly lower and more consistent torque requirements across their operational range due to their fundamental design approach. By anchoring the ball at both top and bottom, the trunnion mechanism creates a fixed rotational axis that reduces friction and eliminates the ball's movement against seats. This mechanical advantage becomes increasingly pronounced in larger sizes and higher pressures, where trunnion designs might require only 30-50% of the operating torque needed for comparable floating valves. The practical implications of these torque differentials extend beyond mere operational convenience—lower torque requirements enable the specification of smaller, more economical actuators, reduce energy consumption in automated systems, minimize mechanical stress on valve components, and ultimately extend service life through reduced wear. These advantages make trunnion ball valves particularly well-suited for critical applications requiring frequent cycling, emergency shutdown functionality, or installation in remote locations where power availability or maintenance access may be limited.

Leakage Control and Sealing Integrity

Leakage control capabilities represent perhaps the most critical performance metric for any industrial valve, directly impacting operational safety, environmental compliance, and process efficiency. Floating ball valves generally provide excellent sealing performance in unidirectional applications due to their pressure-assisted sealing mechanism. As system pressure increases, the floating ball is forced more firmly against the downstream seat, creating a progressively tighter seal—a phenomenon known as "pressure-enhanced sealing." This characteristic makes floating designs particularly effective in applications requiring absolute shutoff in a known flow direction, often achieving bubble-tight (zero leakage) performance in clean service applications. However, this same mechanism creates potential vulnerability in bidirectional applications or situations with pressure fluctuations, where the ball may momentarily separate from the seat during transitional states. Trunnion ball valves address these limitations through their implementation of dual sealing technology, where both upstream and downstream seats maintain contact with the ball regardless of pressure direction or magnitude. This design approach enables true bidirectional sealing capability—crucial in applications where flow direction may reverse or where isolation must function regardless of pressure orientation. Many trunnion designs further enhance sealing reliability through the incorporation of "double block and bleed" capabilities, where the cavity between seats can be independently monitored or pressurized to verify sealing integrity without system disruption. This feature proves invaluable in critical applications where leakage verification is mandatory for safety or environmental compliance. Additionally, trunnion ball valves often incorporate secondary stem seals, emergency injection systems, and other engineered features specifically designed to maintain sealing integrity even under extreme conditions or in the event of primary seal failure—making them the preferred choice for hazardous media handling, critical isolation service, and applications where leakage consequences would be severe.

Economic Factors and Total Cost of Ownership

Beyond technical specifications, the economic implications of valve selection significantly impact project feasibility and long-term operational costs. Understanding the complete cost profile of each valve type enables more informed procurement decisions.

Initial Investment Comparison

The initial procurement costs between floating and trunnion ball valves reveal significant differentials that must be carefully weighed against long-term operational requirements and total lifecycle expenses. Floating ball valves typically present lower acquisition costs across comparable sizes and pressure classes, with price advantages ranging from 15-40% depending on specific materials and configurations. This cost efficiency stems directly from their simpler design architecture—fewer components, less complex machining requirements, and more standardized production processes contribute to reduced manufacturing expenses that manufacturers can pass to end users. The economic advantage of floating designs becomes particularly pronounced in smaller sizes (generally 4 inches and below) where their performance capabilities adequately meet most industrial requirements without the additional engineering complexity of trunnion mechanisms. For projects with tight capital constraints or applications where performance demands fall well within floating valve capabilities, this initial cost advantage can prove decisive in procurement decisions. Trunnion ball valves, conversely, require higher upfront investment due to their more sophisticated engineering—additional components like trunnion pins, bearing assemblies, and more complex body designs increase material costs and manufacturing complexity. This price premium typically ranges from 25-60% above comparable floating valves, with the differential increasing proportionally with valve size and pressure class. However, this simplified cost comparison overlooks critical nuance: in larger sizes or higher pressure applications where floating designs become impractical or impossible, trunnion valves often represent the only viable technical solution regardless of price considerations. Furthermore, when evaluated against alternative valve technologies like gate or globe valves in severe service applications, trunnion ball valves frequently offer competitive economics despite their premium positioning among ball valve variants. The initial investment analysis must therefore extend beyond simple price comparison to include application-specific factors such as space constraints, weight limitations, actuation requirements, and other parameters that might render one technology economically advantageous despite higher nominal pricing.

Maintenance Requirements and Lifecycle Costs

Maintenance requirements and associated lifecycle costs represent critical economic factors that often outweigh initial procurement expenses over a valve's operational lifespan. Floating ball valves generally exhibit excellent maintenance profiles in appropriate applications, particularly in clean service with non-abrasive media. Their simplified construction typically requires less frequent maintenance interventions, with primary wear components limited to seats, stem packing, and occasionally the ball surface itself. Routine maintenance generally involves stem packing adjustment or replacement, seat inspection, and lubrication of moving components—procedures that can typically be performed with minimal specialized equipment or expertise. However, when floating valves are applied in challenging applications beyond their optimal parameters, maintenance frequencies and complexity can increase dramatically, particularly when higher operating torques accelerate component wear or when the floating ball mechanism becomes compromised by debris or process contamination. Trunnion ball valves, while incorporating more components that theoretically increase maintenance potential, often demonstrate superior long-term reliability in demanding applications due to their robust engineering and load distribution characteristics. Their specialized design features—including independent trunnion bearings, secondary sealing systems, and engineered load distribution—frequently result in extended service intervals despite more complex initial construction. Many trunnion designs incorporate maintenance-enhancing features such as emergency sealant injection systems, adjustable packing without depressurization capabilities, and replaceable seats that can dramatically reduce lifecycle costs in critical applications where process interruption carries substantial economic penalties. Additionally, the lower operating torques characteristic of trunnion designs typically reduce mechanical stress on actuation components, extending their service life and reducing associated maintenance requirements. The comprehensive lifecycle cost analysis must therefore incorporate multiple factors beyond routine maintenance, including potential production losses during valve maintenance, repair parts inventory requirements, specialized maintenance expertise needs, and the economic impact of potential valve failures—considerations that frequently favor trunnion designs in critical applications despite their higher initial investment.

Application-Specific Value Proposition

The application-specific value proposition analysis bridges technical capabilities and economic considerations, providing a framework for determining which ball valve technology delivers optimal return on investment for particular operational contexts. Floating ball valves present compelling value in numerous applications where their inherent limitations align with operational requirements. In smaller pipeline systems, clean service applications, and moderate pressure environments, floating designs deliver excellent performance at minimized cost, often representing the most economically rational selection. Their value advantage becomes particularly evident in applications requiring high cycle frequency with clean media, where their simplified design can provide hundreds of thousands of reliable cycles while maintaining cost efficiency. Additionally, floating ball valves often present installation advantages in space-constrained environments due to their typically more compact face-to-face dimensions and reduced weight compared to equivalent trunnion designs—factors that can significantly impact installation costs in retrofit applications or densely configured industrial facilities. Trunnion ball valves demonstrate superior value propositions in applications where their enhanced capabilities directly address critical operational challenges or safety requirements. In high-pressure transmission systems, critical isolation service, or applications involving large diameters, the trunnion's mechanical advantages often represent not merely performance enhancement but fundamental operational necessity. The value calculation extends beyond direct economics to include risk mitigation—in applications involving hazardous media, catastrophic consequence potential, or remote installations where maintenance access comes at premium cost, the trunnion's enhanced reliability and failsafe features may deliver substantial value despite higher acquisition costs. Furthermore, in specialized applications requiring features like double block and bleed capability, fugitive emissions certifications, or fire-safe design, trunnion technologies often provide these capabilities as standard features rather than costly add-ons. The comprehensive value assessment must therefore incorporate both quantifiable factors like procurement costs, maintenance expenses, and energy consumption alongside more qualitative considerations such as operational risk, process criticality, and performance reliability under abnormal conditions—a multidimensional analysis that frequently reveals the most appropriate technology choice independent of simplified price comparisons.

Conclusion

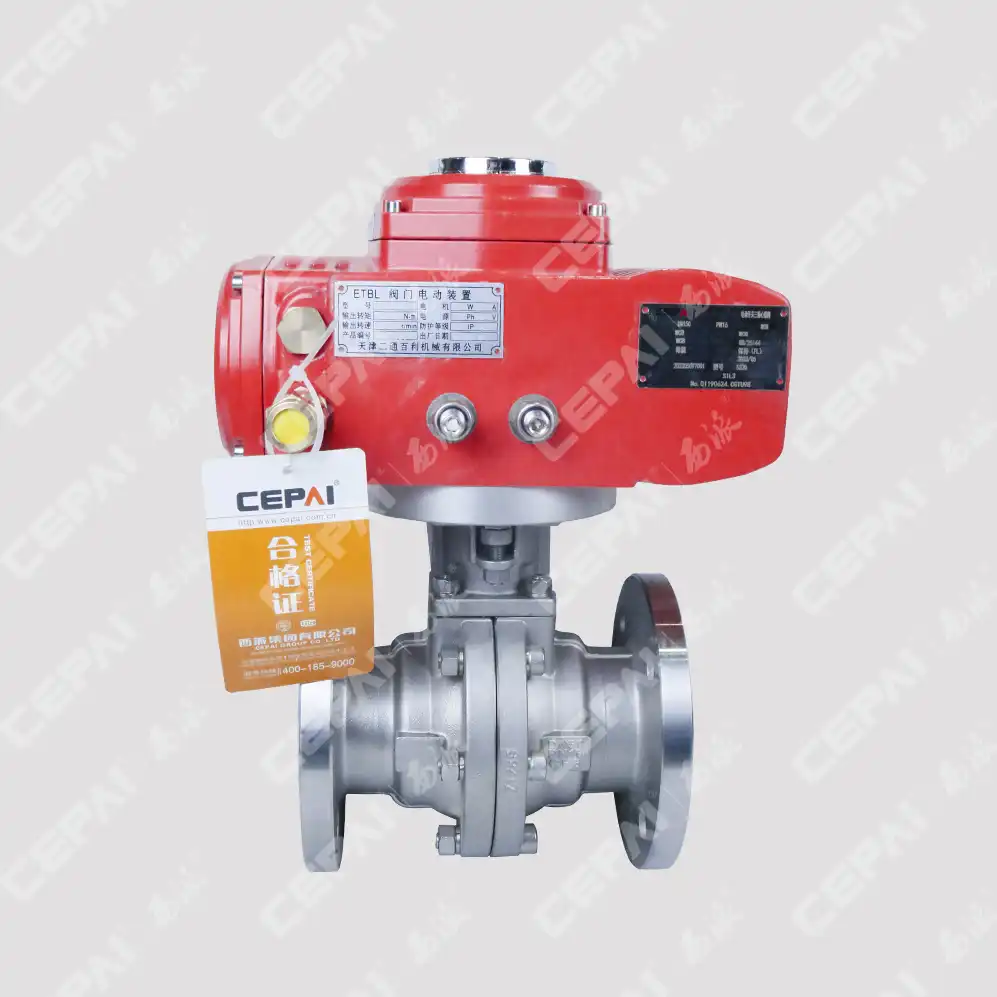

Selecting between floating and trunnion ball valves requires careful assessment of your specific operational parameters, pressure requirements, and long-term reliability needs. Floating designs excel in smaller sizes and moderate pressures, offering cost-effective solutions for many standard applications. Trunnion-mounted valves deliver superior performance in high-pressure, large-diameter, and critical service applications where reliability and operational safety are paramount. CEPAI Group, with over 14 years of specialized experience in high-performance fluid control solutions, provides both technologies engineered to exceptional quality standards.

Ready to optimize your fluid control systems with expert guidance? CEPAI's engineering team offers comprehensive technical consultation to ensure you select the perfect valve for your application. Our high-precision manufacturing capabilities, backed by extensive international certifications and innovative technologies, deliver exceptional durability and performance in the most demanding environments. Contact us today at cepai@cepai.com to discuss your specific requirements and experience the difference that industry-leading expertise brings to your operations.

References

1. Johnson, R. T., & Williams, P. D. (2023). Advanced Ball Valve Technologies for Critical Service Applications. Journal of Valve Engineering, 45(3), 112-128.

2. Zhang, L., & Thompson, H. (2022). Comparative Analysis of Floating and Trunnion Ball Valve Performance in High-Pressure Pipeline Systems. International Journal of Pressure Vessels and Piping, 198, 104562.

3. Miller, S. A., & Chen, Y. (2024). Economic Assessment of Valve Technologies in Modern Industrial Applications. Process Engineering Economics, 31(2), 215-229.

4. Petroski, H. J., & Wilson, E. M. (2023). Mechanical Principles of Industrial Valve Design: From Theory to Application. Engineering Design Journal, 92(4), 378-391.

5. Roberts, C. L., & Smith, J. B. (2022). Sealing Technologies for Next-Generation Ball Valves in Extreme Environment Applications. Tribology International, 170, 107513.

6. Fernandez, M., & Patel, K. (2024). Industry 4.0 in Valve Manufacturing: Intelligent Production and Remote Monitoring Capabilities. Smart Manufacturing Systems, 17(1), 42-57.
