Everything You Need to Know About Choosing Ball Valves

Selecting the right ball valve for your industrial applications requires understanding multiple technical factors, operational requirements, and long-term performance considerations. Ball valves represent one of the most versatile and widely used valve types across industries, from oil and gas to chemical processing and power generation. This comprehensive guide addresses the critical aspects of ball valve selection, covering technical specifications, application requirements, and quality considerations that determine operational success. Whether you're designing a new system or replacing existing equipment, understanding these fundamental principles will help you make informed decisions that optimize performance, reduce maintenance costs, and ensure reliable operation. The ball valve market continues to evolve with advanced materials, smart technologies, and enhanced safety features, making proper selection more important than ever for achieving operational excellence.

Understanding Ball Valve Types and Construction

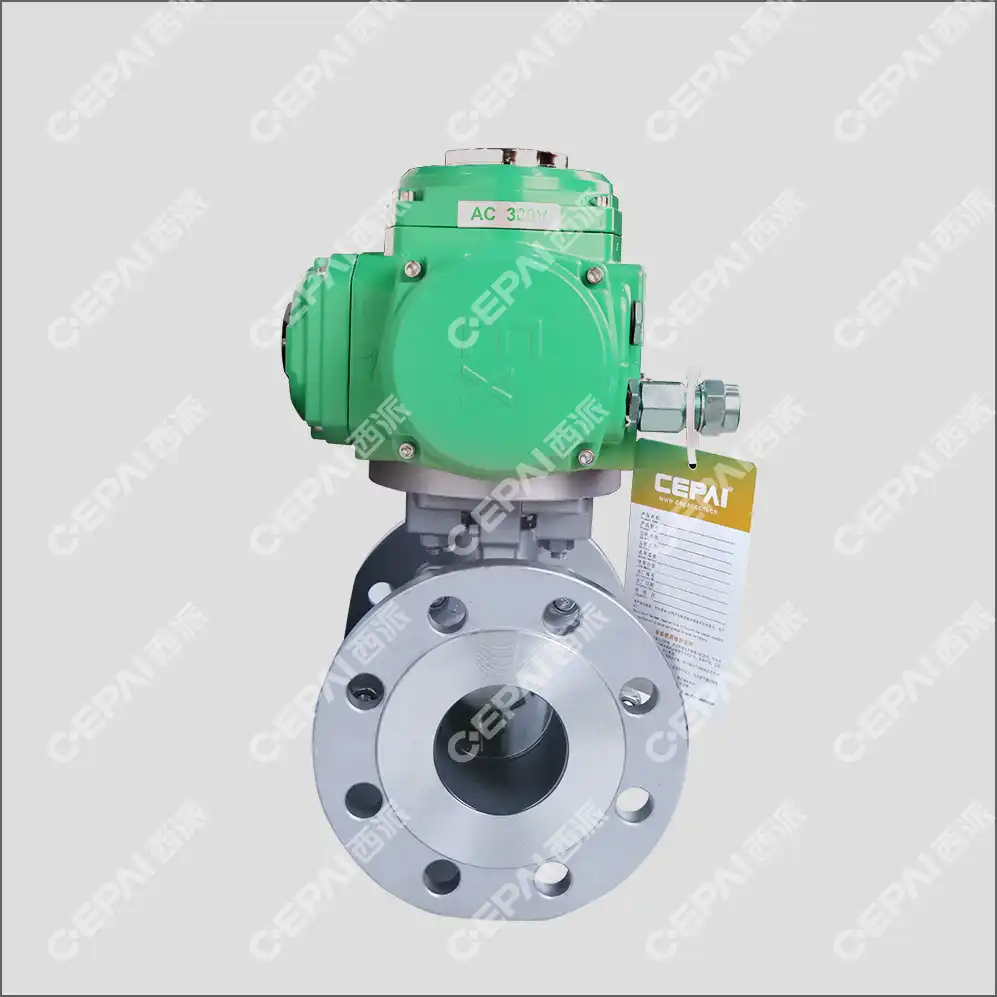

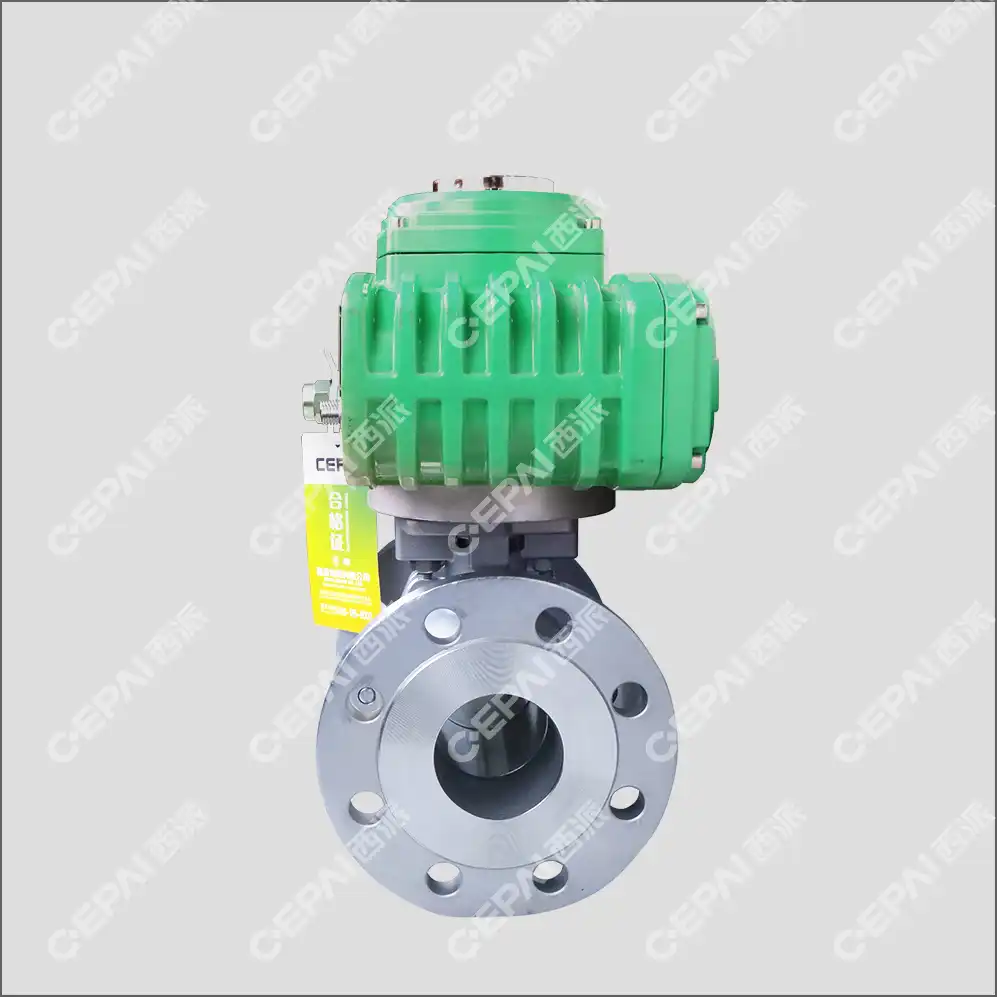

Full Port vs. Reduced Port Ball Valves

The distinction between full port and reduced port ball valves significantly impacts system performance and should be carefully considered based on application requirements. Full port ball valves feature an internal diameter that matches the pipeline diameter, providing unrestricted flow with minimal pressure drop. This design proves essential in applications where maintaining maximum flow capacity is critical, such as high-volume transfer lines or systems where pressure loss must be minimized. The ball valve construction in full port designs typically requires larger body dimensions and more robust actuator requirements due to the increased torque needed to operate the larger ball. Industries like oil and gas production, where flow efficiency directly impacts operational costs, often specify full port ball valves despite their higher initial investment. Reduced port ball valves, conversely, feature an internal diameter approximately one pipe size smaller than the connection size, resulting in some flow restriction but offering several advantages. The reduced ball valve design requires less operating torque, enabling the use of smaller, more economical actuators while maintaining reliable operation. Manufacturing costs are typically lower due to reduced material requirements and simplified machining processes. Applications where moderate flow restriction is acceptable, such as isolation services or systems with adequate pressure margins, can benefit from the cost-effectiveness of reduced port designs. The ball valve selection between full and reduced port configurations ultimately depends on balancing flow requirements, pressure drop limitations, operating costs, and initial investment considerations.

Floating Ball vs. Trunnion Mounted Designs

Floating ball and trunnion mounted ball valve designs represent two fundamental approaches to achieving reliable sealing and operation across different pressure and size ranges. Floating ball valves utilize upstream pressure to push the ball against the downstream seat, creating a tight seal through mechanical force. This ball valve design works exceptionally well in smaller sizes and moderate pressure applications, typically up to 6 inches and 600 PSI, where the force required for sealing remains manageable. The simplicity of floating ball construction results in fewer components, reduced manufacturing complexity, and lower maintenance requirements. However, as pressure and size increase, the force required to operate the valve can become excessive, potentially leading to seat wear and operational difficulties. Trunnion mounted ball valves address the limitations of floating designs by mechanically supporting the ball through upper and lower trunnions, preventing movement during operation. This ball valve configuration distributes loads more evenly, reducing seat stress and operating torque requirements, particularly in larger sizes and higher pressure applications. The trunnion design enables reliable operation in sizes up to 60 inches and pressures exceeding 2000 PSI, making it the preferred choice for heavy-duty industrial applications. Additional advantages include more consistent sealing performance, reduced actuator requirements, and improved seat life. While trunnion mounted ball valves involve higher initial costs due to increased complexity, they often provide better long-term value in demanding applications through reduced maintenance and enhanced reliability.

Material Selection and Compatibility

Material selection represents one of the most critical aspects of ball valve specification, directly impacting performance, longevity, and safety in specific applications. Body materials must withstand operating pressures, temperatures, and corrosive environments while maintaining structural integrity throughout the service life. Carbon steel ball valves provide excellent strength and economy for general industrial applications with moderate temperature and pressure requirements. Stainless steel options, including 316/316L grades, offer superior corrosion resistance for chemical processing, food and beverage, and pharmaceutical applications where contamination prevention is essential. Exotic alloys such as Hastelloy, Inconel, and duplex stainless steels address extreme service conditions involving high temperatures, aggressive chemicals, or marine environments. Ball valve trim components, including balls, seats, and seals, require careful material matching to ensure compatibility and optimal performance. Seat materials range from soft polymer options like PTFE and PEEK for standard applications to metal seats for high-temperature or fire-safe requirements. The ball valve selection process must consider thermal expansion coefficients, chemical compatibility, and wear characteristics to prevent premature failure. Seal materials, particularly O-rings and gaskets, must maintain elasticity and chemical resistance throughout the operating temperature range. Advanced coating technologies, such as tungsten carbide or ceramic coatings, can enhance wear resistance and extend service life in abrasive applications. Proper material selection requires understanding the complete operating environment, including temperature cycling, chemical exposure, and mechanical stresses that components will experience during service.

Performance Characteristics and Application Requirements

Pressure and Temperature Ratings

Understanding pressure and temperature ratings is fundamental to safe and reliable ball valve operation, as these parameters directly affect structural integrity and sealing performance. Pressure ratings, typically expressed in ANSI classes or PN ratings, indicate the maximum allowable working pressure at specific temperatures. Ball valve pressure ratings must account for both static and dynamic loads, including pressure surges, thermal expansion, and mechanical stresses. The relationship between pressure and temperature is inverse - as temperature increases, allowable pressure decreases to maintain safety margins. This characteristic requires careful analysis of operating conditions, including maximum anticipated pressures and temperatures, to ensure adequate safety factors throughout the service life. Temperature capabilities of ball valves depend on material selection, seal design, and thermal management considerations. Standard ball valve designs typically operate from -20°F to 400°F (-29°C to 204°C), while specialized high-temperature versions can handle conditions up to 1000°F (538°C) or higher with appropriate materials and cooling systems. Cryogenic ball valve applications require special consideration for material brittleness, thermal shock, and extended stem designs to prevent freezing of packing components. Temperature cycling creates additional challenges through thermal expansion and contraction, potentially affecting seat sealing and valve body integrity. Applications involving rapid temperature changes or extreme temperature ranges may require specialized ball valve designs with enhanced thermal management features, such as extended bonnets, heat shields, or cooling systems to maintain reliable operation.

​​​​​​​

Flow Control and Throttling Capabilities

While ball valves are primarily designed for on/off service, understanding their flow control characteristics is essential for applications requiring throttling or modulating operation. Traditional ball valve designs provide poor throttling characteristics due to the rapid opening curve, where most flow occurs within the first 30 degrees of rotation. This characteristic makes precise flow control difficult and can result in cavitation, erosion, and unstable operation when used for throttling applications. However, specialized ball valve designs have been developed to address these limitations, including characterized balls with V-shaped or segmented ports that provide more linear flow characteristics suitable for control applications. The ball valve flow coefficient (Cv) represents the flow capacity and varies significantly with opening position, port design, and valve configuration. Full port ball valves typically provide Cv values equal to or greater than equivalent pipe diameters, while reduced port designs have correspondingly lower coefficients. Understanding these characteristics is crucial for system design and pump sizing calculations. Modern ball valve technology includes designs specifically engineered for throttling service, featuring noise reduction, cavitation resistance, and improved controllability. These specialized ball valves incorporate features such as multiple stage pressure reduction, hardened trim materials, and advanced actuator controls to provide reliable modulating service while maintaining the inherent advantages of ball valve design, including tight shutoff and low maintenance requirements.

Leakage Classifications and Safety Standards

Leakage classification standards provide quantitative measures of ball valve sealing performance, enabling proper selection for specific application requirements. ANSI/FCI 70-2 standards define leakage classes from Class I through Class VI, with Class VI representing the tightest shutoff capability. Class VI ball valves, the most common specification for critical applications, permit maximum leakage rates of 0.1% of Cv at specified test pressures. This classification ensures reliable isolation in applications where even minimal leakage is unacceptable, such as toxic service, high-value product handling, or environmental protection applications. Understanding these classifications helps engineers specify appropriate ball valve performance levels while avoiding over-specification that increases costs unnecessarily. Fire safety standards, including API 607 and API 6FA, establish requirements for ball valve performance during fire exposure, ensuring continued operation and sealing integrity under emergency conditions. Fire-safe ball valves incorporate features such as metal-to-metal sealing capabilities, graphite seals, and specialized materials that maintain functionality when polymer seats are damaged by fire. These ball valve designs typically include secondary sealing systems that activate automatically when primary seals fail, providing continued isolation during fire events. Additional safety considerations include anti-static design features, blow-out proof stems, and fugitive emission compliance to meet environmental regulations. The ball valve selection process must consider all applicable safety standards and regulations, including industry-specific requirements such as NACE standards for sour service or marine classification society requirements for offshore applications.

Quality Assurance and Manufacturing Standards

Testing and Inspection Protocols

Comprehensive testing and inspection protocols ensure ball valve quality and reliability, particularly critical in applications where failure could result in safety hazards, environmental damage, or significant economic losses. Hydrostatic testing verifies structural integrity by subjecting valve bodies to pressures typically 1.5 times the rated working pressure, confirming that materials and welding meet design specifications. Pneumatic testing evaluates sealing performance using compressed air or nitrogen, allowing detection of internal and external leakage under controlled conditions. These ball valve testing procedures follow established standards such as API 598, ASME B16.34, and ISO 5208, ensuring consistent quality across manufacturers and providing objective performance verification. Advanced non-destructive testing methods enhance quality assurance beyond basic pressure testing requirements. Ultrasonic testing detects internal flaws in cast or forged components, while magnetic particle inspection reveals surface and near-surface defects in ferrous materials. Liquid penetrant testing identifies surface discontinuities in all materials, particularly important for critical sealing surfaces. Ball valve manufacturers implementing comprehensive quality systems typically perform dimensional verification using coordinate measuring machines, surface finish analysis, and material composition verification through spectroscopic analysis. These rigorous inspection protocols ensure that every ball valve meets specified requirements and provide traceability documentation for quality audits and failure analysis. The implementation of statistical process control methods enables continuous improvement and early detection of manufacturing variations that could affect product quality.

Certification and Compliance Requirements

Industry certifications and compliance requirements establish minimum performance standards and provide assurance of ball valve quality and reliability. API certifications, including API 6D for pipeline valves and API 608 for flanged ball valves, define design, manufacturing, and testing requirements specific to oil and gas applications. These ball valve standards address material specifications, pressure-temperature ratings, testing procedures, and marking requirements that ensure compatibility with industry practices. ISO 17292 provides international standards for ball valve design and testing, while ASME B16.34 establishes pressure-temperature ratings for valve components. Compliance with these standards often becomes mandatory for specific applications or geographic regions, making certification status a critical selection criterion. Third-party quality system certifications, such as ISO 9001, demonstrate manufacturer commitment to consistent quality processes and continuous improvement. Ball valve manufacturers holding these certifications undergo regular audits to verify compliance with documented quality management systems. Additional certifications may be required for specific applications, including NACE compliance for sour service, SIL certification for safety instrumented systems, or marine classification society approvals for offshore applications. The ball valve certification process involves comprehensive documentation, including design calculations, material certifications, test results, and quality procedures. This documentation provides traceability and accountability throughout the manufacturing process, enabling users to verify compliance with specifications and regulatory requirements. Understanding applicable certification requirements early in the selection process ensures that chosen ball valves meet all necessary standards and avoid costly specification changes or equipment replacement.

Manufacturing Quality Control Systems

Modern ball valve manufacturing incorporates sophisticated quality control systems that monitor and control every aspect of production, from raw material receipt through final testing and shipment. Statistical process control methods track critical dimensions, material properties, and performance characteristics, enabling early detection of variations that could affect product quality. Advanced manufacturing techniques, including computer-controlled machining, automated welding, and robotic assembly, provide consistency and precision that manual processes cannot achieve. Ball valve manufacturers utilizing these technologies typically demonstrate superior product quality, reduced variability, and enhanced reliability compared to conventional manufacturing approaches. Traceability systems track individual ball valve components from raw material certification through final assembly, creating comprehensive documentation that supports quality investigations and continuous improvement efforts. Heat treatment processes receive particular attention, as proper thermal processing is critical for achieving specified material properties and dimensional stability. Ball valve manufacturers implementing advanced quality systems typically maintain detailed process records, including temperature profiles, cooling rates, and post-treatment inspections that verify conformance to specifications. Final inspection procedures verify all critical dimensions, surface finishes, and performance characteristics before shipment. These comprehensive quality control systems ensure that every ball valve meets or exceeds specified requirements while providing documentation necessary for regulatory compliance and customer audits.

Conclusion

Selecting the optimal ball valve requires careful consideration of technical specifications, application requirements, and quality standards that determine long-term performance and reliability. Success depends on understanding the relationship between valve design characteristics, operating conditions, and performance expectations while balancing initial investment against lifecycle costs. The complexity of modern industrial applications demands ball valves that not only meet basic functional requirements but also provide enhanced safety, environmental compliance, and operational efficiency throughout their service life.
