Electric vs. Pneumatic Ball Valves: Which Technology Reigns Supreme

When industrial operations face critical flow control decisions that could cost thousands in downtime, choosing between electric and pneumatic actuated ball valves becomes paramount. The Electric Ball Valve represents a sophisticated solution that offers precision control and energy efficiency, while pneumatic alternatives provide robust performance and fail-safe reliability. This comprehensive analysis will guide you through the technical specifications, operational advantages, and real-world applications to determine which technology truly reigns supreme in today's demanding industrial landscape.

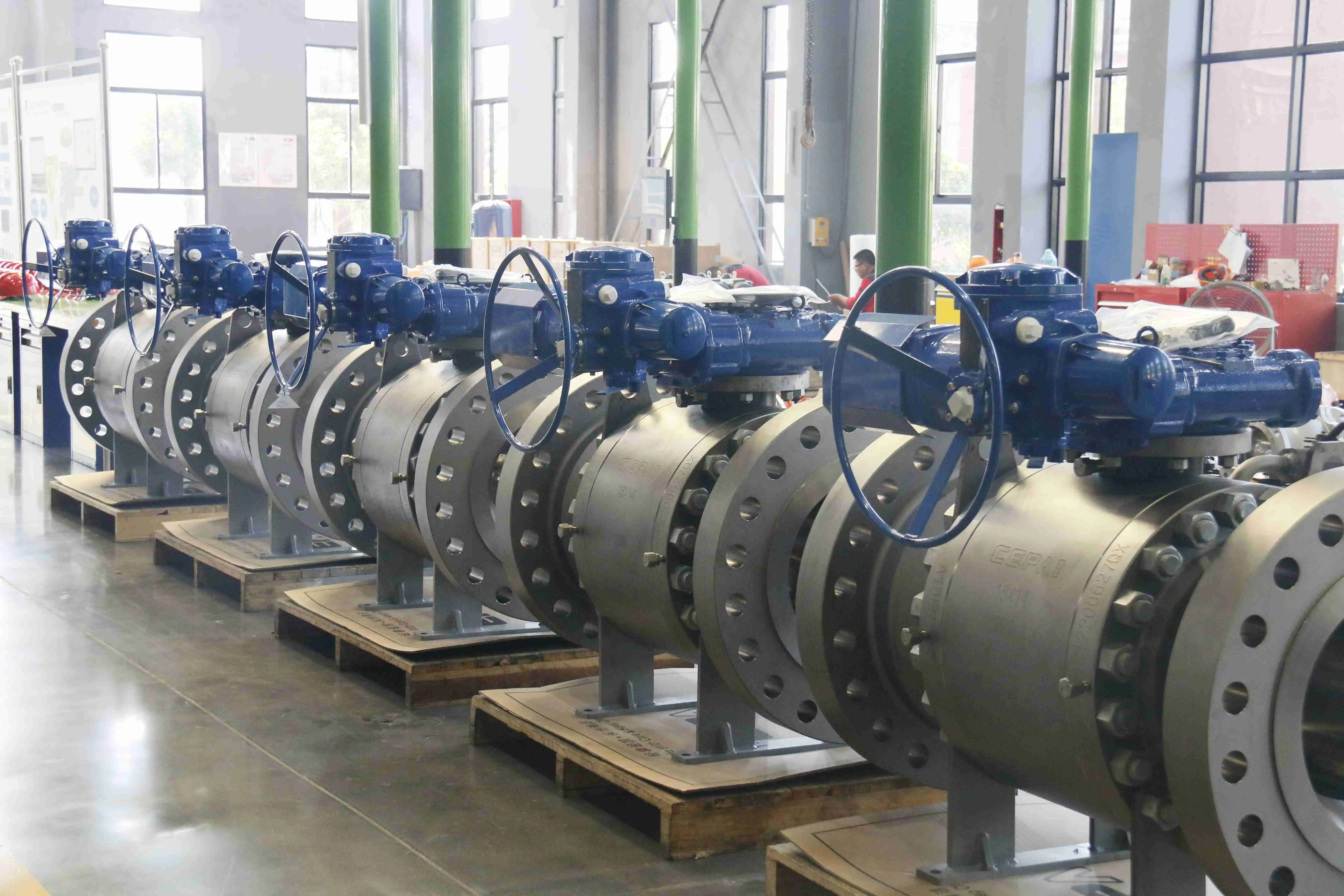

Understanding Electric Ball Valve Technology

Electric ball valves represent the pinnacle of precision flow control technology, utilizing sophisticated electric actuators to deliver unmatched accuracy in industrial applications. The Electric Ball Valve operates through a motor-driven mechanism that converts electrical energy into rotational motion, enabling precise quarter-turn operation of the ball element within the valve body. This advanced technology provides operators with exceptional control capabilities, allowing for exact positioning and variable flow rates that are essential in critical process applications. The fundamental advantage of Electric Ball Valve systems lies in their ability to integrate seamlessly with modern automation platforms and digital control systems. Unlike their pneumatic counterparts, Electric Ball Valve units eliminate the need for compressed air infrastructure, reducing installation complexity and operational costs. The electric actuator technology provides consistent torque output regardless of environmental conditions, ensuring reliable performance across diverse industrial settings. Additionally, Electric Ball Valve systems offer enhanced feedback capabilities through integrated position sensors and monitoring systems, enabling real-time status reporting and predictive maintenance protocols.

• Advanced Control Capabilities of Electric Ball Valves

Modern Electric Ball Valve designs incorporate sophisticated control algorithms that enable precise modulation and positioning accuracy within 0.1% of full stroke. These advanced systems utilize servo-motor technology combined with precision gear reduction mechanisms to achieve exceptional repeatability and resolution in flow control applications. The Electric Ball Valve technology also supports complex control strategies including cascade control, ratio control, and multi-variable optimization that are essential in high-performance industrial processes. The integration capabilities of Electric Ball Valve systems extend beyond basic on-off operation to include advanced communication protocols such as Modbus, Profibus, and Foundation Fieldbus. These communication standards enable Electric Ball Valve units to participate in distributed control systems, providing operators with comprehensive monitoring and control capabilities from centralized locations. The ability to program custom control sequences and response characteristics makes Electric Ball Valve technology particularly valuable in applications requiring specialized operating procedures and safety interlocks.

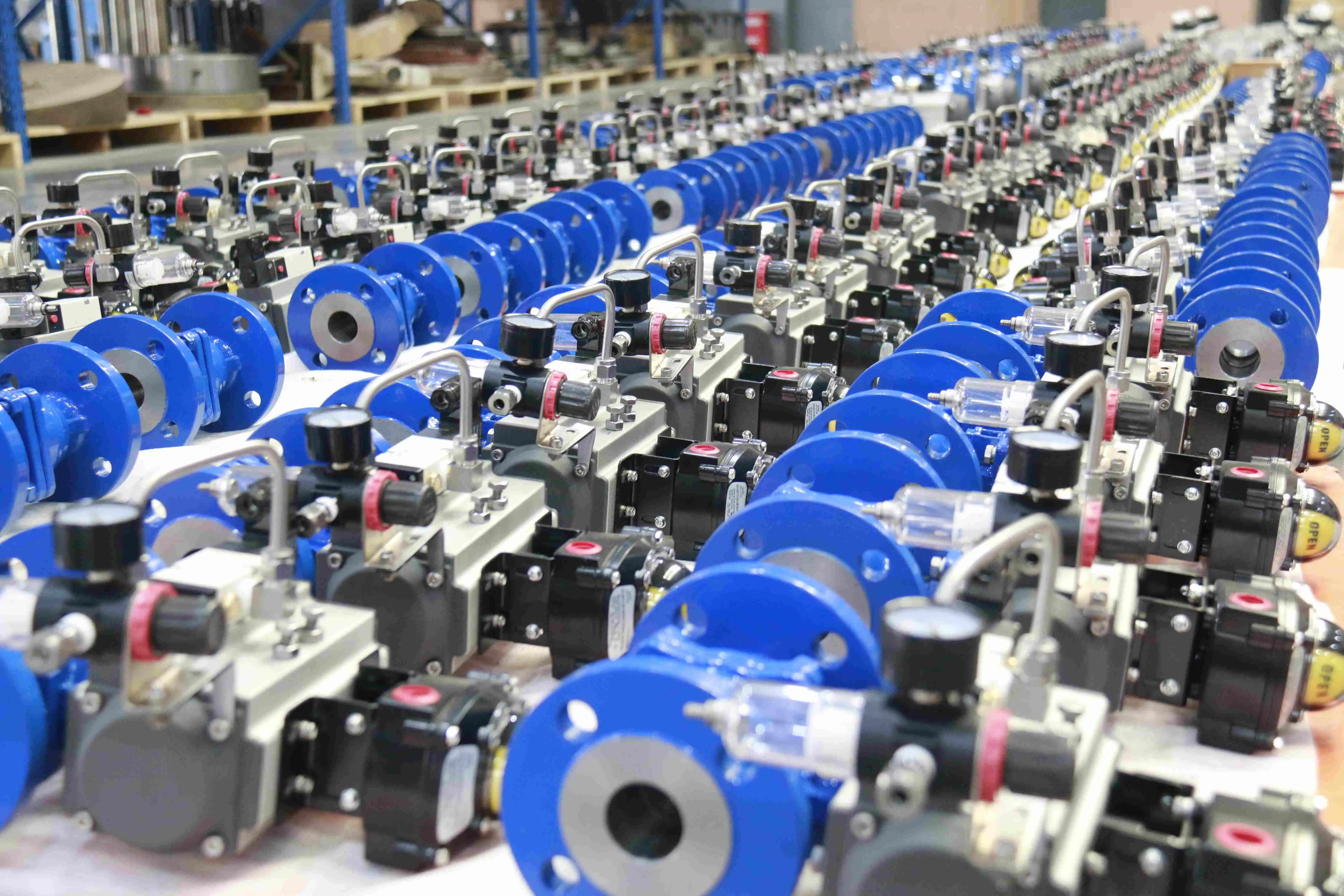

Pneumatic Ball Valve Operations and Performance

Pneumatic ball valves utilize compressed air as the driving force for actuator operation, providing rapid response times and reliable fail-safe capabilities that are essential in emergency shutdown applications. These systems convert pneumatic pressure into mechanical motion through diaphragm or piston-type actuators, delivering high torque output capabilities that can handle large valve sizes and high-pressure applications. Pneumatic ball valves excel in environments where rapid cycling, high-speed operation, and explosive atmosphere compatibility are critical requirements. The inherent safety advantages of pneumatic ball valve systems include their ability to fail to a predetermined safe position upon loss of air supply, making them ideal for critical process protection applications. Pneumatic actuators generate significantly higher torque-to-weight ratios compared to electric alternatives, enabling the operation of larger valve sizes with relatively compact actuator packages. Additionally, pneumatic systems demonstrate superior performance in extreme temperature environments where electric motor components might face reliability challenges.

• Reliability and Maintenance Considerations

Pneumatic ball valve systems are renowned for their mechanical simplicity and robust construction, which translates to reduced maintenance requirements and extended service life in harsh industrial environments. The absence of complex electronic components eliminates concerns related to electromagnetic interference, electrical safety in hazardous areas, and temperature-induced component degradation. However, these systems require continuous air supply and proper air treatment to prevent contamination and moisture-related issues that could compromise actuator performance. While Electric Ball Valve technology offers superior precision and control capabilities, pneumatic systems provide unmatched reliability in applications where environmental conditions might challenge electronic components. The maintenance protocols for pneumatic ball valves typically involve routine inspection of air lines, filter replacement, and lubrication of moving parts, which can be performed by standard maintenance personnel without specialized electronic expertise.

Performance Comparison in Critical Applications

The selection between Electric Ball Valve and pneumatic technologies requires careful evaluation of application-specific performance criteria including response time, positioning accuracy, operating environment, and safety requirements. Electric Ball Valve systems excel in applications requiring precise flow modulation, complex control algorithms, and integration with digital process control systems. Their ability to maintain exact positioning without continuous air supply makes them ideal for applications where energy efficiency and long-term stability are paramount concerns. Pneumatic ball valve systems demonstrate superior performance in high-cycling applications, emergency shutdown services, and environments where fail-safe operation is critical. The rapid response characteristics of pneumatic actuators, typically achieving full stroke in 1-2 seconds, make them essential in safety instrumented systems and process protection applications. However, the positioning accuracy of pneumatic systems, while adequate for most applications, cannot match the precision capabilities of Electric Ball Valve technology in critical control applications.

• Environmental and Safety Considerations

Electric Ball Valve technology offers significant environmental advantages through the elimination of compressed air consumption and associated energy costs. Studies indicate that Electric Ball Valve systems can reduce energy consumption by 60-80% compared to pneumatic alternatives when considering the complete air compression and treatment infrastructure. The absence of air emissions also makes Electric Ball Valve technology more suitable for environmentally sensitive applications and enclosed spaces where air quality is a concern. Safety considerations favor pneumatic systems in hazardous area applications where explosion-proof electric equipment requirements significantly increase installation complexity and costs. However, modern Electric Ball Valve designs incorporate intrinsically safe electronics and certified explosion-proof housings that meet stringent safety standards for hazardous locations. The choice between technologies often depends on the specific hazardous area classification and the available electrical infrastructure.

Cost Analysis and Economic Factors

The total cost of ownership for Electric Ball Valve versus pneumatic systems involves complex analysis of initial investment, installation requirements, operational costs, and maintenance expenses over the equipment lifecycle. While Electric Ball Valve systems typically require higher initial investment due to sophisticated actuator technology, they offer significant savings in infrastructure costs by eliminating the need for air compressors, distribution systems, and air treatment equipment. Operational cost analysis reveals that Electric Ball Valve technology provides substantial energy savings, particularly in applications requiring frequent operation or continuous modulation. The elimination of compressed air consumption, which can account for 20-30% of industrial energy costs, represents a significant economic advantage for Electric Ball Valve installations. Additionally, the reduced maintenance requirements and extended service intervals associated with Electric Ball Valve technology contribute to lower lifecycle costs despite higher initial investment.

• Long-term Investment Considerations

Modern Electric Ball Valve technology offers superior longevity and performance stability compared to pneumatic alternatives, with typical service lives exceeding 20 years under normal operating conditions. The precision manufacturing and advanced materials used in Electric Ball Valve construction ensure consistent performance throughout the equipment lifecycle, minimizing the need for recalibration and component replacement. This reliability translates to reduced production disruptions and maintenance costs over the equipment service life. The scalability advantages of Electric Ball Valve systems become apparent in large installations where the infrastructure costs for pneumatic systems can be prohibitive. Each Electric Ball Valve operates independently without requiring centralized air supply systems, enabling flexible installation configurations and simplified expansion of existing facilities.

Industry Applications and Selection Criteria

The choice between Electric Ball Valve and pneumatic technologies depends heavily on specific industry requirements and application characteristics. In pharmaceutical and food processing applications, Electric Ball Valve systems provide the precision control and hygienic design features required for critical process parameters. The ability to achieve precise temperature and flow control makes Electric Ball Valve technology essential in applications where product quality depends on exact process conditions. Chemical and petrochemical industries often favor pneumatic ball valve systems for their reliability in hazardous environments and fail-safe capabilities in emergency shutdown applications. However, the trend toward process optimization and energy efficiency is driving increased adoption of Electric Ball Valve technology even in traditional pneumatic applications. The superior control capabilities of Electric Ball Valve systems enable optimization of complex chemical processes and reduction of waste generation through precise flow control.

• Emerging Technology Trends

The integration of Industrial Internet of Things (IoT) capabilities represents a significant advantage for Electric Ball Valve technology in modern industrial applications. Smart Electric Ball Valve systems incorporate advanced diagnostic capabilities, predictive maintenance algorithms, and remote monitoring features that enhance operational efficiency and reduce unplanned downtime. These capabilities are driving rapid adoption of Electric Ball Valve technology in industries focused on digital transformation and Industry 4.0 initiatives. Advanced materials and manufacturing techniques are improving the performance characteristics of both Electric Ball Valve and pneumatic systems, but the inherent advantages of electric technology in terms of precision, efficiency, and digital integration continue to drive market preference toward Electric Ball Valve solutions in demanding applications.

​​​​​​​

Conclusion

The comparison between Electric Ball Valve and pneumatic technologies reveals that each offers distinct advantages depending on application requirements. Electric Ball Valve systems provide superior precision, energy efficiency, and digital integration capabilities that are essential in modern industrial applications. Pneumatic systems excel in applications requiring rapid response, high reliability, and fail-safe operation. The choice ultimately depends on specific performance requirements, environmental conditions, and economic considerations.

Cooperate with CEPAI Group Co., LTD.

CEPAI Group Co., LTD. stands as a leading China Electric Ball Valve manufacturer with exceptional expertise in high-performance valve solutions for demanding industrial applications. Established in 2009 with a registered capital of 200 million yuan, our company operates from a state-of-the-art 56,000 square meter facility in Jiangsu Province, utilizing advanced intelligent manufacturing technologies to deliver superior Electric Ball Valve products. As a national high-tech enterprise and specialized "little giant" company, CEPAI has invested 156 million yuan in intelligent transformation, creating the longest high-precision manufacturing production line in the Asia Pacific region.

Our comprehensive certifications including API Q1, API 6A, API 6D, ISO 9001, and CE compliance ensure that every Electric Ball Valve meets the highest international quality standards. CEPAI serves as a trusted China Electric Ball Valve supplier to major corporations including PetroChina, Sinopec, CNOOC, and China Datang Group, demonstrating our capability to deliver reliable High Quality Electric Ball Valve solutions for critical applications. Our experienced engineering team provides comprehensive pre-sales technical consultation, customized Electric Ball Valve solutions, and complete after-sales support including remote monitoring and intelligent service capabilities.

Whether you need standard Electric Ball Valve configurations or specialized custom solutions, CEPAI offers competitive Electric Ball Valve price options and Electric Ball Valve for sale packages tailored to your specific requirements. As your preferred China Electric Ball Valve wholesale partner, we combine innovative technology with proven reliability to deliver exceptional value. Contact our expert team today at cepai@cepai.com to discuss your Electric Ball Valve needs and discover how CEPAI can optimize your industrial processes.

FAQ

Q: What are the main advantages of electric ball valves over pneumatic ball valves?

A: Electric ball valves offer superior precision control, energy efficiency, and digital integration capabilities without requiring compressed air infrastructure.

Q: Which type of ball valve is better for emergency shutdown applications?

A: Pneumatic ball valves are generally preferred for emergency shutdown due to their fail-safe capabilities and rapid response times.

Q: How do operating costs compare between electric and pneumatic ball valve systems?

A: Electric ball valves typically have lower operating costs due to eliminated compressed air consumption and reduced energy requirements.

Q: What factors should be considered when selecting between electric and pneumatic ball valve technologies?

A: Key factors include precision requirements, response time needs, environmental conditions, safety requirements, and total cost of ownership.
