Electric Ball Valve Buying Guide: What Engineers Need to Know

When industrial engineers face the critical task of selecting valve systems for their operations, electric ball valves emerge as one of the most versatile and reliable solutions available in today's market. These sophisticated control devices combine the fundamental simplicity of ball valve design with advanced electric actuation technology, offering precise flow control, rapid response times, and exceptional reliability across diverse industrial applications. Understanding the intricate details of electric ball valve specifications, performance characteristics, and selection criteria becomes paramount for engineers who must ensure optimal system performance while maintaining safety standards and operational efficiency. This comprehensive guide explores the essential knowledge engineers need when evaluating, selecting, and implementing electric ball valve solutions in their industrial systems.

Understanding Electric Ball Valve Technology and Applications

Core Technology and Operating Principles

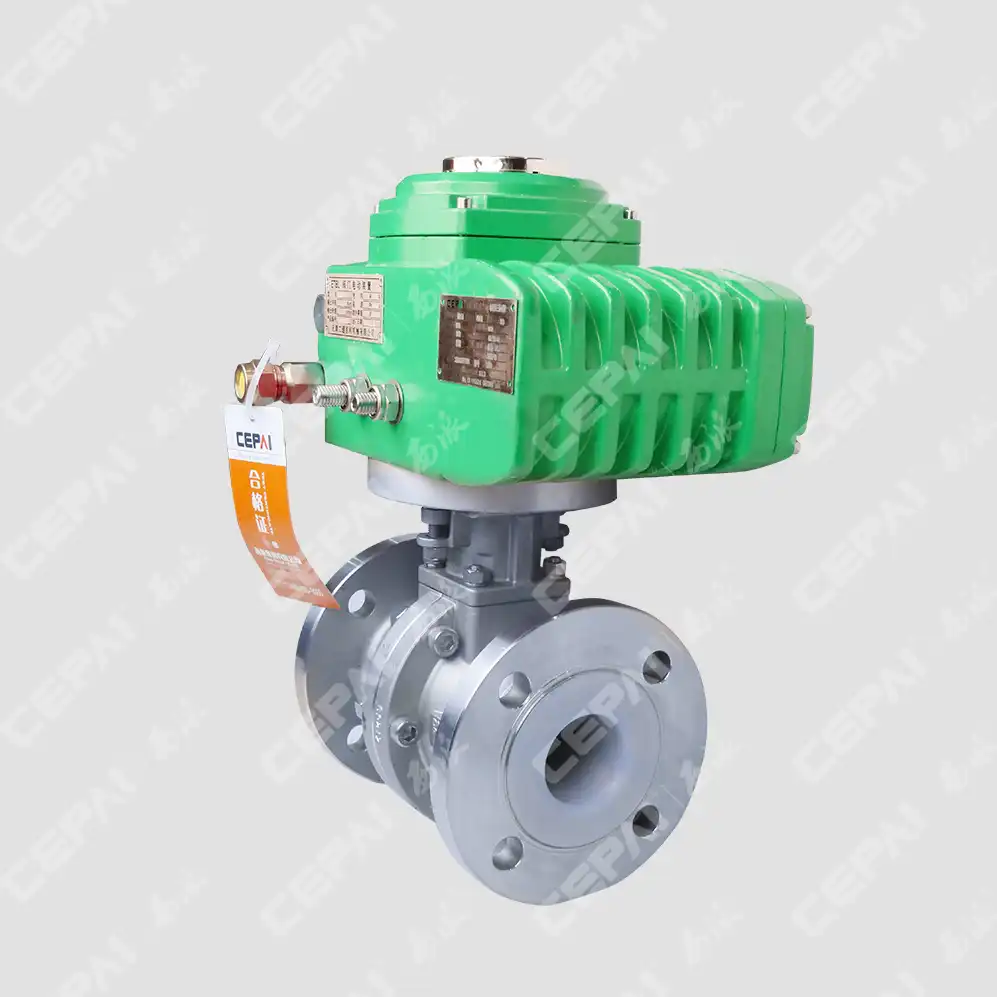

Electric ball valves represent a sophisticated fusion of mechanical valve design and electrical automation technology, creating a control solution that delivers precise flow regulation with exceptional reliability. The fundamental operating principle involves a spherical disc with a central bore that rotates within the valve body to control fluid flow. When integrated with electric actuators, these valves achieve remarkable precision in positioning, typically offering accuracy within ±1% of full scale, making them ideal for applications requiring exact flow control. The electric actuator system consists of a motor drive unit, gear reduction assembly, and sophisticated control electronics that enable remote operation, programmable positioning, and integration with plant-wide control systems. The technology behind electric ball valve systems has evolved significantly, incorporating advanced materials science and precision manufacturing techniques. Modern electric ball valve designs utilize specialized ball coatings and seat materials that ensure extended service life even in demanding applications involving corrosive media, high temperatures, or abrasive particles. The electric actuator components feature robust motor designs with high torque output capabilities, enabling operation of large valve sizes and high-pressure applications. Control electronics incorporate microprocessor-based systems that provide diagnostic capabilities, position feedback, and communication protocols compatible with industrial automation networks such as Modbus, Profibus, and Foundation Fieldbus.

Industrial Applications and Performance Benefits

Electric ball valves find extensive application across numerous industries due to their versatility, reliability, and precise control capabilities. In petrochemical processing facilities, these valves control the flow of various hydrocarbon products, acids, and other process chemicals while maintaining leak-tight sealing to prevent environmental contamination. Power generation plants utilize electric ball valves for cooling water systems, fuel gas control, and steam applications where rapid response and precise positioning are critical for operational safety and efficiency. Water treatment facilities depend on electric ball valve technology for chemical dosing systems, process water control, and waste stream management applications. The performance advantages of electric ball valves become particularly evident in applications requiring frequent operation cycles. Unlike pneumatic actuators that require continuous air supply and hydraulic systems that pose leakage risks, electric actuators operate independently with minimal maintenance requirements. The precise positioning capability of electric ball valves enables optimization of process conditions, reducing energy consumption and improving product quality. Response times typically range from seconds to minutes depending on valve size and actuator specifications, allowing for rapid process adjustments that enhance overall system efficiency and safety.

Selection Criteria for Optimal Performance

Selecting the appropriate electric ball valve for specific applications requires careful consideration of multiple technical factors that influence long-term performance and reliability. Flow characteristics represent a fundamental consideration, with engineers needing to evaluate the relationship between valve position and flow rate to ensure optimal process control. Electric ball valves typically exhibit either linear or equal percentage flow characteristics, with selection depending on the specific control requirements of the application. Pressure rating considerations must account not only for normal operating conditions but also potential pressure surges, temperature variations, and system transients that could affect valve performance. Material selection plays a crucial role in electric ball valve performance and longevity, particularly in applications involving corrosive media or extreme temperatures. Body materials range from carbon steel and stainless steel to exotic alloys and plastic composites, each offering specific advantages for particular applications. Ball and seat materials must be carefully matched to ensure leak-tight sealing while minimizing wear and extending service life. Electric actuator specifications including torque output, speed, duty cycle, and environmental protection ratings must align with application requirements to ensure reliable operation throughout the valve's service life.

Technical Specifications and Performance Parameters

Precision Control and Response Characteristics

Electric ball valves excel in applications requiring precise flow control due to their inherent design characteristics and advanced actuator technology. The control precision achievable with modern electric ball valve systems typically ranges from 0.1% to 1% of full scale, depending on actuator quality and valve design specifications. This level of precision enables engineers to implement sophisticated process control strategies that optimize production efficiency, minimize waste, and ensure consistent product quality. The positioning accuracy of electric actuators incorporates feedback systems that continuously monitor valve position and make corrections as necessary to maintain setpoint accuracy. Response characteristics of electric ball valves depend on several factors including actuator power, valve size, differential pressure, and control system configuration. Typical response times for quarter-turn electric ball valves range from 10 to 120 seconds for full stroke operation, with partial stroke movements proportionally faster. The ability to program intermediate positions and variable speed operation provides engineers with flexible control options that can be optimized for specific process requirements. Advanced electric actuator systems offer multiple speed settings, enabling fast response when needed while providing gentle operation for applications requiring careful flow transitions.

Flow Characteristics and Hydraulic Performance

Understanding flow characteristics represents a critical aspect of electric ball valve selection and application engineering. The relationship between valve position and flow rate determines how effectively the valve can control process conditions across its operating range. Electric ball valves typically exhibit modified ball flow characteristics that approximate linear relationships between position and flow, making them suitable for applications requiring predictable control response. The flow coefficient (Cv) values for electric ball valves depend on valve size, port configuration, and ball design, with full port designs offering maximum flow capacity and reduced pressure drop. Pressure drop characteristics of electric ball valves significantly impact system energy requirements and overall efficiency. Full port ball valve designs minimize pressure drop by providing unrestricted flow paths when fully open, reducing pumping energy requirements and system operating costs. The cavitation and noise characteristics of electric ball valves must be evaluated for high-pressure drop applications to prevent damage and ensure acceptable noise levels. Advanced ball designs incorporate features such as characterized ports and multi-stage pressure reduction to control cavitation and minimize noise generation in demanding applications.

Durability and Reliability Factors

Electric ball valve reliability depends on multiple design and manufacturing factors that influence long-term performance in industrial applications. Seat and seal designs must withstand repeated operation cycles while maintaining leak-tight performance across the specified temperature and pressure range. High-quality electric ball valves incorporate resilient seat materials such as PTFE, PEEK, or metal-to-metal designs for extreme service conditions. The actuator mechanical components including gears, bearings, and motor assemblies require robust design and quality materials to ensure reliable operation through millions of operating cycles. Environmental factors significantly impact electric ball valve reliability and service life. Temperature extremes, humidity, corrosive atmospheres, and vibration exposure must be considered when selecting appropriate valve and actuator specifications. Electric actuator enclosures provide various levels of environmental protection ranging from basic weather resistance to explosion-proof designs for hazardous area applications. Maintenance requirements for electric ball valves typically involve periodic inspection of actuator components, lubrication of mechanical assemblies, and verification of control system calibration to ensure continued reliable operation.

Quality Standards and Supplier Evaluation

Industry Standards and Certifications

Electric ball valve quality and performance are governed by numerous industry standards that ensure consistent design, manufacturing, and testing practices. API standards including API 6D for pipeline valves and API 608 for ball valves provide comprehensive requirements for materials, design, manufacturing, and testing of valves used in petroleum industry applications. These standards specify minimum requirements for pressure testing, material specifications, and quality control procedures that manufacturers must follow to achieve certification. ISO standards such as ISO 5208 for valve testing and ISO 14313 for valve sizing provide additional requirements for electric ball valve performance verification. Safety Integrity Level (SIL) certification represents an increasingly important consideration for electric ball valves used in safety-critical applications. SIL-certified electric ball valves undergo rigorous testing and analysis to verify their reliability and failure mode characteristics, ensuring they meet specific safety performance requirements. The certification process includes evaluation of valve design, manufacturing quality control, and actuator reliability to assign appropriate SIL ratings. Engineers specifying electric ball valves for safety instrumented systems must ensure that selected valves meet appropriate SIL requirements for their specific applications.

Supplier Capabilities and Support Services

Evaluating electric ball valve suppliers requires assessment of their technical capabilities, manufacturing quality, and support services to ensure successful project implementation and long-term reliability. Leading suppliers maintain comprehensive testing facilities that enable verification of valve performance characteristics including flow coefficients, pressure ratings, and actuator performance parameters. Quality management systems such as ISO 9001 certification provide assurance that suppliers maintain consistent manufacturing processes and quality control procedures throughout production. Technical support capabilities represent a critical factor in supplier evaluation, particularly for complex applications requiring customized solutions or specialized engineering support. Qualified suppliers provide pre-sales engineering services including valve sizing, material selection, and application analysis to ensure optimal performance. Post-sales support services including installation assistance, commissioning support, and maintenance training enable successful project implementation and ongoing reliability. Remote monitoring capabilities and diagnostic services offered by advanced suppliers provide additional value through predictive maintenance programs and rapid troubleshooting support.

Quality Assurance and Testing Procedures

Comprehensive quality assurance programs ensure that electric ball valves meet specified performance requirements and provide reliable service throughout their design life. Manufacturing quality control procedures include incoming material inspection, in-process monitoring, and final product testing to verify compliance with design specifications and industry standards. Advanced testing equipment including computerized test stands, material analysis instruments, and precision measurement systems enable verification of critical performance parameters including leakage rates, operating torques, and pressure ratings. Factory acceptance testing provides final verification of electric ball valve performance before shipment to customer facilities. Test procedures typically include hydrostatic pressure testing, seat leakage verification, actuator performance confirmation, and control system functionality checks. Documentation provided with tested valves includes material certificates, test reports, and performance data that enable engineers to verify compliance with project specifications. Traceability systems maintain records of materials, manufacturing processes, and test results throughout the valve lifecycle, supporting quality investigations and maintenance planning activities.

Conclusion

Electric ball valves represent sophisticated engineering solutions that combine proven ball valve technology with advanced electric actuation systems to deliver precise control, exceptional reliability, and versatile performance across diverse industrial applications. The selection process requires careful evaluation of technical specifications, performance characteristics, and supplier capabilities to ensure optimal results for specific applications. Engineers must consider factors including flow characteristics, pressure ratings, material compatibility, and environmental conditions when specifying electric ball valve solutions.

As a leading China Electric Ball Valve factory, CEPAI Group combines advanced manufacturing capabilities with comprehensive engineering support to deliver superior valve solutions for demanding industrial applications. Our commitment to quality excellence through ISO certification programs and rigorous testing procedures ensures reliable performance in critical applications. Whether you need standard configurations or customized solutions, our experienced engineering team provides pre-sales technical consultation and valve selection services, customized solution services, installation and debugging support, comprehensive after-sales service and maintenance programs, and remote monitoring capabilities.

Contact our technical specialists today at cepai@cepai.com to discuss your electric ball valve requirements and discover how our expertise as a trusted China Electric Ball Valve supplier can support your project success. As a premier China Electric Ball Valve manufacturer, we offer competitive Electric Ball Valve wholesale pricing, extensive Electric Ball Valve for sale inventory, transparent Electric Ball Valve price information, and comprehensive Electric Ball Valve brochure documentation to support your selection process.
