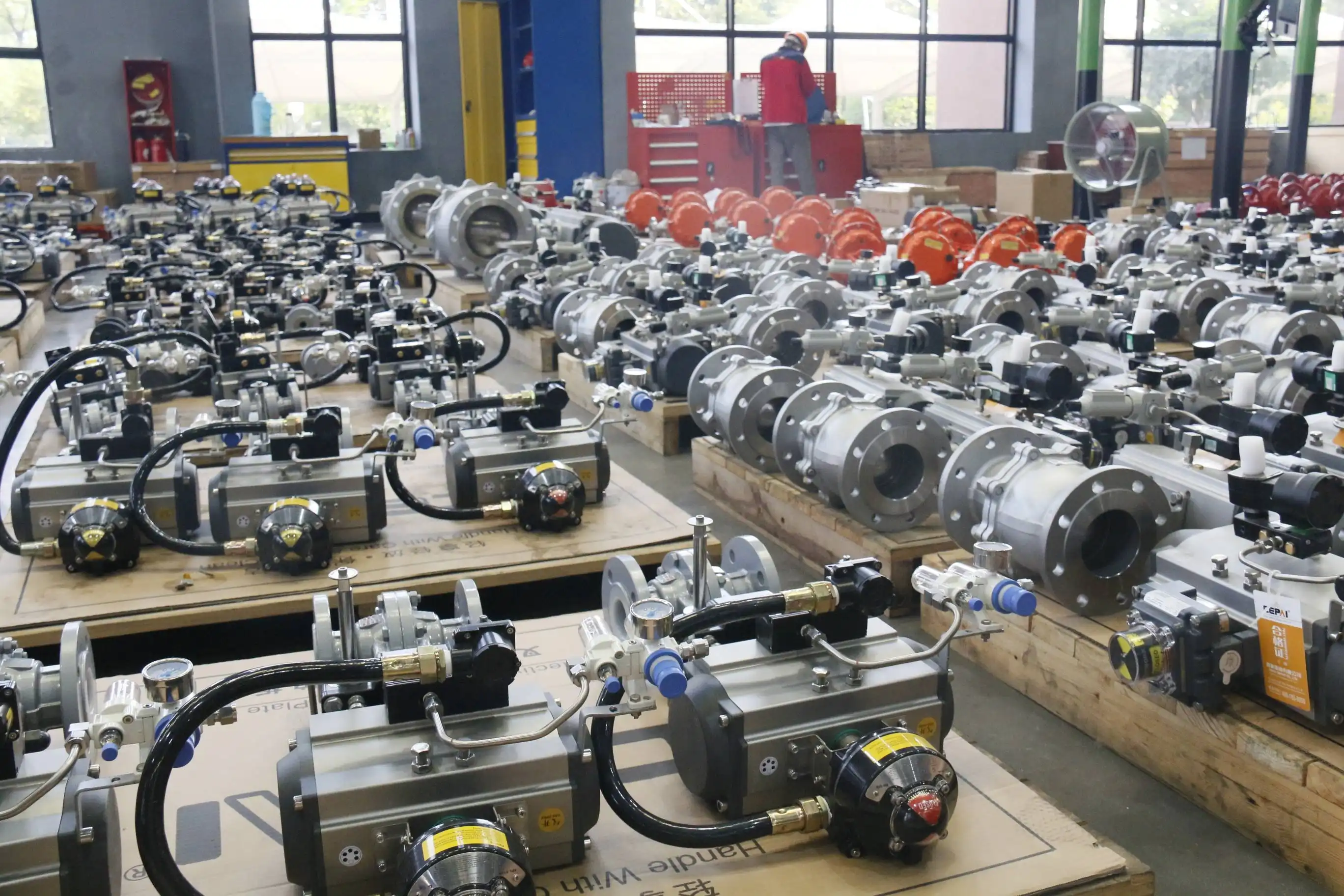

Diagnosing Slow Response in Air-Actuated Valves

Air-actuated valves are critical components in industrial automation systems, providing precise flow control through pneumatic operation. However, when these valves exhibit slow response times, it can significantly impact process efficiency, safety, and overall system performance. Slow response in Air Actuated Valve systems manifests as delayed opening or closing actions, reduced control precision, and compromised system reliability. Understanding the root causes of sluggish valve performance is essential for maintenance professionals and engineers who rely on these devices for optimal process control. This comprehensive analysis explores the primary factors contributing to slow response times, systematic diagnostic approaches, and proven solutions to restore peak performance. By identifying whether the issue stems from air supply problems, actuator wear, valve body restrictions, or control system malfunctions, operators can implement targeted corrective measures that ensure reliable, rapid valve operation across diverse industrial applications.

​​​​​​​

Understanding the Root Causes of Slow Response

Air Supply System Issues and Pressure Irregularities

The foundation of reliable Air Actuated Valve performance lies in consistent, clean, and adequately pressurized air supply. When valves exhibit slow response characteristics, the first investigation should focus on the pneumatic supply system. Inadequate air pressure represents one of the most common culprits behind sluggish valve operation. Most industrial Air Actuated Valve systems require supply pressures between 80-120 PSI for optimal performance, with precise requirements varying based on valve size, spring return force, and application demands. Pressure drops below manufacturer specifications directly correlate with reduced actuator force generation, resulting in slower stroke times and diminished positioning accuracy. Air supply contamination presents another critical factor affecting valve response speed. Moisture, oil, and particulate matter within compressed air systems can accumulate within actuator chambers, creating resistance against piston movement and degrading seal integrity. This contamination not only slows valve operation but also accelerates component wear, leading to progressive performance degradation over time. Furthermore, undersized air supply lines or restrictive fittings can create bottlenecks that prevent rapid air flow during valve actuation cycles. The volume of air required for quick valve response depends on actuator size and stroke length, making proper sizing of supply infrastructure essential for maintaining rapid response characteristics throughout the system's operational life.

Actuator Component Wear and Mechanical Degradation

Internal actuator components experience continuous mechanical stress during normal operation, leading to gradual wear that manifests as slower response times in Air Actuated Valve systems. Piston seals represent particularly vulnerable components, as they must maintain air-tight integrity while accommodating thousands of operational cycles. As these seals deteriorate, internal air leakage occurs, reducing the effective pressure differential across the piston and diminishing the driving force available for valve movement. This internal leakage not only slows response times but also increases air consumption, creating inefficiencies that compound over time. Spring mechanisms within Air Actuated Valve assemblies also experience fatigue and compression set, particularly in high-cycle applications. As springs lose their designed force characteristics, they may no longer provide adequate fail-safe positioning or proper return forces, resulting in asymmetrical response times between opening and closing operations. Additionally, bearing surfaces and guide mechanisms within actuators can develop increased friction due to wear, contamination, or inadequate lubrication. This increased friction directly opposes actuator movement, requiring higher driving forces to achieve the same response speeds. Corrosion within actuator chambers, particularly in harsh environmental conditions, can create surface roughness and binding points that further impede smooth piston movement and contribute to erratic or slow valve positioning.

Valve Body Obstructions and Flow Path Restrictions

The valve body itself can develop conditions that significantly impact Air Actuated Valve response characteristics, even when the actuator system functions properly. Internal deposits, scale formation, or foreign material accumulation within valve chambers create additional resistance against disc or ball movement, requiring increased actuator force to achieve full stroke completion. These obstructions often develop gradually, making their impact on response times subtle initially but progressively more pronounced as buildup continues. Seat wear and damage represent another critical factor affecting valve response speed. When valve seats become worn, pitted, or damaged, the valve element may not seal properly, requiring additional actuator force to achieve tight shutoff. This increased force requirement can overwhelm actuator capabilities, particularly near the end of stroke travel where precise positioning becomes critical. Additionally, stem packing systems can develop excessive tightness or degradation that creates binding forces opposing valve movement. Over-tightened packing can generate significant friction that slows actuator response, while deteriorated packing materials may create uneven resistance patterns that produce jerky or inconsistent valve movement. Process media characteristics also play a crucial role in valve response performance. High-viscosity fluids, slurries, or media containing suspended solids can create additional resistance against valve element movement, effectively increasing the load that the Air Actuated Valve actuator must overcome to achieve rapid positioning.

Systematic Diagnostic Approaches and Testing Methods

Pressure Testing and Air System Validation

Effective diagnosis of slow Air Actuated Valve response begins with comprehensive pressure testing and air system validation procedures. Initial testing should establish baseline pressure measurements at multiple points throughout the pneumatic supply chain, from the main air supply through distribution lines to individual valve supply connections. Pressure gauges with appropriate accuracy and range specifications must be installed at the actuator supply port to verify that design pressure reaches the valve under both static and dynamic conditions. Dynamic pressure testing becomes particularly critical, as supply systems may maintain adequate static pressure but experience significant drops during valve actuation when air flow demands peak. These dynamic pressure measurements should be recorded during full valve cycling to identify supply system inadequacies that only manifest under operational loads. Air flow testing provides additional diagnostic insight by measuring the volume of air consumed during valve operation and comparing these values against manufacturer specifications. Excessive air consumption often indicates internal actuator leakage, while insufficient air flow may reveal supply system restrictions or component blockages. Leak detection procedures using soap solutions or ultrasonic detection equipment can identify external air leaks that reduce system efficiency and slow valve response. These comprehensive air system diagnostics establish whether slow response originates from pneumatic supply issues or internal valve component problems, directing subsequent diagnostic efforts toward the appropriate system elements.

Response Time Measurement and Performance Analysis

Quantitative measurement of Air Actuated Valve response times provides objective data essential for accurate diagnosis and performance evaluation. Standardized testing procedures should measure both opening and closing response times under various operating conditions, including different supply pressures, temperatures, and process media characteristics. Electronic timing devices or position feedback systems can provide precise measurements of stroke completion times, while high-speed data acquisition systems can capture detailed response profiles showing acceleration, velocity, and deceleration characteristics throughout the valve stroke. These detailed response profiles often reveal specific performance issues that simple timing measurements might miss. For example, consistent delays at stroke initiation suggest actuator seal problems or supply restrictions, while progressive slowdown during stroke completion may indicate valve body obstructions or inadequate actuator sizing. Temperature effects on Air Actuated Valve response should also be evaluated, as extreme temperatures can affect air density, seal performance, and lubrication characteristics. Cold temperature testing may reveal sluggish response due to viscous lubrication or compressed air cooling effects, while high-temperature conditions can expose seal degradation or thermal expansion issues. Comparative analysis of response times under different process conditions helps isolate environmental factors contributing to slow valve operation and guides selection of appropriate corrective measures.

​​​​​​​

Component Inspection and Internal Assessment

Detailed internal inspection of Air Actuated Valve components provides definitive diagnostic information about mechanical wear, contamination, and component degradation. Actuator disassembly should follow manufacturer procedures to expose internal components for visual inspection and measurement. Piston seals require particular attention, with examination for cuts, hardening, compression set, or surface deterioration that could compromise sealing effectiveness. Dimensional measurements of critical components should be compared against manufacturer specifications to identify wear patterns or geometric changes that affect performance. Actuator chamber inspection reveals contamination levels, corrosion patterns, and surface conditions that contribute to increased friction or binding. Spring mechanisms should be evaluated for compression set, fatigue cracking, or coil binding that might affect force generation characteristics. Valve body inspection requires examination of seating surfaces, stem guides, and internal flow passages for wear, damage, or obstruction. Seat inspection should identify scoring, erosion, or deformation that increases sealing force requirements, while stem guide evaluation can reveal wear patterns that create binding or misalignment. Process media residue or foreign material accumulation within valve chambers should be documented and analyzed to understand its impact on valve operation and guide appropriate cleaning or modification procedures.

Effective Solutions and Performance Restoration

Air Supply System Optimization and Maintenance

Restoring optimal Air Actuated Valve performance often requires comprehensive air supply system improvements and systematic maintenance procedures. Pressure regulation upgrades may be necessary to ensure consistent supply pressure under varying system demands, with appropriately sized regulators and receivers to maintain stable pressure during valve actuation cycles. Air treatment systems including filters, dryers, and lubricators must be properly sized and maintained to deliver clean, dry air at specified conditions. Filter replacement schedules should be established based on actual contamination levels and system usage patterns, while automatic drain systems can prevent moisture accumulation in distribution lines. Supply line sizing may require upgrading to accommodate peak air flow demands during simultaneous valve operations, with particular attention to quick-connect fittings and distribution manifolds that can create flow restrictions. Air quality monitoring systems can provide ongoing assessment of contamination levels and alert maintenance personnel when filter replacement or system cleaning becomes necessary. Additionally, emergency air supply systems or backup compressor capacity may be required in critical applications where air supply interruptions could cause safety issues or production losses. These comprehensive air supply improvements establish the foundation for reliable Air Actuated Valve performance while reducing long-term maintenance requirements and extending component service life.

Actuator Refurbishment and Component Replacement

Systematic actuator refurbishment addresses internal wear and contamination that causes slow Air Actuated Valve response while restoring original performance characteristics. Seal replacement represents the most critical aspect of actuator refurbishment, requiring careful selection of seal materials compatible with process conditions and operating temperatures. Modern seal materials often provide superior performance compared to original equipment, with enhanced chemical resistance, temperature stability, and wear characteristics that extend service intervals. Spring replacement or adjustment can restore proper force characteristics and ensure reliable fail-safe operation, particularly in applications with high cycle counts or extreme temperature variations. During refurbishment, actuator chambers should be thoroughly cleaned to remove contamination and inspected for corrosion or surface damage that might require repair. Bearing surfaces and guide mechanisms may require replacement or reconditioning to eliminate binding points and restore smooth operation. Quality control procedures during refurbishment should include pressure testing, response time measurement, and operational cycling to verify restored performance before returning valves to service. Documentation of refurbishment activities provides valuable maintenance history information for scheduling future service intervals and identifying recurring issues that might indicate application problems or component design limitations.

Valve Body Maintenance and Optimization Strategies

Comprehensive valve body maintenance addresses flow path obstructions, seat wear, and mechanical issues that contribute to slow Air Actuated Valve response characteristics. Internal cleaning procedures must remove process deposits, scale formation, and foreign material that creates resistance against valve element movement. Specialized cleaning techniques may be required depending on deposit composition, including chemical cleaning, mechanical removal, or ultrasonic cleaning methods. Seat refurbishment or replacement can eliminate excessive sealing force requirements that overload actuator capabilities and slow response times. Modern seat materials and designs often provide improved performance compared to original equipment, with enhanced wear resistance and sealing characteristics that maintain performance over extended service intervals. Stem and packing system maintenance includes proper adjustment of packing compression to eliminate excessive friction while maintaining adequate sealing. Upgraded packing materials may provide reduced friction characteristics and improved chemical compatibility compared to original designs. Flow path optimization through internal surface improvements or component redesign can reduce pressure drops and improve overall valve response characteristics. These comprehensive valve body improvements restore optimal flow conditions while addressing underlying causes of slow response that might recur without proper correction.

Conclusion

Diagnosing and resolving slow response in Air Actuated Valve systems requires systematic evaluation of pneumatic supply conditions, actuator component integrity, and valve body mechanical conditions. Through comprehensive testing procedures and targeted corrective measures, operators can restore optimal performance while preventing recurring issues. Success depends on understanding the interrelated nature of these systems and implementing solutions that address root causes rather than symptoms. Proper maintenance scheduling and performance monitoring ensure sustained reliability and rapid response characteristics essential for efficient process control operations.
