Control Valve Sizing Made Easy:Step-by-Step Guide

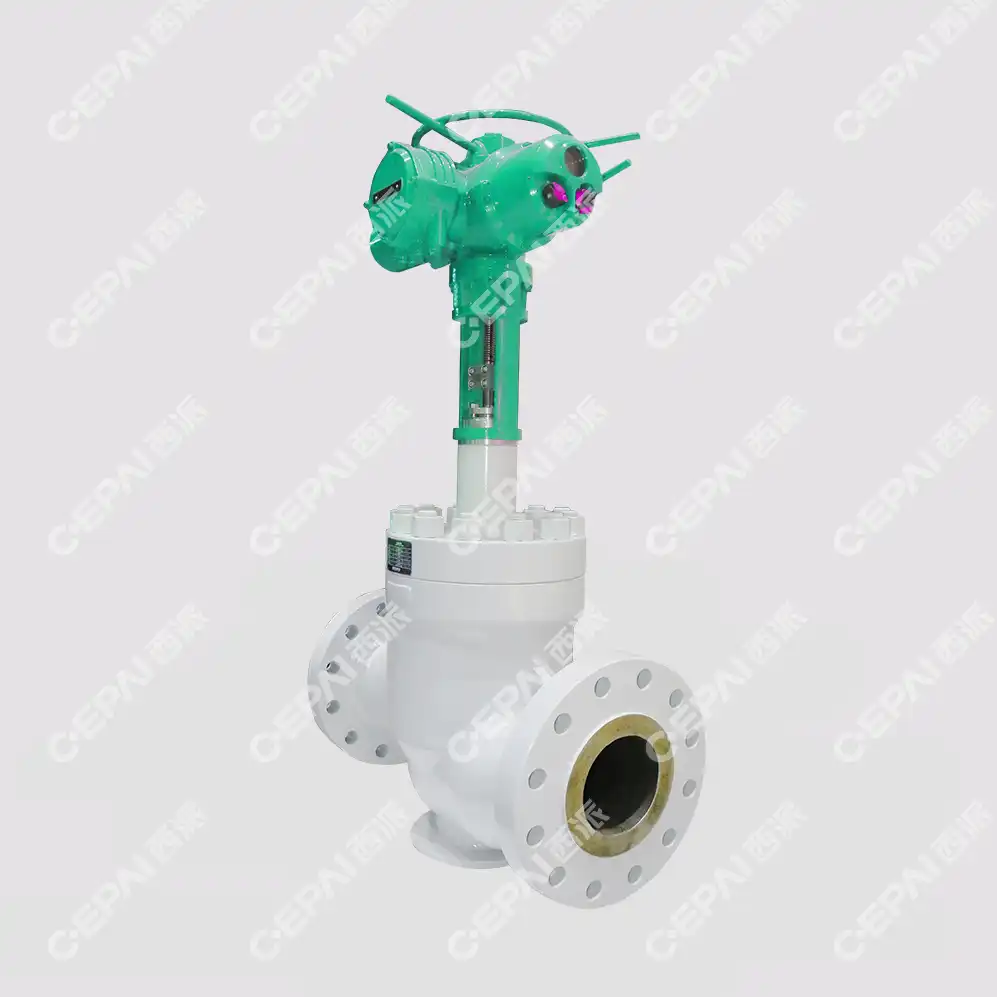

Proper control valve sizing is fundamental to achieving optimal process performance, energy efficiency, and system reliability in industrial applications. This comprehensive guide demystifies the complex process of control valve selection and sizing, providing engineers with practical methodologies and essential considerations. Whether you're working in petrochemical, power generation, or oil and gas industries, understanding the intricacies of control valve sizing directly impacts your system's operational success and long-term performance. Control valve sizing involves calculating the appropriate valve capacity coefficient (Cv) to handle specific flow conditions while maintaining precise control across various operating scenarios. The process requires careful analysis of fluid properties, pressure differentials, temperature variations, and flow characteristics to ensure optimal valve performance. Modern control valve technologies have evolved significantly, offering enhanced precision and reliability that meet the demanding requirements of today's industrial processes.

Understanding Control Valve Fundamentals and Flow Characteristics

Basic Principles of Control Valve Operation

Control valve operation centers on the fundamental relationship between flow rate, pressure drop, and valve opening position. The valve's primary function involves modulating flow by creating a variable restriction in the pipeline, thereby controlling the downstream pressure, flow rate, or fluid level. Understanding this relationship is crucial for proper control valve sizing and selection. The flow coefficient (Cv) represents the valve's capacity to pass fluid at specific conditions, defined as the flow rate in gallons per minute of water at 60°F that will pass through the valve at a pressure drop of one pound per square inch.The control valve's inherent flow characteristic describes the relationship between the valve's relative flow capacity and its stem travel under constant pressure drop conditions. Common characteristics include linear, equal percentage, and quick opening profiles, each serving specific applications. Linear characteristics provide constant flow changes per unit of stem travel, making them ideal for applications requiring proportional control response. Equal percentage characteristics offer small flow changes at low openings and larger changes at higher openings, providing stable control across wide rangeability requirements.

Fluid Properties and Their Impact on Sizing

Fluid properties significantly influence control valve sizing calculations and performance characteristics. Viscosity affects the flow coefficient and pressure recovery, requiring corrections to standard sizing formulas for accurate results. High-viscosity fluids reduce the effective flow capacity and may cause cavitation at lower pressure differentials than predicted by water-based calculations. Temperature variations alter fluid density and viscosity, creating dynamic sizing challenges that must be addressed through comprehensive analysis.Compressible fluids, such as gases and vapors, introduce additional complexity due to their density changes with pressure and temperature variations. The specific heat ratio, molecular weight, and compressibility factor become critical parameters in sizing calculations. Choked flow conditions may occur when the pressure ratio exceeds critical values, limiting the maximum flow rate regardless of further pressure drop increases. Control valve manufacturers provide specialized sizing software that accounts for these complex fluid behaviors, ensuring accurate sizing results for diverse applications.

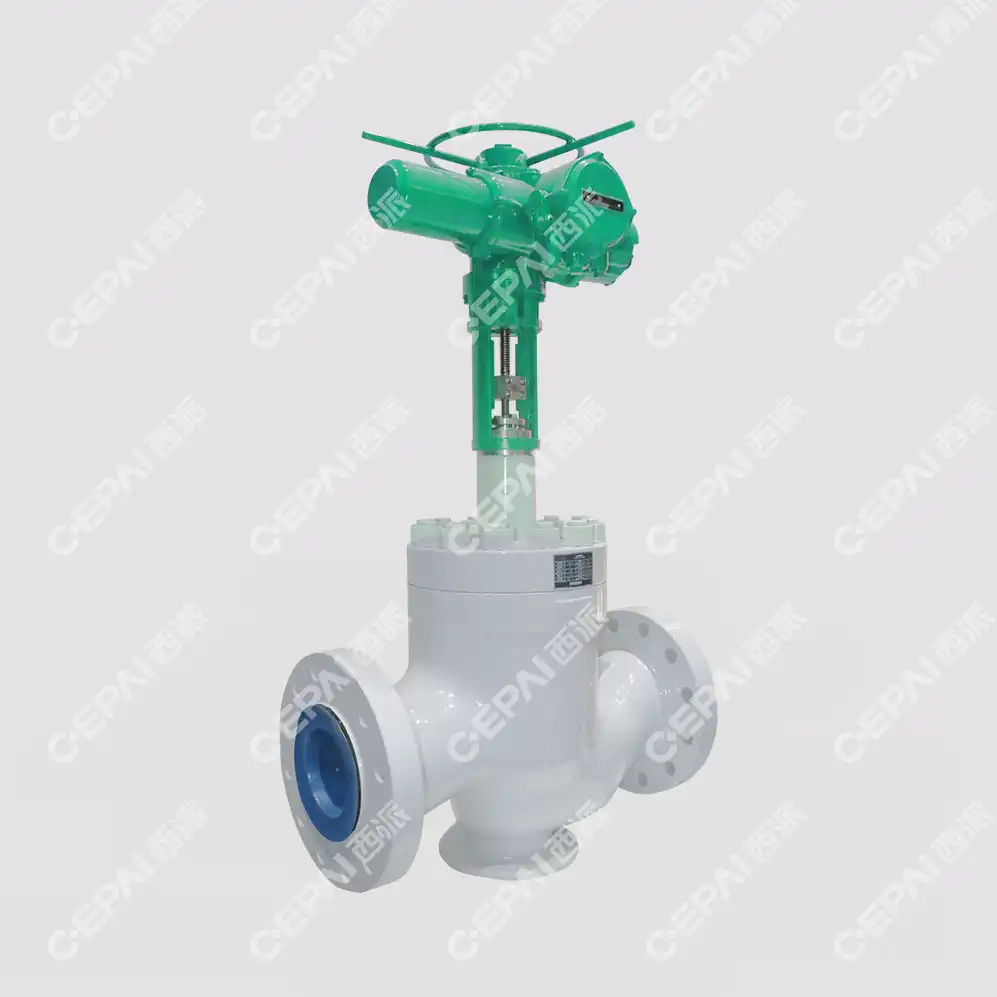

Modern Control Valve Technologies

Contemporary control valve designs incorporate advanced materials, precision manufacturing, and intelligent positioners to enhance performance and reliability. High-performance control valves feature engineered flow paths that minimize turbulence and pressure loss while maximizing rangeability and control precision. Advanced seat designs and packing systems provide superior shutoff performance and reduced fugitive emissions, meeting stringent environmental regulations.Digital valve controllers and smart positioners revolutionize control valve operation by providing diagnostic capabilities, remote monitoring, and predictive maintenance features. These technologies enable real-time performance optimization and early detection of potential issues, reducing unplanned downtime and maintenance costs. Integration with distributed control systems allows for sophisticated control strategies that adapt to changing process conditions automatically.

Step-by-Step Control Valve Sizing Methodology

Process Data Collection and Analysis

Successful control valve sizing begins with comprehensive process data collection and analysis. Engineers must gather accurate information about operating conditions, including minimum, normal, and maximum flow rates, inlet and outlet pressures, temperatures, and fluid properties. This data forms the foundation for all subsequent sizing calculations and ensures the selected control valve meets performance requirements across the entire operating range.Critical process parameters include the required flow coefficient (Cv), allowable pressure drop, noise limitations, and cavitation constraints. Understanding the process dynamics helps determine the required valve rangeability and response characteristics. Dynamic processes may require fast-acting valves with high rangeability, while steady-state applications can utilize simpler designs with more limited rangeability requirements. Proper documentation of these parameters ensures consistent sizing results and facilitates future modifications or upgrades.

Calculating Flow Coefficients and Pressure Drops

Flow coefficient calculations form the core of control valve sizing methodology. For liquid applications, the basic formula relates flow rate, specific gravity, and pressure drop to determine the required Cv value. However, real-world applications require consideration of various correction factors, including viscosity effects, Reynolds number influences, and piping geometry factors. These corrections ensure accurate sizing results that account for actual operating conditions rather than idealized laboratory conditions.Pressure drop calculations must consider both the valve pressure drop and the overall system pressure drop to avoid oversizing or undersizing issues. The valve pressure drop should typically represent 25-50% of the total system pressure drop to maintain good control characteristics and minimize installed costs. Excessive valve pressure drops can lead to cavitation, noise, and premature wear, while insufficient pressure drops result in poor control performance and reduced rangeability.

Valve Selection and Verification Procedures

Control valve selection involves matching the calculated sizing requirements with available valve designs and configurations. Factors including body style, end connections, materials of construction, and actuator sizing must align with process requirements and installation constraints. The selected valve must provide adequate flow capacity at the maximum flow condition while maintaining controllability at minimum flow rates.Verification procedures ensure the selected control valve meets all performance criteria under various operating scenarios. This includes checking for cavitation potential, noise generation, and structural integrity under maximum differential pressure conditions. Modern sizing software facilitates these calculations and provides comprehensive performance predictions, including cavitation indices, noise levels, and actuator thrust requirements. Final verification should include review of vendor data sheets and performance curves to confirm the valve's suitability for the intended application.

Advanced Sizing Considerations and Best Practices

Cavitation and Flashing Prevention Strategies

Cavitation represents one of the most destructive phenomena affecting control valve performance and longevity. It occurs when liquid pressure drops below the vapor pressure, creating vapor bubbles that subsequently collapse as pressure recovers downstream. This bubble collapse generates intense localized pressures that can cause severe erosion damage to valve internals. Understanding cavitation mechanics is essential for proper control valve sizing and selection in liquid service applications.Effective cavitation prevention requires careful analysis of pressure recovery characteristics and implementation of appropriate design modifications. Multi-stage pressure reduction through staged trim designs distributes the pressure drop across multiple restrictions, preventing localized pressure reductions that trigger cavitation. Anti-cavitation trims featuring specialized geometries can shift the cavitation zone away from critical surfaces, minimizing damage potential while maintaining control performance.

​​​​​​​

Noise Control and Acoustic Considerations

Noise generation in control valves results from turbulent flow, pressure drop, and fluid acceleration through the valve internals. High noise levels can exceed workplace safety standards and cause fatigue failure in adjacent piping systems. Proper noise prediction and mitigation strategies are essential components of comprehensive control valve sizing and selection processes.Aerodynamic noise dominates in gas service applications, while hydrodynamic noise becomes significant in high-pressure liquid applications. Low-noise trim designs featuring staged pressure reduction and specialized flow paths can significantly reduce noise generation without compromising control performance. Sound attenuation devices, including downstream diffusers and silencers, provide additional noise reduction for applications requiring extremely low noise levels.

Material Selection and Corrosion Resistance

Material selection directly impacts control valve performance, reliability, and service life in corrosive environments. Understanding the corrosion mechanisms and selecting appropriate materials ensures long-term performance and minimizes maintenance requirements. Standard materials include carbon steel, stainless steel, and various alloy compositions designed for specific service conditions.Specialized materials such as super duplex stainless steels, nickel-based alloys, and exotic materials provide enhanced corrosion resistance for severe service applications. Surface treatments and coatings can extend the service life of standard materials in mildly corrosive environments. The material selection process must consider not only the process fluid chemistry but also operating temperature, pressure cycling, and mechanical stress factors that influence material performance.

Conclusion

Control valve sizing represents a critical engineering discipline that directly impacts process efficiency, safety, and operational costs. This comprehensive guide has outlined the fundamental principles, methodologies, and advanced considerations necessary for successful control valve sizing across diverse industrial applications. From understanding basic flow characteristics to implementing sophisticated noise and cavitation control strategies, proper sizing requires careful attention to multiple interdependent factors.

The evolution of control valve technology continues to provide enhanced performance capabilities and intelligent diagnostic features that improve overall system reliability. By following systematic sizing procedures and incorporating modern design principles, engineers can select control valves that deliver optimal performance throughout their service life while meeting increasingly stringent environmental and safety requirements.

Ready to optimize your control valve sizing process? CEPAI Group combines decades of engineering expertise with cutting-edge manufacturing capabilities to deliver high-performance control valves tailored to your specific requirements. Our comprehensive pre-sales technical consultation services ensure optimal valve selection, while our advanced testing facilities guarantee superior quality and reliability. With ISO quality system certification and extensive industry qualifications, we provide the technical support and innovative solutions you need for your most challenging applications. Contact our technical specialists today at cepai@cepai.com to discuss your control valve requirements and discover how our expertise can enhance your process performance and operational efficiency.
