Common Pneumatic Ball Valve Problems and How to Solve Them

Pneumatic ball valves are critical components in fluid control systems across numerous industries, from oil and gas to chemical processing and manufacturing. Despite their robust design and reliability, these valves can encounter various operational issues that impact performance and system efficiency. This comprehensive guide explores common pneumatic ball valve problems and provides expert solutions to help maintain optimal valve function. Whether you're experiencing leakage, actuation failures, or control inconsistencies, understanding these challenges and their remedies can significantly extend valve lifespan and minimize costly downtime.

Identifying and Addressing Common Leakage Issues

Leakage represents one of the most prevalent and concerning problems affecting pneumatic ball valve performance. Understanding the various types of leaks, their causes, and appropriate remediation strategies is essential for maintaining system integrity and operational efficiency.

Internal Leakage Through the Valve Seat

Internal leakage in a pneumatic ball valve typically occurs when the ball fails to form a proper seal with the valve seat. This problem is particularly common in high-cycle applications where the sealing surfaces experience accelerated wear. When a pneumatic ball valve develops internal leakage, the consequences can be significant, including reduced process efficiency, contamination of media, and increased energy consumption. The primary causes include worn or damaged seats, improper valve sizing, accumulated debris, and misalignment of internal components. To address this issue, first conduct a thorough inspection of the valve seat and ball surface for signs of wear, scoring, or buildup. If minor damage is detected, sometimes polishing the ball with fine abrasive compounds can restore the sealing surface. For more significant damage, replacing the seat and seals is typically necessary. It's also crucial to install proper upstream filtration to prevent particle accumulation that could damage sealing surfaces. Regular maintenance schedules should include valve cycling to prevent media from hardening or crystallizing on sealing surfaces, which is particularly important in applications where the pneumatic ball valve remains in one position for extended periods.

External Leakage Around Stem and Body Joints

External leakage from a pneumatic ball valve not only wastes valuable process media but can also create safety hazards, especially when handling hazardous substances. Stem leakage typically occurs at the point where the valve stem extends through the valve body and is commonly caused by worn packing, improper torque on gland nuts, temperature cycling, or vibration that loosens components over time. Body joint leakage usually appears at flanged connections or between body sections on multi-piece valve designs. Addressing stem leakage typically involves adjusting the packing gland nuts to the manufacturer's recommended torque specifications. If tightening doesn't resolve the issue, replacing the stem packing becomes necessary. For body joint leakage, first check for proper bolt torque using a calibrated torque wrench and tighten in a cross-pattern sequence to ensure even compression of gaskets. If leakage persists after proper tightening, the gaskets may be damaged or incorrectly installed and should be replaced. When selecting replacement gaskets, it's critical to match materials precisely with process conditions, including temperature, pressure, and chemical compatibility. CEPAI Group's pneumatic ball valve designs incorporate high-performance stem seals and body gaskets specifically engineered to withstand challenging operating environments, significantly reducing the likelihood of external leakage.

Air Supply Leakage in Actuator Systems

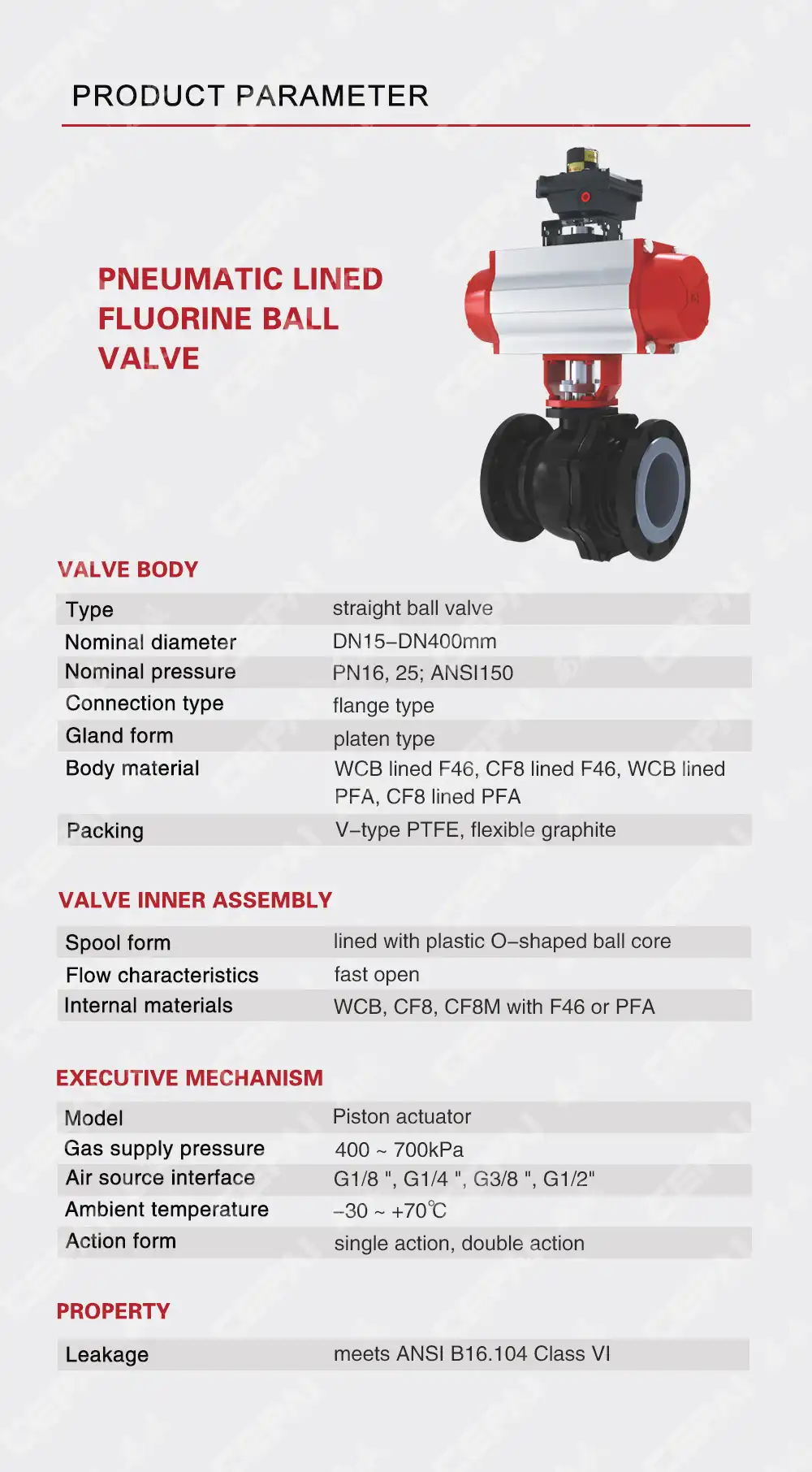

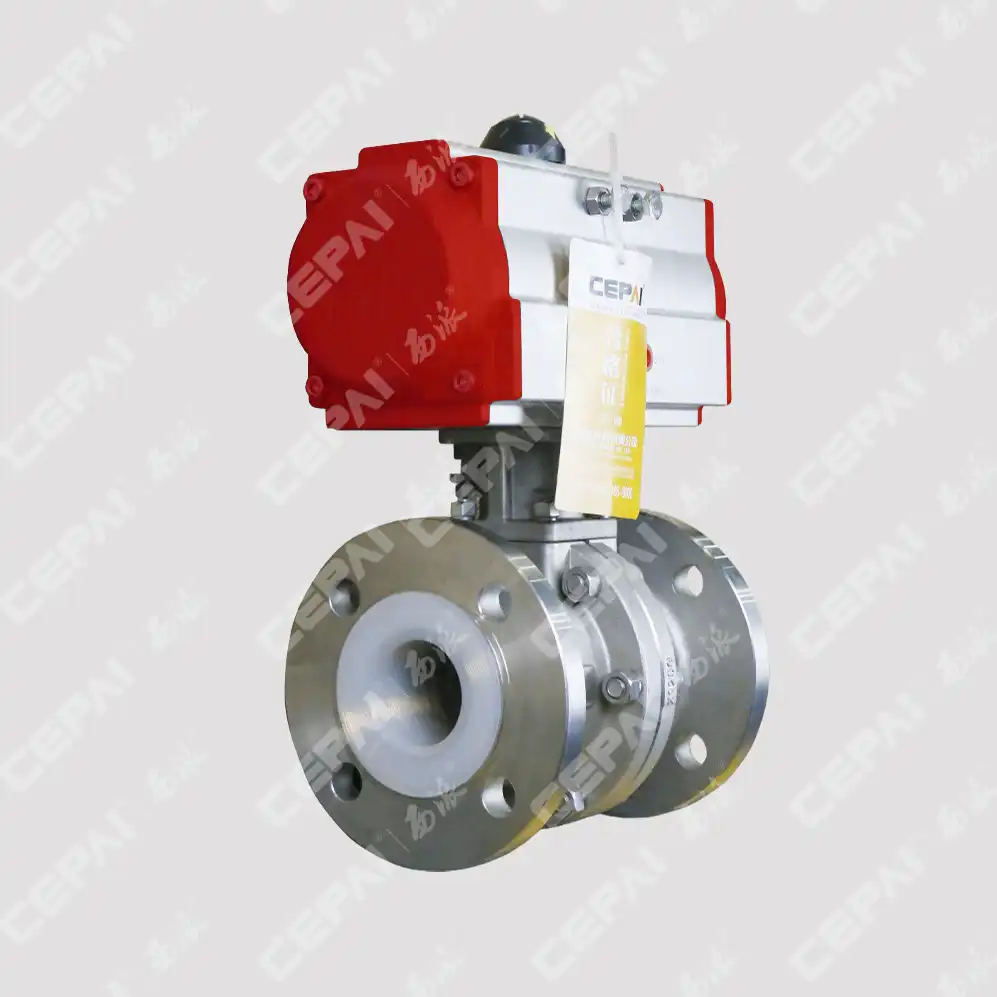

The pneumatic actuator system is a critical component that enables remote operation of ball valves. Leakage in the air supply system can lead to reduced actuator force, inconsistent valve positioning, and increased compressed air consumption. Common sources of air leakage include damaged O-rings, worn solenoid valves, cracked air lines, loose fittings, and deteriorated diaphragms within the actuator itself. To troubleshoot air leakage, first perform a simple soap bubble test by applying soapy water to suspected leak points while the system is pressurized. Bubbling indicates leak locations that require attention. For connection points, ensure proper thread engagement and consider applying appropriate thread sealant. Damaged O-rings and seals should be replaced with components meeting original specifications. When addressing leaks in the actuator itself, follow manufacturer guidelines for disassembly and ensure all components are thoroughly cleaned before installing new seals. It's also advisable to implement a regular inspection schedule for the entire pneumatic system, including filters, regulators, and lubricators that support proper actuator function. CEPAI's pneumatic ball valve actuators undergo rigorous testing to ensure exceptional sealing capabilities and durability, even under demanding cycling conditions, providing reliable performance in mission-critical applications.

Actuator Performance and Control Problems

Actuation issues can significantly impact the reliability and effectiveness of pneumatic ball valves. These problems can manifest in various ways, from complete failure to actuate to inconsistent or sluggish operation. Understanding the root causes and implementing appropriate solutions can restore proper valve function.

Incomplete Valve Stroke or Failure to Actuate

One of the most challenging operational issues involves pneumatic ball valves that fail to complete their full open-to-close stroke or don't actuate at all. This problem can halt production lines, compromise safety systems, and cause significant process disruptions. Common causes include insufficient air supply pressure, mechanical obstructions, damaged actuator components, overtightened packing, or increased valve torque requirements due to process conditions. When troubleshooting incomplete actuation, start by verifying adequate air supply pressure at the actuator, not just at the compressor source. Pressure drop across filters, regulators, and supply lines can be substantial. The pneumatic ball valve actuator should receive air pressure meeting or exceeding the manufacturer's specified minimum. If pressure is adequate, check for physical obstructions in the valve body that might prevent full ball rotation. This can include process media buildup, crystallized substances, or foreign objects. For high-viscosity applications, verify the valve size and actuator are properly matched, as undersized actuators may lack sufficient torque. If mechanical issues are suspected, inspect the actuator-to-valve coupling for proper alignment and engagement. Misalignment or coupling failure can prevent torque transmission from the actuator to the valve stem. CEPAI's engineering team specializes in properly sizing pneumatic ball valve actuators for specific applications, ensuring reliable operation even under challenging process conditions.

Erratic Movement and Position Control

Erratic or unpredictable pneumatic ball valve movement can cause significant process control issues, especially in applications requiring precise flow regulation. This problem often manifests as hunting (continuous small movements around a set point), stick-slip motion (jerky movement rather than smooth operation), or inconsistent response to control signals. These issues typically stem from friction problems, positioner calibration errors, air supply fluctuations, or valve sizing mismatches. To address erratic movement, first examine the valve's friction characteristics. Excessive friction can result from over-tightened packing, contaminated stem lubricant, or misalignment between components. Applying appropriate stem lubricant compatible with the process media can significantly improve smooth operation. For pneumatic ball valves with positioners, verify proper calibration by comparing input signal to actual valve position throughout the entire range of operation. Recalibrate if necessary, following manufacturer procedures. Air supply stability is crucial for consistent valve operation – install pressure regulators to maintain consistent supply pressure and consider adding air volume boosters for large actuators that may experience pressure drops during operation. For applications requiring precise control, evaluate whether the selected pneumatic ball valve is appropriate for the flow characteristics needed. Some processes may benefit from characterized ball valves specifically designed for improved flow control. CEPAI offers advanced pneumatic ball valve positioners with diagnostic capabilities that can identify and address potential performance issues before they impact process control.

Excessive Pneumatic Air Consumption

Excessive compressed air consumption in pneumatic ball valve systems represents both an operational inefficiency and an unnecessary expense. Unaddressed air leaks, oversized actuators, and improper control configurations can all contribute to wasteful air usage while potentially compromising valve performance. In industrial settings, pneumatic energy can represent a significant operational cost, making optimization essential. To reduce air consumption, implement a systematic approach beginning with a comprehensive leak detection program using ultrasonic leak detectors that can identify even small leaks inaudible to the human ear. Once identified, repair all leakage points in tubing, fittings, and actuator seals. Evaluate actuator sizing to ensure it's appropriate for the application without excessive oversizing that wastes air. While safety factors are important, some systems are designed with actuators several times larger than necessary, resulting in needless air consumption. For modulating control applications, consider installing volume boosters that maintain actuator pressure while limiting continuous air consumption from the main supply. For pneumatic ball valves that maintain fixed positions for extended periods, pilot-operated solenoid valves that consume air only during transition can dramatically reduce consumption. CEPAI's pneumatic ball valve actuators are designed with optimal air efficiency, featuring precision-machined components and tight tolerances that minimize leakage pathways while maintaining reliable operation.

Maintenance Challenges and Preventive Solutions

Effective maintenance practices are essential for maximizing pneumatic ball valve reliability and longevity. By understanding common maintenance challenges and implementing preventive measures, facilities can significantly reduce downtime and repair costs while extending valve service life.

Corrosion and Material Degradation

Corrosion represents one of the most destructive forces affecting pneumatic ball valve performance and longevity. When corrosion attacks critical components such as the ball, stem, or seat materials, it can lead to leakage, increased operating torque, and eventually complete valve failure. The corrosion process may be accelerated by factors including improper material selection, coating failures, environmental exposure, galvanic interactions between dissimilar metals, and process media characteristics. To combat corrosion in pneumatic ball valve applications, proper material selection is paramount. Consider both internal process conditions and external environmental factors when specifying valve materials. For highly corrosive services, consider specialized alloys such as Hastelloy, Monel, or titanium, which offer superior resistance to specific corrosive agents. Protective coatings such as electroless nickel plating, PTFE, or specialized polymer coatings can provide additional defense against corrosive attack. Implement regular inspection protocols specifically focused on identifying early signs of corrosion, particularly around threaded connections, stem areas, and actuator mounting points. When corrosion is detected, determine whether it's surface-level damage that can be addressed through cleaning and reapplication of protective coatings, or whether component replacement is necessary. For pneumatic actuators operating in corrosive atmospheres, consider options with corrosion-resistant external hardware and protective coatings. CEPAI's pneumatic ball valve engineering team specializes in material selection for challenging applications, offering expertise in both traditional and advanced materials that maximize valve life even in the most aggressive environments.

Stem Packing and Seal Maintenance

Stem packing and seal integrity directly impact pneumatic ball valve performance, environmental compliance, and safety. Over time, these critical components can deteriorate due to mechanical wear, chemical attack, temperature fluctuations, or improper adjustment. When stem packing fails, it typically results in external leakage around the valve stem, which can range from a minor nuisance to a significant safety hazard depending on the process media. Proper maintenance of stem packing begins with correct installation and adjustment. Always follow manufacturer torque specifications when tightening packing gland nuts, as both under-tightening and over-tightening can cause problems. Implement a regular inspection schedule that includes checking for signs of leakage, packing extrusion, or evidence of packing deterioration. When replacing packing, ensure complete removal of old material and thorough cleaning of the stuffing box before installing new components. For challenging applications involving extreme temperatures or corrosive media, consider upgrading to advanced packing materials such as graphite-reinforced PTFE or engineered polymer compounds specifically designed for harsh conditions. In high-cycle pneumatic ball valve applications, live-loading devices that maintain consistent packing compression despite wear can significantly extend maintenance intervals. CEPAI's pneumatic ball valves feature advanced stem sealing systems designed for long-term reliability, incorporating multiple sealing barriers and high-performance materials that minimize maintenance requirements while ensuring environmental integrity.

Actuator Maintenance and Adjustment

Proper maintenance of pneumatic actuators is essential for ensuring reliable valve operation. These precision-engineered devices require regular attention to maintain peak performance, particularly in demanding applications with frequent cycling or exposure to challenging environmental conditions. Common maintenance challenges include corrosion of internal components, seal deterioration, lubrication breakdown, and alignment issues between the actuator and valve. To maintain optimal actuator performance, establish a comprehensive preventive maintenance program that includes regular visual inspections, lubrication according to manufacturer recommendations, and verification of proper stroke adjustment. For pneumatic components, implement proper air preparation including filtration, regulation, and appropriate lubrication to prevent contamination and ensure consistent operation. Regularly test limit switches and position indicators to confirm they accurately reflect actual valve position throughout the complete travel range. For pneumatic actuators equipped with spring return mechanisms, pay special attention to spring condition and functioning, as spring breakage can create dangerous conditions during maintenance. During routine inspections, verify proper alignment between the actuator and valve stem to prevent side-loading that can accelerate wear on both components. CEPAI's pneumatic ball valve actuators are designed for exceptional durability and low maintenance requirements, with features such as corrosion-resistant construction, optimized lubrication systems, and precision manufacturing that ensures long-term reliability even in demanding industrial environments.

Conclusion

Pneumatic ball valves are critical components in many industrial systems, and understanding how to identify, troubleshoot, and resolve common problems is essential for maintaining optimal performance. By implementing the preventive maintenance strategies and solutions outlined in this guide, you can significantly extend the service life of your valves while minimizing costly downtime. CEPAI Group's commitment to excellence in valve design, manufacturing, and quality control ensures our products deliver exceptional durability and precision control performance across diverse applications. Our comprehensive pre-sales technical consultation, customized solutions, and robust after-sales support guarantee your pneumatic ball valve systems operate at peak efficiency. For expert assistance with your specific valve requirements or challenges, contact our technical team at cepai@cepai.com. Let us help you achieve optimal fluid control performance with solutions backed by our industry-leading certifications and technological innovation.
