Common Ball Valve Failures and How to Quickly Fix Them

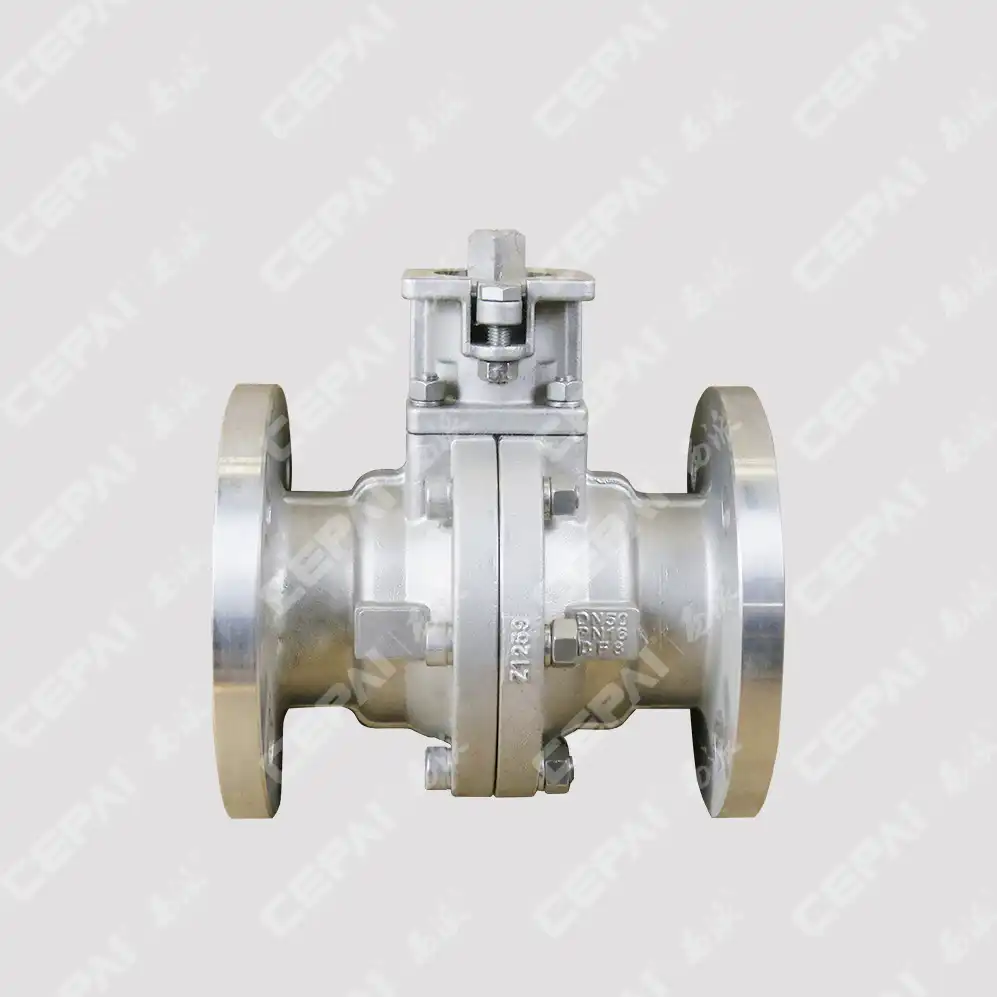

Ball valves are critical components in fluid control systems across industries, from petrochemical processing to power generation. Despite their robust design and reliability, these valves can experience various failures that impact operational efficiency and safety. Understanding common ball valve failures and knowing how to quickly address them can significantly reduce downtime, prevent cascading system issues, and extend the lifespan of your equipment. This comprehensive guide explores the most frequent ball valve problems and provides practical, actionable solutions to get your systems back online efficiently.

Identifying Ball Valve Leakage Issues

When ball valves fail to maintain a proper seal, the consequences can range from minor operational inefficiencies to major safety hazards and environmental concerns. Identifying the source and cause of leakage is essential for implementing effective repair strategies.

Internal Seat Leakage and Solutions

Internal seat leakage occurs when fluid passes through a closed ball valve, compromising the integrity of your system. This typically happens when the valve seat is damaged, worn, or contaminated, preventing proper contact with the ball. The most common causes include particle erosion, where abrasive media gradually wears down the soft seat material over time. Another factor is chemical attack, where aggressive media deteriorates the seat material, particularly in valves with PTFE or other polymer seats exposed to incompatible chemicals. Temperature cycling can also be problematic, especially when valves operate near the temperature limits of seat materials, causing expansion and contraction that eventually deforms the seating surfaces.

To address internal seat leakage, first depressurize and isolate the valve following proper lockout-tagout procedures. After safely removing the valve from the line, disassemble it according to the manufacturer's guidelines to inspect the seats. Look for signs of wear, scoring, chemical damage, or embedded particles. For minor damage, cleaning the ball and seats using appropriate solvents may restore sealing capability. More significant damage will require replacement of the seat components with identical materials specified by the manufacturer. When reinstalling, ensure proper alignment and apply the correct torque values to mounting hardware. For critical applications, consider upgrading to ball valves with harder seat materials like reinforced PTFE, PEEK, or metal seats designed for your specific service conditions.

Stem Leakage Prevention Techniques

Stem leakage presents a critical failure point in ball valves, allowing media to escape through the stem packing or seals. This type of leakage often results from packing compression loss over time due to thermal cycling and mechanical vibration that gradually loosens packing gland components. Wear on packing materials from repeated valve operation, particularly in quarter-turn valves with graphite or PTFE packing, eventually creates leak paths. Improper installation during maintenance, including incorrect packing installation sequence or inadequate compression, also contributes to this problem.

For addressing stem leakage, first attempt adjusting the packing gland nuts to restore compression, tightening them evenly in quarter-turn increments until leakage stops, being careful not to over-tighten which could increase operating torque or damage the stem. If adjustment fails to resolve the issue, a complete packing replacement becomes necessary. This involves carefully removing old packing without scratching the stem or housing surfaces, thoroughly cleaning the packing area, and installing new packing rings of the correct material and size. For valves in critical service, consider upgrading to live-loaded packing systems with Belleville washers that maintain consistent compression despite thermal cycling or vibration. Ball valves with double packing and a lantern ring configuration offer additional leak protection by allowing for leak detection between packing sets before complete failure occurs.

Body and End Connection Leaks

Body and end connection leaks typically develop at the joints between valve components or at connections to piping systems. These leaks often result from thermal cycling, where temperature fluctuations cause different expansion rates between valve body materials and gaskets, gradually creating leak paths. Improper installation torque represents another major factor, with under-torqued bolts allowing leakage under pressure and over-torqued connections potentially damaging gaskets or distorting flanges. Gasket degradation from chemical exposure or age-related deterioration also contributes to these leaks, as does mechanical vibration that gradually loosens bolted connections over time.

To address body and end connection leaks in ball valves, first ensure the system is safely depressurized before attempting repairs. For leaking body joints, systematically retighten body bolts in a cross-pattern sequence to the manufacturer's specified torque values, being careful to apply uniform compression. When retightening fails to resolve the issue, complete disassembly becomes necessary to replace body gaskets or seals. During this process, carefully inspect mating surfaces for damage, corrosion, or scoring that might prevent proper sealing. For flange connection leaks, verify proper gasket material compatibility with process media, and check for proper alignment before reinstalling with new gaskets. Consider implementing a regular preventive maintenance schedule for critical valves that includes periodic verification of connection torque values. In applications with significant thermal cycling, upgrading to spiral-wound gaskets or utilizing proper thermal compensation techniques during installation can significantly improve long-term sealing performance of ball valve systems.

Operational Failures and Mechanical Issues

Operational failures in ball valves can significantly impact system functionality, often manifesting as difficulty in operation or complete seizure, preventing proper flow control and potentially causing significant process disruptions.

Ball Valve Seizure Causes and Remedies

Ball valve seizure occurs when the valve becomes difficult or impossible to operate, severely impacting system control and safety. One common cause is corrosion between the ball and seats or between the stem and body, particularly in valves handling corrosive media or installed in harsh environments without proper material selection. Thermal expansion differences can also lead to seizure when temperature fluctuations cause the ball to expand at a different rate than the body, creating binding conditions. Inadequate lubrication of moving parts, especially in manual valves that require periodic maintenance, contributes to increased operating torque and eventual seizure. Additionally, prolonged periods in one position allow process media to solidify or crystallize between the ball and seats, effectively "freezing" the valve components together.

To address ball valve seizure, begin with external remedies by applying additional torque using appropriate leverage tools, being careful not to exceed the valve's design limits or damage the stem. For minor seizures, cycling the valve partially open and closed several times while applying lubrication to accessible parts may gradually free the mechanism. When external approaches fail, removing the valve for thorough cleaning and rebuilding becomes necessary. During rebuilding, carefully inspect all components for damage, particularly the ball surface and seats for signs of scoring, pitting, or material buildup. Apply appropriate lubricants compatible with both the valve materials and process media to all moving parts during reassembly. For valves prone to seizure, implement a regular exercising program where each valve is fully cycled on a scheduled basis to prevent immobilization. In critical applications, consider upgrading to ball valves with special coatings like chrome, nickel, or PTFE on the ball surface to reduce friction and prevent corrosion-related seizure.

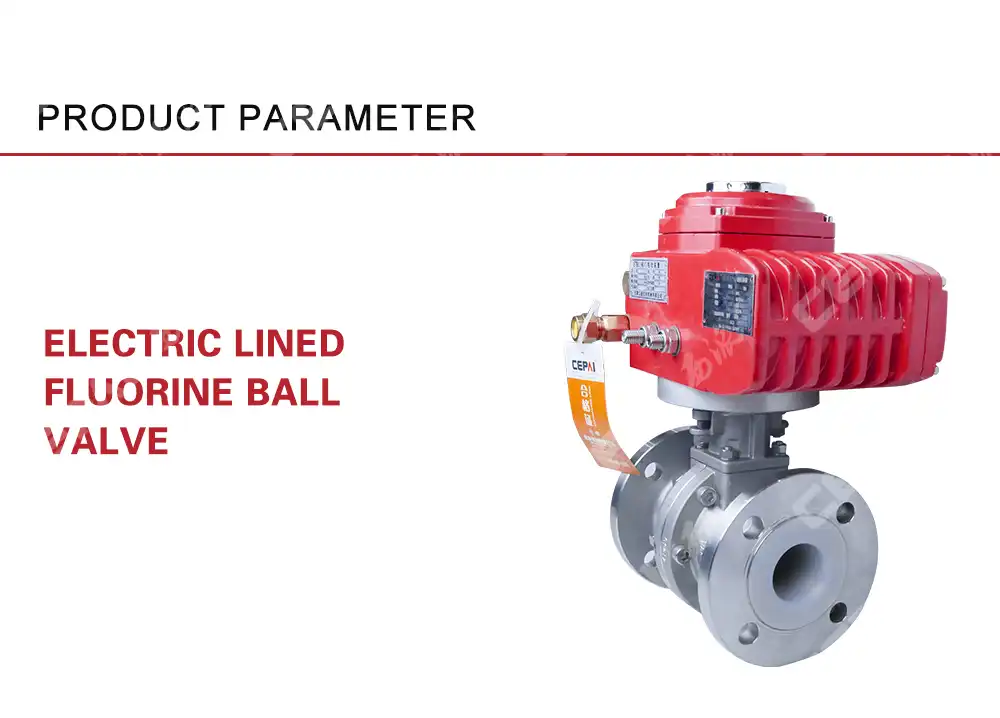

Actuator and Control System Failures

Automated ball valves rely on actuators and control systems to function properly, and failures in these components can render the entire valve assembly ineffective. Actuator sizing mismatches represent a significant issue, particularly when process conditions change over time and require more torque than the actuator can deliver. Pneumatic system problems including air supply contamination, pressure fluctuations, or leaking air lines often cause erratic actuator performance or complete failure. Similarly, electrical issues in solenoid valves, limit switches, or control circuits can prevent proper actuator function despite the mechanical integrity of the valve itself. Control signal problems, including calibration drift in positioners or improper signal conversion, can also result in incorrect valve positioning or response.

For troubleshooting actuator and control system failures in ball valves, start by verifying basic utilities – confirm proper air pressure for pneumatic actuators or voltage supply for electric actuators. For pneumatic systems, inspect air filters and regulators for contamination or pressure drops, and check for air leaks throughout the system. In electric actuators, verify proper current draw and check for thermal overload conditions that might trigger protective shutdowns. Test control signal integrity from the control system to the valve positioner or actuator, and verify proper calibration of positioners and limit switches. When actuator issues persist, consult the manufacturer's documentation for specific diagnostic procedures related to your actuator model. For complex automated ball valve assemblies, consider implementing preventive maintenance programs including regular calibration checks, lubrication of moving parts, and verification of feedback systems. In critical applications, installing backup air reservoirs for pneumatic actuators or uninterruptible power supplies for electric actuators can provide operational redundancy during utility failures.

Wear and Erosion Management

Ball valves exposed to harsh service conditions gradually experience wear and erosion that compromises performance and longevity. High-velocity applications with abrasive media cause accelerated erosion of the ball and seat surfaces, particularly when valves are operated in partially open positions that concentrate flow against specific areas. Cavitation damage occurs when pressure drops across the valve create vapor bubbles that implode against internal surfaces, causing material loss over time. Chemical attack on valve components, particularly in applications with corrosive media or improper material selection, accelerates deterioration of sealing surfaces and structural components. Additionally, improper valve sizing for the application can create flow conditions that accelerate wear through increased turbulence or velocity.

For effective wear and erosion management in ball valves, begin with proper application engineering, ensuring the valve size, pressure rating, and materials match the service conditions. Regular inspection programs help identify early signs of wear before catastrophic failure occurs. When inspecting, pay particular attention to the ball surface finish, seat integrity, and thickness measurements at critical components. For valves in erosive service, consider upgrading to hardened materials like stellite-coated or solid tungsten carbide balls that offer superior erosion resistance. In applications where erosion is unavoidable, implement strategic replacement programs based on predicted service life rather than waiting for failure. Position ball valves fully open during normal operation whenever possible to minimize erosive flow patterns against the ball and seats. For throttling applications, special characterized ball valves designed specifically for flow control provide better erosion resistance than standard designs. In severe service conditions, consider installing upstream filtration or strainers to remove particulates before they reach the valve, significantly extending service life of ball valve components exposed to potentially erosive media.

Advanced Troubleshooting and Maintenance Strategies

To ensure optimal performance and longevity of ball valves, implementing advanced troubleshooting techniques and comprehensive maintenance strategies is essential, particularly in critical applications where valve failure could have significant consequences.

Diagnostic Testing Procedures

Implementing proper diagnostic testing procedures allows for early detection of ball valve issues before they escalate into complete failures. In-line leak testing represents a crucial diagnostic approach, using pressure decay methods or bubble testing at connections to identify leakage without valve removal. Advanced facilities employ acoustic emission testing, where specialized sensors detect ultrasonic sound waves generated by fluid leaking through closed valves, providing early warning of internal leakage. Thermographic imaging proves valuable for identifying hot spots in steam or high-temperature applications that might indicate leakage or flow restriction within ball valves. For automated valves, diagnostic software packages analyze valve signature – the relationship between actuator movement and position feedback – to identify developing mechanical issues like increased friction or seat wear.

Effective diagnostic implementation begins with establishing baseline performance data when valves are known to be in good condition. Regular testing intervals should be established based on valve criticality, with more frequent diagnostics performed on valves in severe service or critical applications. When diagnostic tests indicate potential issues, correlate results with operational observations like unusual noise, vibration, or increased operating torque. Document all test results methodically to establish trend data that helps predict remaining service life and optimize maintenance scheduling. For facilities with numerous ball valves, consider implementing risk-based inspection programs that concentrate diagnostic resources on the most critical valves or those with historical reliability issues. When diagnostic results indicate declining performance, develop specific repair plans addressing the identified issues rather than performing generic maintenance. Modern ball valve designs increasingly incorporate built-in diagnostic ports or sensor connections that facilitate testing without disrupting operations or creating potential leak paths during the diagnostic process itself.

Preventive Maintenance Best Practices

Implementing comprehensive preventive maintenance programs significantly extends ball valve life and reduces unexpected failures. Regular valve exercising forms the foundation of effective preventive maintenance, involving cycling valves through their full range of motion to prevent seizure and distribute lubricant throughout moving parts. Lubrication protocols tailored to specific valve designs ensure proper function, with careful selection of lubricants compatible with both valve materials and process media. Systematic inspection schedules should be established based on service severity, including visual examination of accessible components for corrosion, damage, or leakage. Documentation practices ensure maintenance history is preserved, including detailed records of observed conditions, performed actions, and replacement parts used during each maintenance interval.

To implement these practices effectively, develop standardized preventive maintenance procedures for each valve type in your facility, ensuring consistency across maintenance personnel. Establish lubricant compatibility matrices for different service conditions and temperature ranges to prevent selection errors. Create maintenance schedules that balance operational requirements with manufacturer recommendations, being particularly attentive to high-cycle or critical service ball valves. Implement proper lockout-tagout procedures for all maintenance activities to ensure worker safety during valve inspection or service. Maintain a strategic spare parts inventory for critical ball valves, including seats, seals, packing materials, and specialty tools required for proper maintenance. Train maintenance personnel specifically on ball valve technology, including proper disassembly sequences, inspection techniques, and reassembly procedures for different valve designs. For facilities with limited resources, adopt reliability-centered maintenance approaches that focus preventive efforts on the most critical or problematic ball valves while implementing condition-based maintenance for less critical applications.

Upgrading and Retrofitting Options

When existing ball valves consistently experience problems despite proper maintenance, upgrading or retrofitting provides cost-effective alternatives to complete replacement. Material upgrades offer significant performance improvements, such as replacing standard PTFE seats with reinforced or filled PTFE for increased durability in challenging applications. Stem packing upgrades to live-loaded or fugitive emissions designs significantly improve leakage control, particularly in environmentally sensitive applications. Actuator retrofits allow adding automation to manual valves or replacing undersized actuators with properly sized units that deliver adequate torque throughout the valve's operating range. Modern control accessories including smart positioners, limit switches, or valve controllers enhance functionality of existing ball valve installations with minimal modifications.

Before implementing upgrades, conduct thorough engineering reviews considering process conditions, valve duty cycle, and failure history to identify the most beneficial modifications. Consult with valve manufacturers or specialized valve engineering firms to ensure compatibility between existing valves and proposed upgrades. When evaluating retrofit options, consider both immediate costs and long-term benefits including reduced maintenance, improved reliability, or enhanced process control. Prioritize retrofits for critical service ball valves where failures have significant safety, environmental, or production consequences. For facilities with numerous identical valves experiencing similar issues, develop standardized upgrade packages that can be efficiently implemented across multiple units. When evaluating automation retrofits, ensure utilities like instrument air or power supply have sufficient capacity to support the additional requirements. After implementing upgrades, monitor valve performance closely to verify the effectiveness of modifications and document improvements for future reference when similar applications require enhancement.

Conclusion

Maintaining optimal performance of ball valves requires vigilance, technical expertise, and proactive strategies. By understanding common failure modes and implementing the troubleshooting and maintenance techniques outlined in this guide, facility operators can significantly extend valve life and improve system reliability. Regular inspections, proper diagnostic testing, and timely interventions are essential for preventing costly downtime and ensuring operational excellence in fluid control systems.

At CEPAI Group, we bring over 14 years of expertise in high-performance fluid control solutions, backed by our state-of-the-art manufacturing facilities and rigorous quality management systems. Whether you need assistance with troubleshooting existing valve issues, custom engineered solutions, or technical consultation on proper valve selection, our team of experts is ready to support your operations. Experience the difference that exceptional durability, high-precision control performance, and comprehensive service guarantees can make in your fluid control systems. Contact us today at cepai@cepai.com to discover how our innovative ball valve technologies can enhance the reliability and efficiency of your operations.
