Choosing the Right 2 Inch Electric Ball Valve for Your System

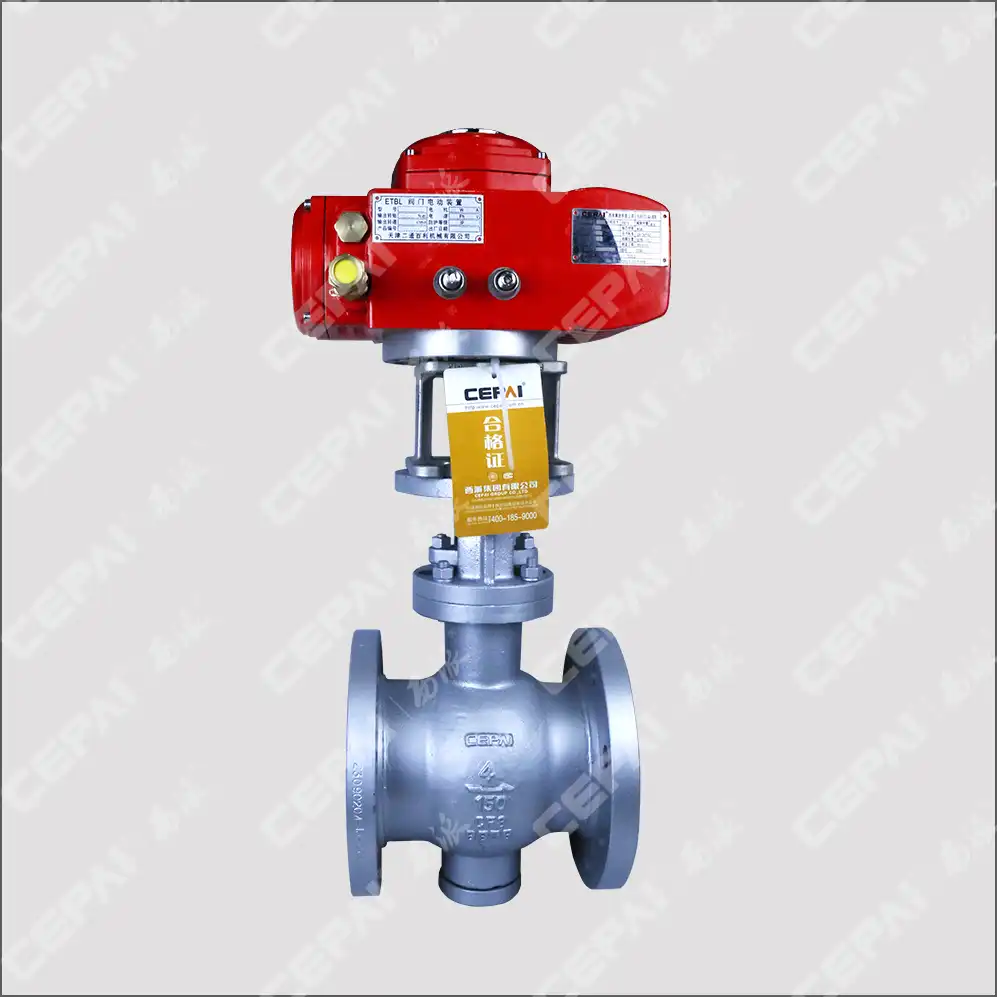

Selecting the appropriate 2-inch electric ball valve for your industrial system is a critical decision that directly impacts operational efficiency, safety, and long-term reliability. The complexity of modern industrial applications demands precise flow control solutions that can withstand harsh operating conditions while maintaining consistent performance. An Electric Ball Valve serves as the cornerstone of automated fluid control systems, offering superior sealing capabilities, rapid response times, and exceptional durability compared to manual alternatives. With numerous specifications, materials, and configurations available in the market, understanding the key selection criteria becomes essential for engineers and procurement professionals seeking optimal system performance and cost-effectiveness.

Understanding Electric Ball Valve Specifications and Performance Requirements

Pressure Rating and Temperature Considerations for Optimal Performance

When selecting a 2-inch Electric Ball Valve, pressure and temperature ratings represent fundamental parameters that determine operational safety and longevity. Industrial applications typically require valves capable of handling pressures ranging from 150 PSI to 6000 PSI, depending on the specific system requirements. The valve body material significantly influences pressure capabilities, with stainless steel, carbon steel, and exotic alloys offering different performance characteristics. Temperature considerations are equally critical, as thermal expansion and contraction affect sealing integrity and actuator performance. High-temperature applications exceeding 400°F demand specialized seat materials such as PTFE or metal-seated designs, while cryogenic applications require materials that maintain flexibility at sub-zero temperatures. The Electric Ball Valve must maintain consistent performance across the entire operating temperature range, ensuring reliable shut-off and modulating capabilities without compromising system integrity or safety protocols.

Flow Coefficient and Sizing Calculations for System Efficiency

Proper sizing of an Electric Ball Valve requires comprehensive understanding of flow coefficient (Cv) calculations and their relationship to system hydraulics. The Cv value represents the flow capacity through a fully open valve under specific pressure conditions, directly impacting system efficiency and energy consumption. For 2-inch applications, typical Cv values range from 30 to 120, depending on valve design and port configuration. Full-port valves offer maximum flow capacity with minimal pressure drop, while reduced-port designs provide higher velocities suitable for cleaning applications or precise flow control. System engineers must consider factors including fluid viscosity, specific gravity, and Reynolds number when calculating optimal valve sizing. Oversized Electric Ball Valve installations result in poor control resolution and increased energy costs, while undersized valves create excessive pressure drops and potential cavitation issues that can damage downstream equipment and compromise system performance.

Actuator Selection and Integration Requirements

The actuator represents the heart of any Electric Ball Valve system, converting electrical signals into mechanical rotation that controls valve position. Quarter-turn electric actuators designed for ball valve applications must provide sufficient torque to overcome stem friction, packing resistance, and differential pressure across the valve. Torque requirements typically range from 50 ft-lbs to 500 ft-lbs for 2-inch applications, depending on pressure class and seat design. Modern electric actuators offer advanced features including position feedback, torque monitoring, and fail-safe positioning capabilities essential for critical process applications. Integration considerations include power supply requirements (120V, 240V, or 480V), control signal compatibility (4-20mA, 0-10V, or digital protocols), and environmental protection ratings (IP65, IP67, or NEMA 4X). The Electric Ball Valve actuator must also provide adequate speed of operation, typically ranging from 15 to 90 seconds for full stroke, balancing system response requirements with mechanical stress considerations.

Material Selection and Construction Features for Industrial Applications

Valve Body and Trim Material Options for Corrosion Resistance

Material selection for Electric Ball Valve construction directly impacts service life, maintenance requirements, and total cost of ownership in industrial applications. Valve body materials must withstand process fluid chemistry, operating pressures, and environmental conditions while maintaining structural integrity over extended service periods. Carbon steel bodies with appropriate coatings provide cost-effective solutions for non-corrosive applications, while stainless steel grades (316, 316L, or duplex) offer superior corrosion resistance for chemical processing and marine environments. Exotic alloys including Hastelloy, Inconel, and titanium serve specialized applications involving highly corrosive media or extreme temperature conditions. The ball and seat materials require careful consideration, with options including stainless steel, chrome-plated carbon steel, and specialized coatings for enhanced wear resistance. Soft seat materials such as PTFE, PEEK, and elastomeric compounds provide bubble-tight sealing but have temperature and chemical compatibility limitations. Metal-seated Electric Ball Valve designs offer superior fire safety and high-temperature performance while maintaining acceptable leakage rates for most industrial applications.

Sealing Technology and Leakage Prevention Mechanisms

Advanced sealing technology in Electric Ball Valve designs ensures reliable shut-off performance while minimizing fugitive emissions and maintenance requirements. Primary sealing occurs at the ball-to-seat interface, where proper seat design and material selection create bubble-tight closure under rated pressure conditions. Spring-loaded seats maintain consistent contact pressure as the valve cycles, compensating for wear and thermal effects that could compromise sealing integrity. Secondary sealing systems including stem packing and body gaskets prevent external leakage and contamination ingress. Modern packing designs utilize graphite, PTFE, or live-loaded configurations that accommodate stem movement while maintaining zero-leakage performance. Advanced Electric Ball Valve designs incorporate fire-safe features including metal backup seats and blow-out proof stems that maintain containment integrity even under extreme fire conditions. Fugitive emission testing per API 641 ensures compliance with environmental regulations and workplace safety standards, particularly important in petrochemical and refining applications where volatile organic compounds present health and environmental risks.

Port Configuration and Flow Characteristics Analysis

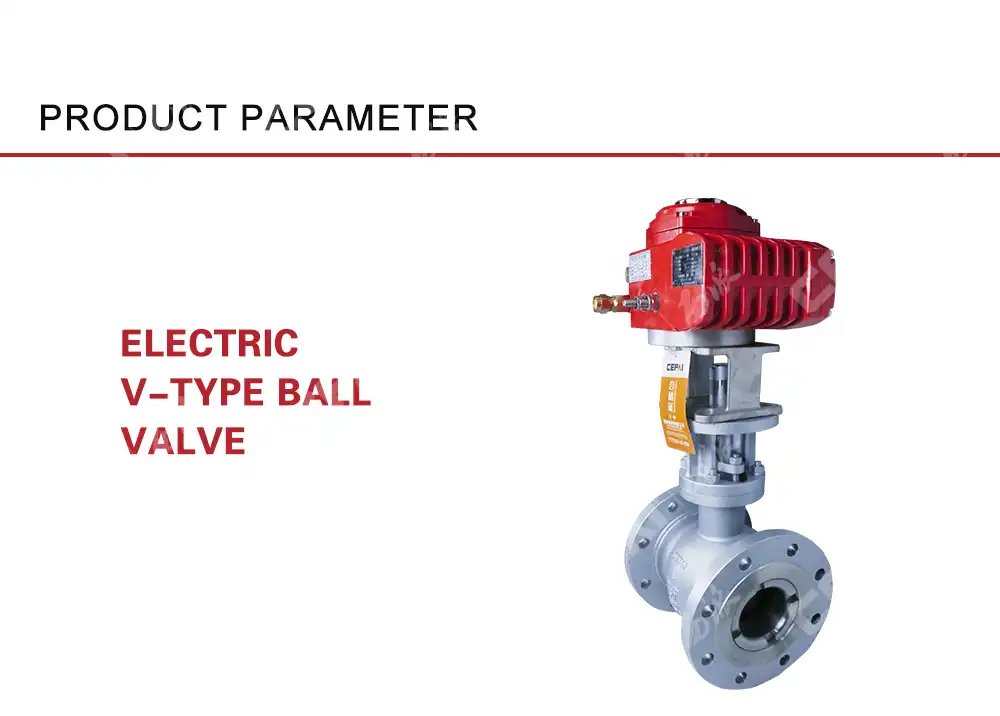

Port configuration significantly influences flow characteristics, pressure drop, and control performance of Electric Ball Valve installations. Full-port designs maintain the same internal diameter as the connected piping, minimizing pressure losses and turbulence while maximizing flow capacity. This configuration proves ideal for applications requiring minimal pressure drop or where pipeline cleaning operations necessitate unrestricted flow paths. Reduced-port valves feature smaller ball openings that increase fluid velocity and improve mixing characteristics but create higher pressure drops that must be considered in system hydraulic calculations. V-port and characterized ball designs provide precise flow control capabilities suitable for modulating applications where the Electric Ball Valve serves as both isolation and control device. The ball surface finish and port geometry influence cavitation potential, particularly important in high-pressure liquid applications where vapor bubble formation can cause damage and noise issues. Computational fluid dynamics analysis helps optimize port shapes for specific applications, reducing turbulence and improving flow coefficient predictions.

Installation, Maintenance, and Operational Considerations

Proper Installation Techniques and System Integration

Successful Electric Ball Valve installation requires careful attention to piping alignment, support structures, and electrical connections to ensure optimal performance and longevity. Pipe stress analysis must confirm that system loads do not exceed valve body ratings, particularly important for larger valves where thermal expansion and vibration can create significant forces. Proper valve orientation considers actuator accessibility, drainage requirements, and maintenance clearances while ensuring optimal seat loading under operating conditions. Flange bolt torque sequences and values must follow manufacturer specifications to prevent body distortion and gasket leakage. Electrical connections require appropriate conduit sizing, wire gauge selection, and grounding practices to ensure reliable signal transmission and safety compliance. Commissioning procedures include stroke testing, torque verification, and control system integration to confirm proper operation before system startup. The Electric Ball Valve installation should include isolation valves and bypass arrangements where appropriate to facilitate maintenance without system shutdown, particularly critical in continuous process applications where downtime costs are significant.

Preventive Maintenance Programs and Service Intervals

Comprehensive preventive maintenance programs maximize Electric Ball Valve service life while minimizing unexpected failures and associated downtime costs. Regular maintenance activities include actuator lubrication, electrical connection inspection, and performance verification testing to identify potential issues before they impact system operation. Cycle testing confirms consistent operation and identifies developing problems such as increased operating torque or position feedback errors. Stem packing adjustment and replacement based on emission monitoring results prevents fugitive losses while maintaining proper stem sealing. Actuator components including motors, gear trains, and position feedback devices require periodic inspection and calibration to ensure continued accuracy and reliability. The maintenance program should establish service intervals based on operating conditions, cycle frequency, and manufacturer recommendations, typically ranging from quarterly inspections for critical applications to annual service for less demanding installations. Documentation of maintenance activities, performance trends, and component replacement history provides valuable data for optimizing service intervals and predicting component life cycles. Training programs ensure maintenance personnel understand proper procedures and safety requirements specific to Electric Ball Valve systems.

​​​​​​​

Troubleshooting Common Issues and Performance Optimization

Effective troubleshooting of Electric Ball Valve systems requires systematic approaches to identify root causes and implement corrective actions that restore reliable operation. Common issues include excessive operating torque, position feedback errors, and internal leakage that can result from wear, contamination, or improper installation. Torque monitoring systems provide early warning of developing problems, allowing proactive maintenance before complete failure occurs. Electrical troubleshooting encompasses power supply verification, control signal analysis, and actuator motor testing to isolate component failures. Mechanical issues such as stem binding, seat wear, or ball surface damage require detailed inspection and may necessitate valve disassembly and component replacement. Performance optimization involves analyzing operating parameters against design specifications to identify opportunities for improved efficiency or extended service life. Control system tuning ensures optimal response characteristics while minimizing wear from excessive cycling or hunting behavior. The Electric Ball Valve system benefits from periodic performance assessments that evaluate flow capacity, leakage rates, and response times against baseline measurements to track degradation trends and optimize maintenance scheduling.

Conclusion

Selecting the optimal 2-inch Electric Ball Valve requires comprehensive evaluation of system requirements, operating conditions, and performance expectations to ensure reliable long-term operation. Success depends on matching valve specifications to application demands while considering factors including pressure ratings, material compatibility, actuator capabilities, and maintenance requirements. Proper installation, commissioning, and preventive maintenance programs maximize equipment value and minimize operational risks in critical industrial applications.

Ready to enhance your system's performance with industry-leading Electric Ball Valve solutions? CEPAI Group combines decades of engineering expertise with cutting-edge manufacturing capabilities to deliver valves that exceed expectations. Our ISO-certified quality management system, comprehensive testing protocols, and zero-defect commitment ensure exceptional reliability for your most demanding applications. From initial consultation through lifetime support, our technical team provides customized solutions backed by extensive certifications including API, CE, and SIL ratings. Experience the difference that precision engineering and dedicated service make in optimizing your operations.

Contact our valve specialists today at cepai@cepai.com to discuss your specific requirements and discover how CEPAI's advanced Electric Ball Valve technology can transform your system performance while reducing total cost of ownership.
