Best Features to Look for in a Compact V-shaped Electric Valve

When selecting industrial valve solutions for critical applications, understanding the essential features of a Compact V-shaped Electric Valve becomes paramount for operational success. These sophisticated control devices represent a convergence of precision engineering and advanced automation technology, designed to deliver superior flow control in demanding industrial environments. A Compact V-shaped Electric Valve combines the reliability of traditional ball valve technology with the precision of V-port design and the convenience of electric actuation, making it an indispensable component across petrochemical, oil and gas, power generation, and water treatment industries.

Advanced Design Features and Engineering Excellence

Precision V-Port Configuration Technology

The hallmark of any superior Compact V-shaped Electric Valve lies in its meticulously engineered V-port configuration, which fundamentally transforms how flow control is achieved in industrial applications. The V-shaped opening enables precise flow control by adjusting the valve core opening to effectively change the cross-sectional area of fluid flow, providing operators with unprecedented accuracy in throttling applications. This innovative design ensures that flow modulation occurs gradually and predictably, eliminating the sudden flow surges that can damage downstream equipment or disrupt process stability. The V-port geometry creates a shearing action on the flowing media, which proves particularly beneficial when handling viscous fluids or slurries that might otherwise cause conventional valves to stick or operate erratically. Moreover, the progressive opening characteristics of the V-shaped port allow for enhanced rangeability, typically achieving control ratios exceeding 100:1, which significantly surpasses traditional linear valve designs.

Robust Electric Actuation Systems

Modern Compact V-shaped Electric Valve systems incorporate sophisticated electric actuators that provide reliable, repeatable positioning with exceptional accuracy and torque capabilities. These actuators feature advanced motor technologies, including brushless DC motors and stepper motors, which deliver precise rotational control while minimizing maintenance requirements through reduced wear components. The integration of intelligent position feedback systems, such as potentiometers or encoders, ensures that valve positioning remains accurate within ±1% of the commanded position, even under varying load conditions. Additionally, contemporary electric actuators include built-in overload protection, thermal monitoring, and fail-safe positioning capabilities that automatically return the valve to a predetermined safe position during power failures or system malfunctions. The compact design of these actuators allows for installation in space-constrained environments while maintaining full functionality and providing local manual override capabilities for emergency operations.

Advanced Materials and Construction Standards

The construction quality of a Compact V-shaped Electric Valve directly impacts its longevity, reliability, and performance across diverse operating conditions. Premium valves utilize high-grade stainless steel alloys, such as 316L or duplex stainless steels, for body construction to ensure corrosion resistance and mechanical strength under extreme pressures and temperatures. The V-shaped ball and seat components employ specialized materials like hardened stainless steel, Stellite overlays, or engineered polymers depending on the specific application requirements and media characteristics. Critical sealing elements incorporate advanced elastomers or PTFE-based compounds that maintain their integrity across wide temperature ranges while providing bubble-tight shutoff capabilities. Furthermore, the valve trim components undergo precision machining and quality control processes that ensure dimensional accuracy and surface finish standards necessary for optimal sealing performance and extended service life.

Performance Characteristics and Operational Benefits

Superior Flow Control Capabilities

The operational excellence of a Compact V-shaped Electric Valve manifests through its exceptional flow control characteristics that address the most demanding industrial process requirements. The streamlined shape and full right-angle rotation control provide maximum flow volume with large flow capacity and minimal flow resistance, enabling these valves to handle substantial throughput while maintaining precise control authority. The V-port design creates a nearly linear flow characteristic, which simplifies control loop tuning and improves process stability by providing predictable response to control signals. This linear relationship between valve position and flow rate eliminates the need for complex characterization curves and reduces the likelihood of control system instability. Additionally, the inherent self-cleaning action of the V-shaped port helps prevent buildup of particulates or deposits that could compromise valve performance over time, making these valves particularly suitable for applications involving dirty or contaminated media.

Enhanced Durability and Reliability Features

The robust construction and intelligent design of modern Compact V-shaped Electric Valve systems deliver exceptional durability that translates into reduced maintenance costs and extended operational lifecycles. The V-port configuration distributes stress more evenly across the ball surface during operation, reducing localized wear patterns that can lead to premature failure in conventional ball valves. The electric actuation system eliminates the need for compressed air or hydraulic power, reducing system complexity and potential failure points while providing consistent performance regardless of ambient conditions. Advanced diagnostic capabilities integrated into the electric actuator continuously monitor valve position, motor current, and operating temperature, enabling predictive maintenance strategies that prevent unexpected failures. The sealed actuator housing protects critical electrical components from environmental contaminants, ensuring reliable operation in harsh industrial environments where dust, moisture, or corrosive atmospheres might compromise lesser designs.

Intelligent Automation and Integration Capabilities

Contemporary Compact V-shaped Electric Valve systems incorporate sophisticated communication protocols and smart features that seamlessly integrate with modern industrial automation infrastructure. These valves support multiple communication standards, including Modbus RTU, HART, Profibus, and Ethernet-based protocols, enabling direct integration with distributed control systems (DCS) and programmable logic controllers (PLCs). Advanced diagnostic algorithms continuously monitor valve performance parameters and provide early warning of potential issues through predictive analytics, allowing maintenance teams to schedule interventions before failures occur. The intelligent positioning systems can automatically compensate for seat wear and thermal expansion, maintaining accurate flow control throughout the valve's service life without manual recalibration. Remote configuration capabilities allow operators to modify control parameters, update firmware, and access comprehensive diagnostic data without requiring physical access to the valve location, significantly reducing maintenance costs and improving operational efficiency.

Technical Specifications and Application Considerations

Pressure and Temperature Performance Standards

The technical specifications of a premium Compact V-shaped Electric Valve reflect its ability to perform reliably across a broad spectrum of operating conditions encountered in modern industrial facilities. High-quality V-Ball valves demonstrate excellent manageability with capabilities to operate at temperatures up to 1000°F and pressures as high as 500PSI for liquids and 150PSI for steam applications, showcasing their versatility across different process media and operating conditions. The valve body design incorporates stress analysis and finite element modeling to ensure structural integrity under maximum rated conditions, while accounting for thermal expansion and pressure cycling effects that occur during normal operation. Temperature compensation features maintain sealing effectiveness across the entire operating range, preventing leakage that could compromise process efficiency or safety. The pressure rating certifications comply with international standards such as ANSI, API, and IEC, providing confidence in the valve's ability to meet stringent industrial requirements while maintaining long-term reliability.

Specialized Coating and Surface Treatment Technologies

The surface engineering of critical valve components significantly impacts performance, particularly in corrosive or abrasive service conditions commonly encountered in oil and gas operations. Advanced Compact V-shaped Electric Valve designs incorporate specialized coatings such as tungsten carbide, chromium oxide, or diamond-like carbon (DLC) films that provide exceptional wear resistance and reduce friction between moving components. These surface treatments extend component life by orders of magnitude compared to uncoated alternatives, particularly in applications involving abrasive media or frequent cycling operations. Anti-corrosion coatings protect exposed surfaces from chemical attack, while specialized lubricants and surface textures reduce operating torque requirements and improve positioning accuracy. The application of these advanced surface technologies requires precise process control and quality assurance measures that ensure coating adhesion, thickness uniformity, and long-term durability under operational stresses.

Precision Manufacturing and Quality Assurance

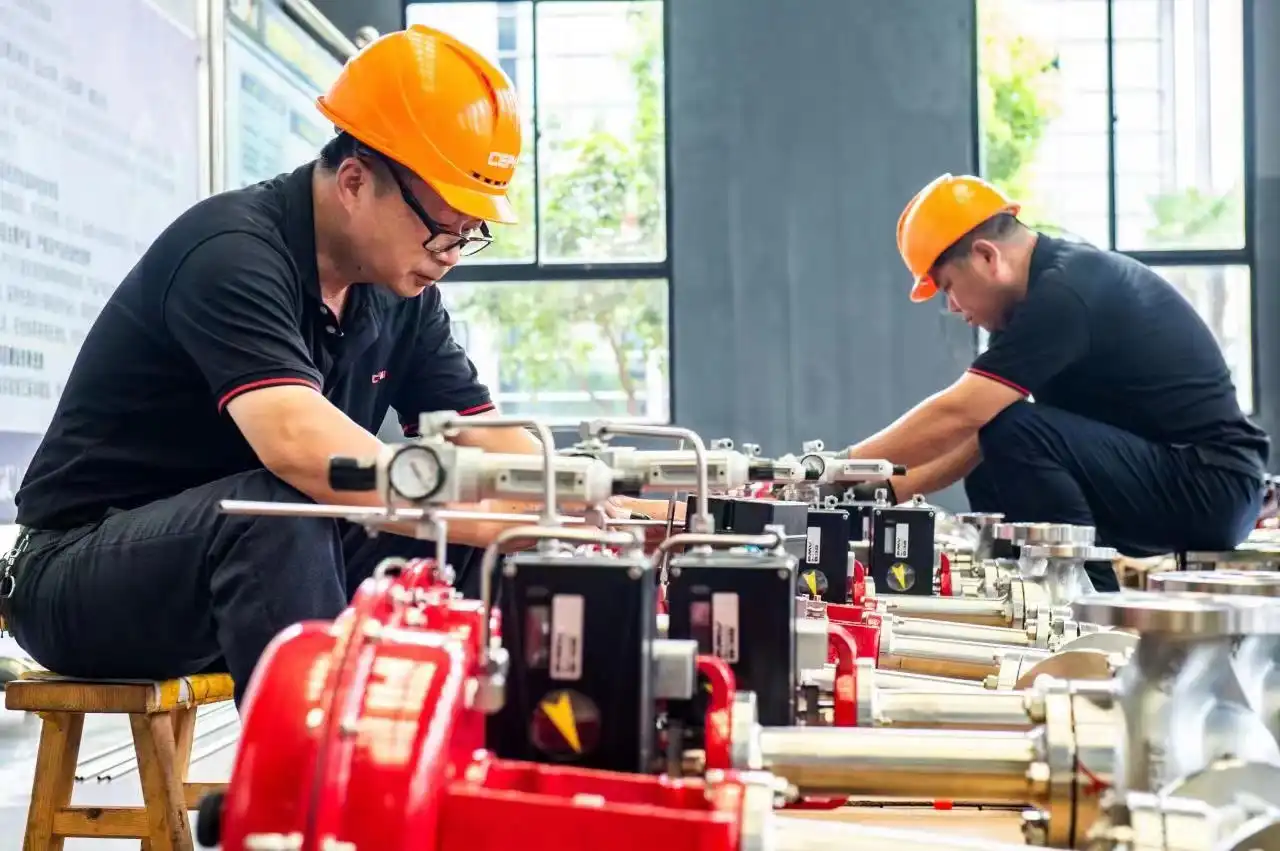

The manufacturing excellence behind a reliable Compact V-shaped Electric Valve encompasses sophisticated production techniques and rigorous quality control measures that ensure consistent performance across all units. Computer numerical control (CNC) machining centers produce valve components with dimensional tolerances measured in microns, ensuring proper fit and finish that contributes to optimal sealing performance and smooth operation. Automated assembly processes eliminate human error while maintaining consistent torque specifications and assembly sequences that affect long-term reliability. Comprehensive testing protocols verify pressure integrity, seat leakage rates, and actuator performance before shipment, with documentation traceability that supports quality management systems and regulatory compliance requirements. Advanced metallurgical testing confirms material properties and chemical composition, while non-destructive testing methods detect internal flaws that could compromise structural integrity during service.

Conclusion

Selecting the optimal Compact V-shaped Electric Valve requires careful consideration of design features, performance characteristics, and technical specifications that align with specific application requirements. The superior flow control capabilities, enhanced durability, and intelligent automation features of modern V-shaped electric valves make them essential components for achieving operational excellence in demanding industrial environments. These advanced valve solutions provide the precision, reliability, and efficiency necessary for optimizing process performance while reducing maintenance costs and improving safety standards.

As a leading China Compact V-shaped Electric Valve manufacturer, CEPAI Group Co., Ltd. stands at the forefront of valve technology innovation, combining decades of engineering expertise with state-of-the-art manufacturing capabilities. Our position as a trusted China Compact V-shaped Electric Valve supplier reflects our commitment to delivering world-class products that meet the stringent requirements of global energy and industrial markets. Whether you're seeking a reliable China Compact V-shaped Electric Valve factory partner or exploring Compact V-shaped Electric Valve for sale options, CEPAI's comprehensive product portfolio and competitive Compact V-shaped Electric Valve price structures ensure optimal value for your investment. As an established China Compact V-shaped Electric Valve wholesale provider, we offer customized solutions backed by our extensive research and development capabilities, comprehensive quality management systems, and dedicated technical support services. Contact us today at cepai@cepai.com to discover how our advanced valve technologies can enhance your operational performance and achieve your project objectives.
